As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

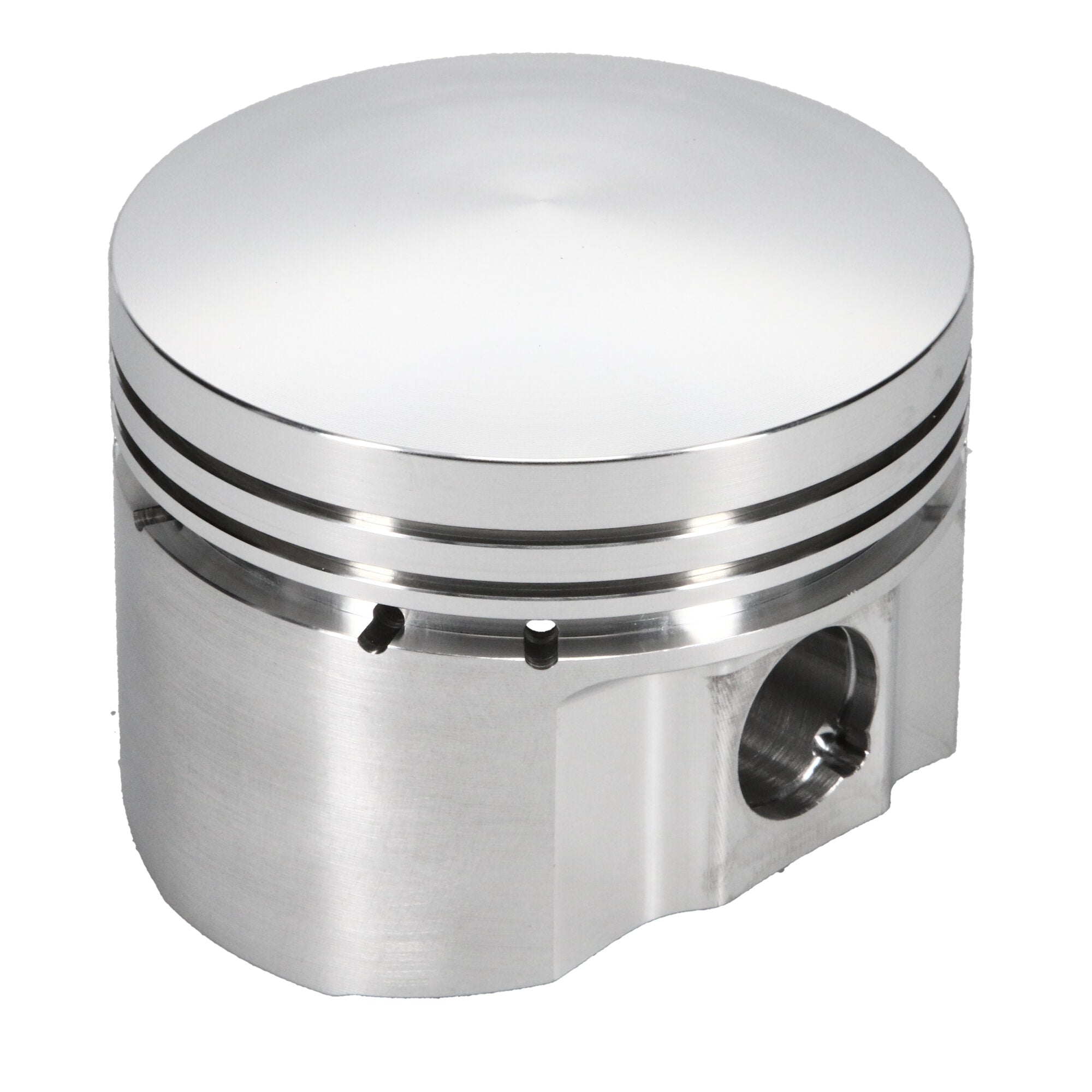

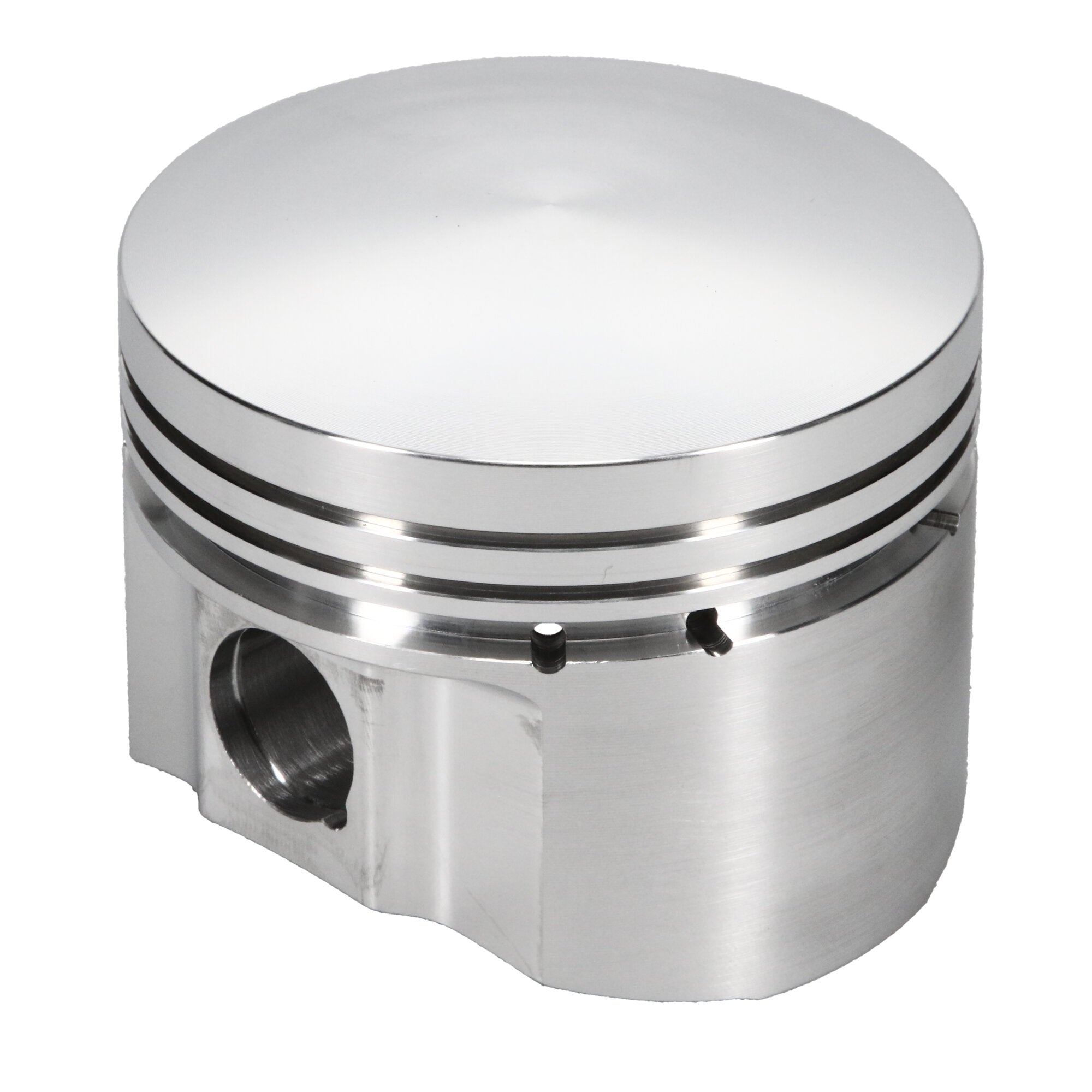

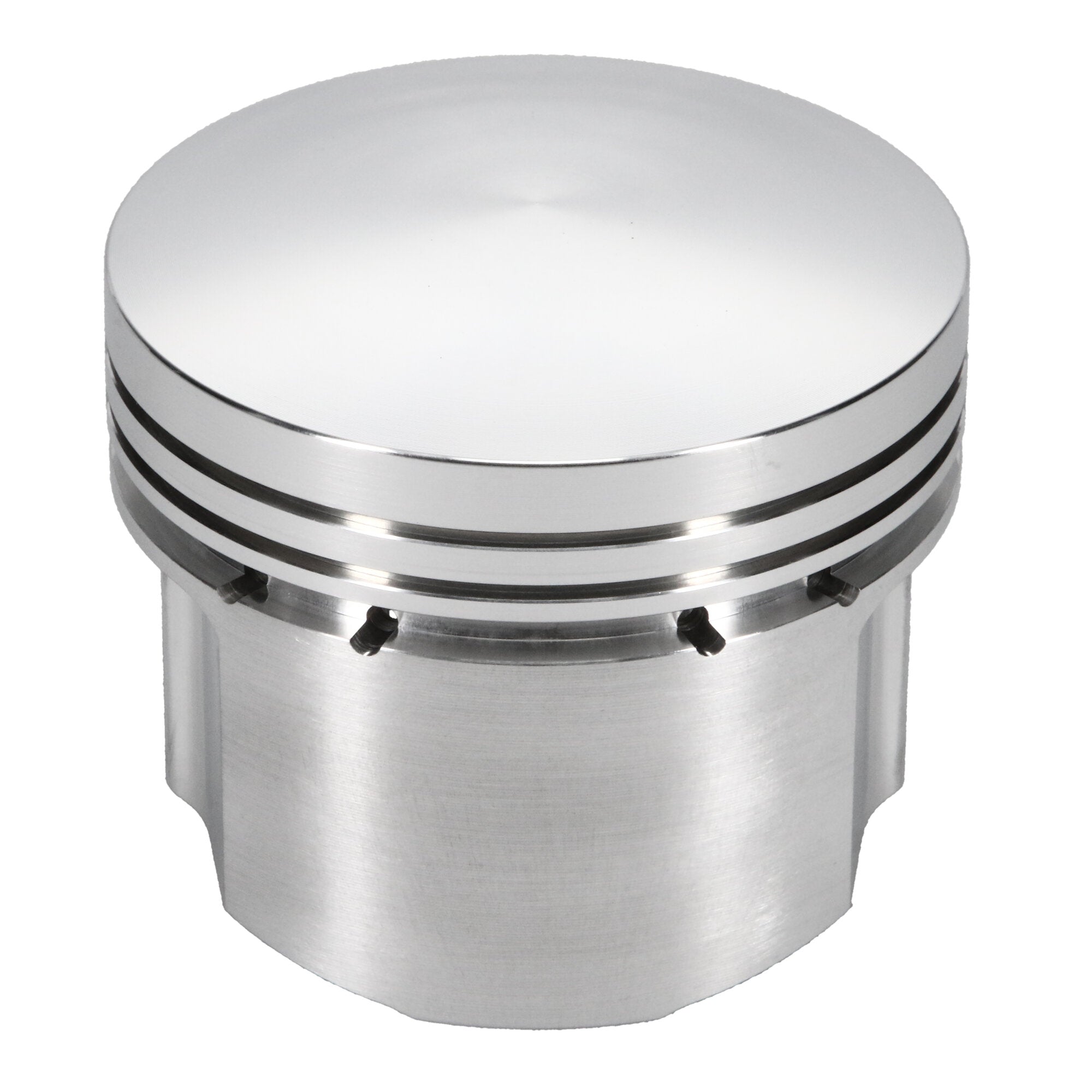

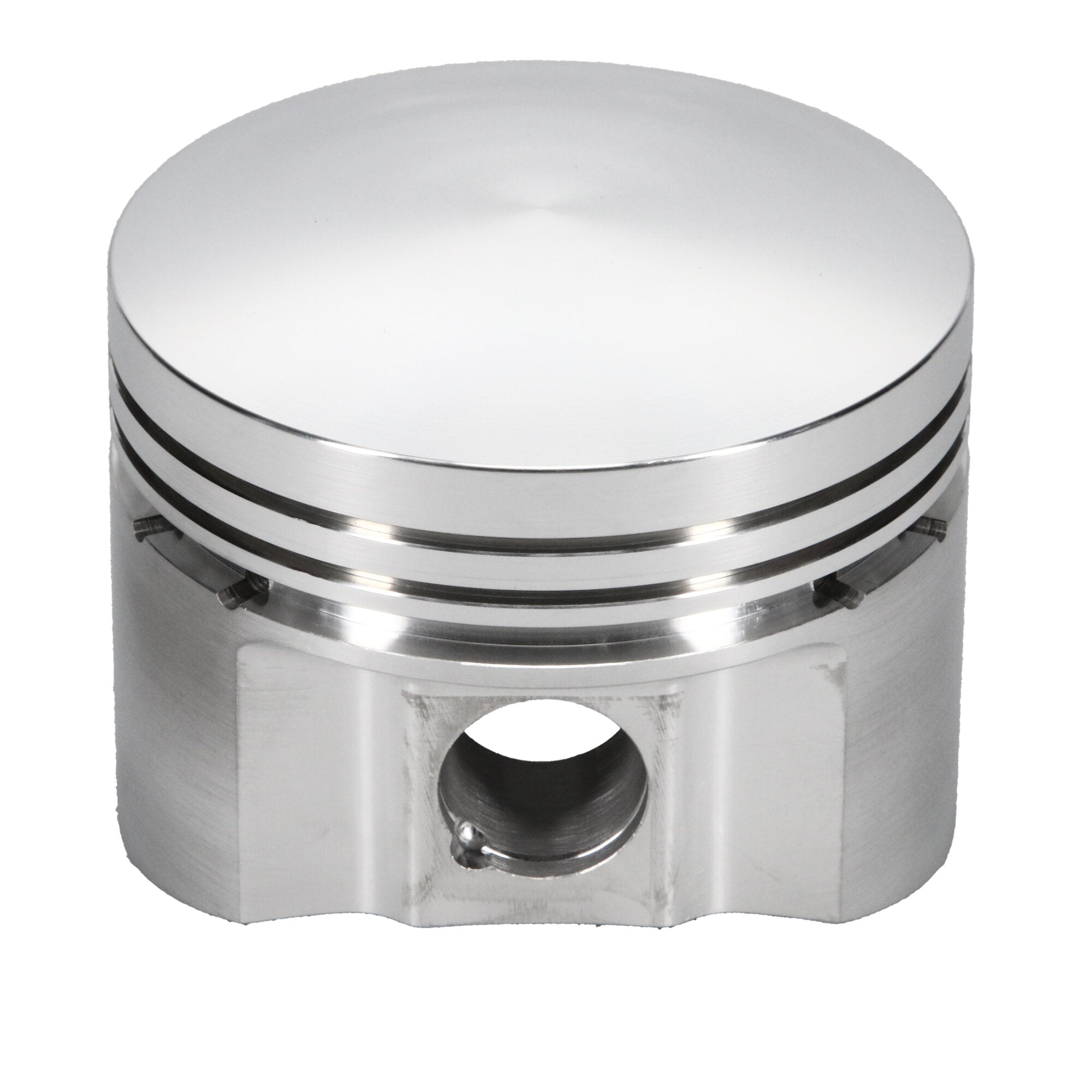

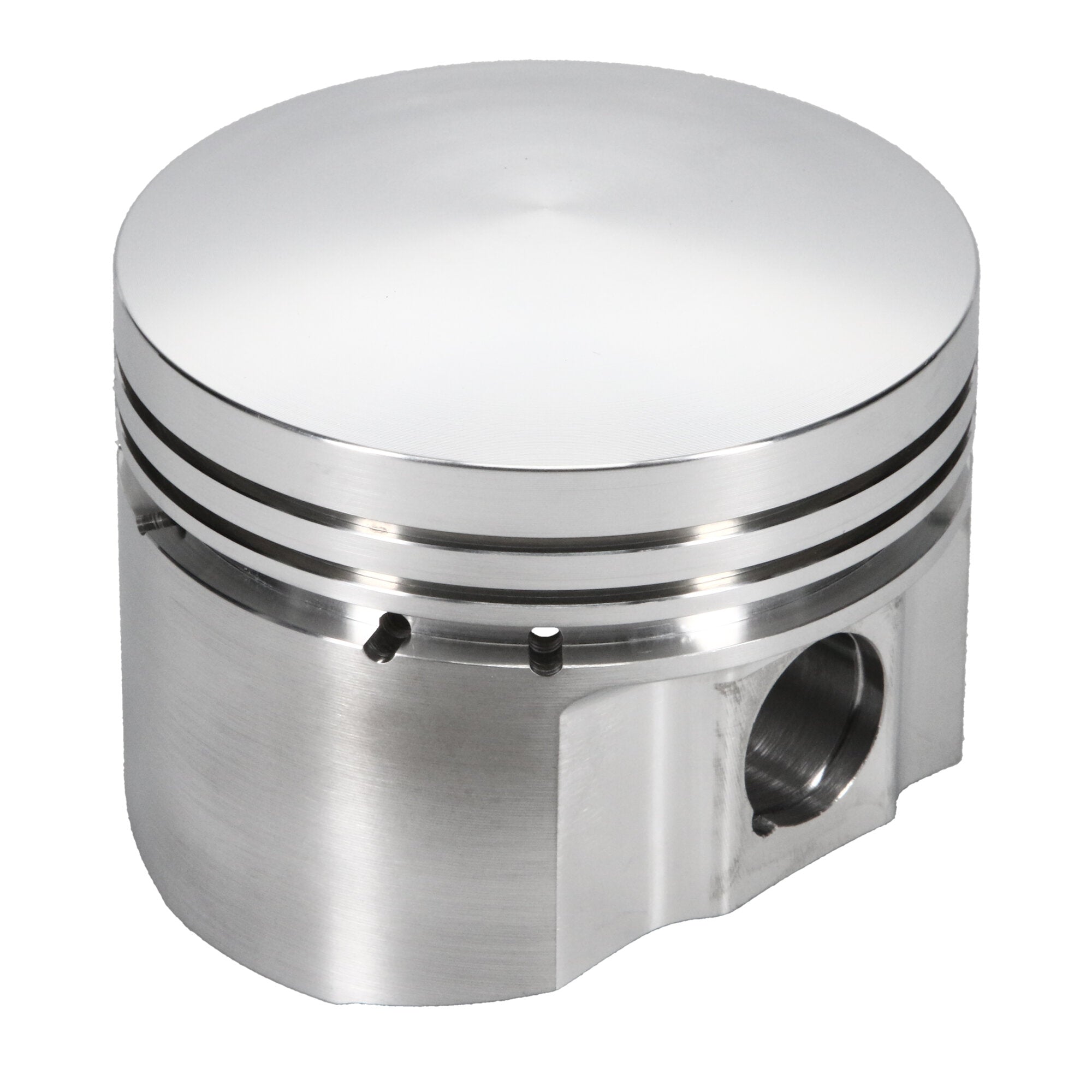

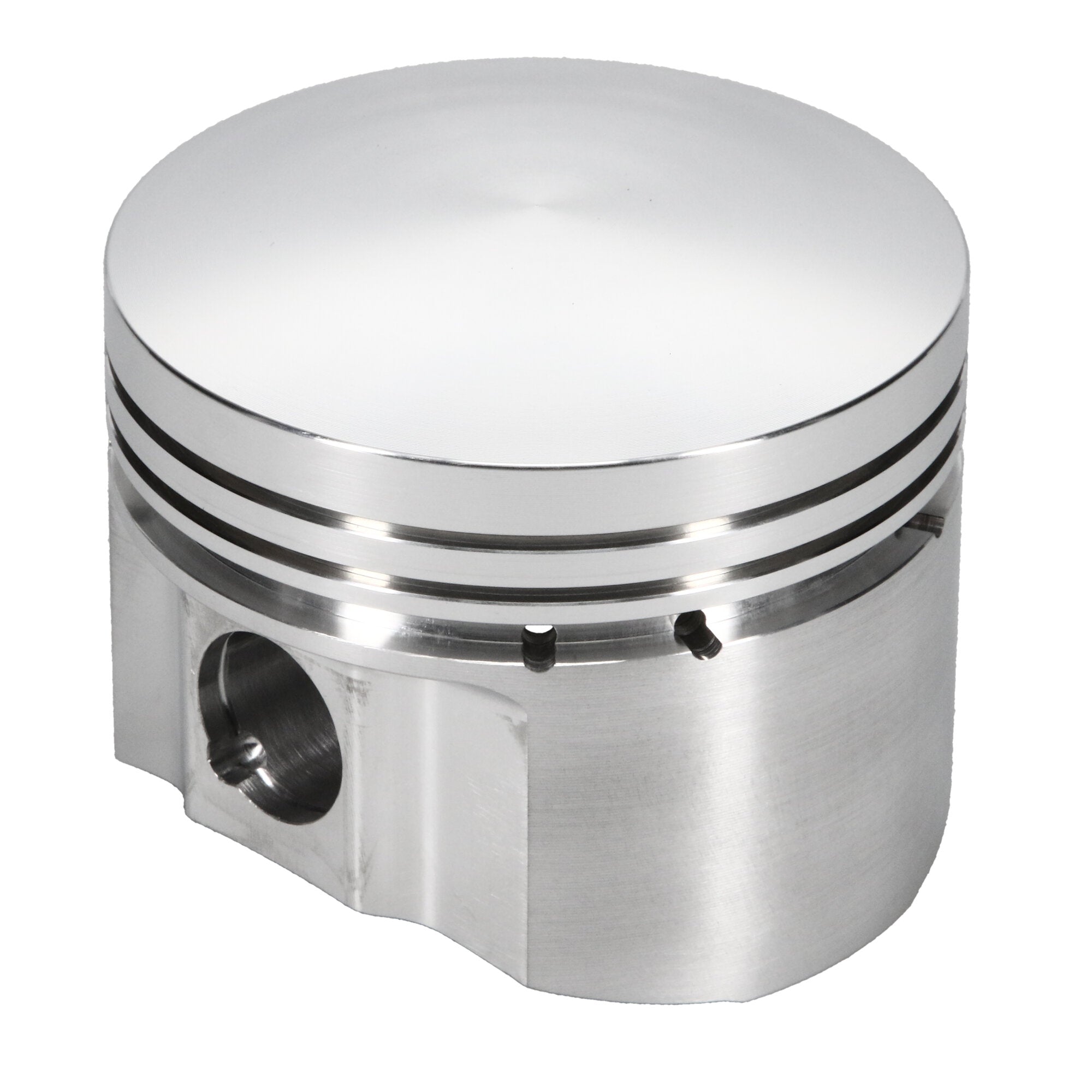

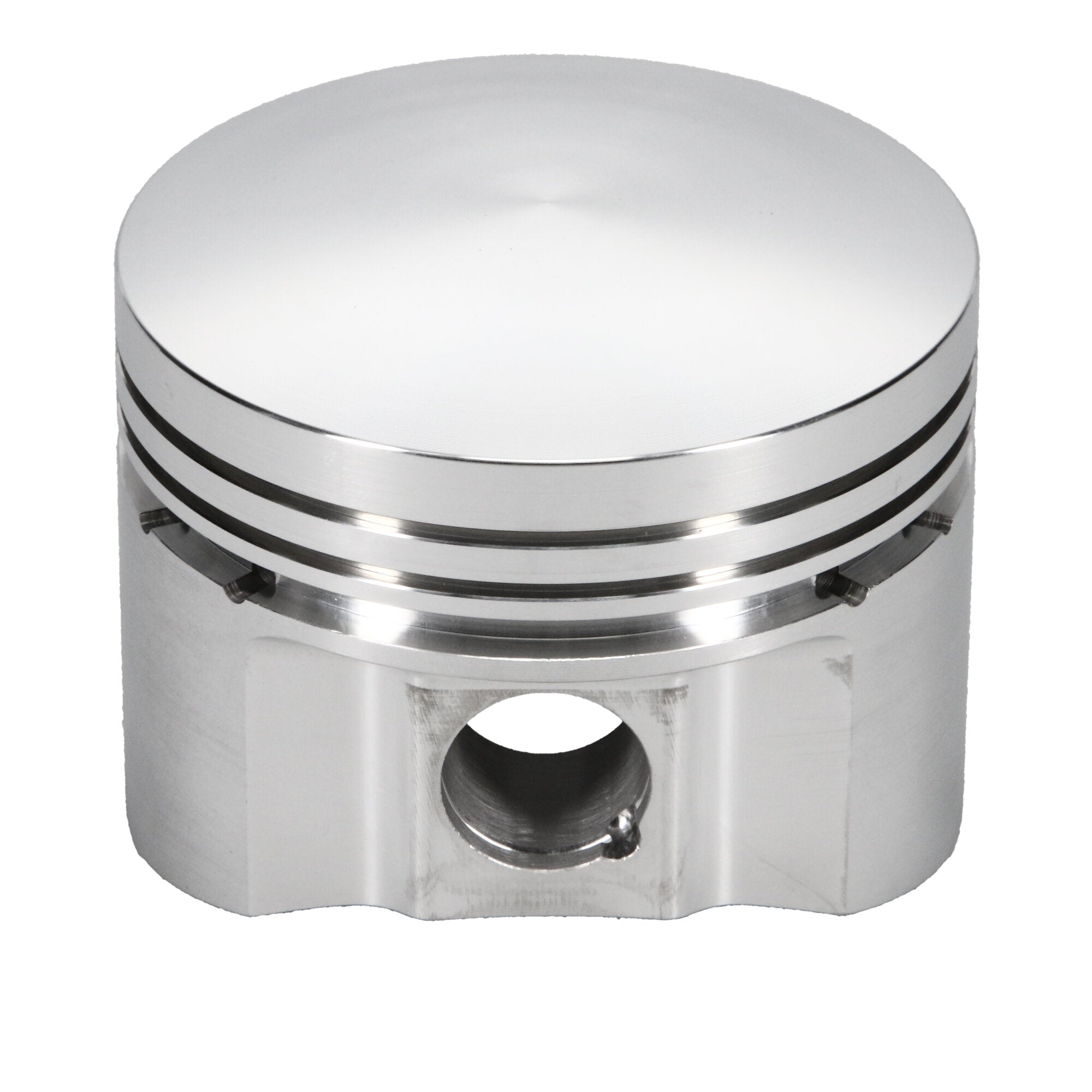

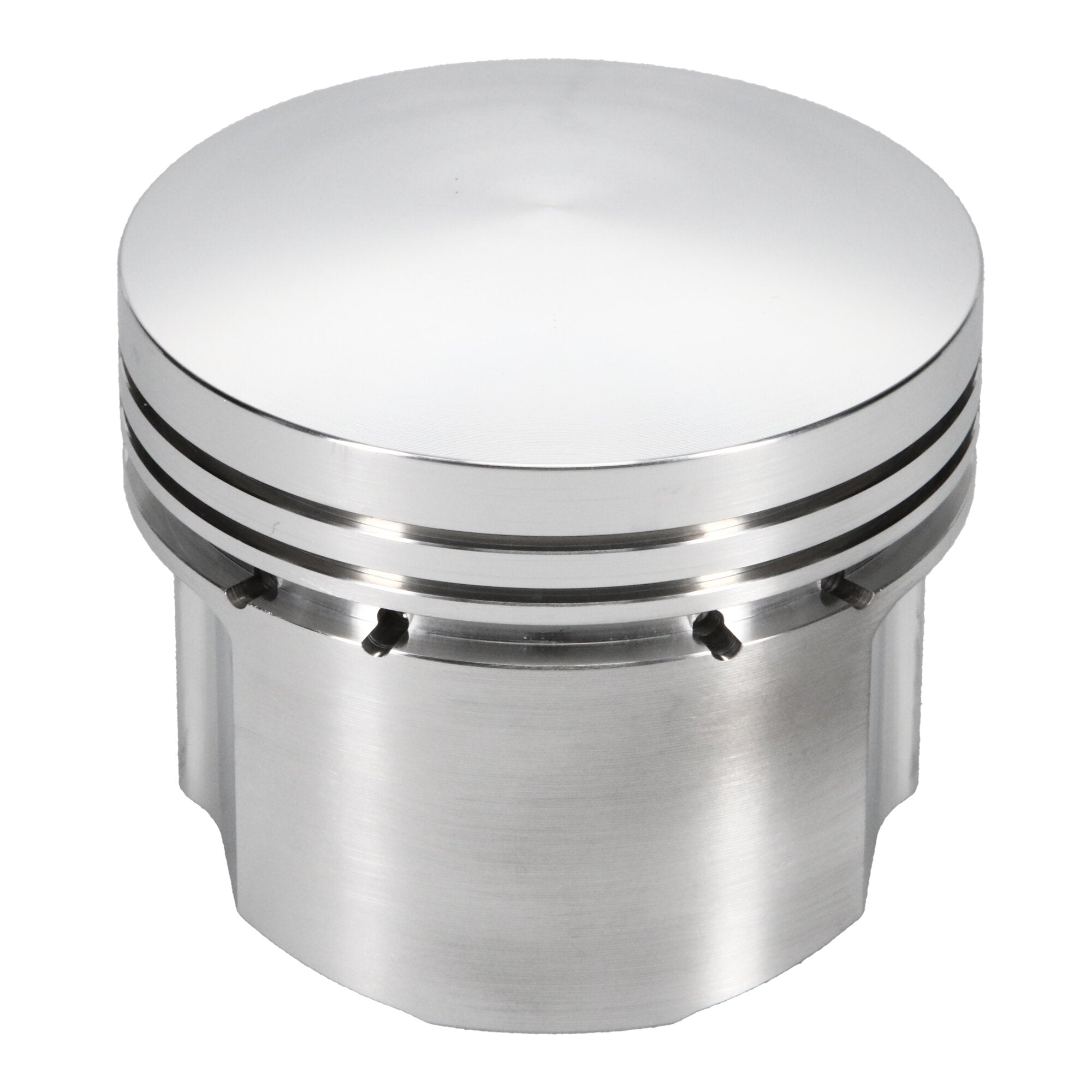

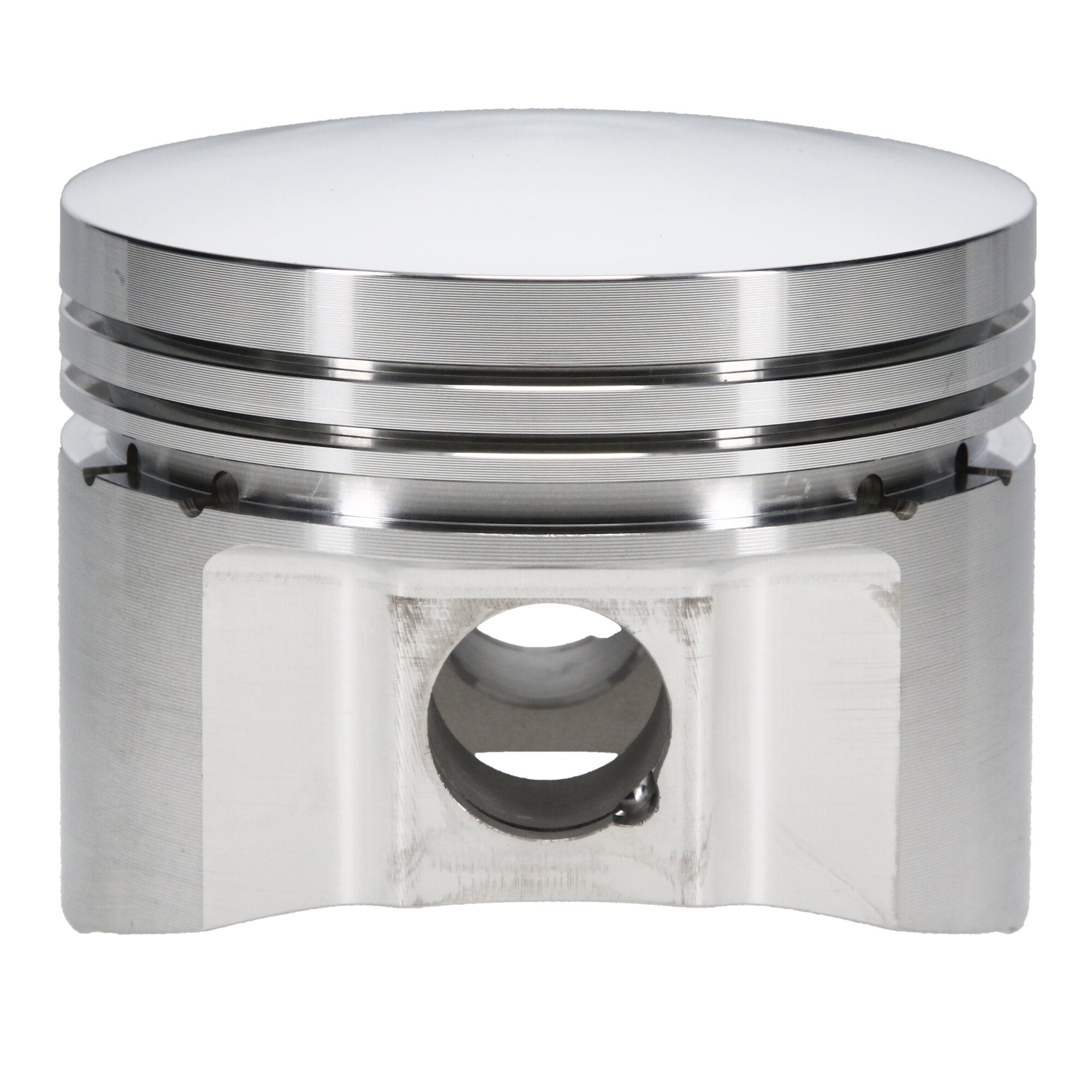

Piston Set, 4032, Dome, 3.342 Bore, 1.560 CD, 0.750 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_EXT |
JE, Ford, Flathead, 3.342 in. Bore, 1.561 CD, Dome, 8 Cyl. Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.342 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
FLATHEAD |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Ford |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.159 |
| Forging Type |
Round |
| Piston Pin Length |
2.500 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Bore Diameter |
3.342 |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.342 in. Bore - 1.561 in. CH, 0.00 CC |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.5950 |
| Piston Pin Wall Thickness |
0.140 |
| Add-On |
748-050-MW |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Outside Diameter |
0.750 |
| Industry |
Automotive |
| Piston Quantity |
8 |
| Add-On |
J641F8-3346 |
| Top Compression Ring Thickness |
0.5950 |
| Make |
FORD |
| Piston Material |
4032 |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Piston Volume |
0.00 |
| Title |
JE Pistons - Ford, Flathead, 3.342 in. Bore, Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
FLATHEAD |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.561 |
| Add-On |
750-2500-14-51C |
| Engine - Web |
Flathead |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.500 |
| Wrist Pin Outer Diameter |
0.750 |
| Wrist Pin Wall Thickness |
0.140 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
