As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DES |

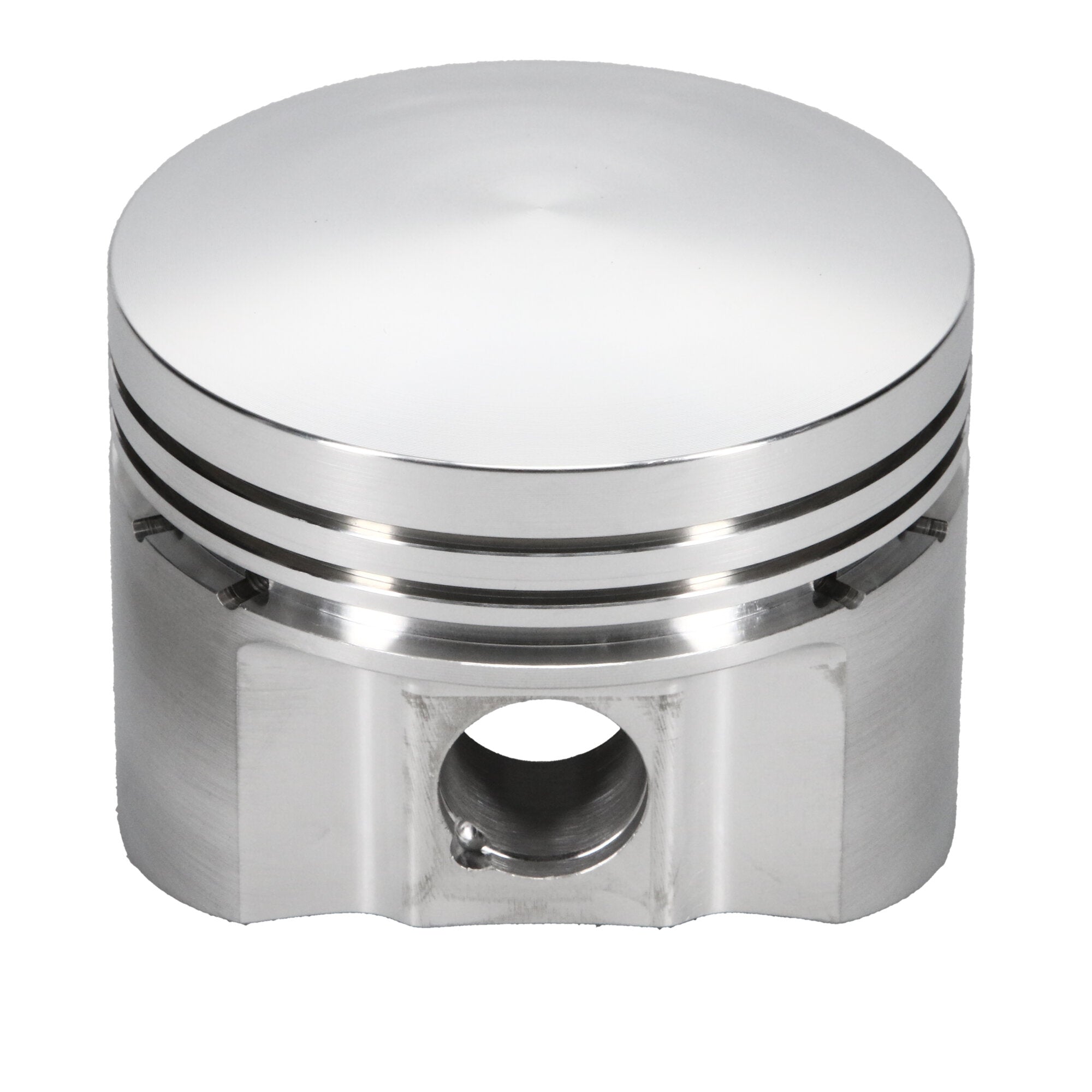

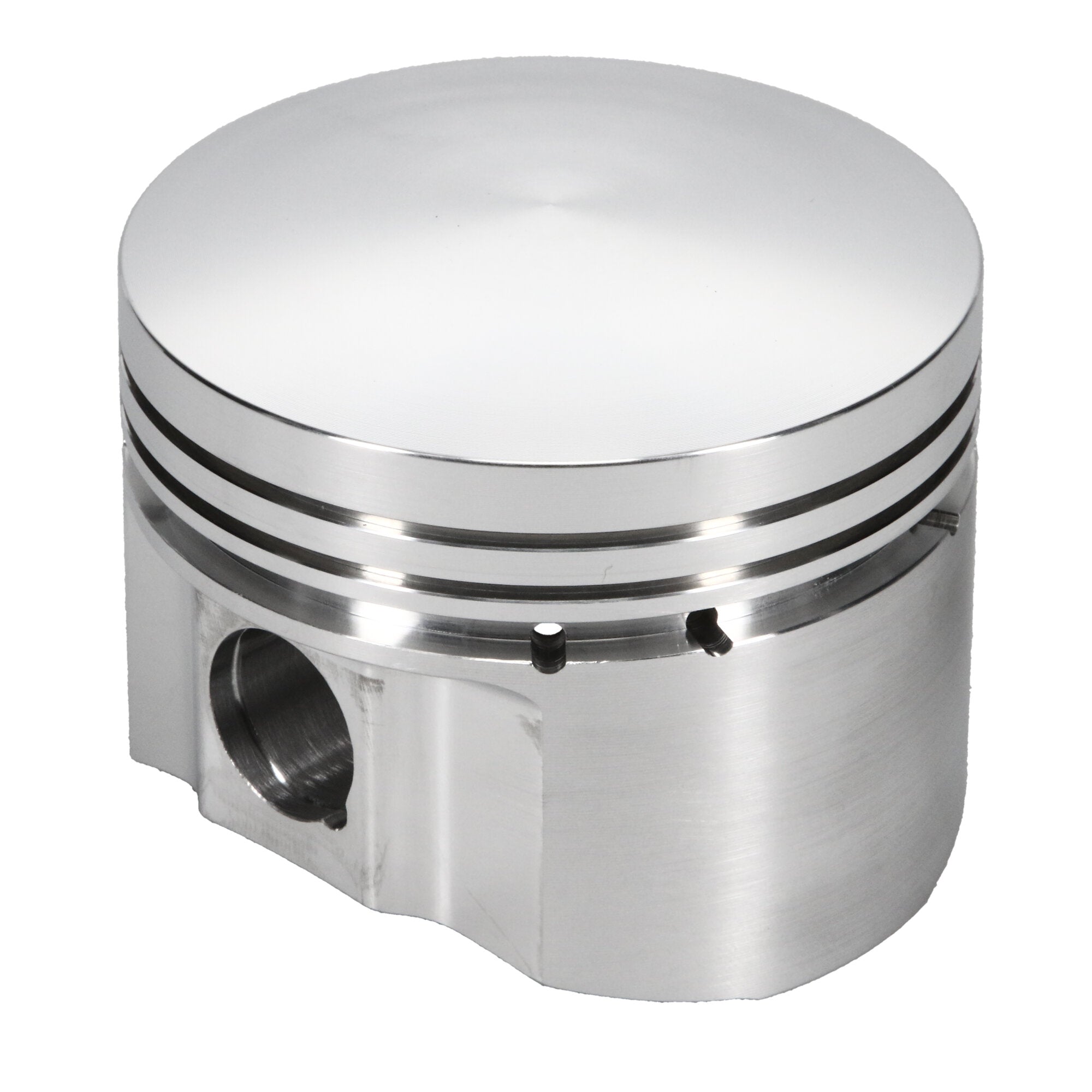

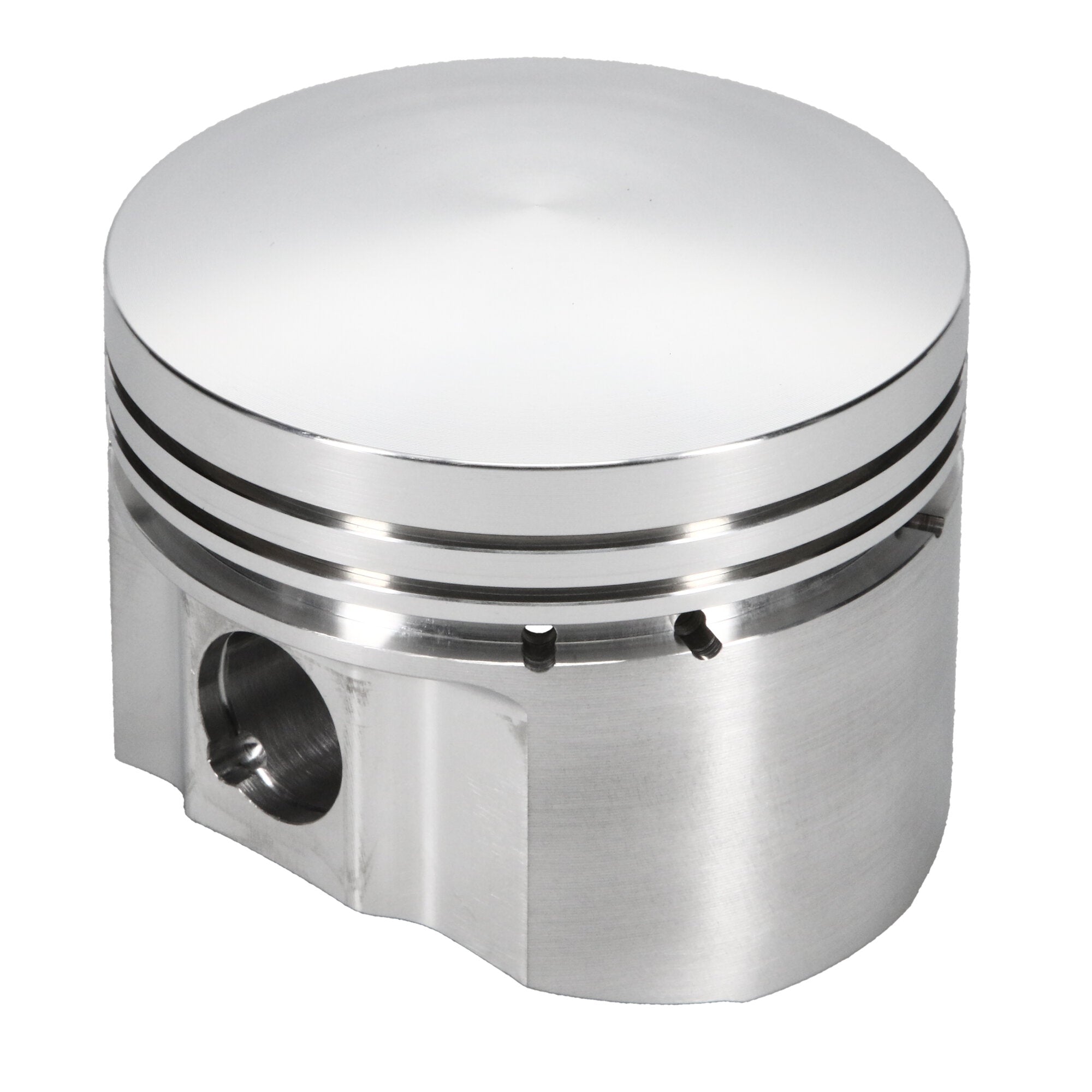

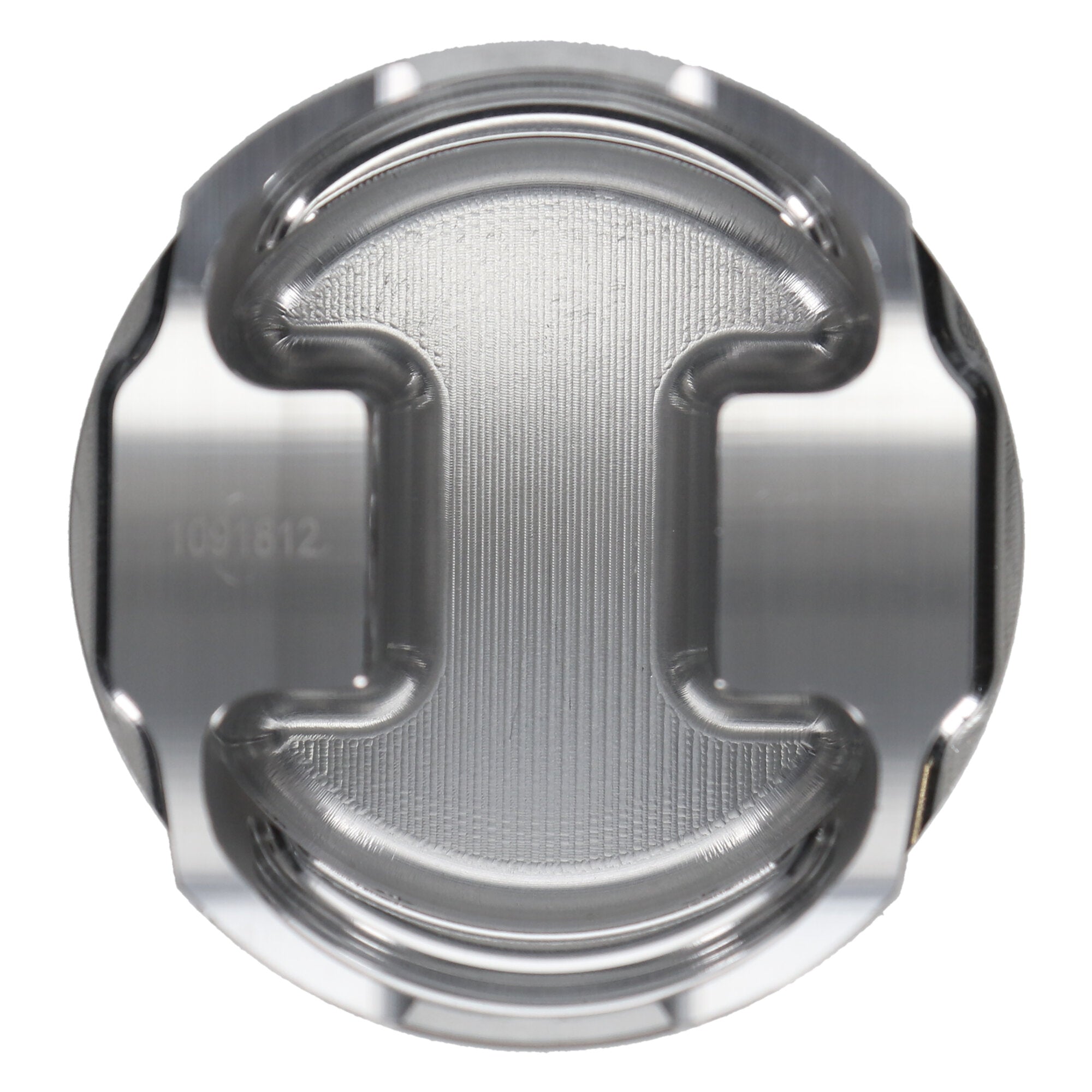

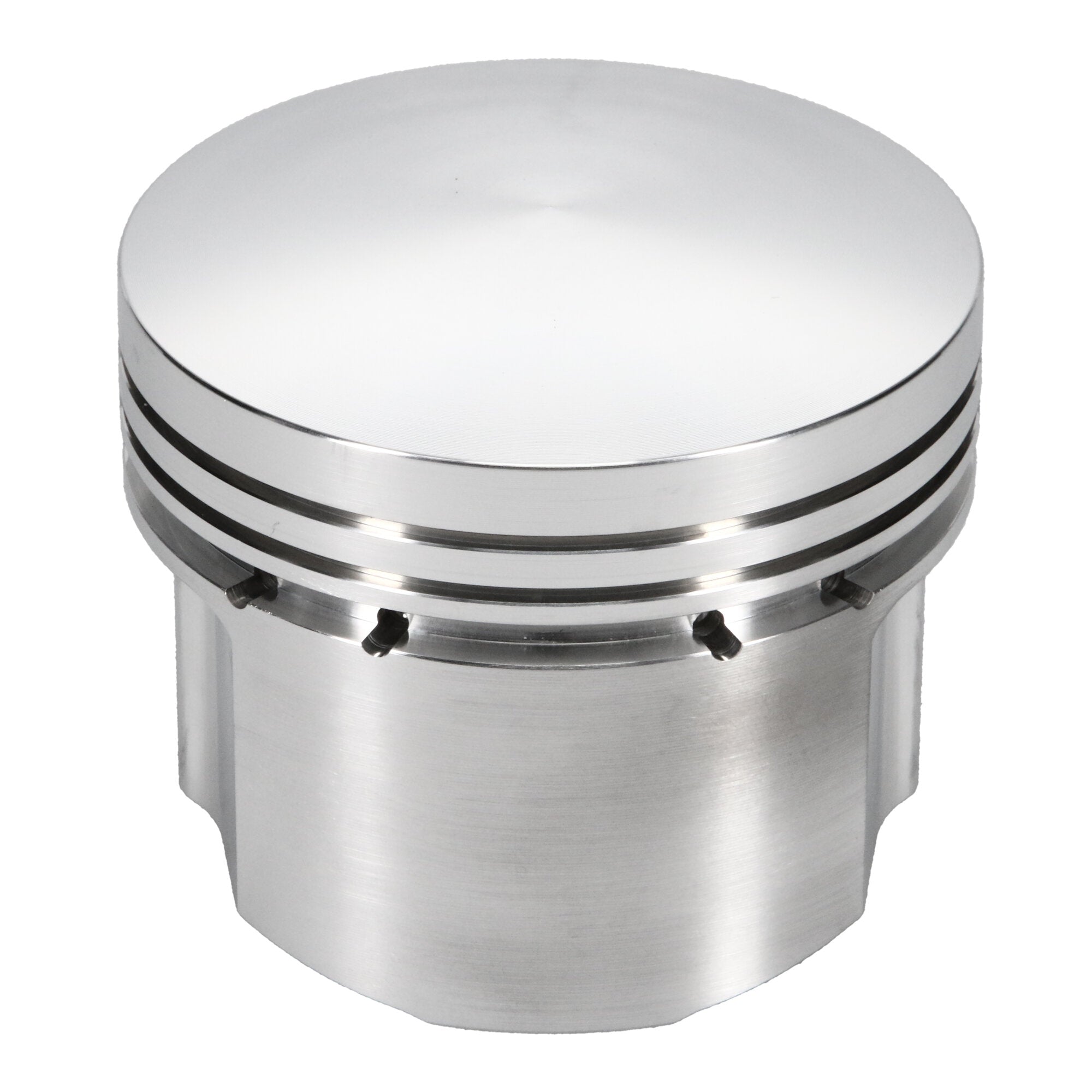

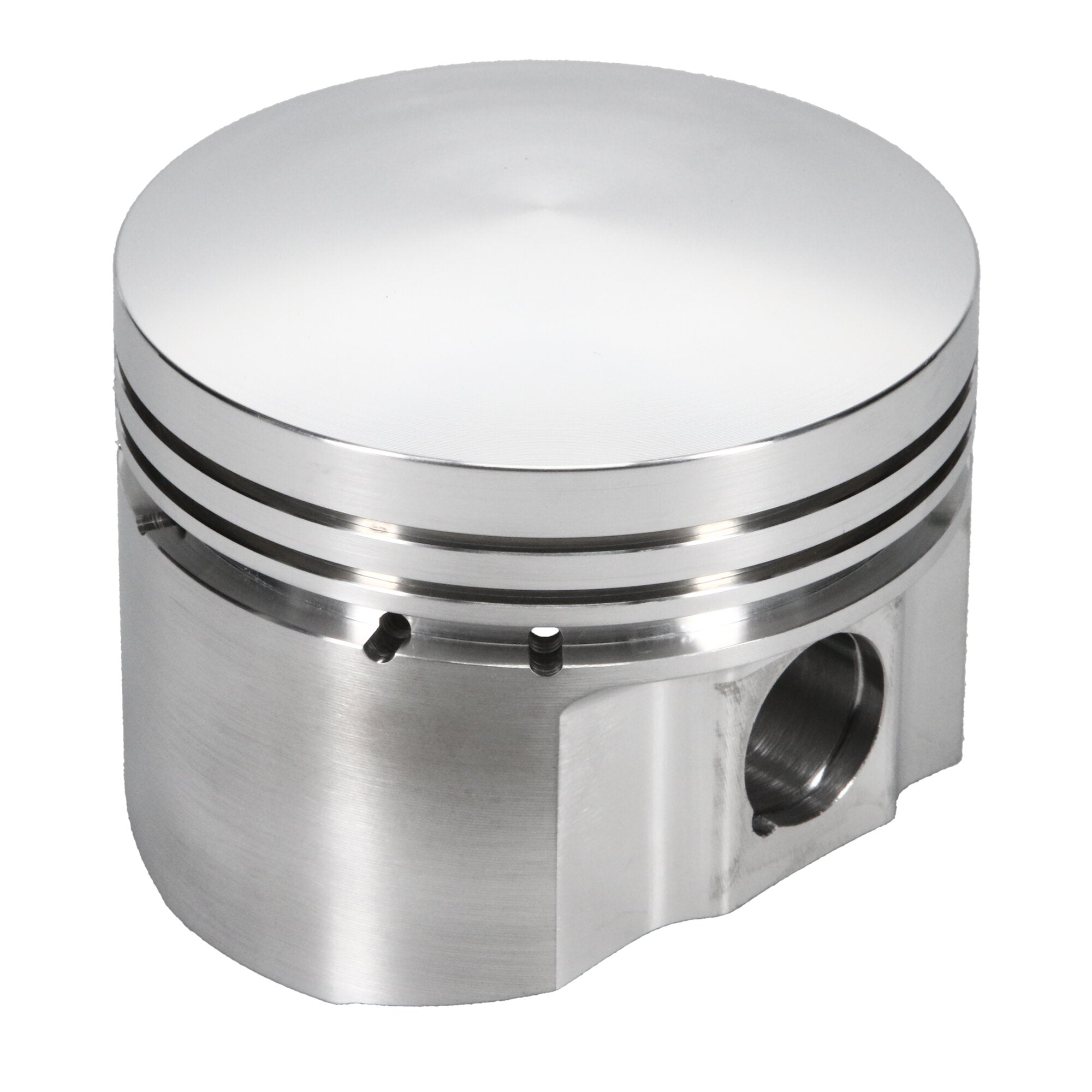

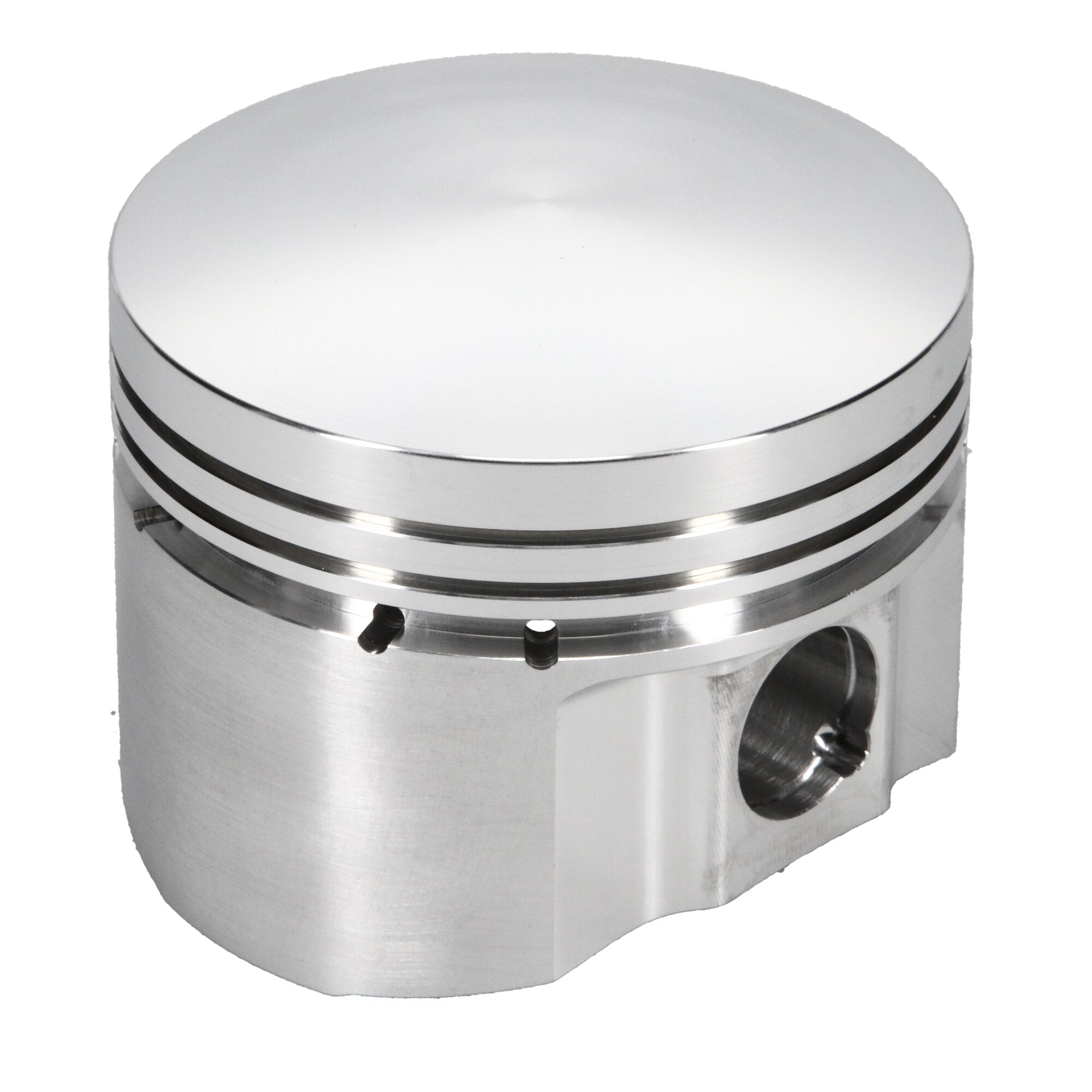

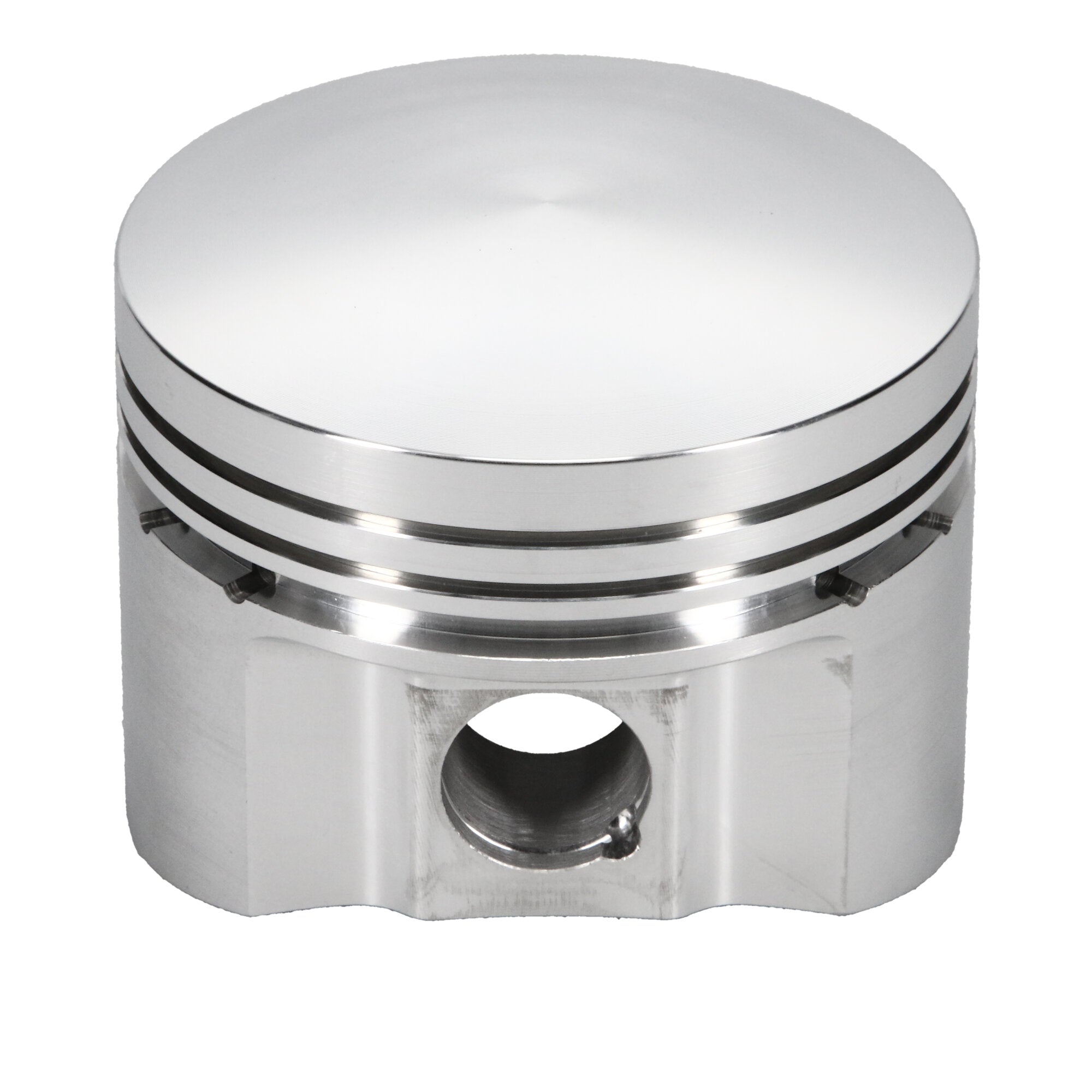

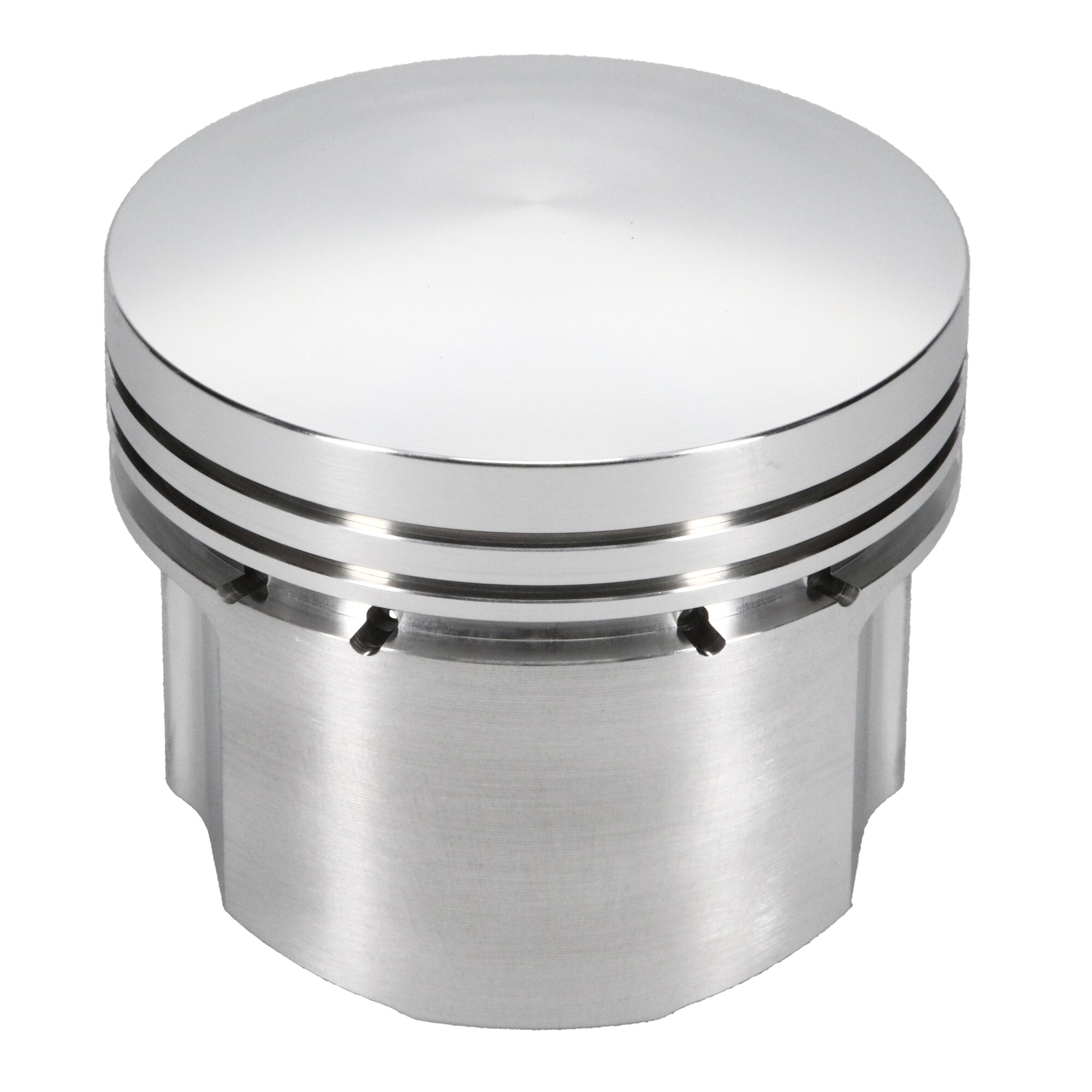

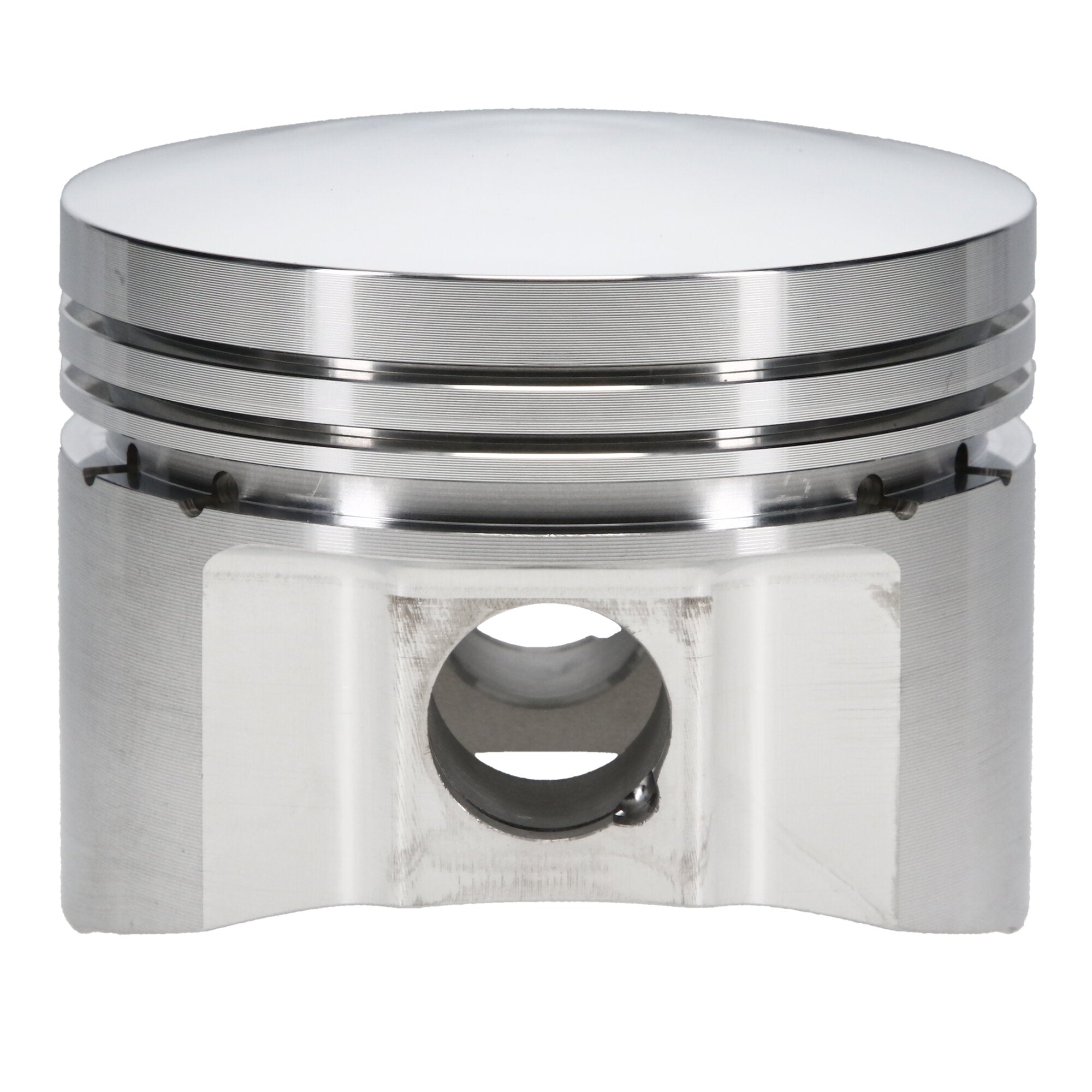

Piston Set, 4032, Dome, 3.312 Bore, 1.560 CD, 0.750 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Ford, Flathead, 3.312 in. Bore, 1.561 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford Flathead V8, 3.312 Bore, Dome, Set of 8 |
| Cylinder Head |
FLATHEAD |
| Piston Material |
4032 |
| Engine - Web |
Flathead |
| Product Market |
Domestic |
| Wrist Pin Length |
2.500 |
| Add-On |
748-050-MW |
| Add-On |
J641F8-3317 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
3.312 |
| Add-On |
750-2500-14-51C |
| Top Compression Ring Thickness |
0.5950 |
| Product Type |
Engine Piston Kit |
| Piston Quantity |
8 |
| Piston Volume |
0.00 |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.312 in. Bore - 1.561 in. CH, 0.00 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Piston Pin Outside Diameter |
0.750 |
| Prop 65 (C, R or CR) |
CR |
| Piston Series |
JE Pistons |
| Second Compression Ring Thickness |
0.5950 |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
FLATHEAD |
| Title |
JE Pistons - Ford, Flathead, 3.312 in. Bore, Piston Kit |
| Make |
FORD |
| Oil Ring Thickness |
0.159 |
| Engine Type |
ICE |

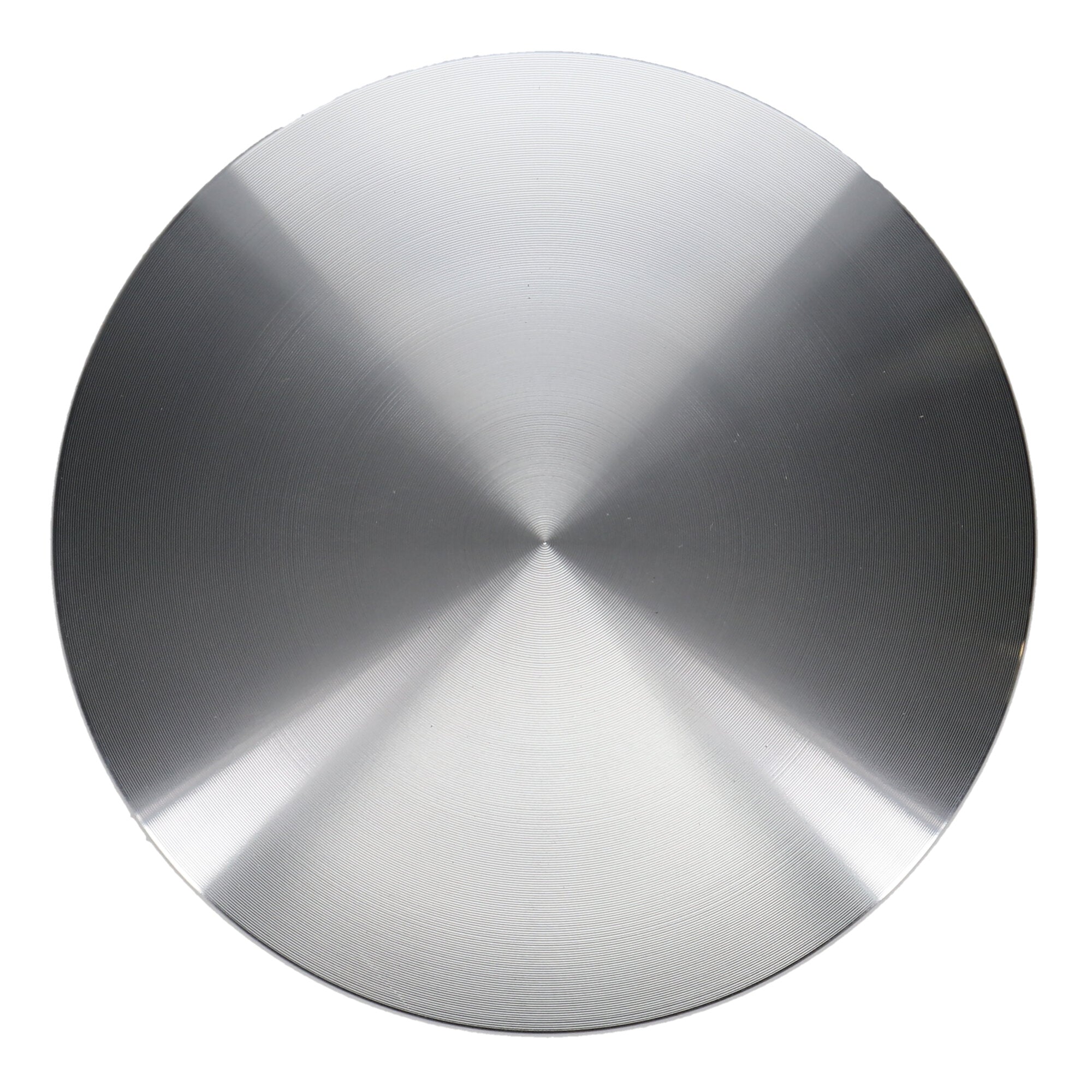

| Piston Head Type |
Dome |
| Piston Pin Length |
2.500 |
| Piston Pin Material |
5115 |
| Compression Height |
1.561 |
| Forging Type |
Round |
| Piston Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.750 |
| Wrist Pin Wall Thickness |
0.140 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
