As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

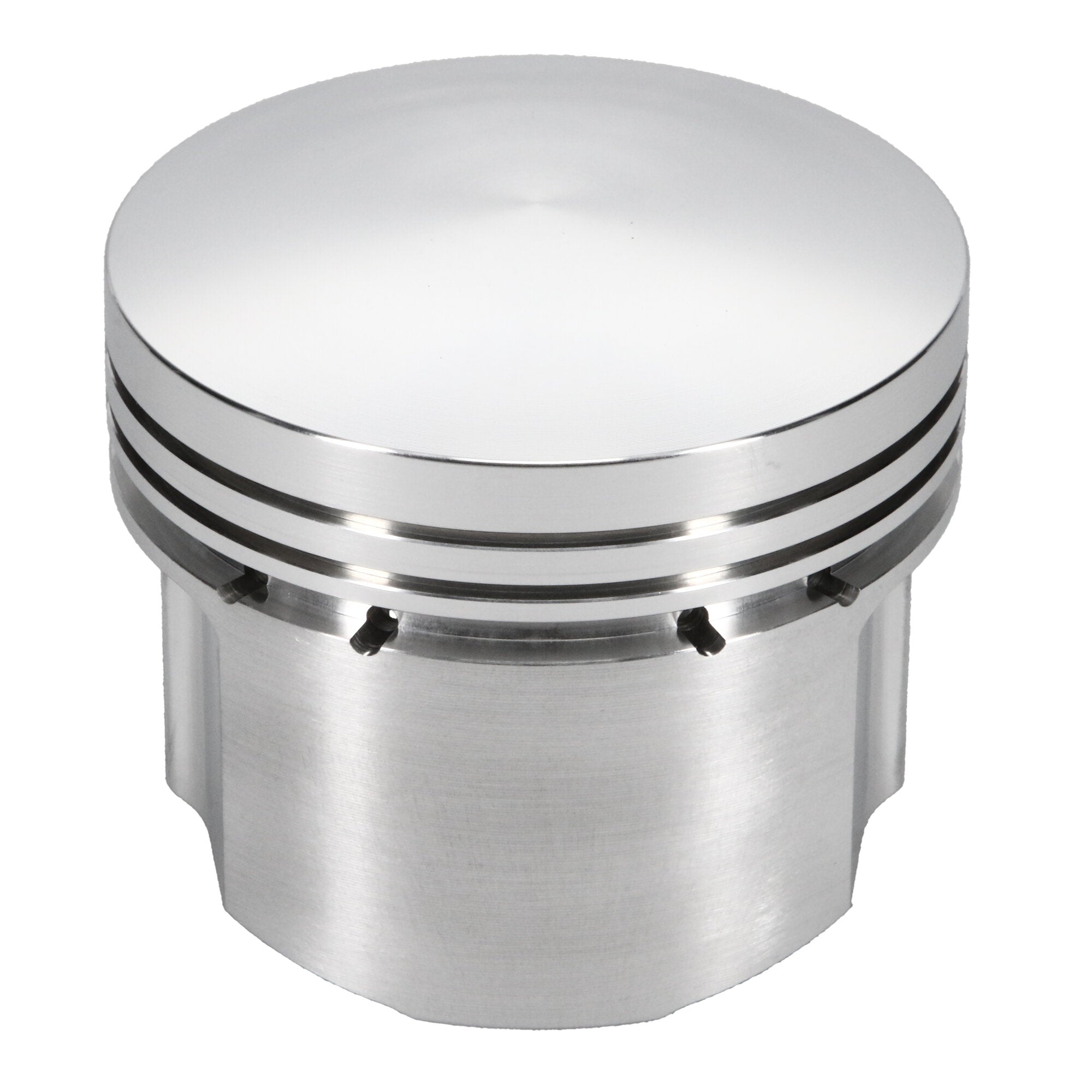

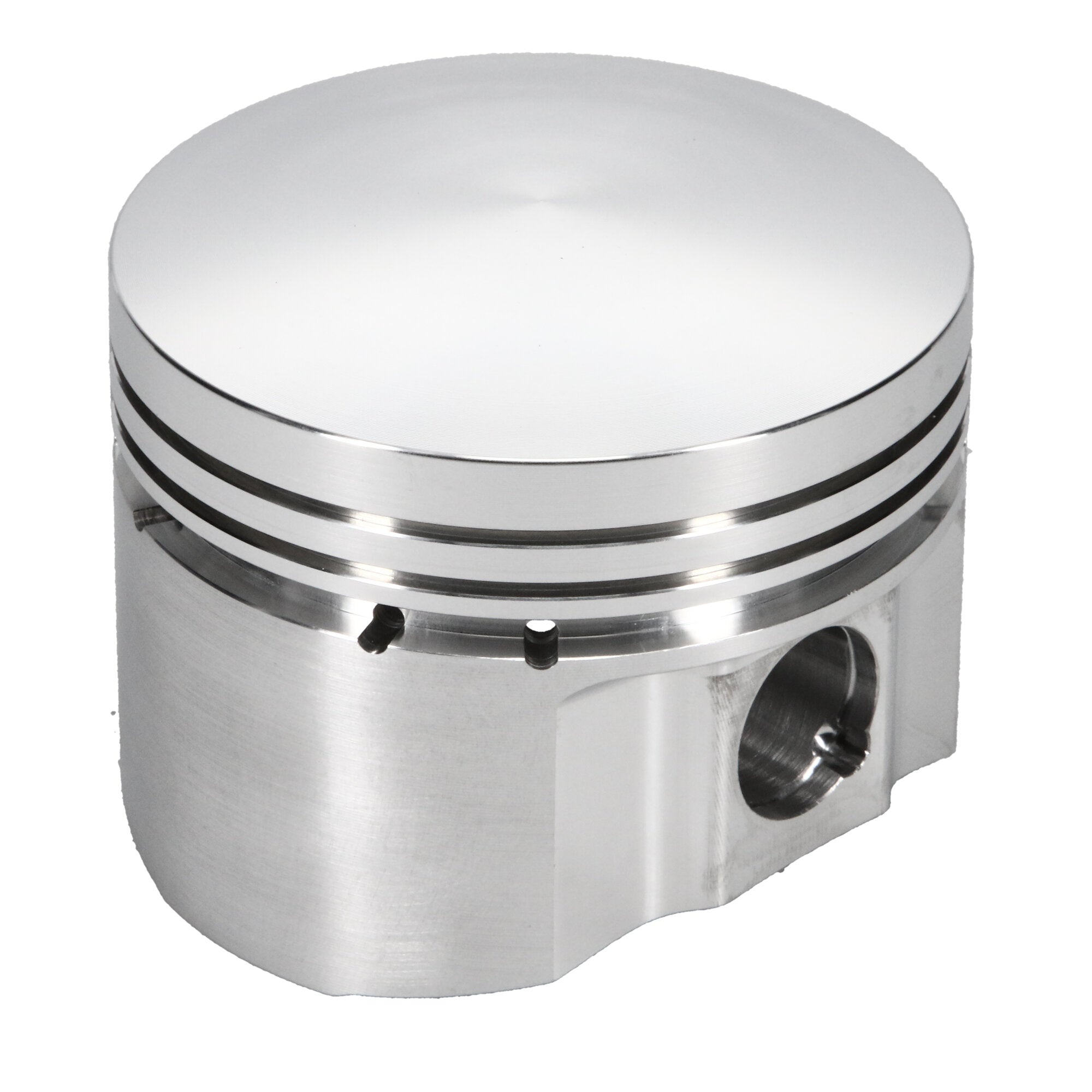

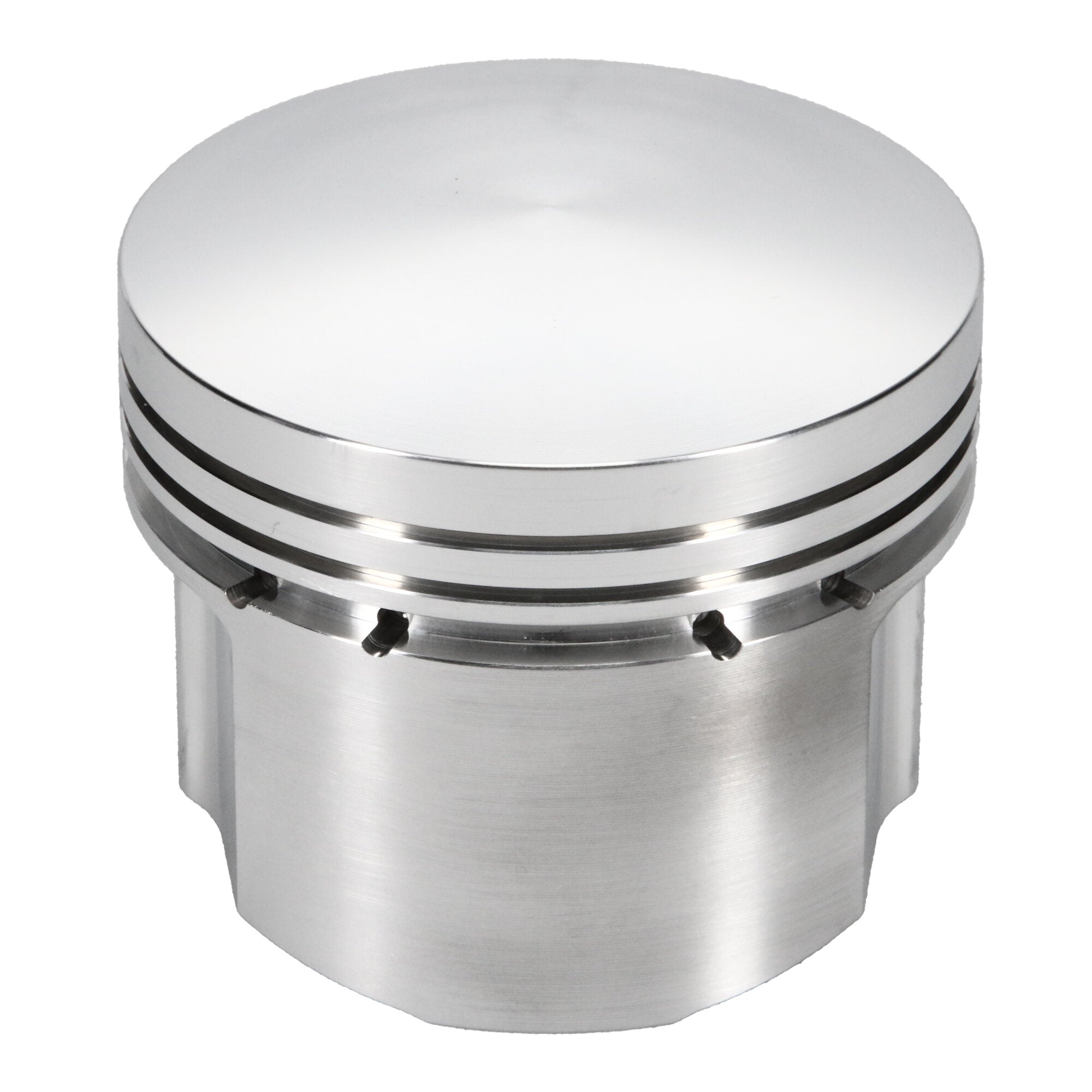

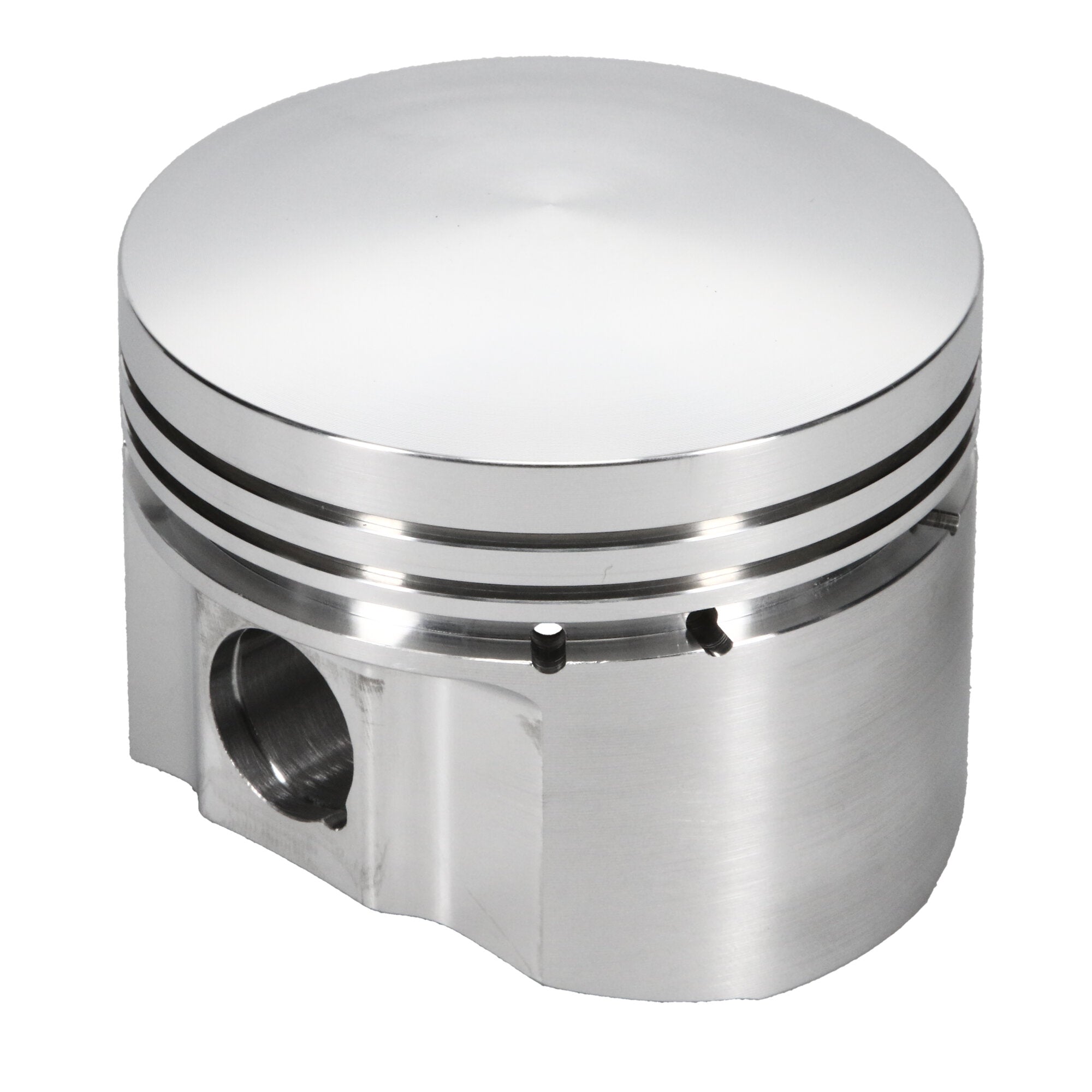

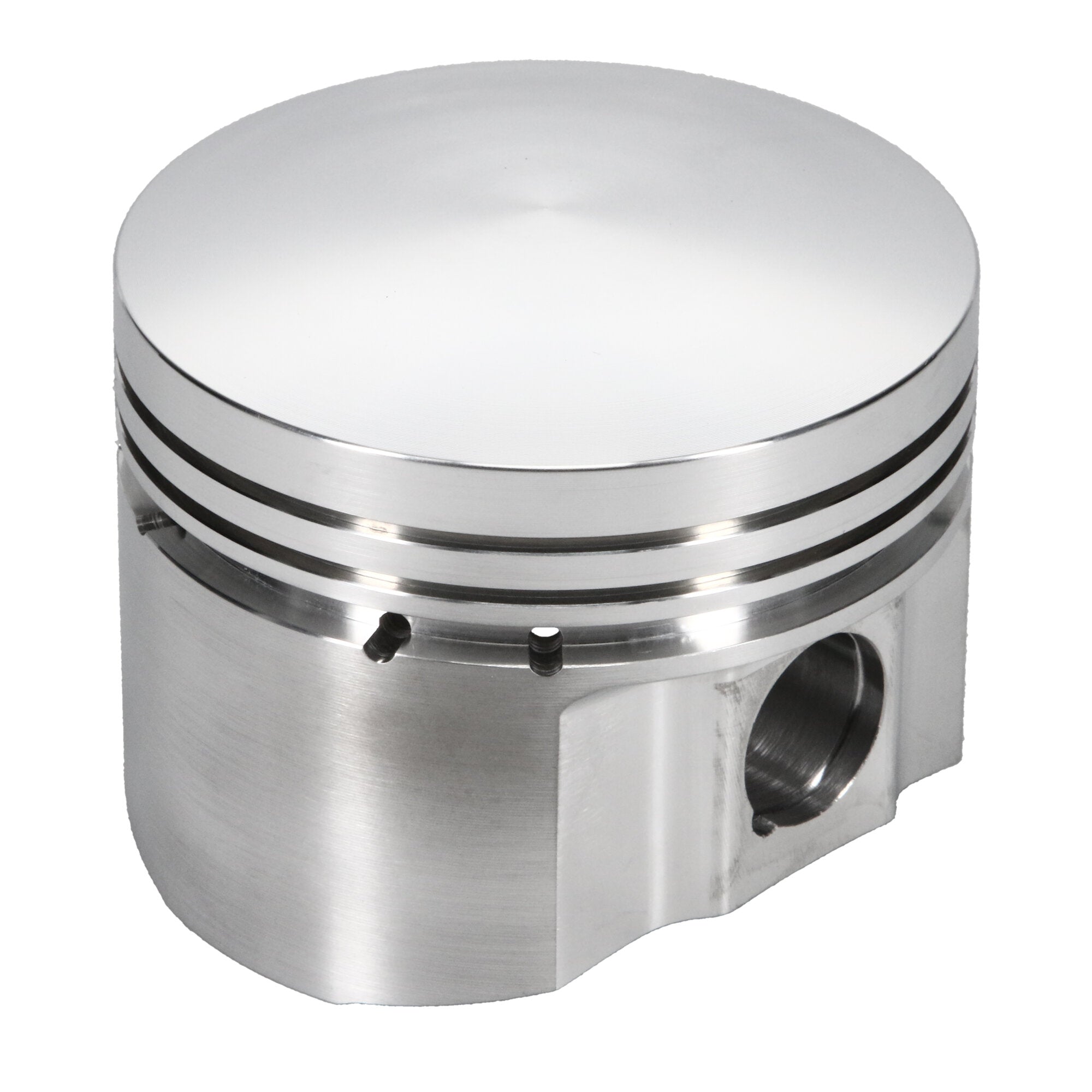

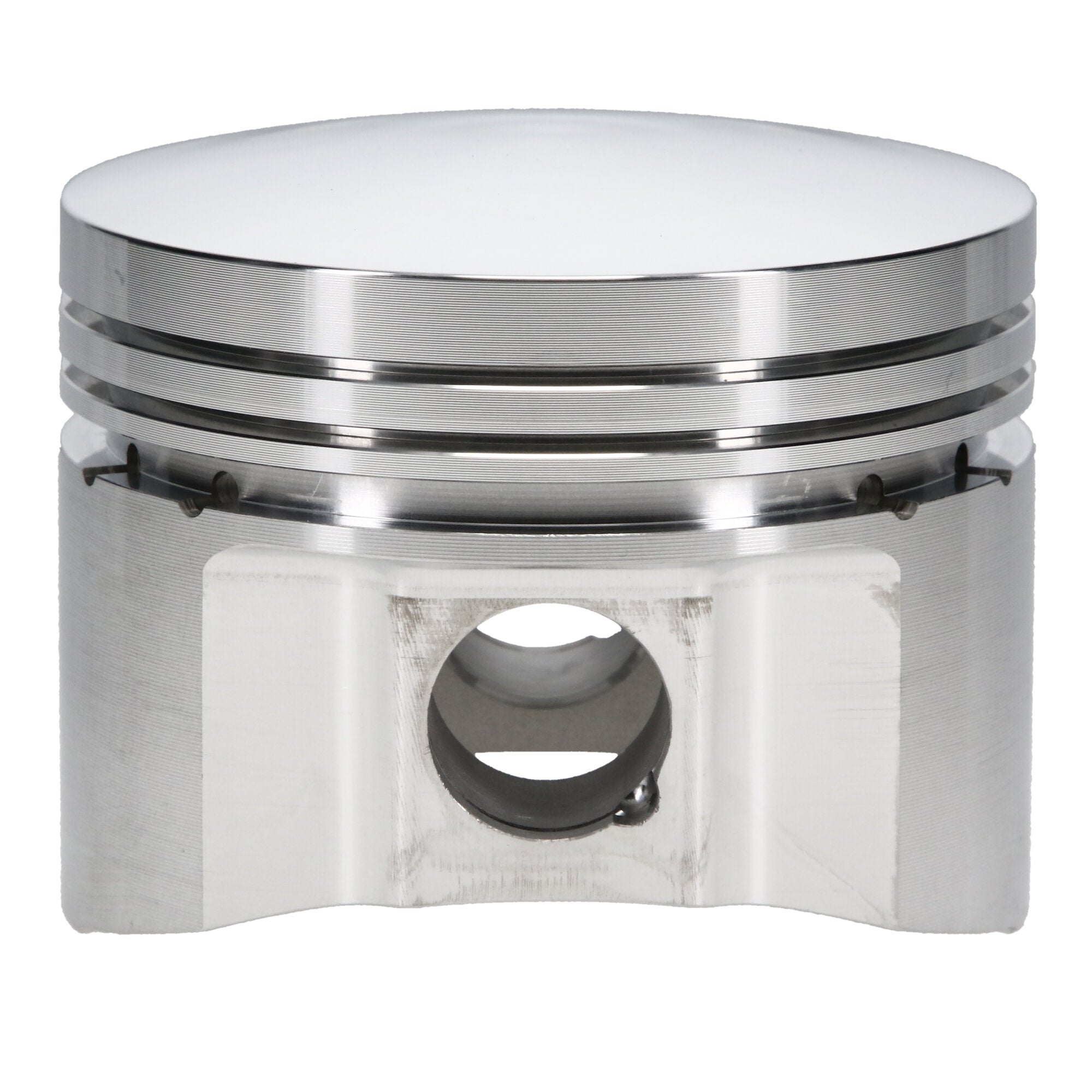

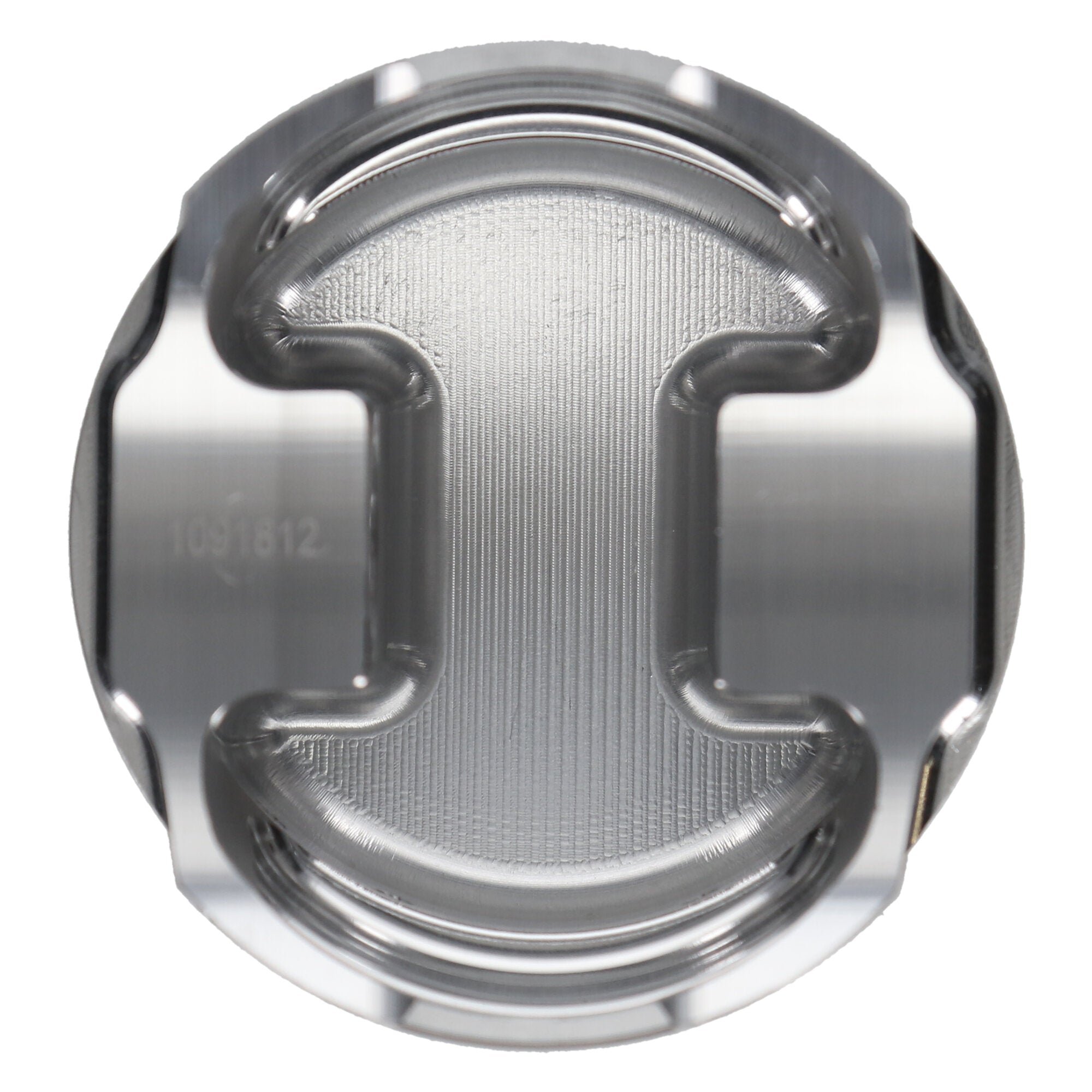

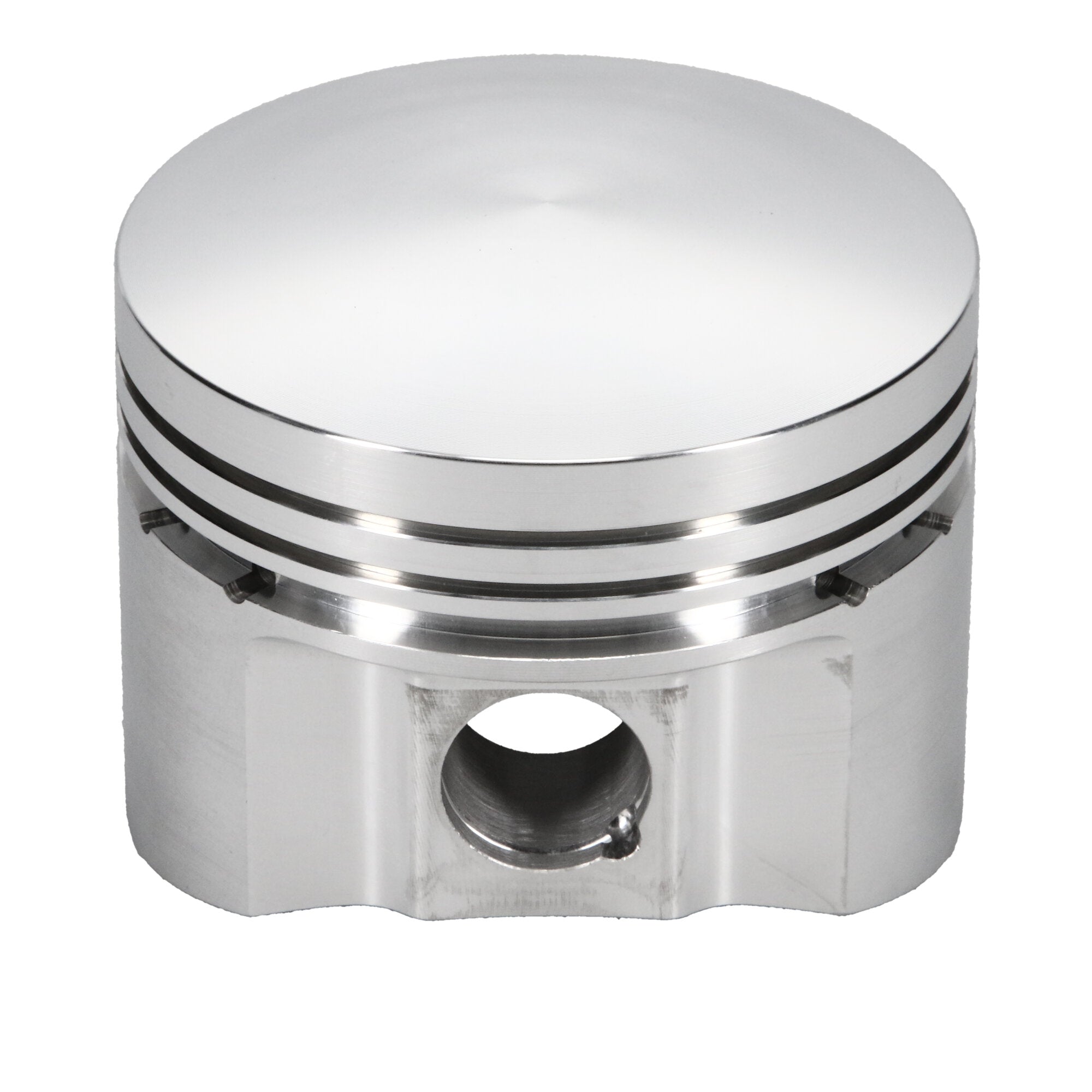

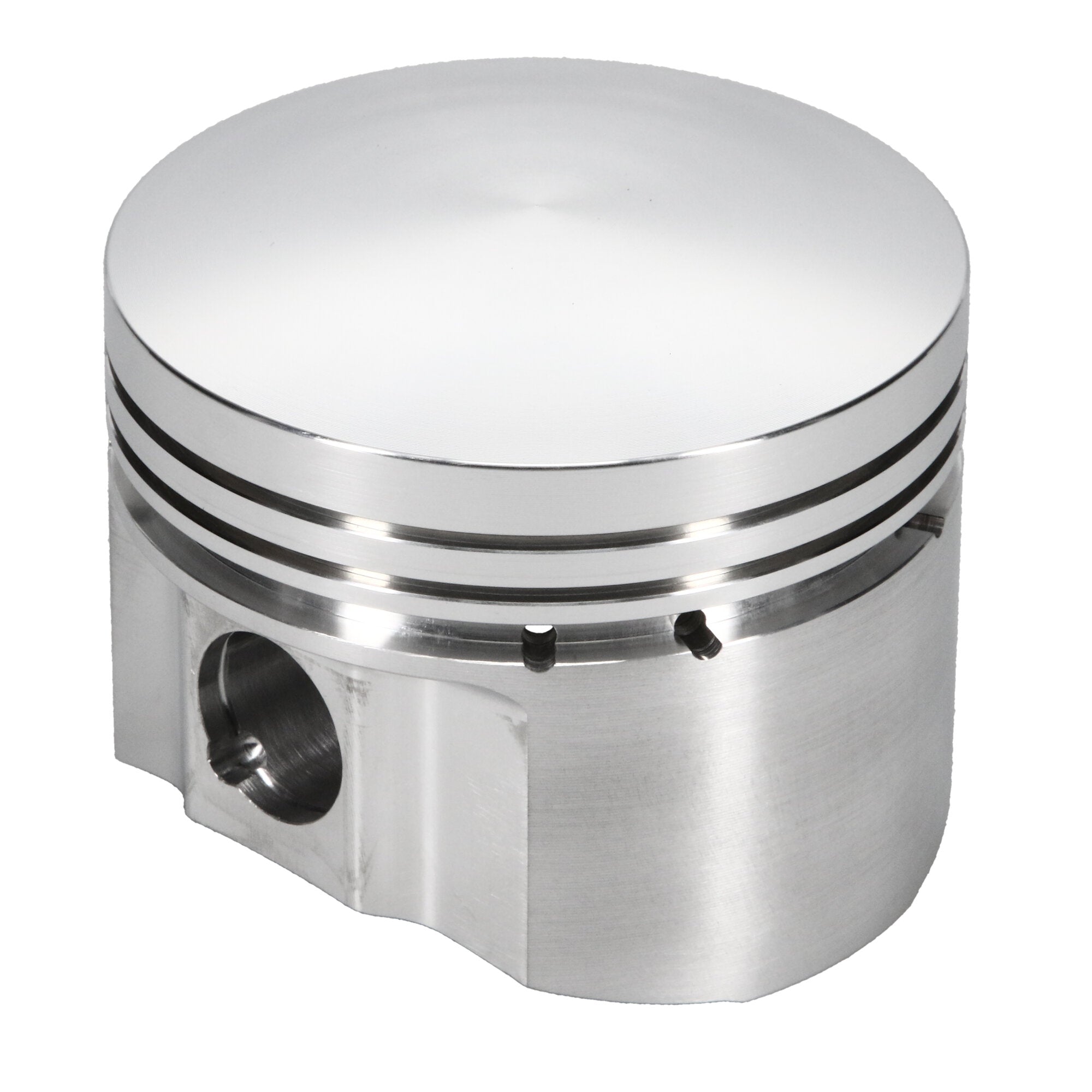

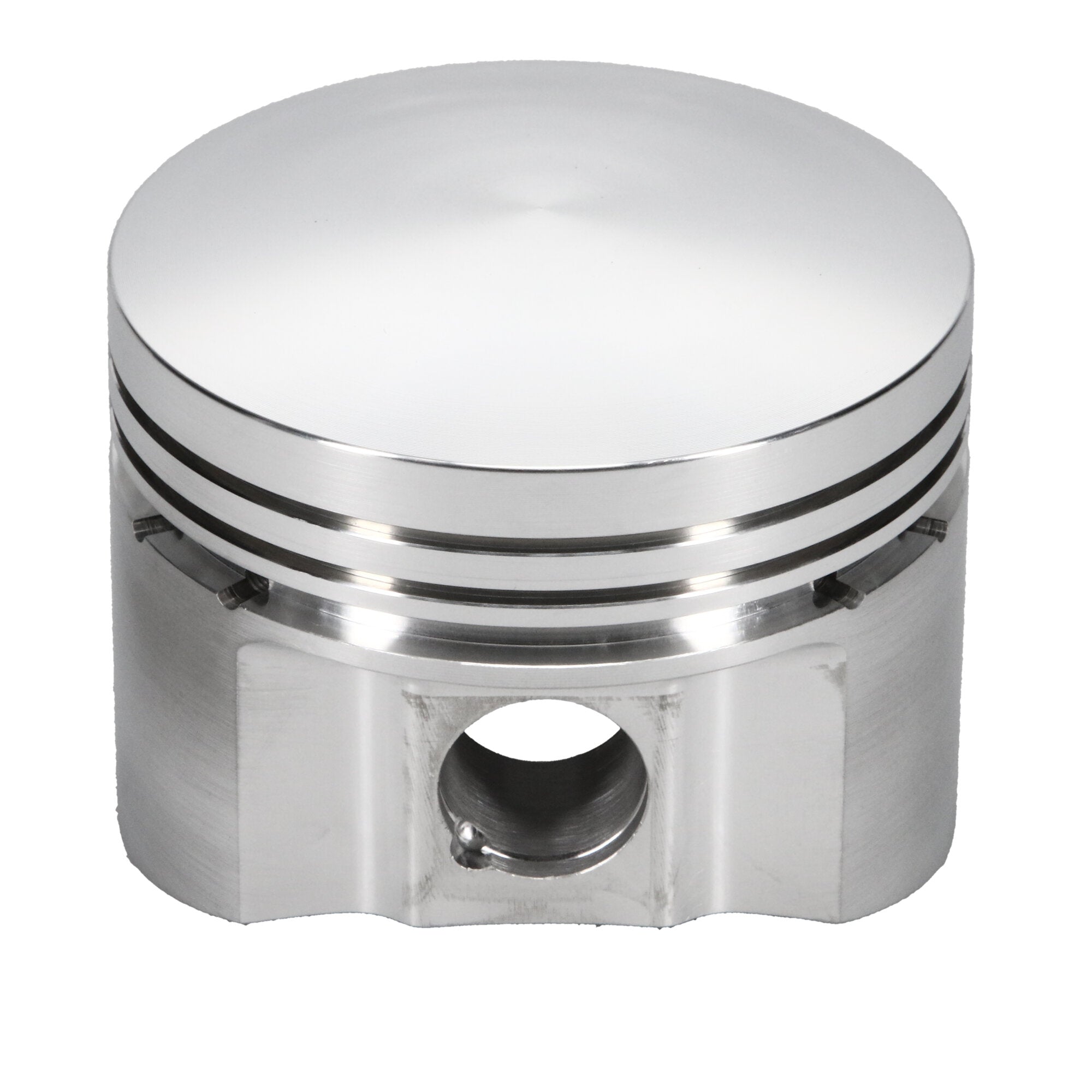

JE, Ford, Flathead, 3.248 in. Bore, 1.561 CD, Dome, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 4032, Dome, 3.248 Bore, 1.560 CD, 0.750 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Ford Flathead V8, 3.248 Bore, Dome, Set of 8 |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.248 in. Bore - 1.561 in. CH, 0.00 CC |
| Engine |
FLATHEAD |
| Make - Web |
Ford |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Add-On |
750-2500-14-51C |
| Add-On |
748-050-MW |
| Add-On |
J641F8-3248 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Length |
2.500 |
| Cylinder Head |
FLATHEAD |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.5950 |
| Prop 65 Yes/No |
Yes |

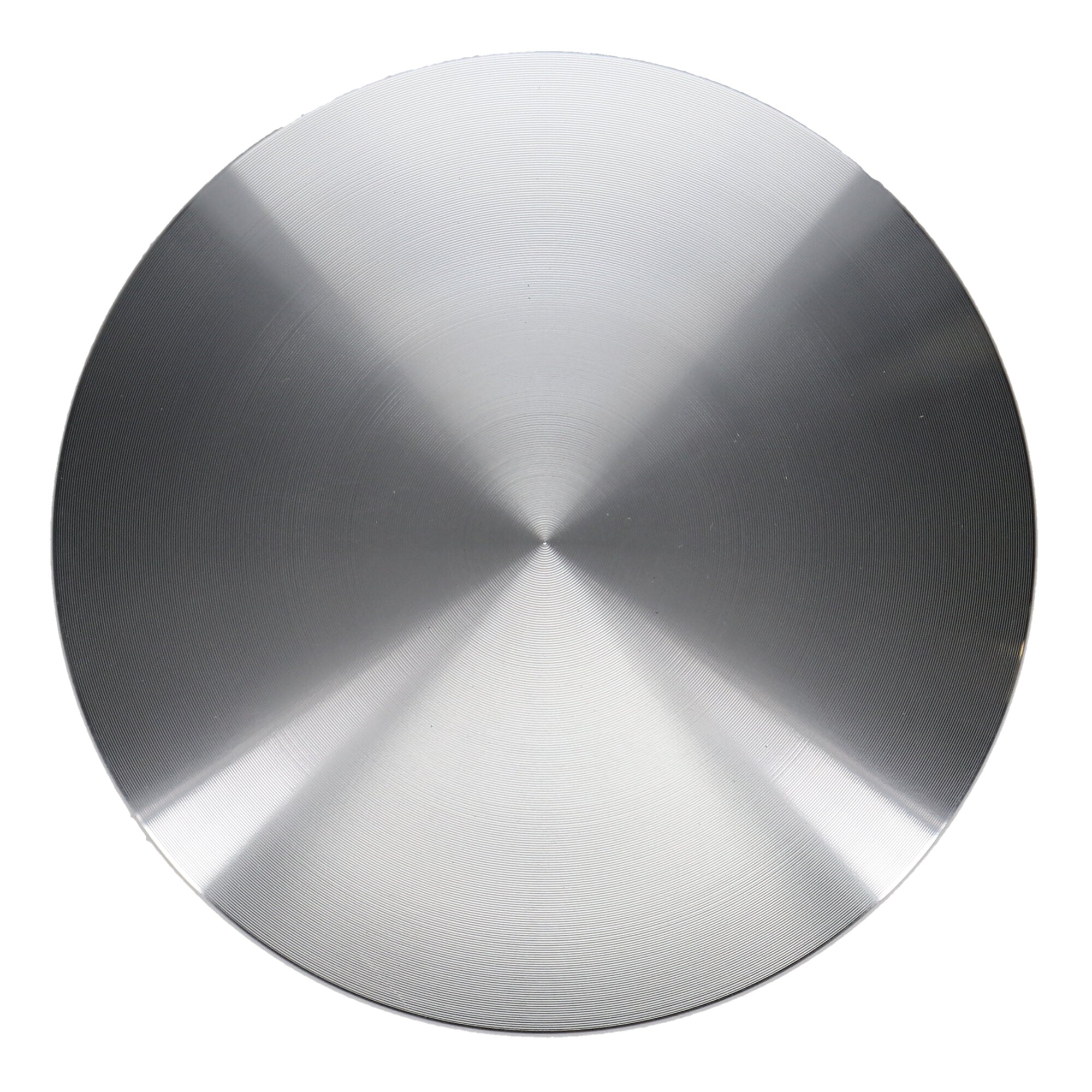

| Piston Head Type |
Dome |
| Oil Ring Thickness |
0.159 |
| Piston Pin Outside Diameter |
0.750 |
| Title |
JE Pistons - Ford, Flathead, 3.248 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.140 |
| Ringset Included |
Yes |
| Product Market |
Domestic |
| Compression Height |
1.561 |
| Piston Material |
4032 |
| Piston Volume |
0.00 |
| Wrist Pin Wall Thickness |
0.140 |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
3.248 |
| Piston Series |
JE Pistons |
| Make |
FORD |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.5950 |
| Piston Quantity |
8 |
| Forging Type |
Round |
| Ring Set Included |
Yes |
| Engine - Web |
Flathead |
| Wrist Pin Length |
2.500 |
| Wrist Pin Outer Diameter |
0.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
