As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

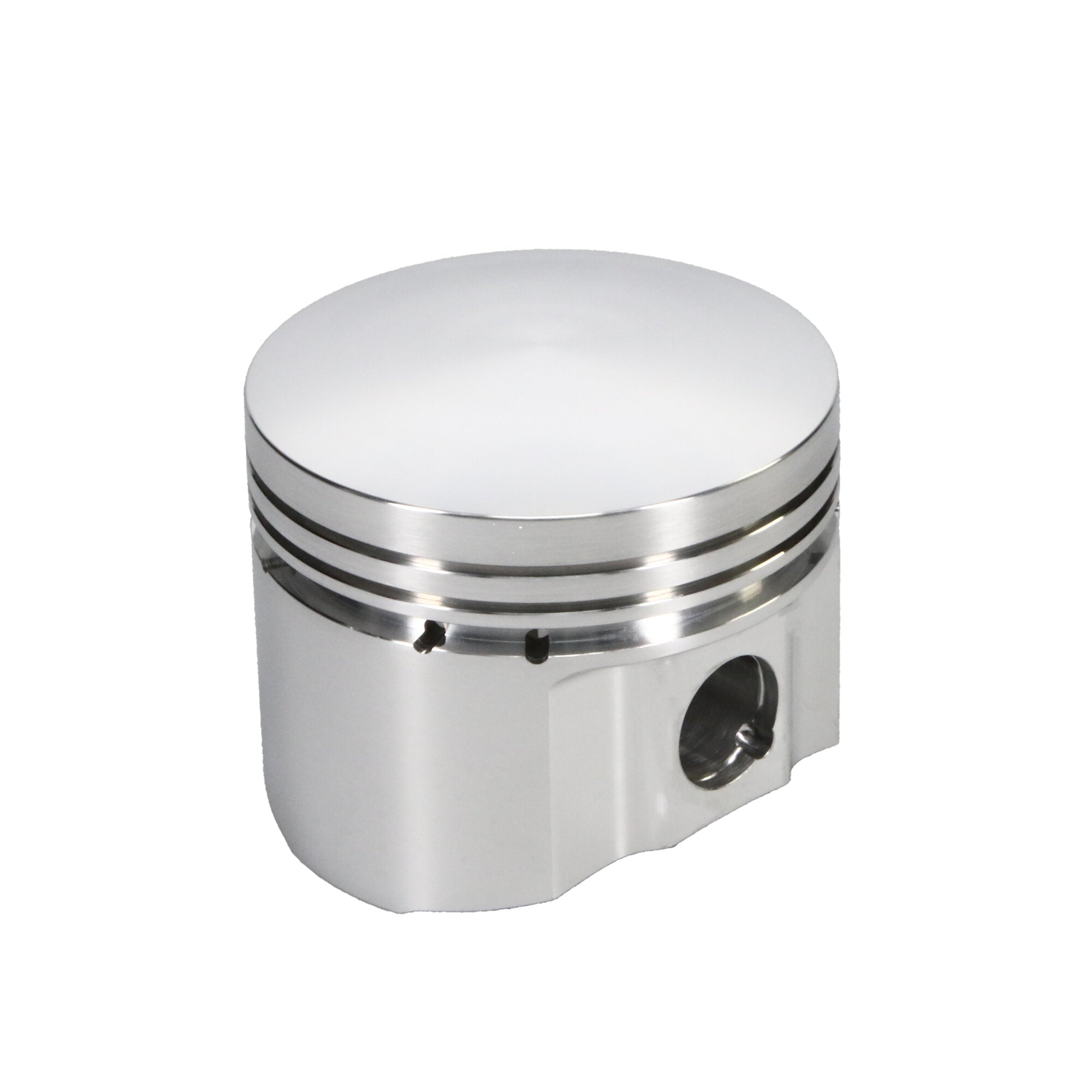

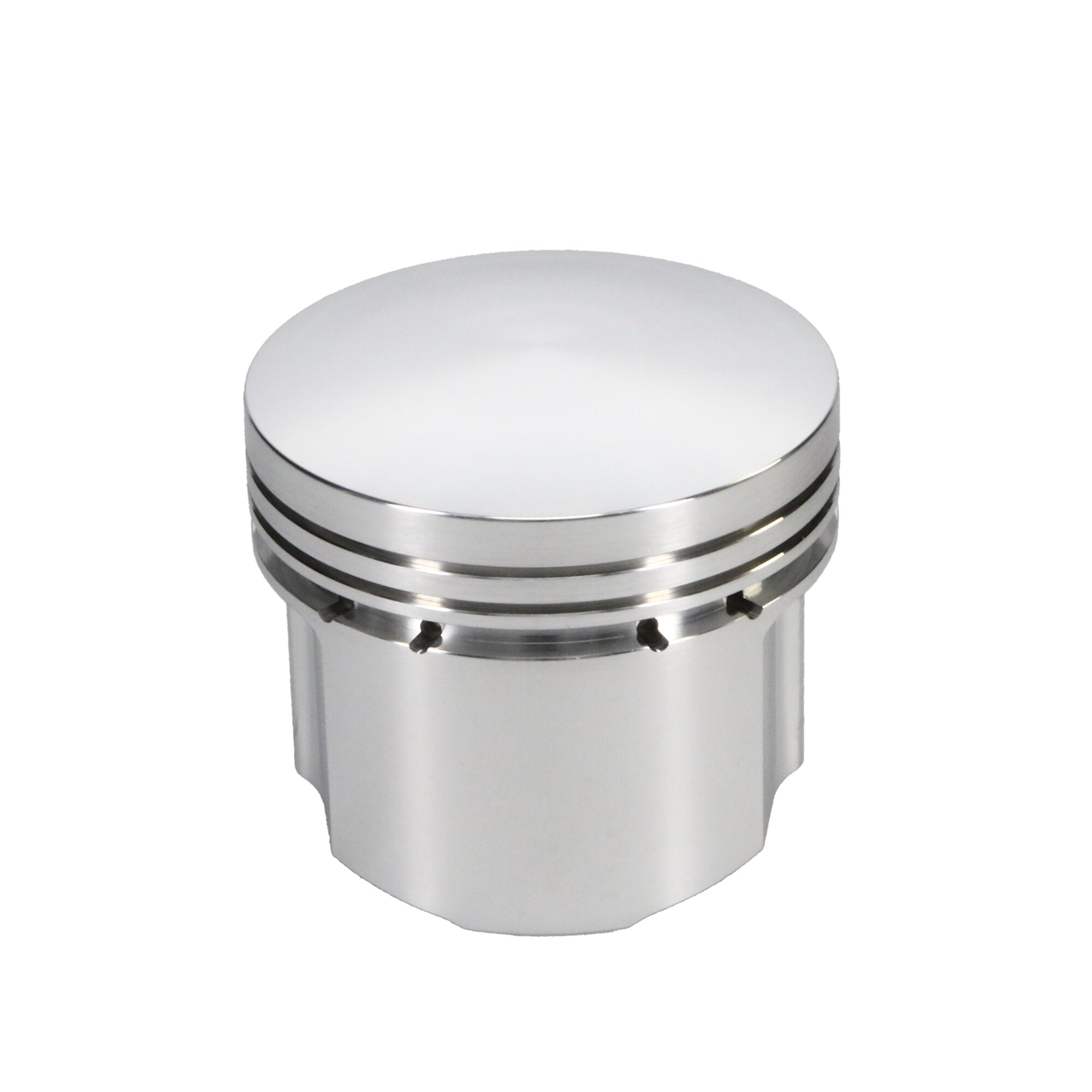

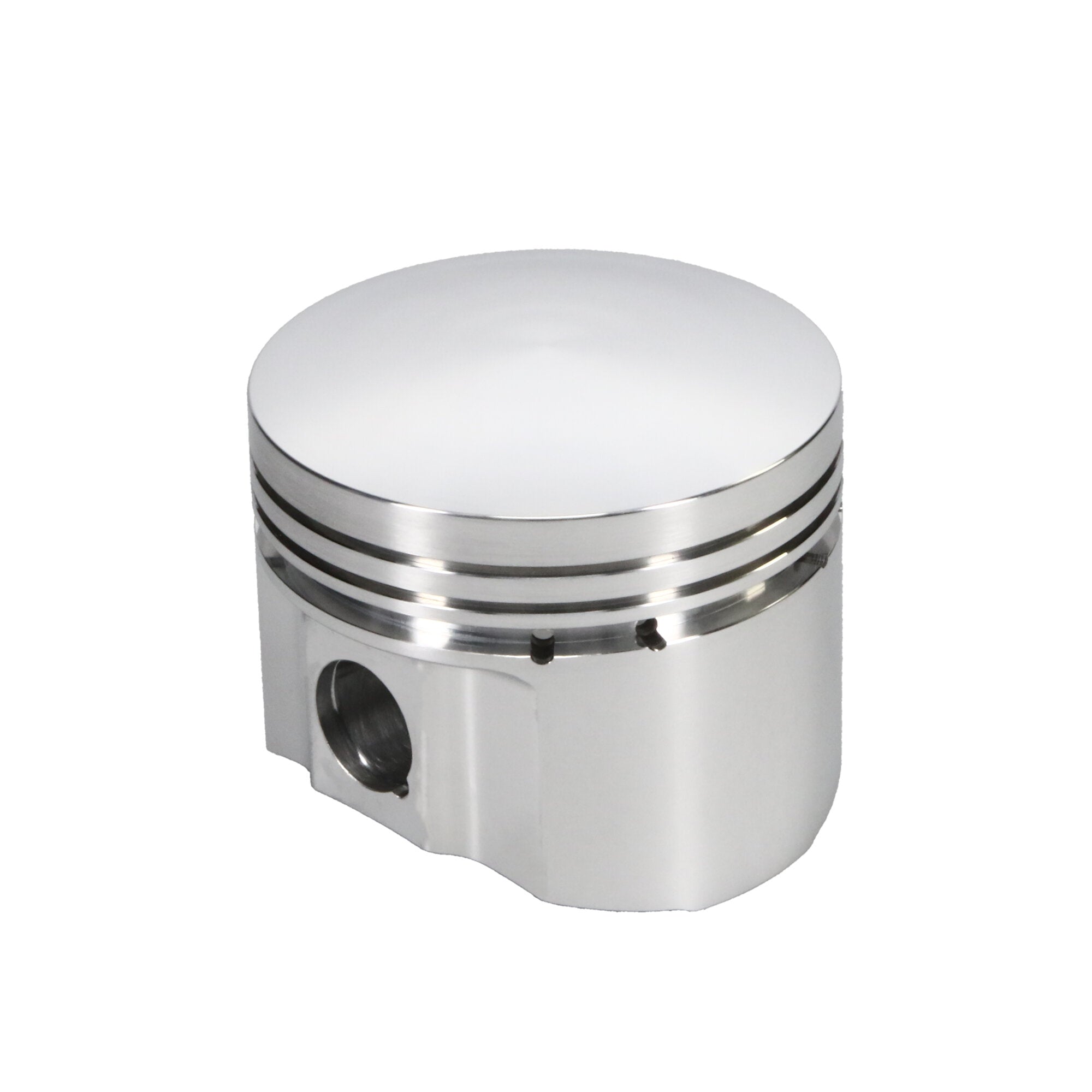

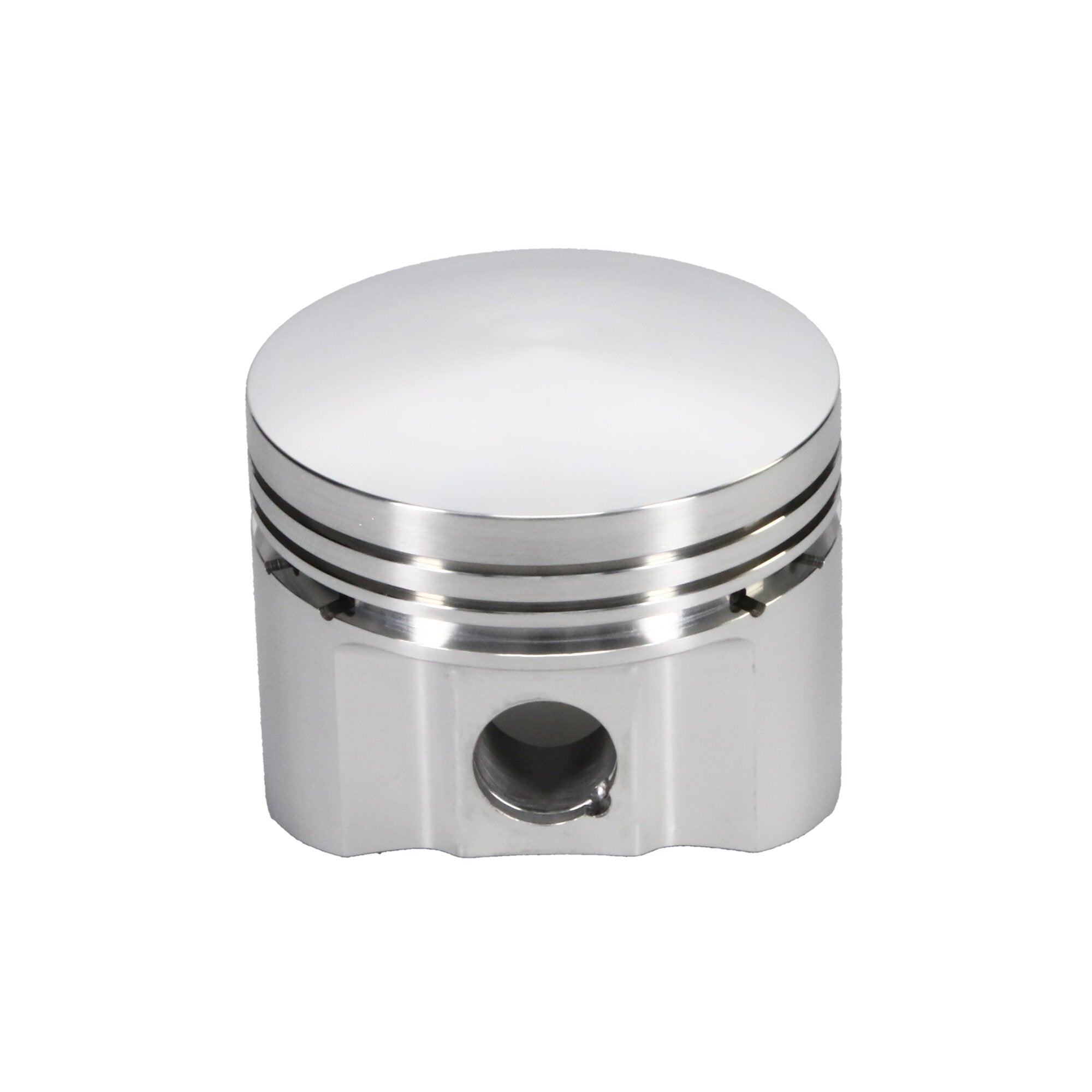

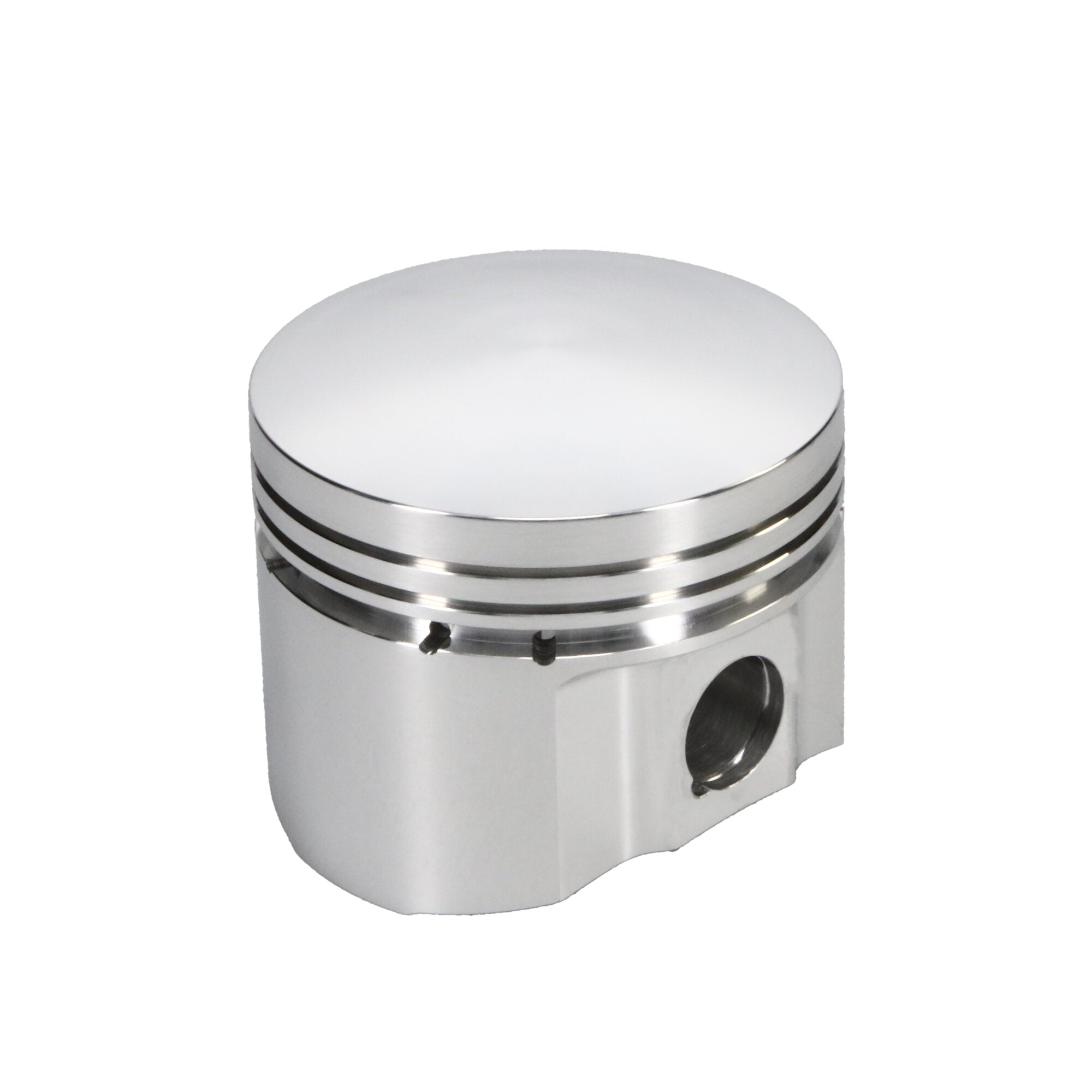

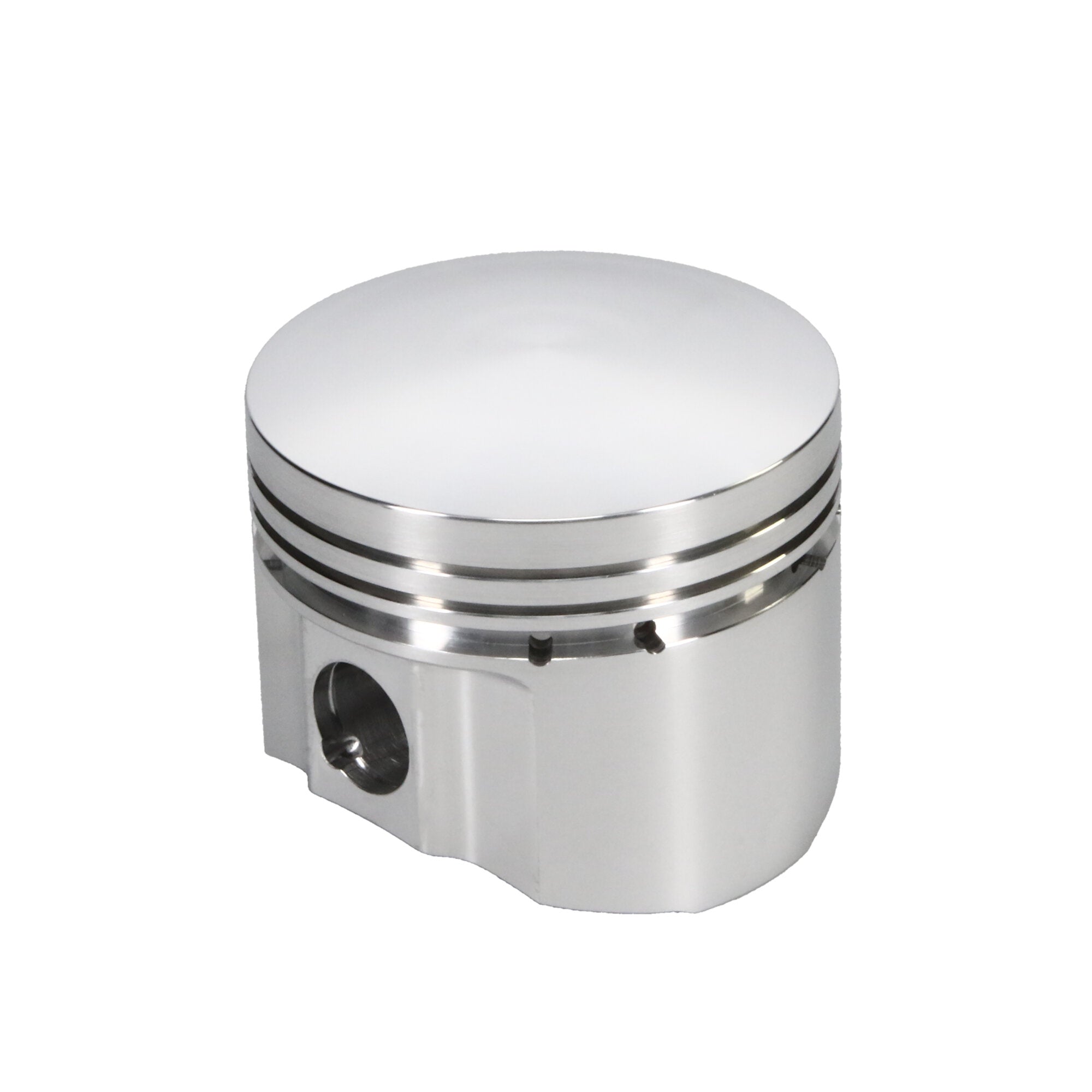

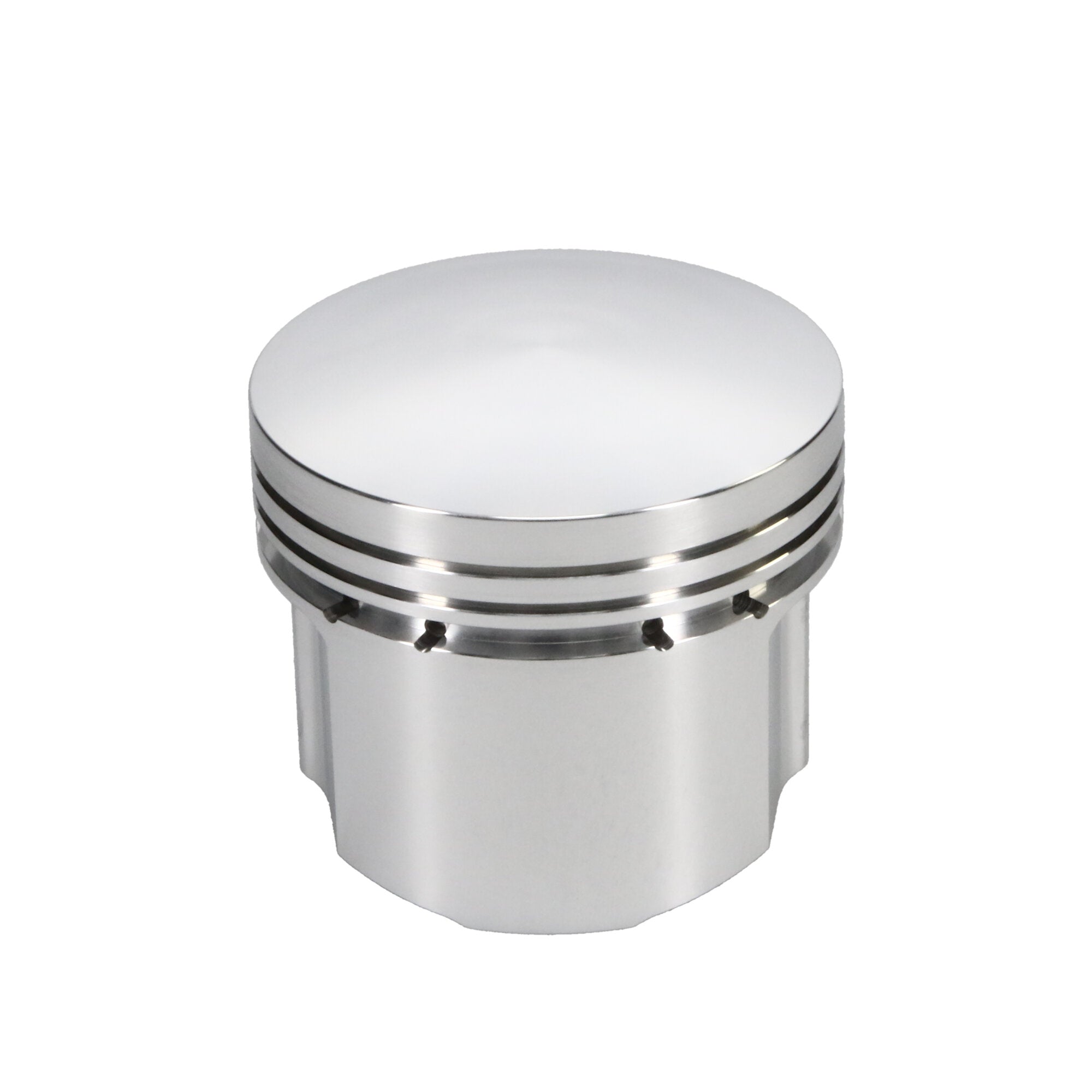

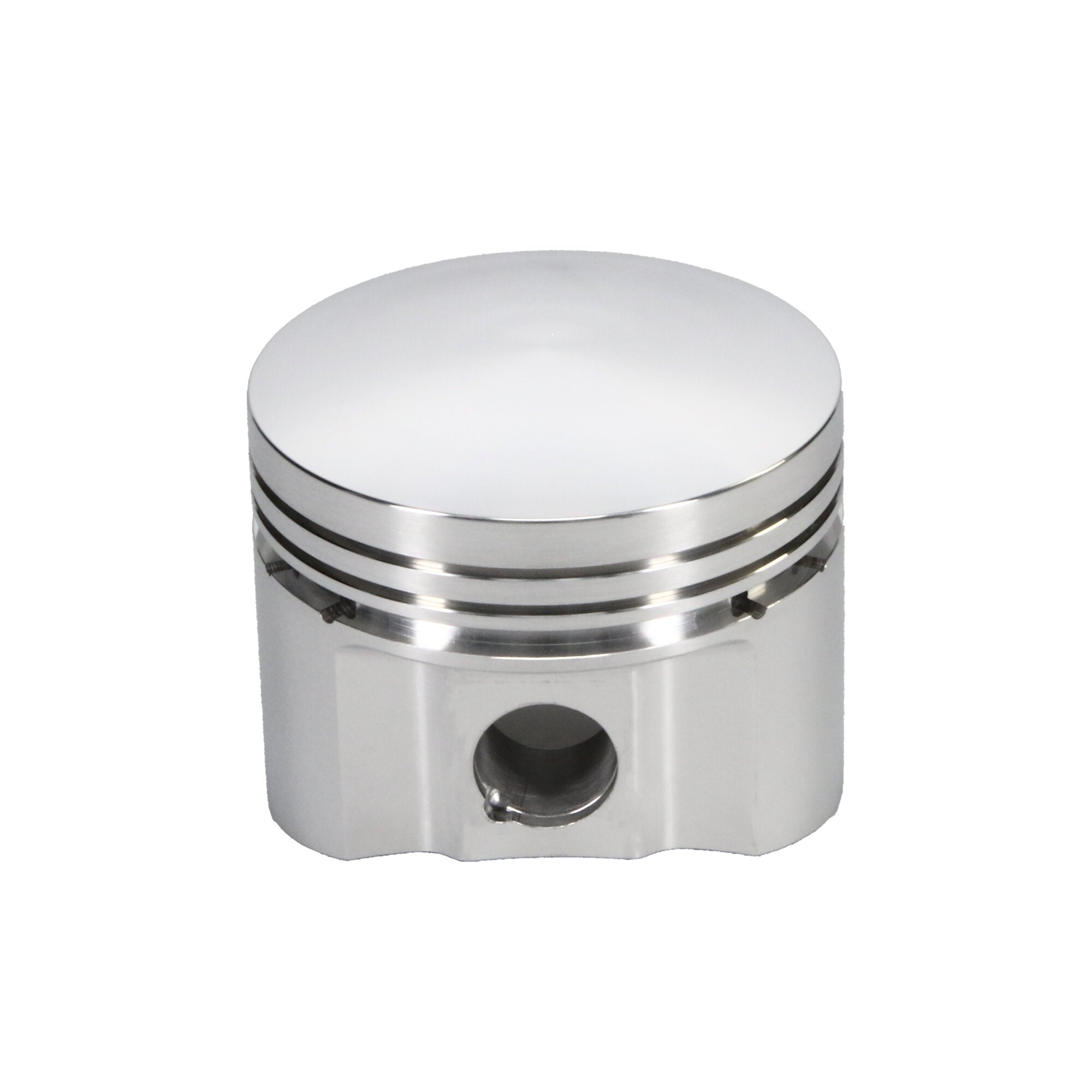

Piston Set, 4032, Dome, 3.187 Bore, 1.560 CD, 0.750 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Flathead, 3.187 in. Bore, 1.561 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.187 Bore, Dome, Set of 8 |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Add-On |
748-050-MW |
| Add-On |
J641F8-3189 |
| Add-On |
750-2500-14-51C |
| Second Compression Ring Thickness |
0.5950 |
| Piston Pin Length |
2.500 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Piston Material |
4032 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.187 in. Bore - 1.561 in. CH, 0.00 CC |
| Engine |
FLATHEAD |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
FLATHEAD |
| Ringset Included |
Yes |
| Title |
JE Pistons - Ford, Flathead, 3.187 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.750 |
| Piston Head Type |

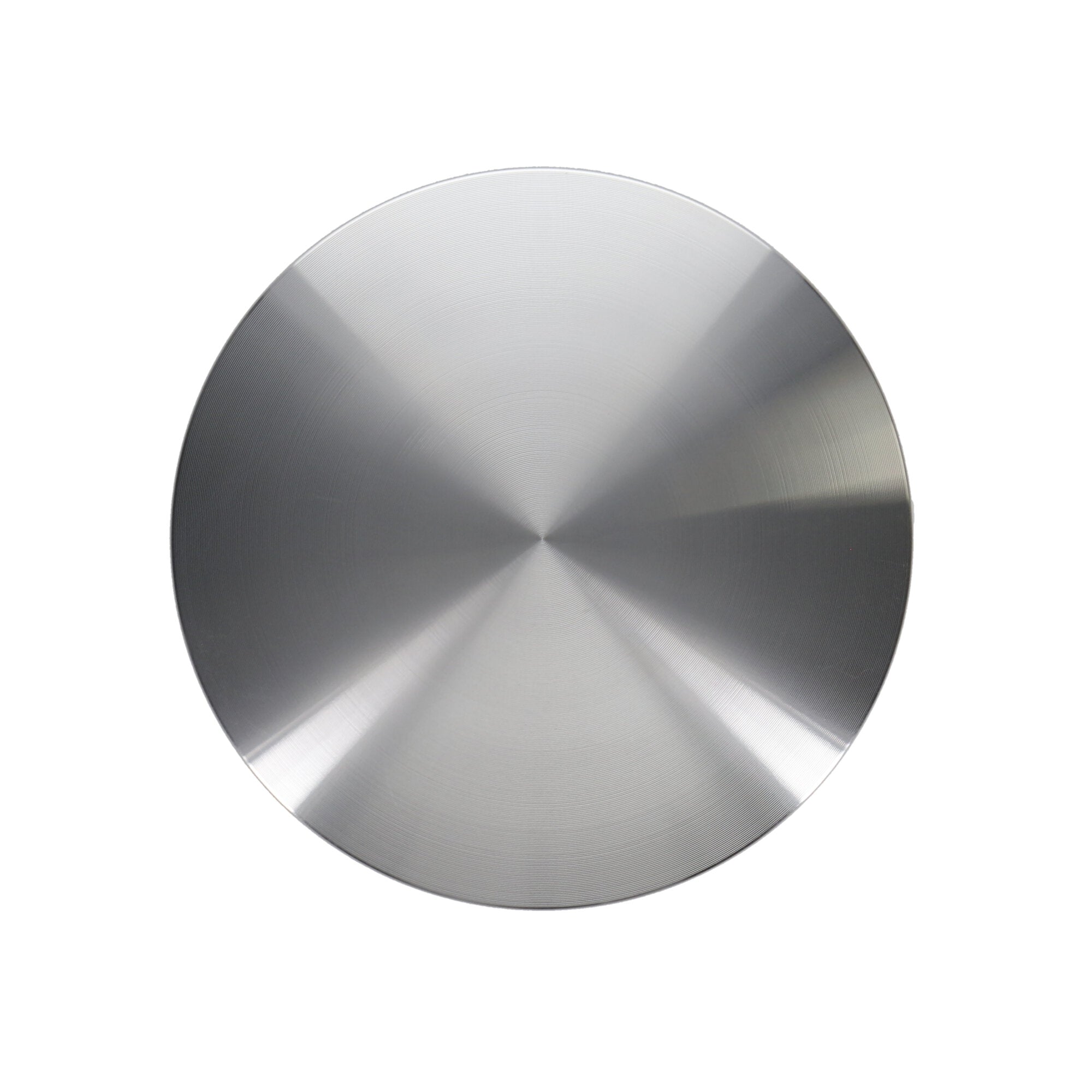

Dome |
| Oil Ring Thickness |
0.159 |
| Piston Volume |
0.00 |
| Compression Height |
1.561 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.140 |
| Forging Type |
Round |
| Piston Quantity |
8 |
| Piston Pin Material |
5115 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.750 |
| Top Compression Ring Thickness |
0.5950 |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
3.187 |
| Make |
FORD |
| Piston Average Weight |
311 |
| Ring Set Included |
Yes |
| Engine - Web |
Flathead |
| Wrist Pin Length |
2.500 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
