As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 6.2L Modular |
| Description_DES |

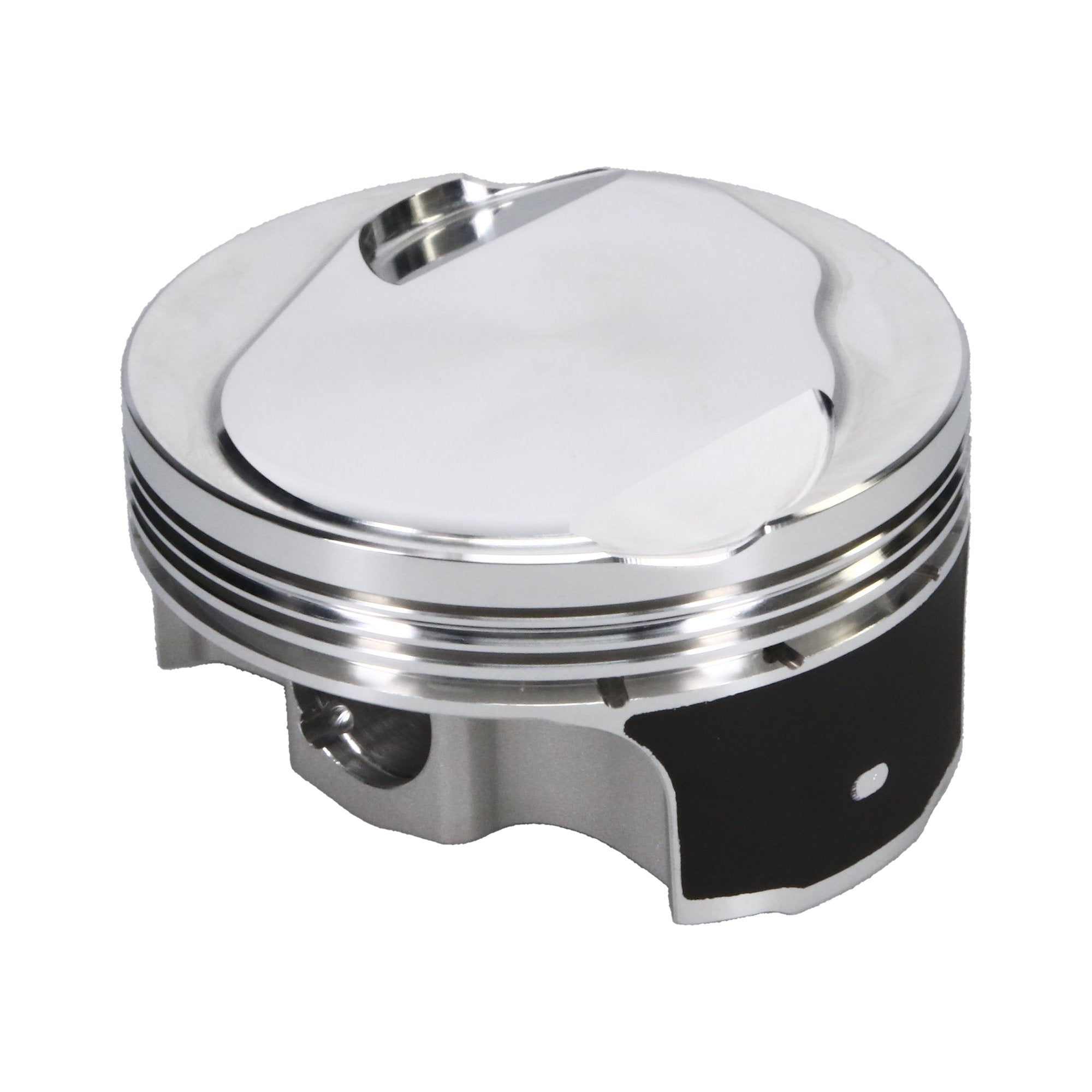

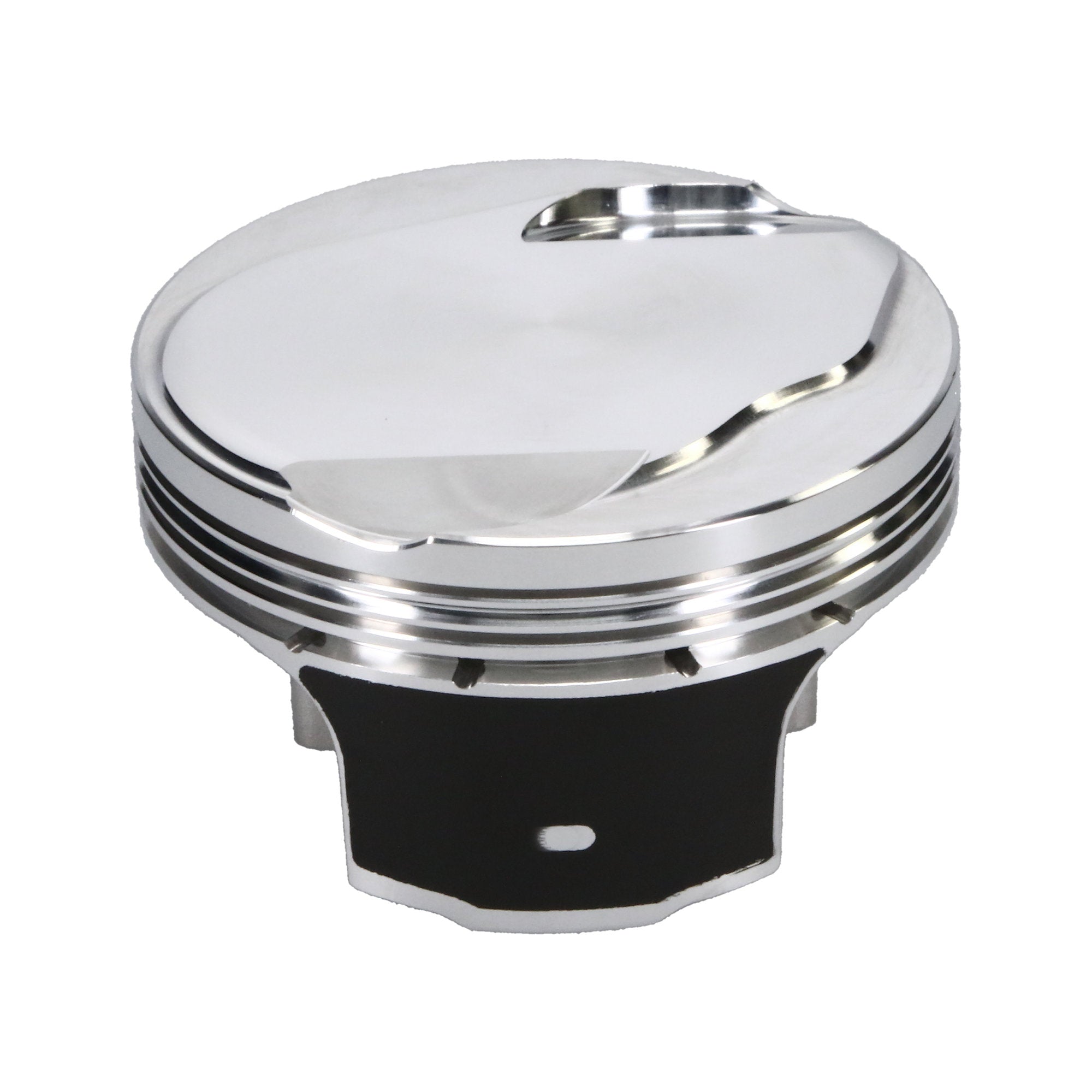

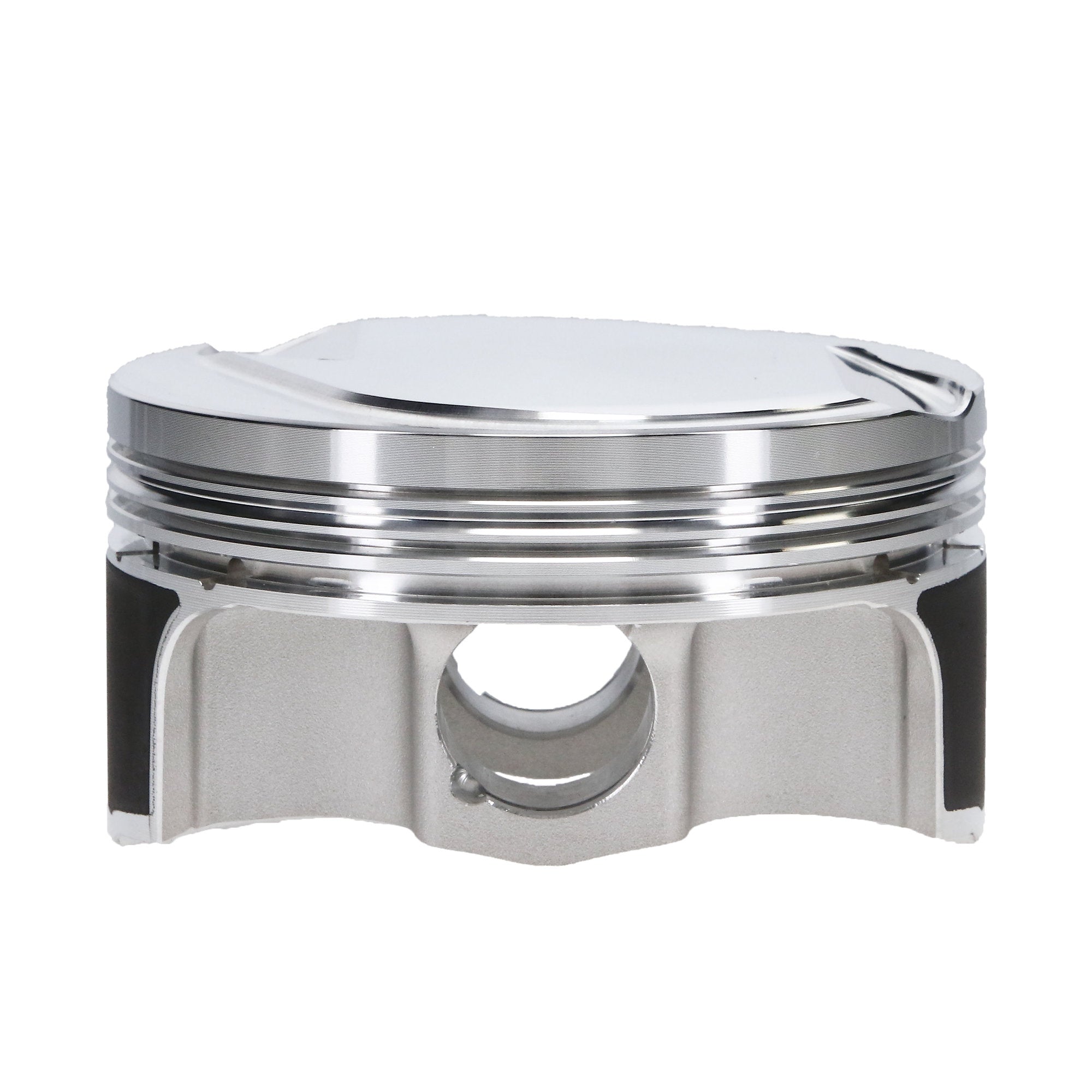

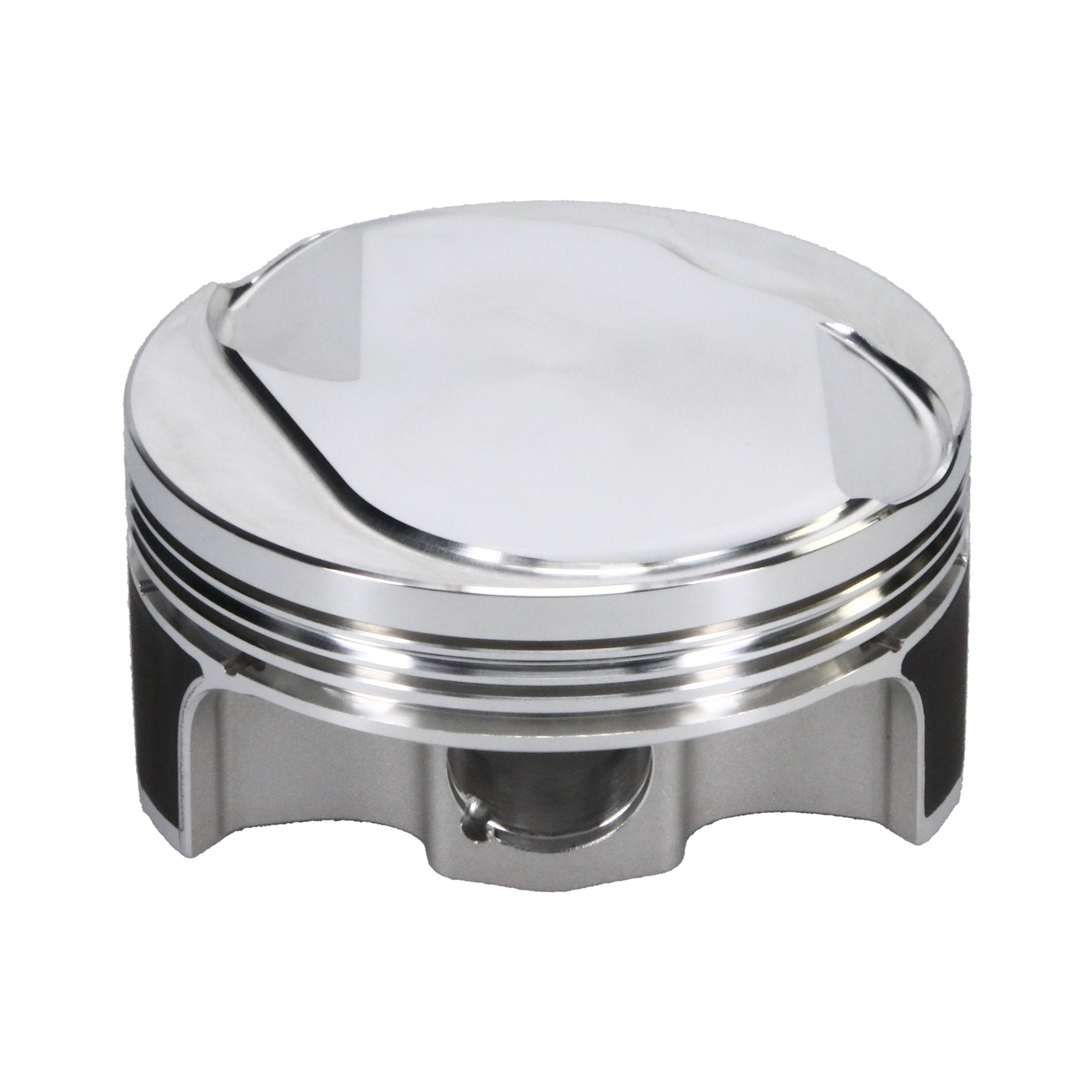

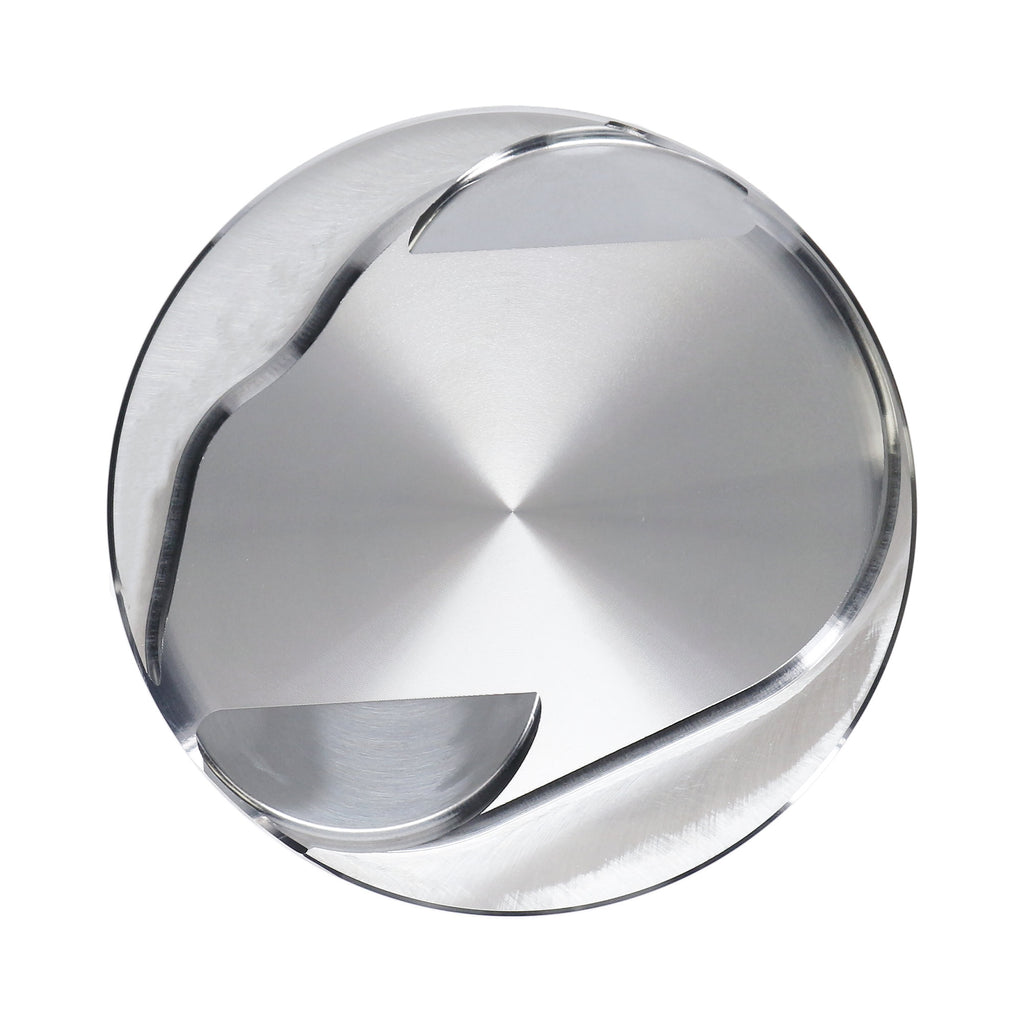

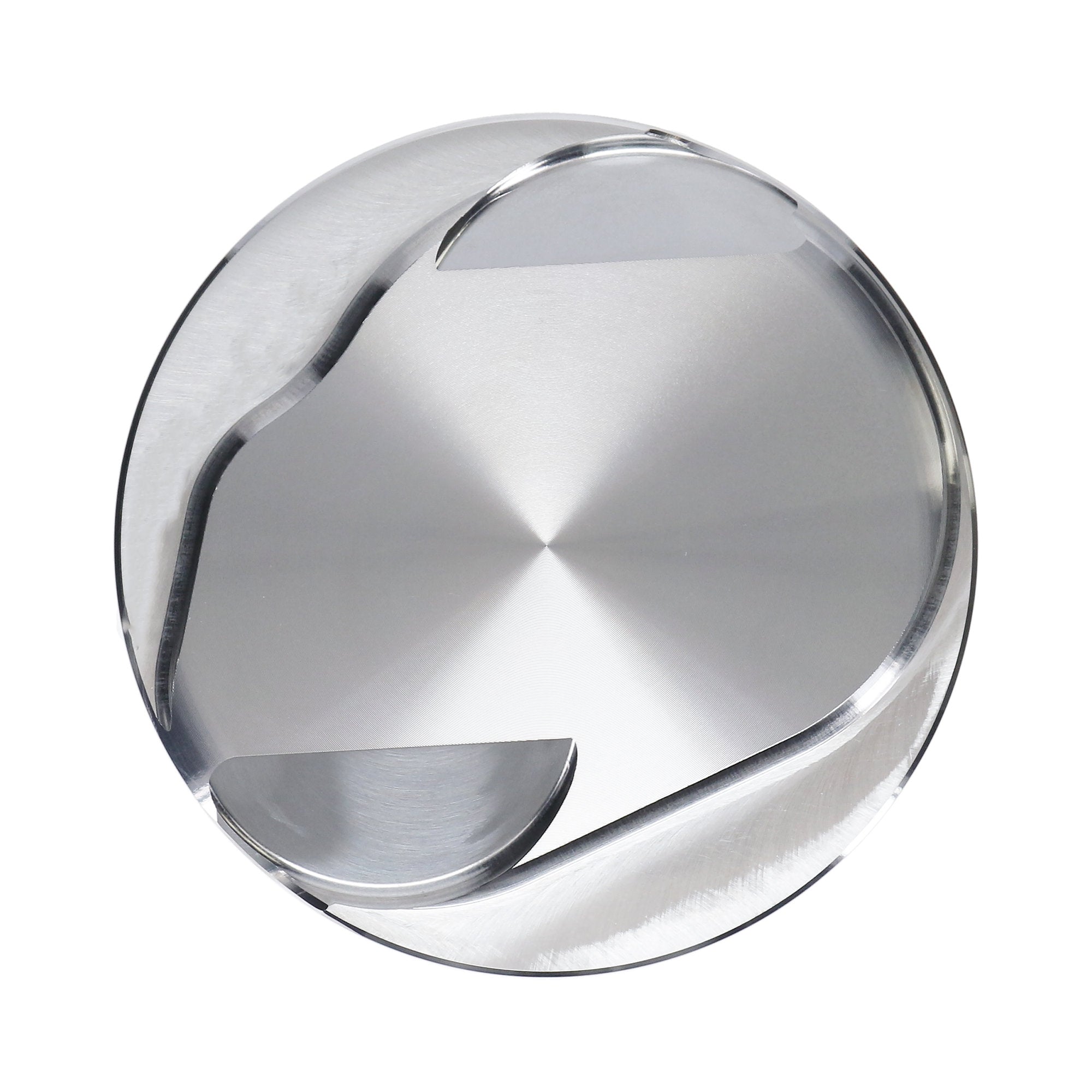

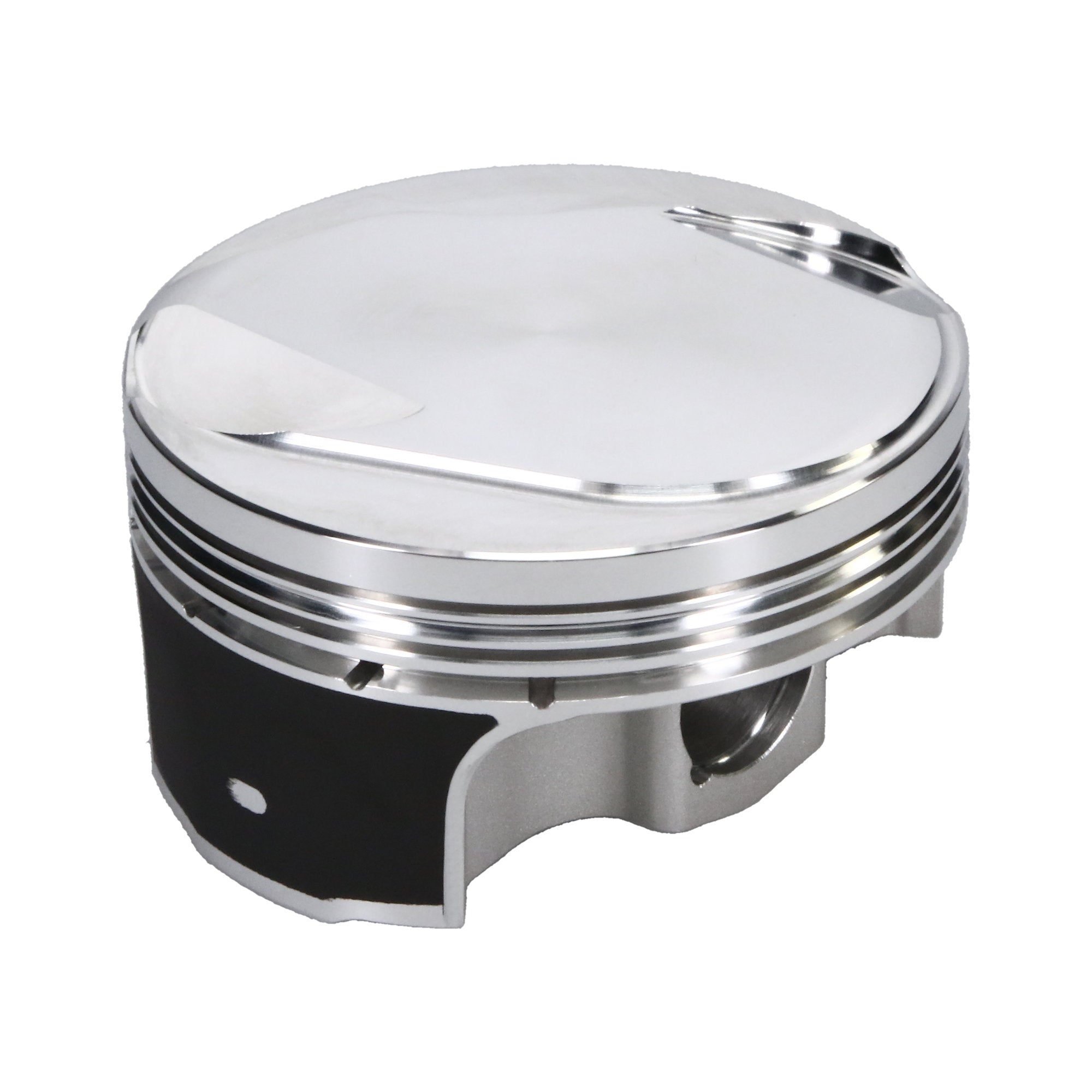

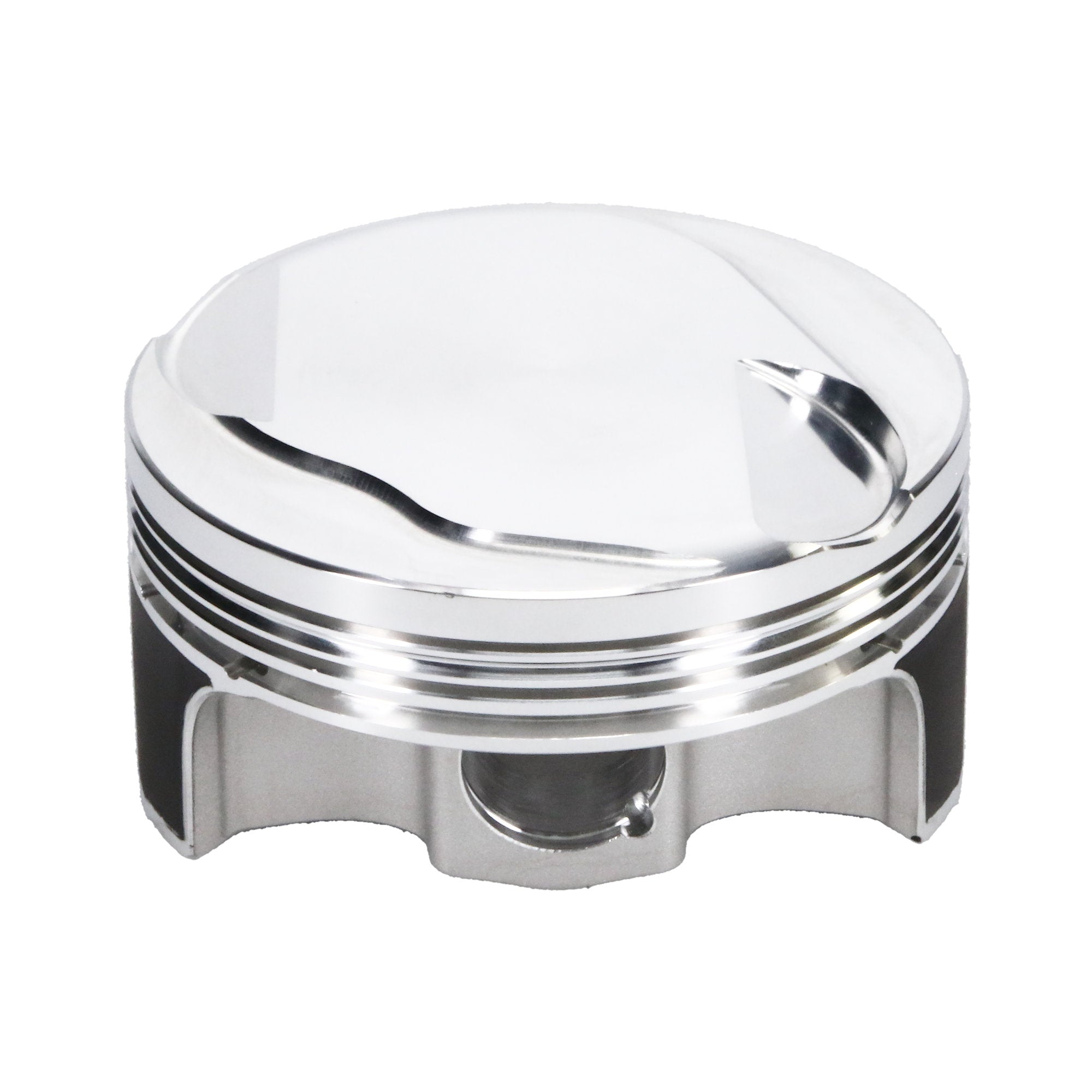

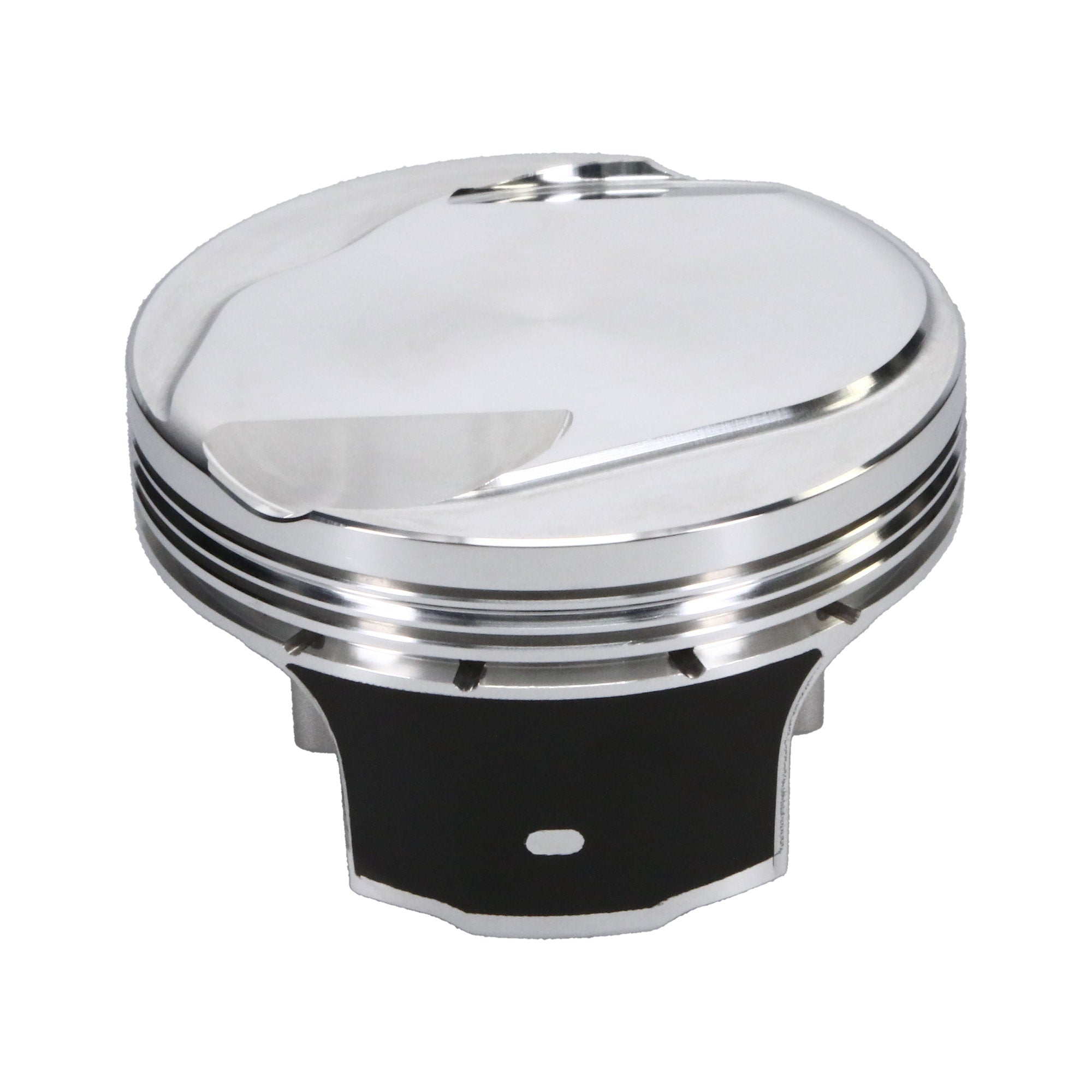

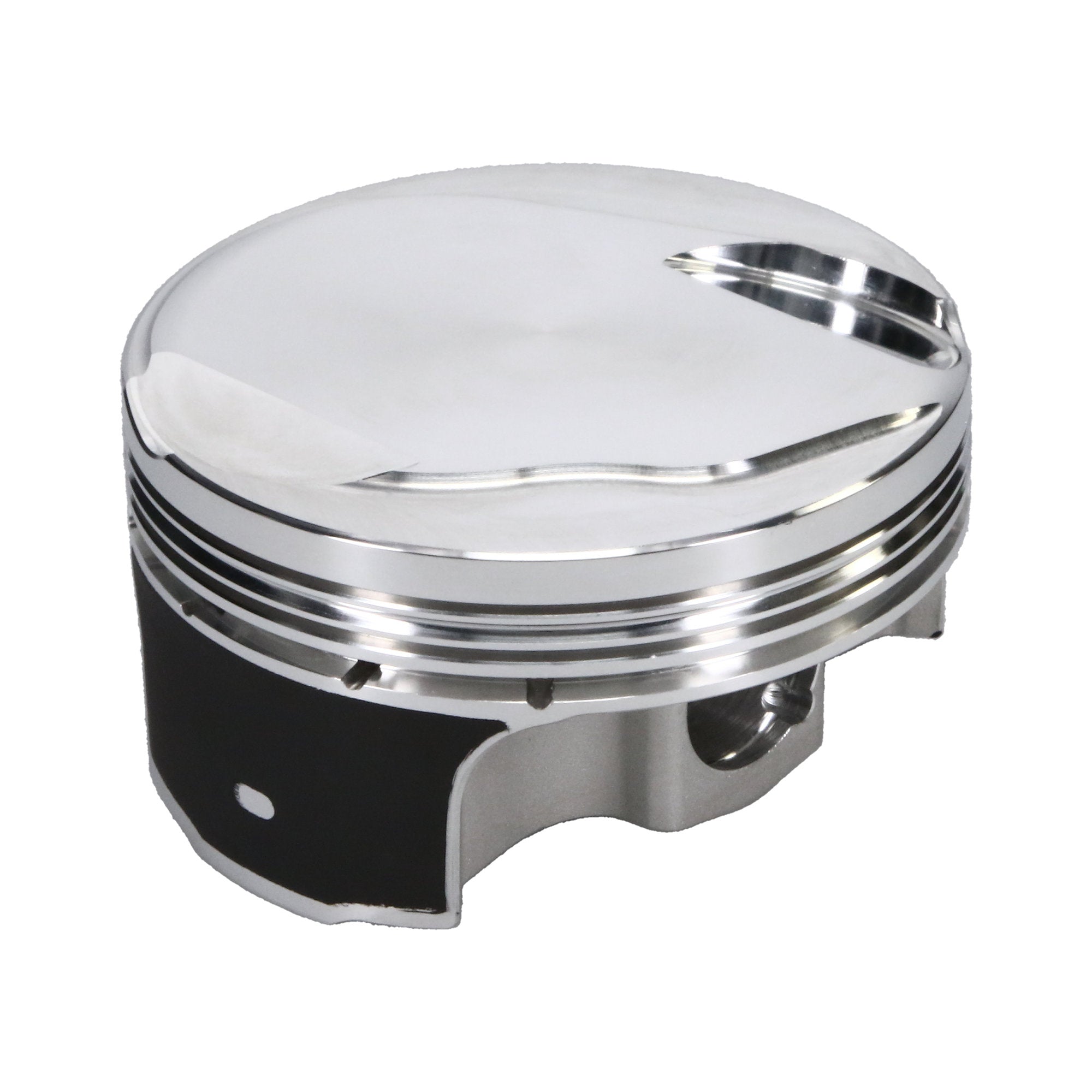

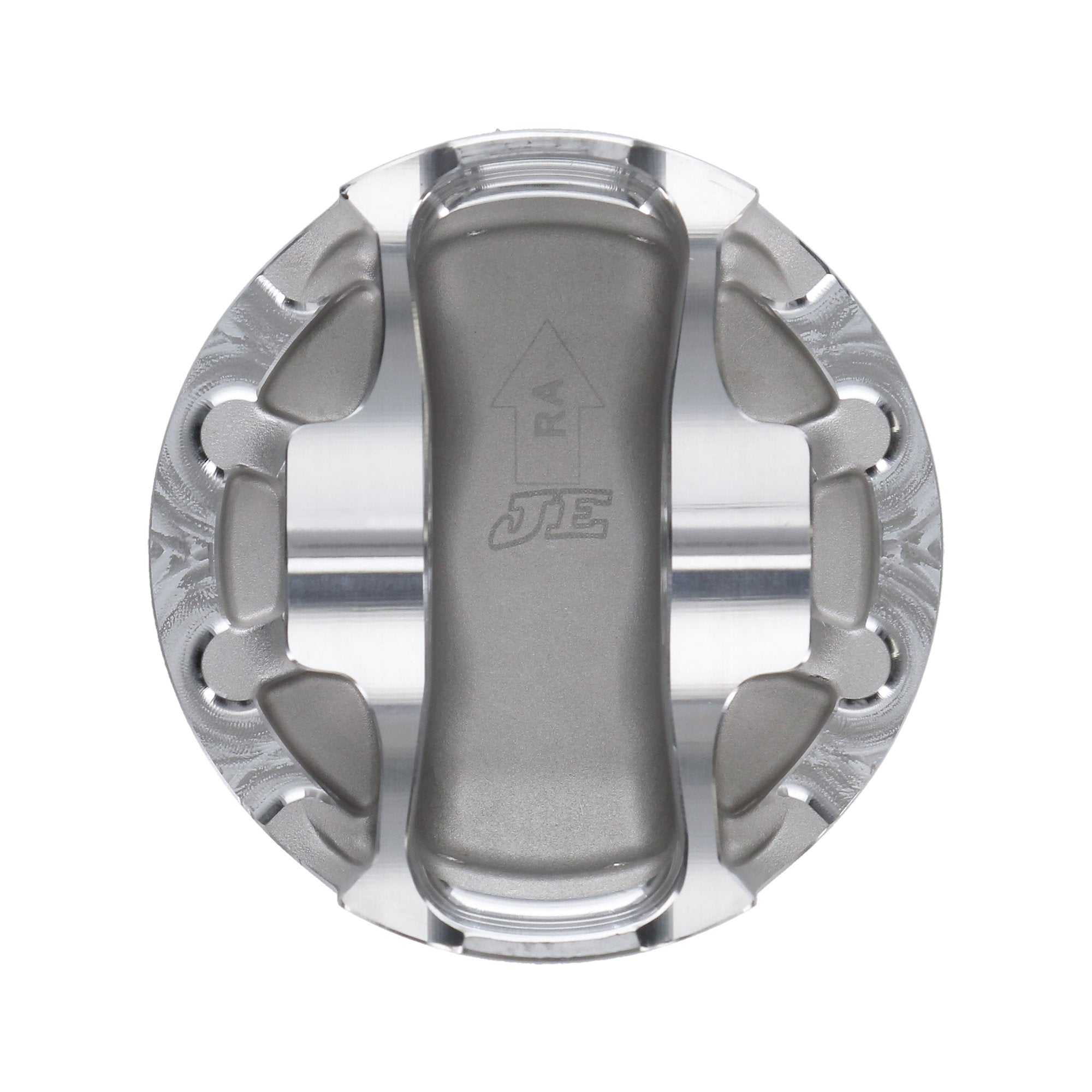

Piston Set, 2618, Dome, 4.035 Bore, 1.310 CD, 0.945 Pin Dia, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 6.2L Modular, 4.035 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Material |
2618 |
| Piston Volume |
6.60 |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availibility |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Title - Web |
JE Pistons Ford Modular Piston Kit - 4.035 in. Bore - 1.310 in. CH, 6.60 CC |
| Prop 65 Yes/No |
Yes |
| Engine |
Modular |
| Add-On |
945-2250-15-51C |
| Industry |
Automotive |
| Bore Diameter |
4.035 |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.945 |
| Piston Pin Material |
5115 |
| Piston Quantity |
8 |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title |
JE Pistons - Ford, Modular, 4.035 in. Bore, Piston Kit |
| Compression Height |
1.310 |
| Piston Head Type |
Dome |
| Make |
FORD |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.945 |
| Engine - Web |
Modular |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
16.0000 |
