As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
BMW B58B30 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

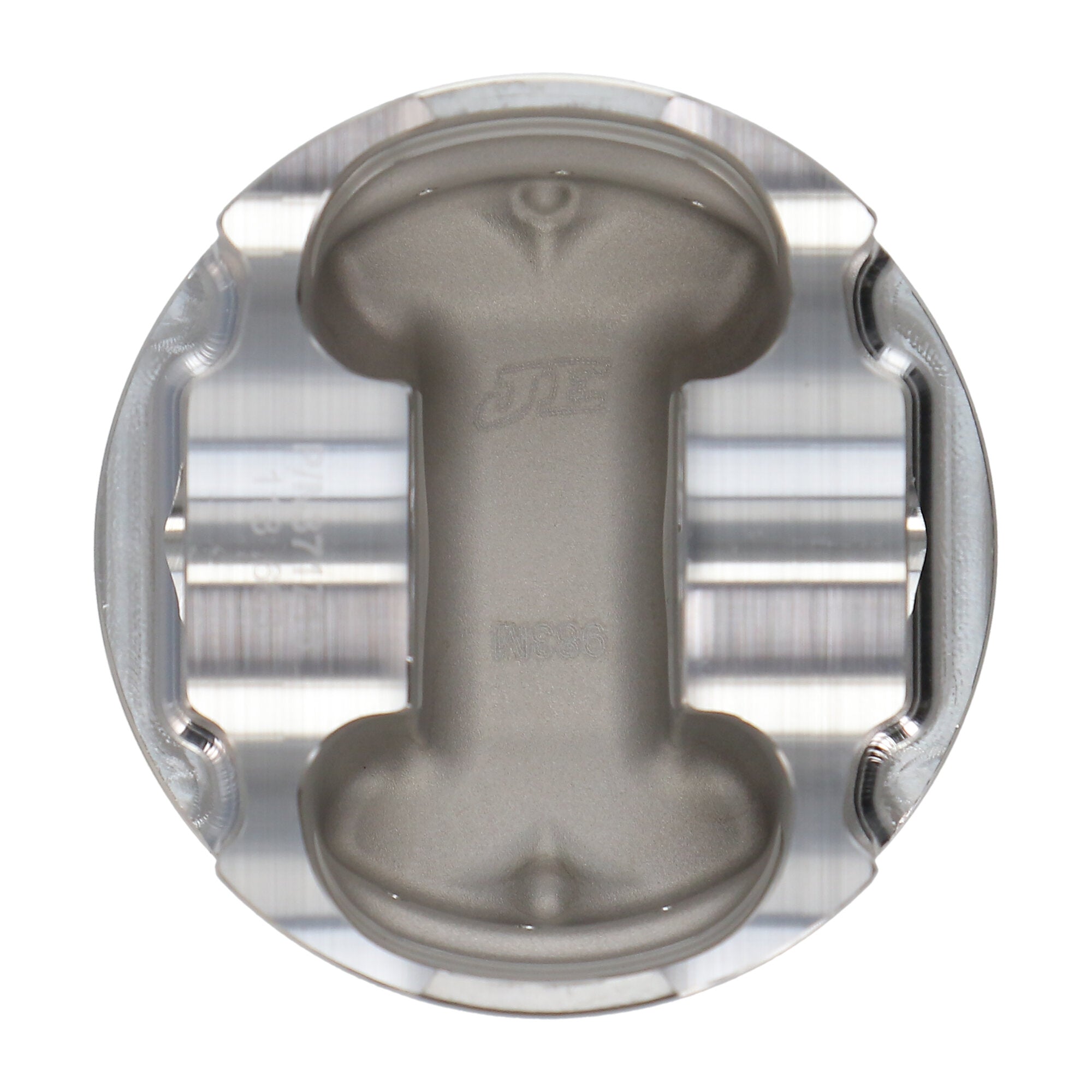

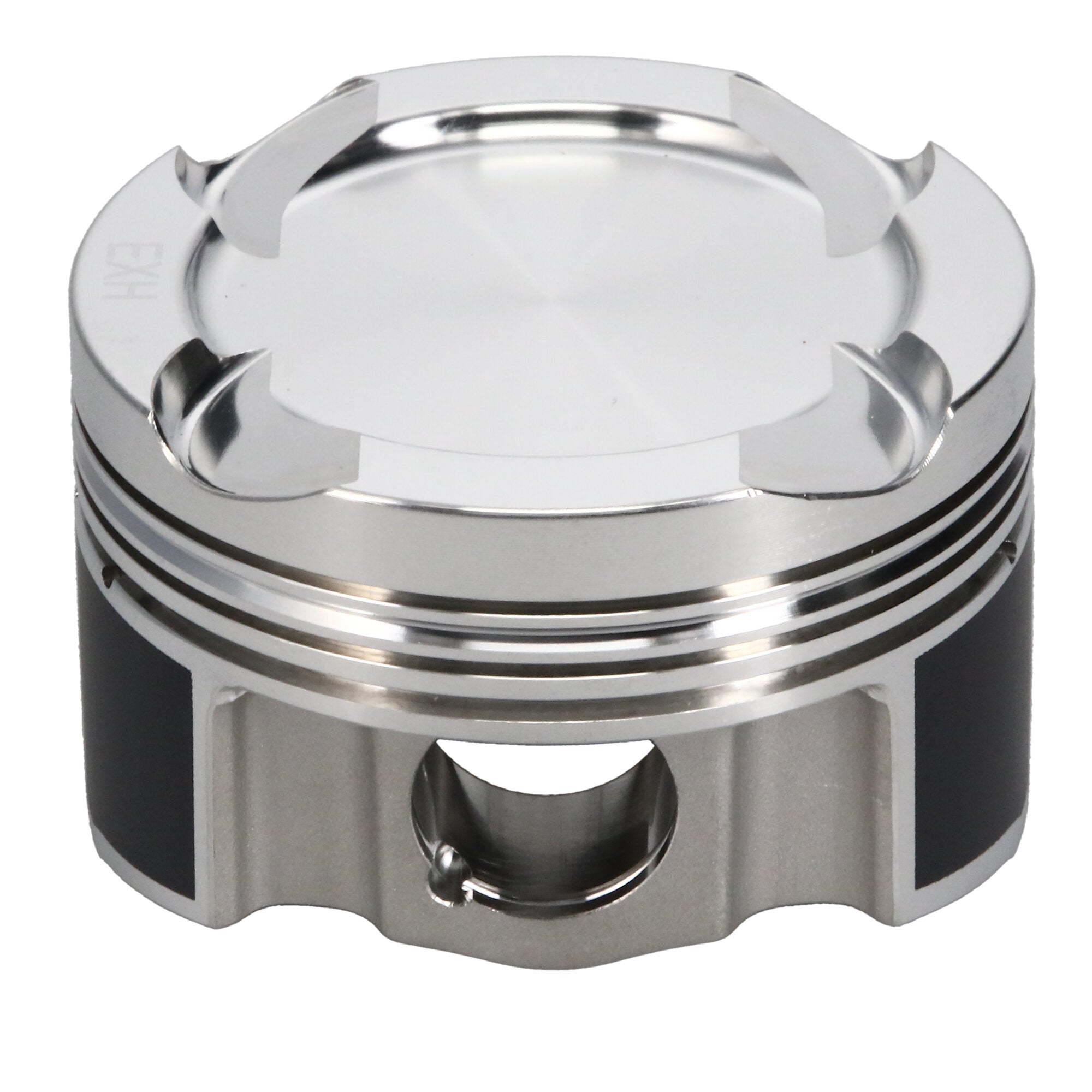

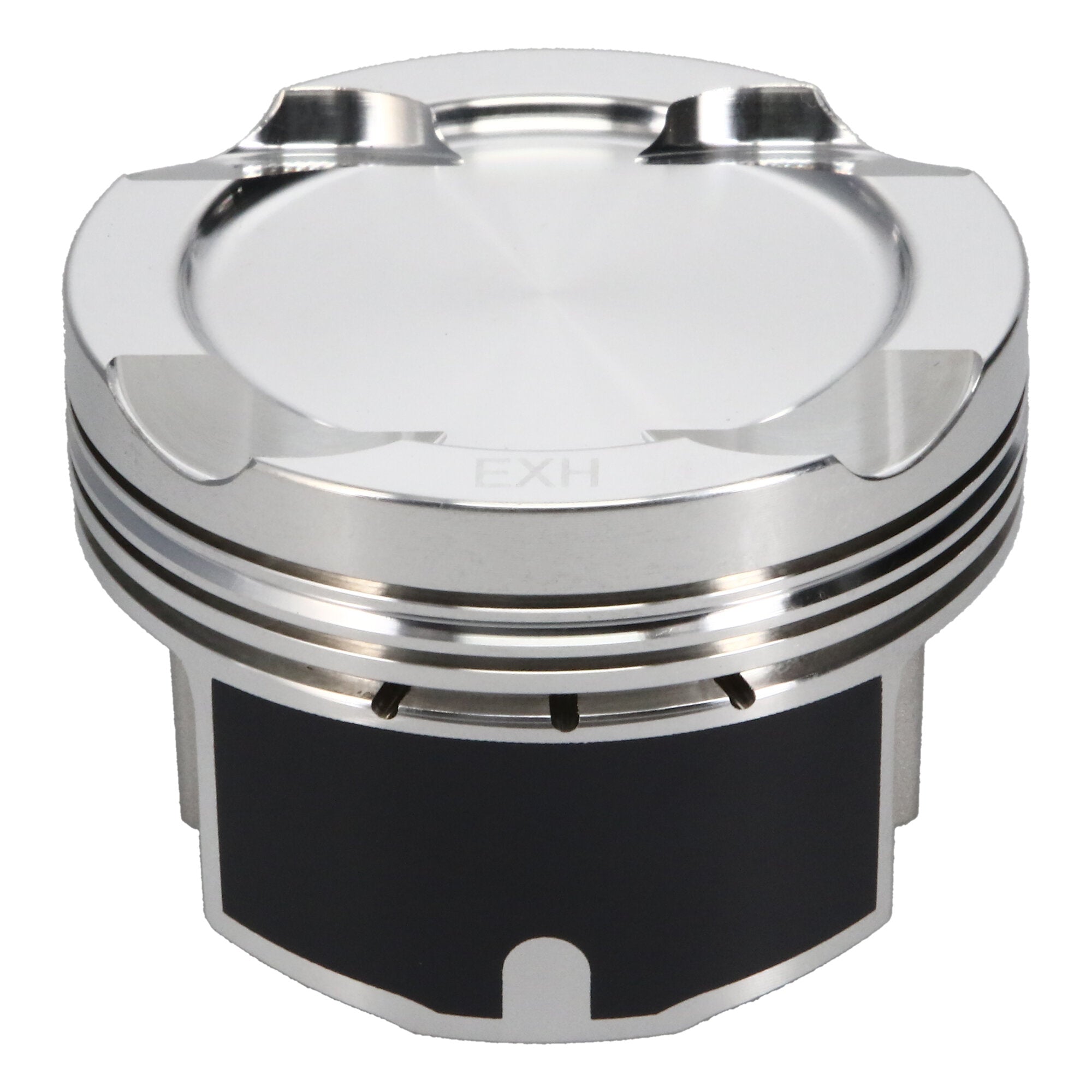

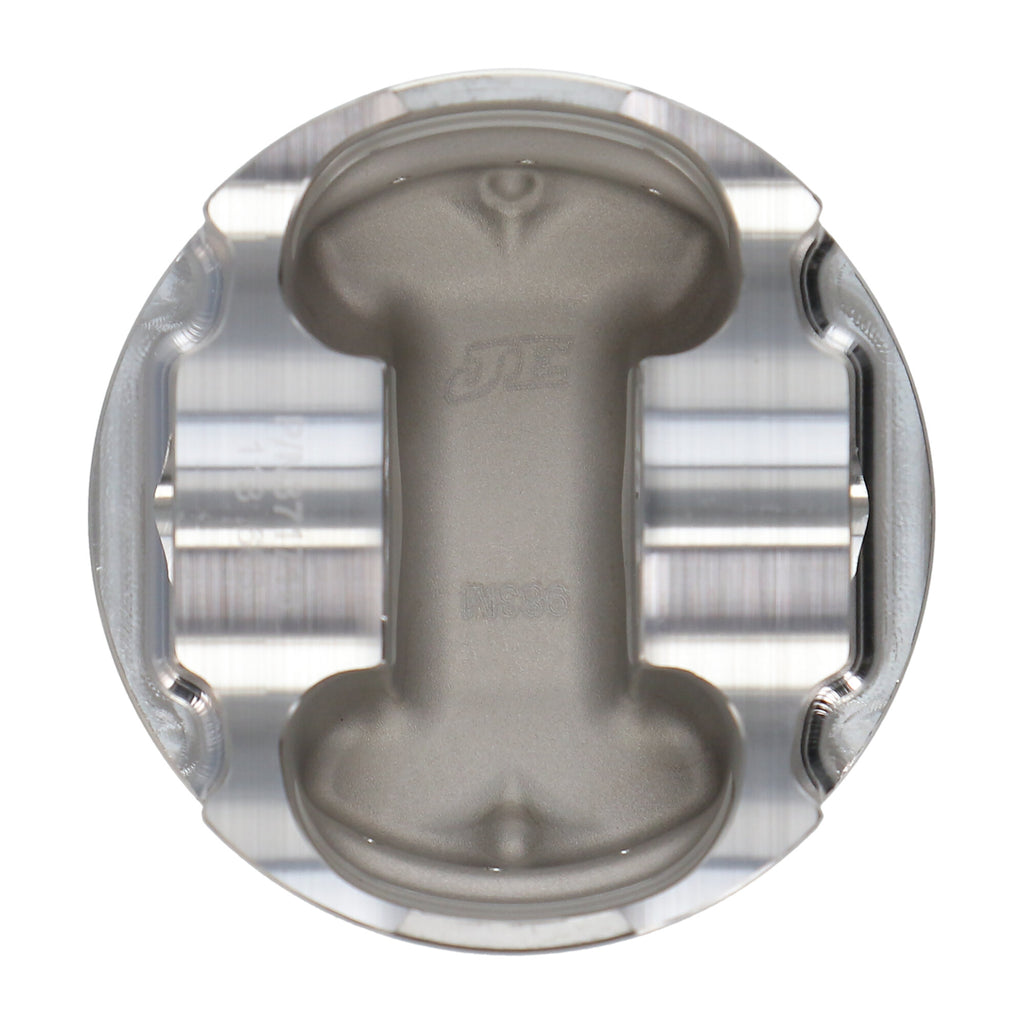

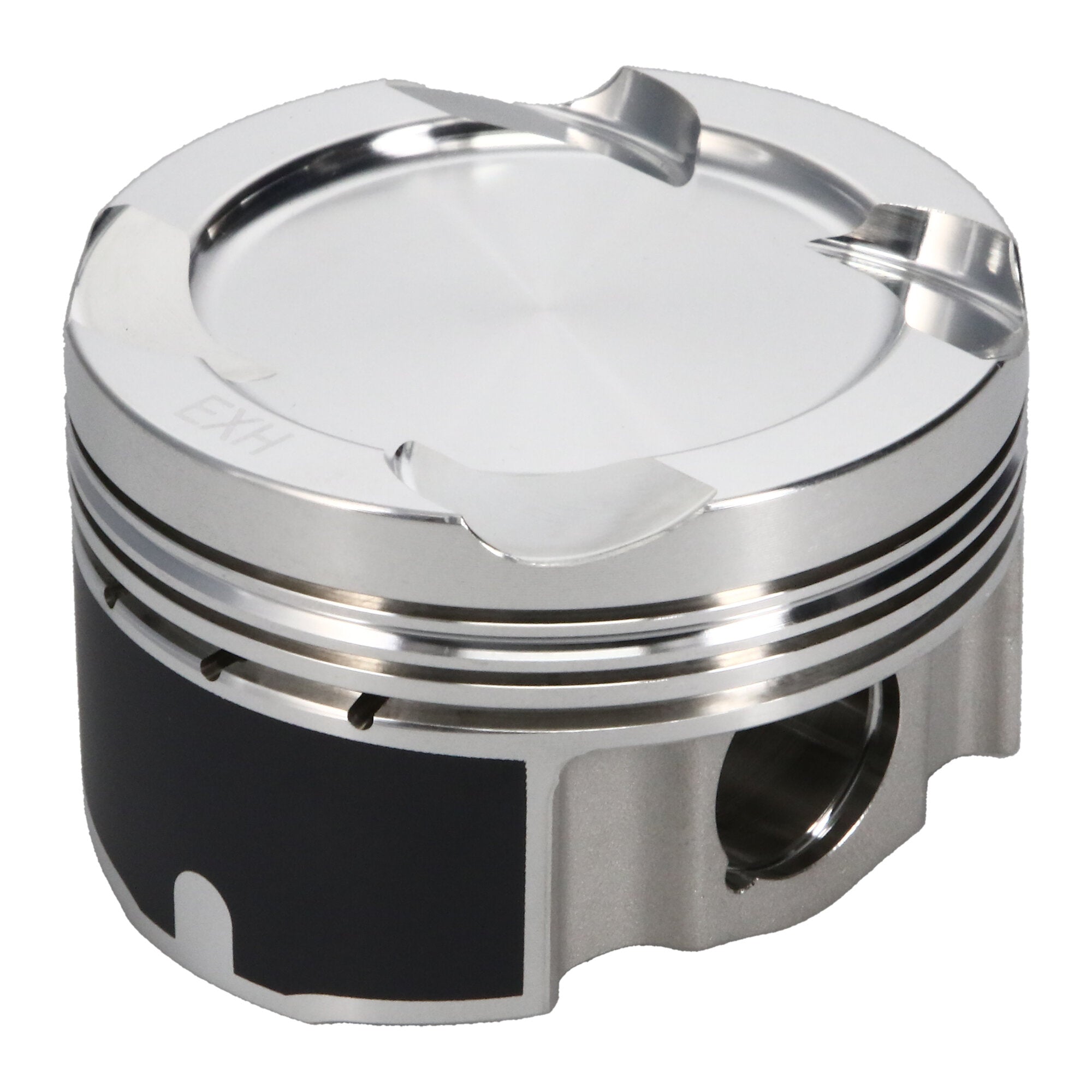

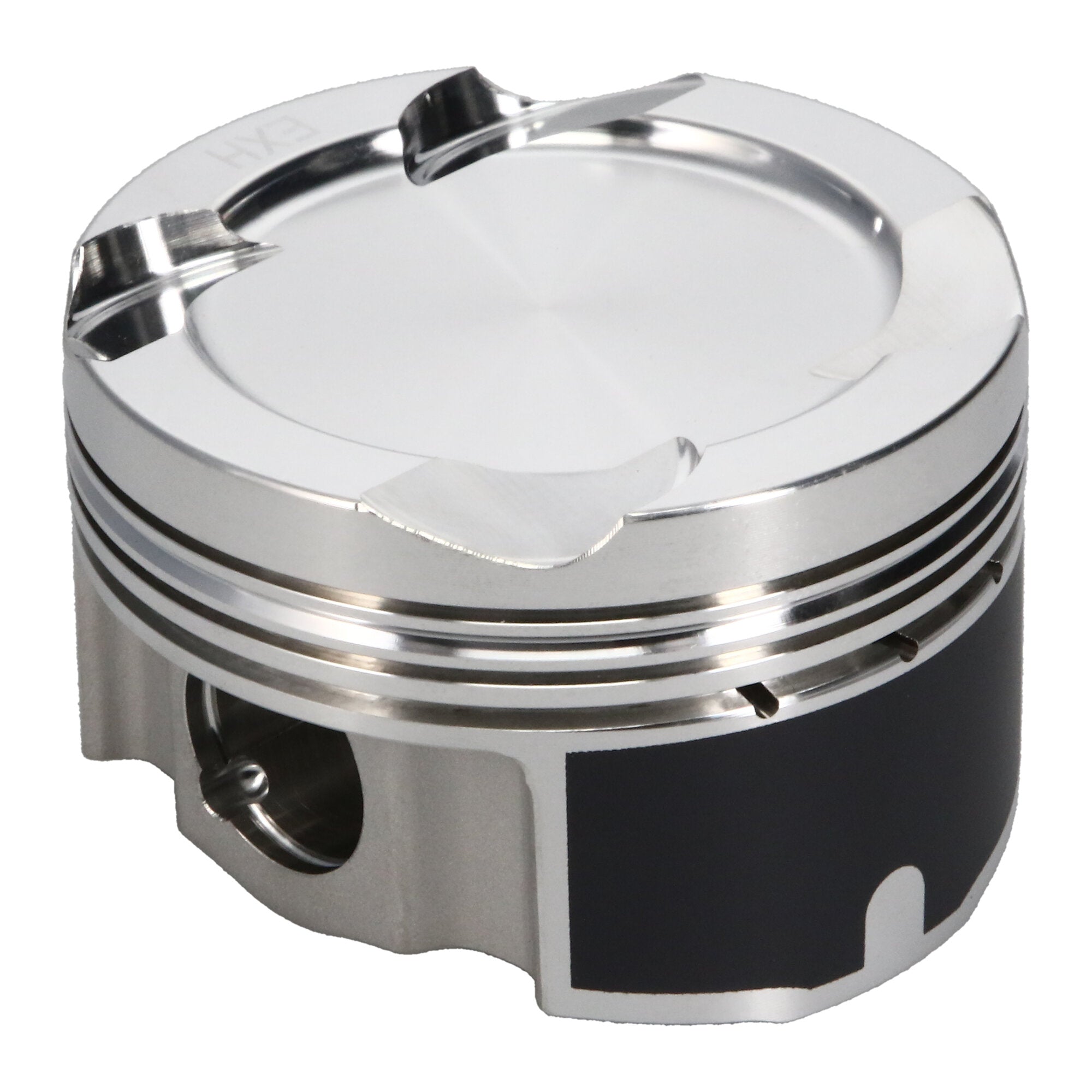

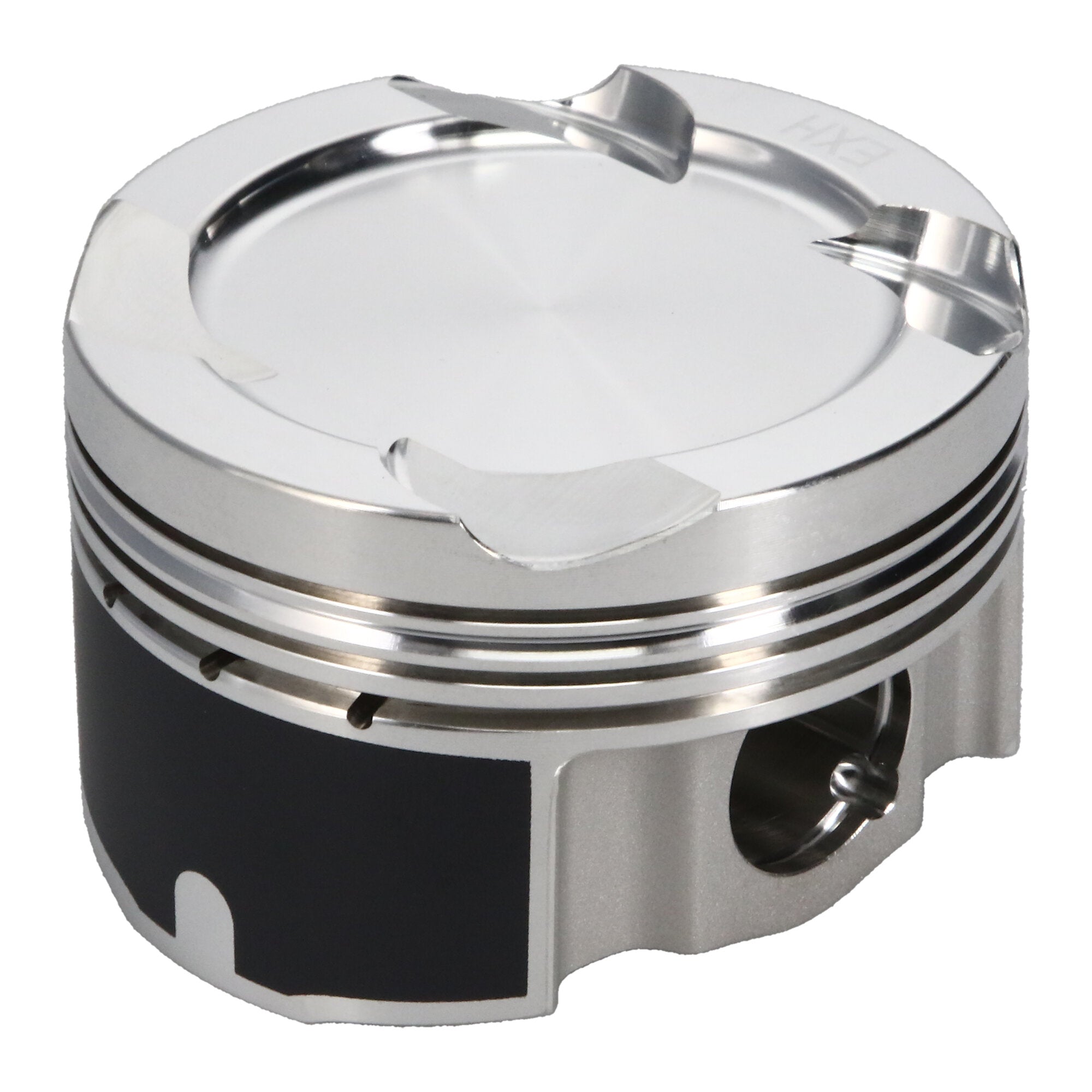

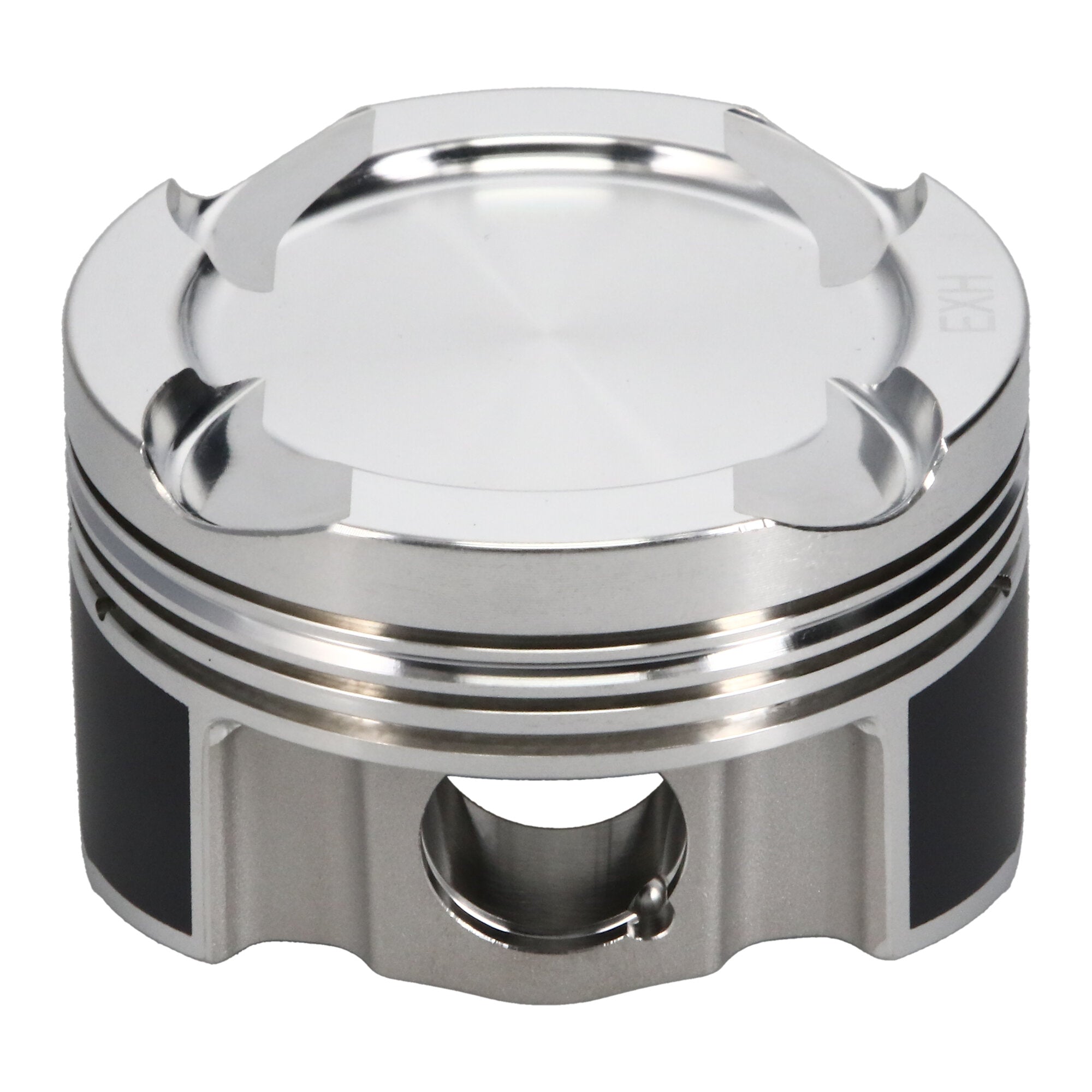

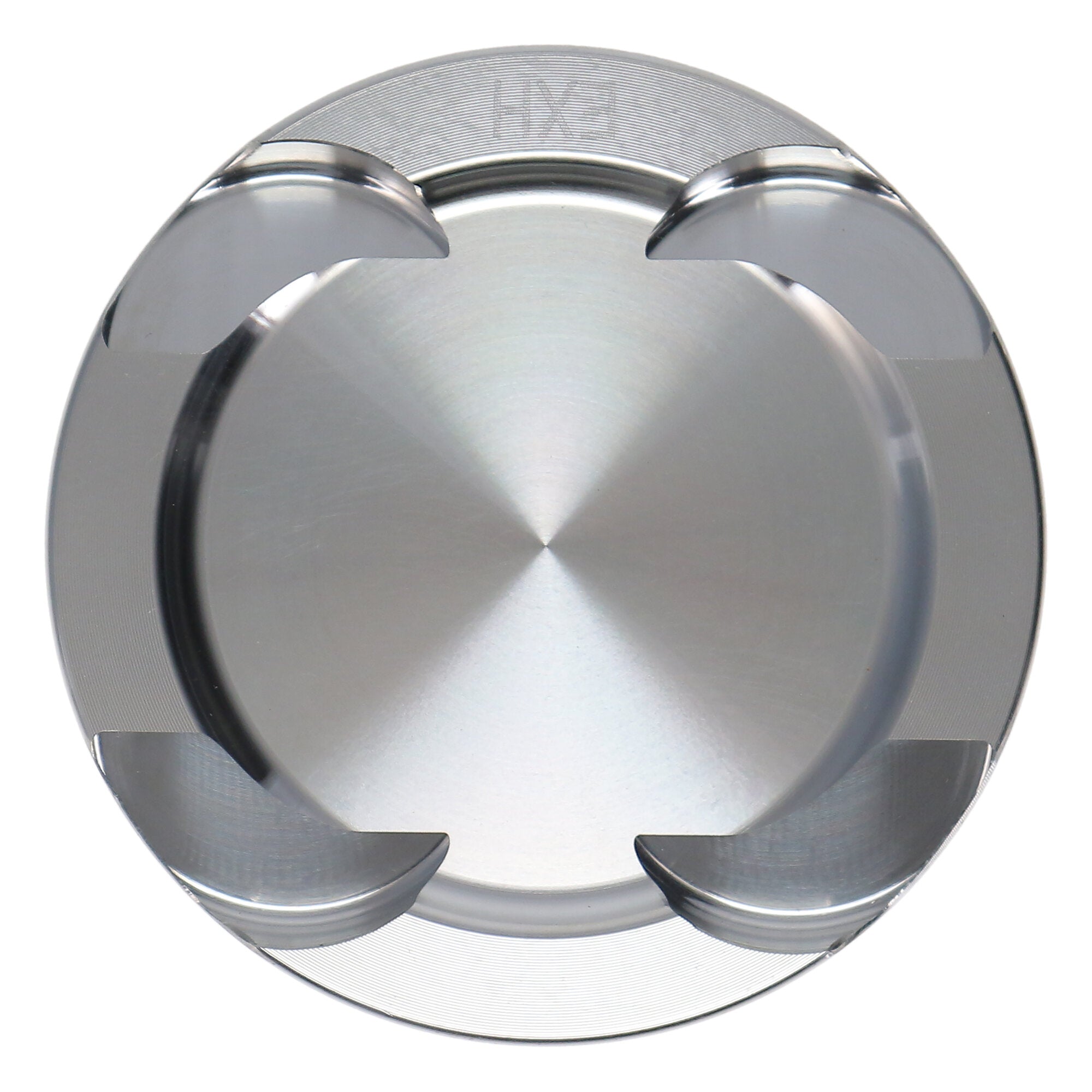

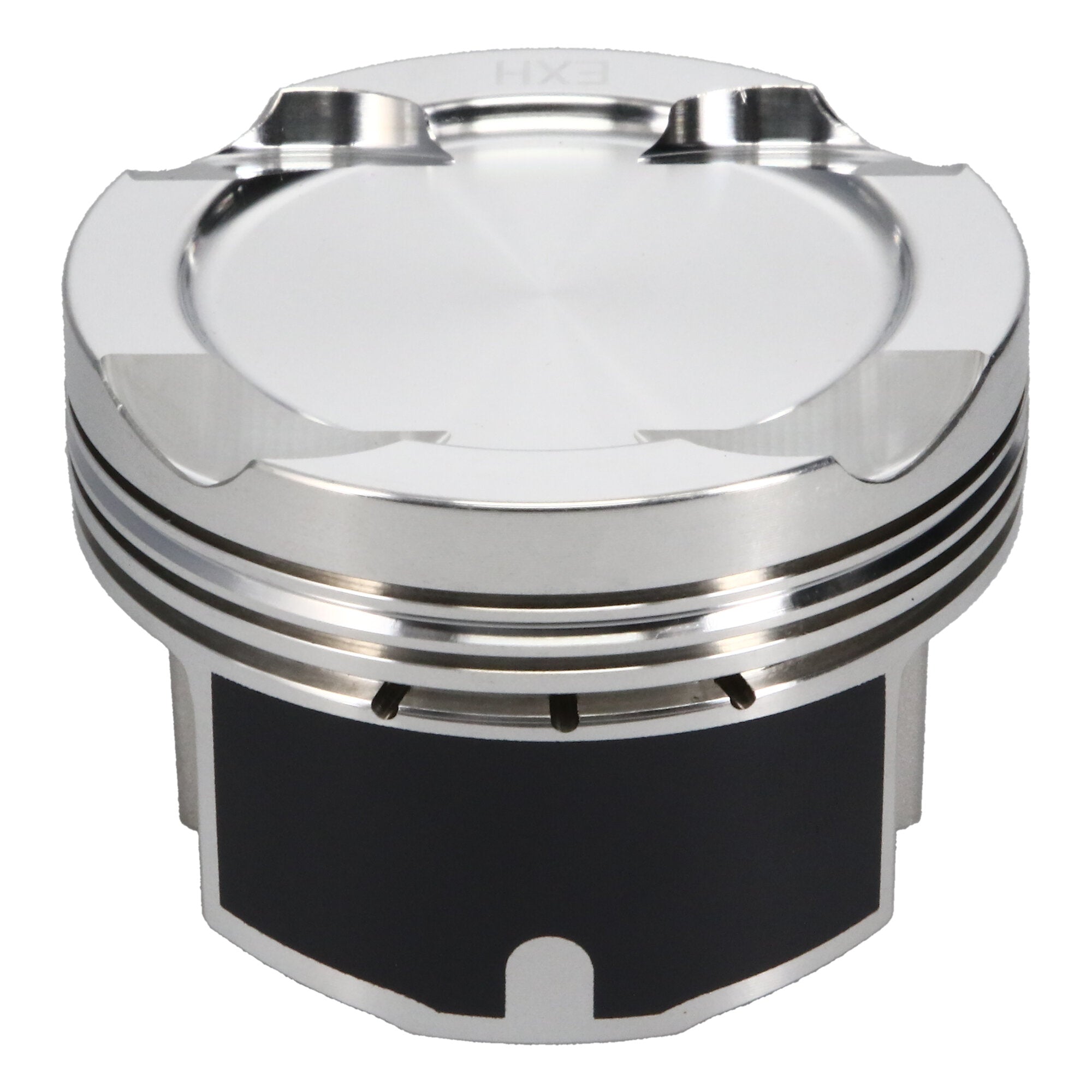

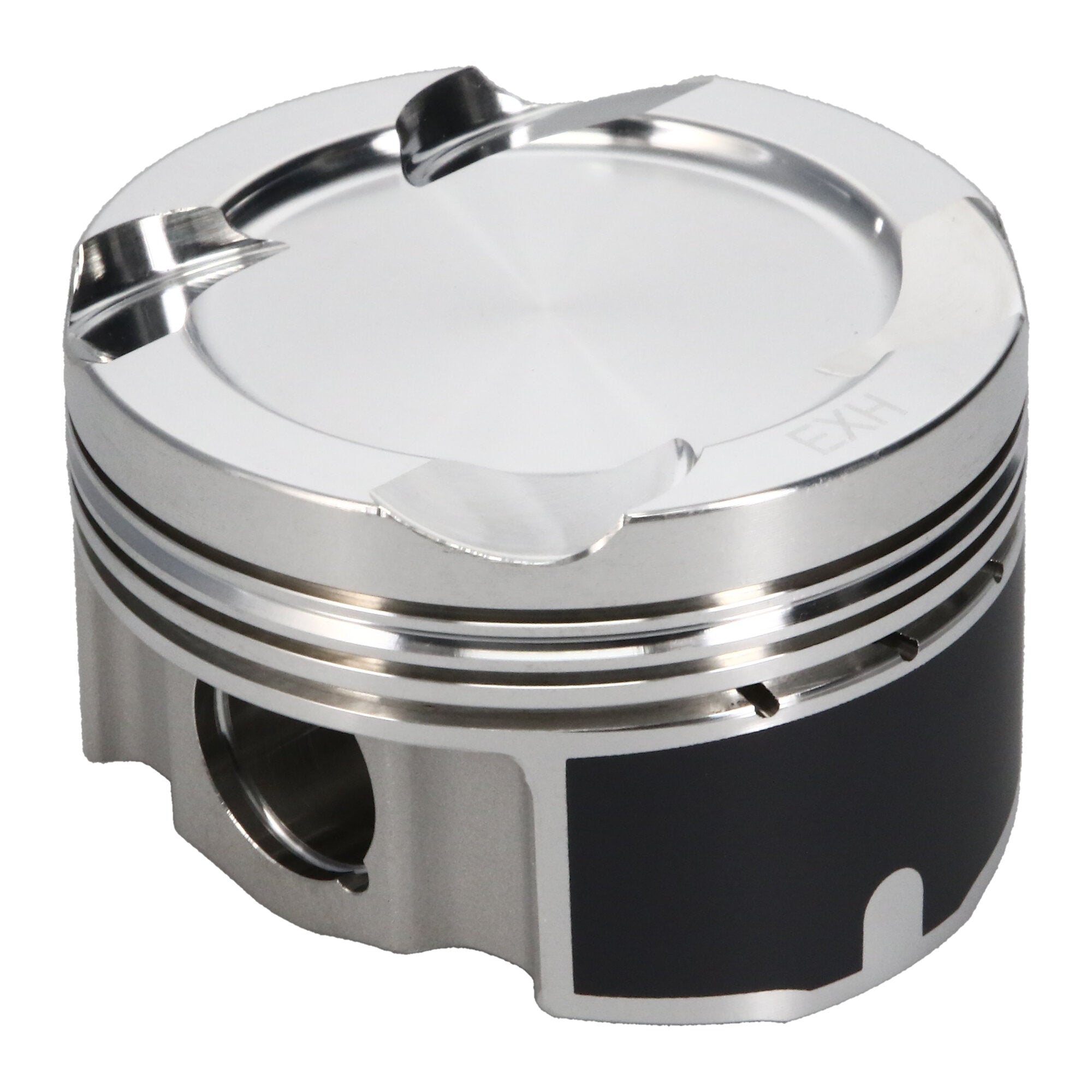

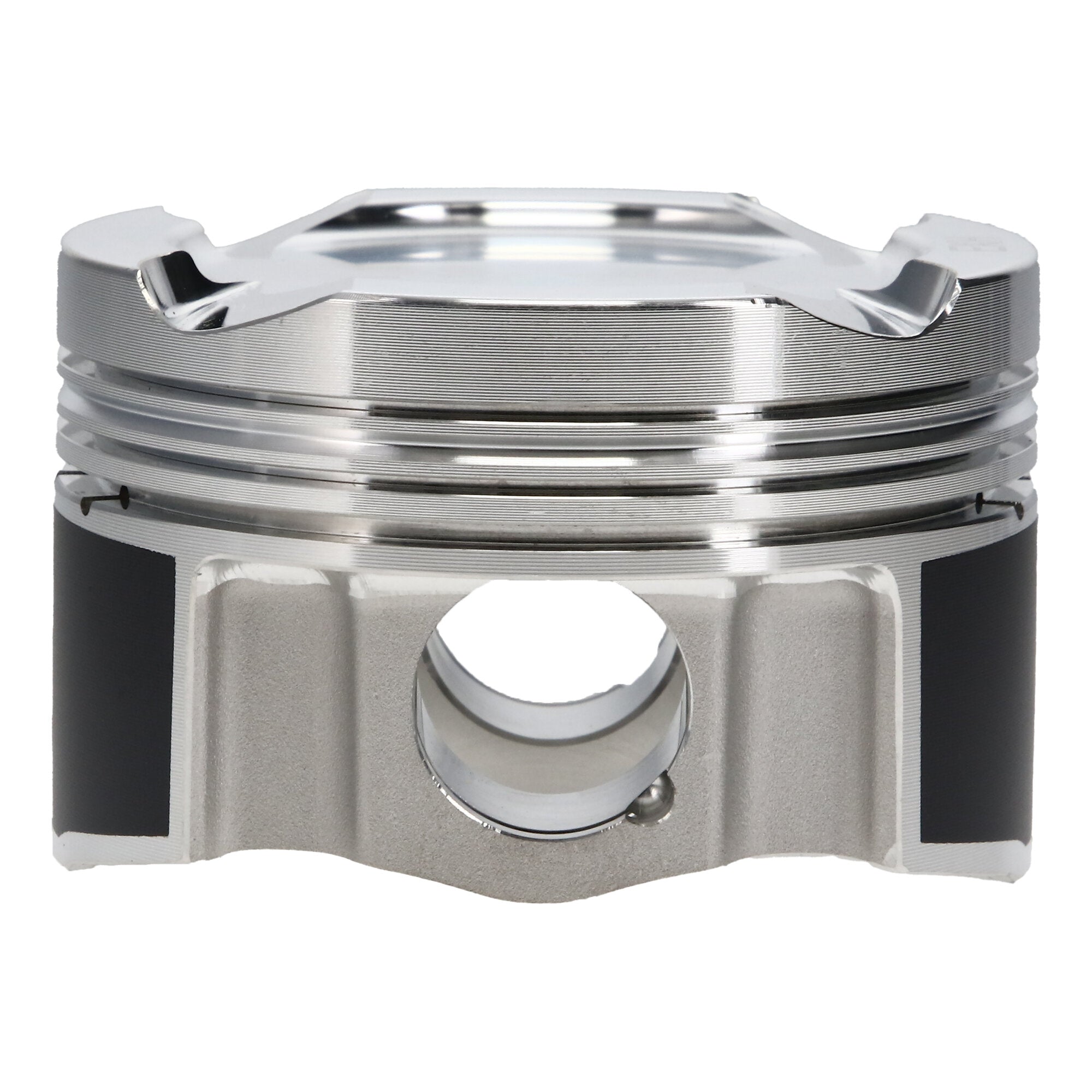

Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.307 CD, 0.866 Pin Dia, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
BMW B58B30, 3.268 Bore, Inv Dome/Dish, Set of 6 |
| Piston Quantity |
6 |
| Piston Pin Material |
5115 |
| Make |
BMW |
| Piston Series |
JE Pistons |
| Wrist Pin Outer Diameter |
0.866 |
| Title |
JE Pistons - BMW, B58B30, 3.268 in. Bore, Piston Kit |
| Piston Material |
2618 |
| Product Market |
European |
| Piston Pin Wall Thickness |
0.180 |
| Engine Type |
ICE |
| Bore Diameter |
3.268 |
| Piston Pin Outside Diameter |
0.866 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Wall Thickness |
0.180 |
| Engine - Web |
B58B30 |
| Wrist Pin Length |
2.250 |
| Piston Volume |
-12.30 |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availibility |
| Title - Web |
JE Pistons BMW B58B30 Piston Kit - 3.268 in. Bore - 1.307 in. CH, -12.30 CC |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Compression Height |
1.307 |
| Add-On |
866-2250-18-51C |
| Make - Web |
BMW |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Inv Dome/Dish |
| Engine |
B58B30 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
7.0000 |
