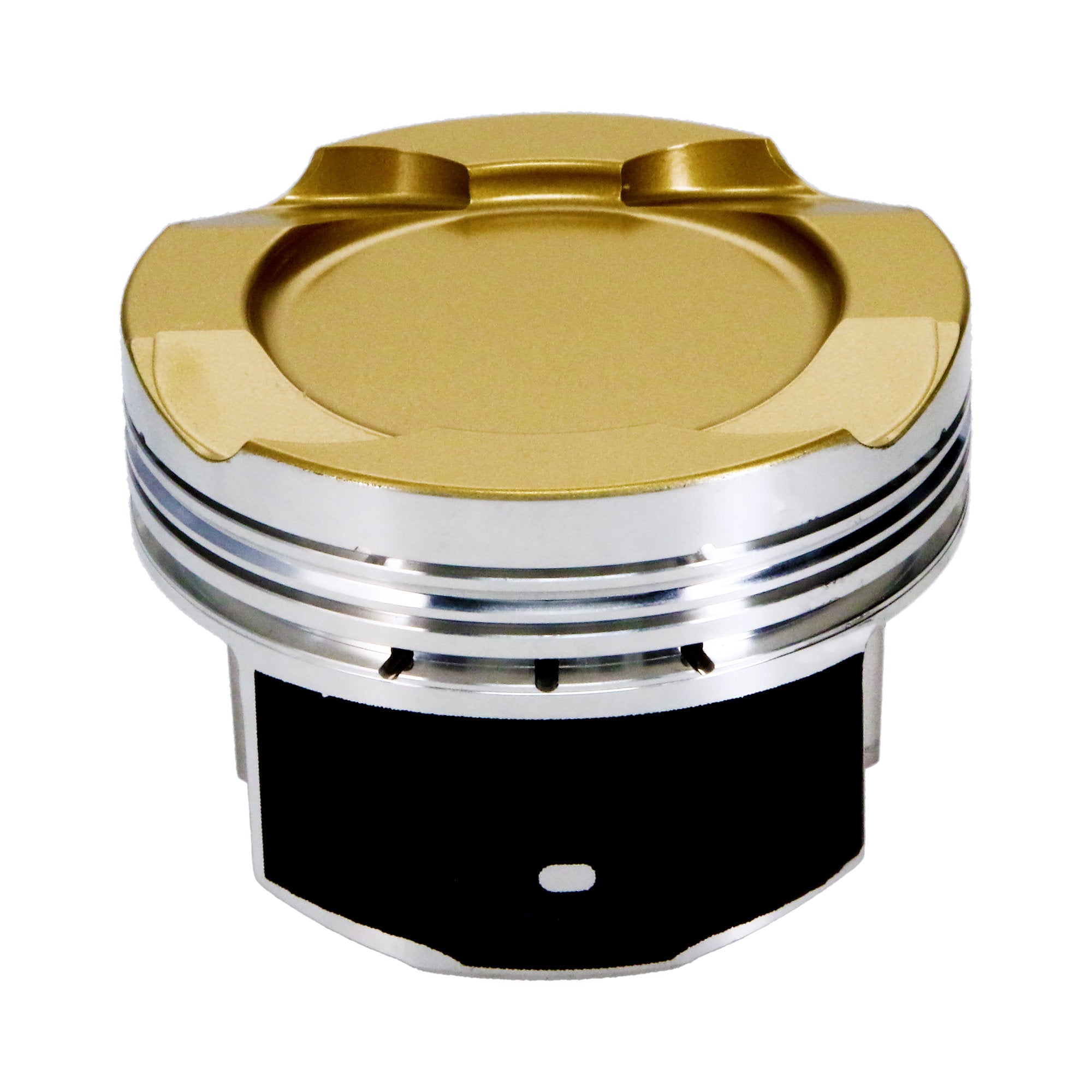

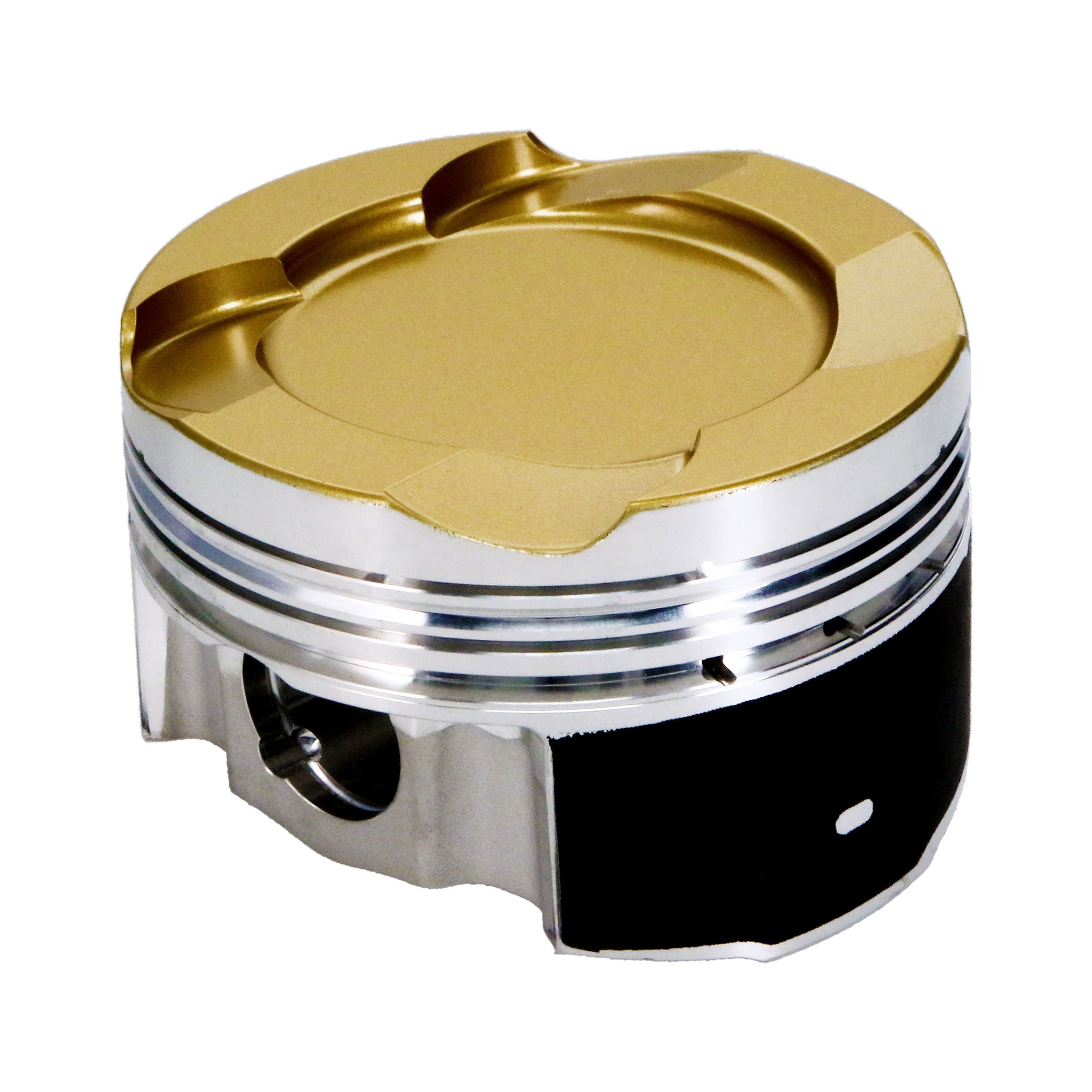

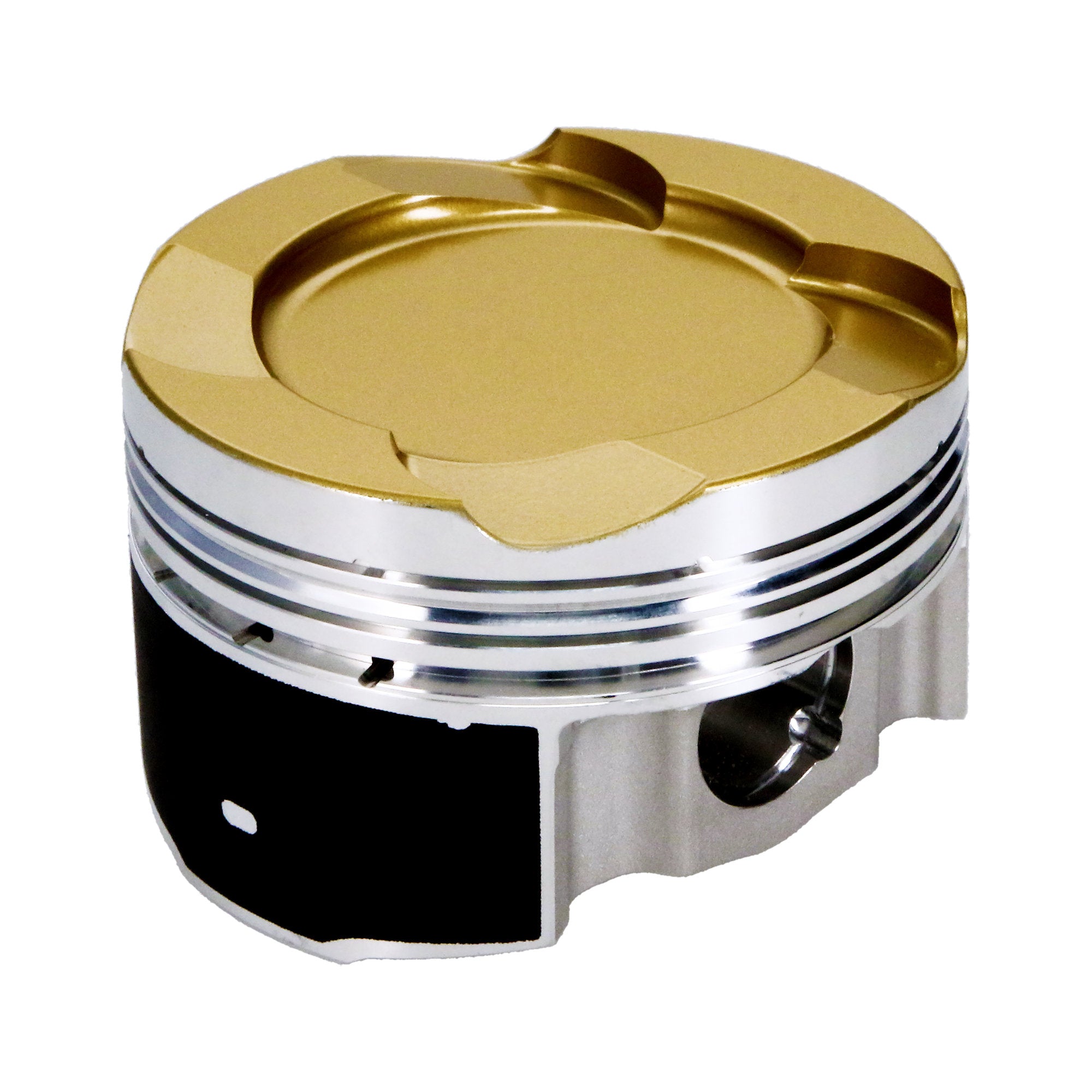

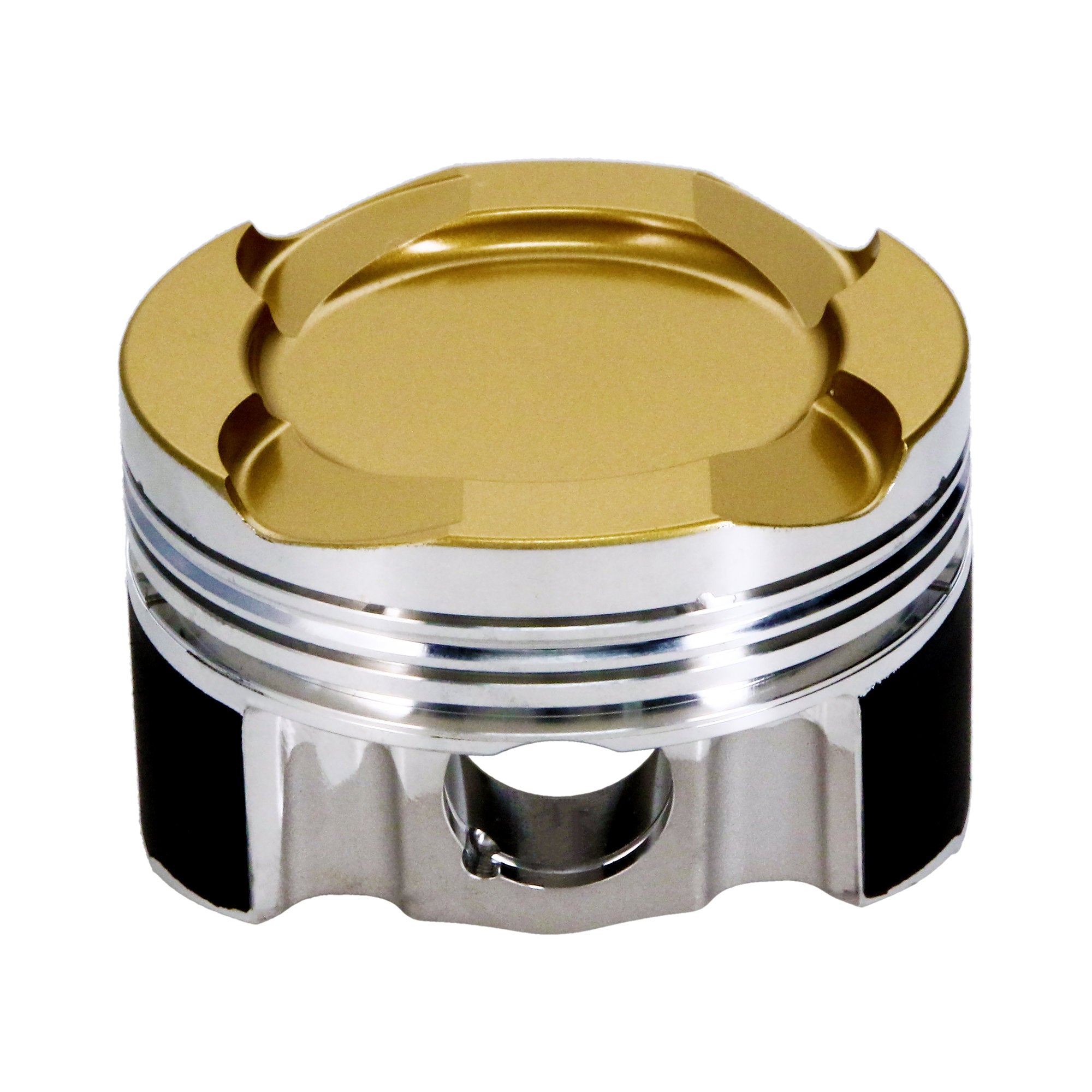

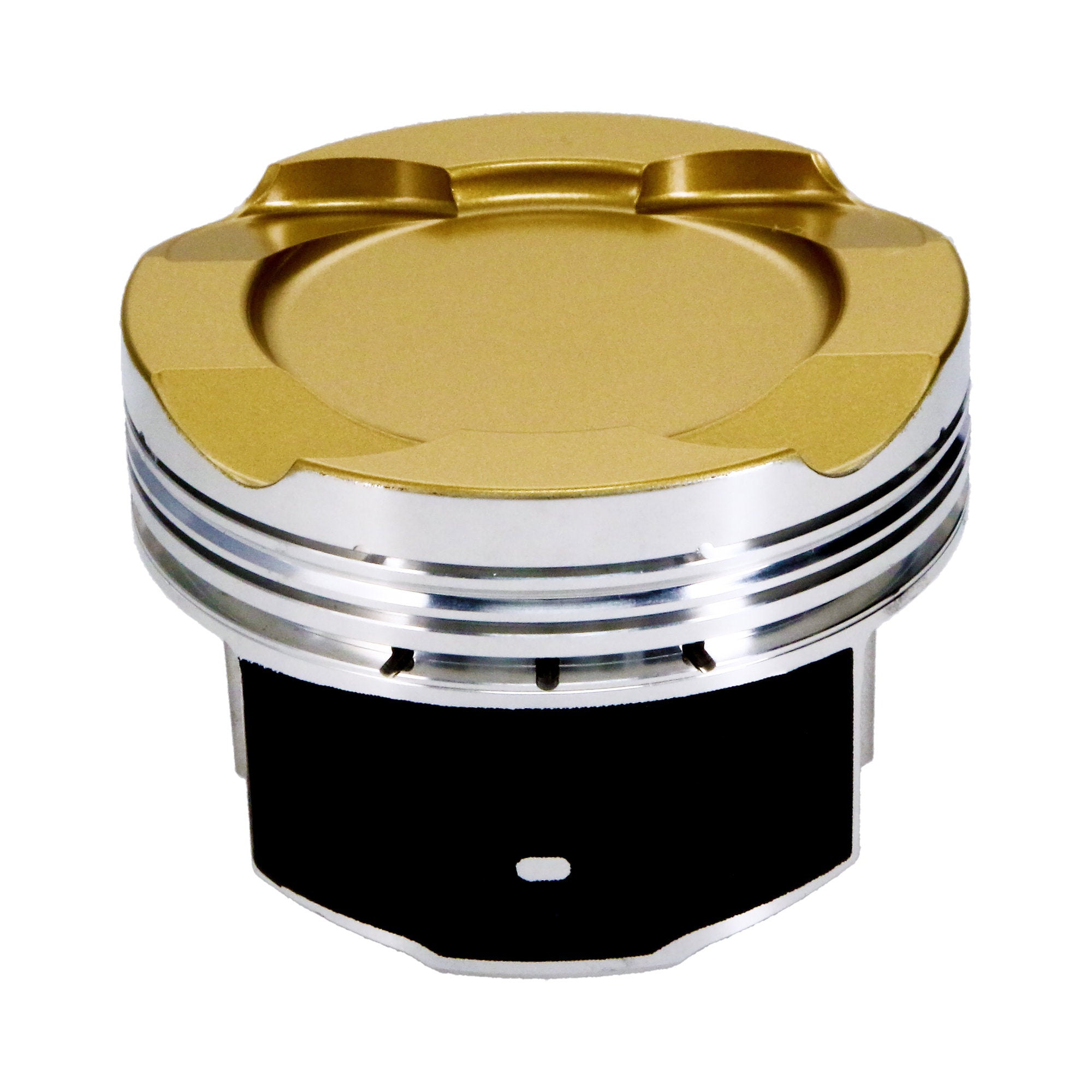

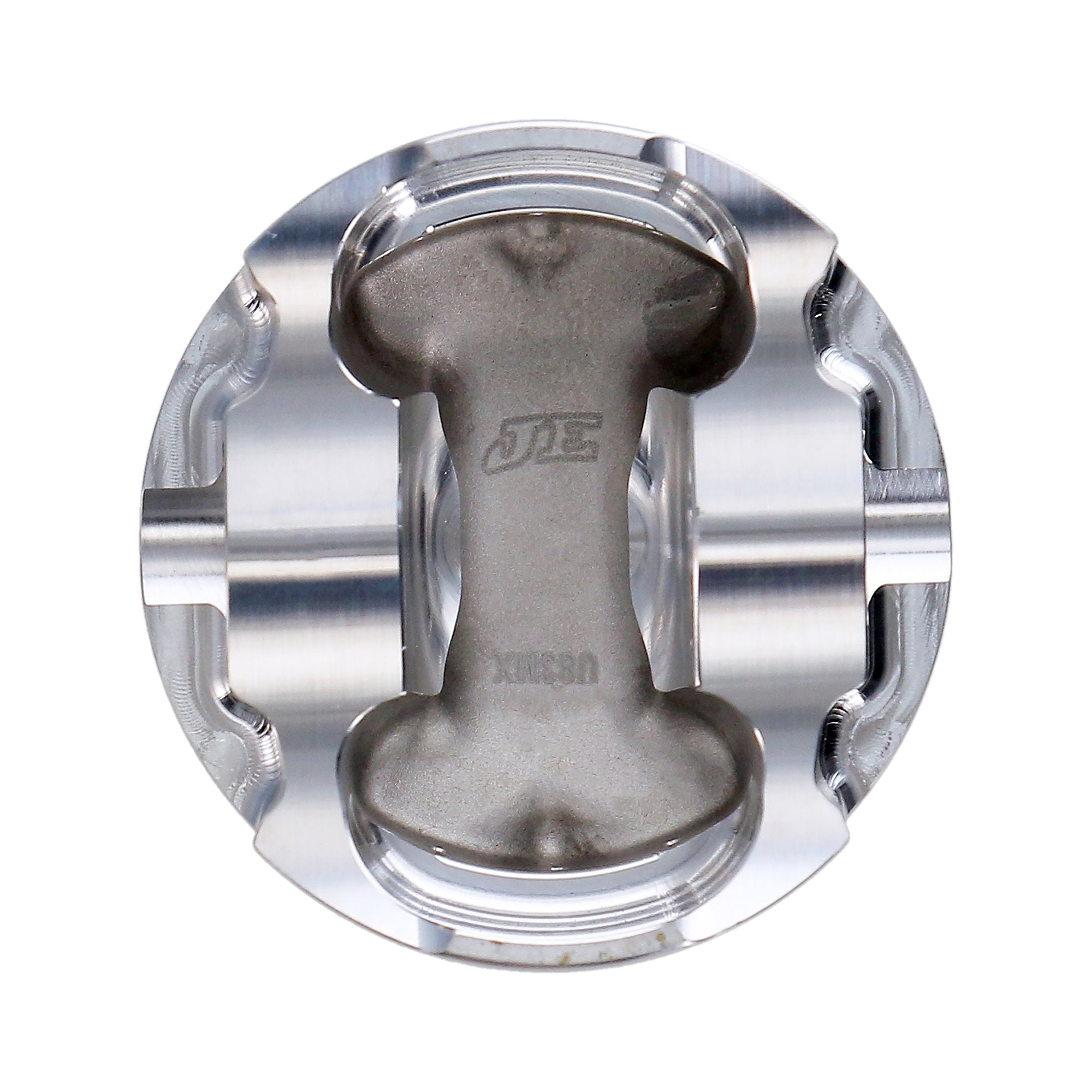

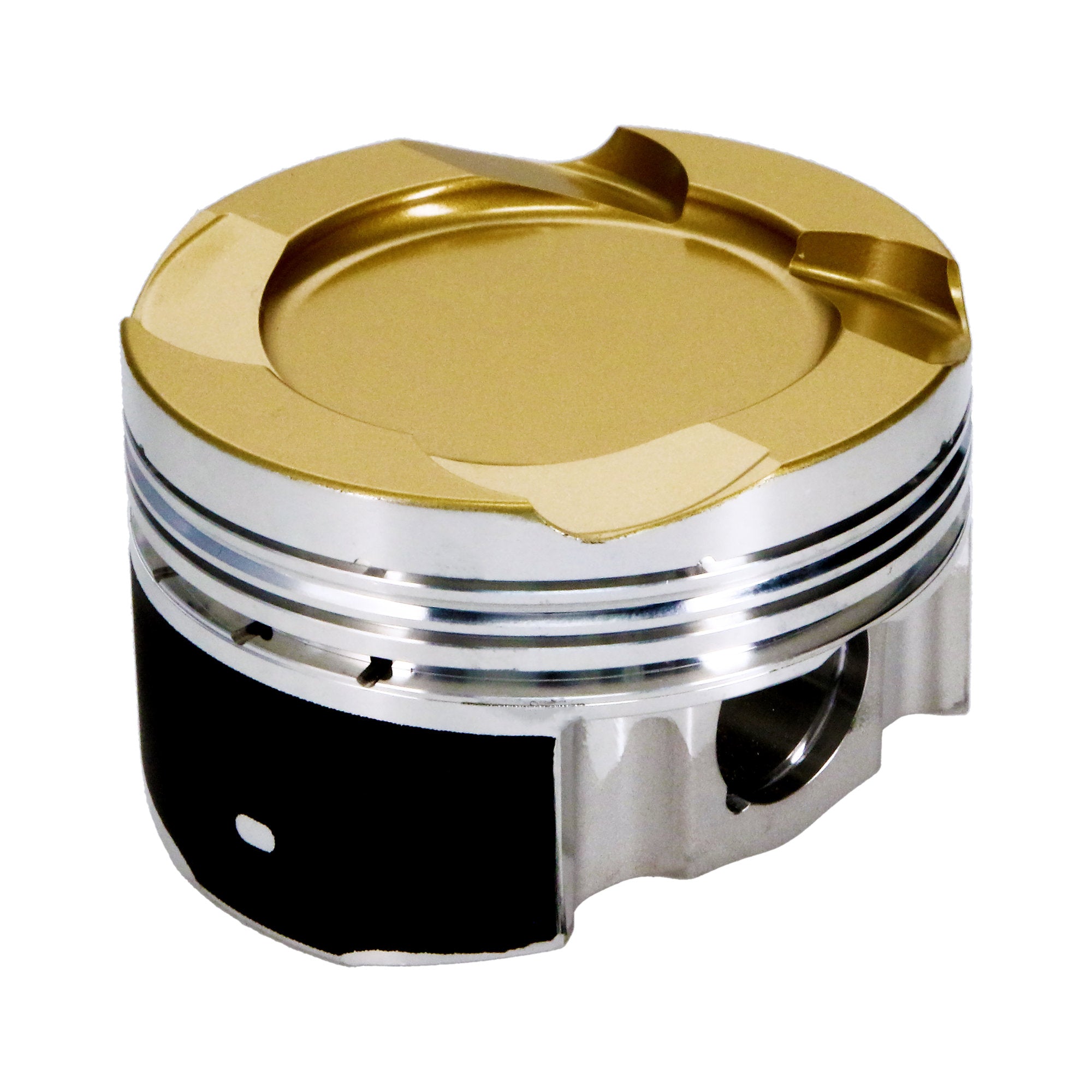

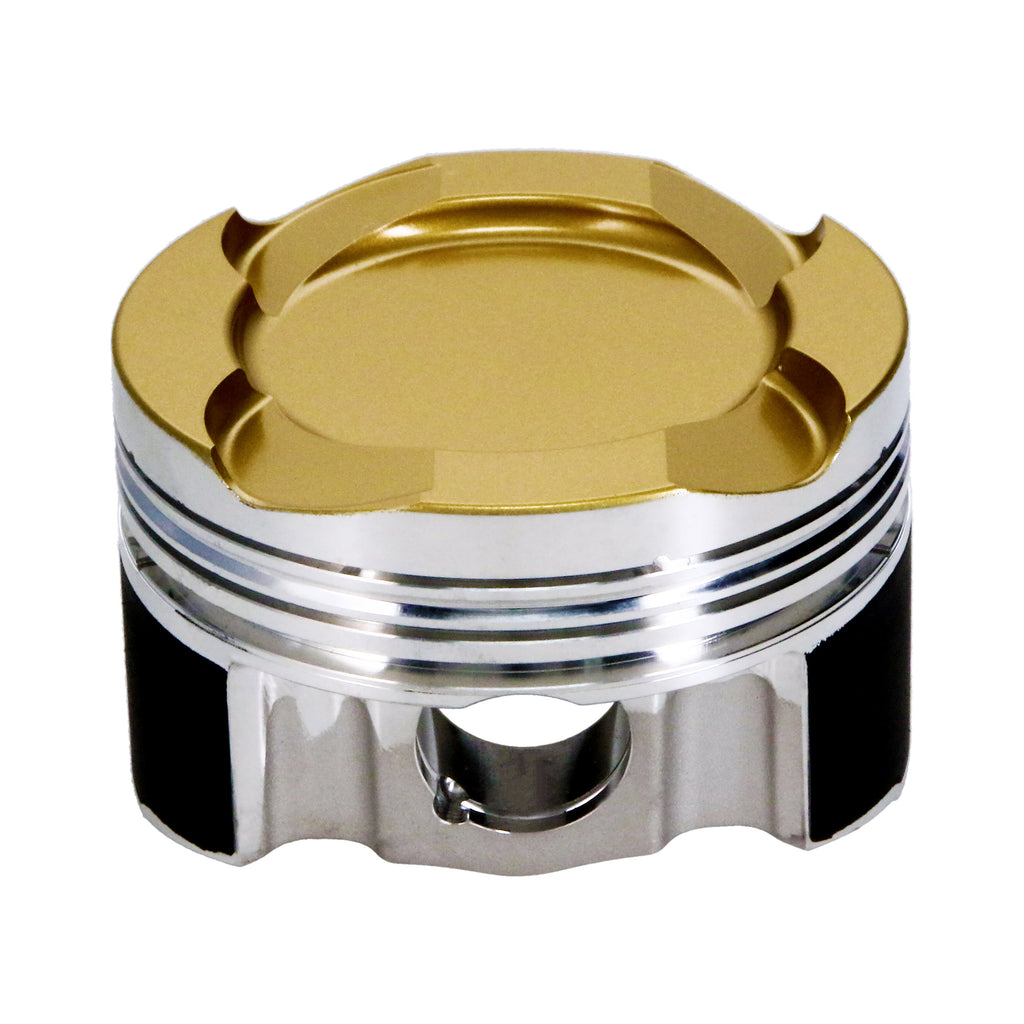

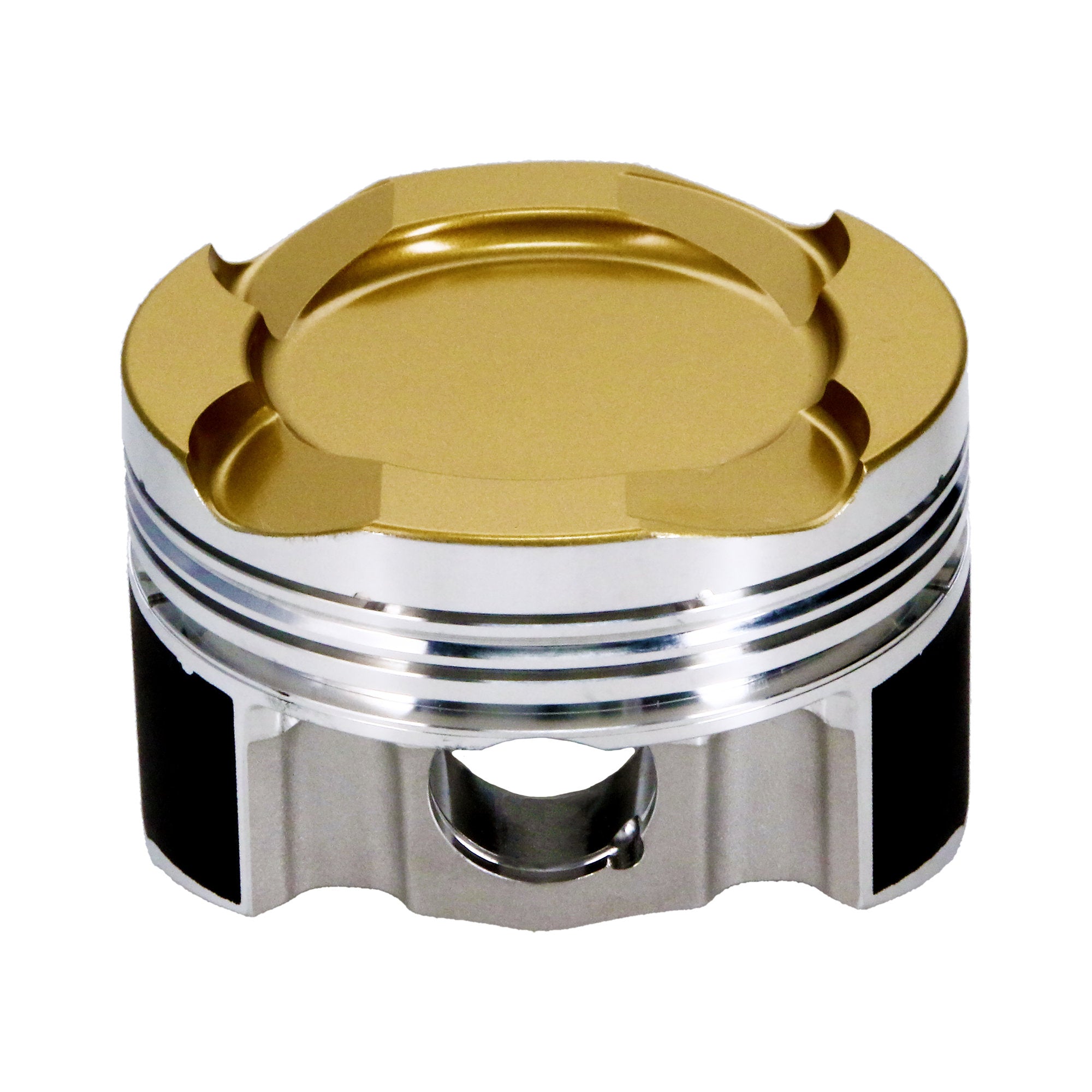

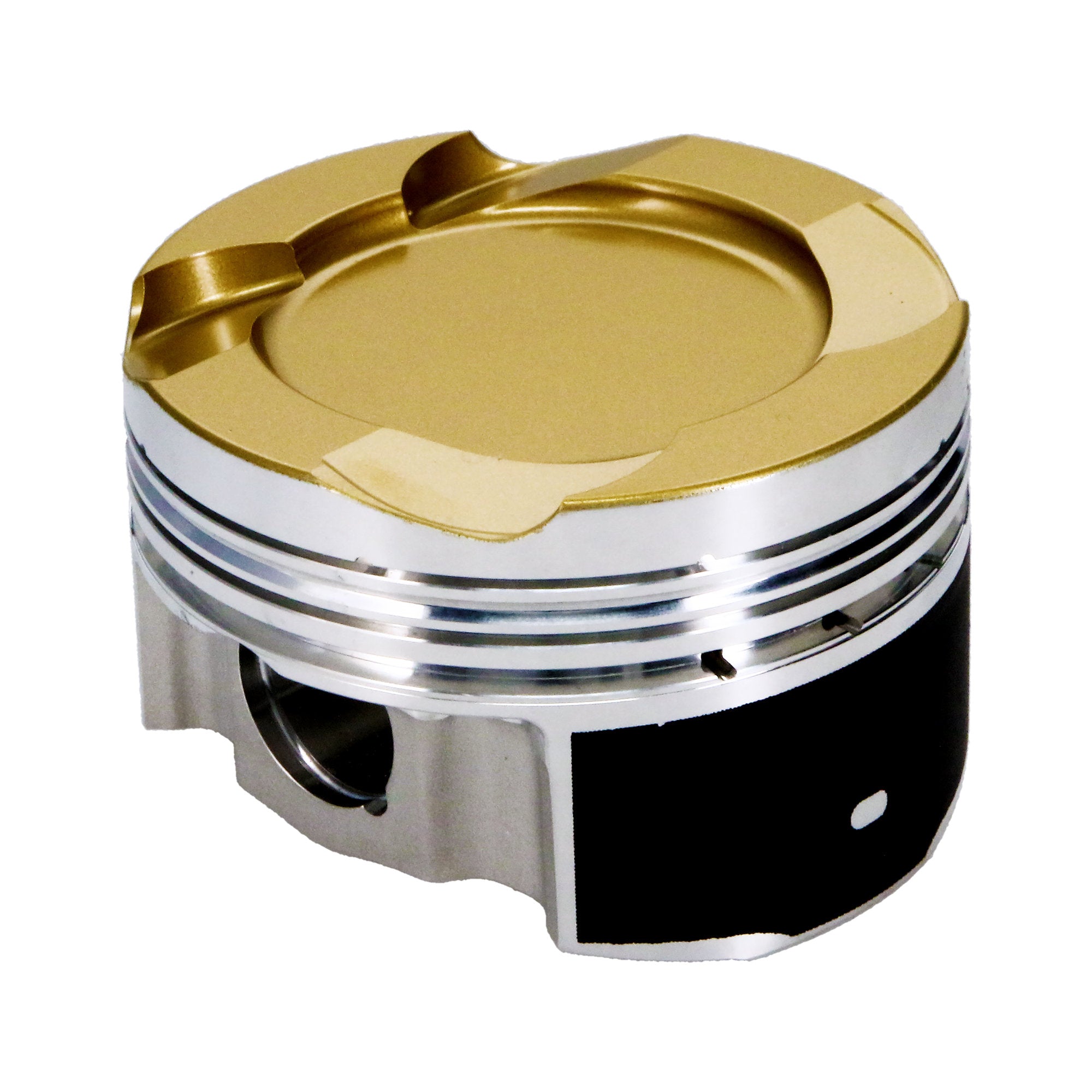

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
BMW 335i Base United States N54B30 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.327 Bore, 1.244 CD, 0.866 Pin, Set of 6. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE Ultra, BMW, N54B30, 3.327 in. Bore, 9.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

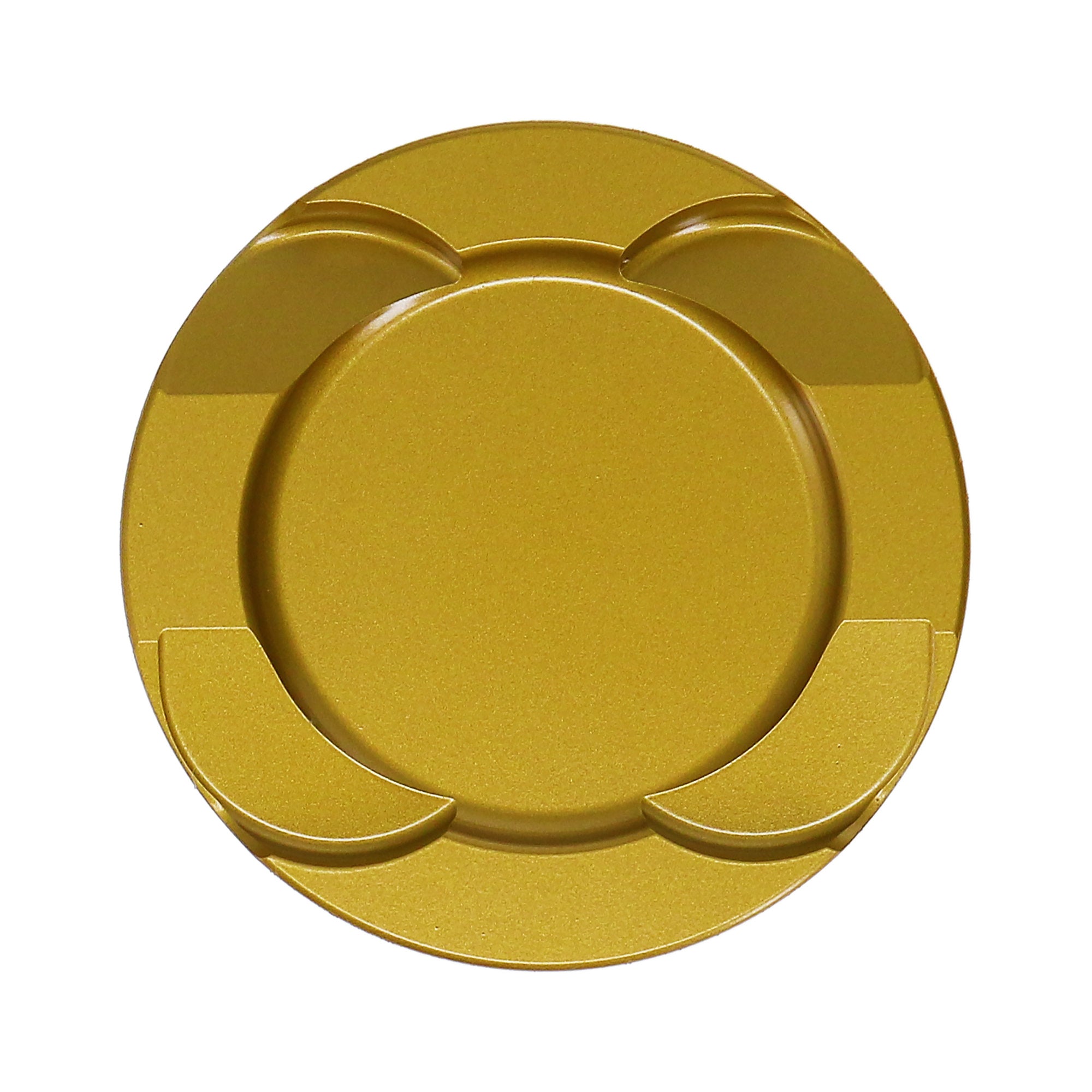

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_TLE |
BMW N54B30 3.0L, 84.50 Bore, Dish, Set of 6 |
| Piston Material |
2618 |
| Cylinder Head |
N54B30 |
| Title - Web |
JE Ultra Series BMW N54B30 Piston Kit - 84.50 mm Bore - 1.244 in. CH, -22.00 CC |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Engine |
N54B30 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
JG1001-3327 |
| Piston Pin Length |
2.250 |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Piston Head Type |
Dish |
| Piston Volume |
-22.00 |
| Out of Stock Message |
Call for Availability |
| Piston Series |
JE Ultra Series |
| Piston Pin Outside Diameter |
0.866 |
| Add-On |
866-063-MW |
| Industry |
Automotive |
| Add-On |
866-2250-23-93C |
| Forging Type |
FSR |
| Second Compression Ring Thickness |
0.0480 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Make - Web |
BMW |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Length |
2.250 |
| Title |
JE Ultra Series - BMW, N54B30, 84.50 mm Bore, Piston Kit |
| Piston Average Weight |
337 |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>European |
| Bore Diameter |
84.50 |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.244 |
| Ringset Included |
Yes |
| Product Market |
European |
| Top Compression Ring Thickness |
0.0400 |
| Make |
BMW |
| Engine - Web |
N54B30 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
7.0000 |
