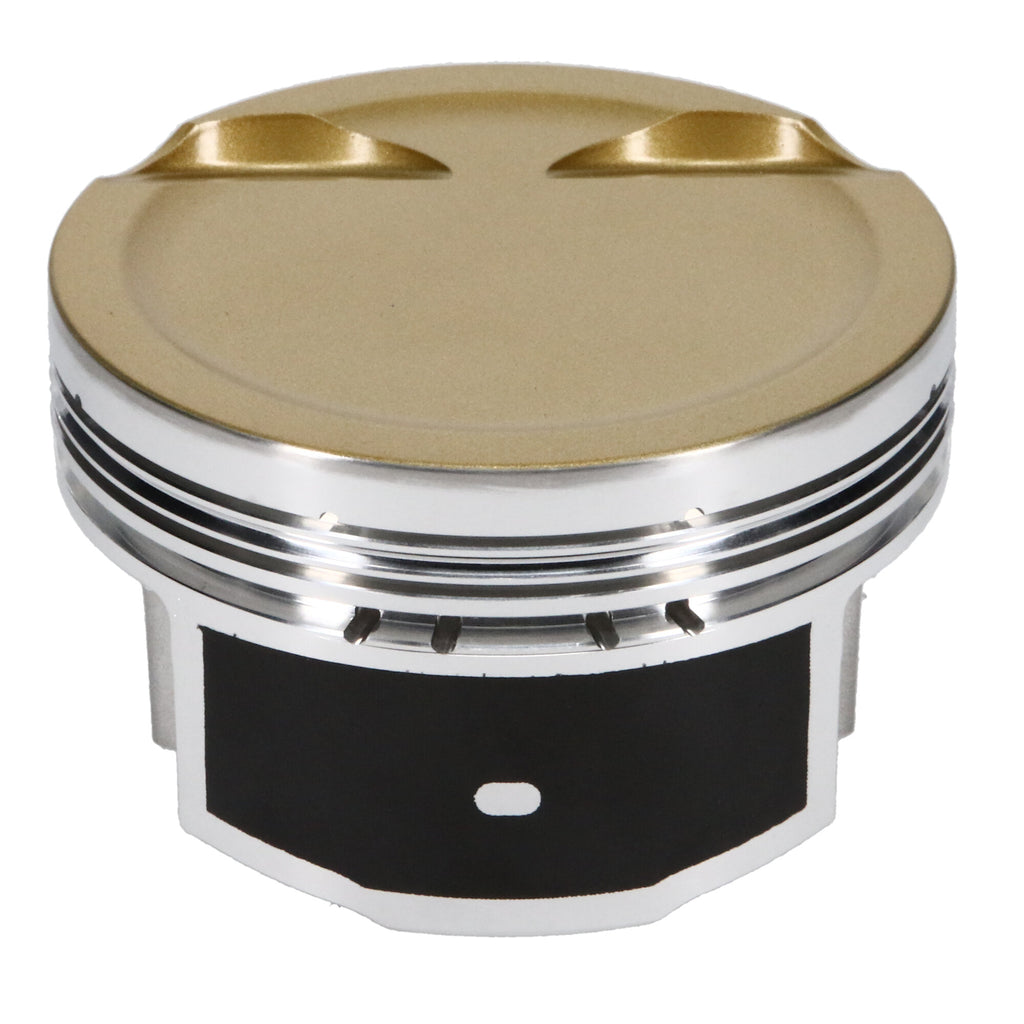

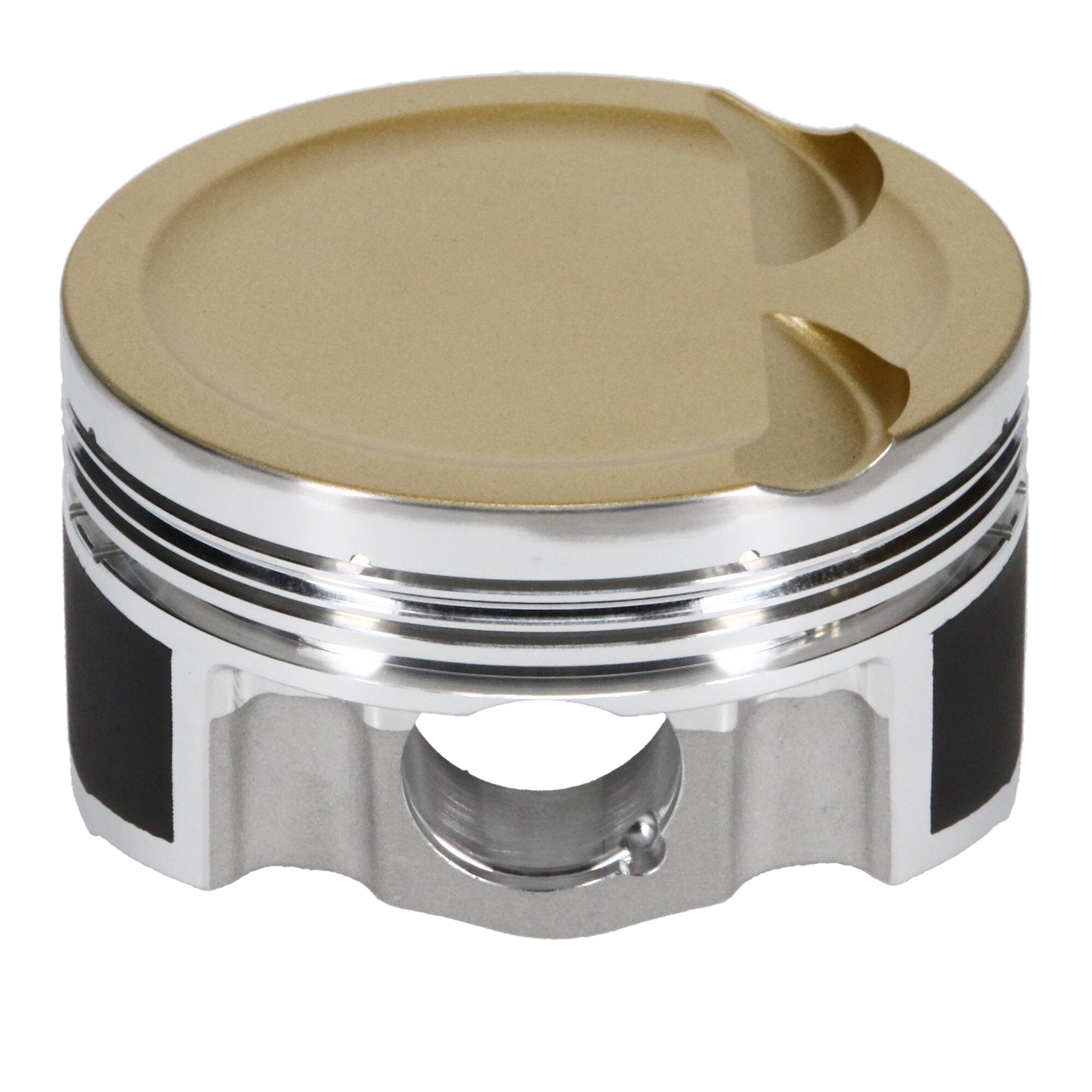

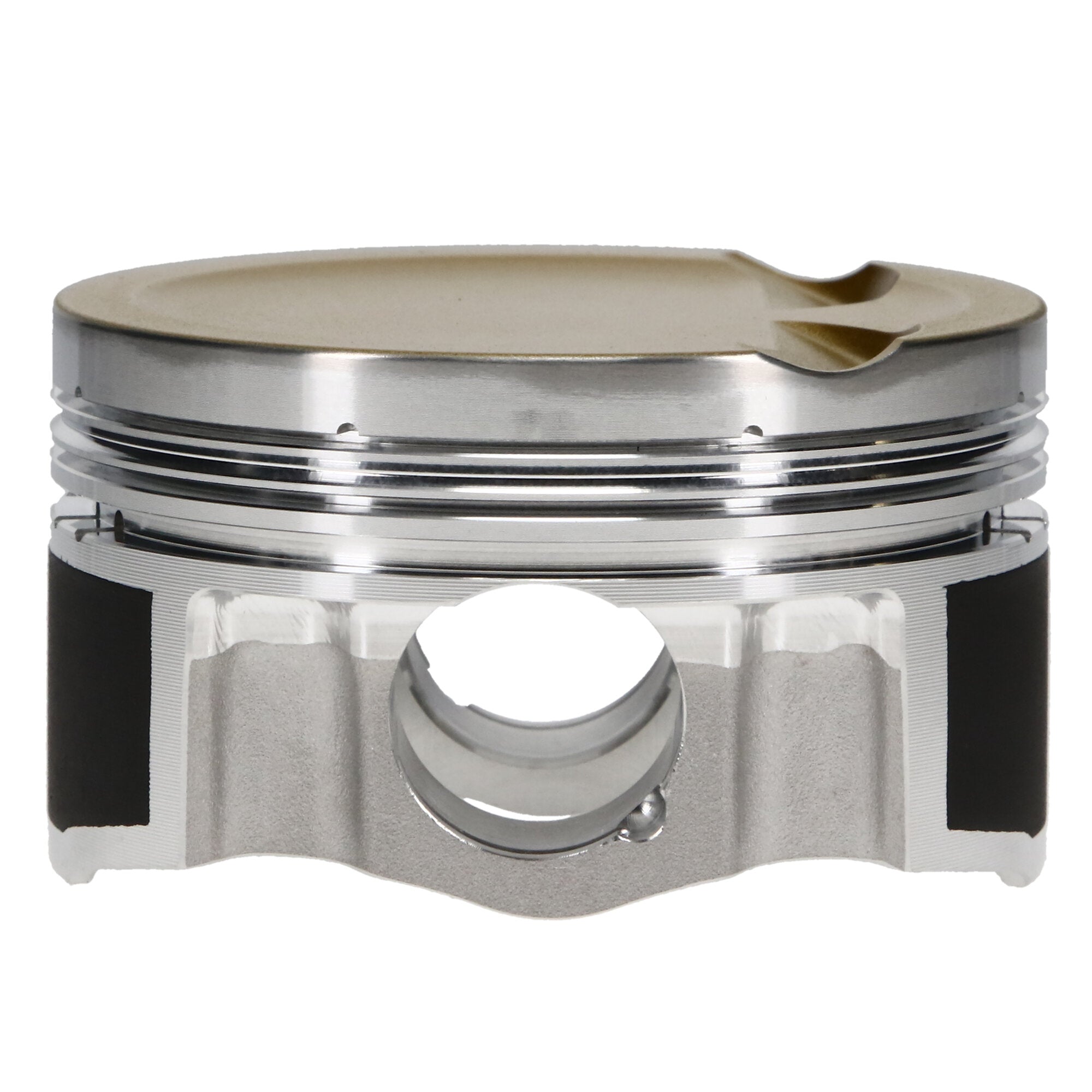

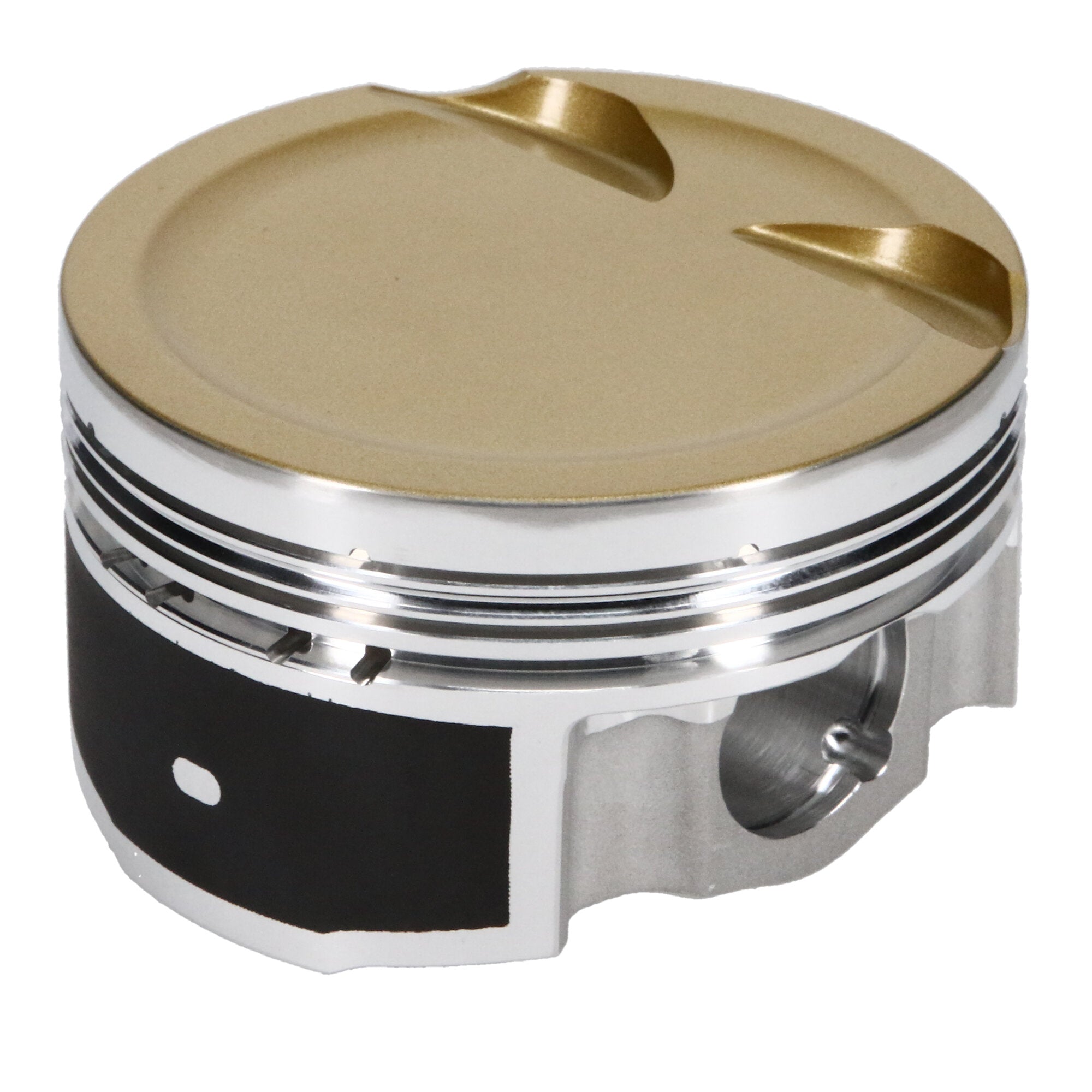

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Volkswagen 2.0T TSI 2013+ EURO 2015+ USA |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.155 CD, 0.905 Pin, Set of 4. |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

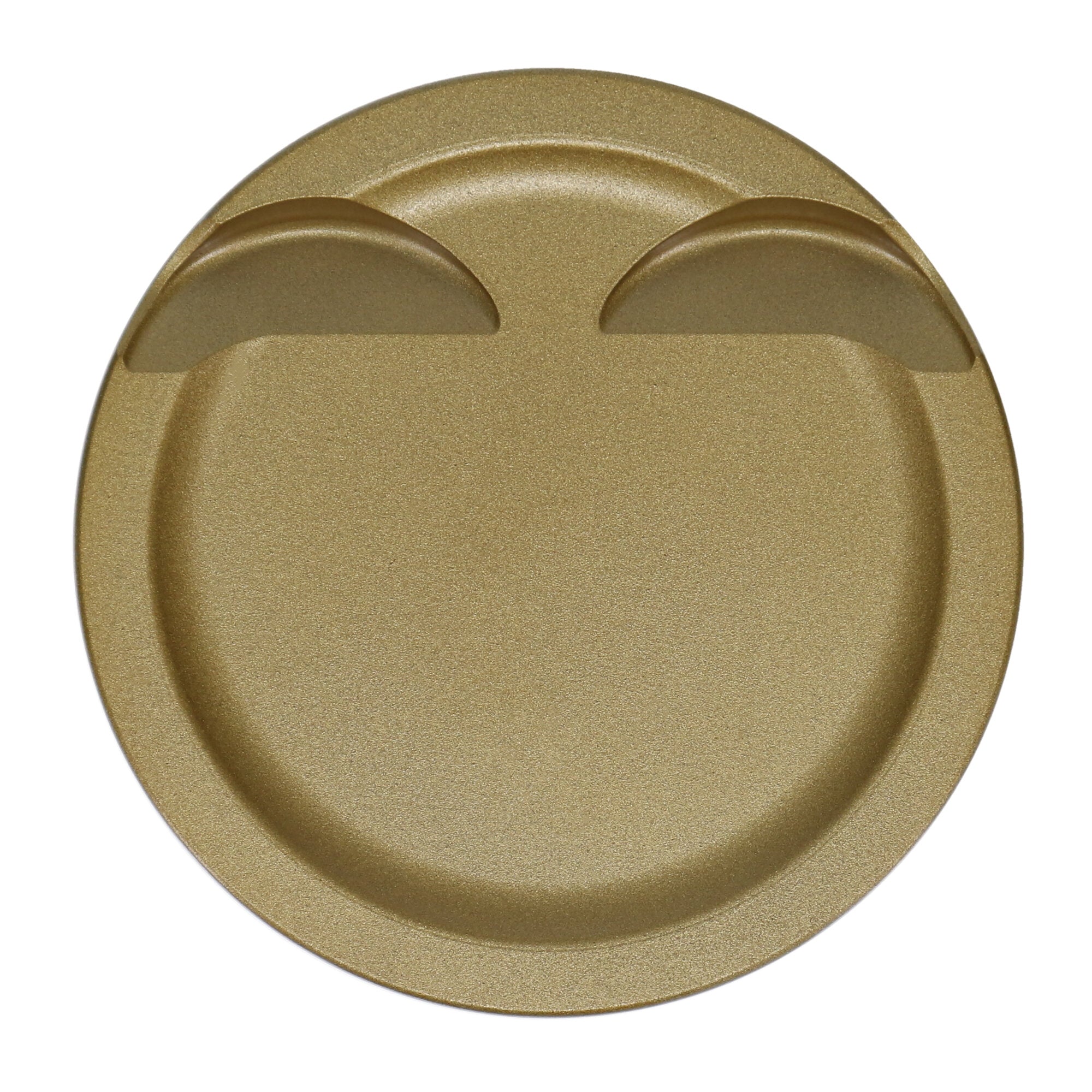

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE Ultra, VW, 2.0T TSI - 2013+ Euro / 2015+ USA - 23mm Pin, 3.248 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 82.50 Bore, Dish, Set of 4 |
| Piston Pin Outside Diameter |
0.905 |
| Forging Type |
FSR |
| Piston Volume |
-5.70 |
| Piston Pin Material |
9310 |
| Piston Head Type |
Dish |
| Piston Series |
JE Ultra Series |
| Oil Ring Thickness |
0.111 |
| Compression Height |
1.155 |
| Piston Pin Wall Thickness |
0.210 |
| Engine Type |
ICE |
| Title |
JE Ultra Series - Volkswagen, 2.0T TSI, 82.50 mm Bore, Piston Kit |
| Engine - Web |
2.0T TSI |
| Wrist Pin Wall Thickness |
0.210 |
| Wrist Pin Outer Diameter |
0.905 |
| Piston Average Weight |
286 |
| Bore Diameter |
82.50 |
| Add-On |
905-2250-21-93C |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0400 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Product Market |
European |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.250 |
| Add-On |
905-073-MW |
| Make |
VOLKSWAGEN |
| Ringset Included |
Yes |
| Engine |
2.0T TSI 2013+ Euro 2015+ USA 23 mm Pin |
| Title - Web |
JE Ultra Series Volkswagen 2.0T TSI Piston Kit - 82.50 mm Bore - 1.155 in. CH, -5.70 CC |
| Add-On |
JG1004-3250 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>European |
| Ring Set Included |
Yes |
| Engine Detail |
2.0T TSI 2013+ Euro 2015+ USA 23 mm Pin |
| Make - Web |
Volkswagen |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Wrist Pin Length |
2.250 |
| Piston Material |
2618 |
| Cylinder Head |
2.0 TFSI |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
