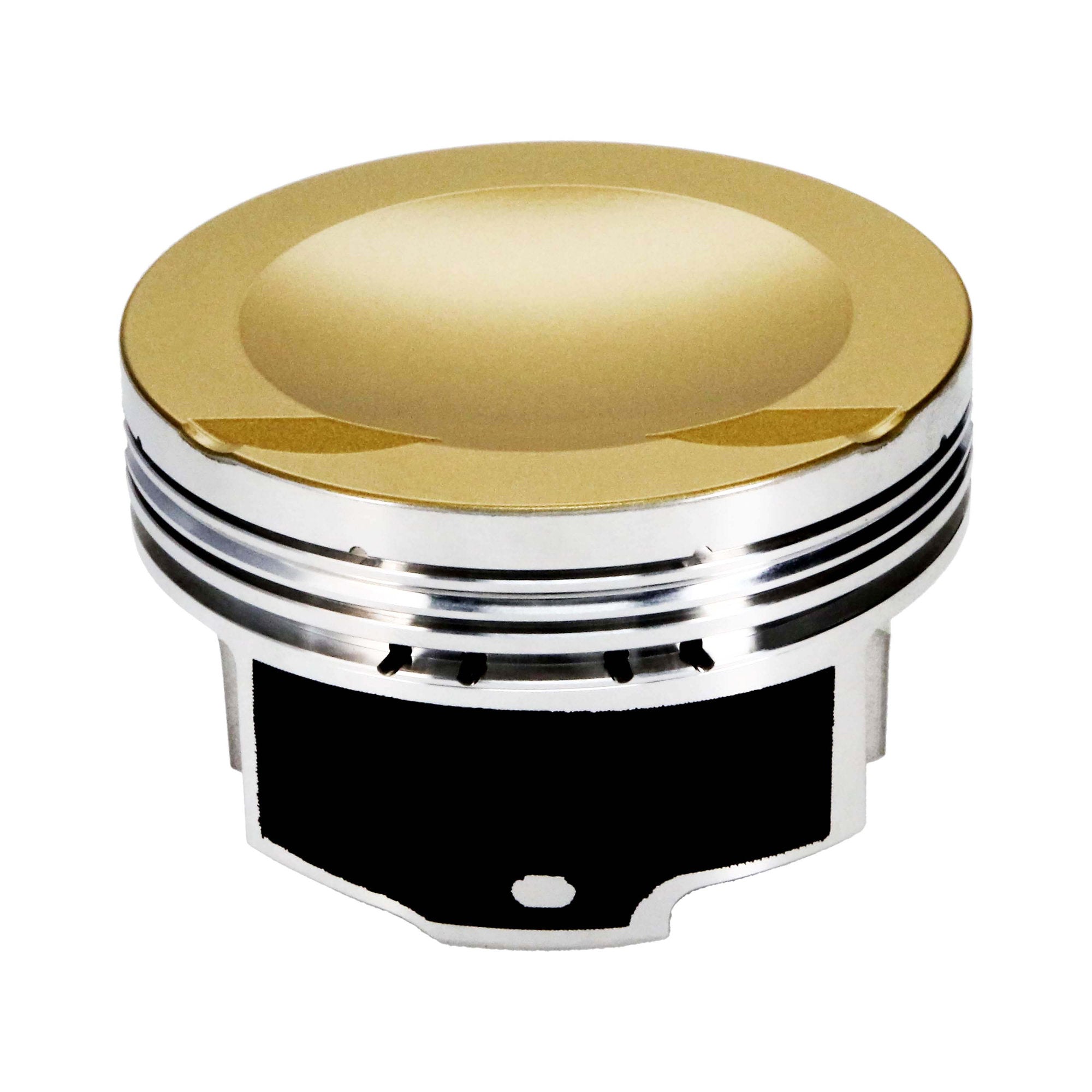

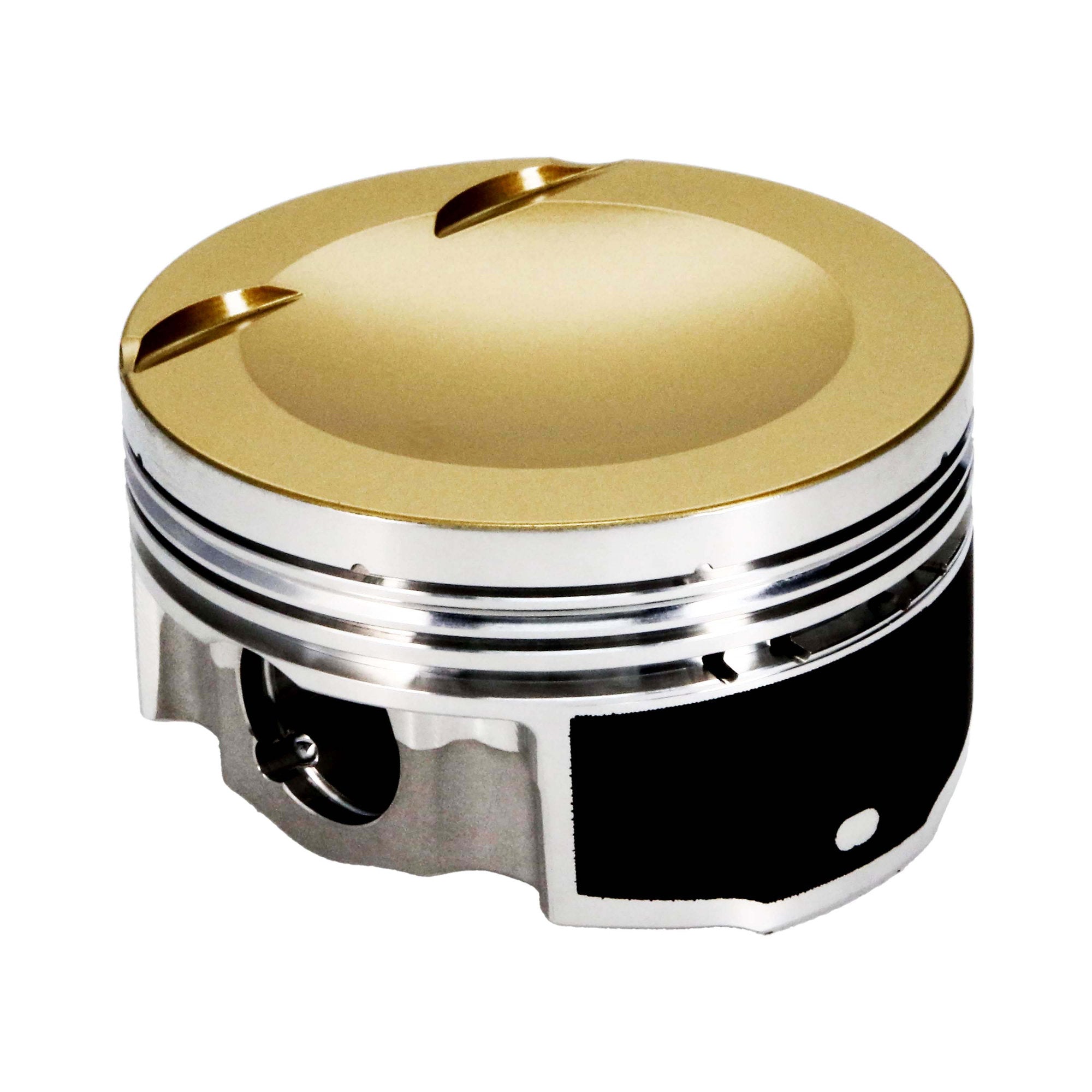

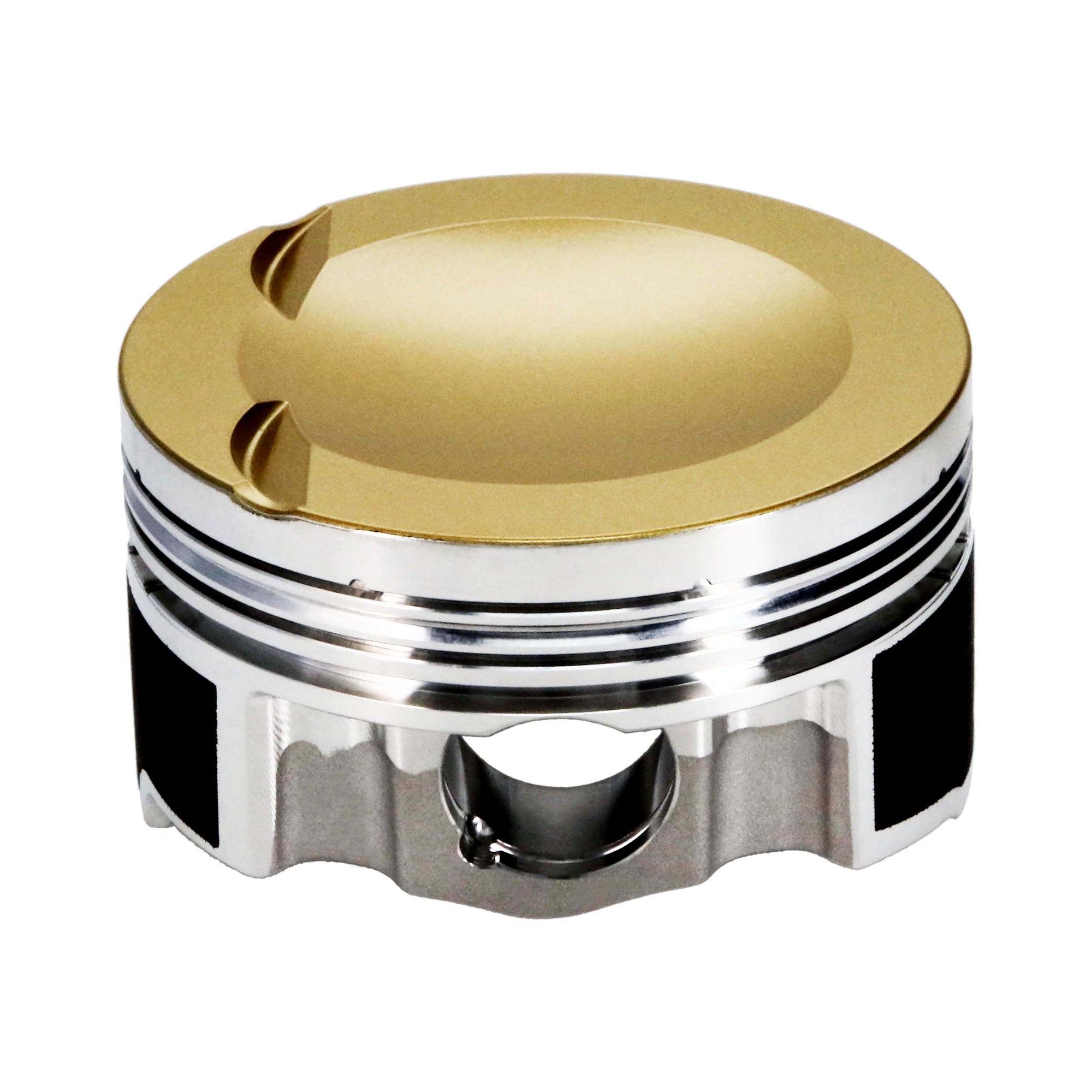

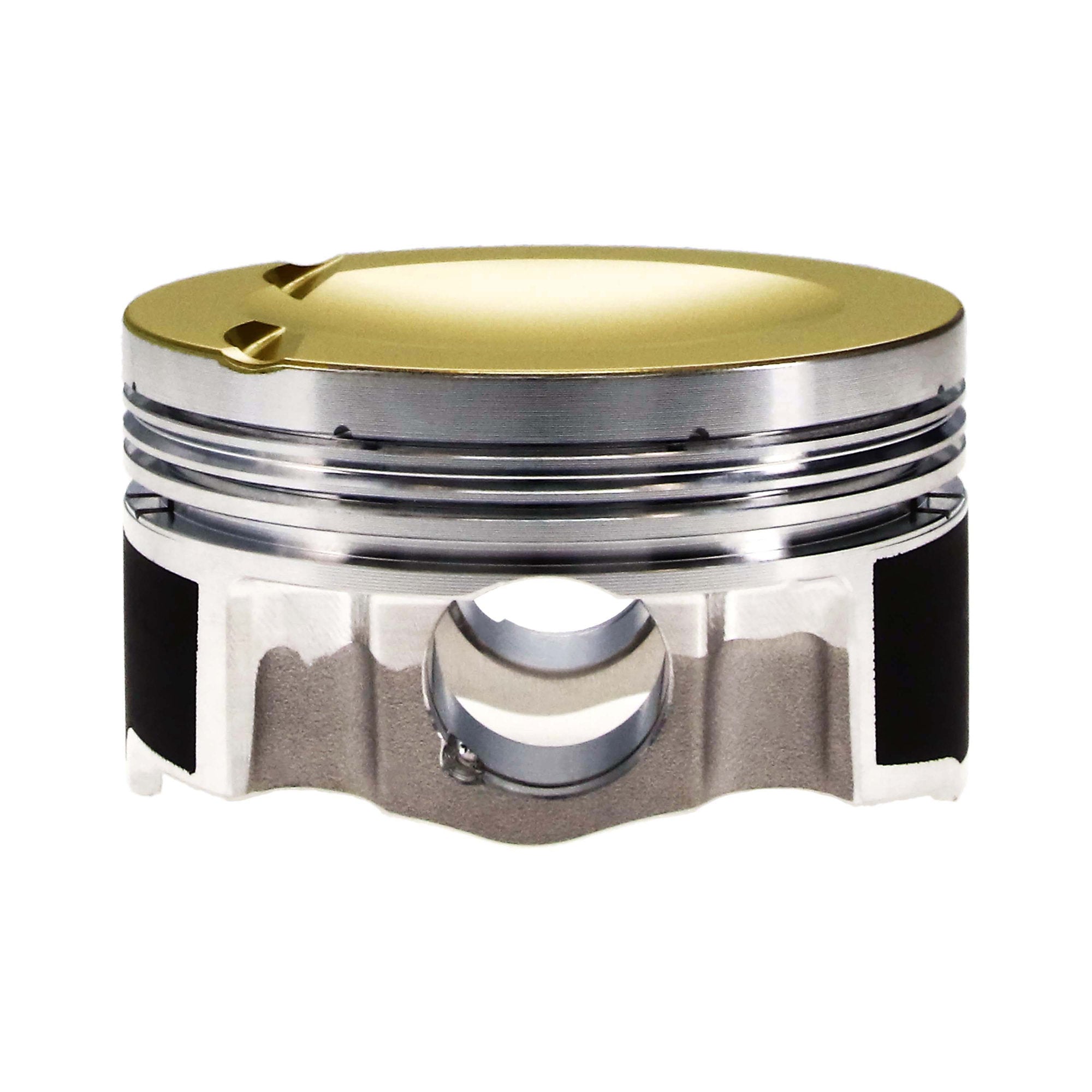

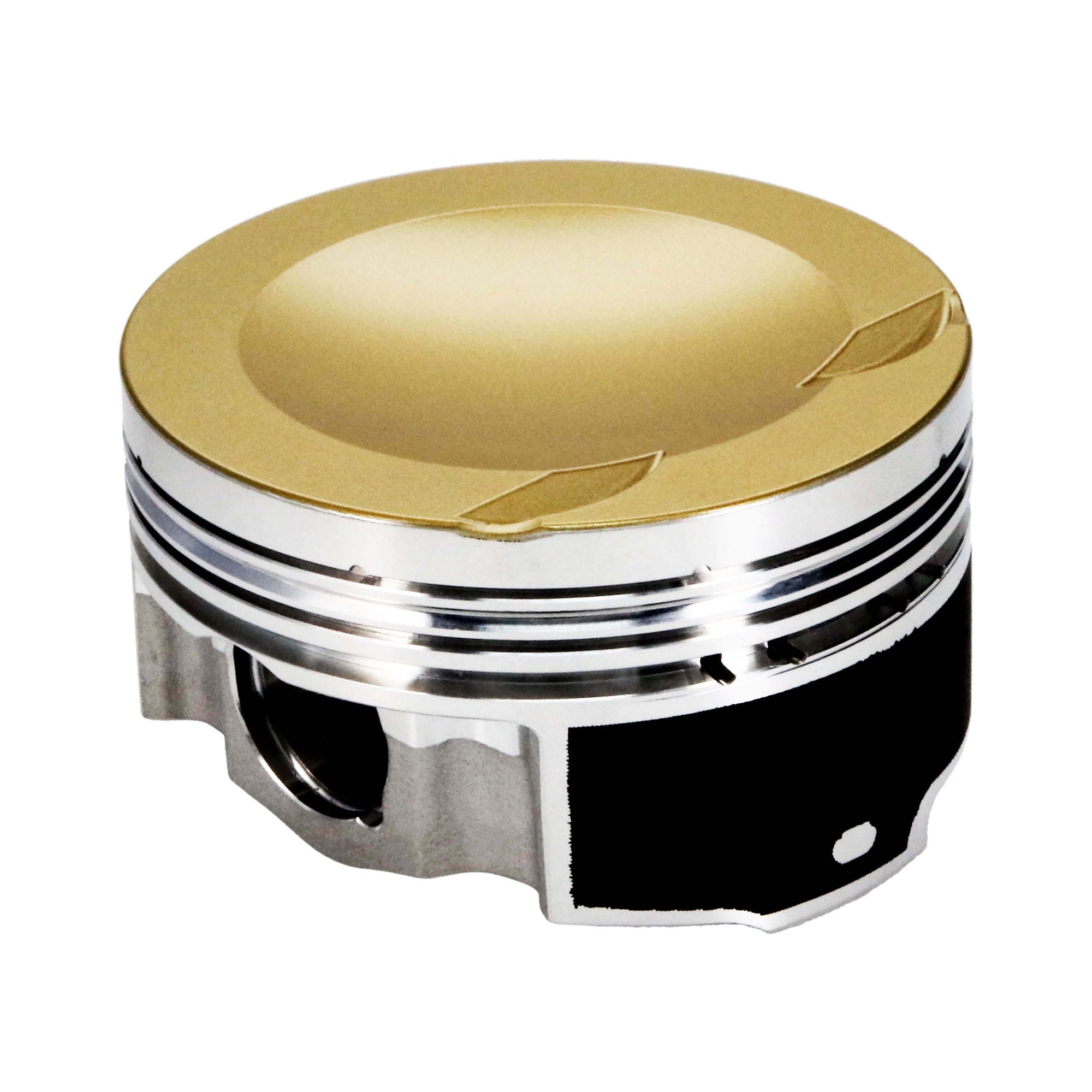

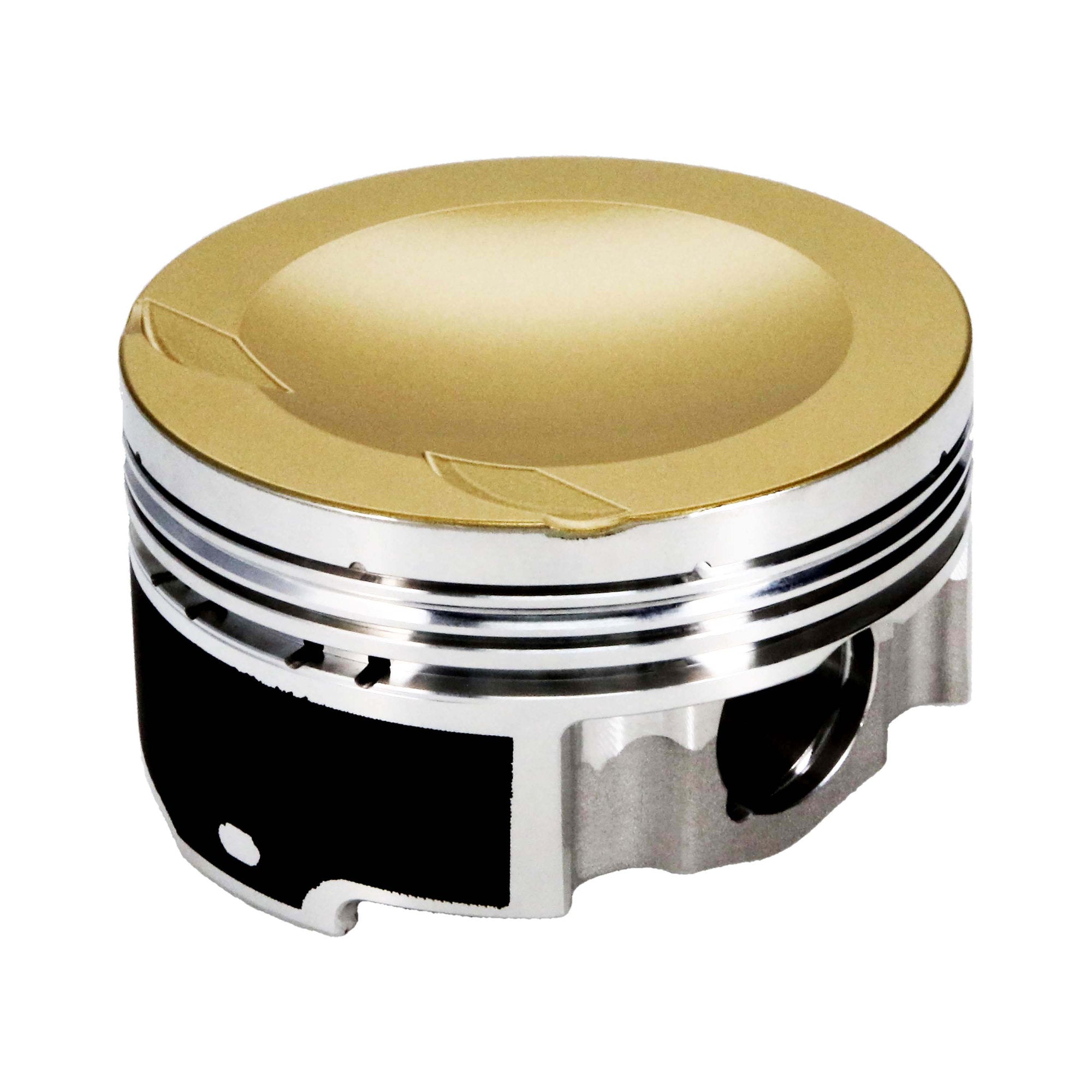

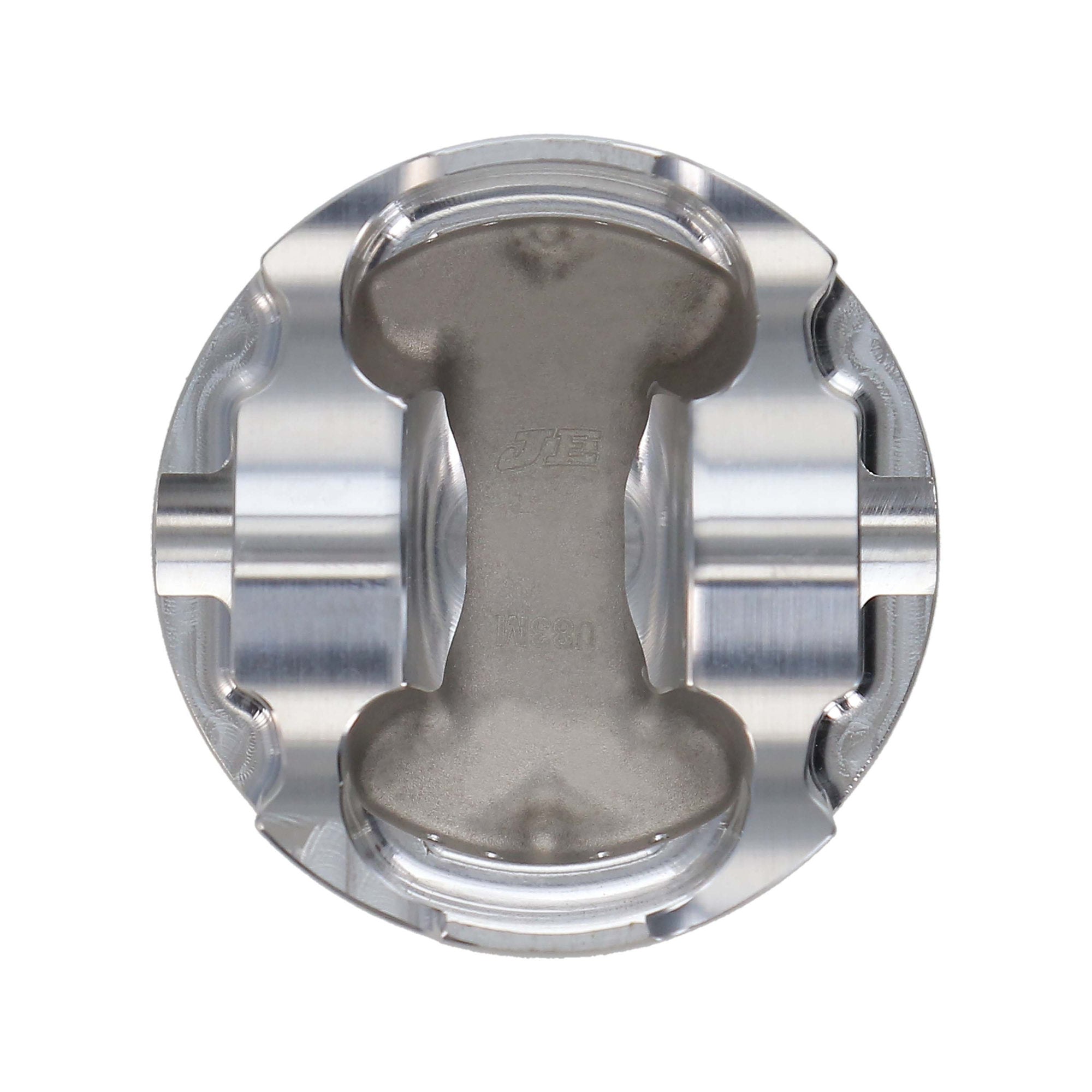

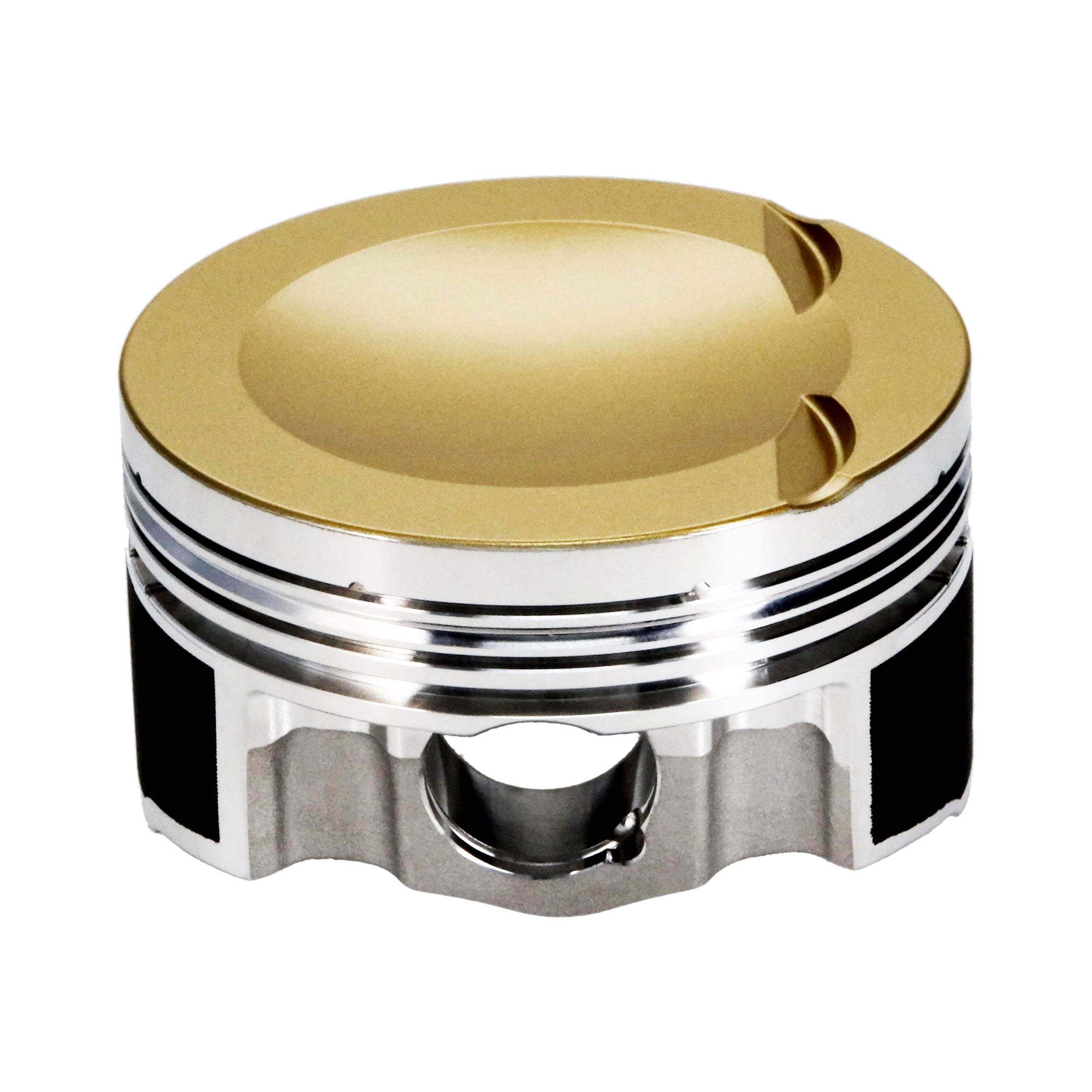

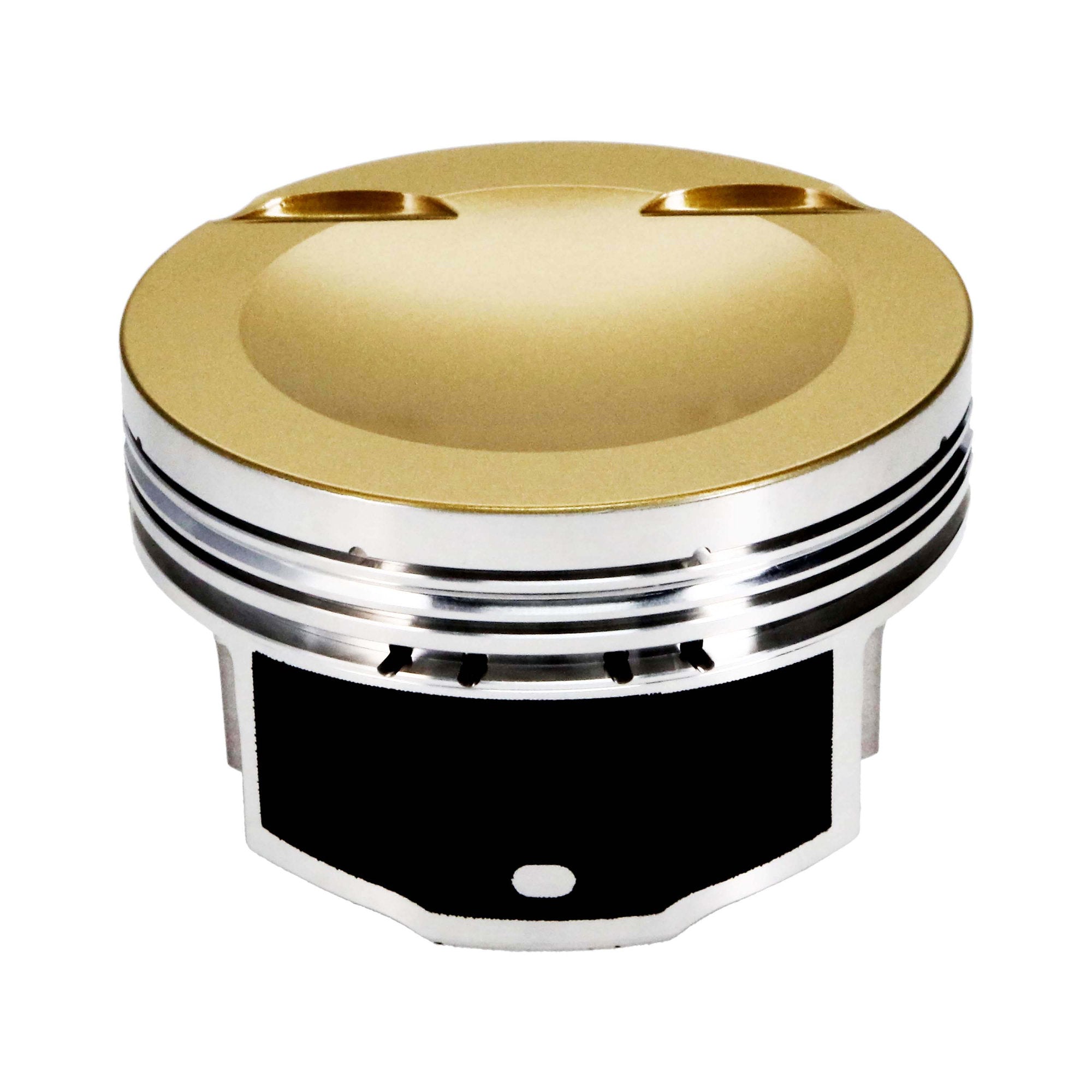

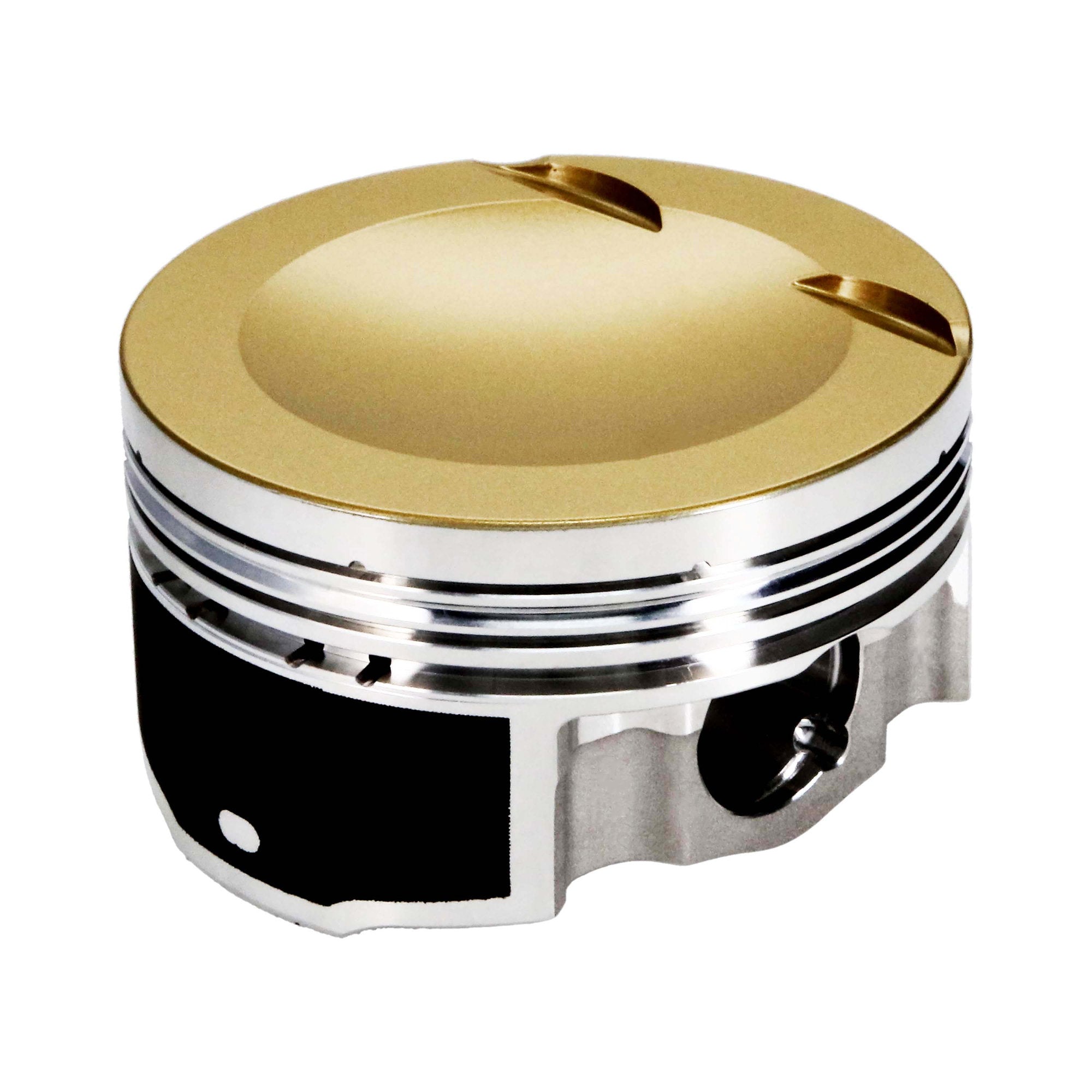

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Audi 2.5L TFSI TT RS 20V |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.165 CD, 0.866 Pin, Set of 5. |
| Description_DEF |
Engine Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE Ultra, Audi, 2.5L TFSI TT RS 20V, 3.287 in. Bore, 9.50:1, Inverted Dome/Dish, 5 Cyl. Piston Kit |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

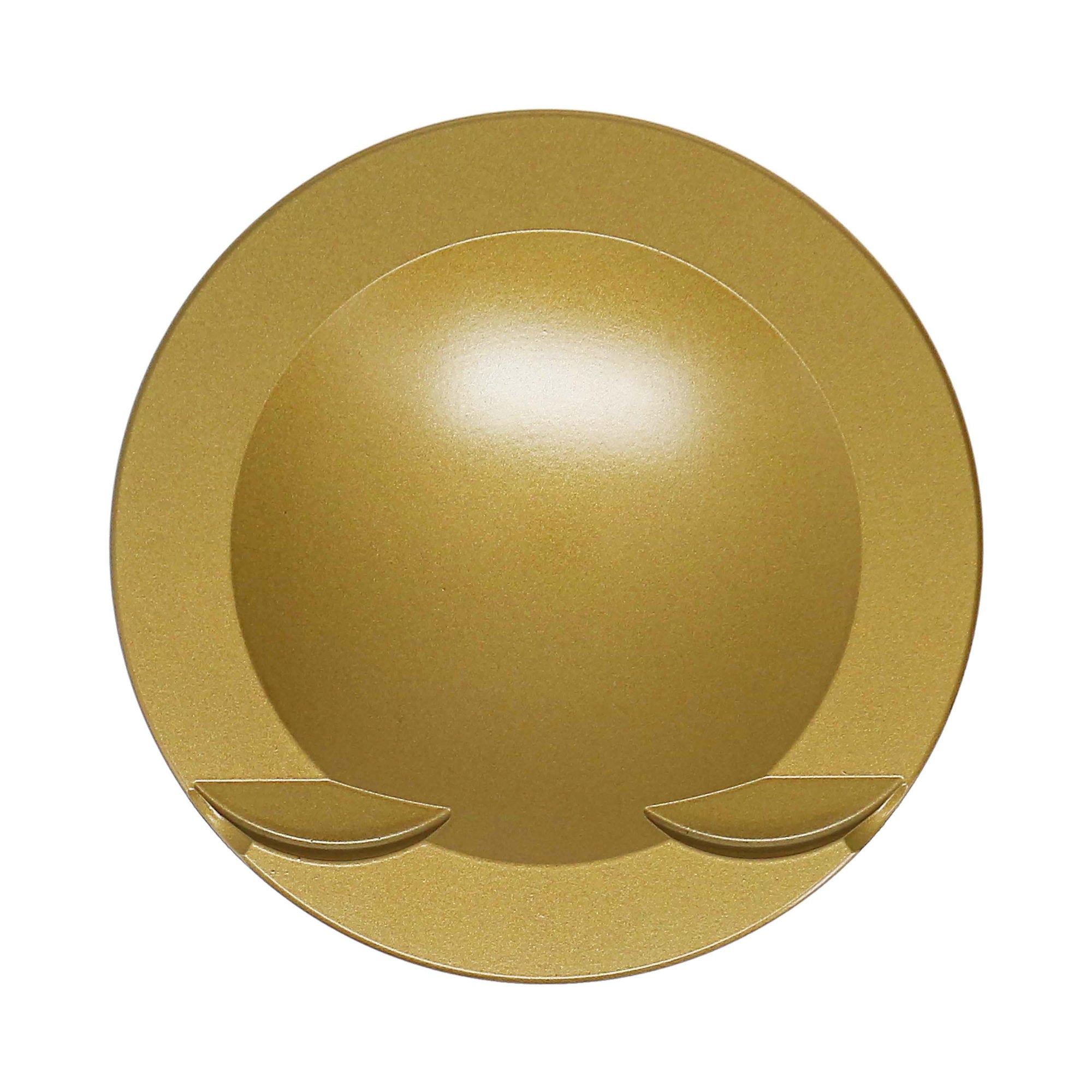

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_TLE |
Audi 2.5L TFSI 20V, 83.50 Bore, Dish, Set of 5 |
| Engine Type |
ICE |
| Bore Diameter |
83.50 |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>European |
| Ringset Included |
Yes |
| Oil Ring Thickness |
0.111 |
| Forging Type |
FSR |
| Piston Average Weight |
307 |
| Piston Pin Material |
9310 |
| Piston Series |
JE Ultra Series |
| Piston Head Type |
Dish |
| Product Market |
European |
| Piston Pin Wall Thickness |
0.230 |
| Top Compression Ring Thickness |
0.0395 |
| Make |
AUDI |
| Compression Height |
1.165 |
| Engine - Web |
2.5L TFSI |
| Wrist Pin Wall Thickness |
0.230 |
| Add-On |
JG1001-3287 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-8.80 |
| Industry |
Automotive |
| Title |
JE Ultra Series - Audi, 2.5L TFSI, 83.50 mm Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Add-On |
866-2250-23-93C |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-063-MW |
| Piston Pin Outside Diameter |
0.866 |
| Piston Material |
2618 |
| Cylinder Head |
R5 TFSI 20V |
| Product Type |
Engine Piston Kit |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Audi |
| Ring Set Included |
Yes |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Ultra Series Audi 2.5L TFSI Piston Kit - 83.50 mm Bore - 1.165 in. CH, -8.80 CC |
| Engine |
2.5L TFSI TT RS 20V |
| Engine Detail |
2.5L TFSI TT RS 20V |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
