As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar 6.4L Gen III Hemi Apache |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

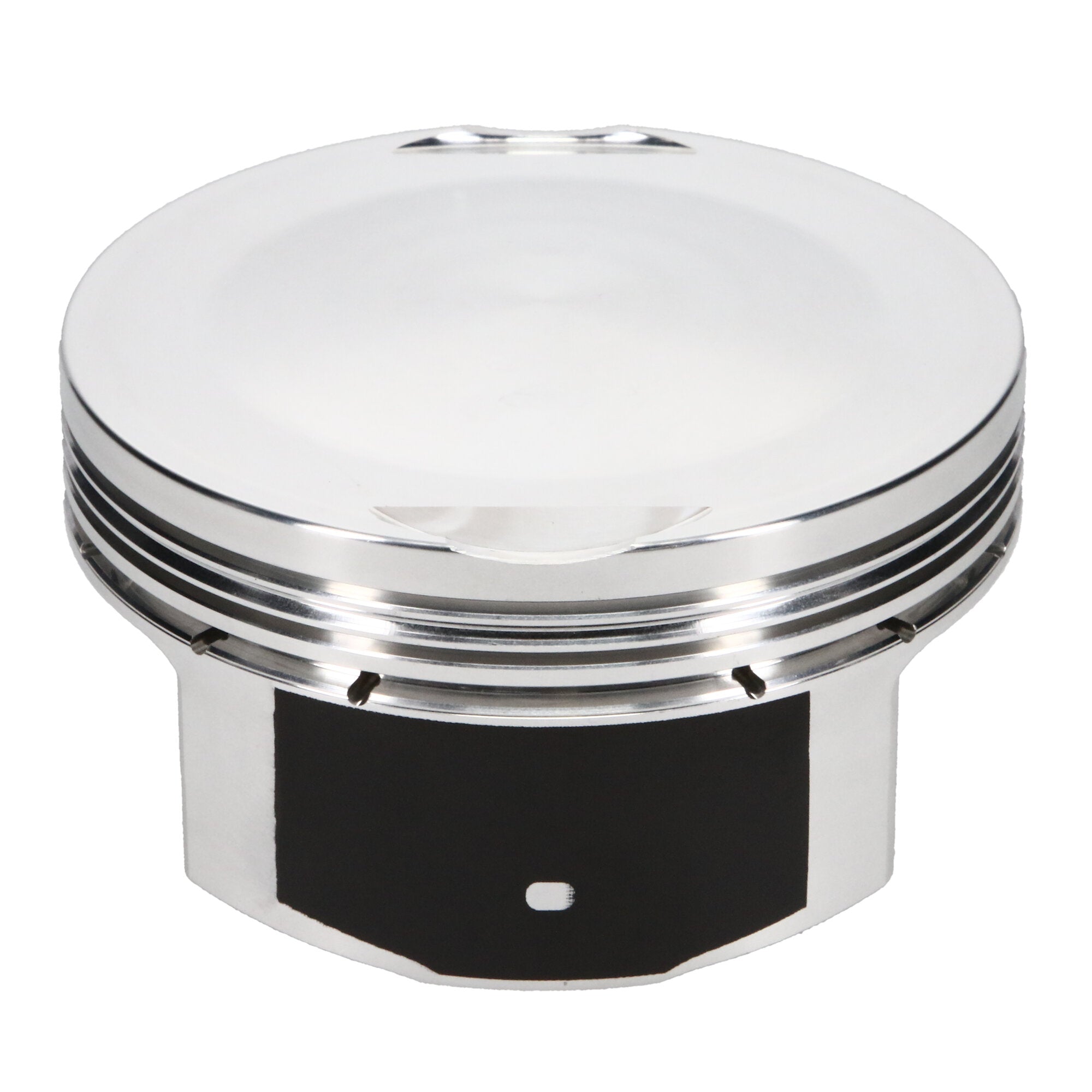

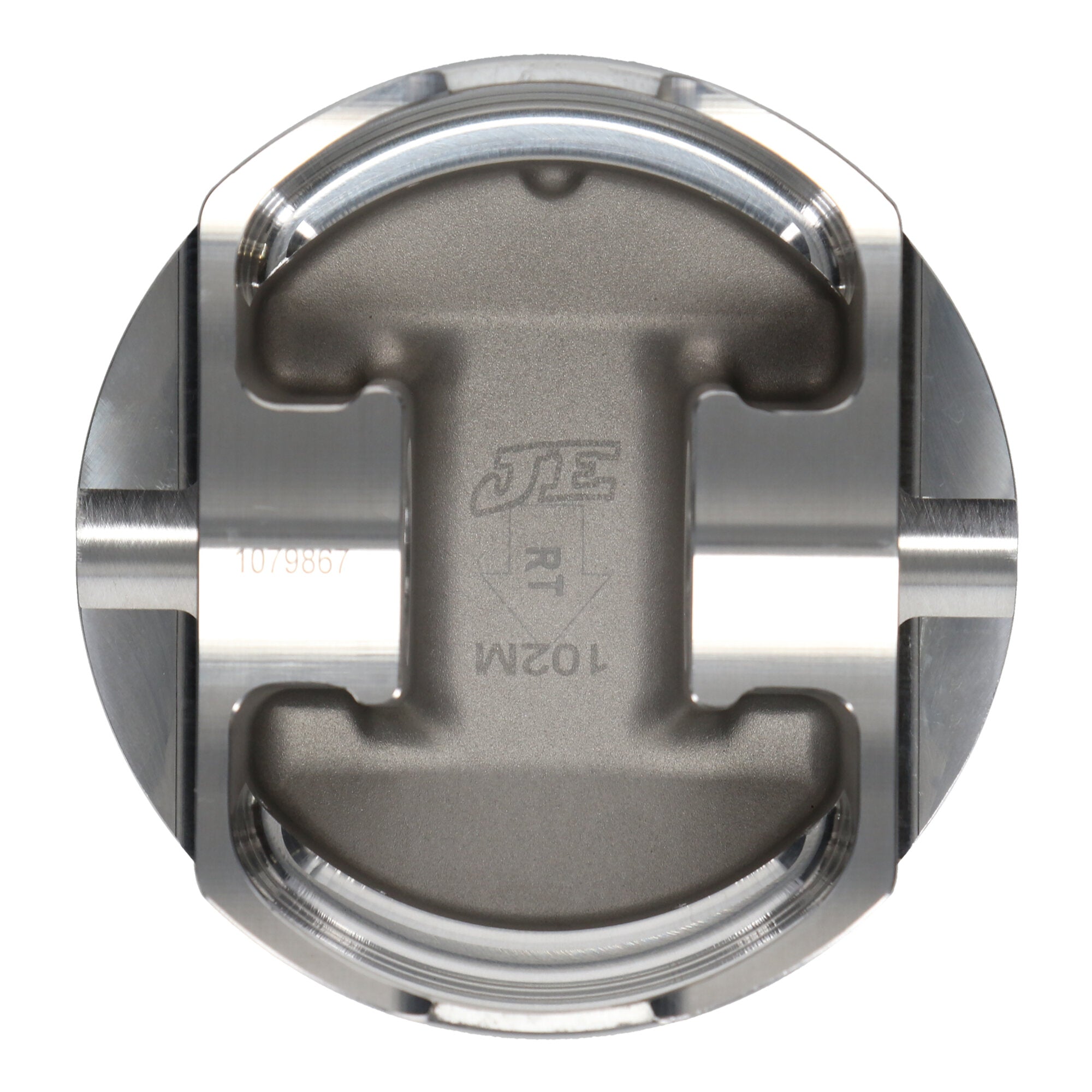

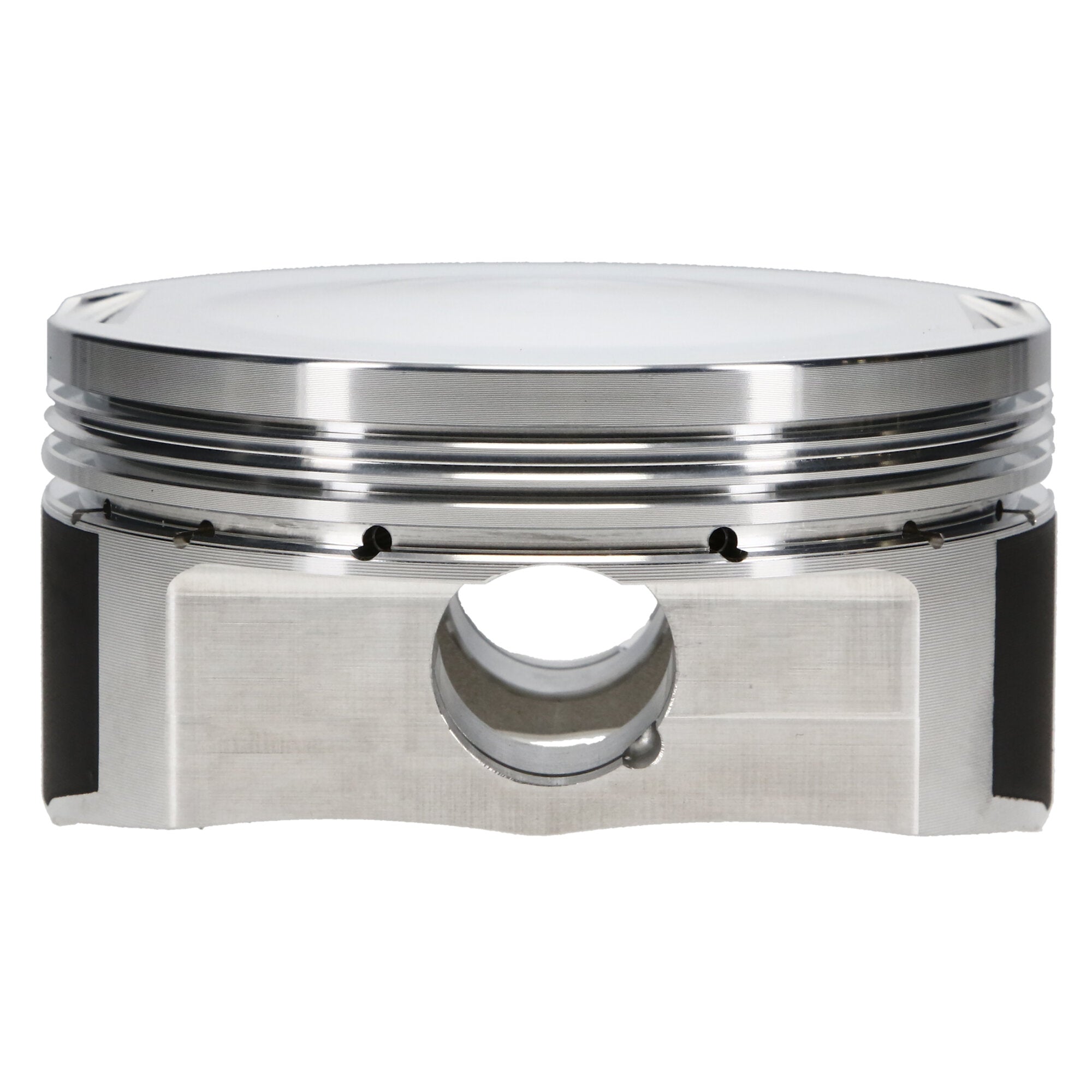

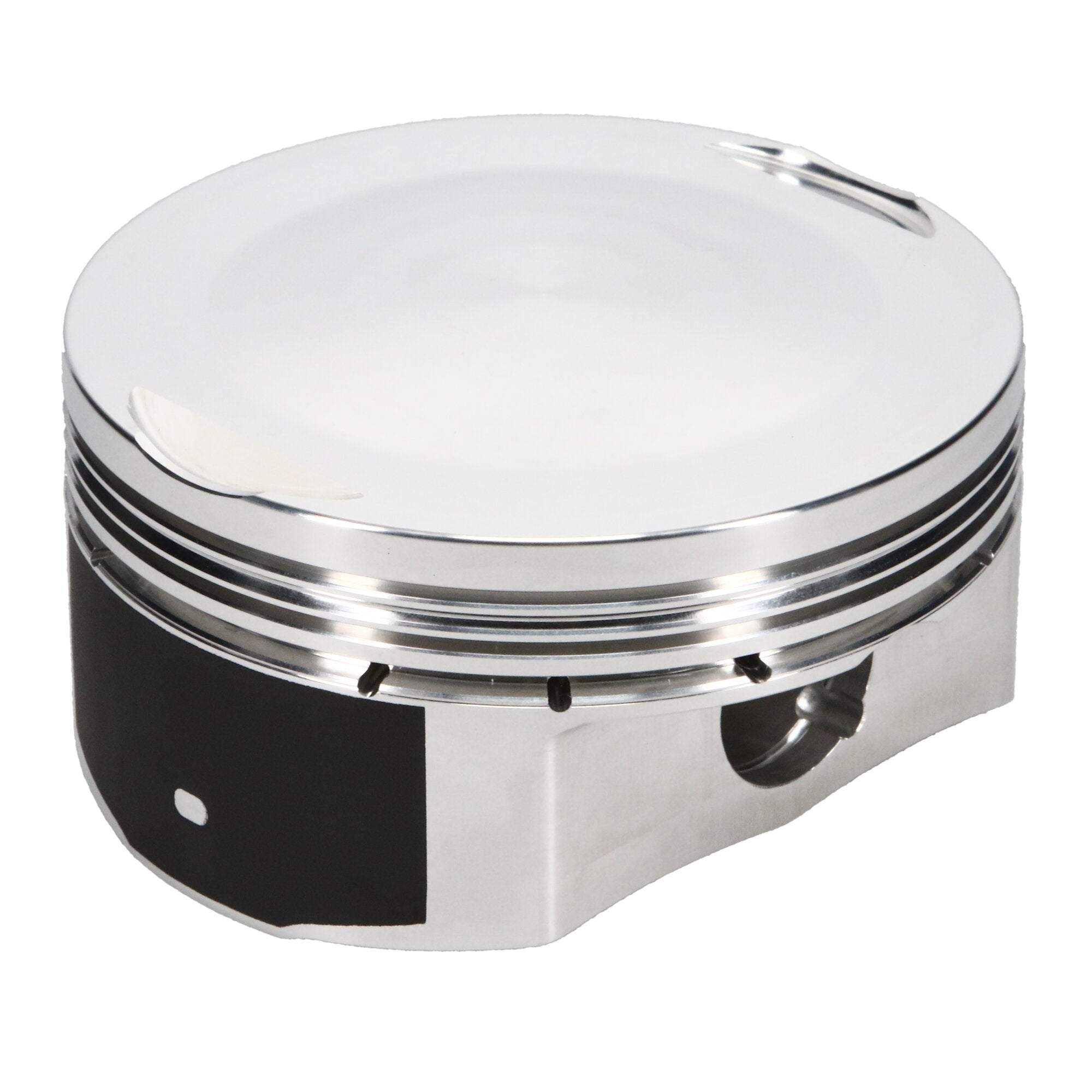

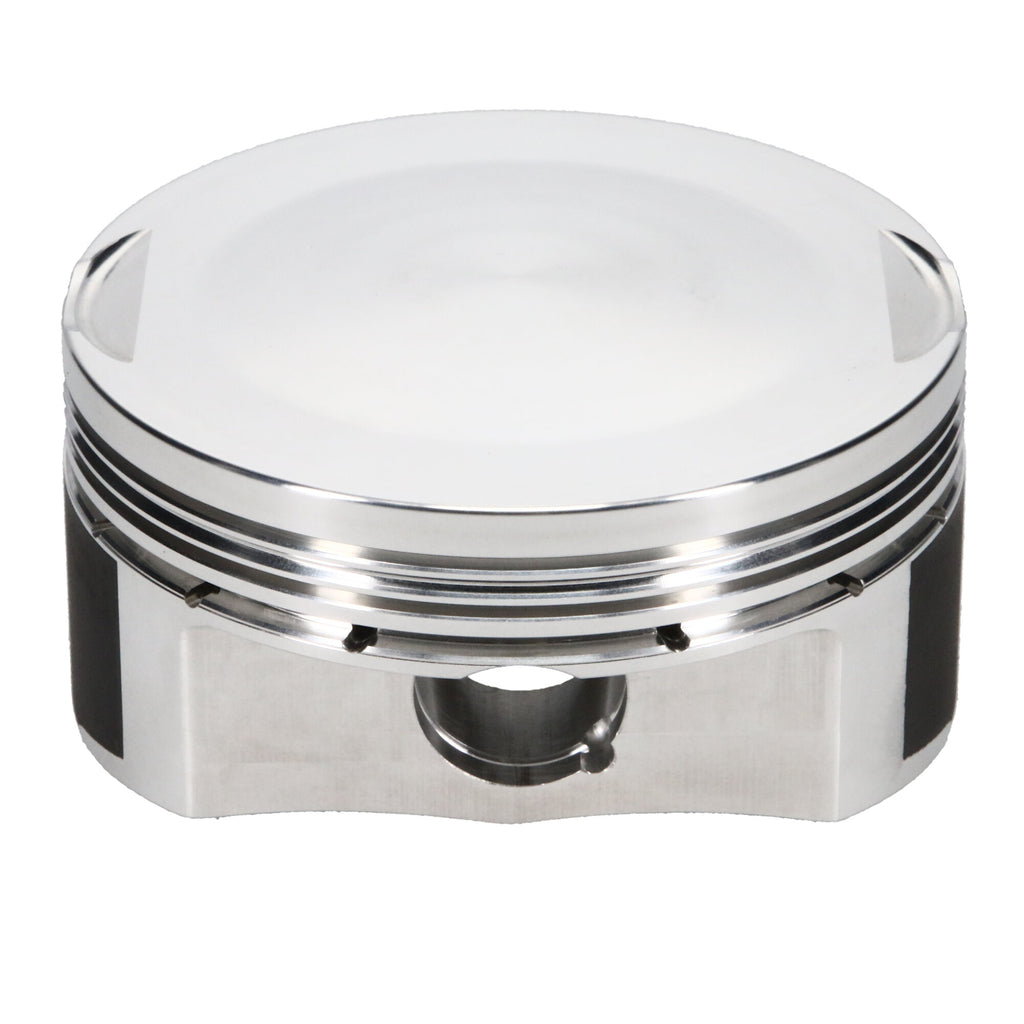

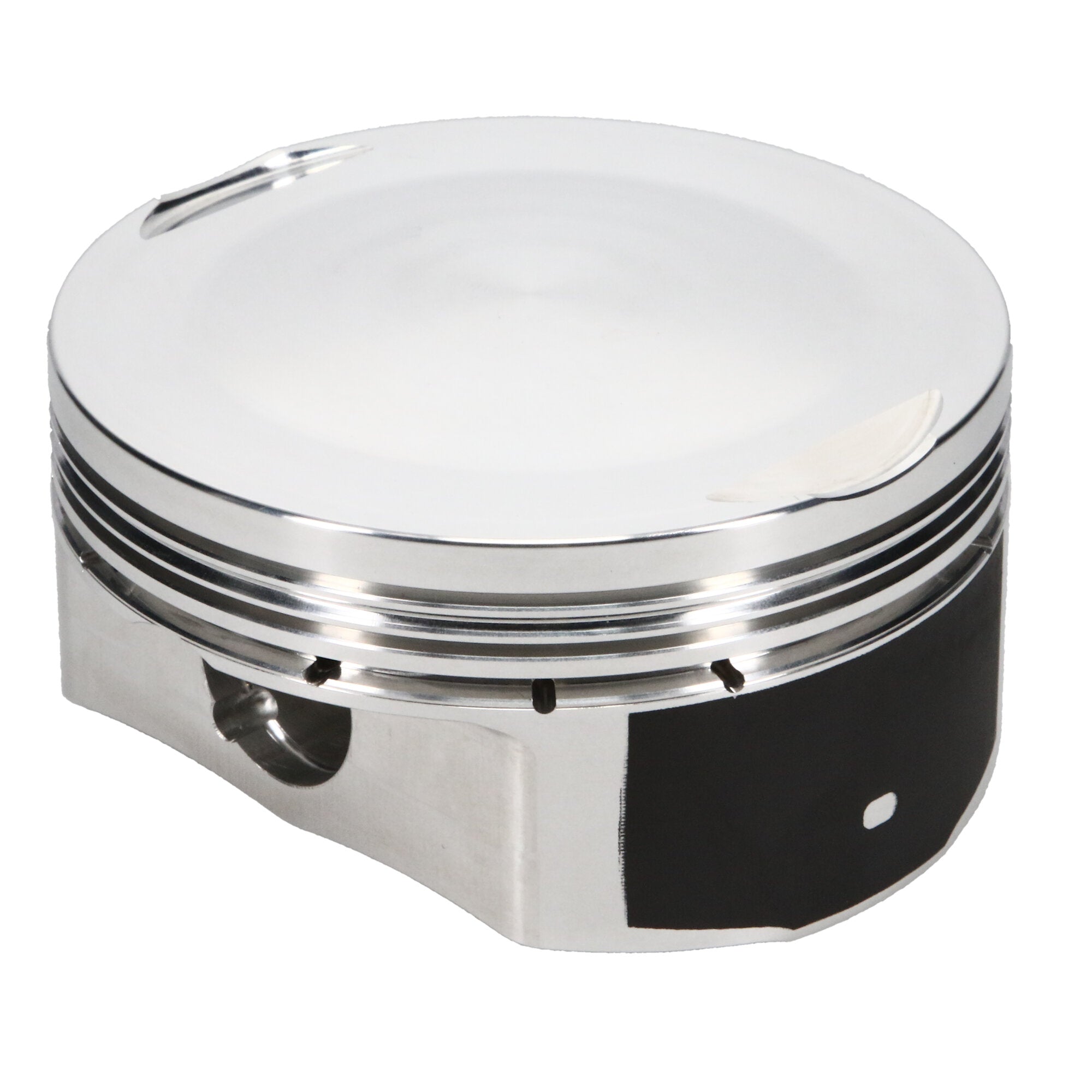

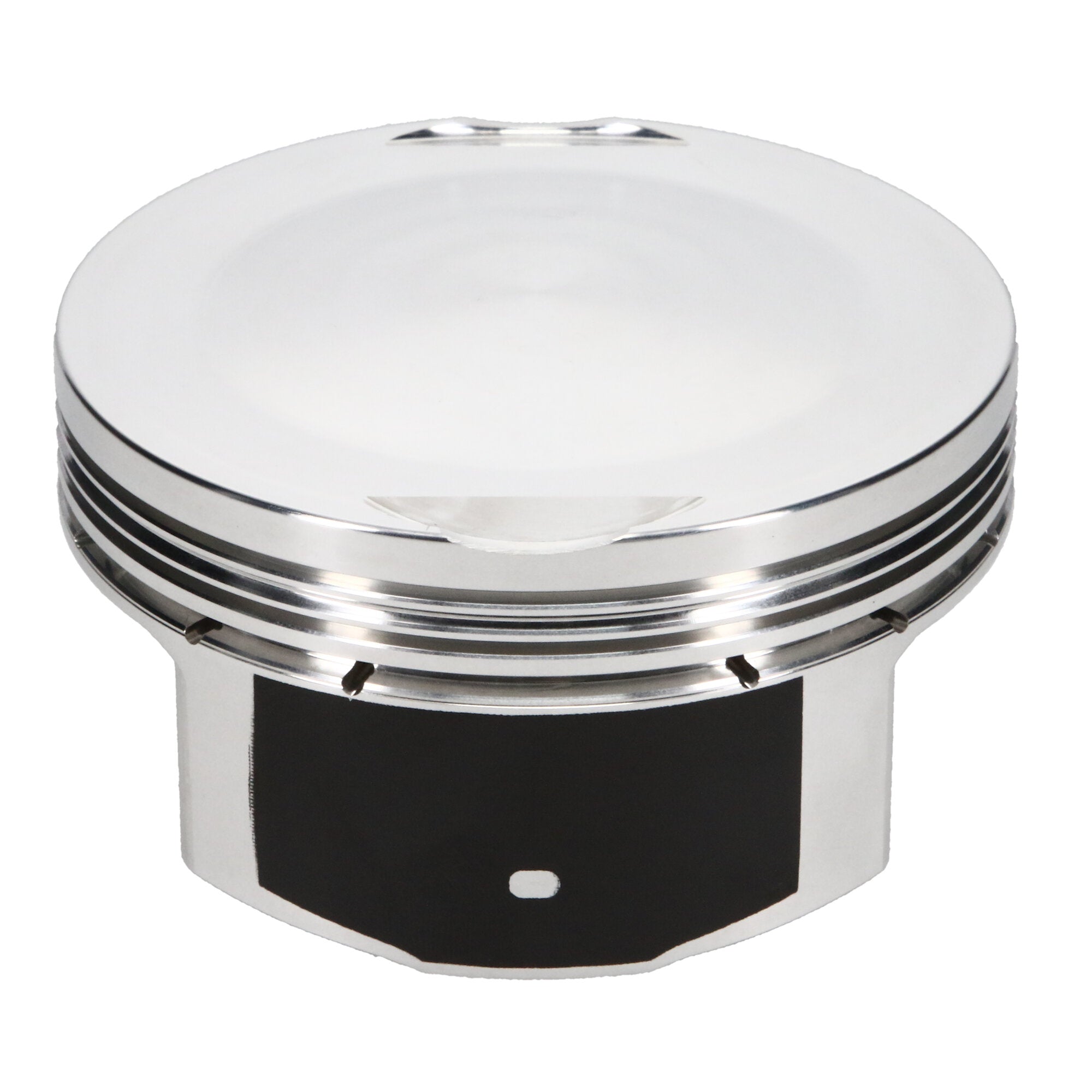

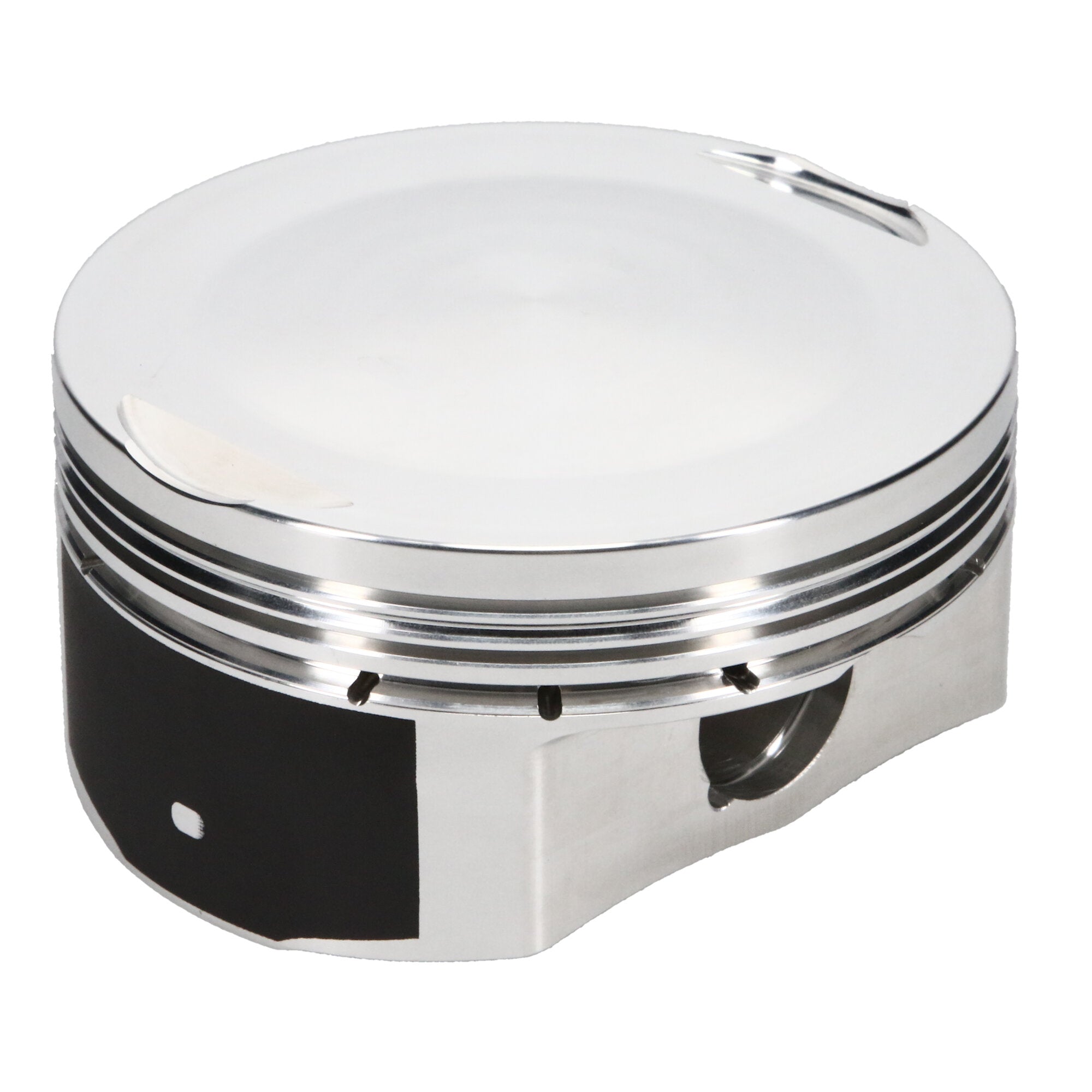

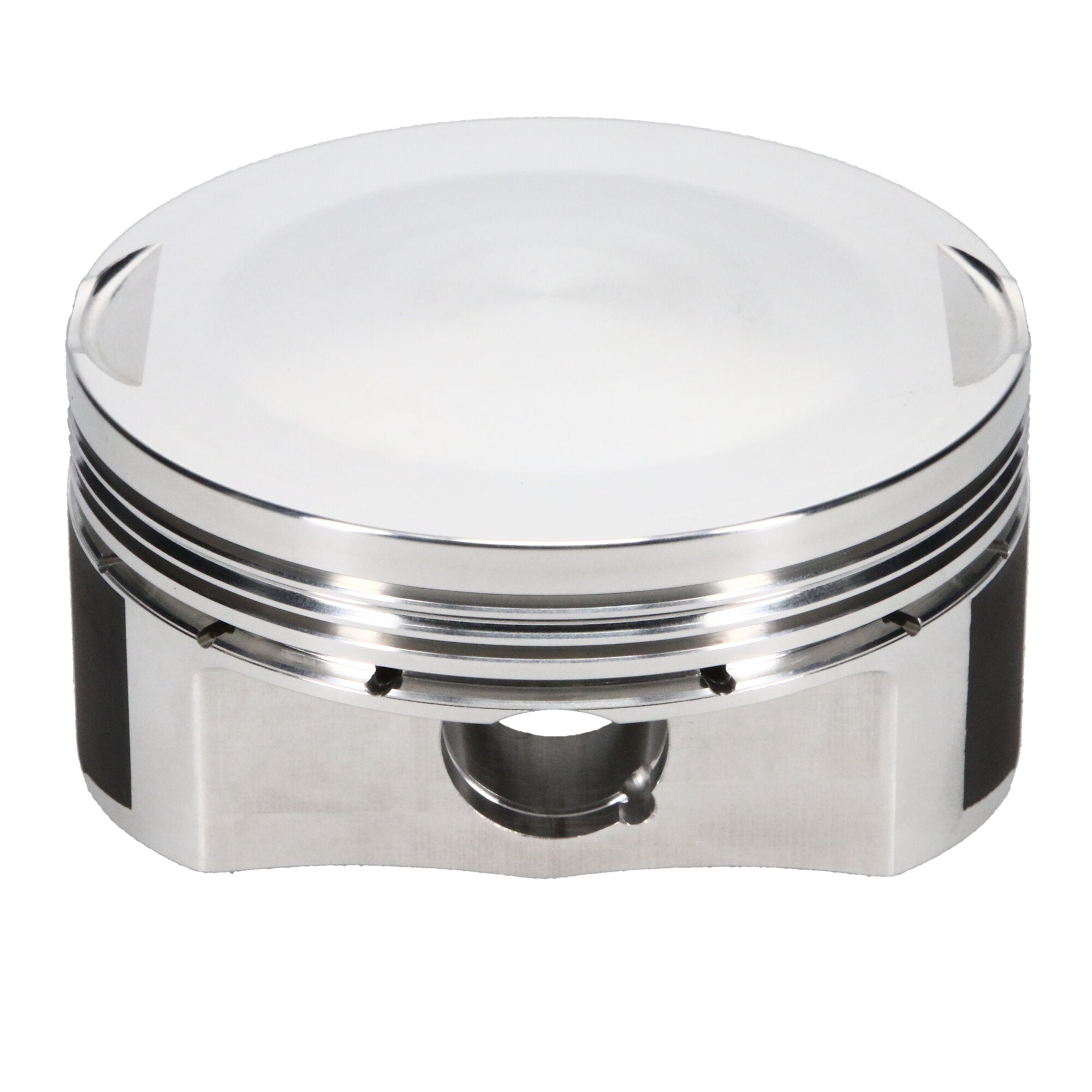

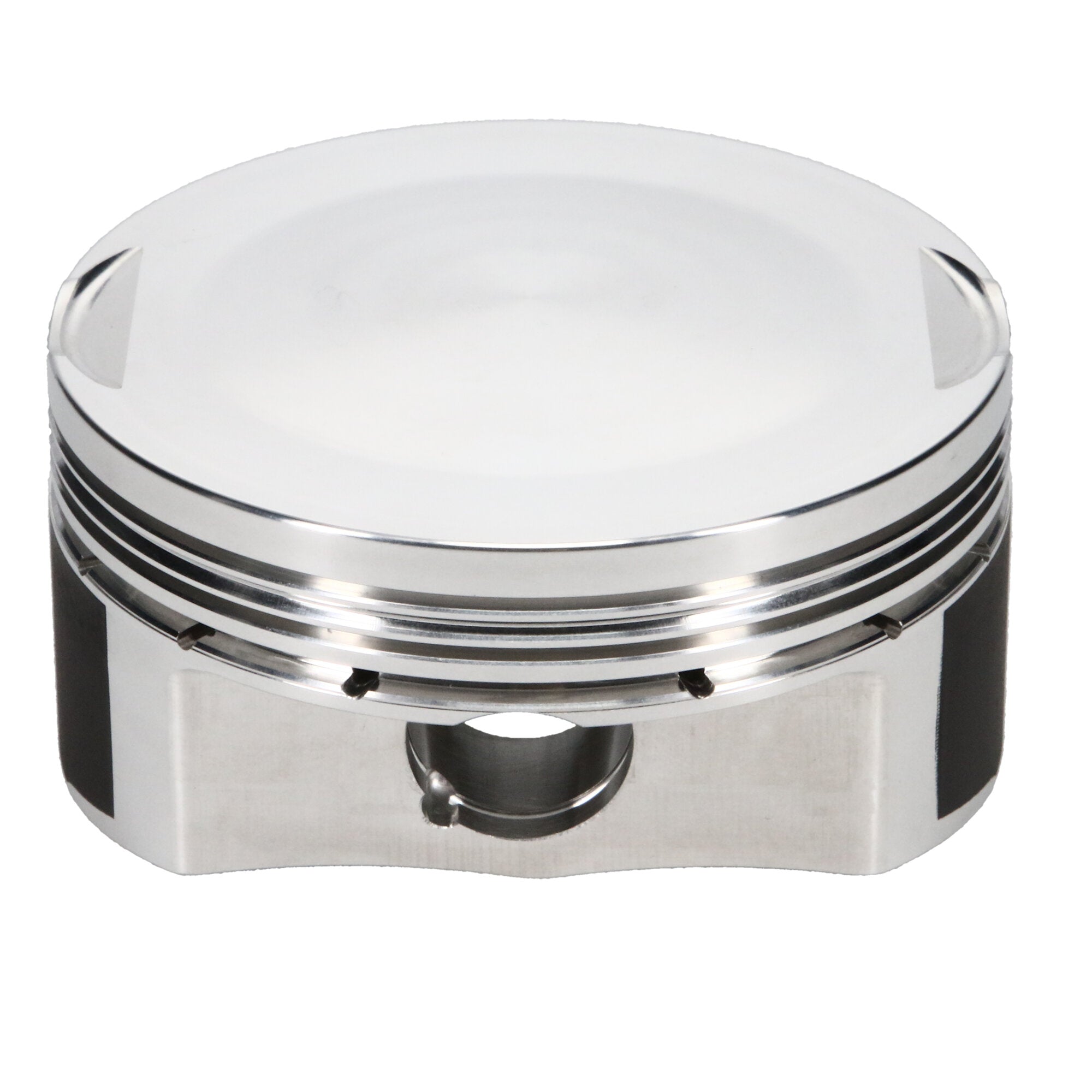

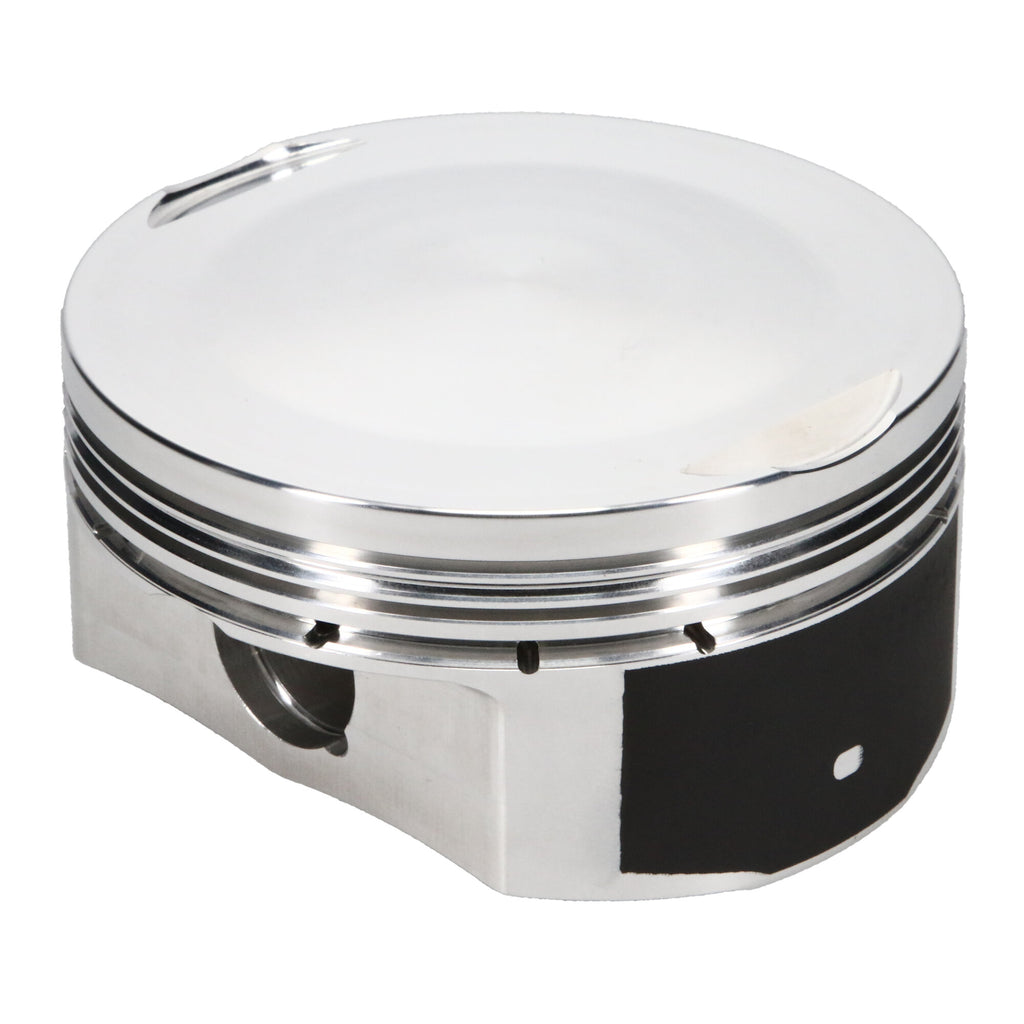

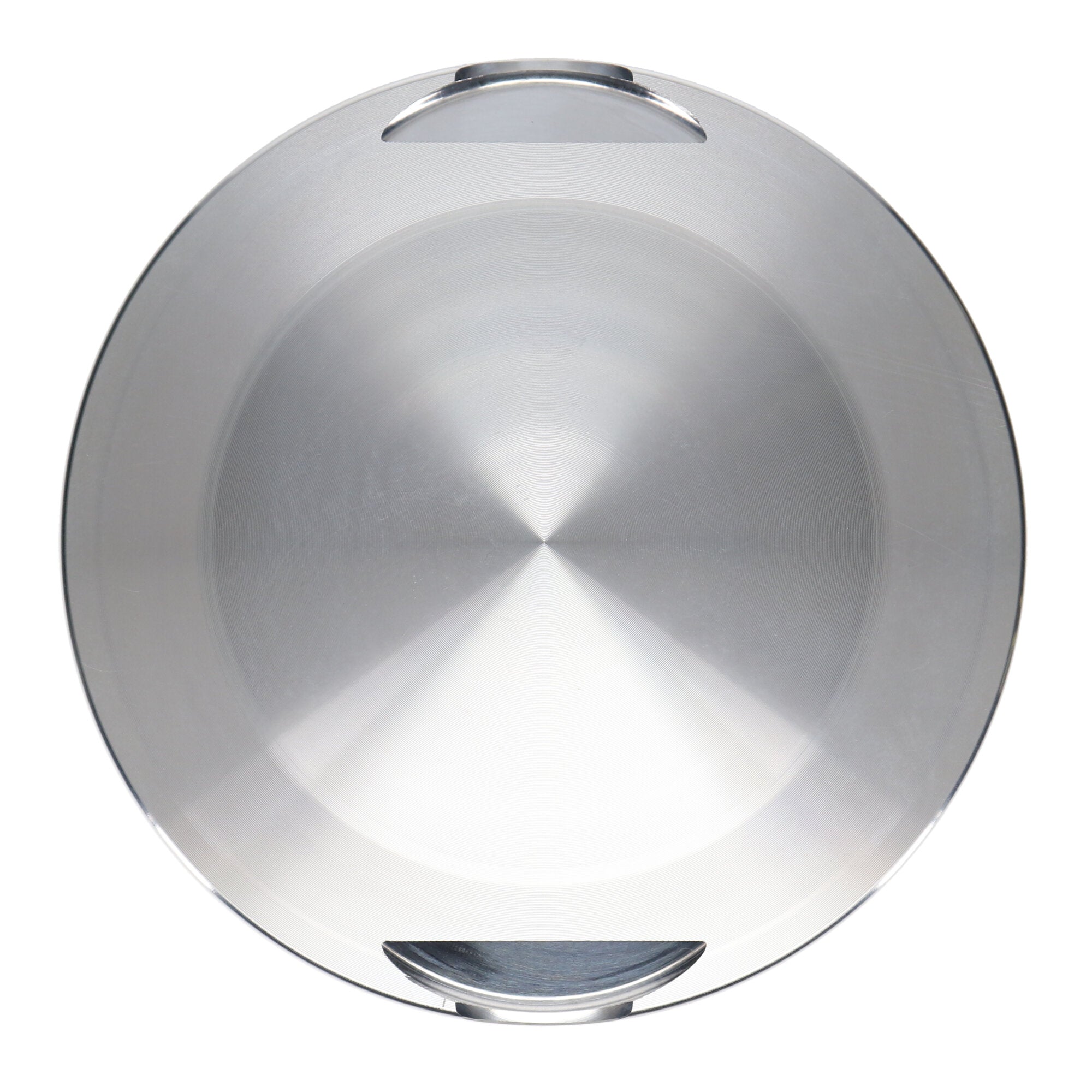

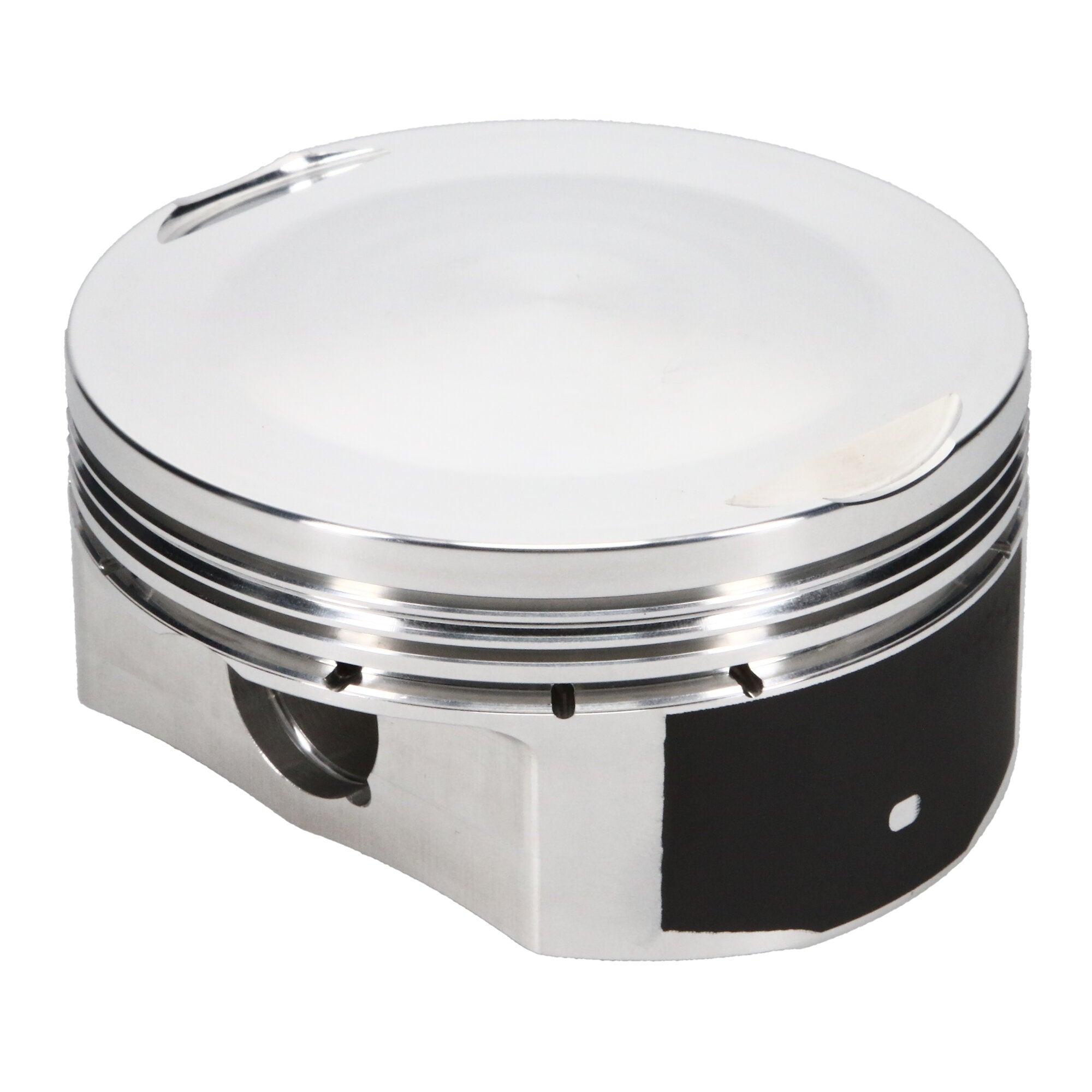

Piston Set, 2618, Dome, 4.090 Bore, 1.210 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Mopar, Gen 3 Hemi, 4.090 in. Bore, 1.210 CD, Dome, 8 Cyl. Piston Kit |
| Description_TLE |
MOPAR 6.4L Gen 3 Hemi Apache, 4.090 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Piston Material |
2618 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availability |
| Piston Average Weight |
442 |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
6.4L APACHE HEMI |
| Title - Web |
JE Pistons Mopar Gen 3 Hemi Piston Kit - 4.090 in. Bore - 1.210 in. CH, 4.10 CC |
| Industry |
Automotive |
| Piston Volume |
4.10 |
| Ring Set Included |
No |
| Second Compression Ring Thickness |
0.0600 |
| Add-On |
JG6108-4095-0 |
| Product Type |
Engine Piston Kit |
| Add-On |
927-2500-20-93C |
| Add-On |
927-073-MW |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.500 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 (C, R or CR) |
CR |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Mopar, Gen 3 Hemi, 4.090 in. Bore, Piston Kit |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.200 |
| Piston Pin Length |
2.500 |
| Oil Ring Thickness |
0.0995 |
| Top Compression Ring Thickness |
0.0600 |
| Piston Head Type |
Dome |
| Ringset Included |
No |
| Engine |
GEN 3 HEMI |
| Compression Height |
1.210 |
| Make - Web |
Mopar |
| Engine - Web |
Gen 3 Hemi |
| Piston Pin Material |
9310 |
| Piston Pin Outside Diameter |
0.927 |
| Make |
MOPAR |
| Bore Diameter |
4.090 |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.200 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
