Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Big Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

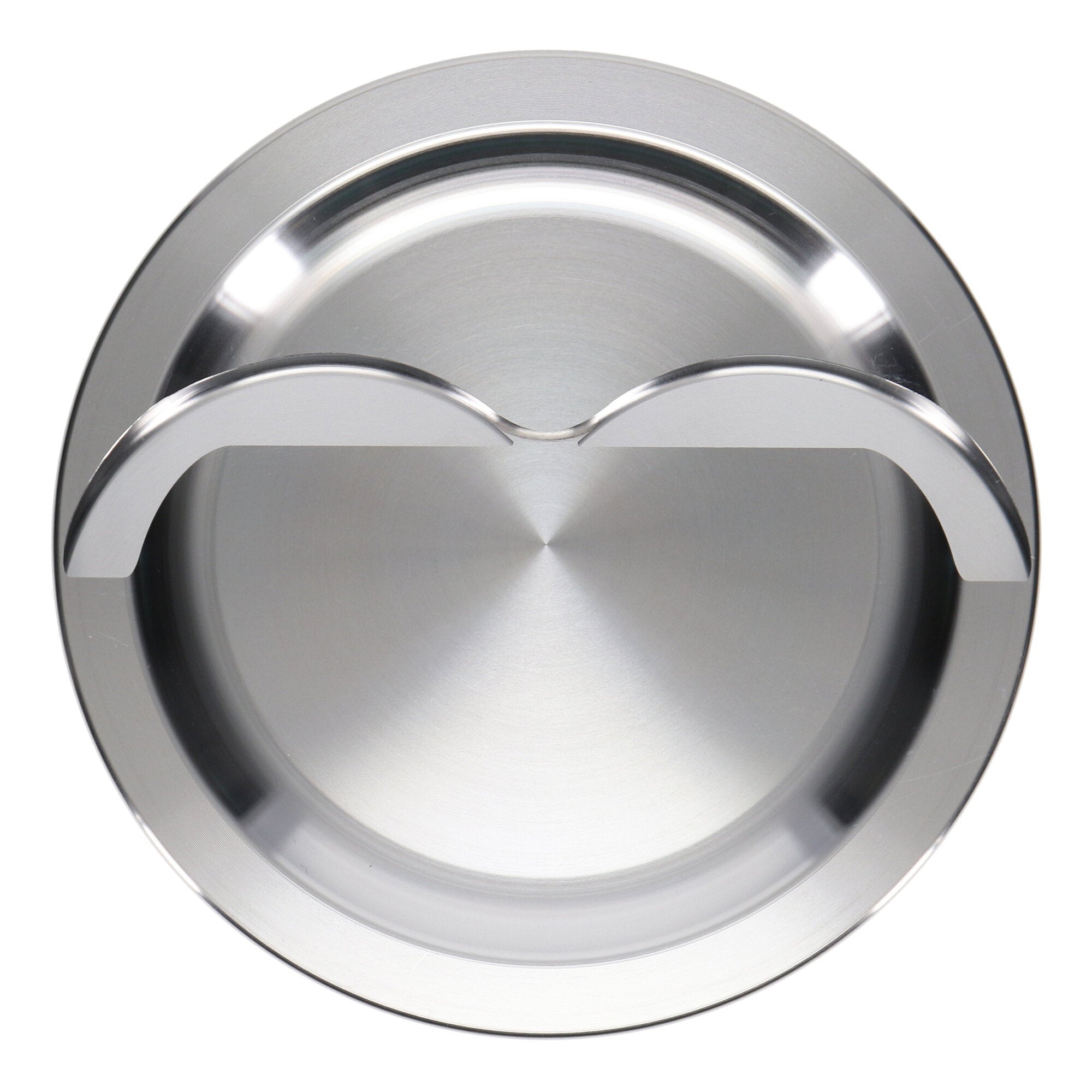

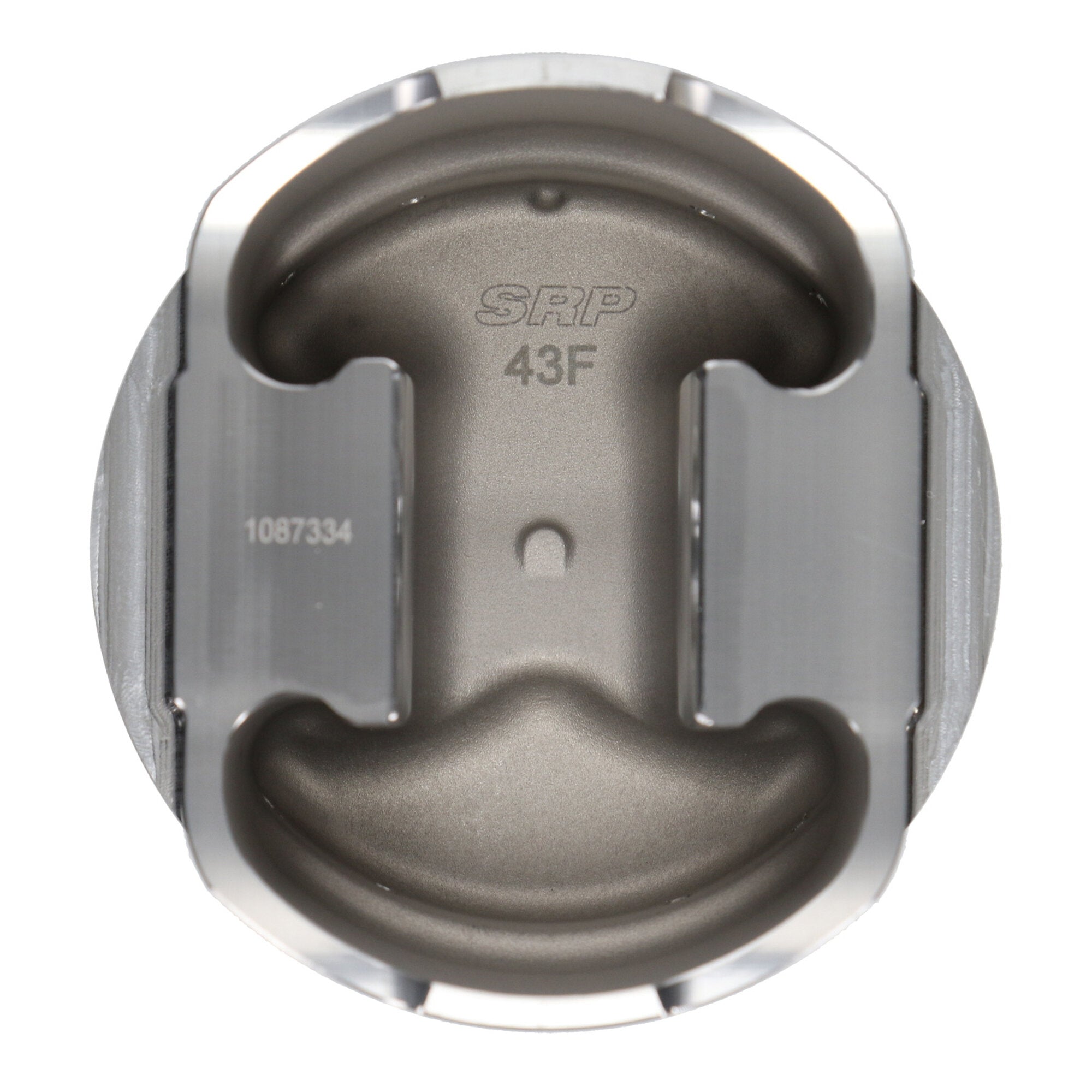

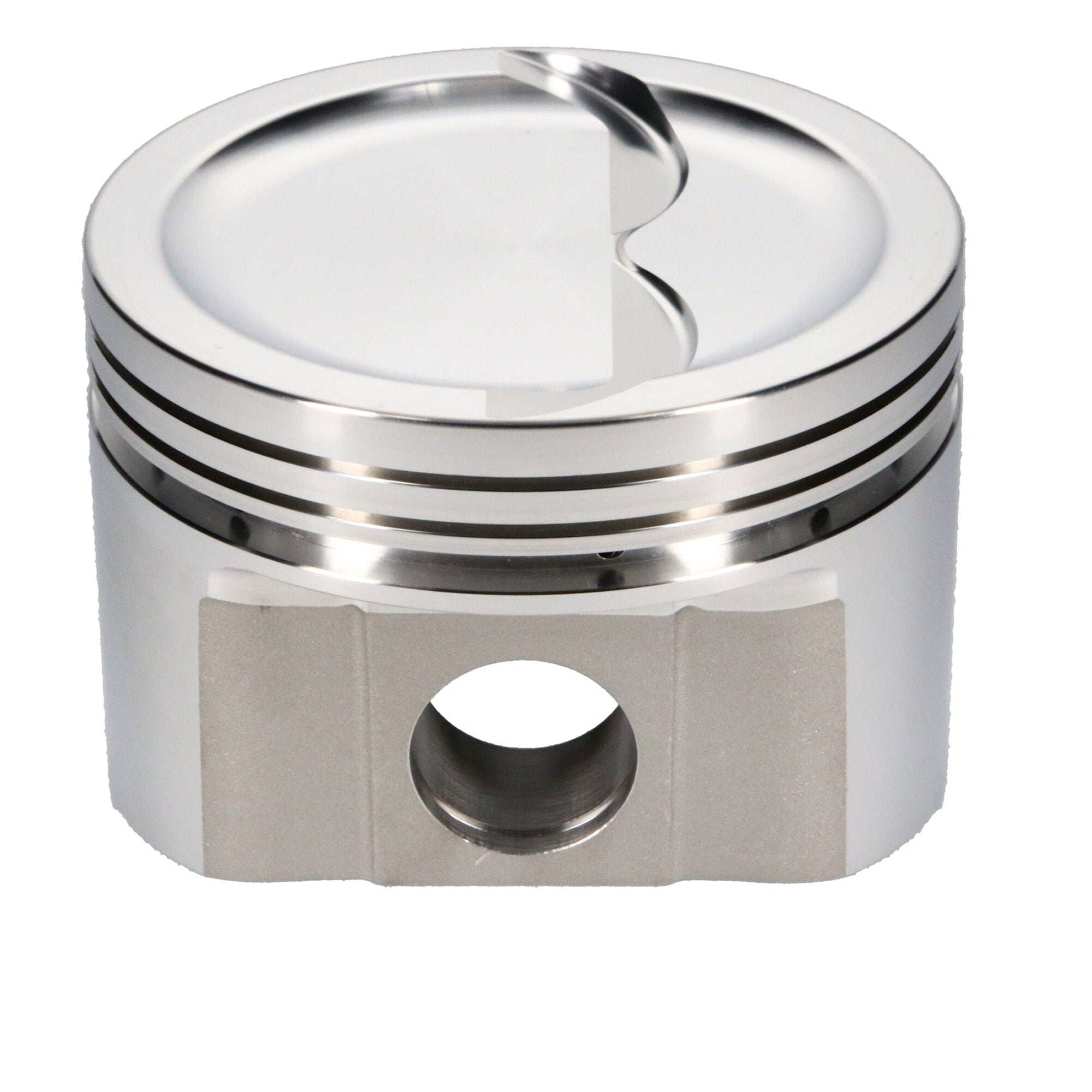

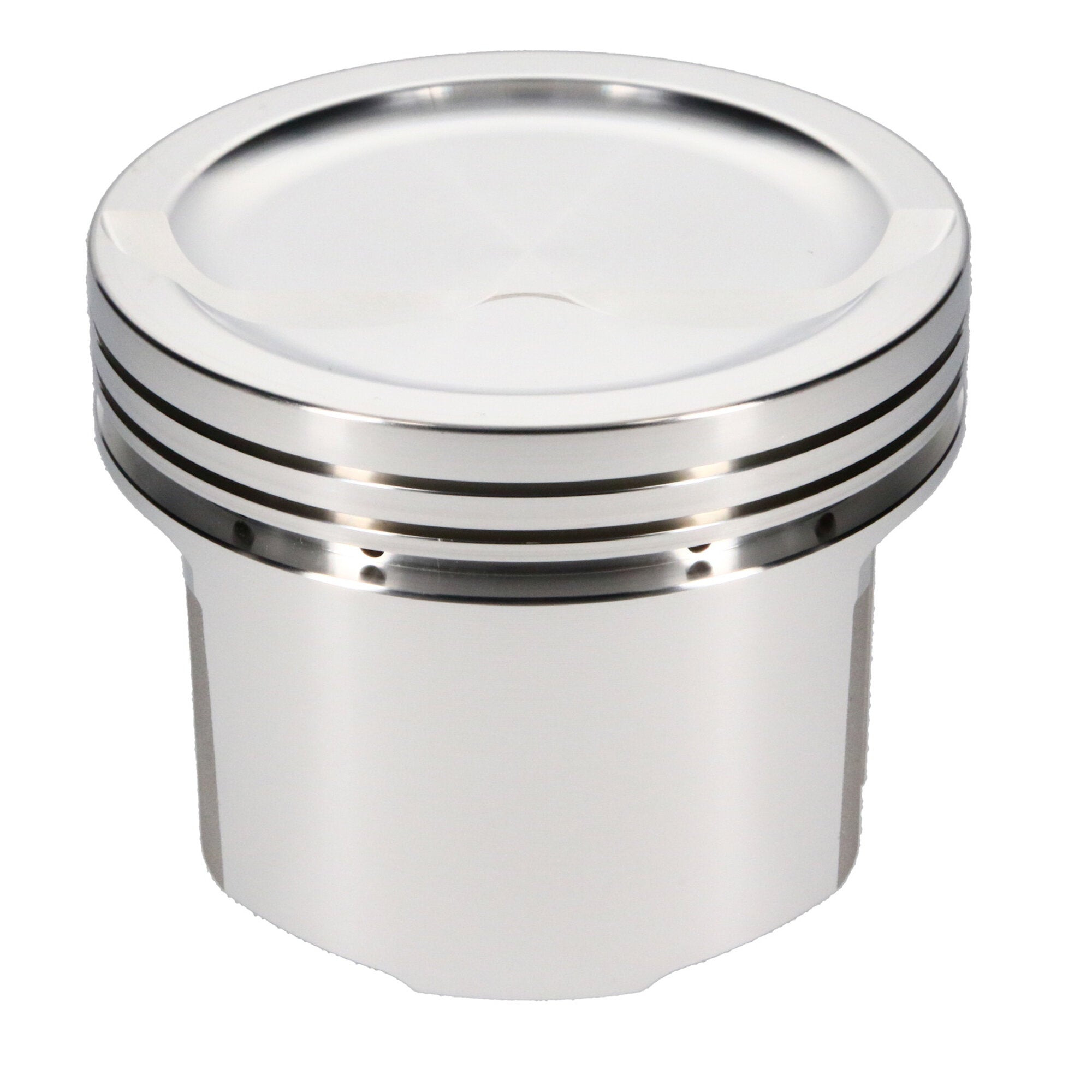

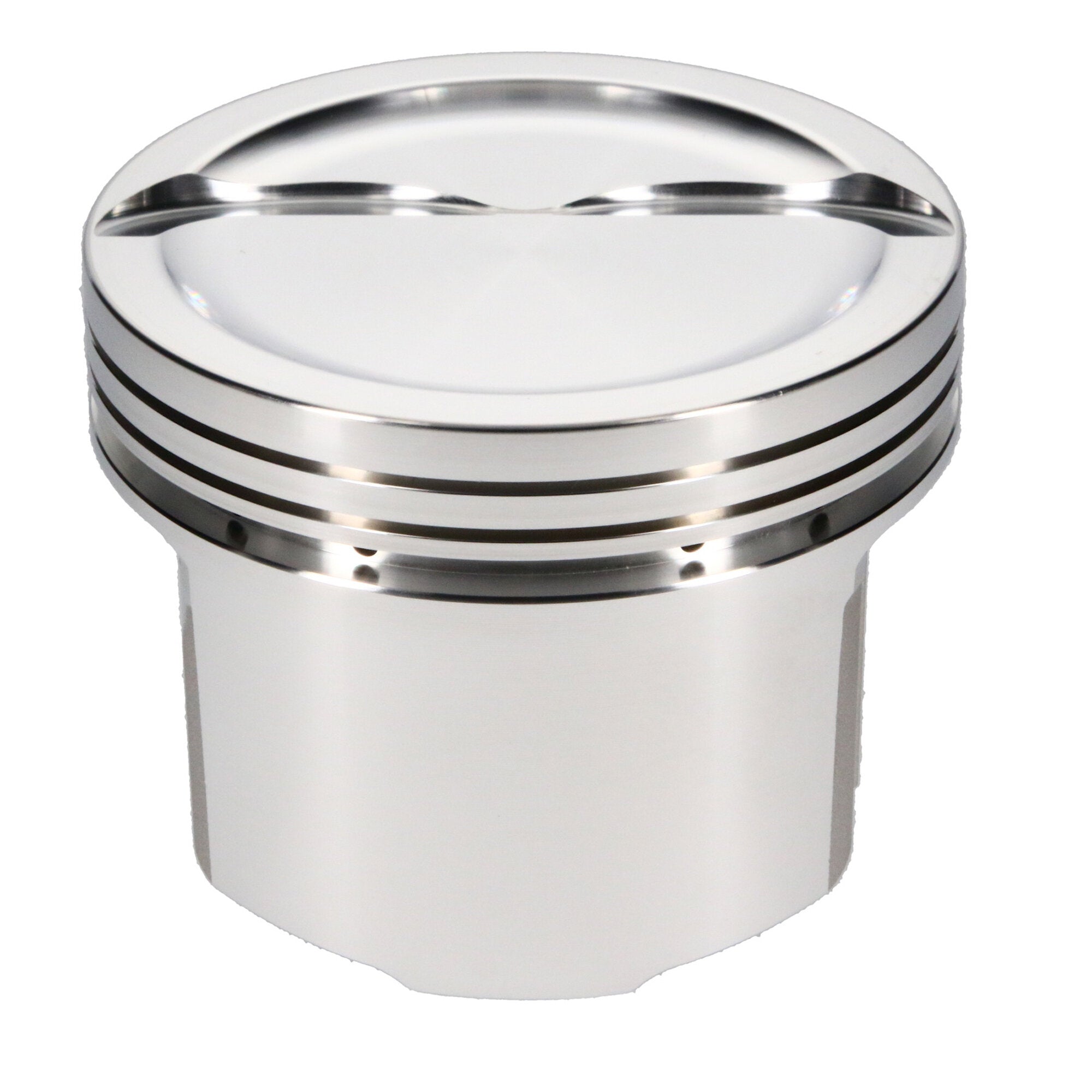

Piston Set, 4032, Inv Dome/Dish, 4.350 Bore, 1.815 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
SRP, Chrysler, Big Block Chrysler, 4.350 in. Bore, 1.815 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 400, 4.350 Bore, Dish, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Wrist Pin Outer Diameter |
0.990 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Wall Thickness |
0.180 |
| Make |
CHRYSLER |
| Ringset Included |
No |
| Engine |
Big Block |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Forging Type |
FSR |
| Top Compression Ring Thickness |
0.0640 |
| Industry |
Automotive |
| Oil Ring Thickness |
0.188 |
| Title |
SRP - Chrysler, Big Block, 4.350 in. Bore, Piston Kit |
| Bore Diameter |
4.350 |
| Piston Series |
SRP |
| Piston Pin Length |
2.930 |
| Cylinder Head |
440 WEDGE |
| Piston Pin Material |
5115 |
| Compression Height |
1.815 |
| Piston Material |
4032 |
| Product Market |
Domestic |
| Piston Average Weight |
682 |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.180 |
| Add-On |
990-2930-18-51S |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.990 |
| Out of Stock Message |
Call for Availability |
| Add-On |
990-042-CS |
| Piston Volume |
-24.00 |
| Product Type |
Engine Piston Kit |
| Title - Web |
SRP Chrysler Big Block Piston Kit - 4.350 in. Bore - 1.815 in. CH, -24.00 CC |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Add-On |
S100S8-4350-5 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Make - Web |
Chrysler |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
