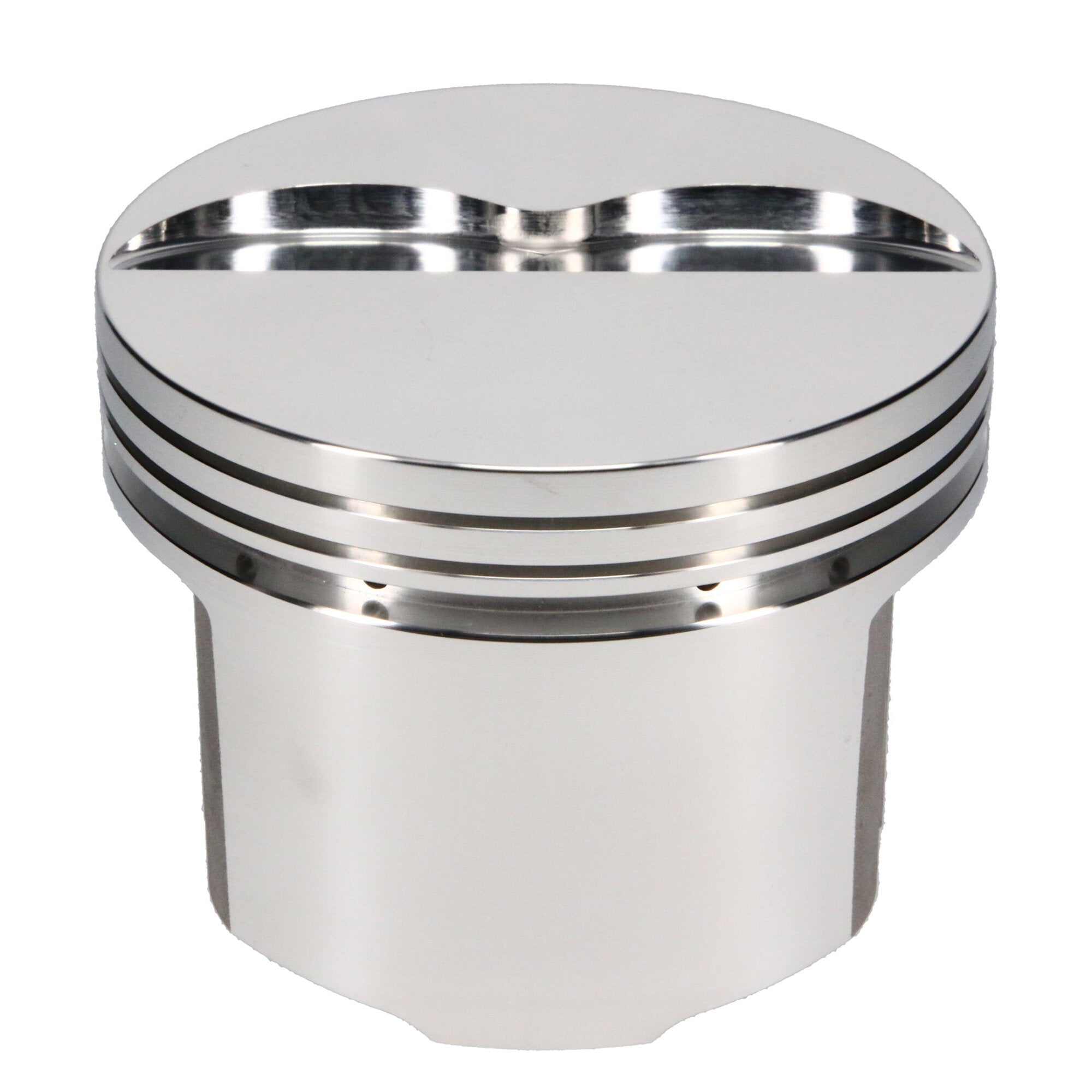

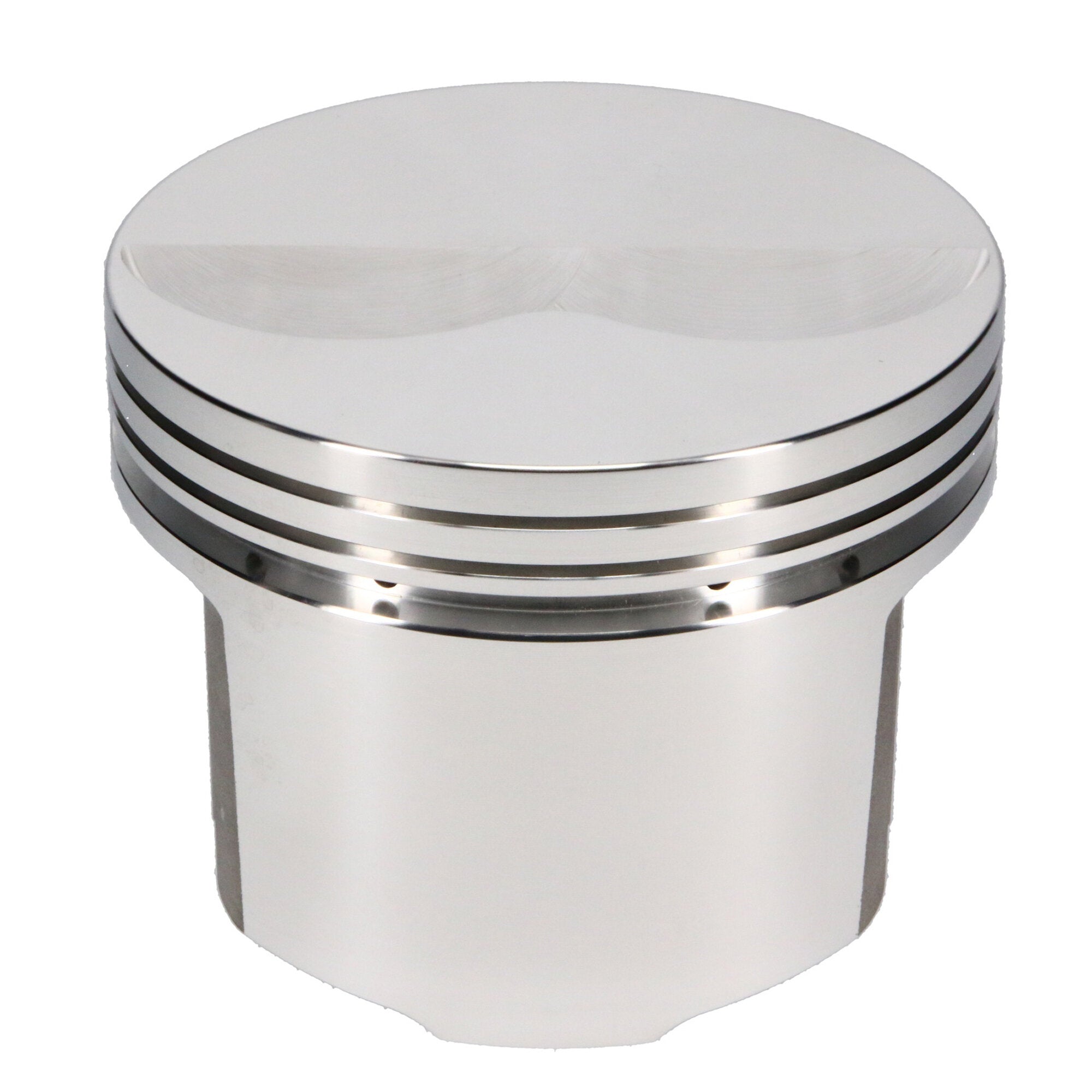

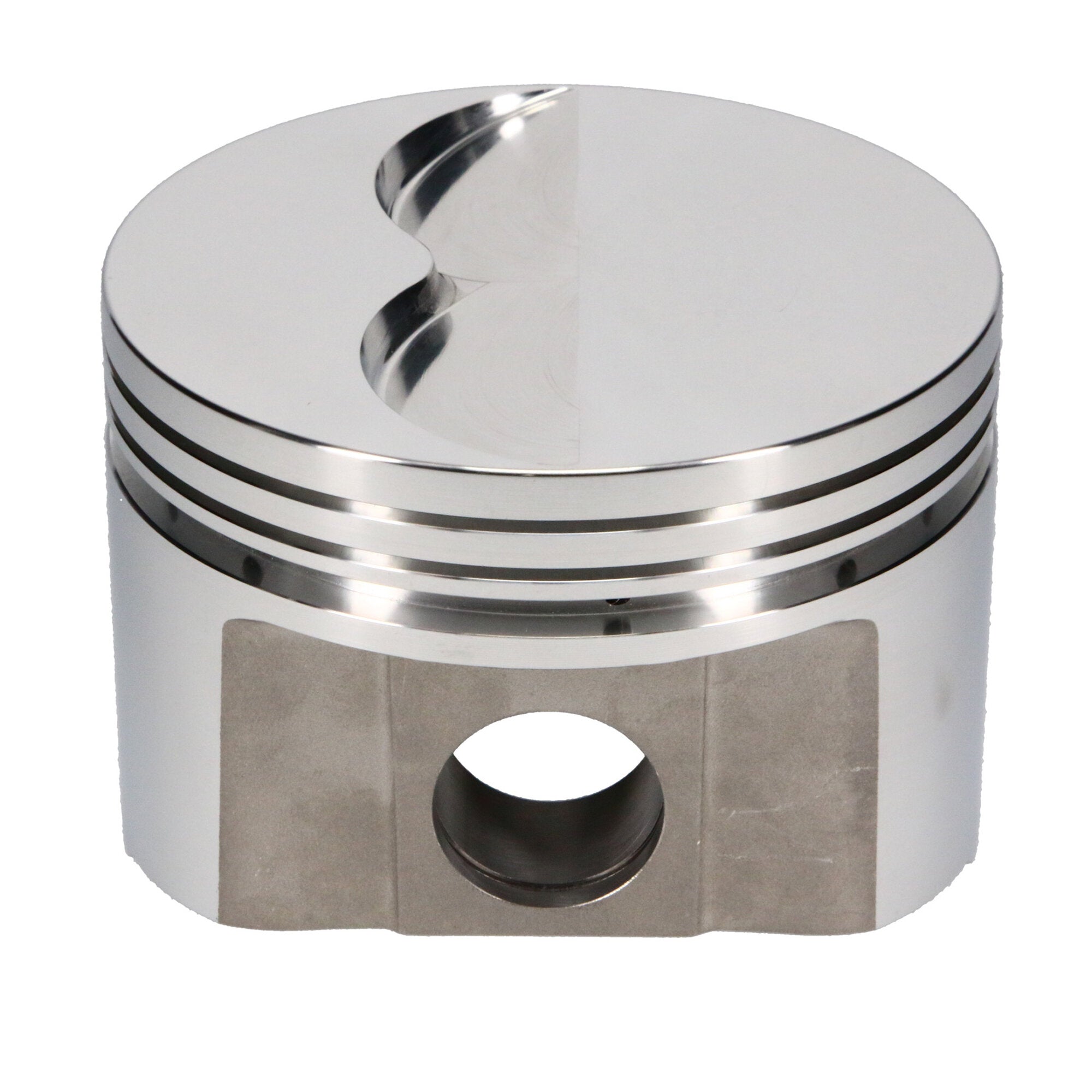

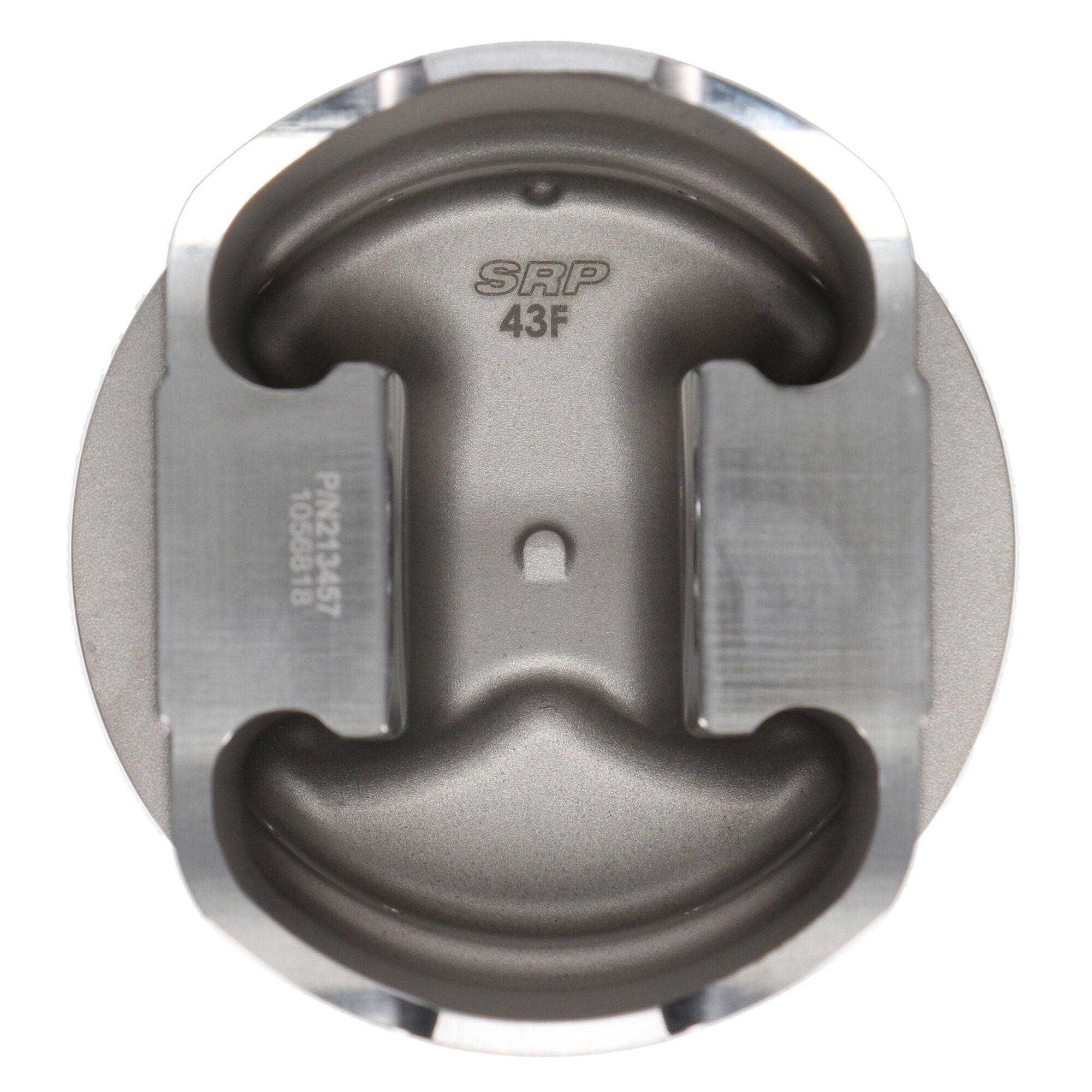

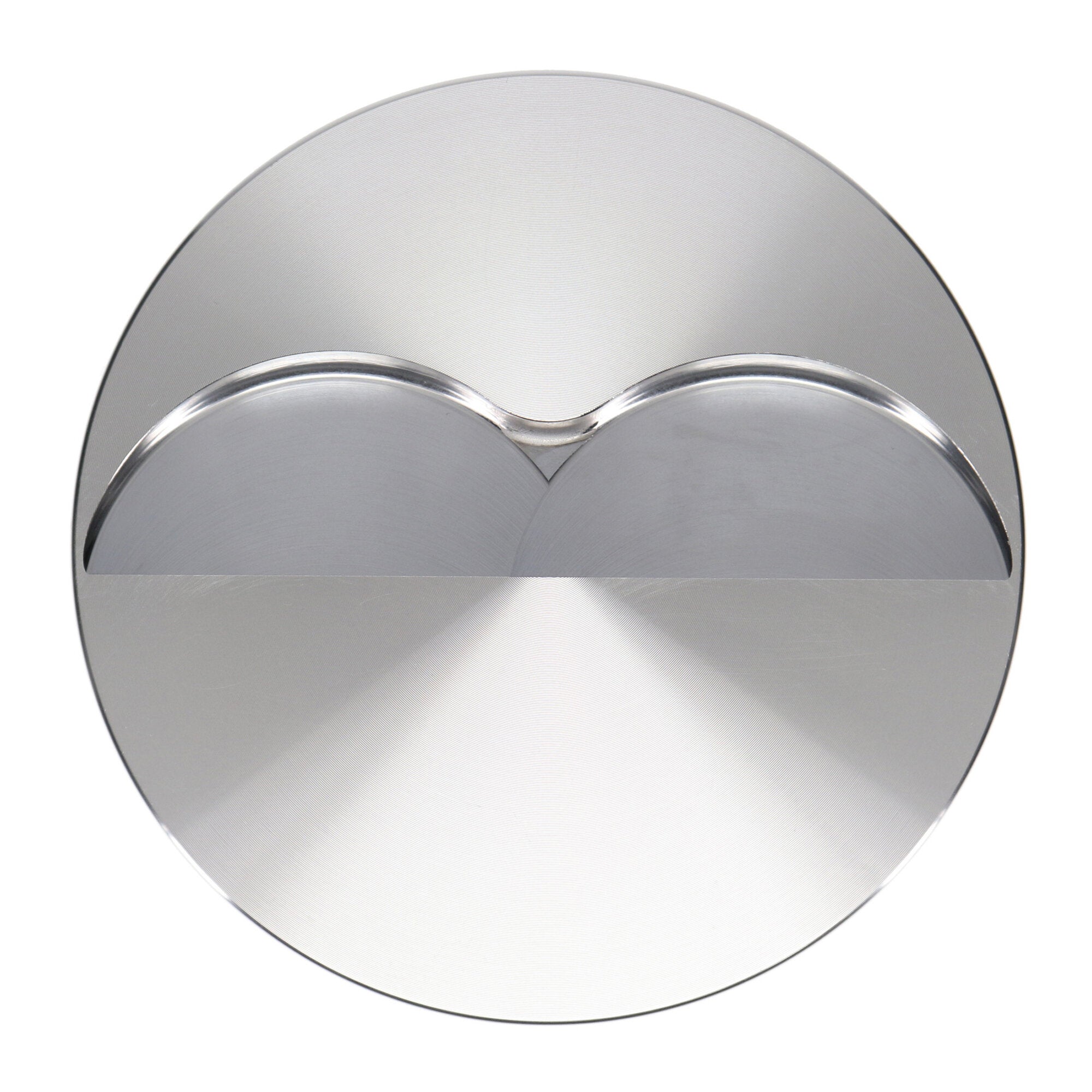

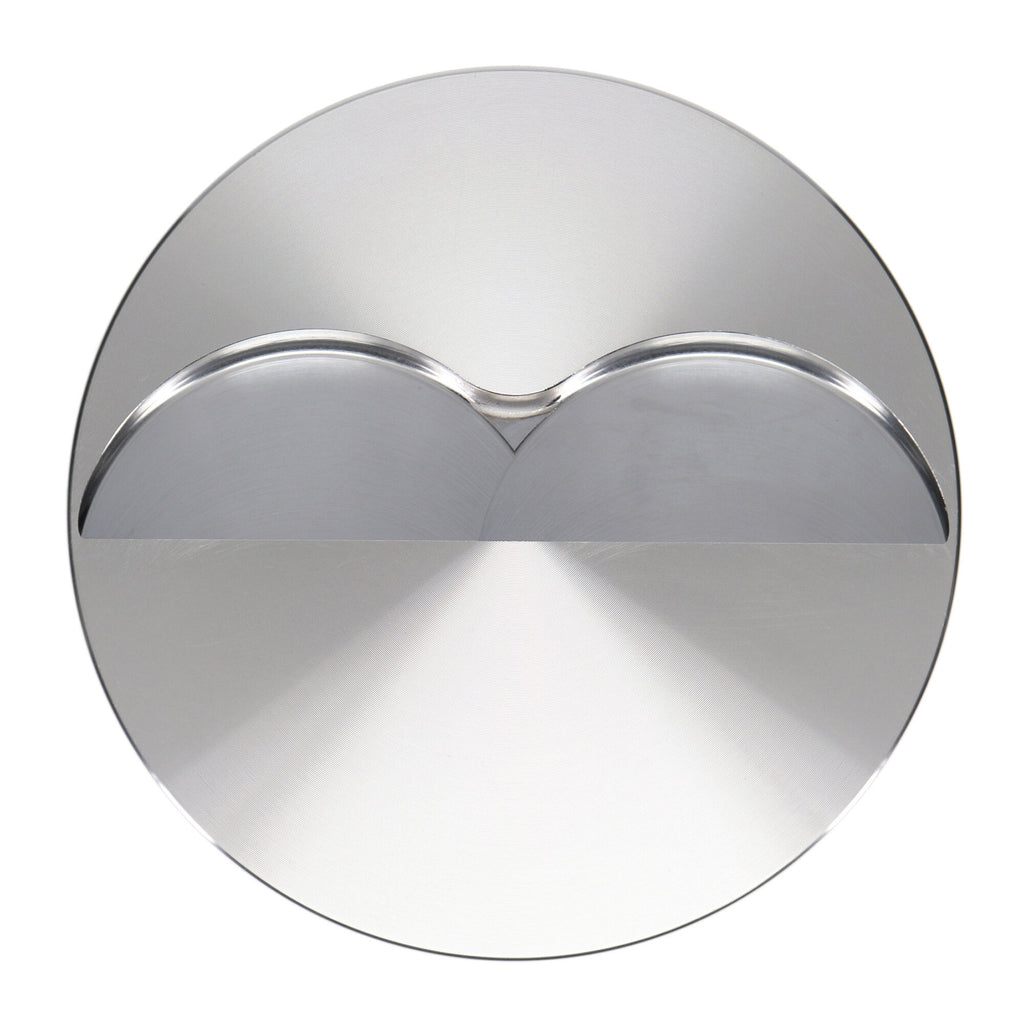

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.350 Bore, 1.485 CD, 0.990 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chrysler, Big Block Chrysler, 4.350 in. Bore, 1.485 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 440, 4.350 Bore, Flat, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Piston Head Type |
Flat |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.990 |
| Wrist Pin Outer Diameter |
0.990 |
| Make |
CHRYSLER |
| Forging Type |
FSR |
| Piston Series |
SRP |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.180 |
| Oil Ring Thickness |
0.188 |
| Engine - Web |
Big Block |
| Compression Height |
1.485 |
| Engine |
Big Block |
| Add-On |
S100S8-4350-5 |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.350 |
| Product Type |
Engine Piston Kit |
| Piston Pin Length |
2.930 |
| Add-On |
990-2930-18-51S |
| Product Market |
Domestic |
| Title |
SRP - Chrysler, Big Block, 4.350 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
990-042-CS |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Length |
2.930 |
| Prop 65 Yes/No |
Yes |
| Title - Web |
SRP Chrysler Big Block Piston Kit - 4.350 in. Bore - 1.485 in. CH, -6.00 CC |
| Piston Material |
4032 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
440 WEDGE |
| Industry |
Automotive |
| Piston Volume |
-6.00 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chrysler |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
