As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ferrari 2.9L 308 V8 4V |
| Description_DES |

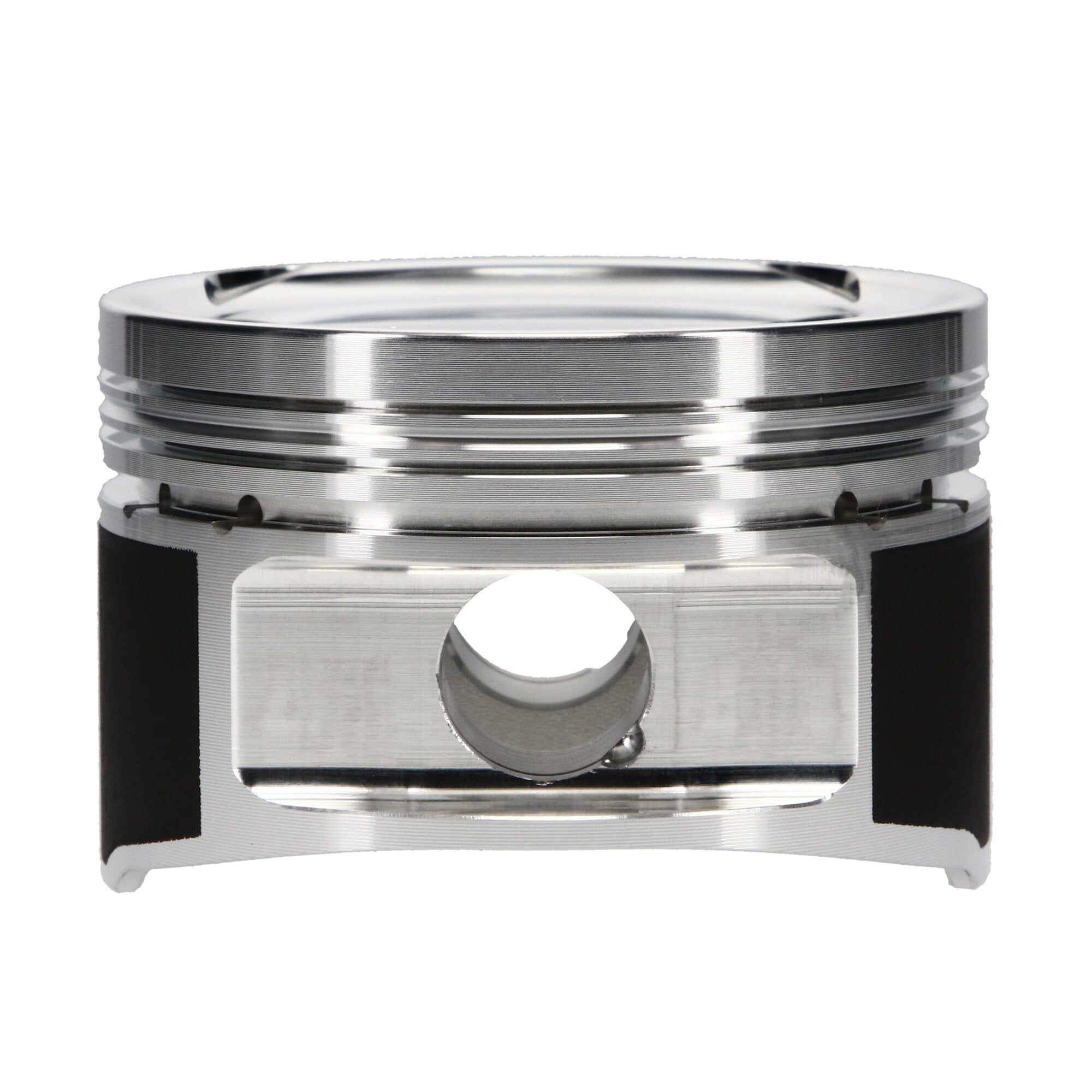

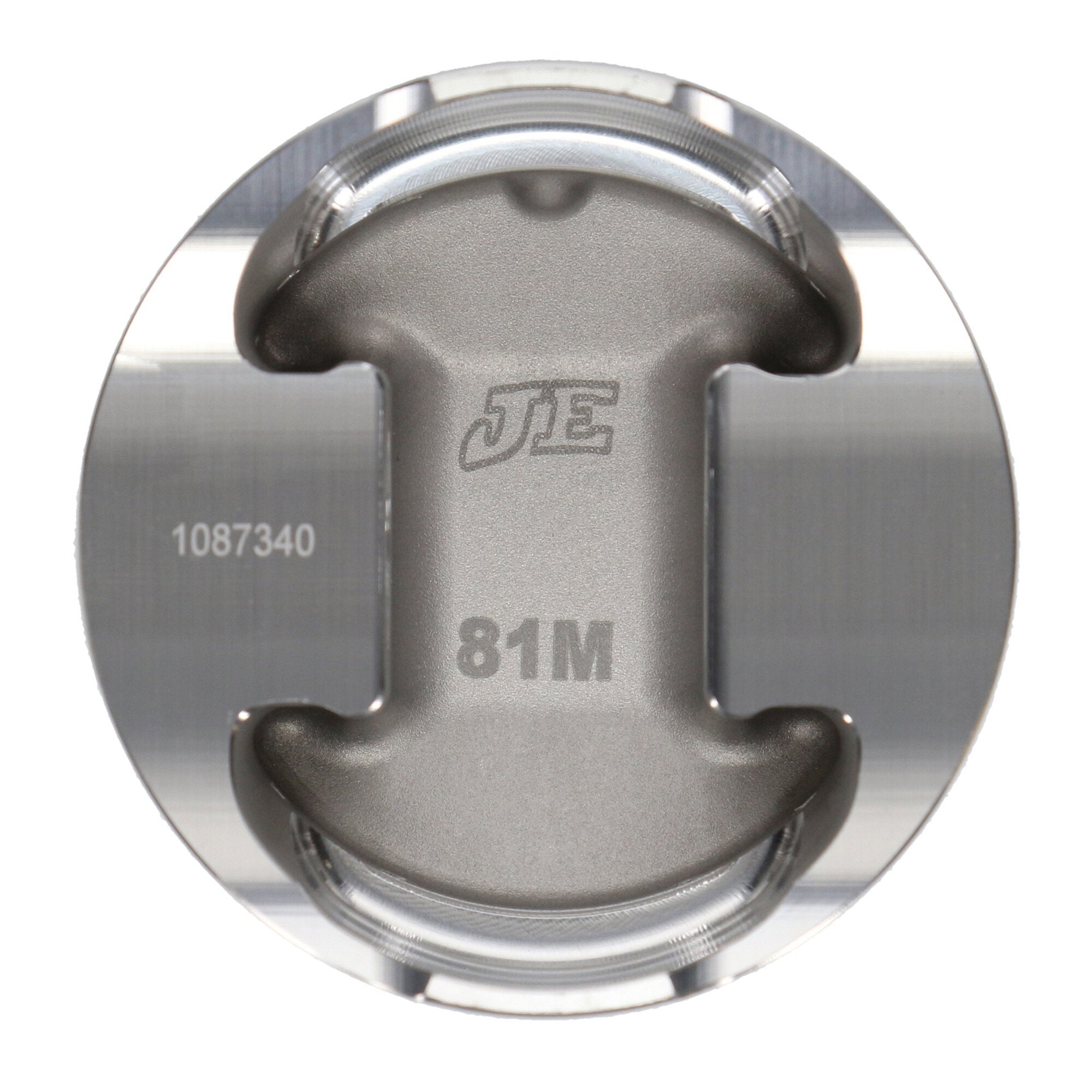

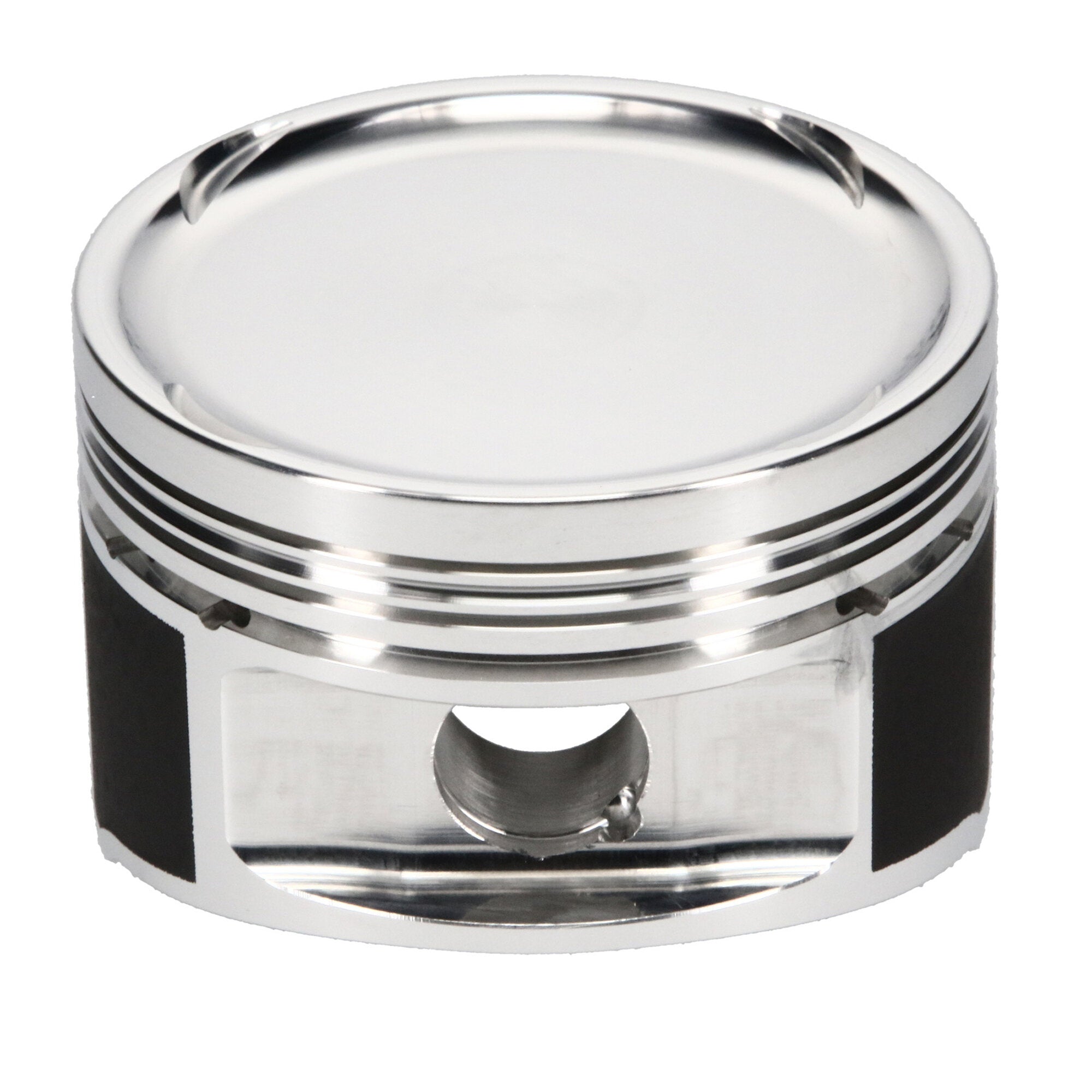

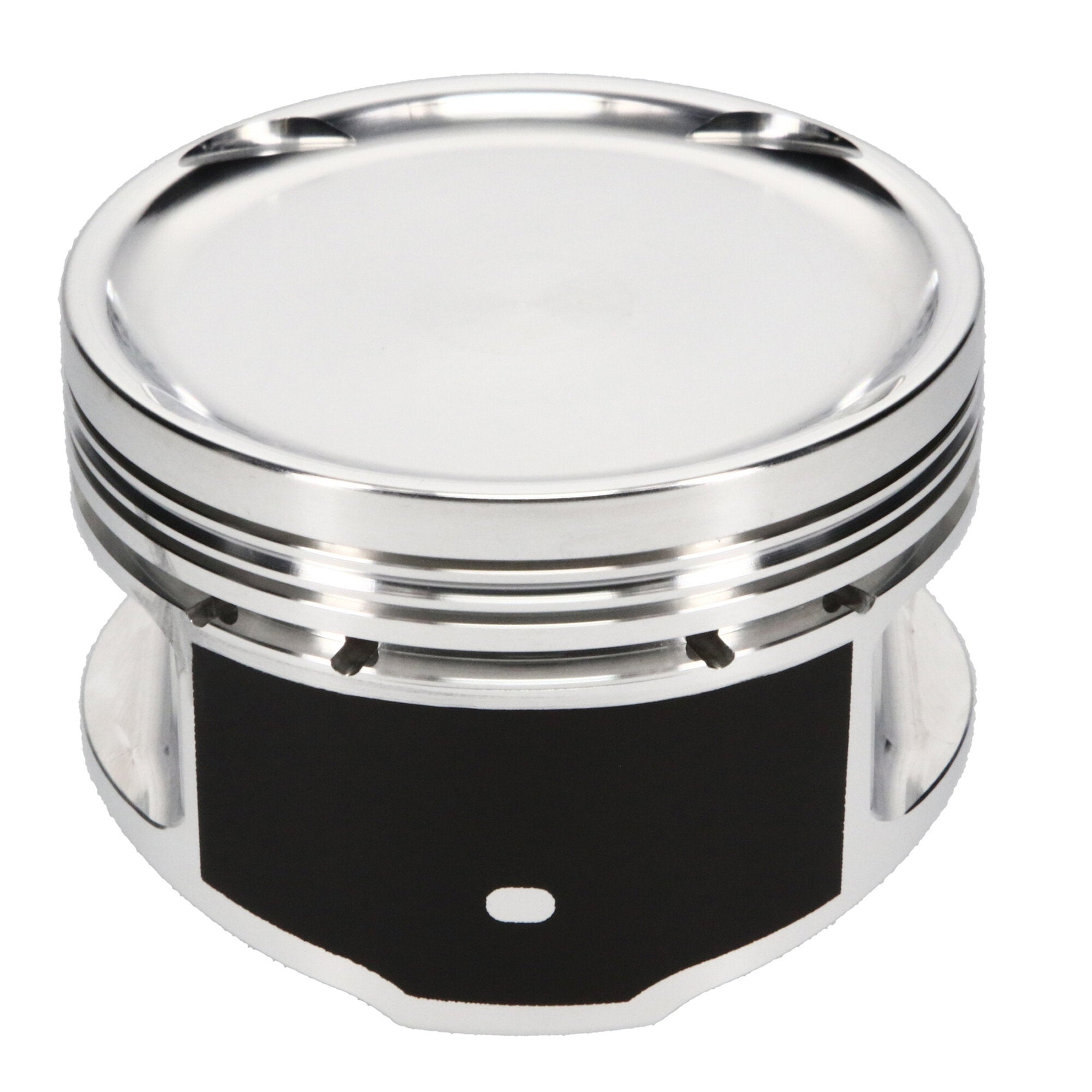

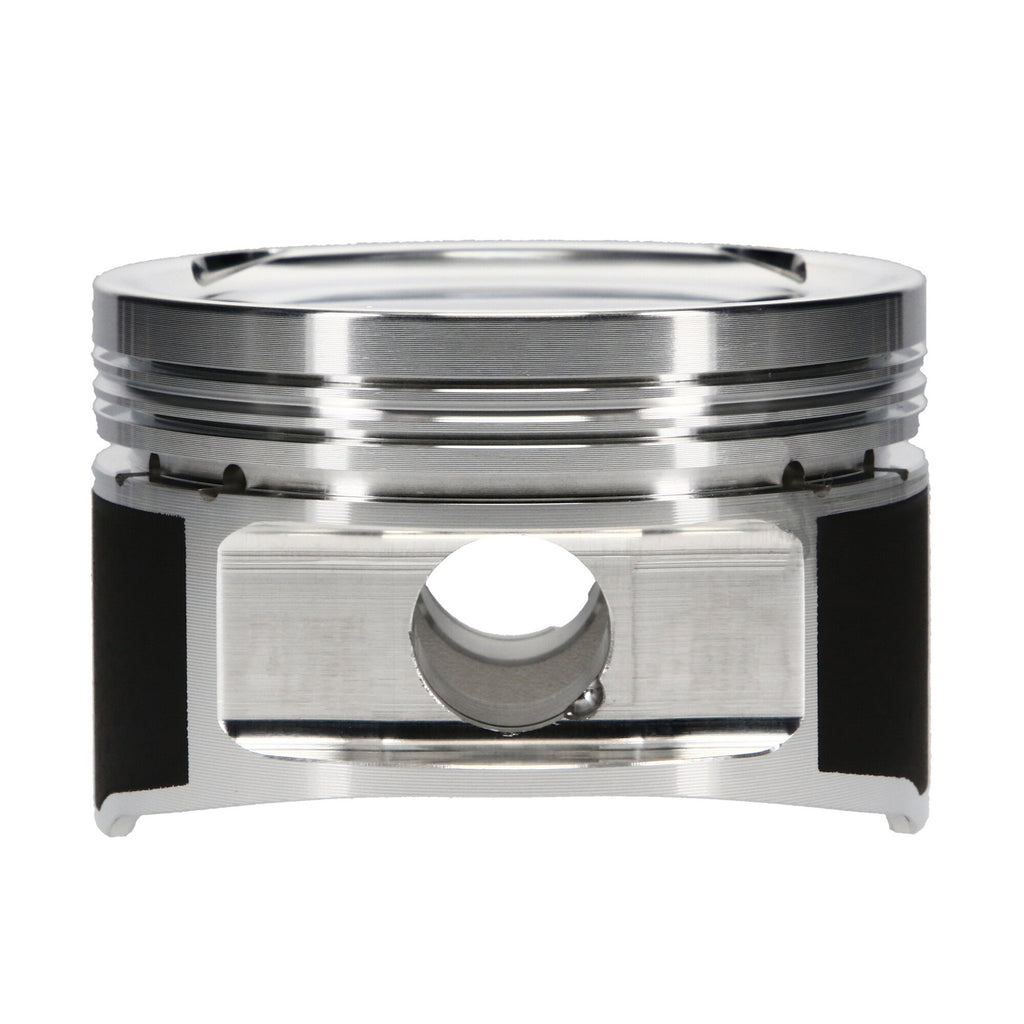

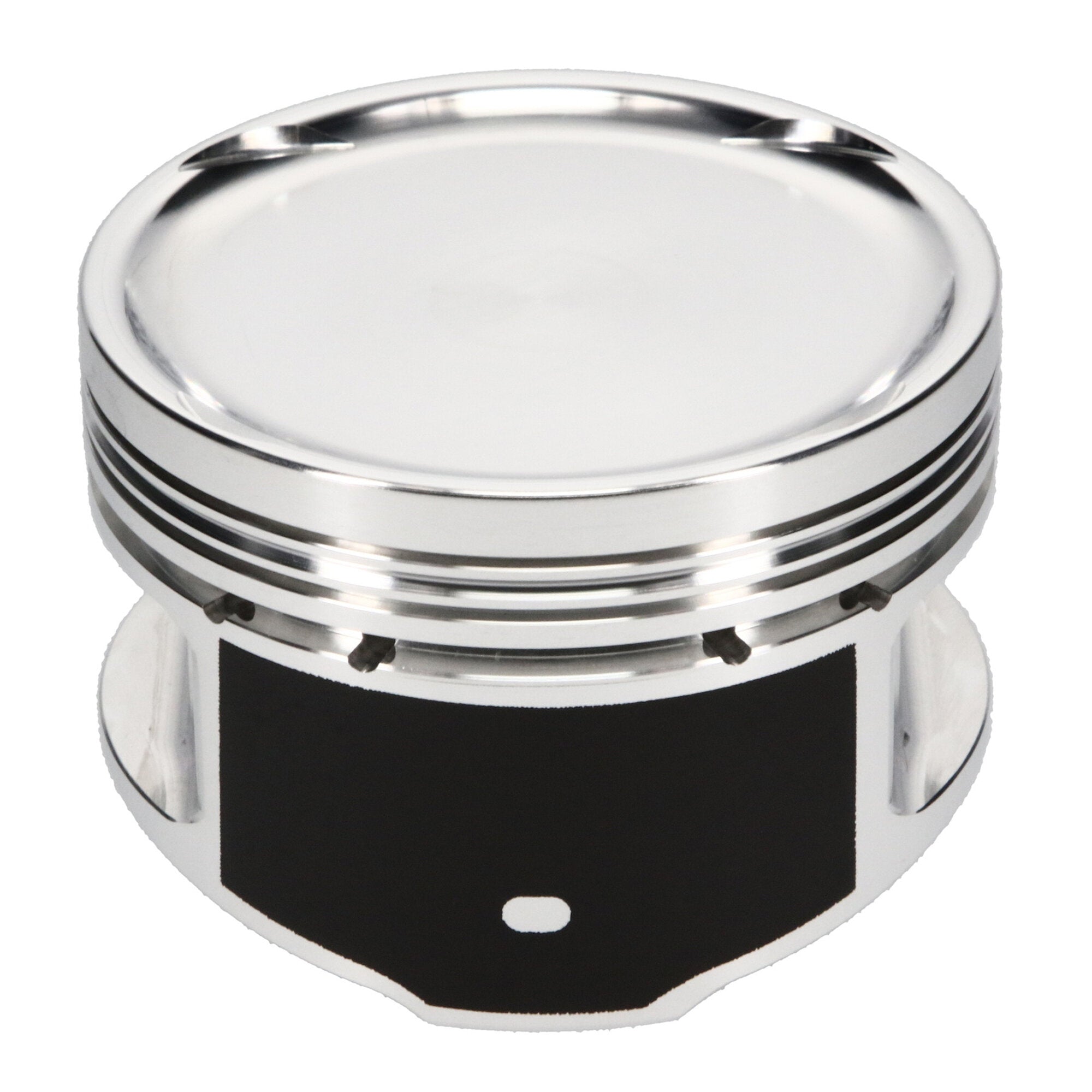

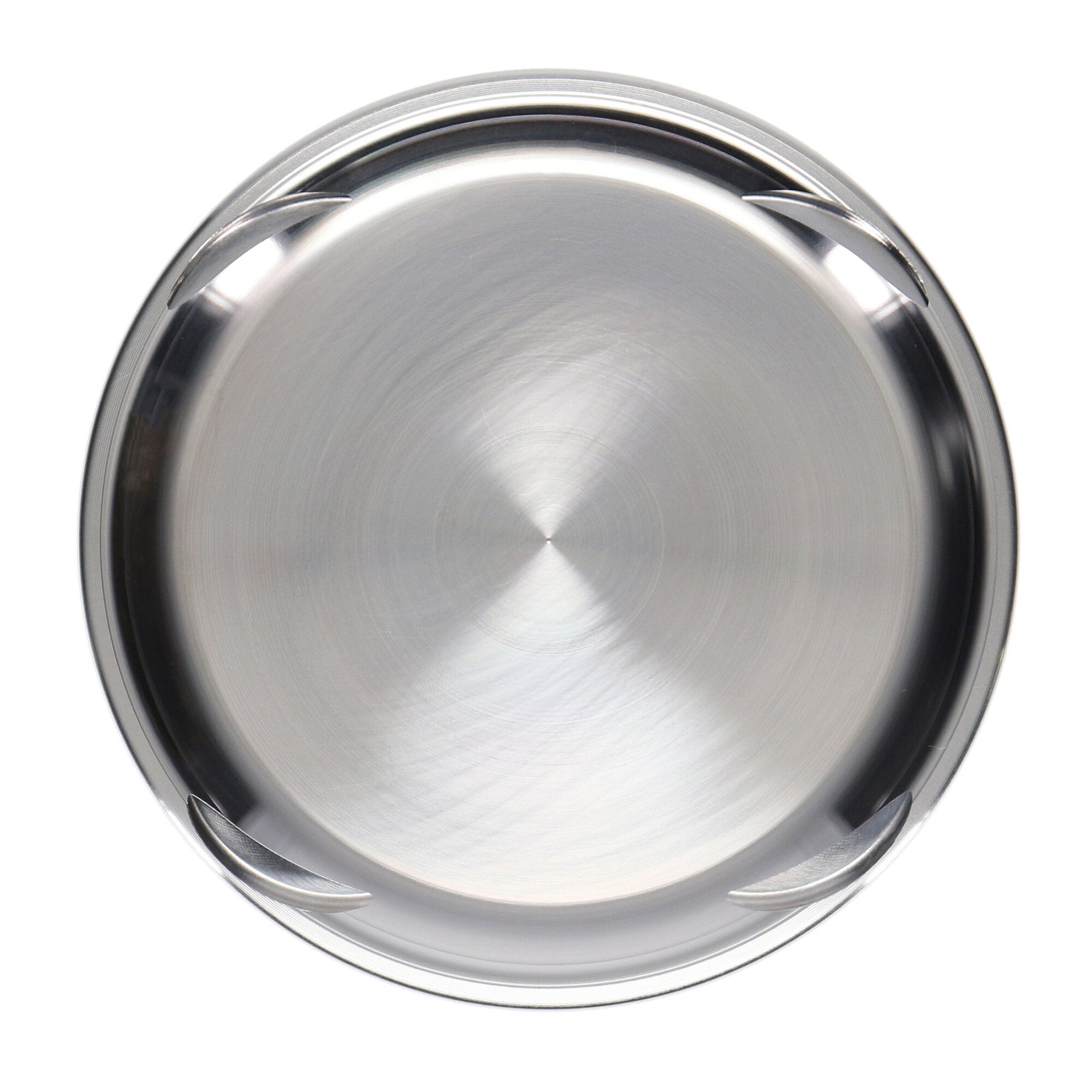

Piston Set, 2618, Inv Dome/Dish, 3.209 Bore, 1.209 CD, 0.728 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ferrari, 2.9L 308 V8 4V, 3.209 in. Bore, 10.00:1, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ferrari 2.9L 308 V8 2V, 81.50 Bore, Dish, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Make |
FERRARI |
| Ringset Included |
Yes |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.728 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Engine Type |
ICE |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
0.728 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
2.9L 308 V8 4V |
| Piston Pin Wall Thickness |
0.120 |
| Product Market |
European |
| Title |
JE Pistons - Ferrari, 2.9L 308 V8 4V, 81.50 mm Bore, Piston Kit |
| Piston Pin Length |
2.250 |
| Engine |
2.9L 308 V8 4V |
| Piston Series |
JE Pistons |
| Bore Diameter |
81.50 |
| Out of Stock Message |
Call for Availability |
| Top Compression Ring Thickness |
0.0400 |
| Industry |
Automotive |
| Compression Height |
1.209 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Wall Thickness |
0.120 |
| Ring Set Included |
Yes |
| Title - Web |
JE Pistons Ferrari 2.9L 308 V8 4V Piston Kit - 81.50 mm Bore - 1.209 in. CH, 9.50 CC |
| Piston Volume |
9.50 |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
308 QUATTROVALVOLE V8 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
728-2250-12-TSC |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
728-050-MW |
| Add-On |
JG1001-3209 |
| Piston Material |
2618 |
| Make - Web |
Ferrari |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
9.0000 |
