As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ferrari 2.9L 308 V8 2V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

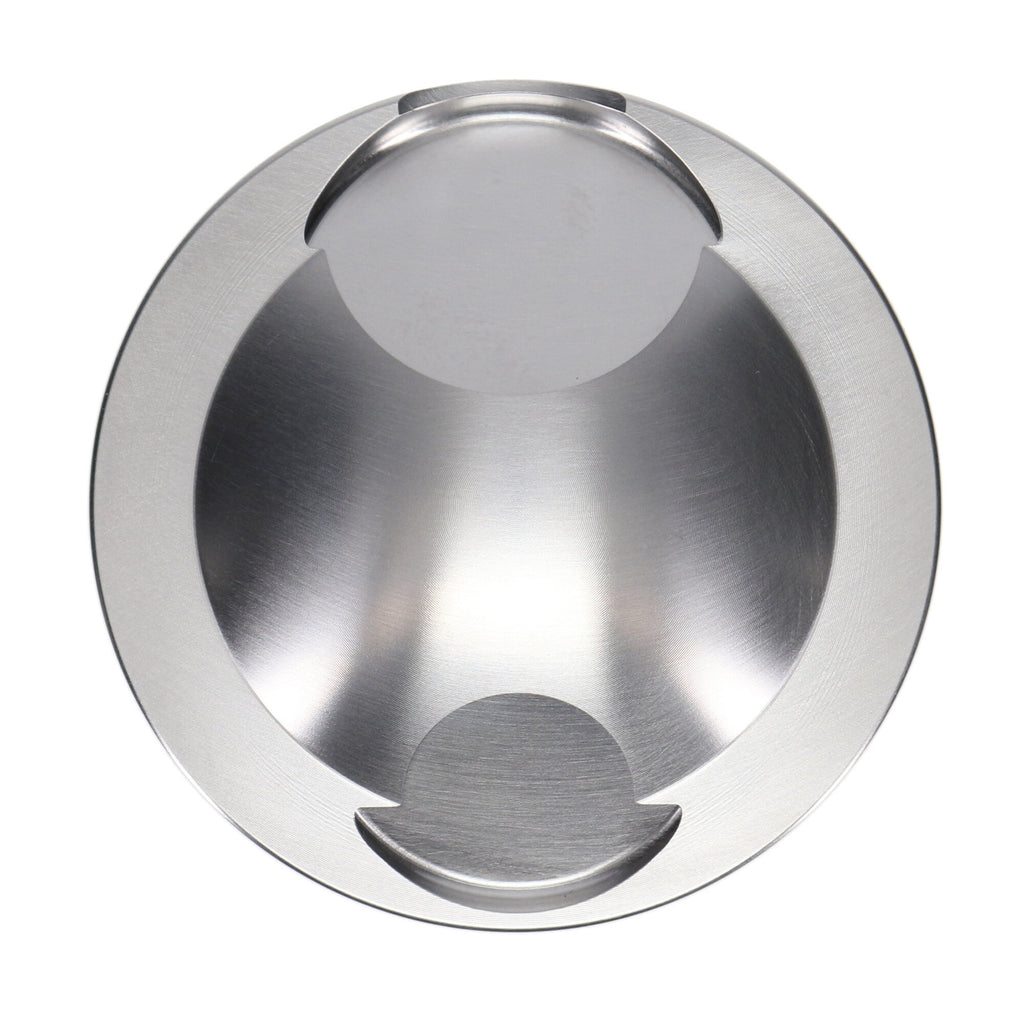

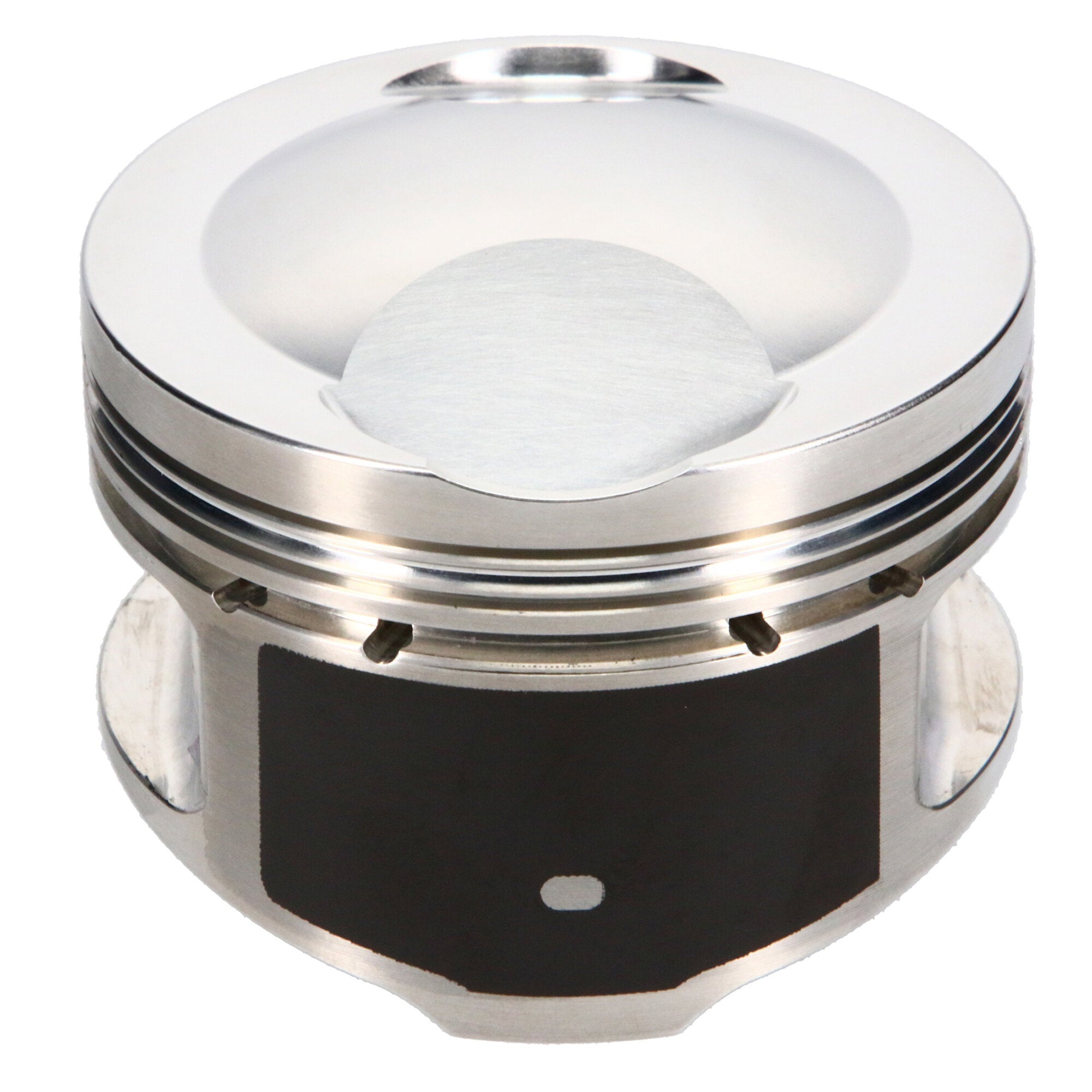

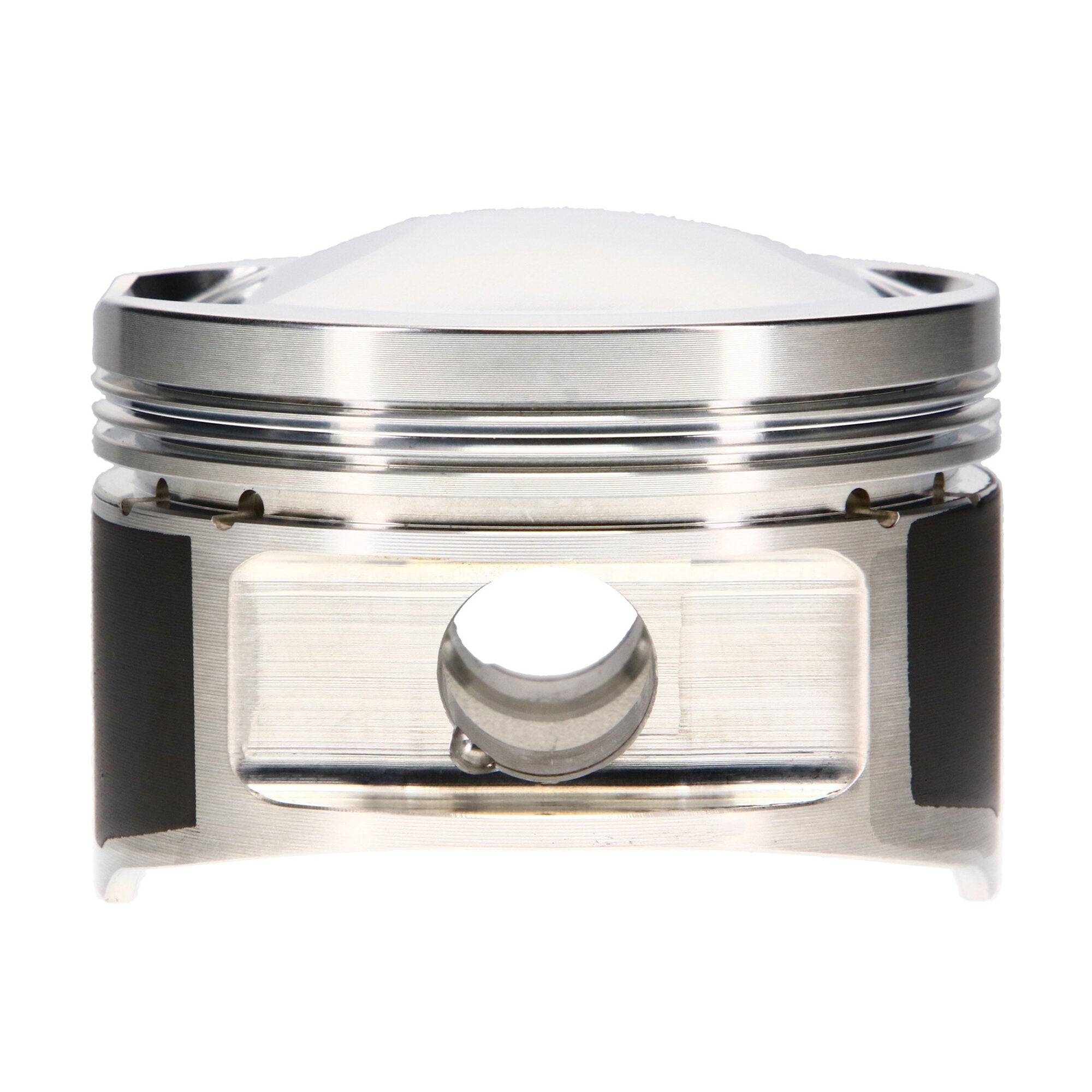

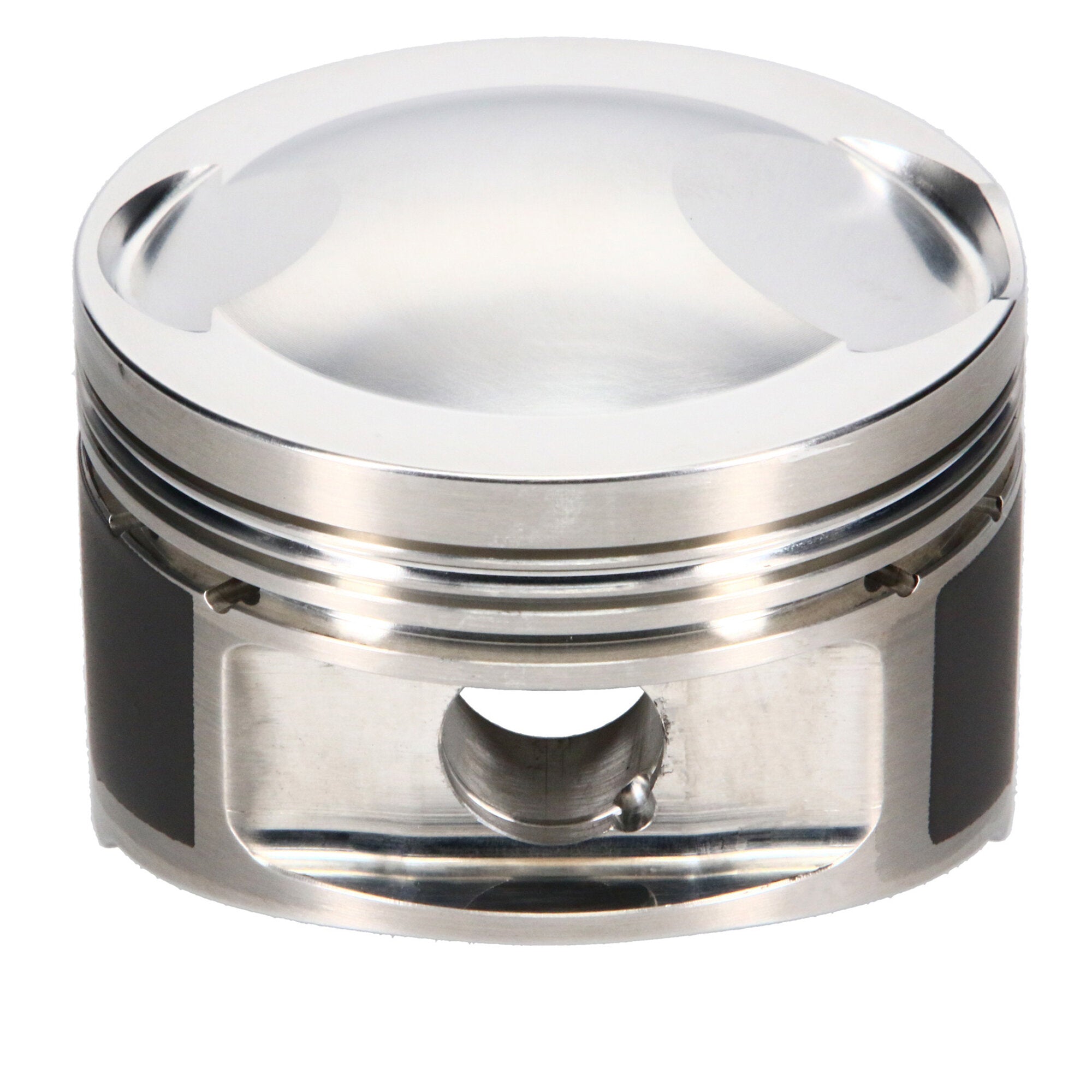

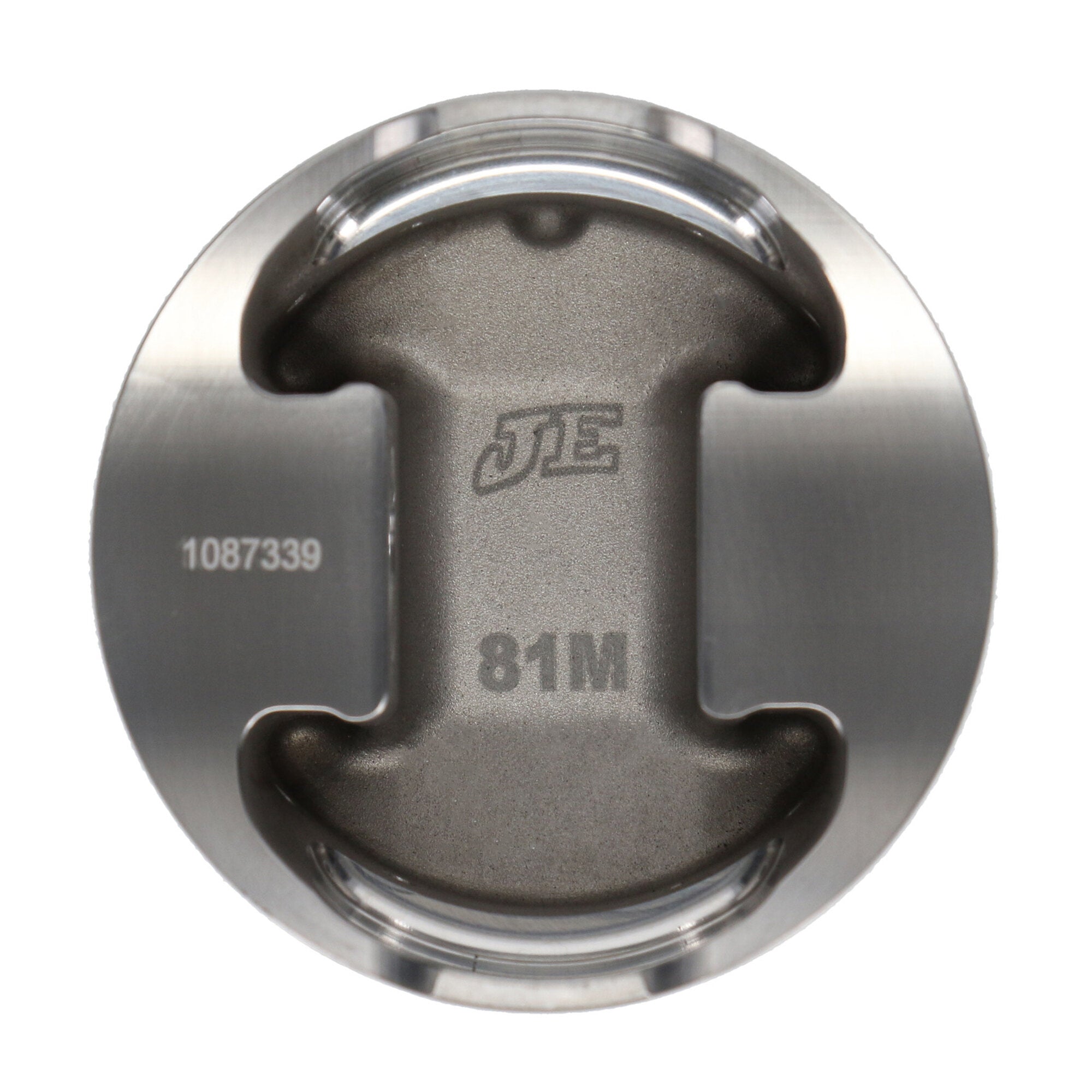

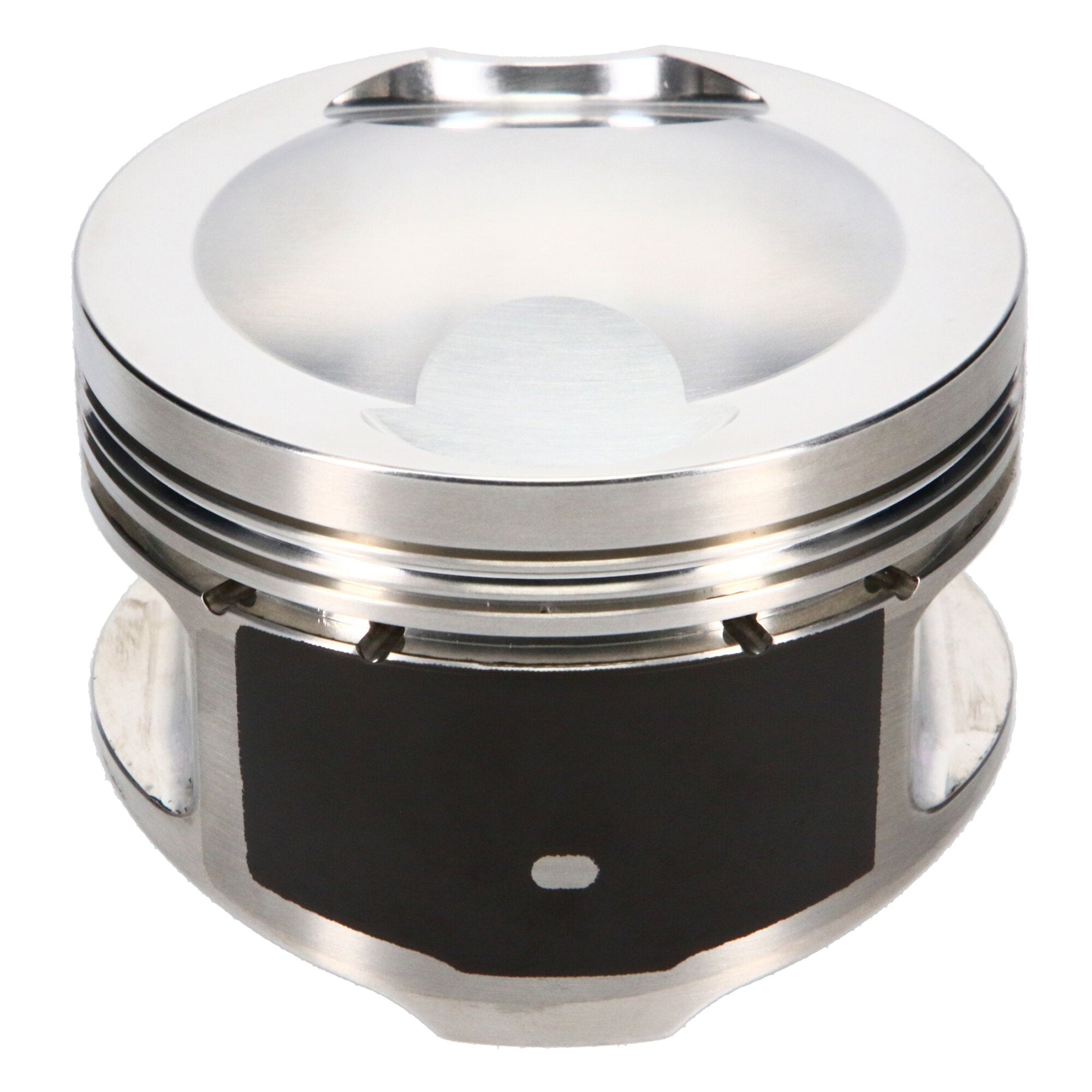

Piston Set, 2618, Dome, 3.209 Bore, 1.209 CD, 0.728 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ferrari, 2.9L 308 V8 2V, 3.209 in. Bore, 9.00:1, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ferrari 2.9L 308 V8 2V, 81.50 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Add-On |
728-2250-12-TSC |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
728-050-MW |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Material |
2618 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Average Weight |
300 |
| Bore Diameter |
81.50 |
| Title - Web |
JE Pistons Ferrari 2.9L 308 V8 2V Piston Kit - 81.50 mm Bore - 1.209 in. CH, 7.80 CC |
| Add-On |
JG1001-3209 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Cylinder Head |
308 2V V8 |
| Piston Volume |
7.80 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Outside Diameter |
0.728 |
| Piston Quantity |
8 |
| Engine |
2.9L 308 V8 2V |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Make - Web |
Ferrari |
| Title |
JE Pistons - Ferrari, 2.9L 308 V8 2V, 81.50 mm Bore, Piston Kit |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Ringset Included |
Yes |
| Make |
FERRARI |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.120 |
| Piston Head Type |
Dome |
| Compression Height |
1.209 |
| Product Market |
European |
| Wrist Pin Wall Thickness |
0.120 |
| Wrist Pin Outer Diameter |
0.728 |
| Engine - Web |
2.9L 308 V8 2V |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
10.0000 |
