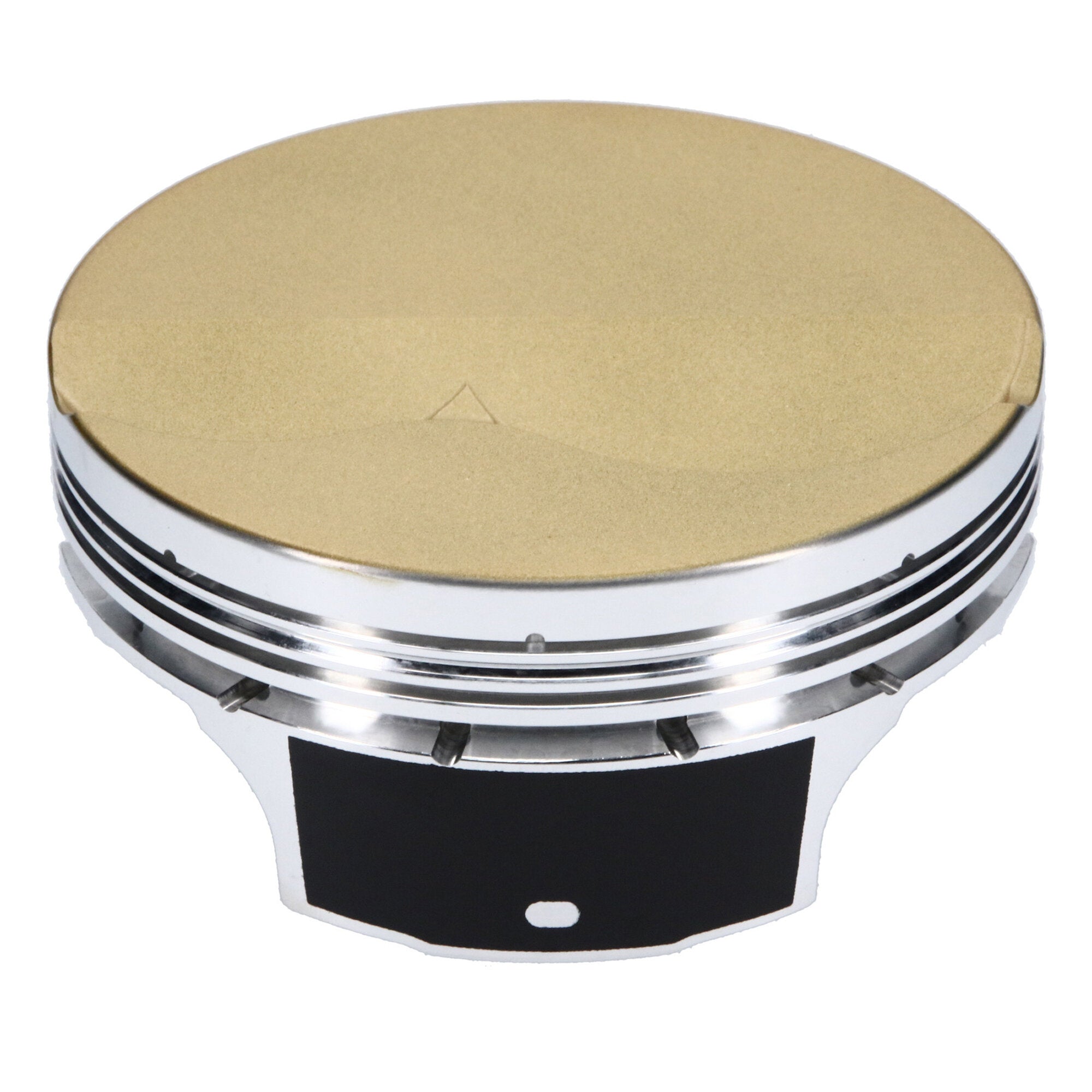

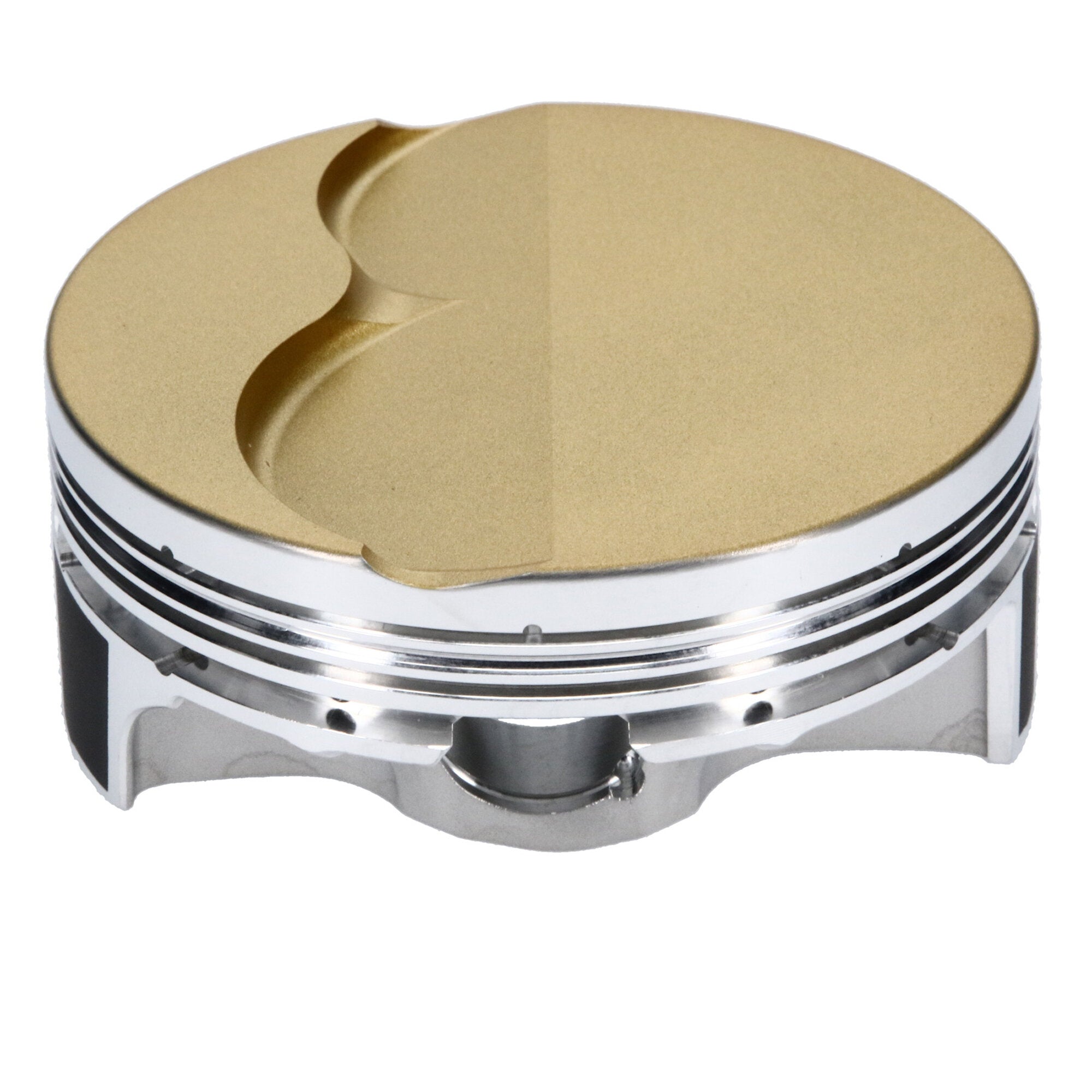

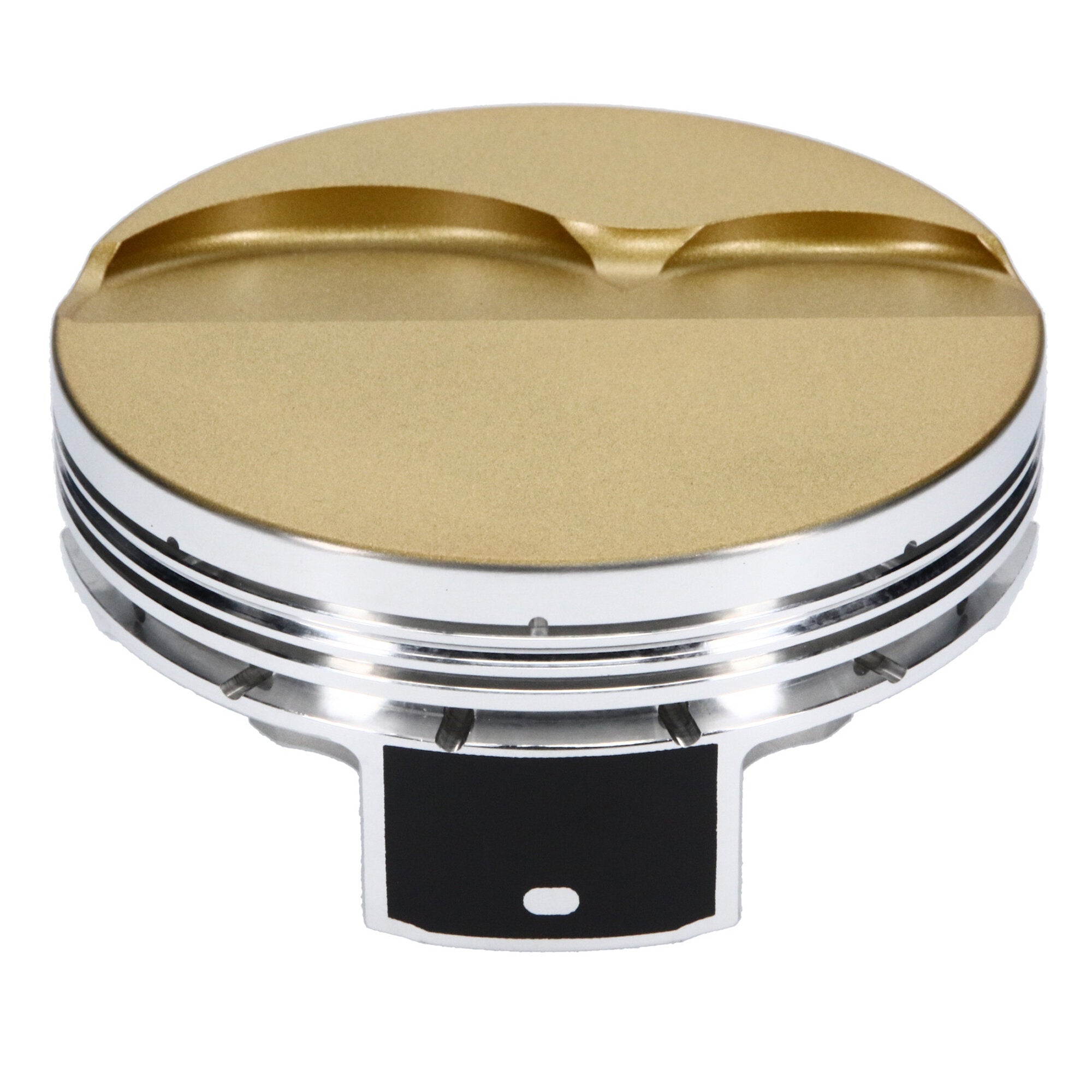

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS Gen III/IV |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Flat Top, 4.005 Bore, 1.304 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

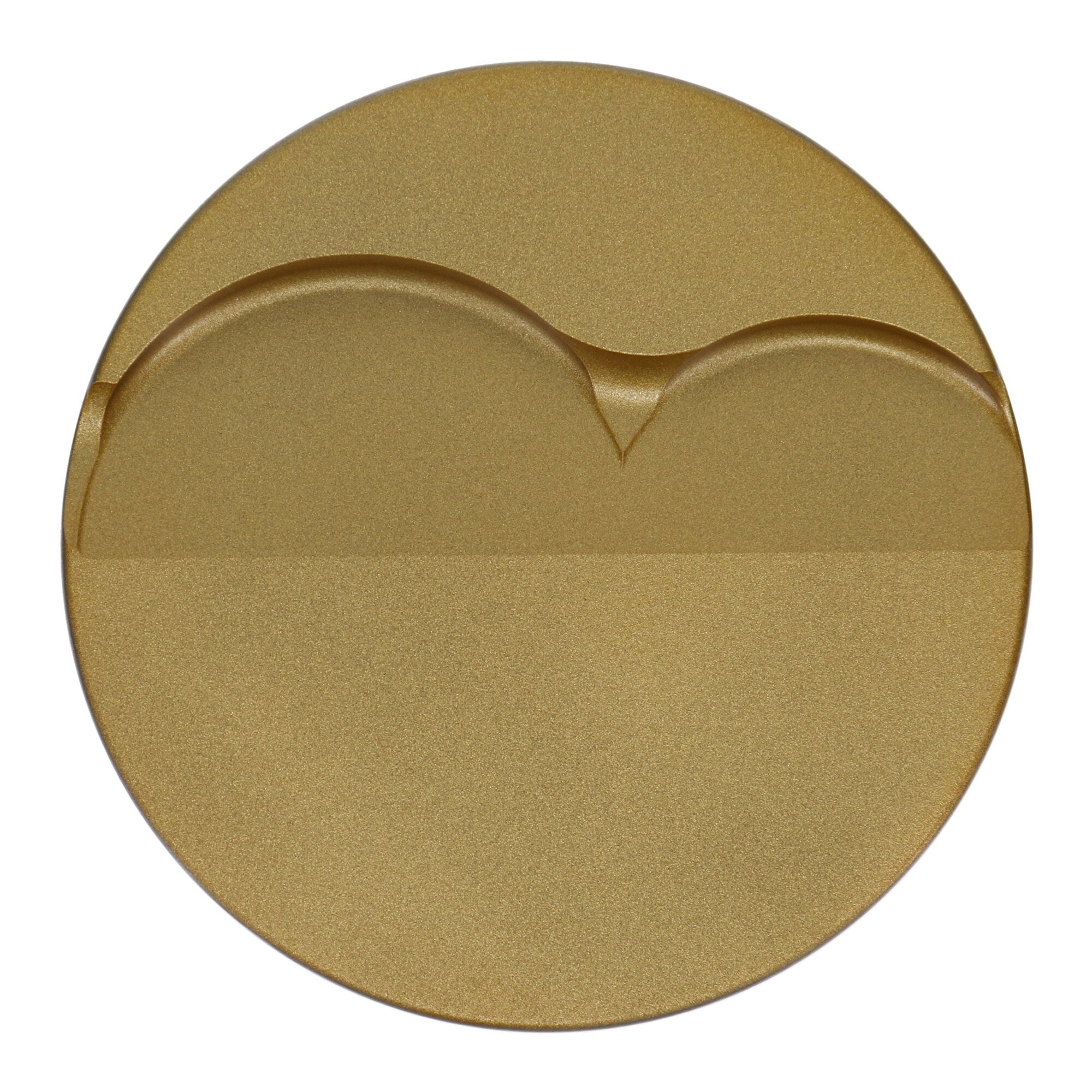

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds

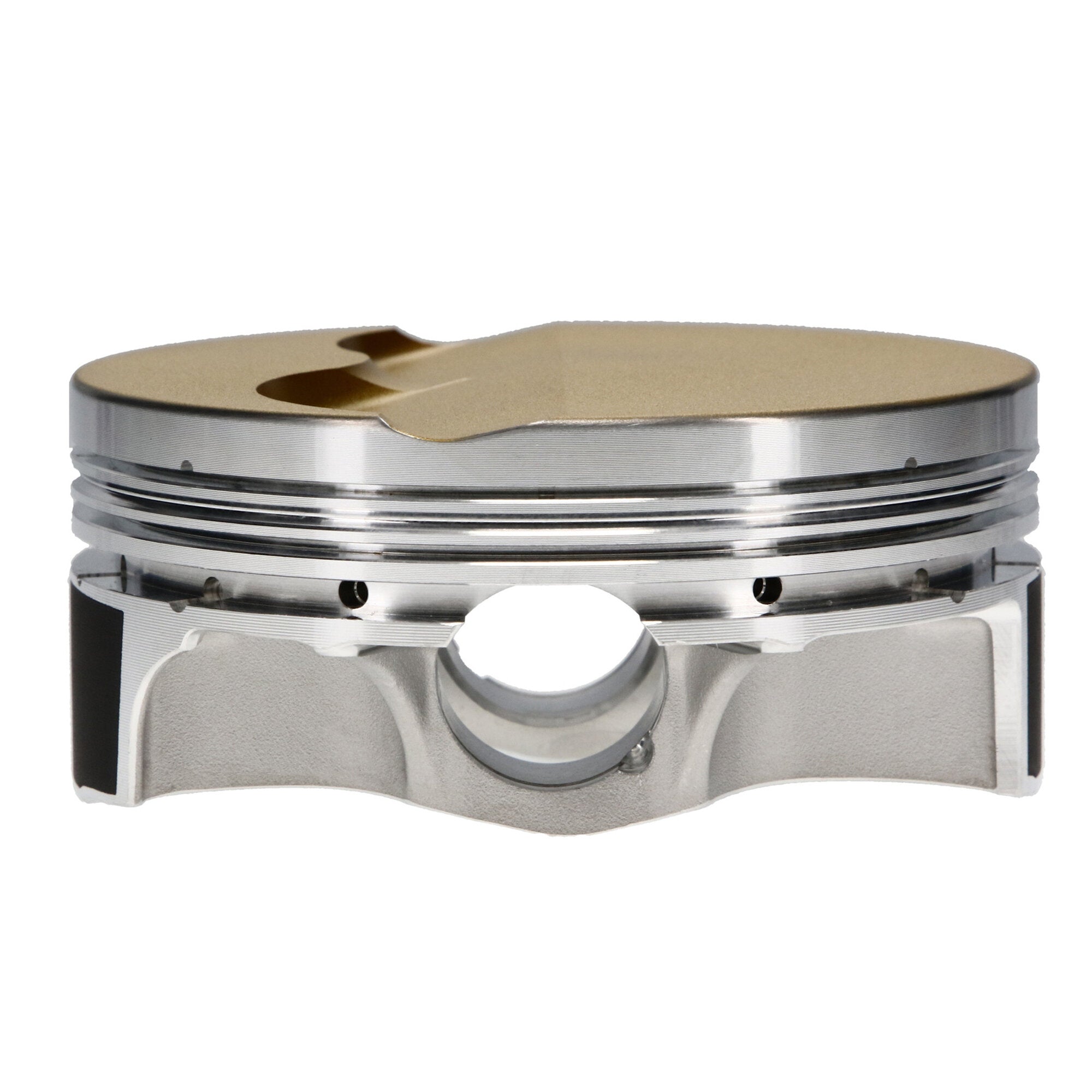

- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations

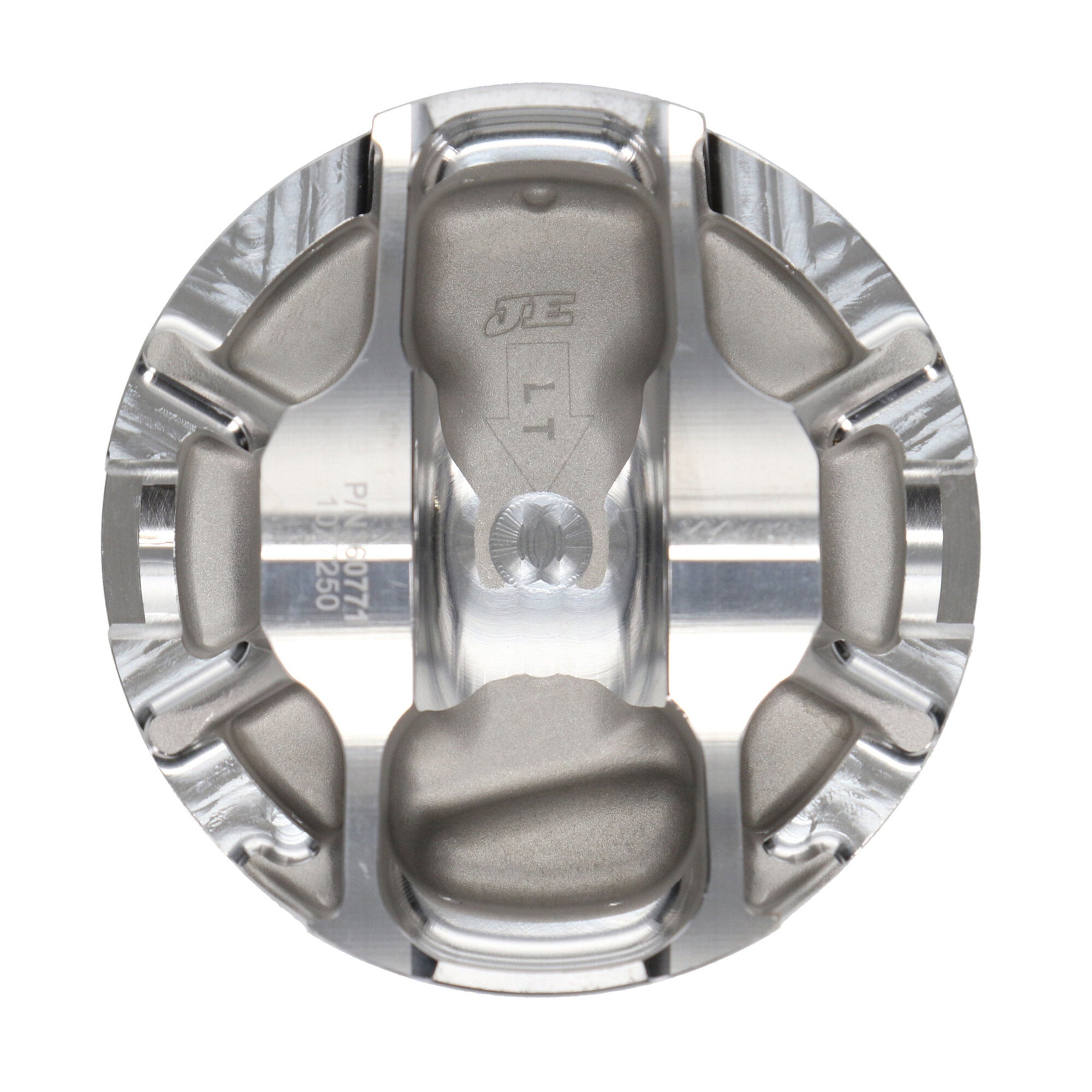

- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_EXT |
JE Ultra, Chevrolet, LS Gen III/IV, 4.005 in. Bore, 1.304 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet LS, 4.005 Bore, Flat, Set of 8 |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Wrist Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0600 |
| Industry |
Automotive |
| Title - Web |
JE Ultra Series Chevrolet LS Gen III/IV Piston Kit - 4.005 in. Bore - 1.304 in. CH, -5.00 CC |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-5.00 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Add-On |
JG3108-4000-7 |
| Piston Series |
JE Ultra Series |
| Piston Head Type |
Flat |
| Top Compression Ring Thickness |
0.0475 |
| Piston Pin Wall Thickness |
0.200 |
| Add-On |
927-073-MW |
| Add-On |
927-2250-20-93C |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.200 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Engine Type |
ICE |
| Piston Pin Material |
9310 |
| Oil Ring Thickness |
0.1175 |
| Title |
JE Ultra Series - Chevrolet, LS Gen III/IV, 4.005 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Product Market |
Domestic |
| Bore Diameter |
4.005 |
| Ringset Included |
No |
| Engine |
LS Gen III/IV |
| Compression Height |
1.304 |
| Make |
CHEVROLET |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
LS Gen III/IV |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
