As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Toyota 4A-GE 16V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

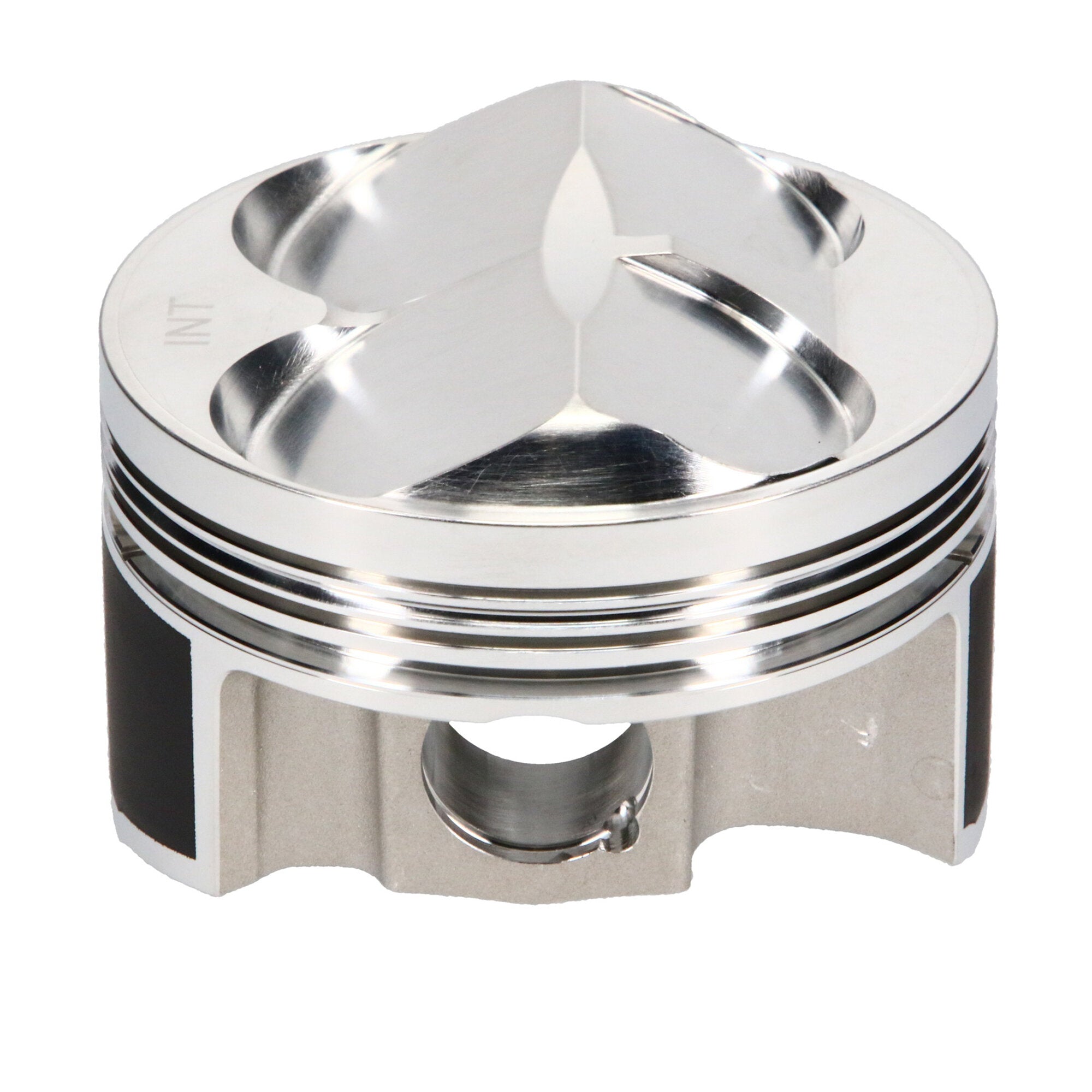

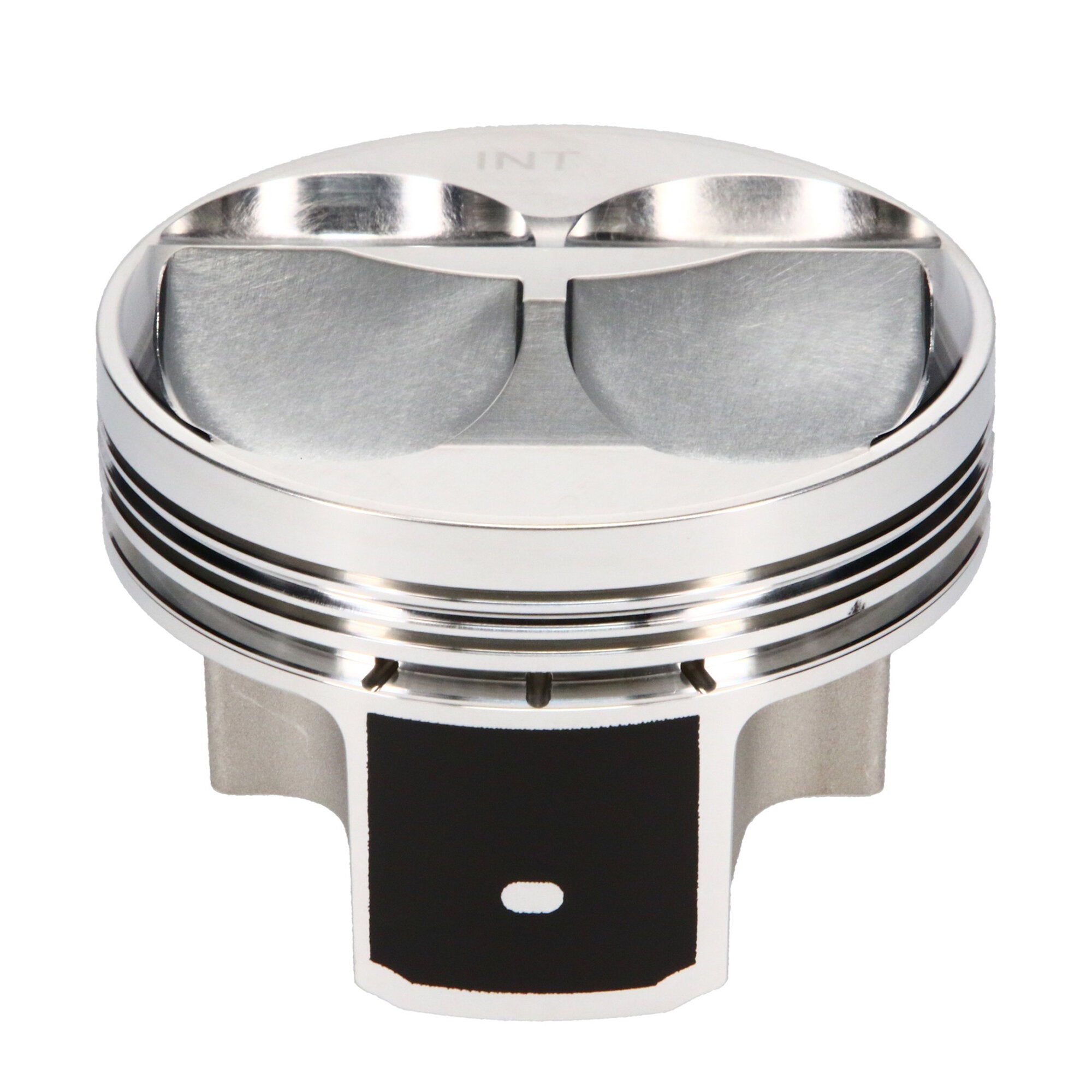

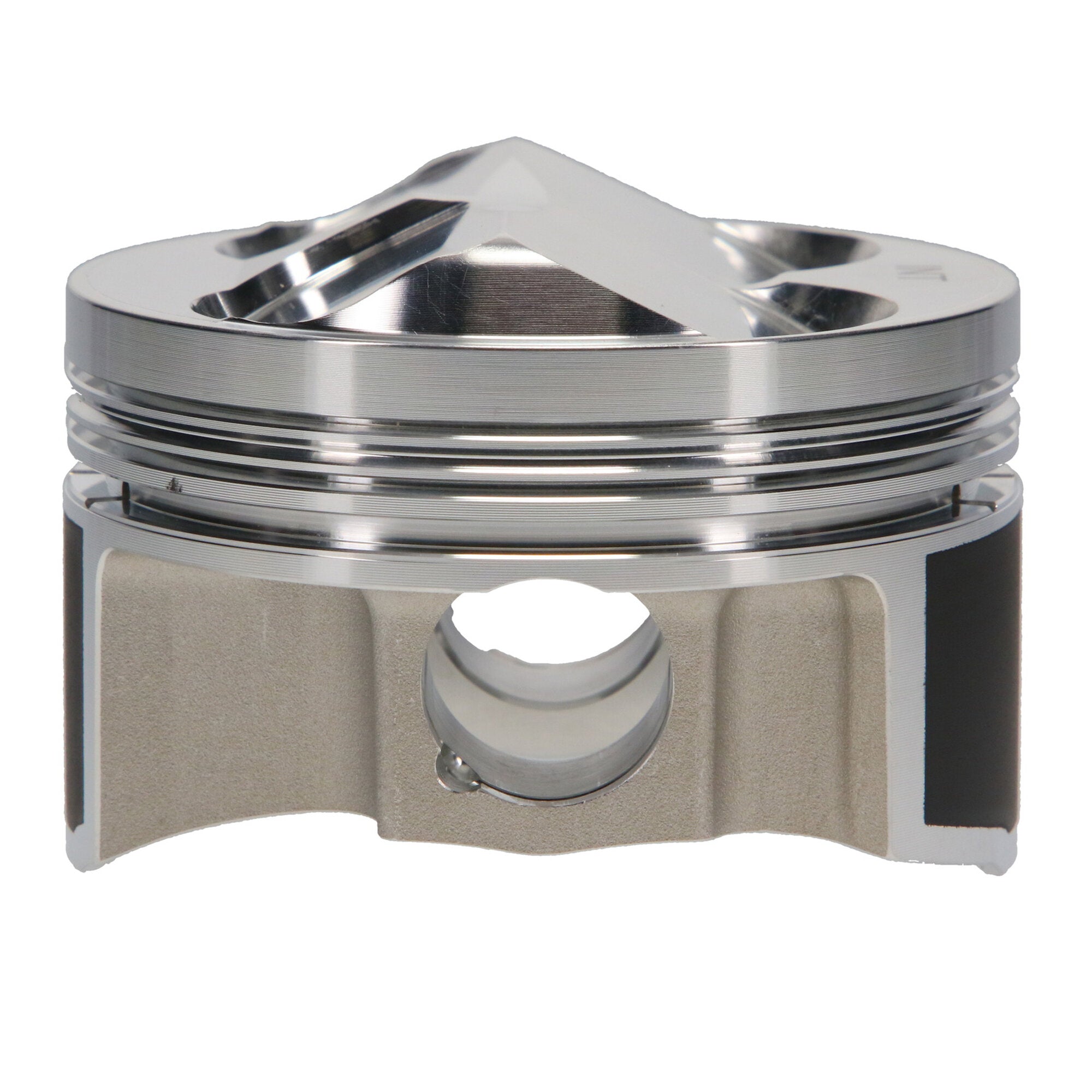

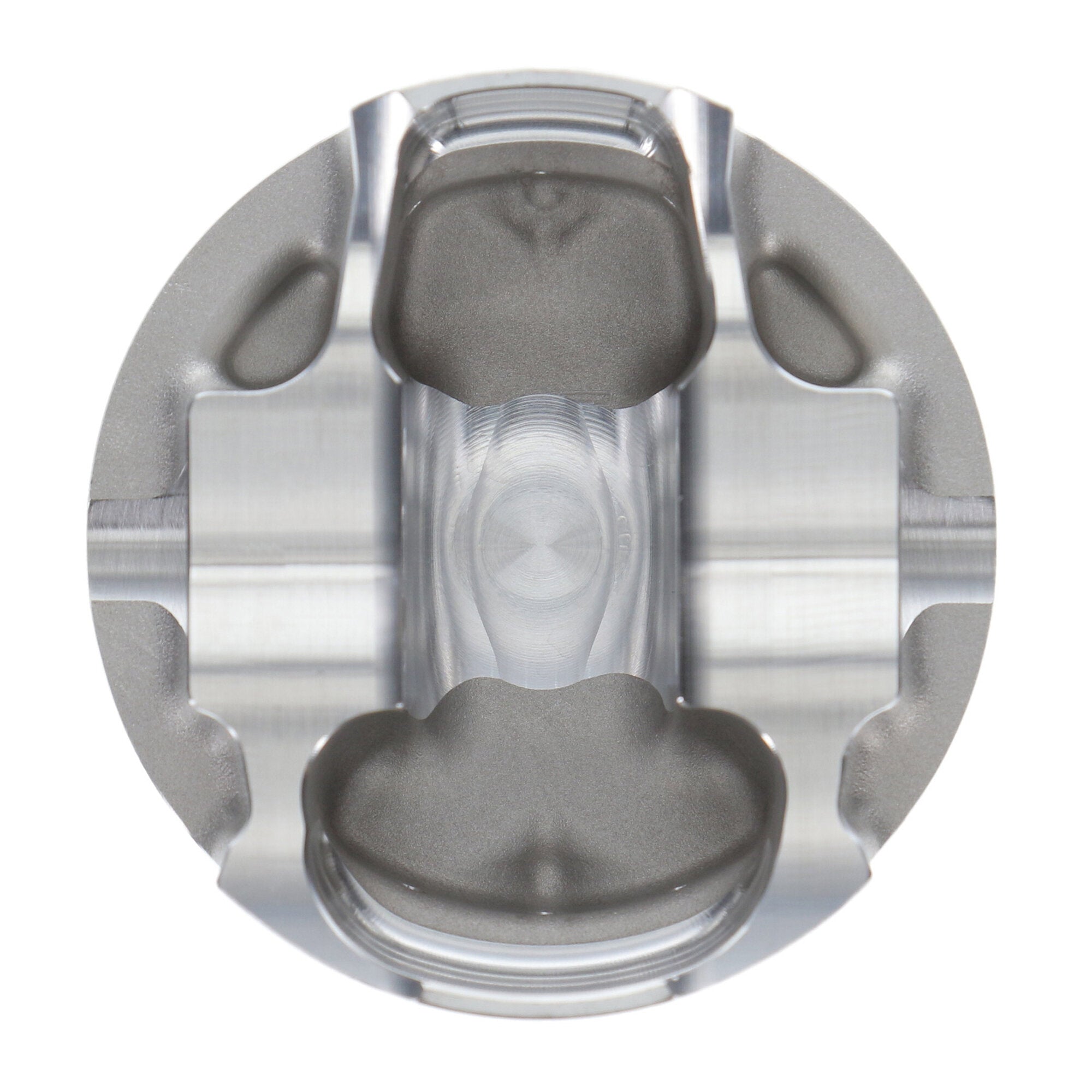

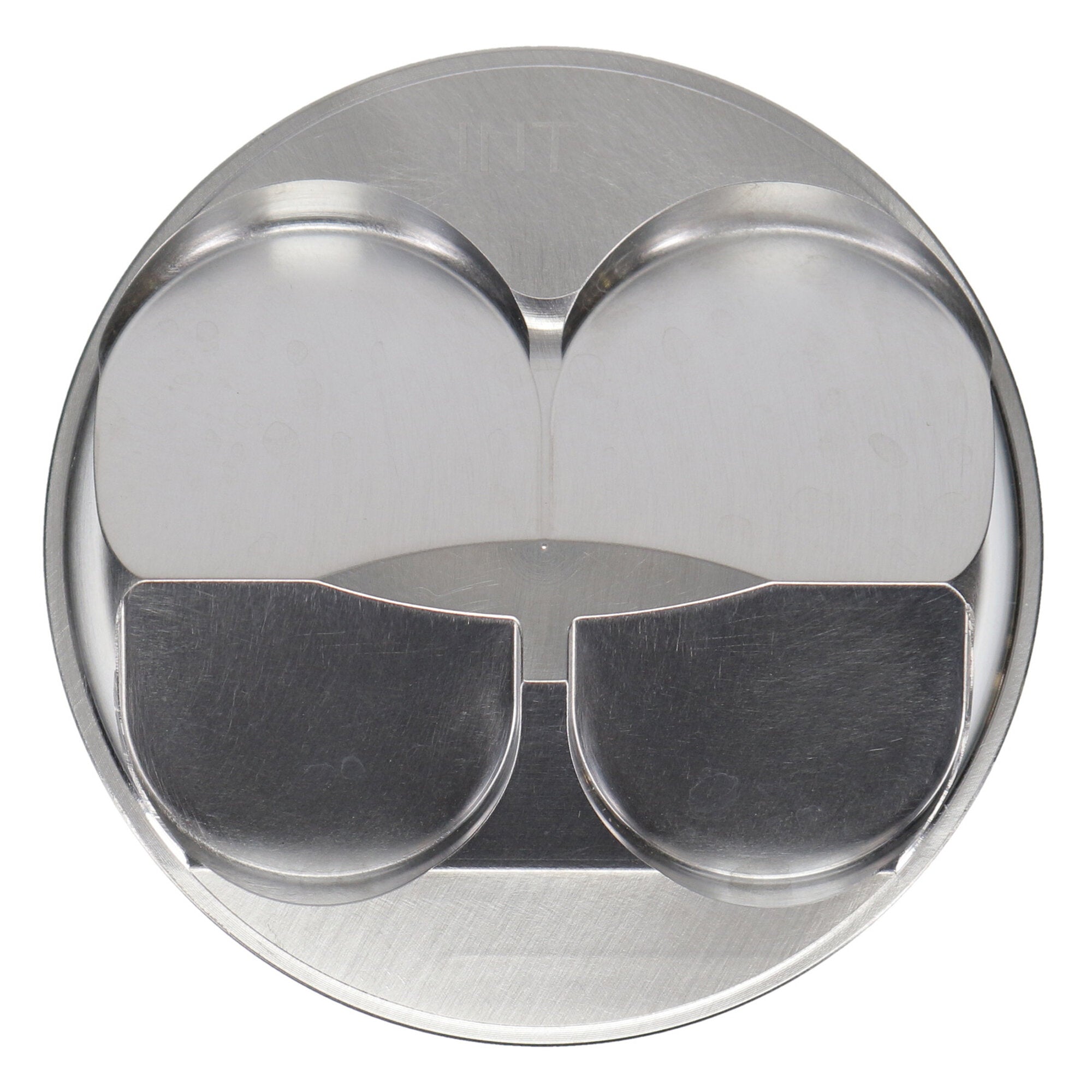

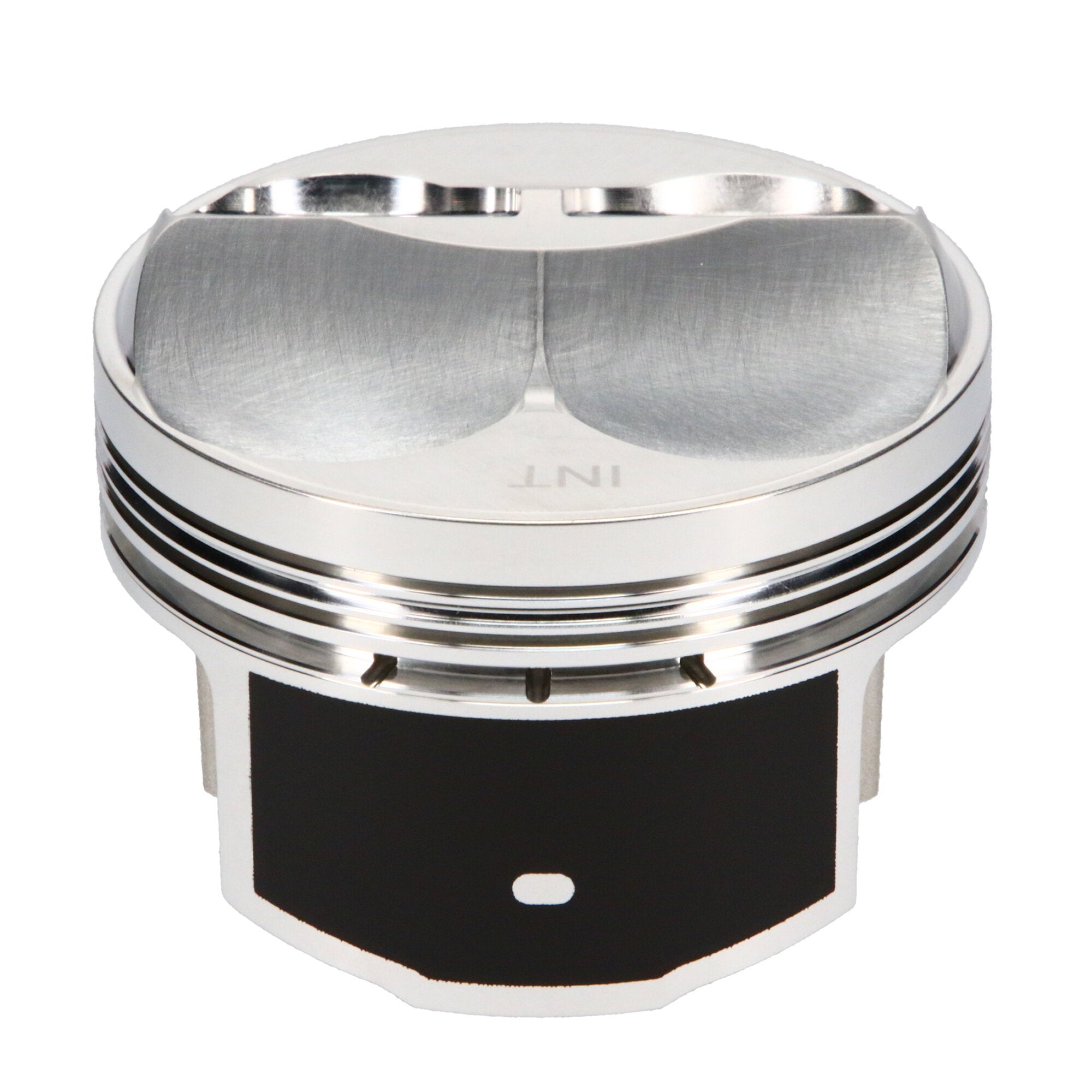

Piston Set, 2618, Dome, 3.209 Bore, 1.201 CD, 0.787 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Toyota, 4A-GE 16V, 3.209 in. Bore, 11.00:1, Dome, 4 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Toyota 4A-GE 16V, 81.50 Bore, Dome, Set of 4 |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.140 |
| Piston Pin Material |
9310 |
| Engine Type |
ICE |
| Compression Height |
1.201 |
| Engine - Web |
4A-GE 16V |
| Piston Quantity |
4 |
| Piston Average Weight |
291 |
| Piston Head Type |
Dome |
| Bore Diameter |
81.50 |
| Product Market |
Sport Compact |
| Piston Material |
2618 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Title |
JE Pistons - Toyota, 4A-GE 16V, 81.50 mm Bore, Piston Kit |
| Make |
TOYOTA |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Toyota 4A-GE 16V Piston Kit - 81.50 mm Bore - 1.201 in. CH, 2.70 CC |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Outside Diameter |
0.787 |
| Oil Ring Thickness |
0.111 |
| Piston Volume |
2.70 |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
4AGE |
| Wrist Pin Outer Diameter |
0.787 |
| Wrist Pin Wall Thickness |
0.140 |
| Add-On |
787-2050-14-93C |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Add-On |
787-050-MW |
| Piston Pin Length |
2.050 |
| Add-On |
JG1001-3209 |
| Engine |
4A-GE 16V |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Make - Web |
Toyota |
| Wrist Pin Length |
2.050 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
