As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda F20C/F22C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

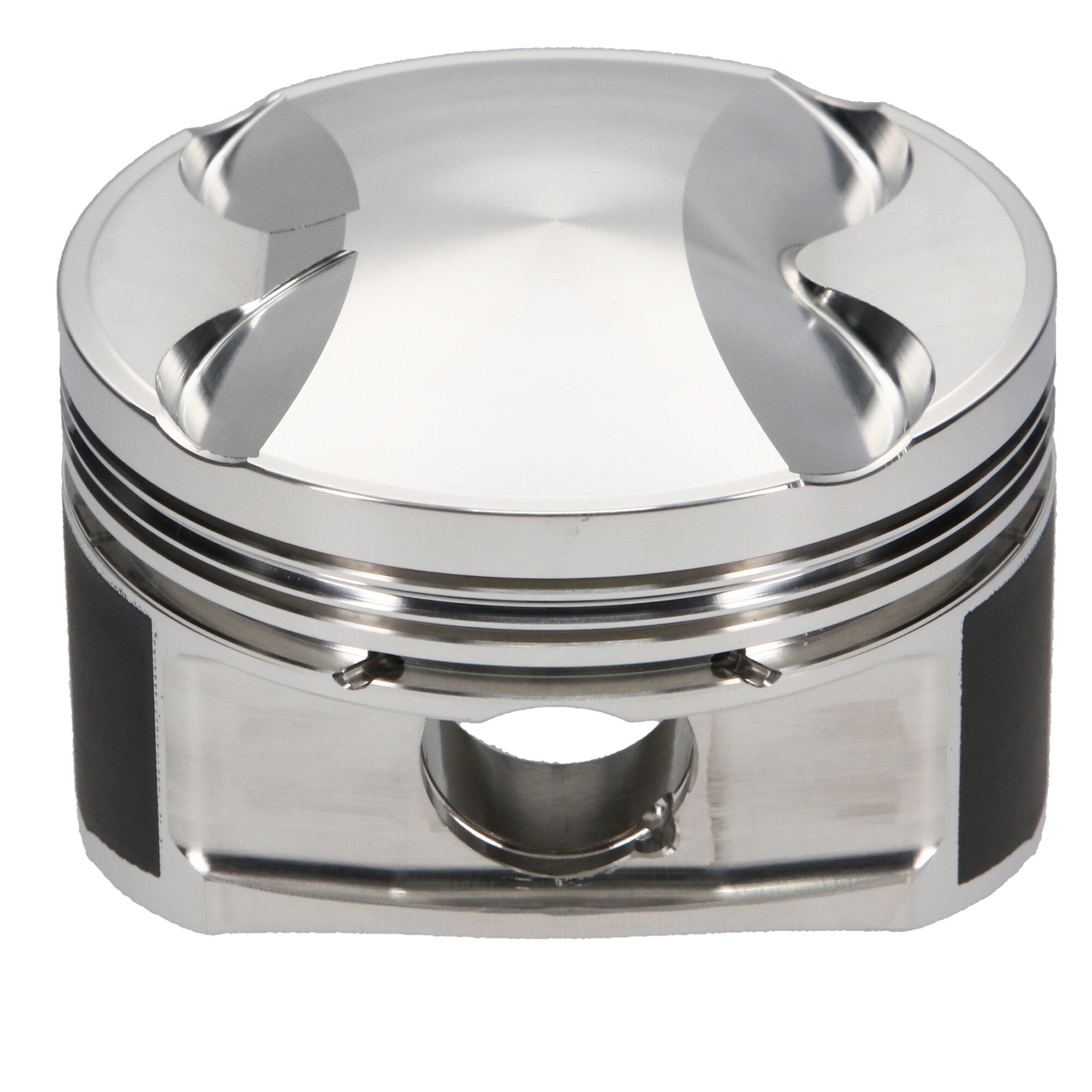

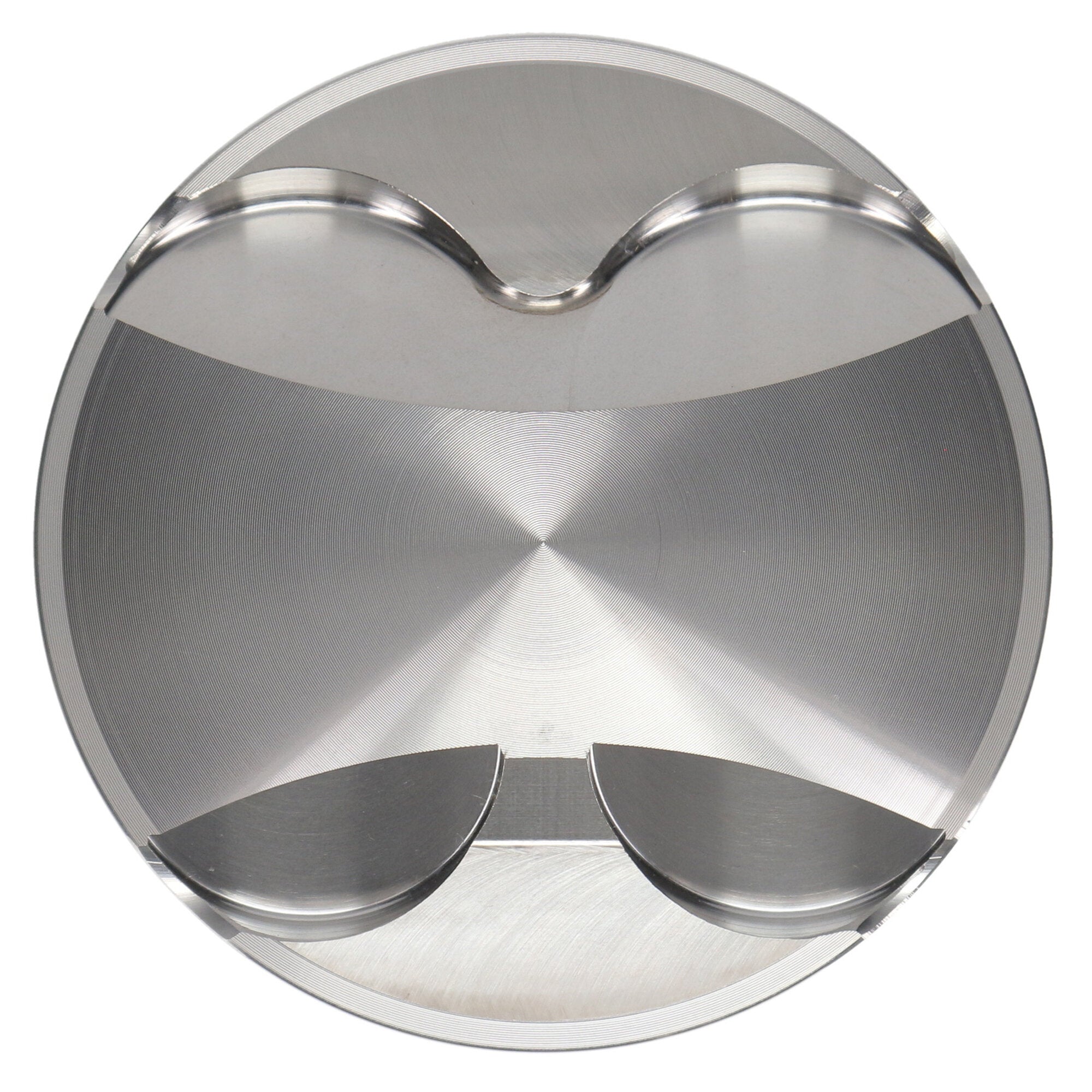

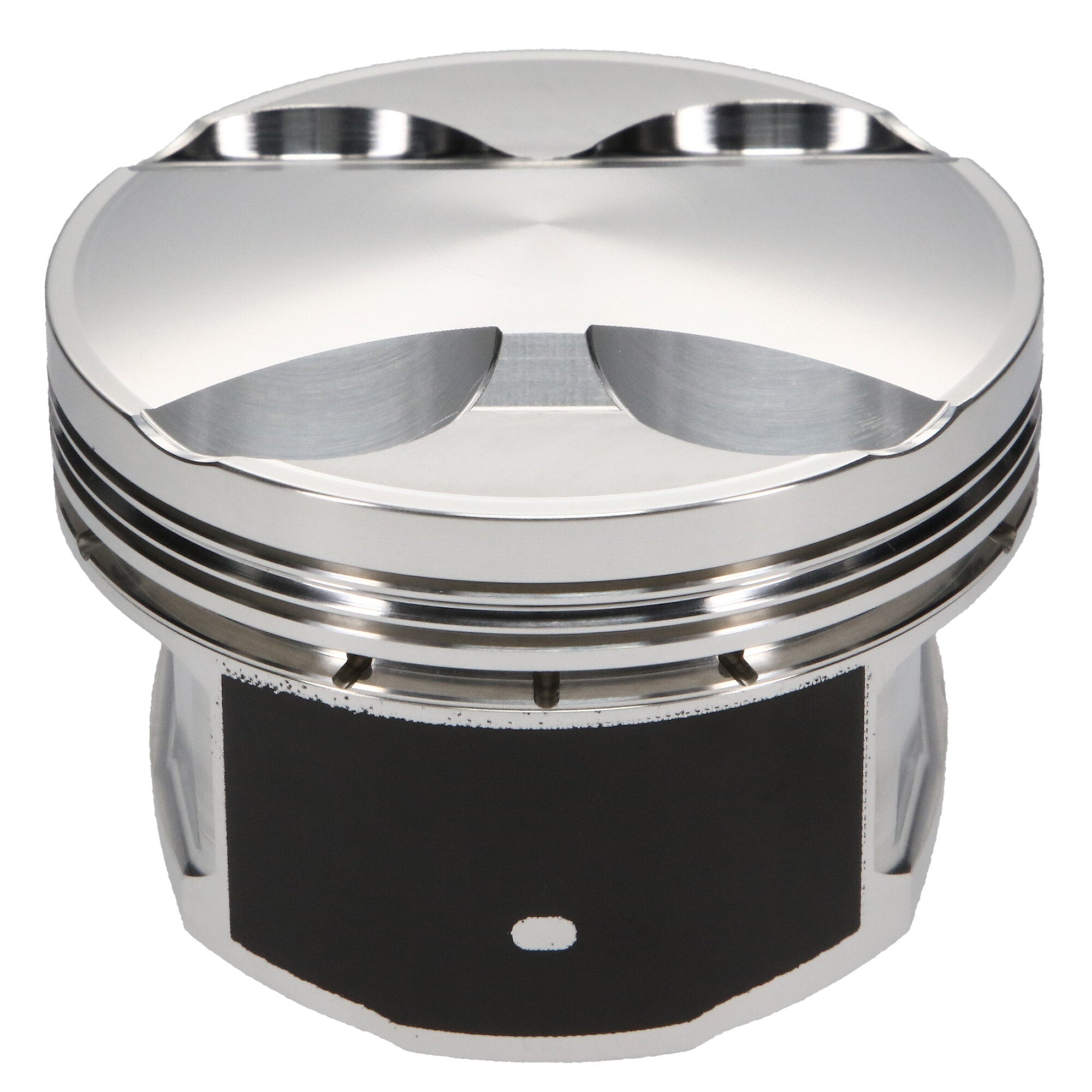

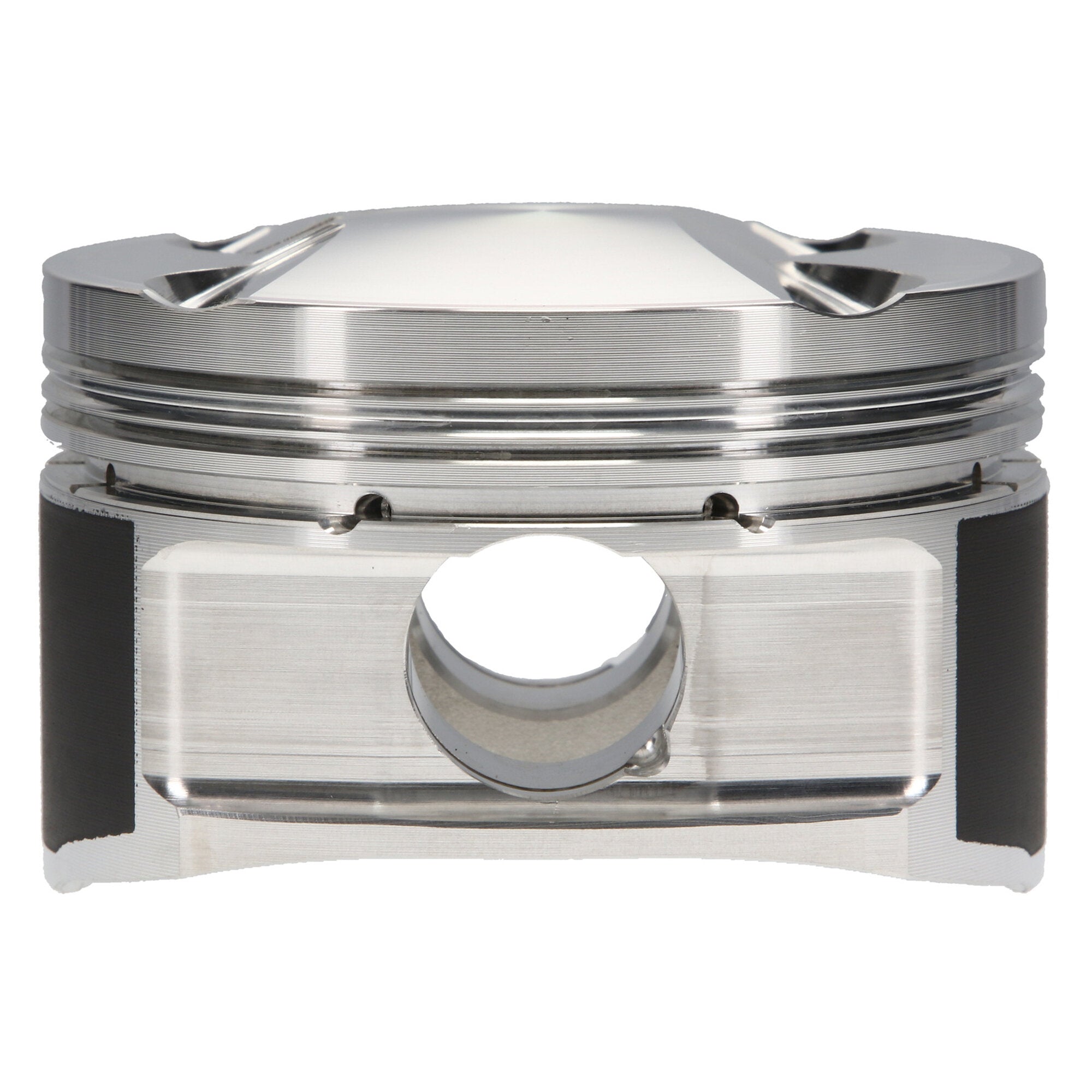

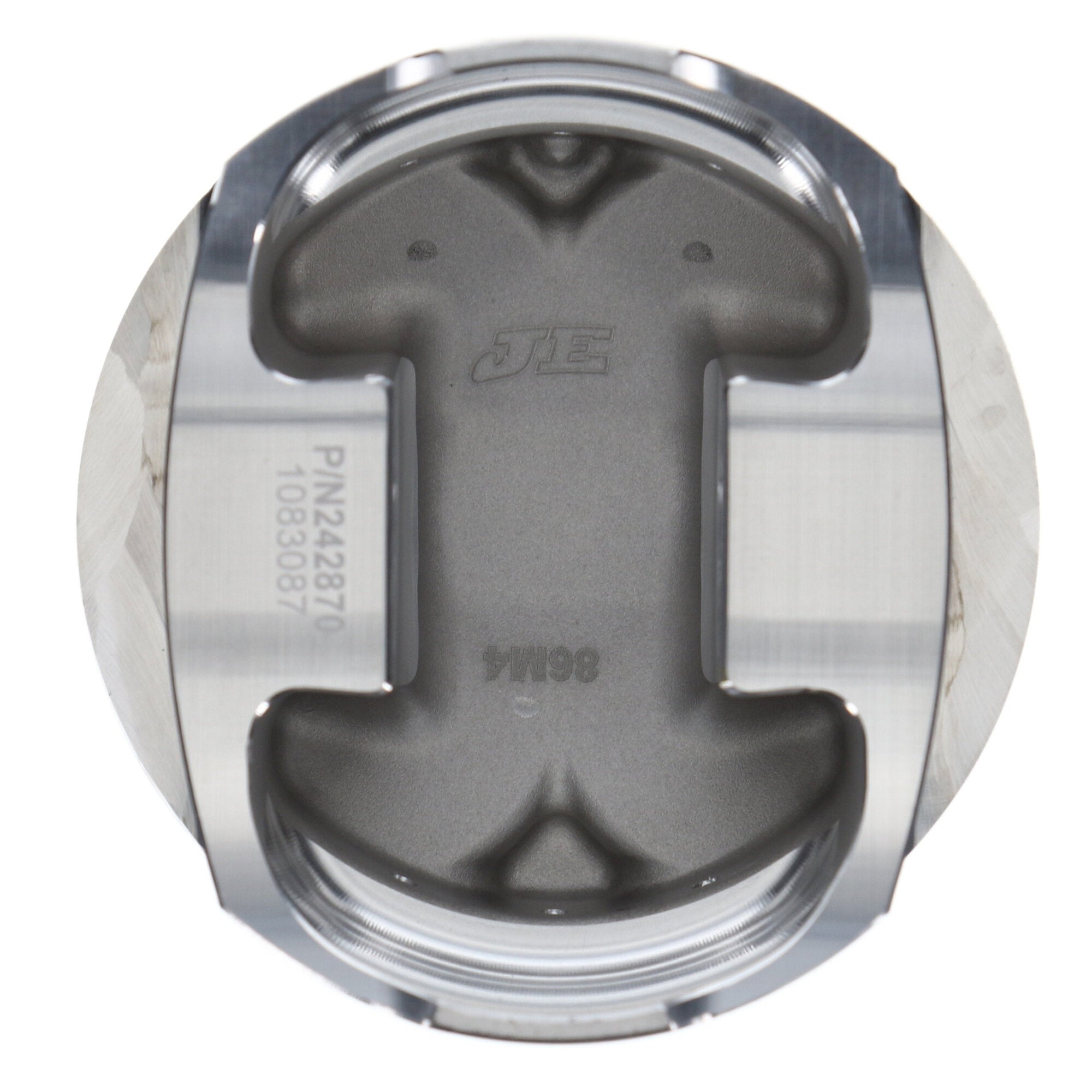

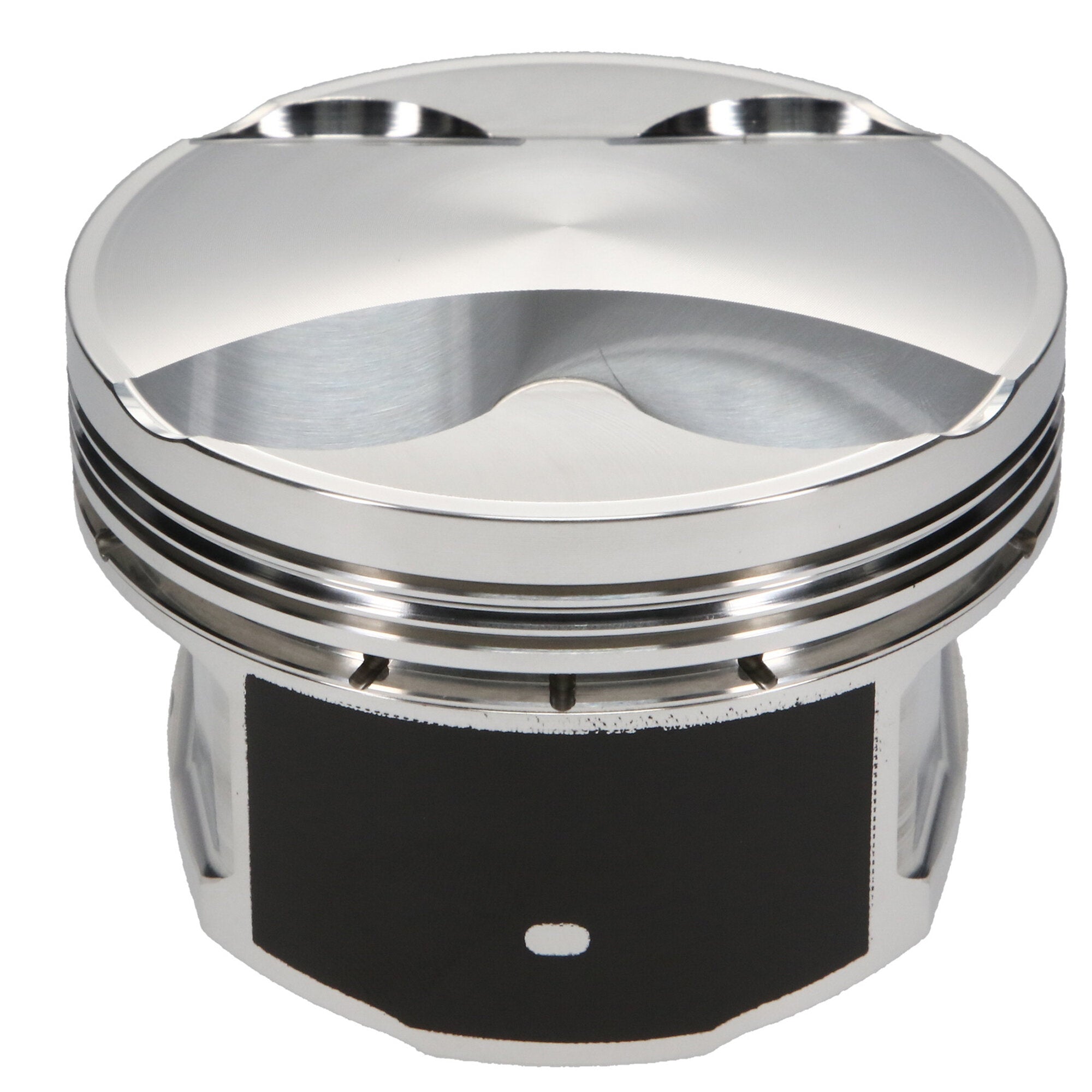

Piston Set, 2618, Dome, 3.425 Bore, 1.181 CD, 0.905 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Honda, F Series, 3.425 in. Bore, 12.65:1, Dome, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda F20C/F22C, 87.00 Bore, Dome, Set of 4 |
| Description_SHO |
Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Honda |
| Piston Material |
2618 |
| Industry |
Automotive |
| Cylinder Head |
F20C1 |
| Add-On |
905-073-MW |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3425 |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
905-2250-15-51C |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Quantity |
4 |
| Title - Web |
JE Pistons Honda F Series Piston Kit - 87.00 mm Bore - 1.181 in. CH, 8.90 CC |
| Engine Type |
ICE |
| Compression Height |
1.181 |
| Piston Head Type |
Dome |
| Make |
HONDA |
| Engine |
F SERIES |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.905 |
| Piston Volume |
8.90 |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Piston Series |
JE Pistons |
| Product Market |
Sport Compact |
| Piston Pin Wall Thickness |
0.150 |
| Bore Diameter |
87.00 |
| Top Compression Ring Thickness |
0.0400 |
| Oil Ring Thickness |
0.111 |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Honda, F Series, 87.00 mm Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Outside Diameter |
0.905 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Engine - Web |
F Series |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
6.0000 |
