As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Toyota 2JZ-GTE/2JZ-GE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

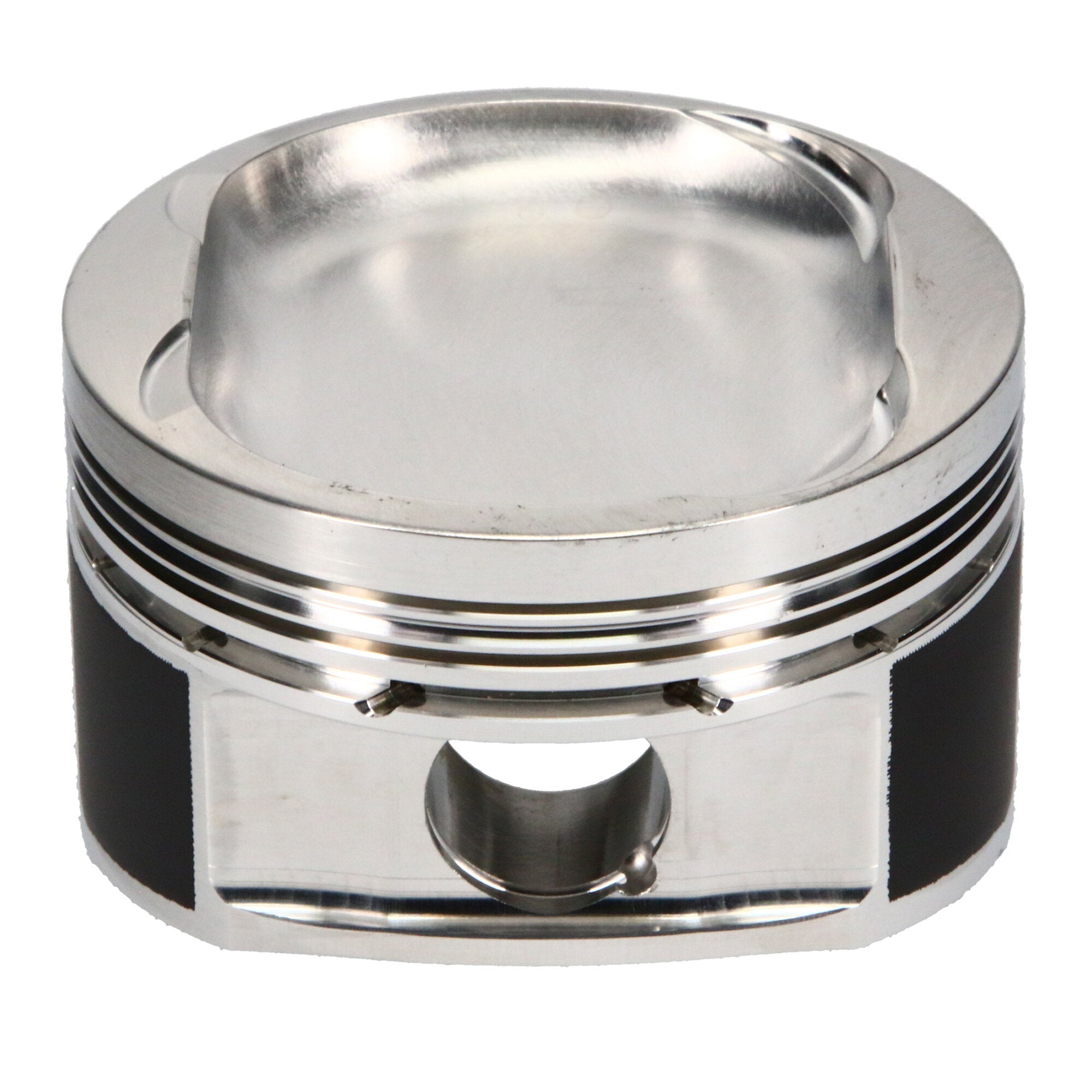

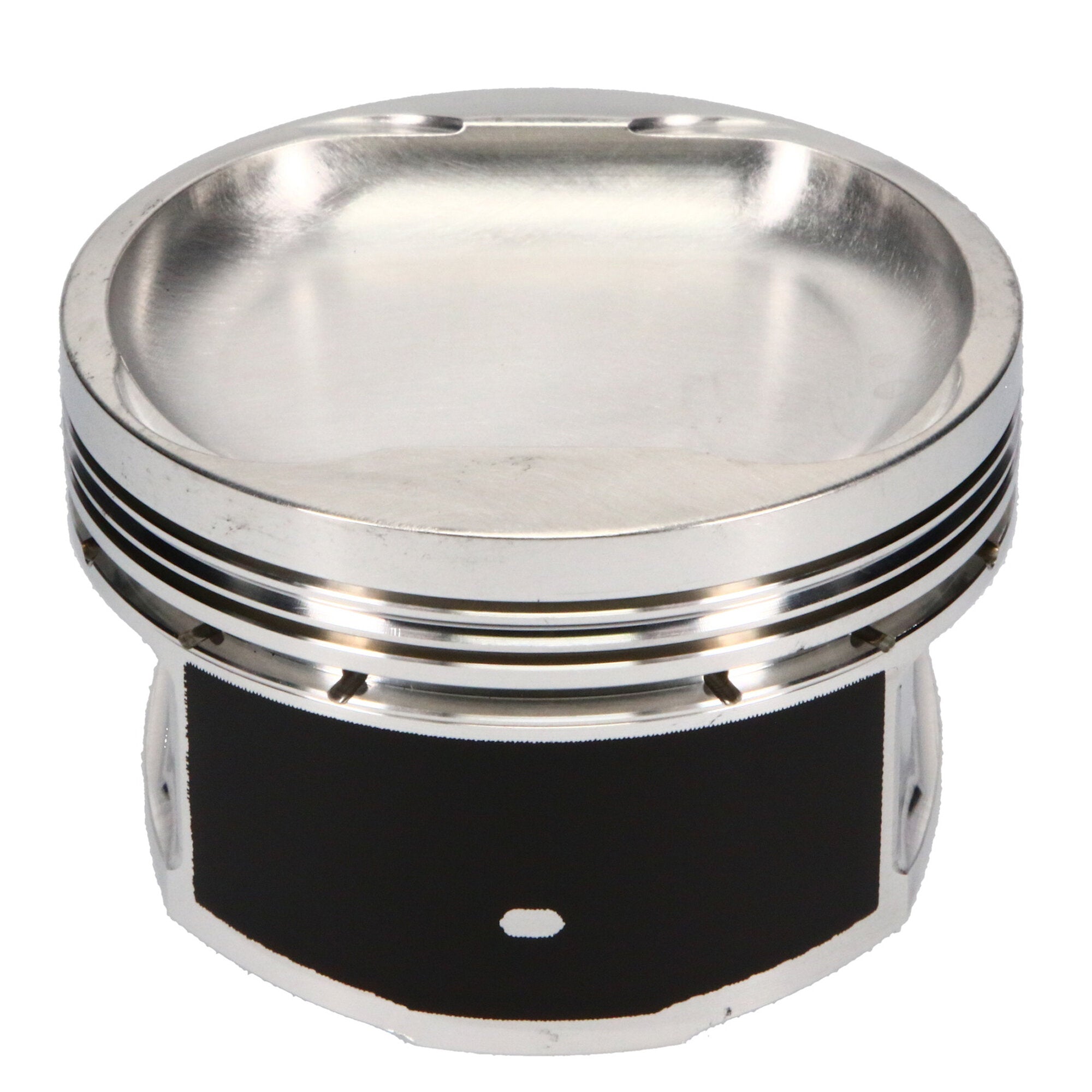

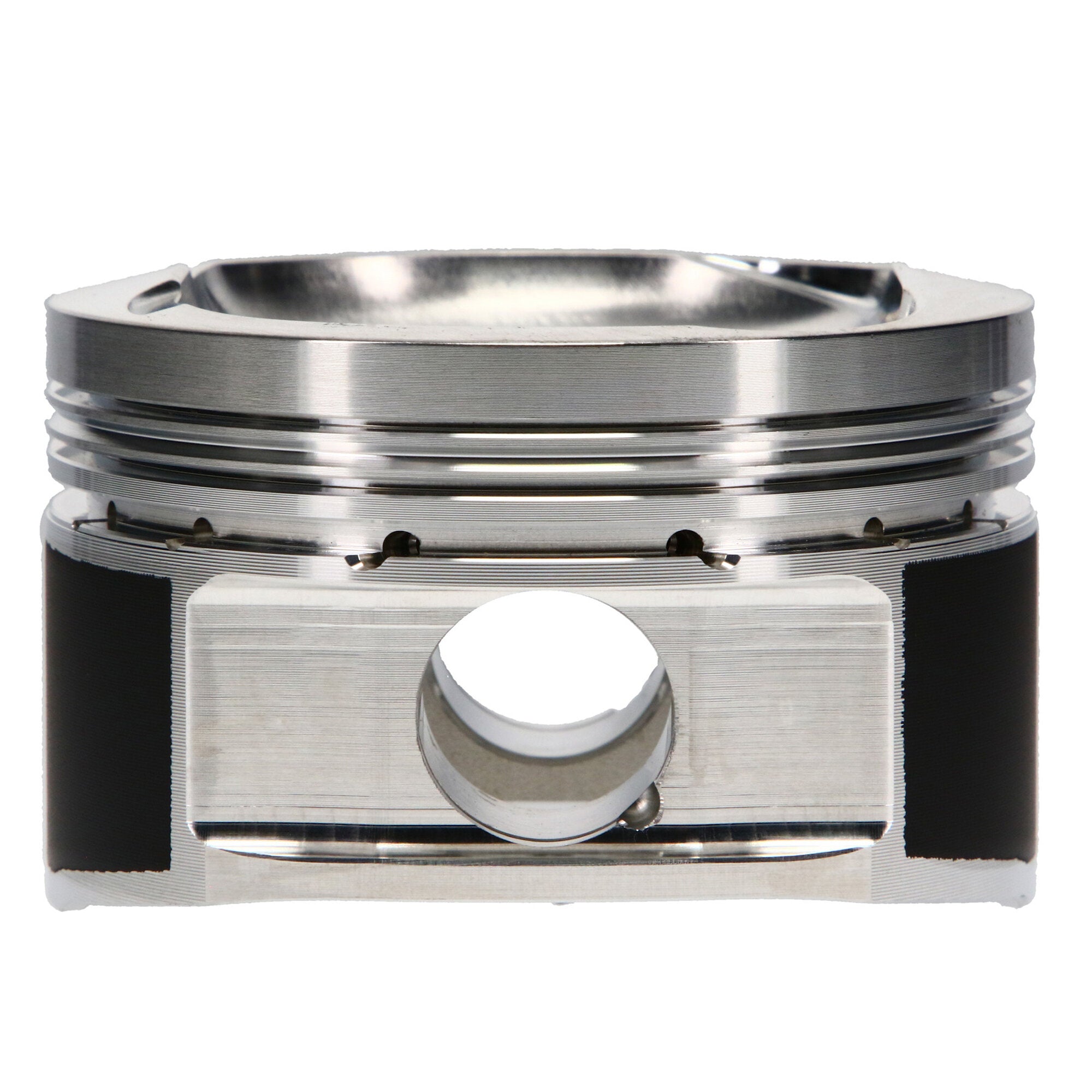

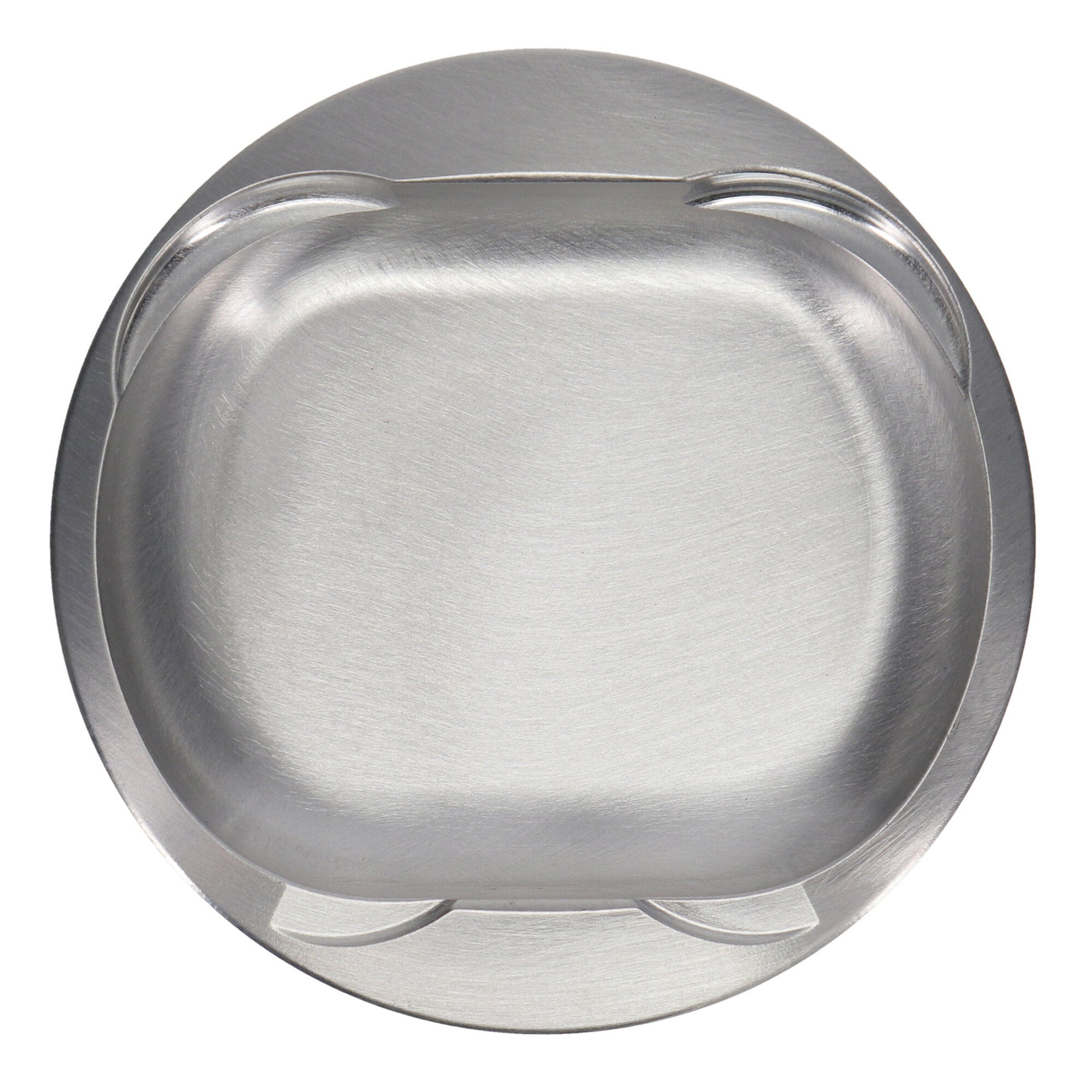

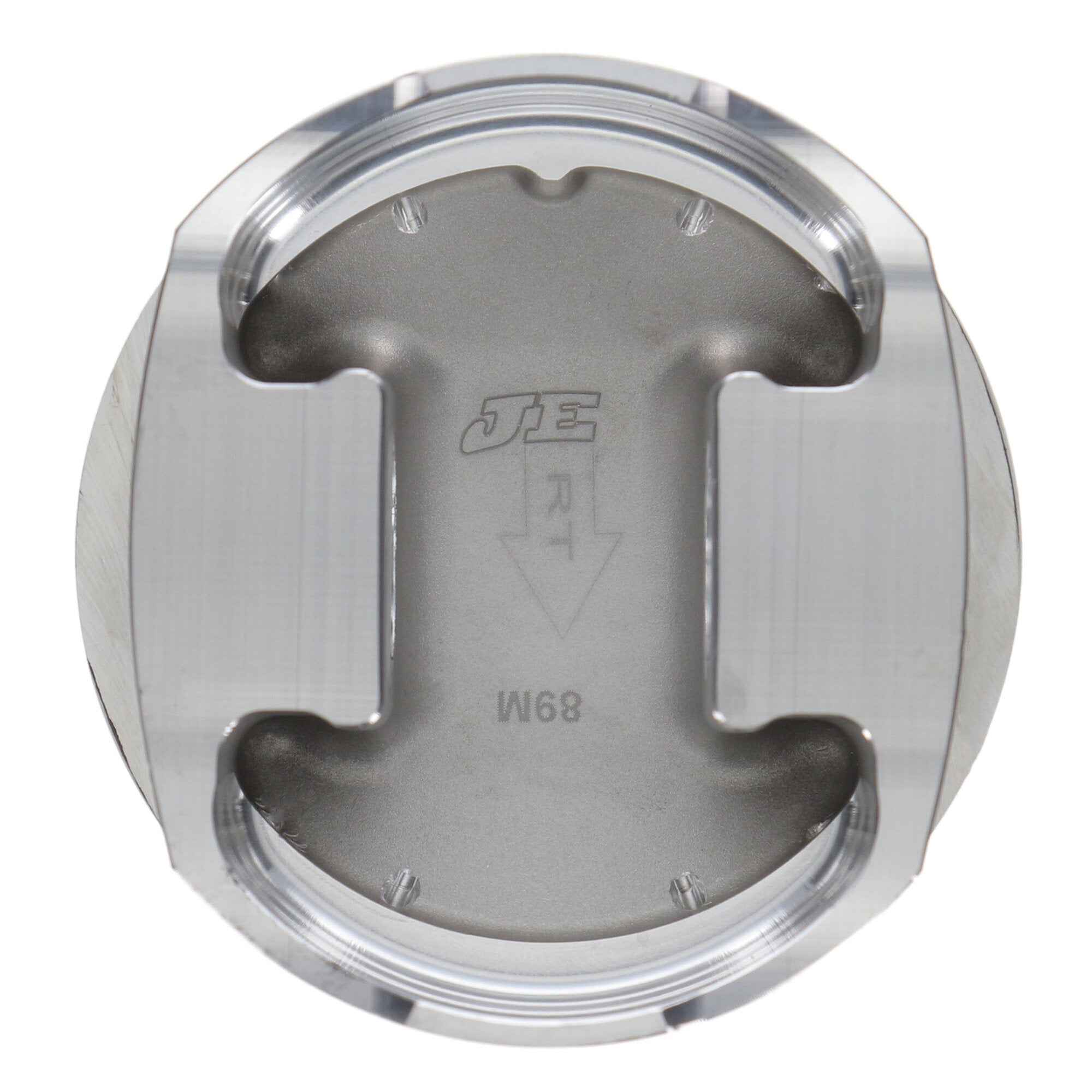

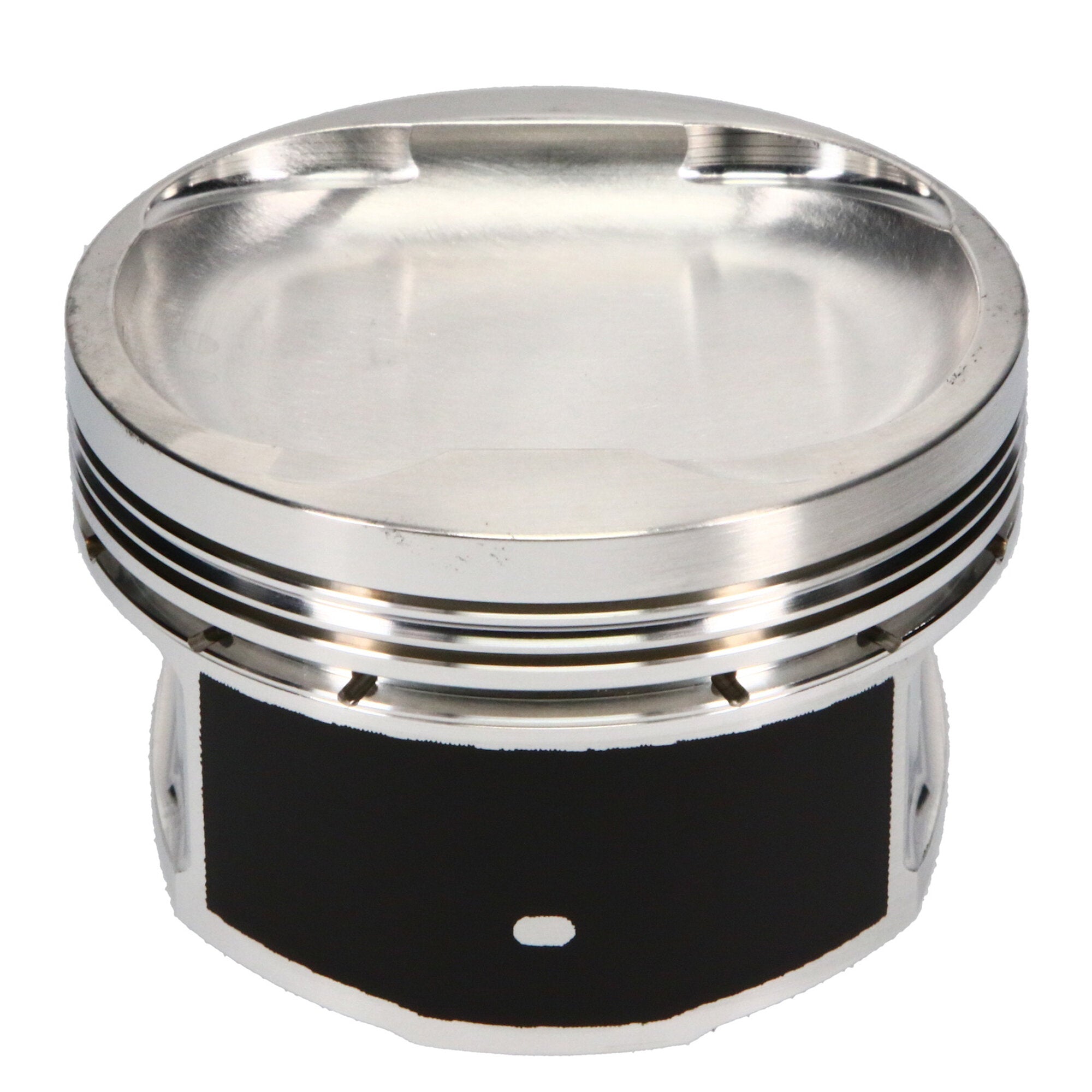

Piston Set, 2618, Inv Dome/Dish, 3.396 Bore, 1.338 CD, 0.866 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Toyota, 2JZ-GTE, 3.396 in. Bore, 8.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Toyota 2JZ-GE/2JZ-GTE, 86.25 Bore, Dish, Set of 6 |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Engine - Web |
2JZ-GTE |
| Make |
TOYOTA |
| Title |
JE Pistons - Toyota, 2JZ-GTE, 86.25 mm Bore, Piston Kit |
| Forging Type |
FSR |
| Piston Quantity |
6 |
| Piston Series |
JE Pistons |
| Ring Set Included |
Yes |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.180 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.180 |
| Product Market |
Sport Compact |
| Piston Material |
2618 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Outside Diameter |
0.866 |
| Top Compression Ring Thickness |
0.0400 |
| Compression Height |
1.338 |
| Bore Diameter |
86.25 |
| Prop 65 (C, R or CR) |
CR |
| Oil Ring Thickness |
0.111 |
| Piston Volume |
-15.90 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Toyota |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
866-2250-18-51C |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-063-MW |
| Engine |
2JZ-GTE |
| Cylinder Head |
2JZ-GTE |
| Ringset Included |
Yes |
| Add-On |
JG1001-3396 |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Title - Web |
JE Pistons Toyota 2JZ-GTE Piston Kit - 86.25 mm Bore - 1.338 in. CH, -15.90 CC |
| Piston Head Type |
Dish |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
