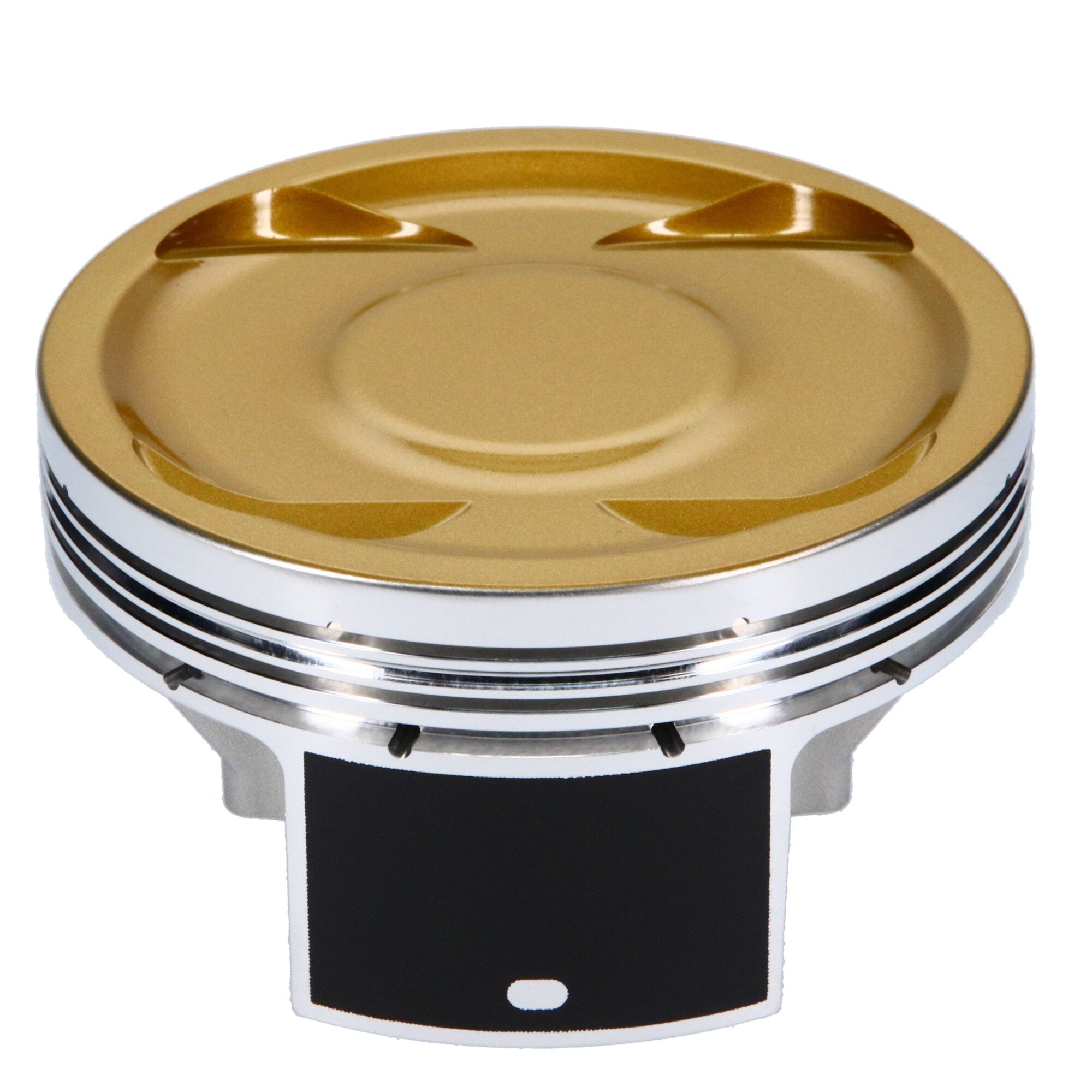

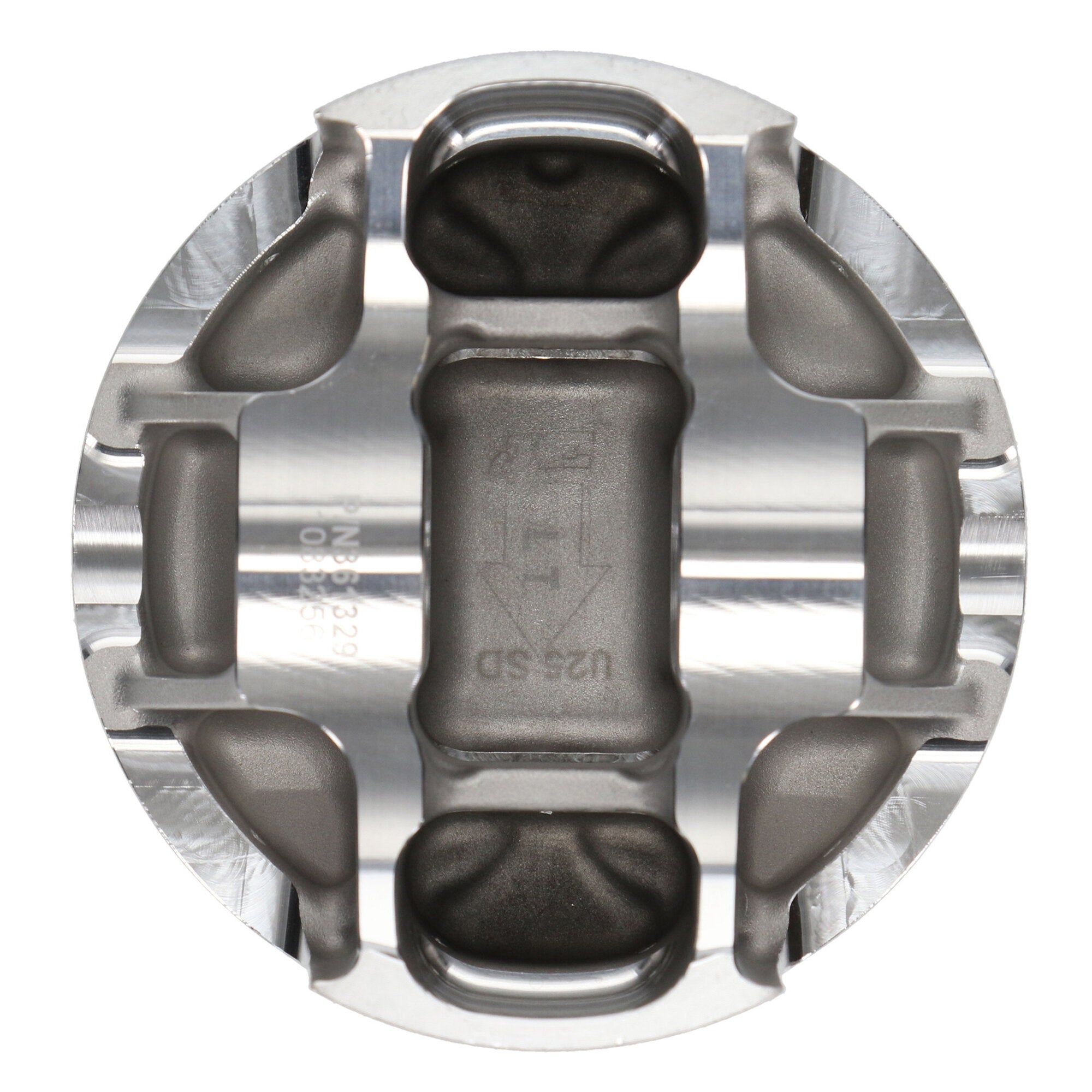

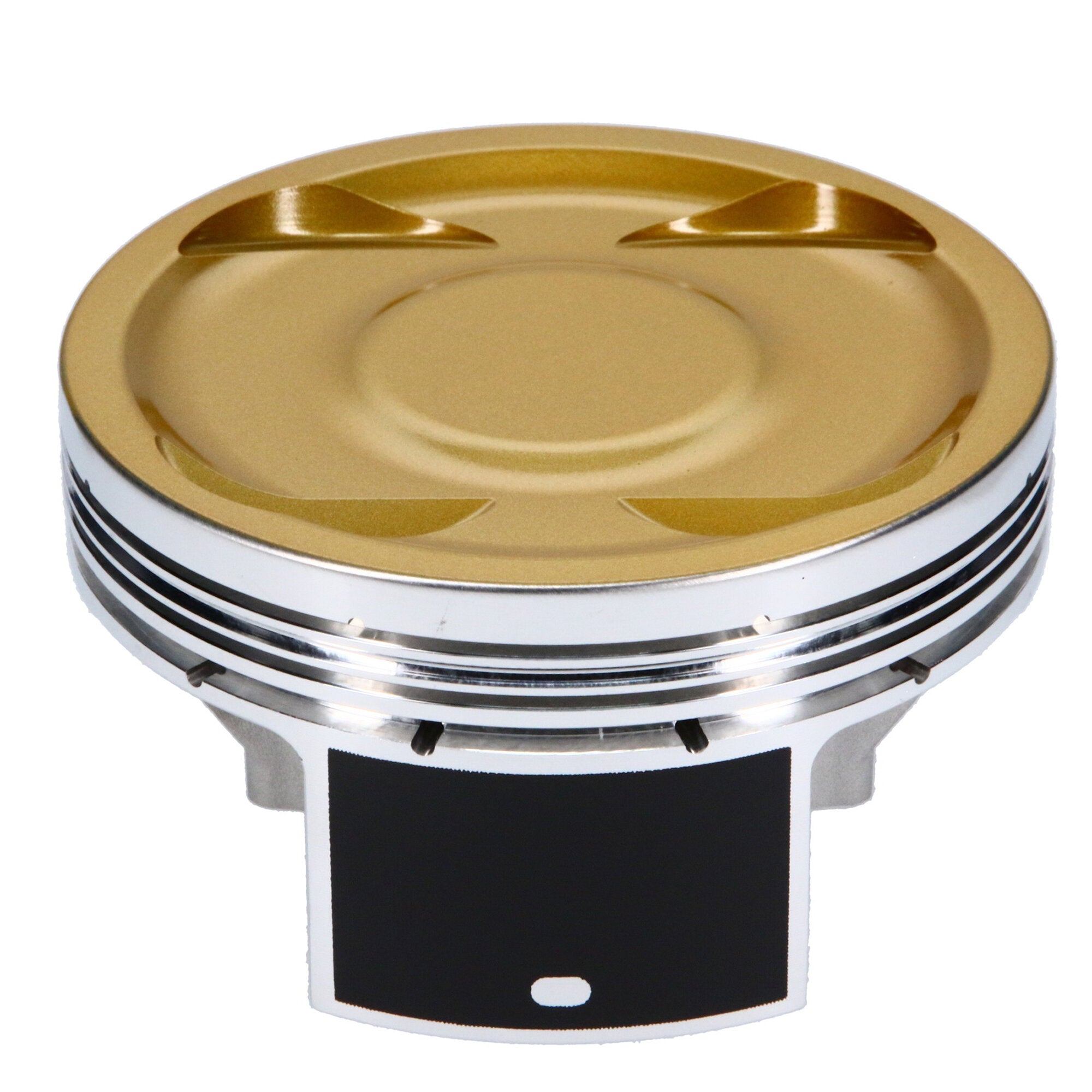

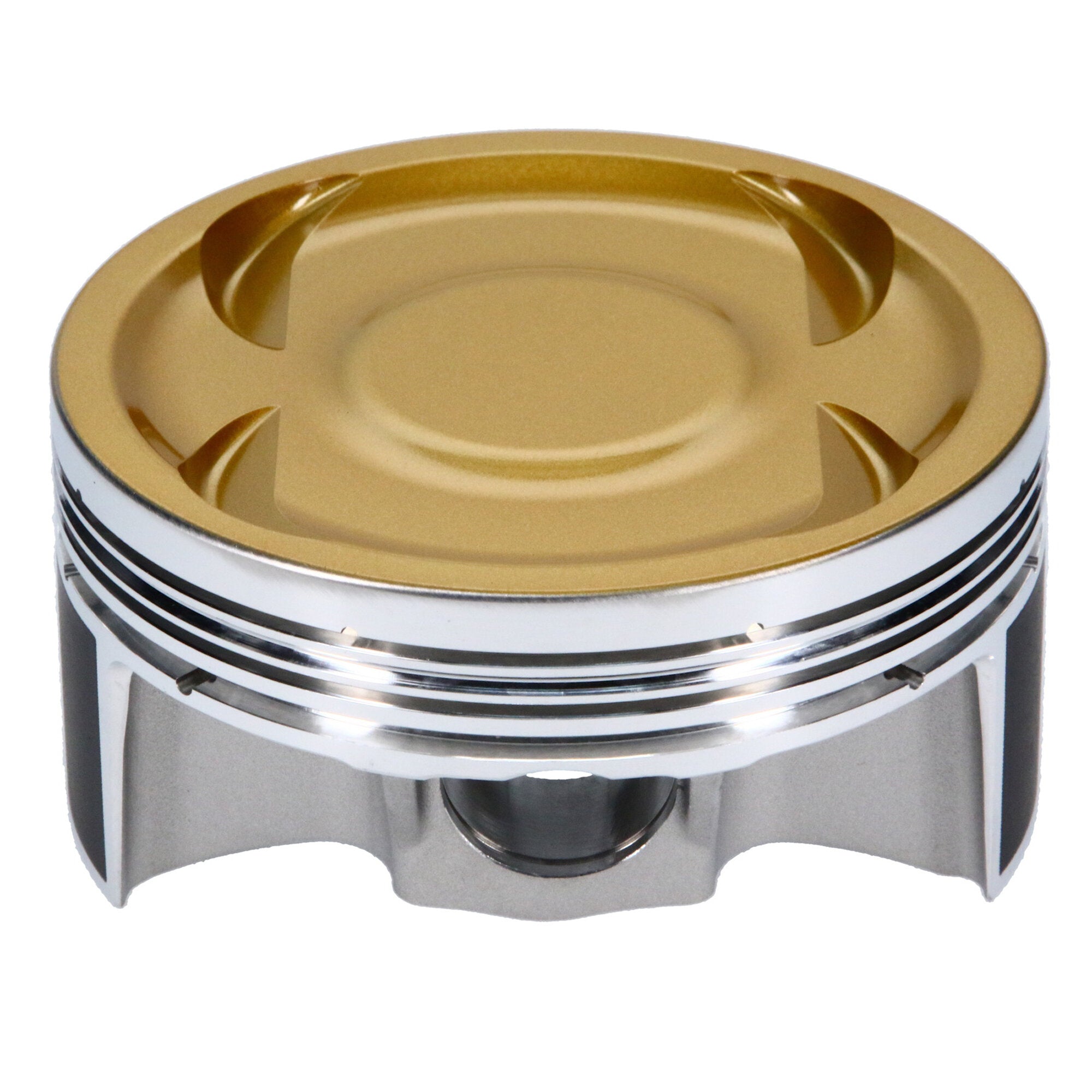

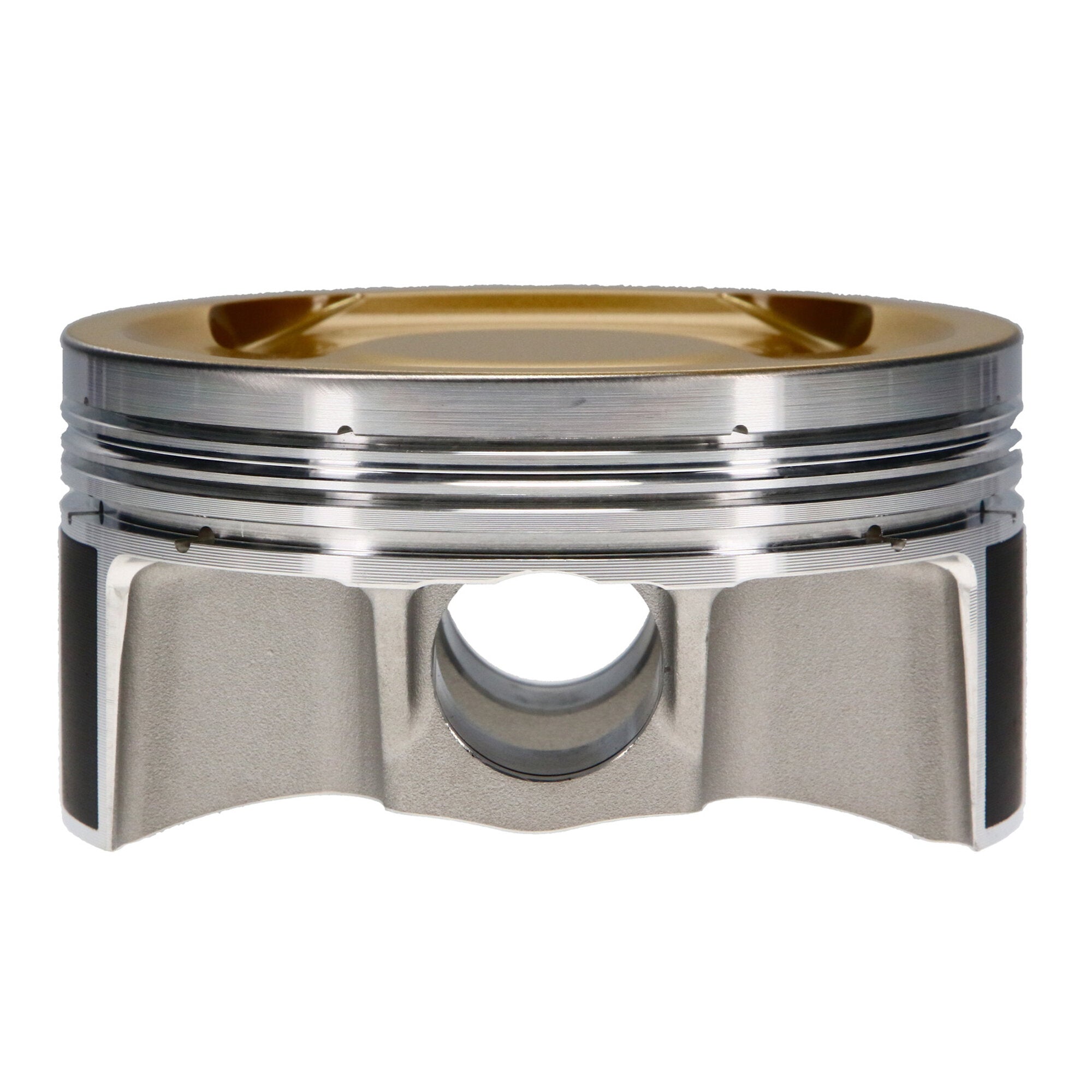

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Subaru EJ257 |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.927 Bore, 1.209 CD, 0.905 Pin, Set of 4. |
| Description_DEF |
Engine Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

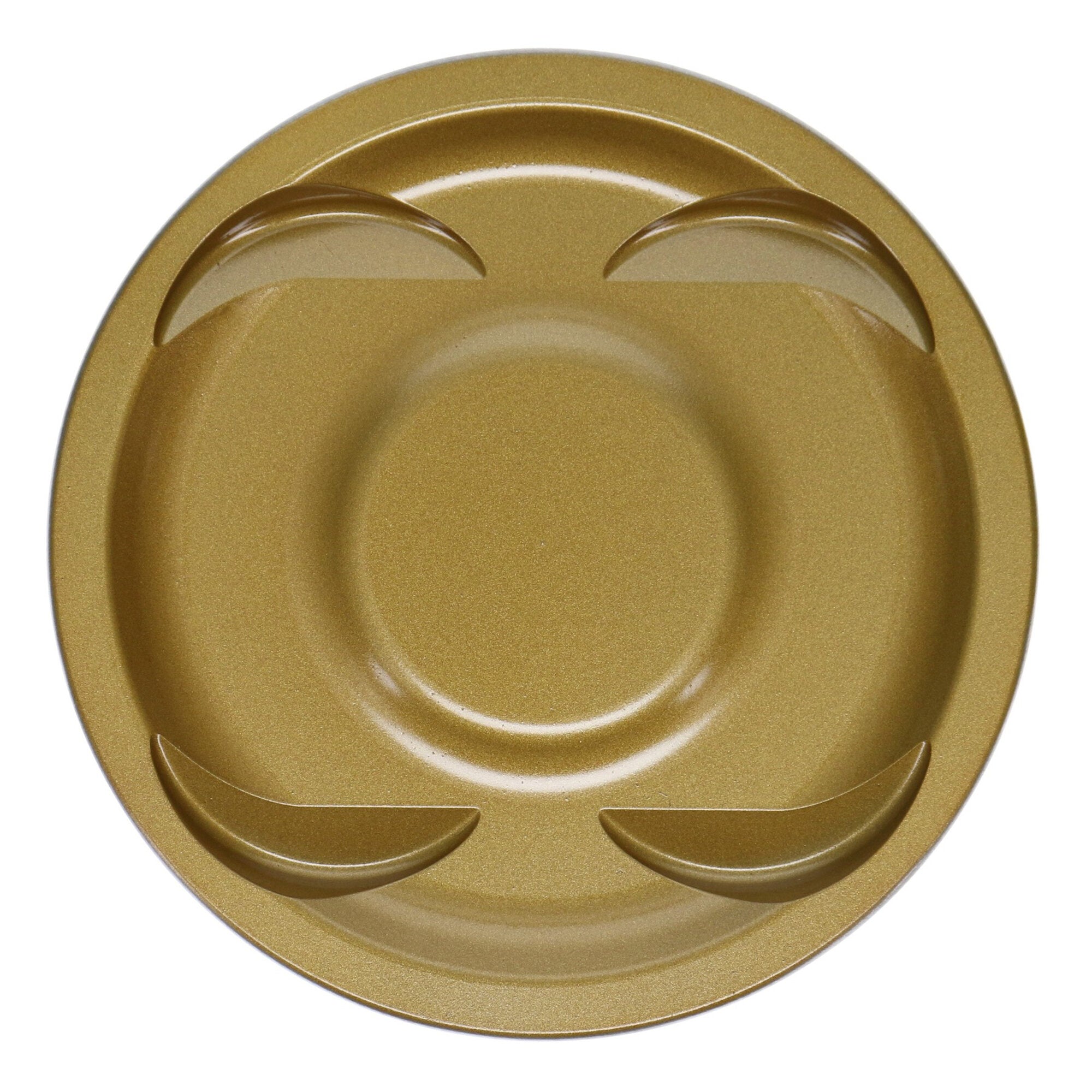

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_EXT |
JE Ultra, Subaru, EJ Series, 3.927 in. Bore, 9.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_TLE |
Subaru EJ257, 99.75 Bore, Dish, Set of 4 |
| Engine |
EJ SERIES |
| Second Compression Ring Thickness |
0.0480 |
| Make - Web |
Subaru |
| Ringset Included |
Yes |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.250 |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
EJ257 STI |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Ultra Series Subaru EJ Series Piston Kit - 99.75 mm Bore - 1.209 in. CH, -7.30 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Add-On |
905-2250-21-93S |
| Piston Volume |
-7.30 |
| Piston Pin Material |
9310 |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.905 |
| Add-On |
905-042-CT |
| Add-On |
JG4901-3927 |
| Industry |
Automotive |
| Wrist Pin Length |
2.250 |
| Top Compression Ring Thickness |
0.0475 |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Sport Compact |
| Piston Average Weight |
428 |
| Oil Ring Thickness |
0.0995 |
| Compression Height |
1.209 |
| Bore Diameter |
99.75 |
| Piston Pin Wall Thickness |
0.210 |
| Forging Type |
FSR |
| Make |
SUBARU |
| Title |
JE Ultra Series - Subaru, EJ Series, 99.75 mm Bore, Piston Kit |
| Piston Series |
JE Ultra Series |
| Product Market |
Sport Compact |
| Wrist Pin Wall Thickness |
0.210 |
| Engine - Web |
EJ Series |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.905 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
