| Description_ASM |
Subaru EJ257 |
| Description_DEF |
Engine Piston |
| Description_DES |

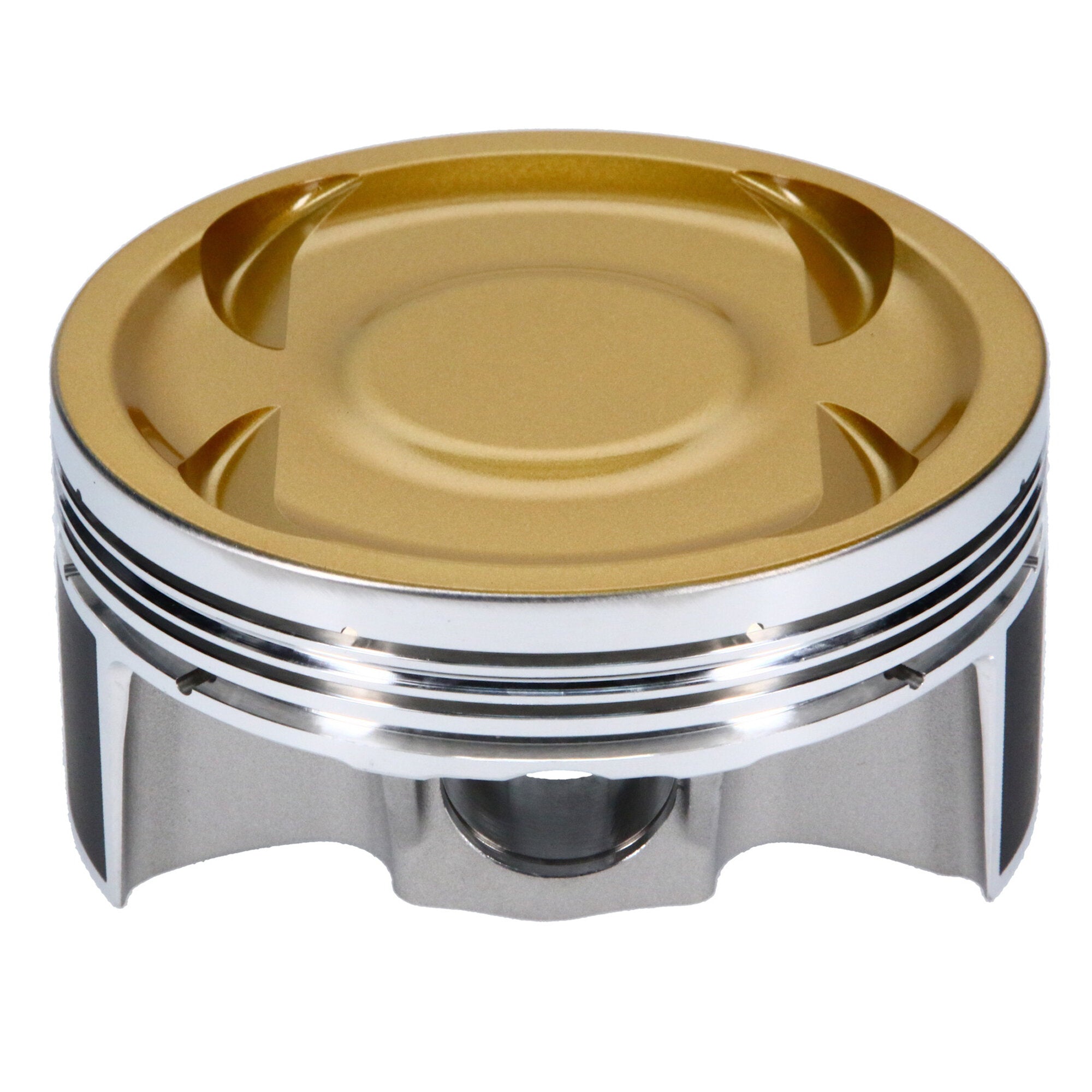

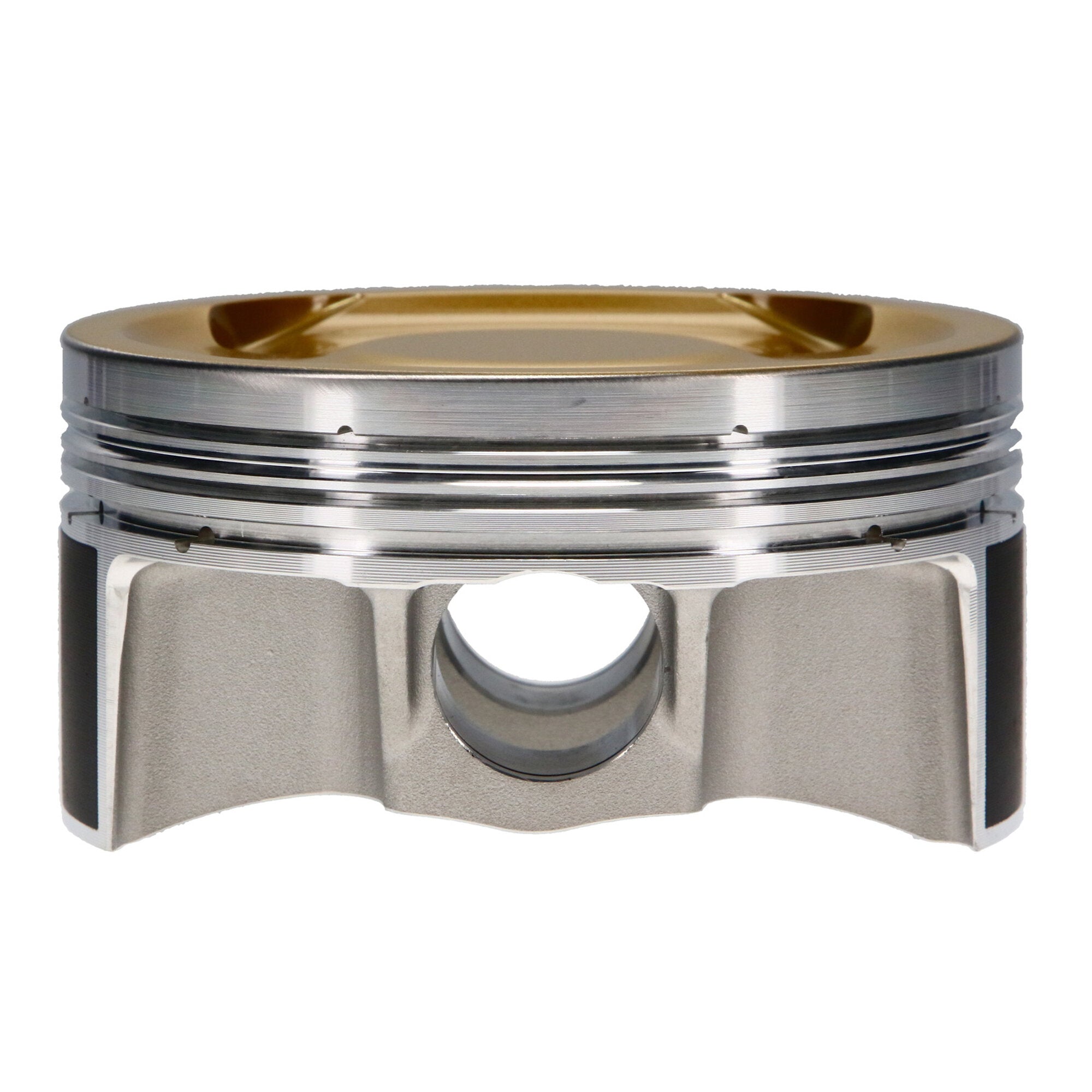

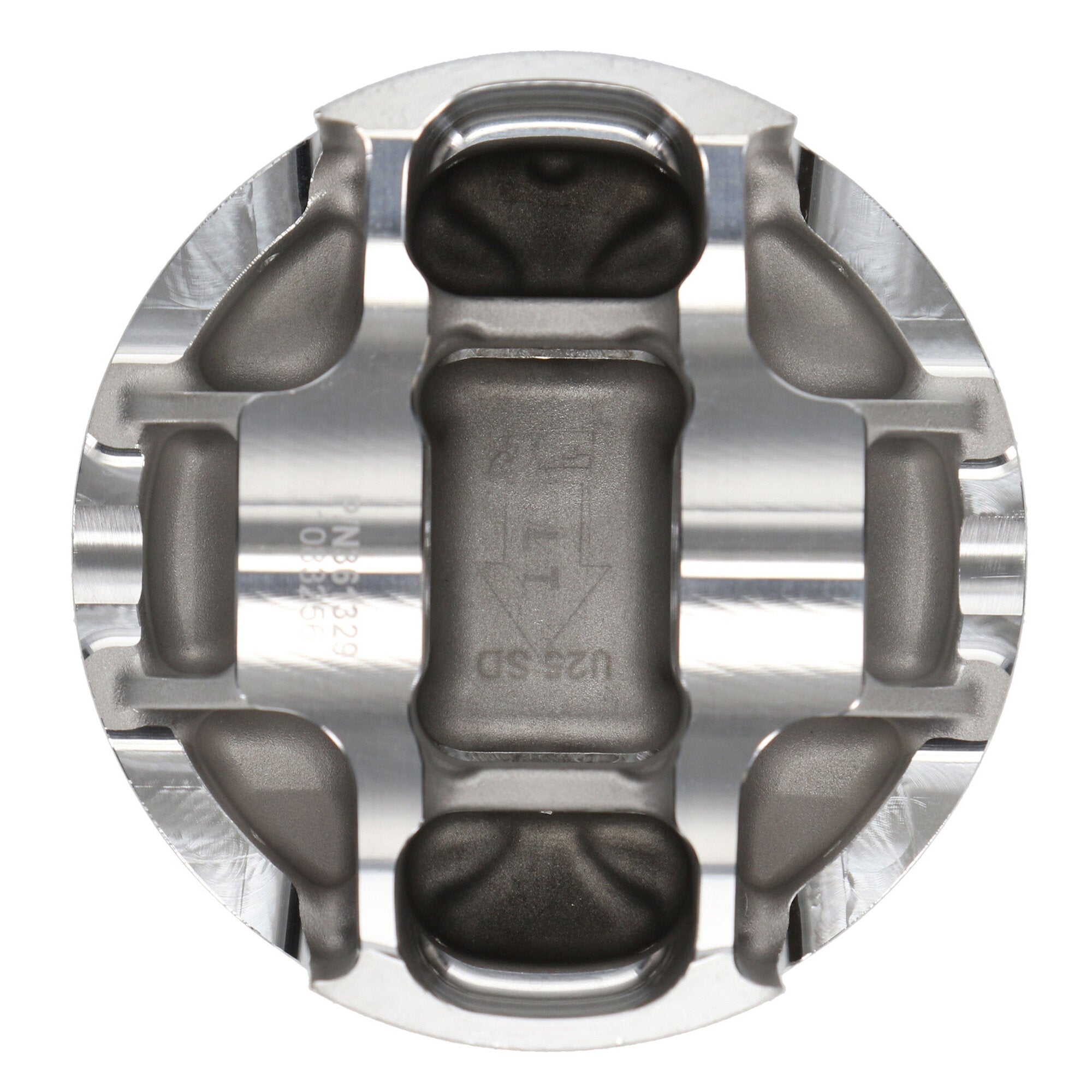

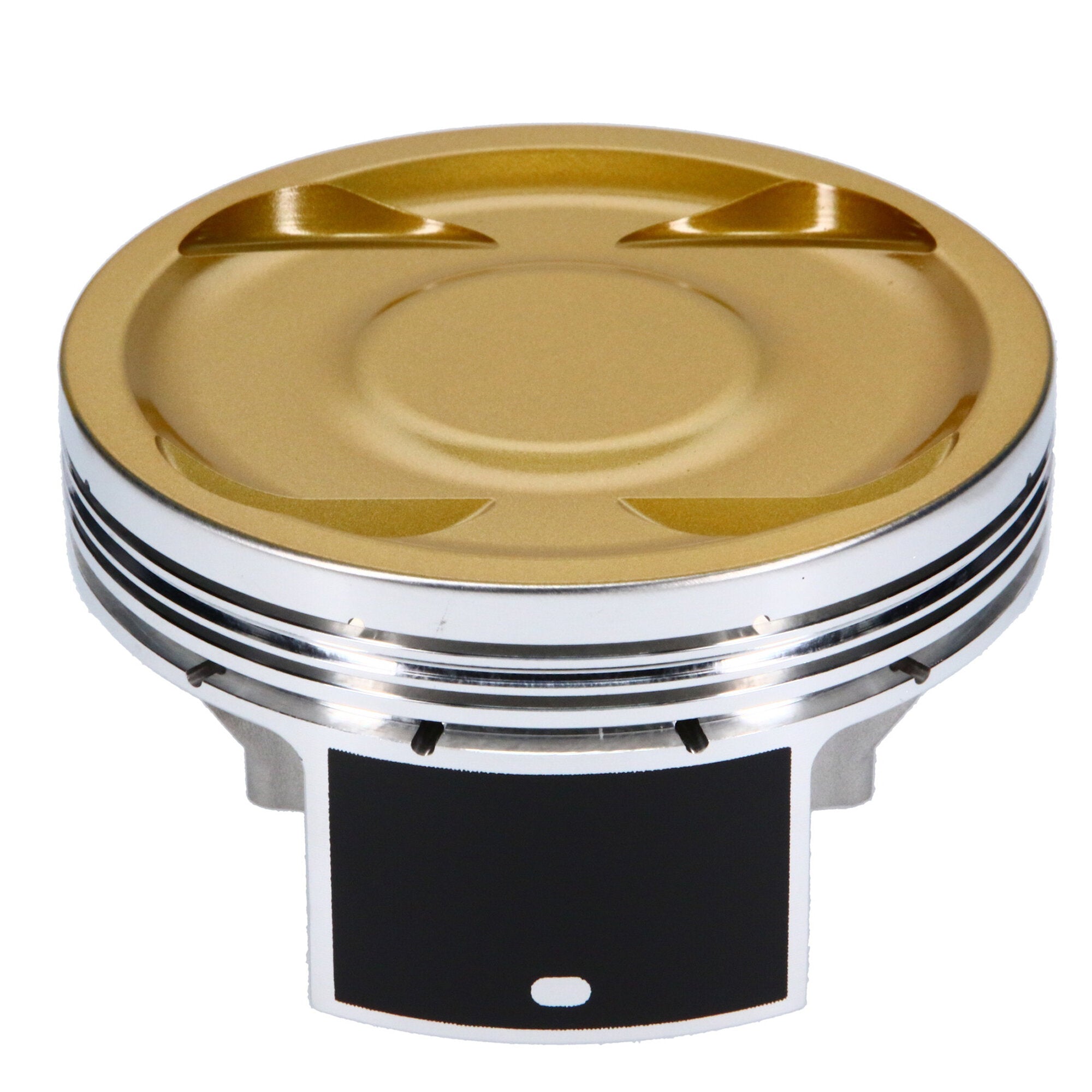

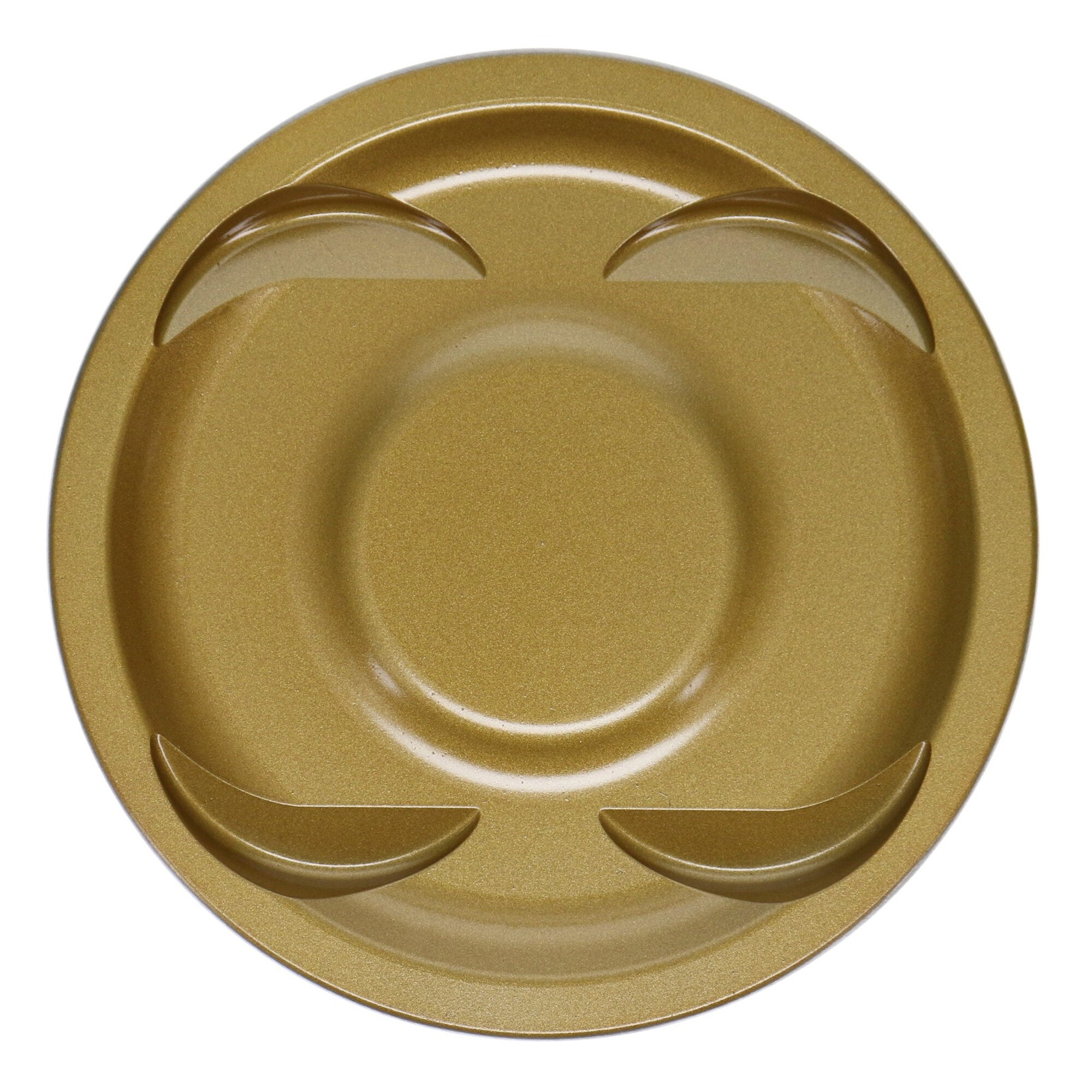

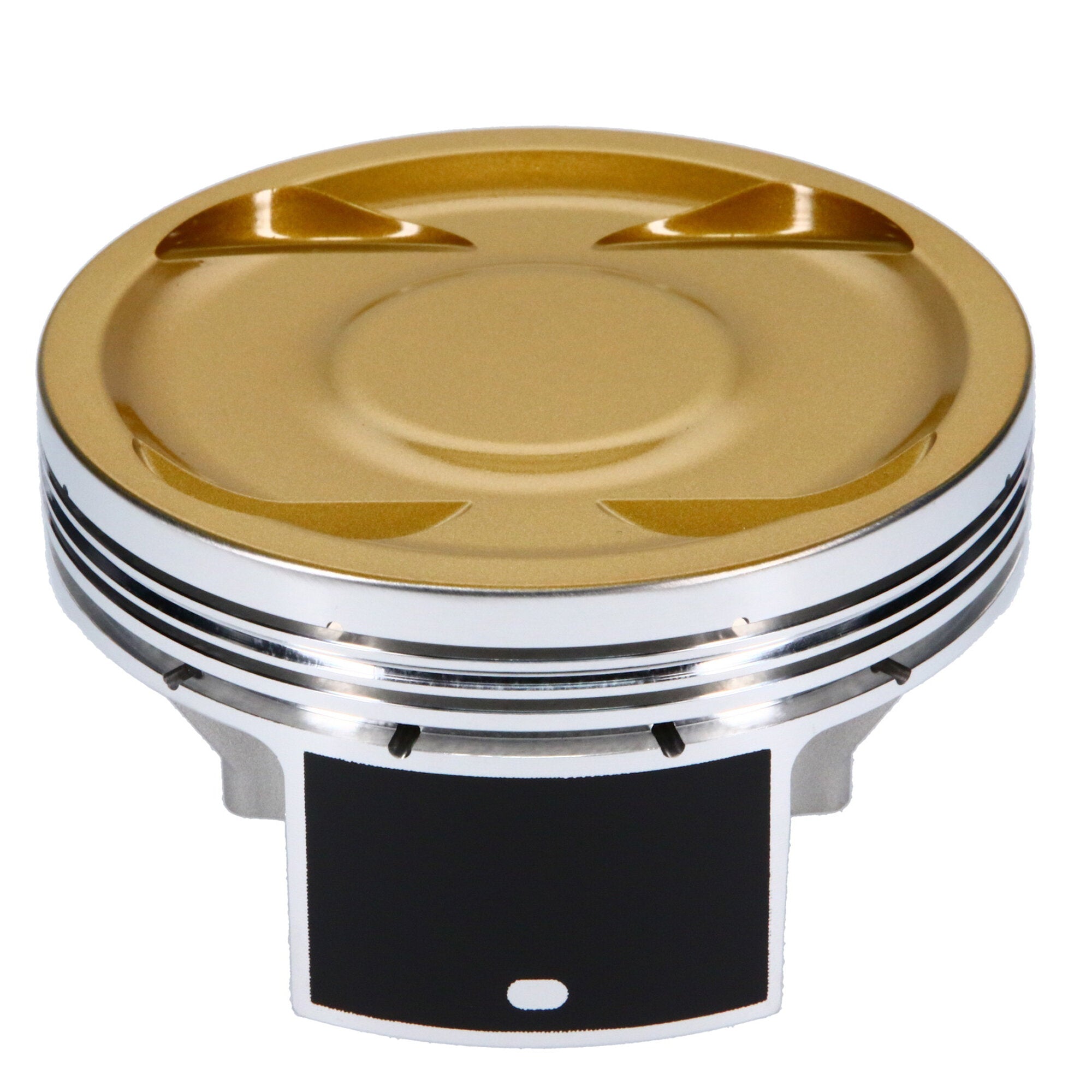

Piston Single, 2618, Inv Dome/Dish, 3.918 Bore, 1.209 CD, 0.905 Pin, Set of 1. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE Ultra, Subaru, EJ Series, 3.937 in. Bore, 8.50:1, Inverted Dome/Dish, Left Piston |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_TLE |
Subaru EJ257, 99.52 Bore, Dish, Set of 1 |
| Description_SHO |
Piston |
| Oil Ring Thickness |
0.0995 |
| Compression Height |
1.209 |
| Product Market |
Sport Compact |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.210 |
| Wrist Pin Wall Thickness |
0.210 |
| Wrist Pin Outer Diameter |
0.905 |
| Product Type |
Engine Piston |
| Make |
SUBARU |
| Piston Pin Material |
9310 |
| Bore Diameter |
99.52 |
| Category Hierarchy |
Auto>JE Ultra Series>Single Replacement Pistons>Sport Compact |
| Cylinder Head |
EJ257 STI |
| Title |
JE Ultra Series - Subaru, EJ Series, 99.52 mm Bore, Piston |
| Piston Material |
2618 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
EJ Series |
| Ring Set Included |
Yes |
| Piston Pin Outside Diameter |
0.905 |
| Top Compression Ring Thickness |
0.0475 |
| Piston Orientation |
Left |
| Piston Volume |
-16.50 |
| Second Compression Ring Thickness |
0.0480 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Piston Average Weight |
425 |
| Engine |
EJ SERIES |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Subaru |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Ringset Included |
Yes |
| Title - Web |
JE Ultra Series Subaru EJ Series Piston - 99.52 mm Bore - 1.209 in. CH, -16.50 CC |
| Piston Pin Length |
2.250 |
| Add-On |
905-042-CT |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Dish |
| Piston Series |
JE Ultra Series |
| Engine Type |
ICE |
| Add-On |
905-2250-21-93S |
| Add-On |
JG4901-3917 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
