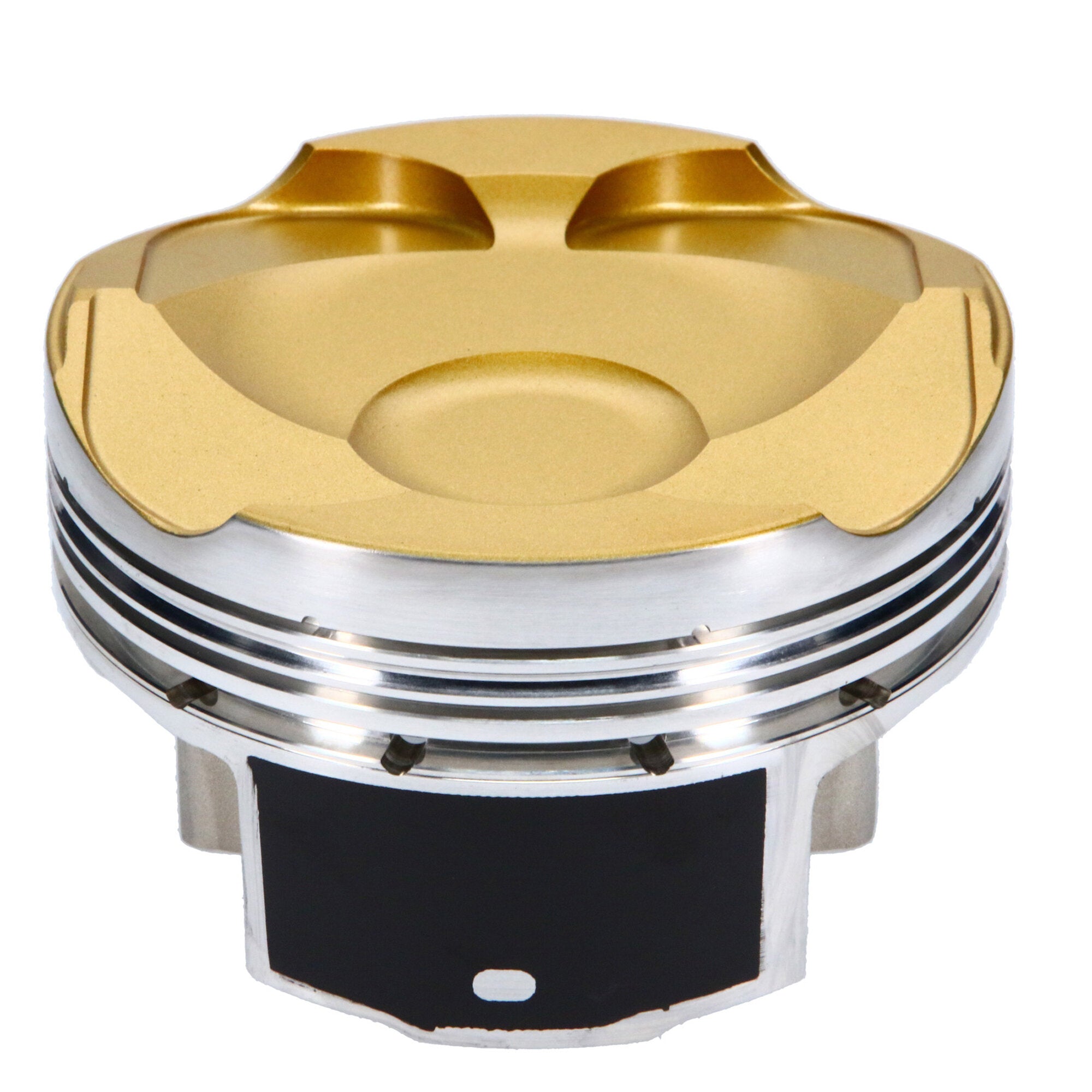

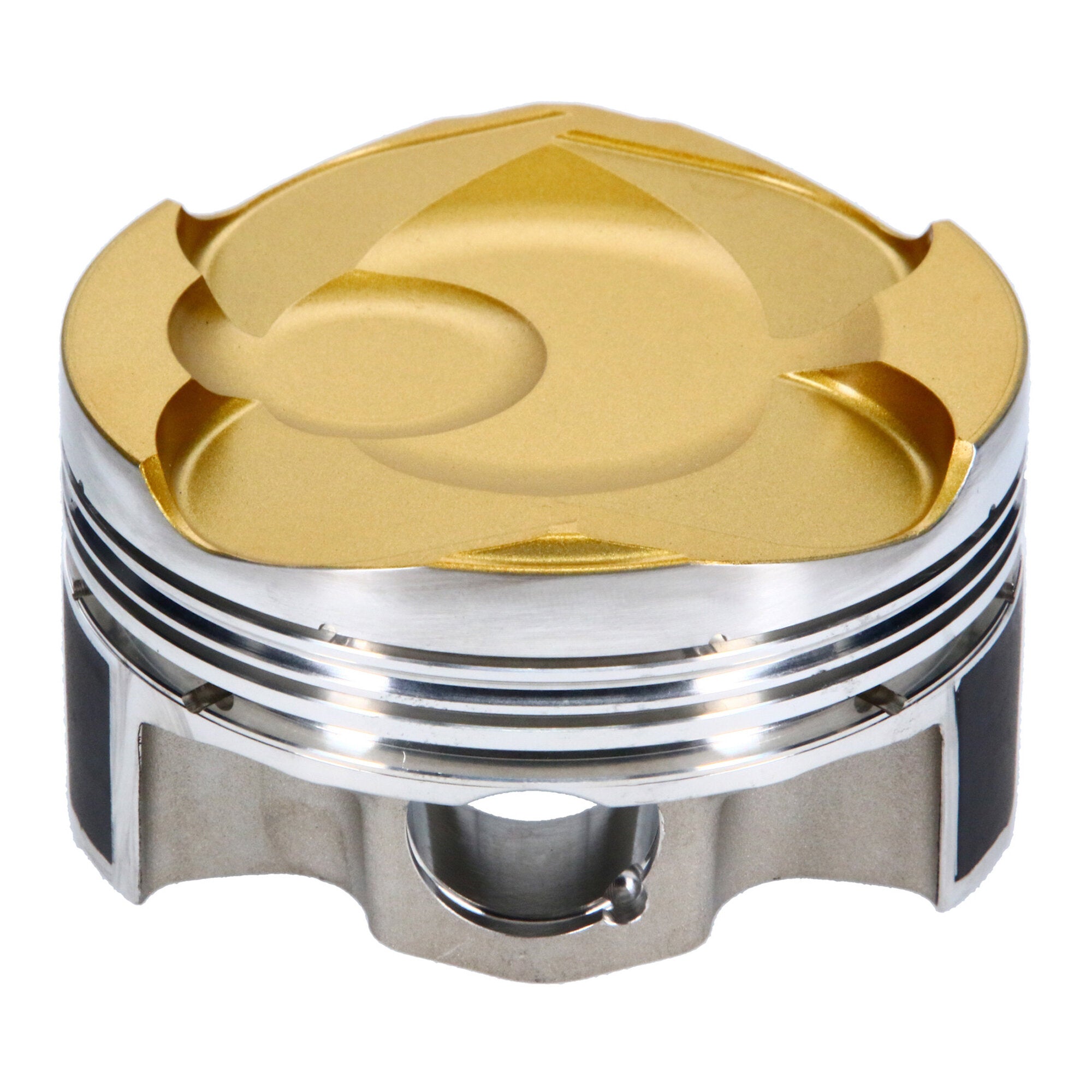

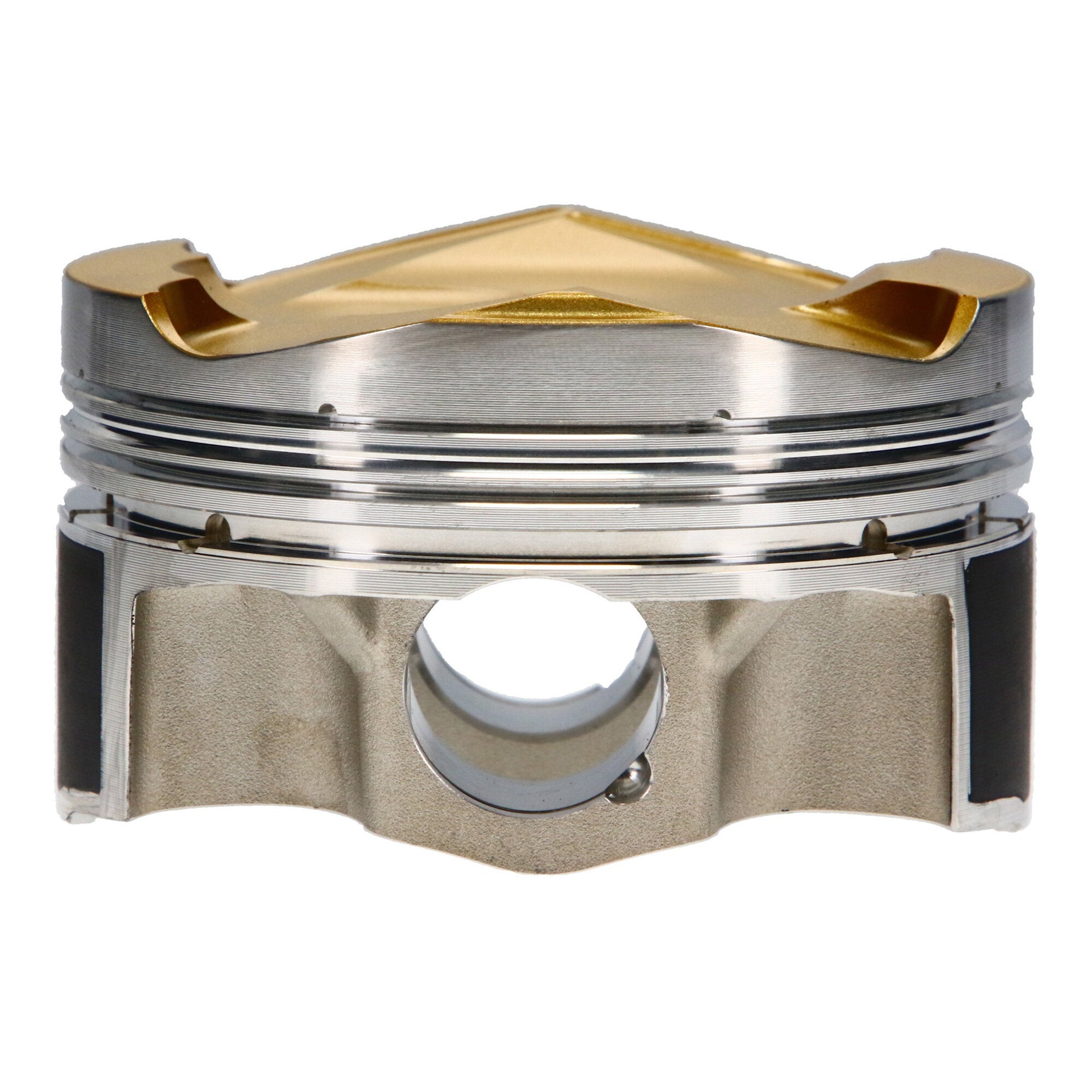

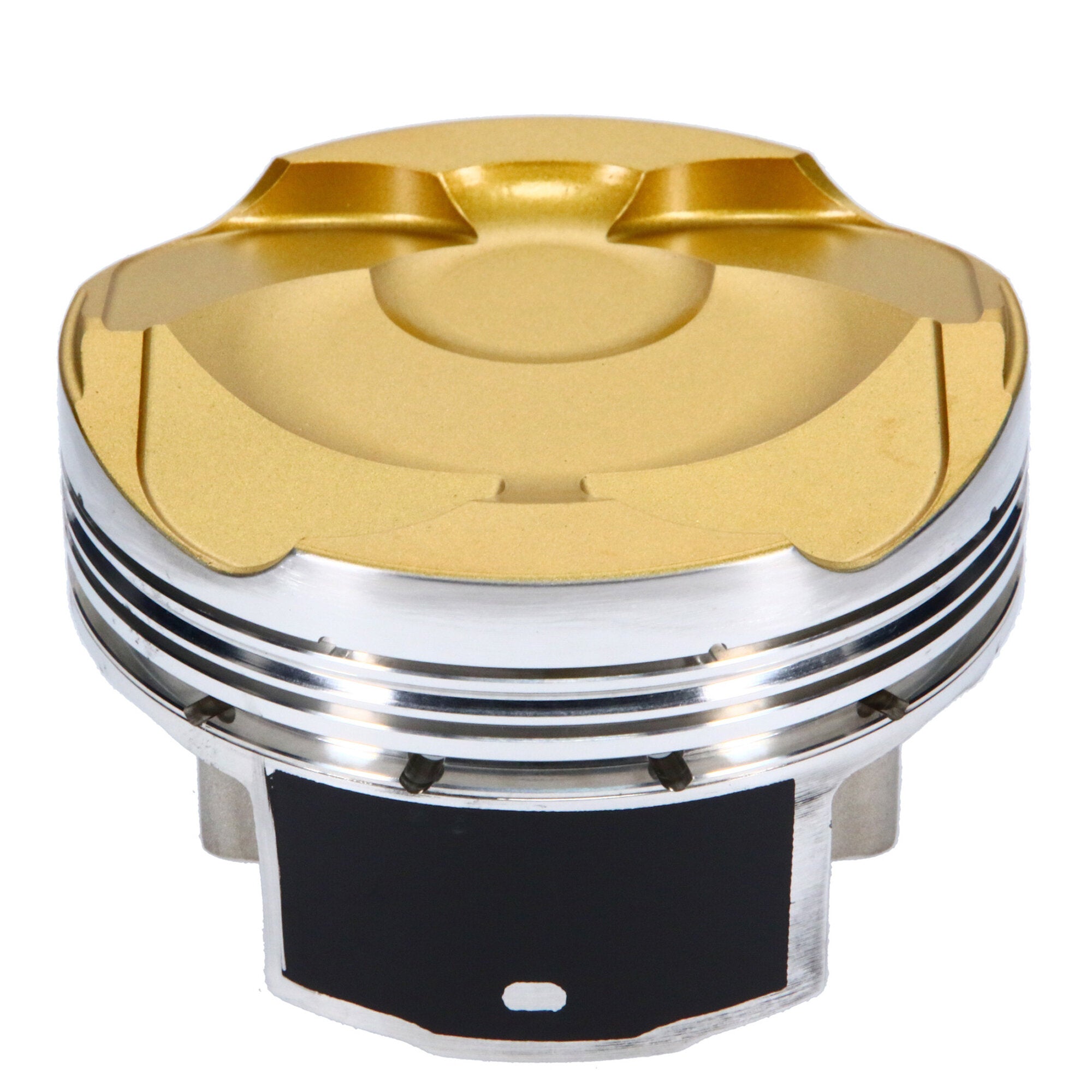

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Subaru FA20DIT/FA20E/FA20F |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE Ultra, Subaru, FA20DIT Series, 3.396 in. Bore, 10.00:1, Dome, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.396 Bore, 1.287 CD, 0.866 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

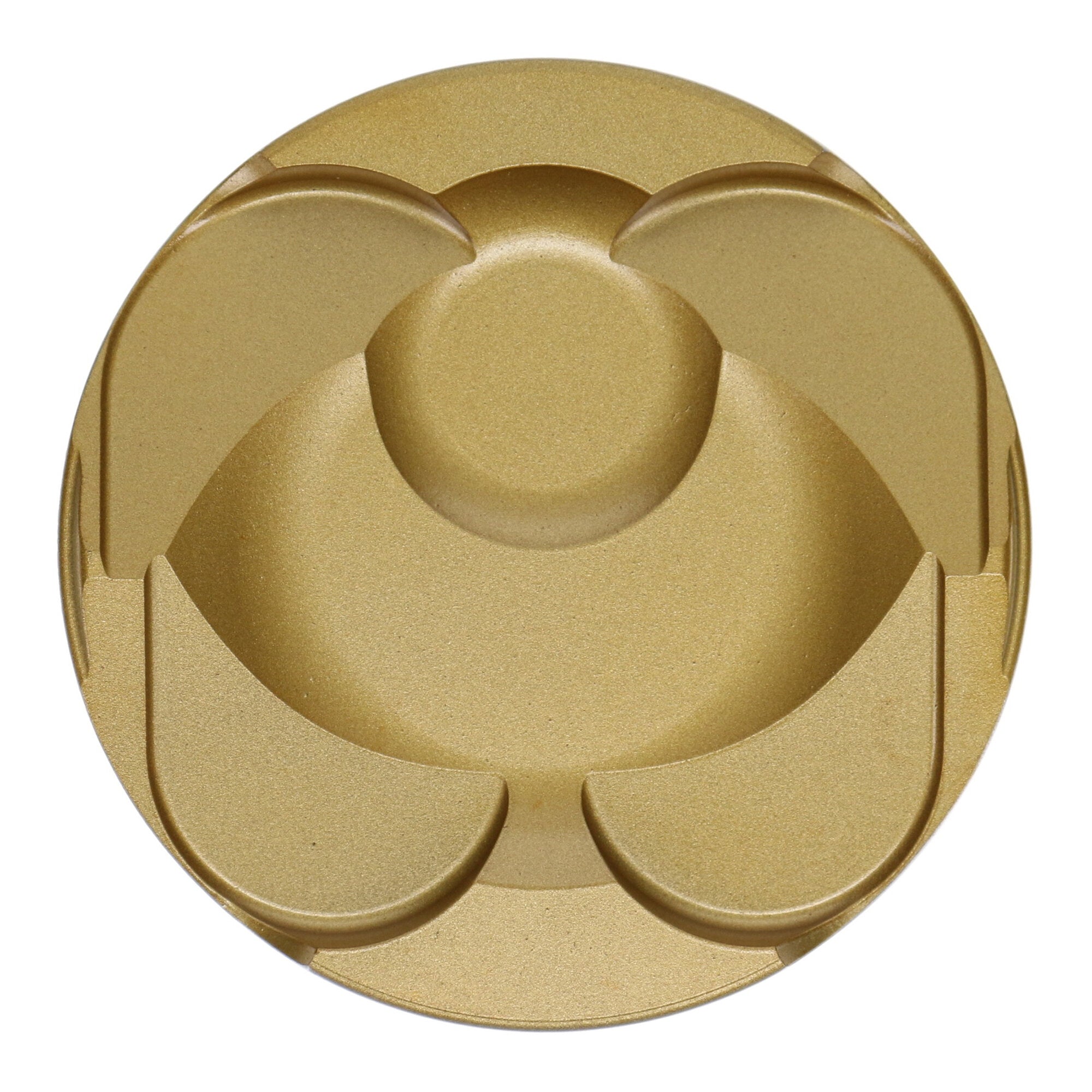

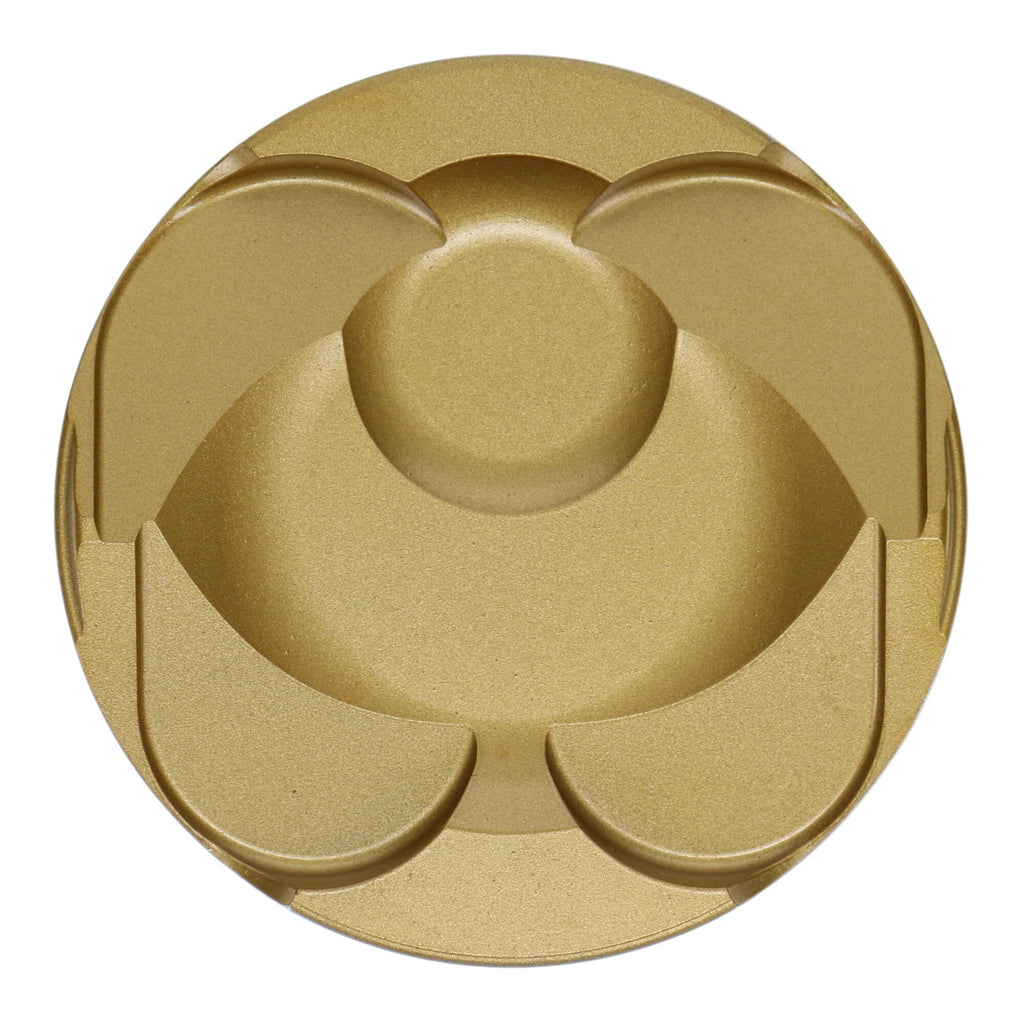

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations

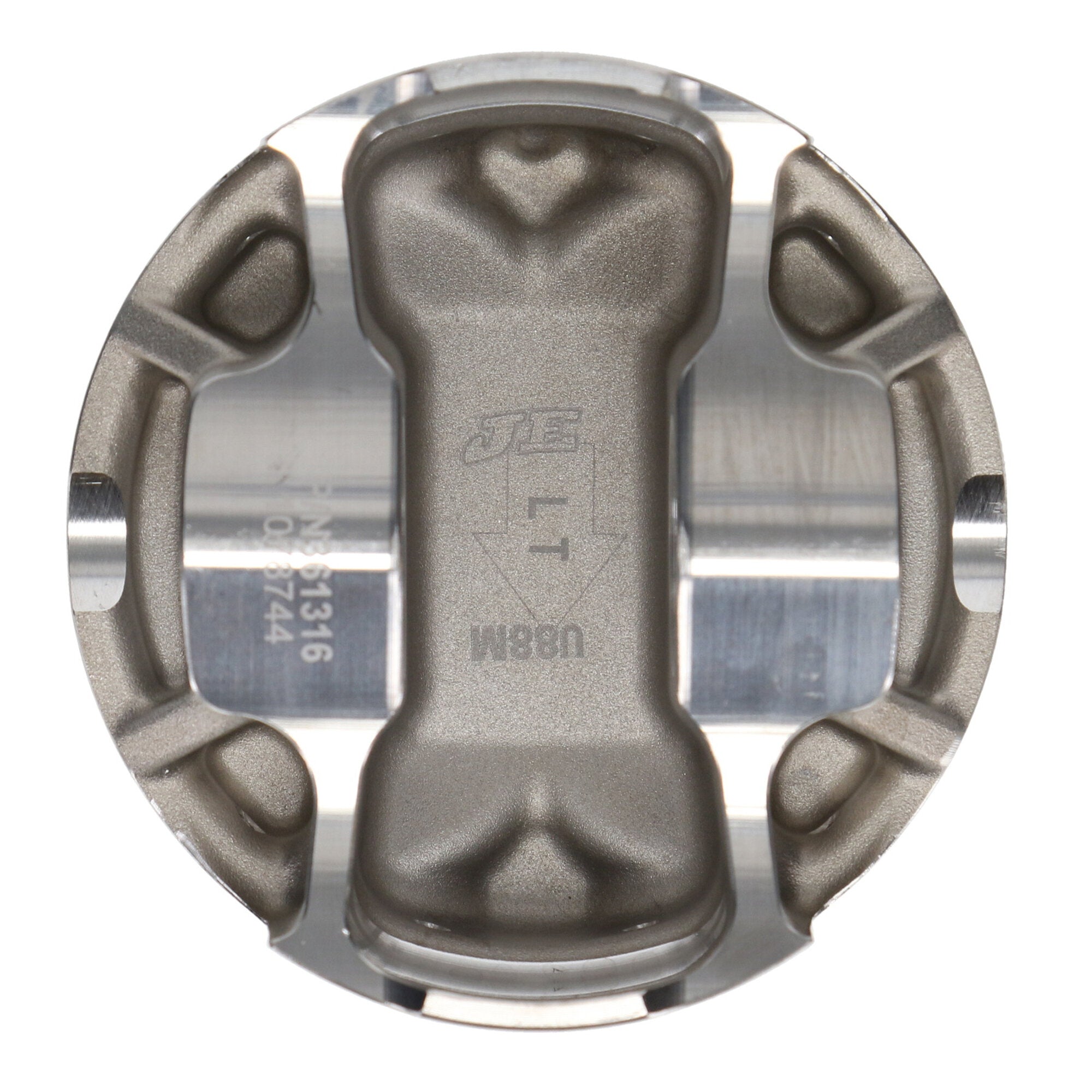

- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Subaru FA20DIT/FA20E/FA20F, 86.25 Bore, Dome, Set of 4 |
| Forging Type |
FSR |
| Engine - Web |
FA20DIT Series |
| Title |
JE Ultra Series - Subaru, FA20DIT Series, 86.25 mm Bore, Piston Kit |
| Engine |
FA20DIT SERIES |
| Piston Head Type |
Dome |
| Piston Pin Length |
2.250 |
| Make |
SUBARU |
| Oil Ring Thickness |
0.111 |
| Product Market |
Sport Compact |
| Engine Type |
ICE |
| Compression Height |
1.287 |
| Ringset Included |
Yes |
| Piston Pin Wall Thickness |
0.230 |
| Piston Pin Material |
9310 |
| Wrist Pin Wall Thickness |
0.230 |
| Product Type |
Engine Piston Kit |
| Piston Series |
JE Ultra Series |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Length |
2.250 |
| Add-On |
JG1001-3396 |
| Cylinder Head |
FA20 DIT |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Sport Compact |
| Add-On |
866-2250-23-93C |
| Top Compression Ring Thickness |
0.0395 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
86.25 |
| Piston Average Weight |
328 |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-13.50 |
| Title - Web |
JE Ultra Series Subaru FA20DIT Series Piston Kit - 86.25 mm Bore - 1.287 in. CH, -13.50 CC |
| Make - Web |
Subaru |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
