As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan SR20DET |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

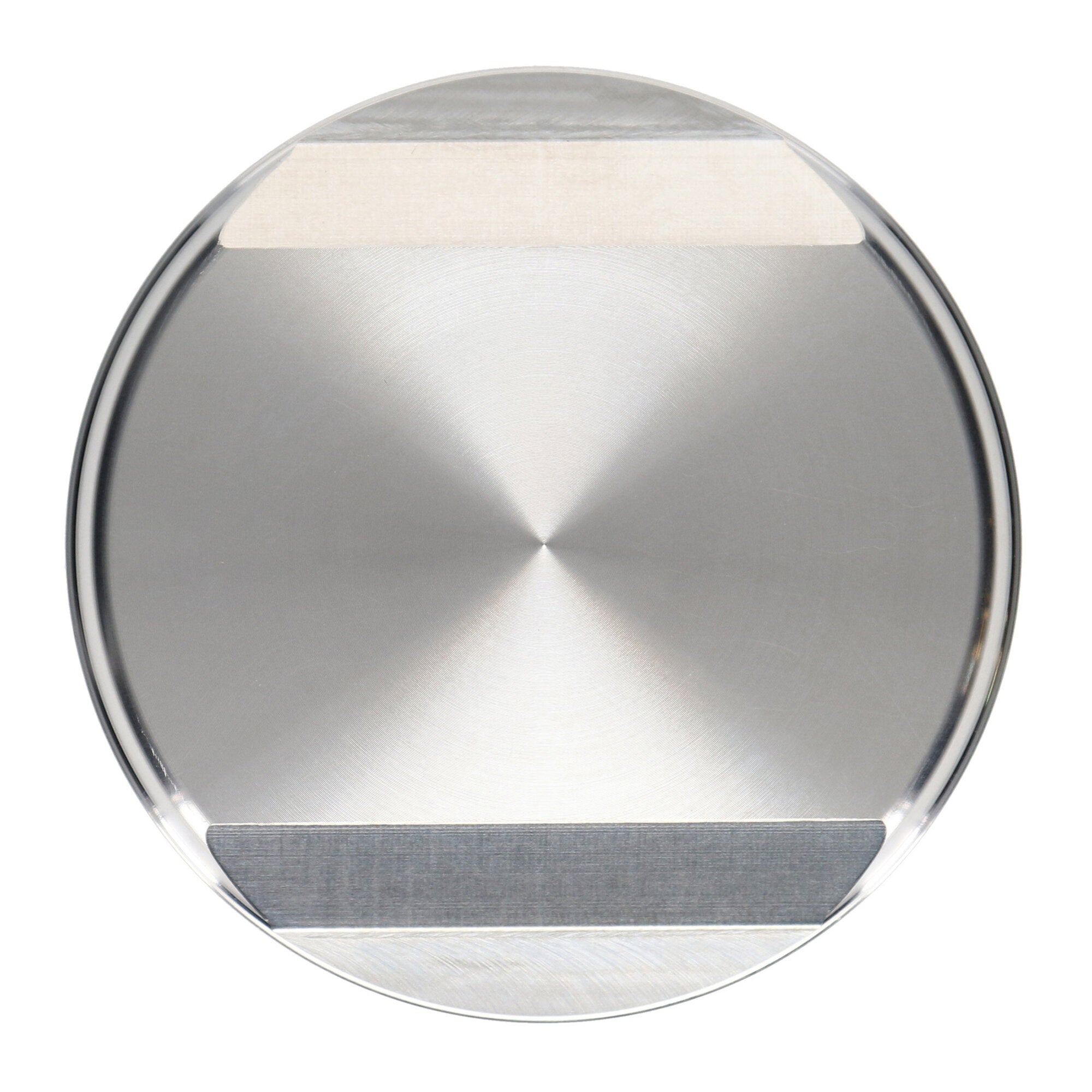

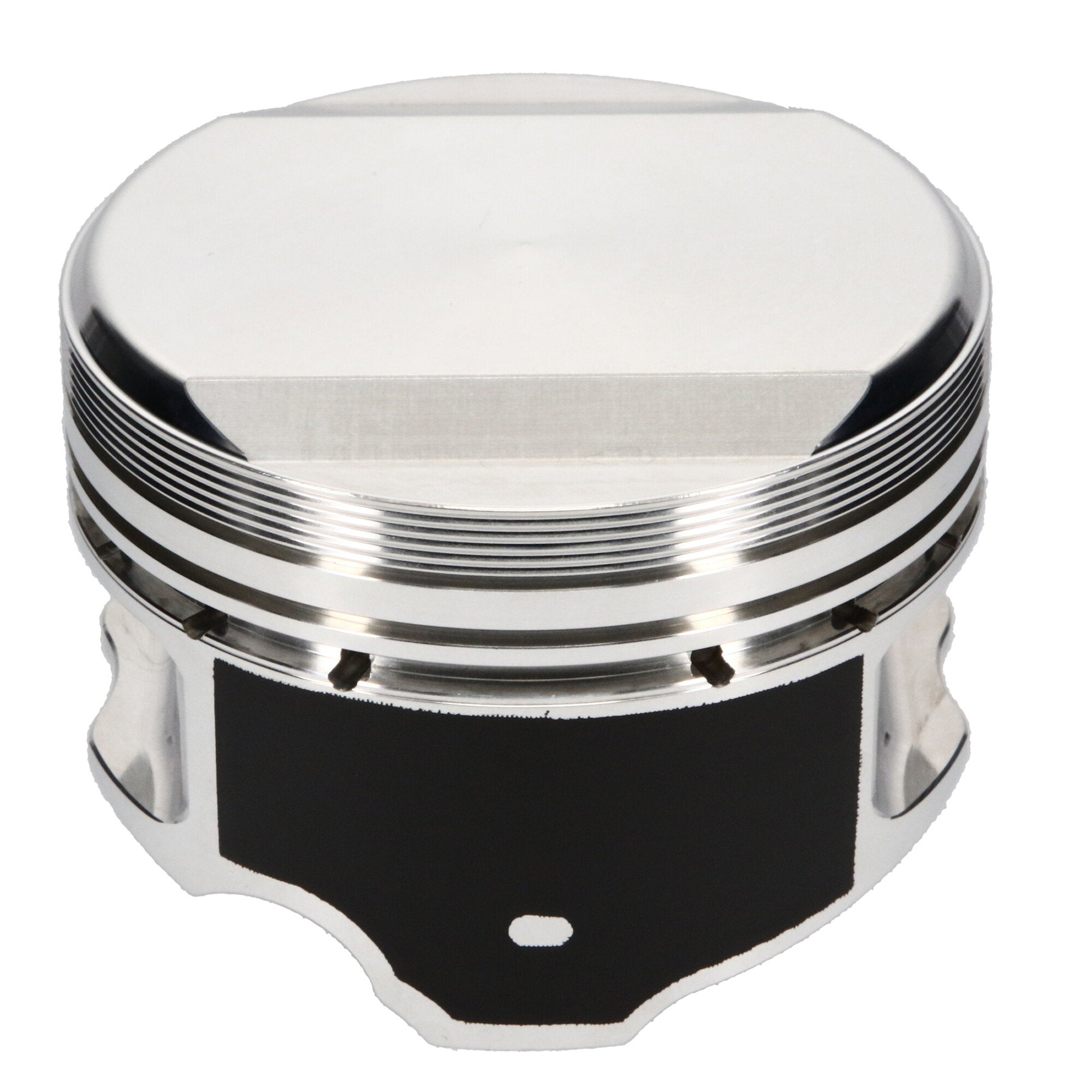

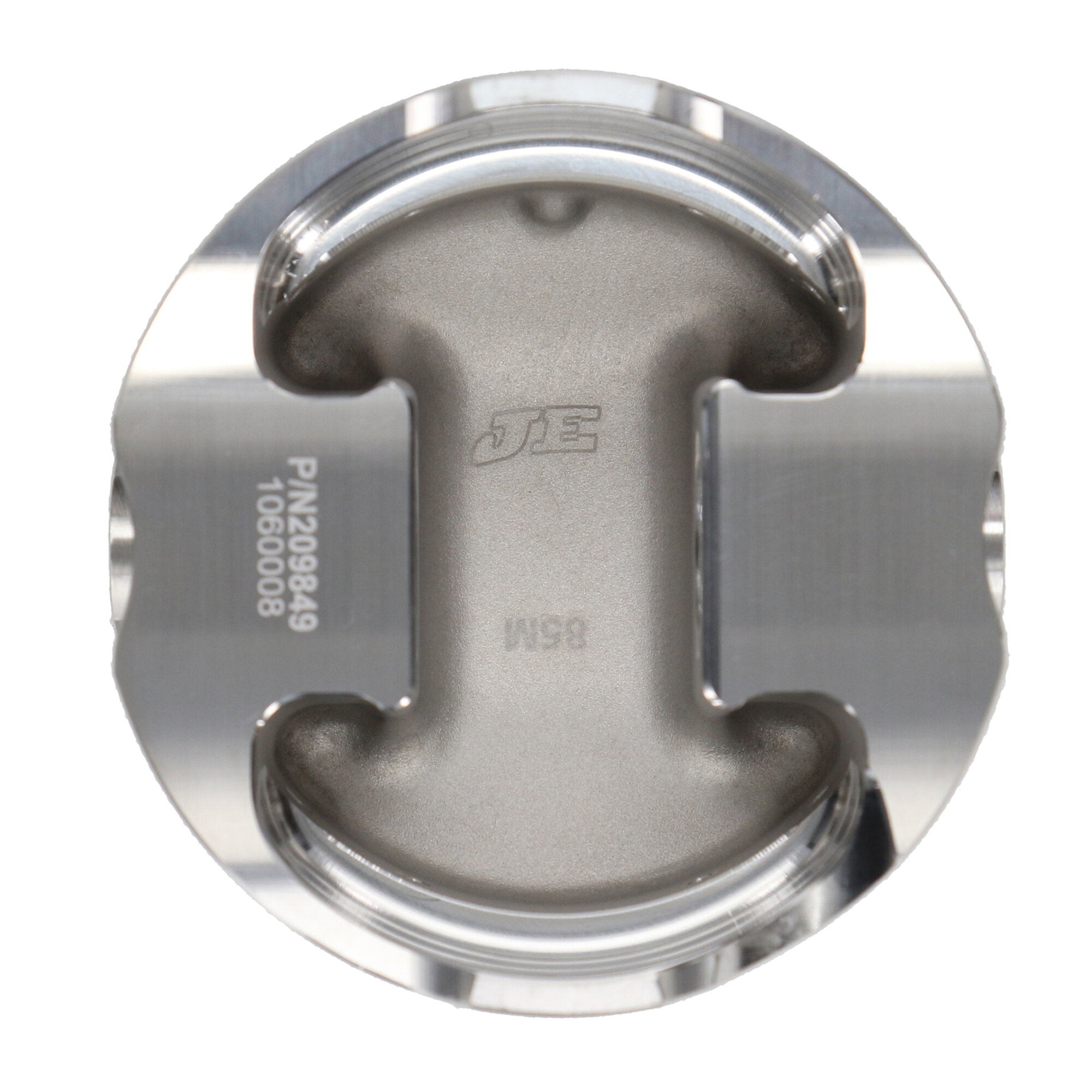

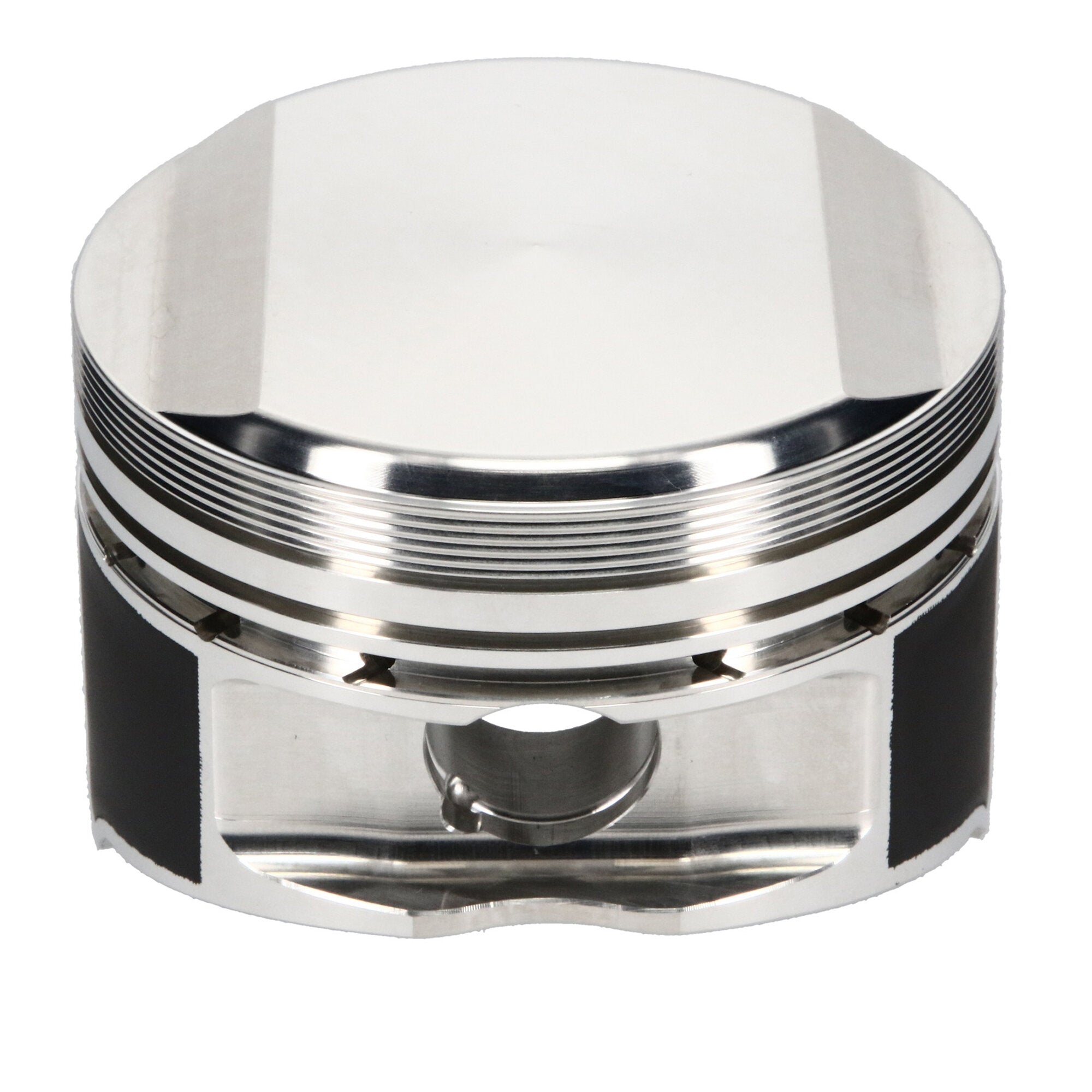

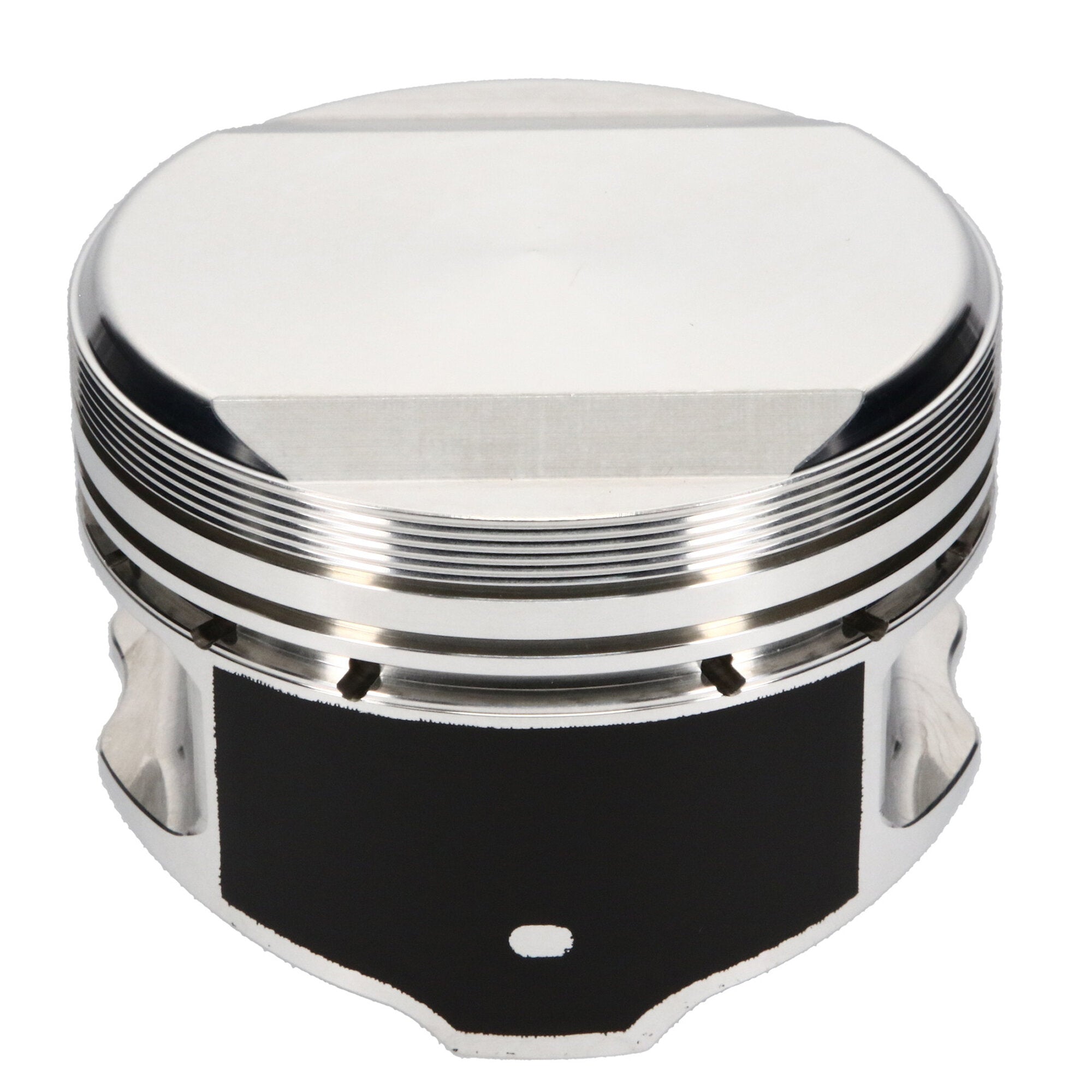

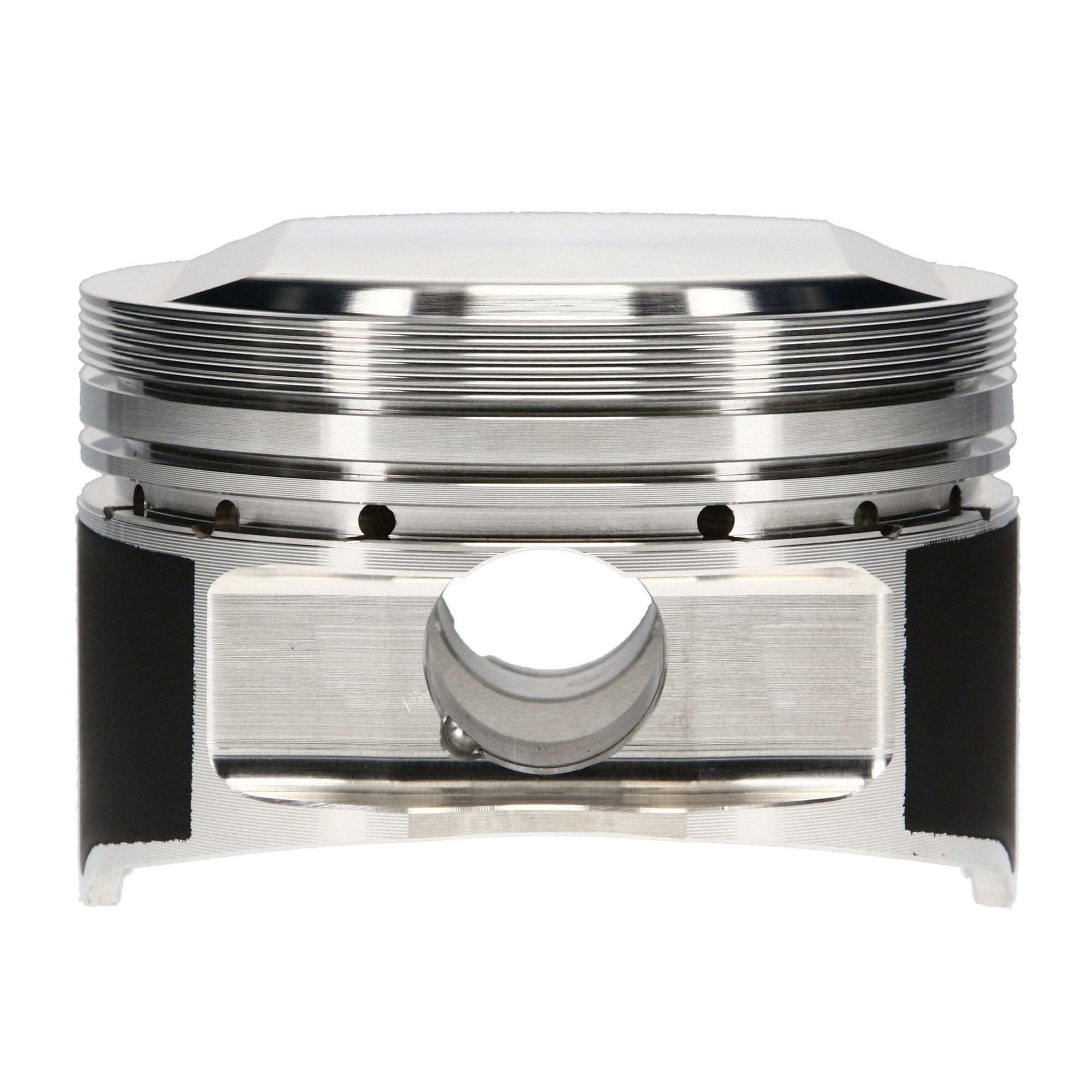

Piston Set, 2618, Dome, 3.396 Bore, 1.253 CD, 0.866 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Nissan, SR Series, 3.396 in. Bore, 10.00:1, Dome, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan SR20DET, 86.25 Bore, Dome, Set of 4 |
| Prop 65 Yes/No |
Yes |
| Ringset Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Second Compression Ring Thickness |
0.0480 |
| Out of Stock Message |
Call for Availability |
| Engine |
SR SERIES |
| Make - Web |
Nissan |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Pistons Nissan SR Series Piston Kit - 86.25 mm Bore - 1.253 in. CH, -2.20 CC |
| Cylinder Head |
SR20DE |
| Add-On |
JG1001-3396 |
| Add-On |
866-2250-18-51C |
| Add-On |
866-063-MW |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.111 |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Compression Height |
1.253 |
| Title |
JE Pistons - Nissan, SR Series, 86.25 mm Bore, Piston Kit |
| Forging Type |
FSR |
| Wrist Pin Length |
2.250 |
| Product Market |
Sport Compact |
| Bore Diameter |
86.25 |
| Piston Pin Outside Diameter |
0.866 |
| Piston Volume |
-2.20 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Top Compression Ring Thickness |
0.0400 |
| Piston Material |
2618 |
| Piston Quantity |
4 |
| Industry |
Automotive |
| Engine Type |
ICE |
| Make |
NISSAN |
| Piston Pin Wall Thickness |
0.180 |
| Piston Average Weight |
314 |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.866 |
| Engine - Web |
SR Series |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
