As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Audi 5.2L FSI R8 V10 |
| Description_DES |

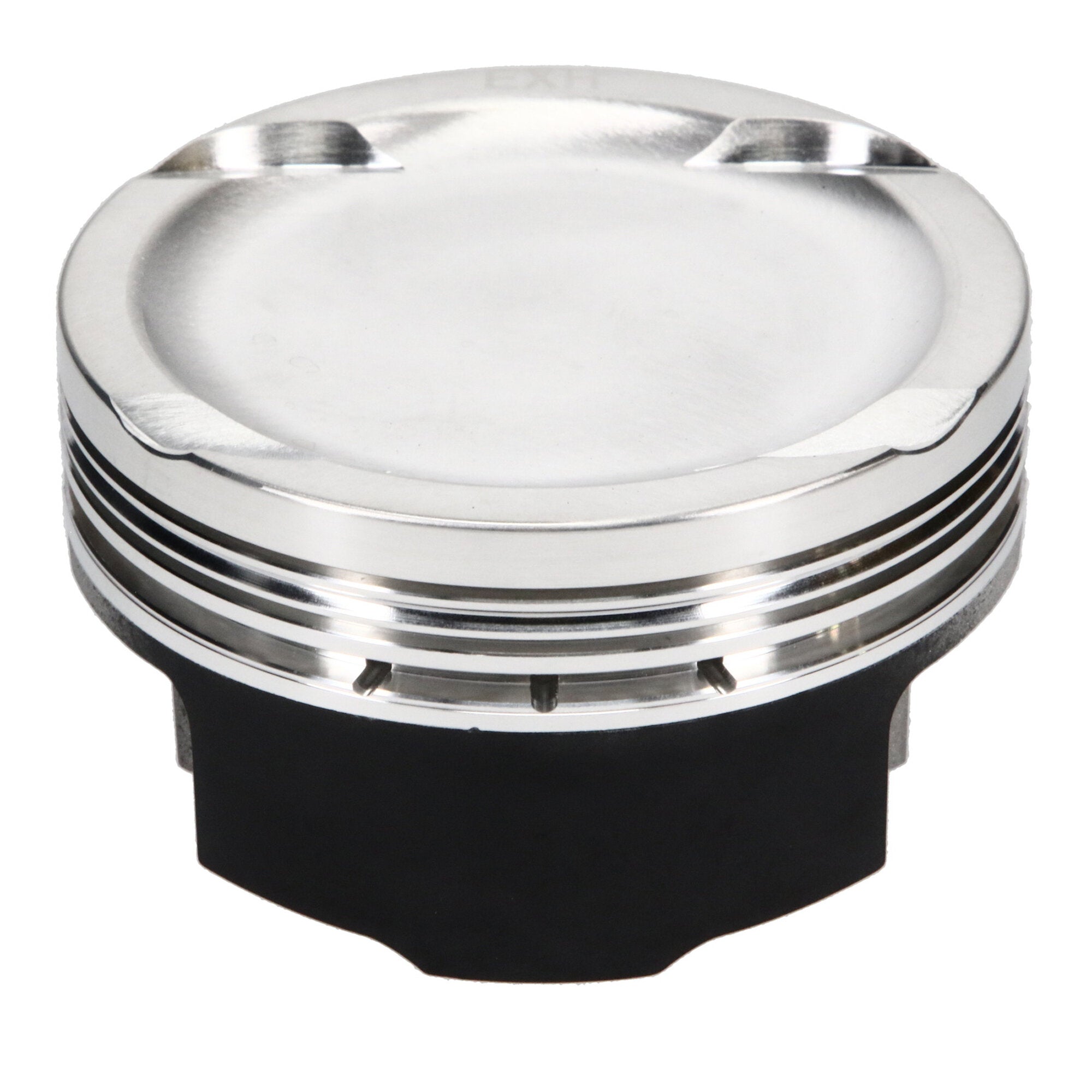

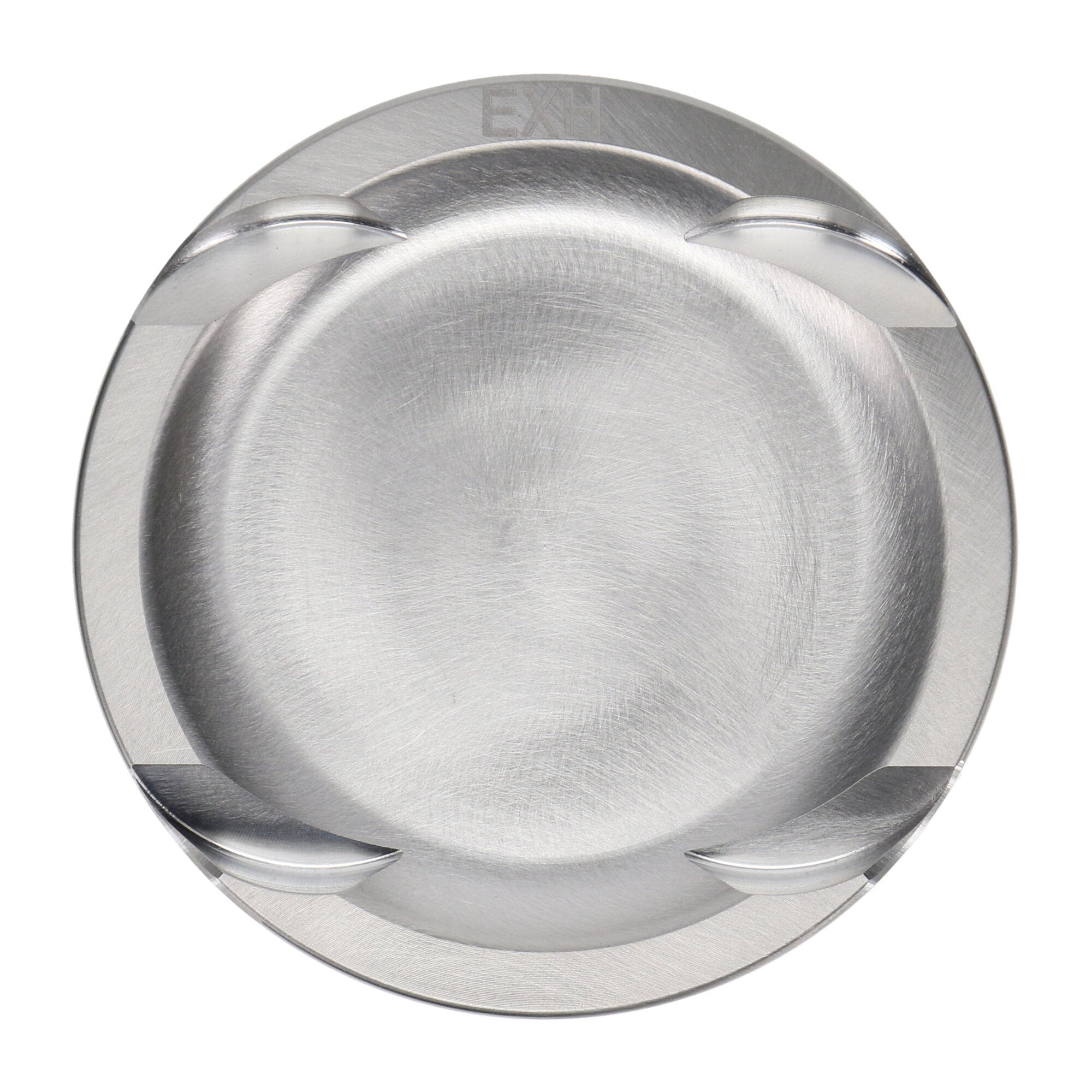

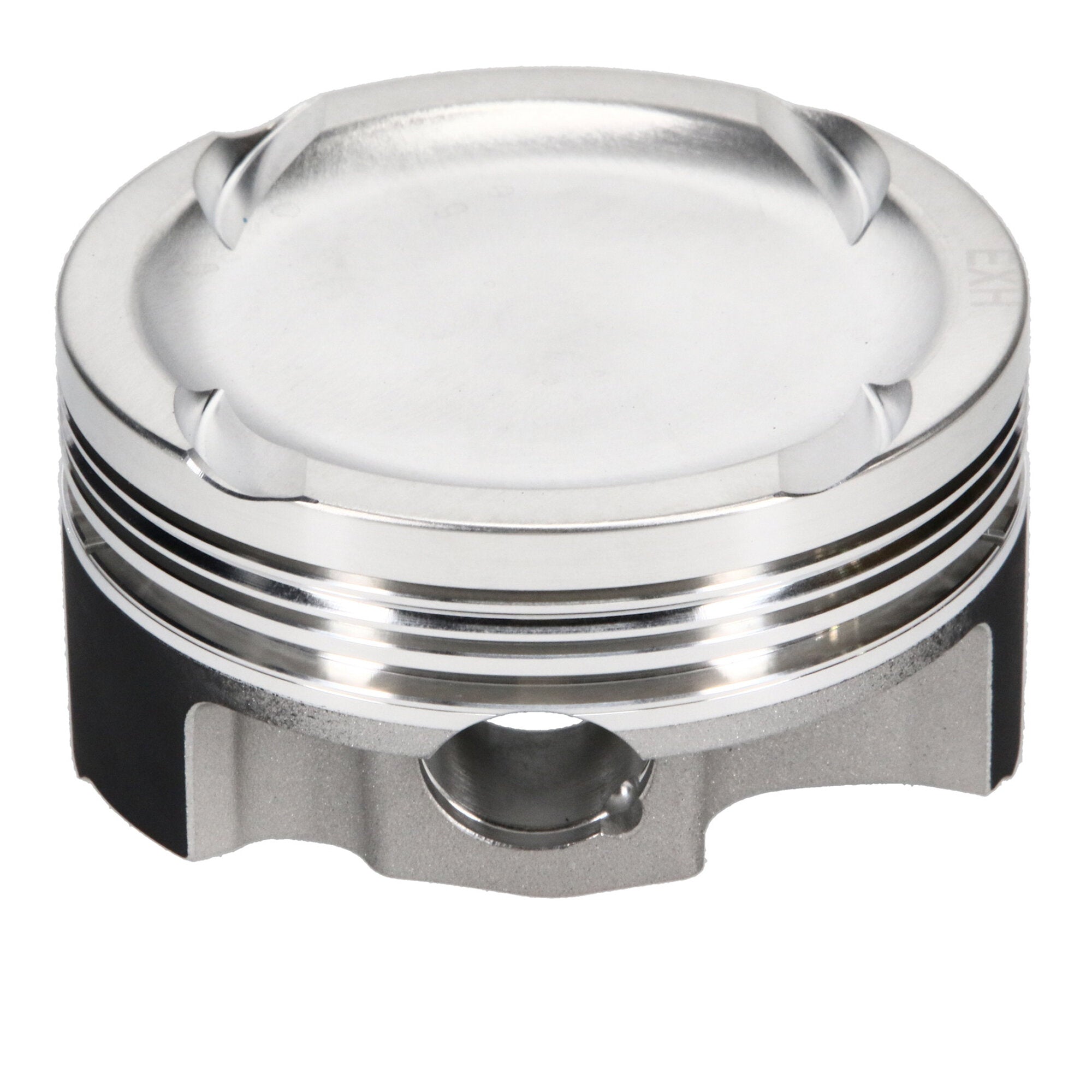

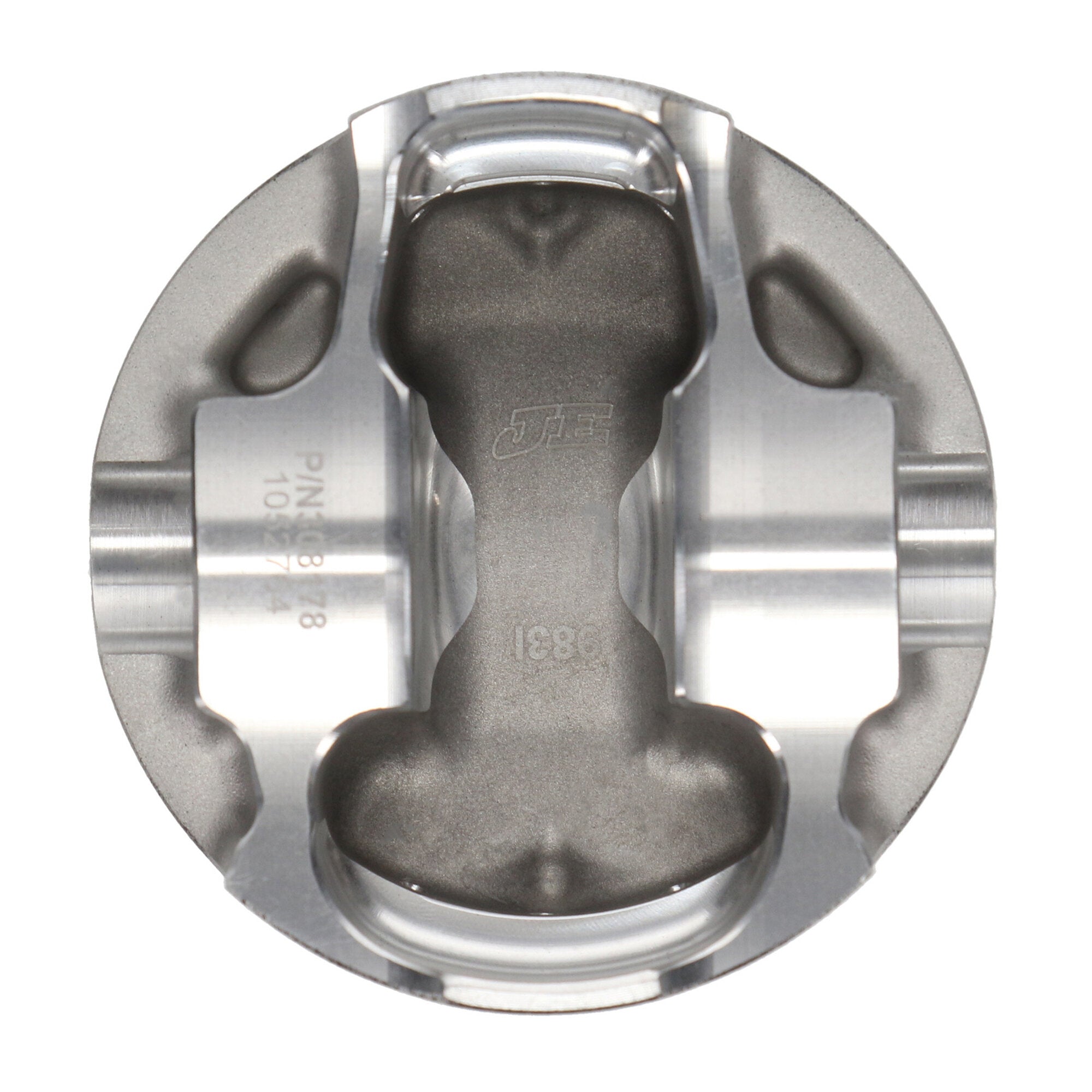

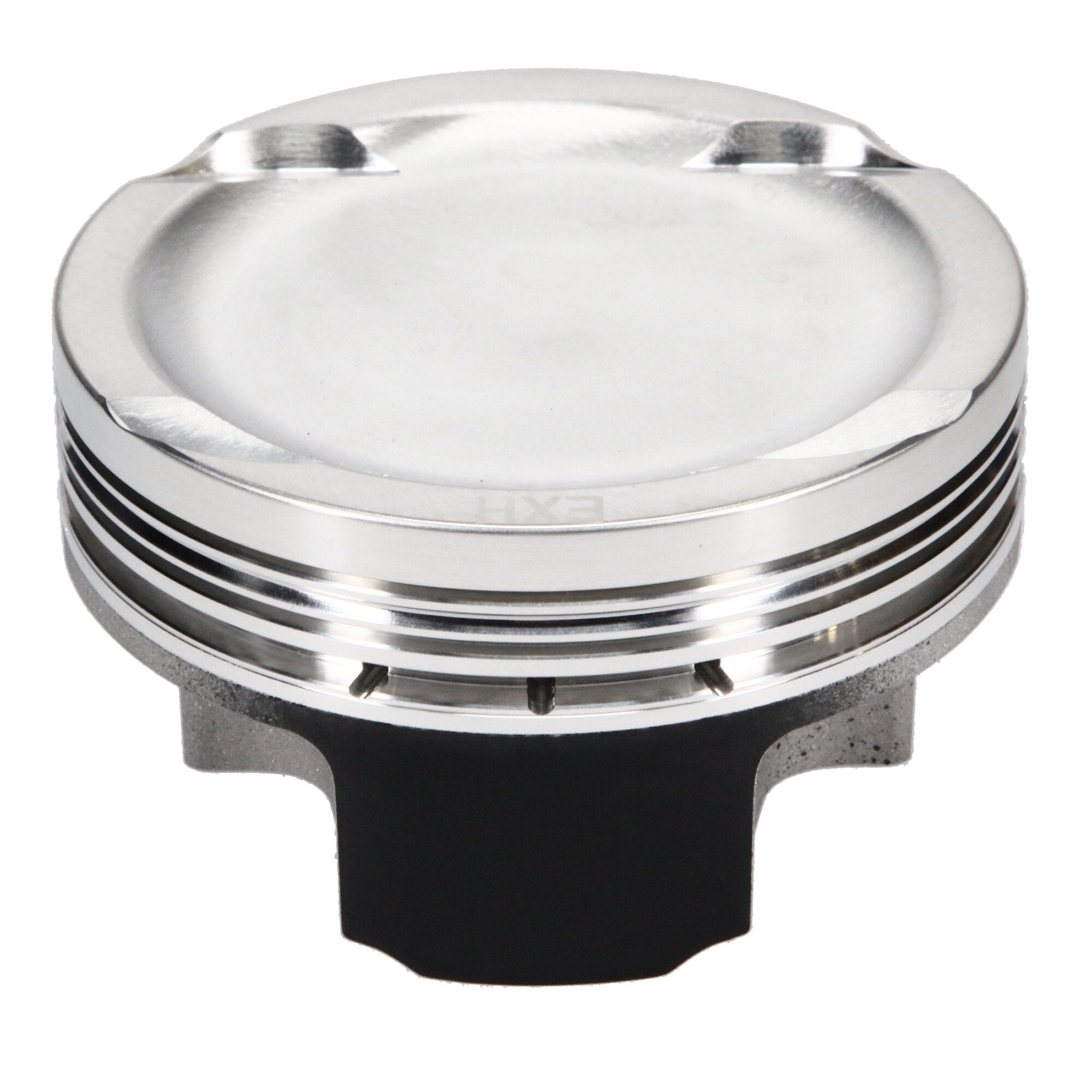

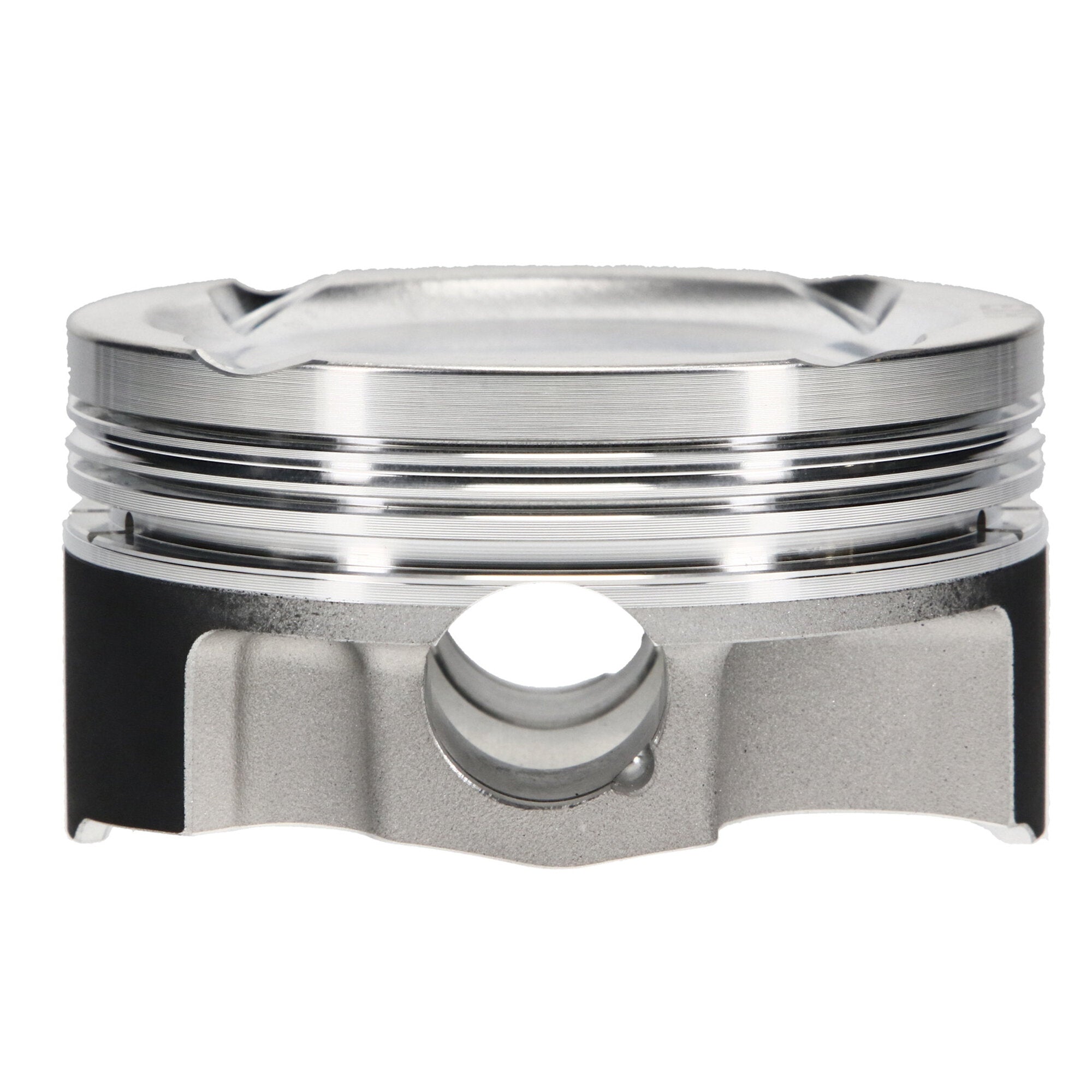

Piston Set, 2618, Inv Dome/Dish, 3.346 Bore, 1.086 CD, 0.787 Pin, Set of 10. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Audi, 5.2L FSI R8 V10, 3.346 in. Bore, 9.00:1, Inverted Dome/Dish, 1 Cyl. Piston Kit |
| Description_TLE |
Audi 5.2L FSI V10, 85.00 Bore, Dish, Set of 10 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Industry |
Automotive |
| Piston Quantity |
0 |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-14.60 |
| Piston Pin Length |
2.250 |
| Make - Web |
Audi |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Add-On |
787-2250-21-93C |
| Second Compression Ring Thickness |
0.0480 |
| Engine Type |
ICE |
| Cylinder Head |
5.2L FSI V10 |
| Add-On |
787-050-MW |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Engine |
5.2L FSI R8 V10 |
| Prop 65 Yes/No |
Yes |
| Add-On |
XC8500 |
| Title - Web |
JE Pistons Audi 5.2L FSI R8 V10 Piston Kit - 85.00 mm Bore - 1.086 in. CH, -14.60 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Material |
9310 |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Piston Head Type |
Dish |
| Make |
AUDI |
| Title |
JE Pistons - Audi, 5.2L FSI R8 V10, 85.00 mm Bore, Piston Kit |
| Product Market |
European |
| Piston Pin Outside Diameter |
0.787 |
| Compression Height |
1.086 |
| Bore Diameter |
85.00 |
| Ringset Included |
Yes |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Wall Thickness |
0.210 |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Wall Thickness |
0.210 |
| Engine - Web |
5.2L FSI R8 V10 |
| Wrist Pin Outer Diameter |
0.787 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
