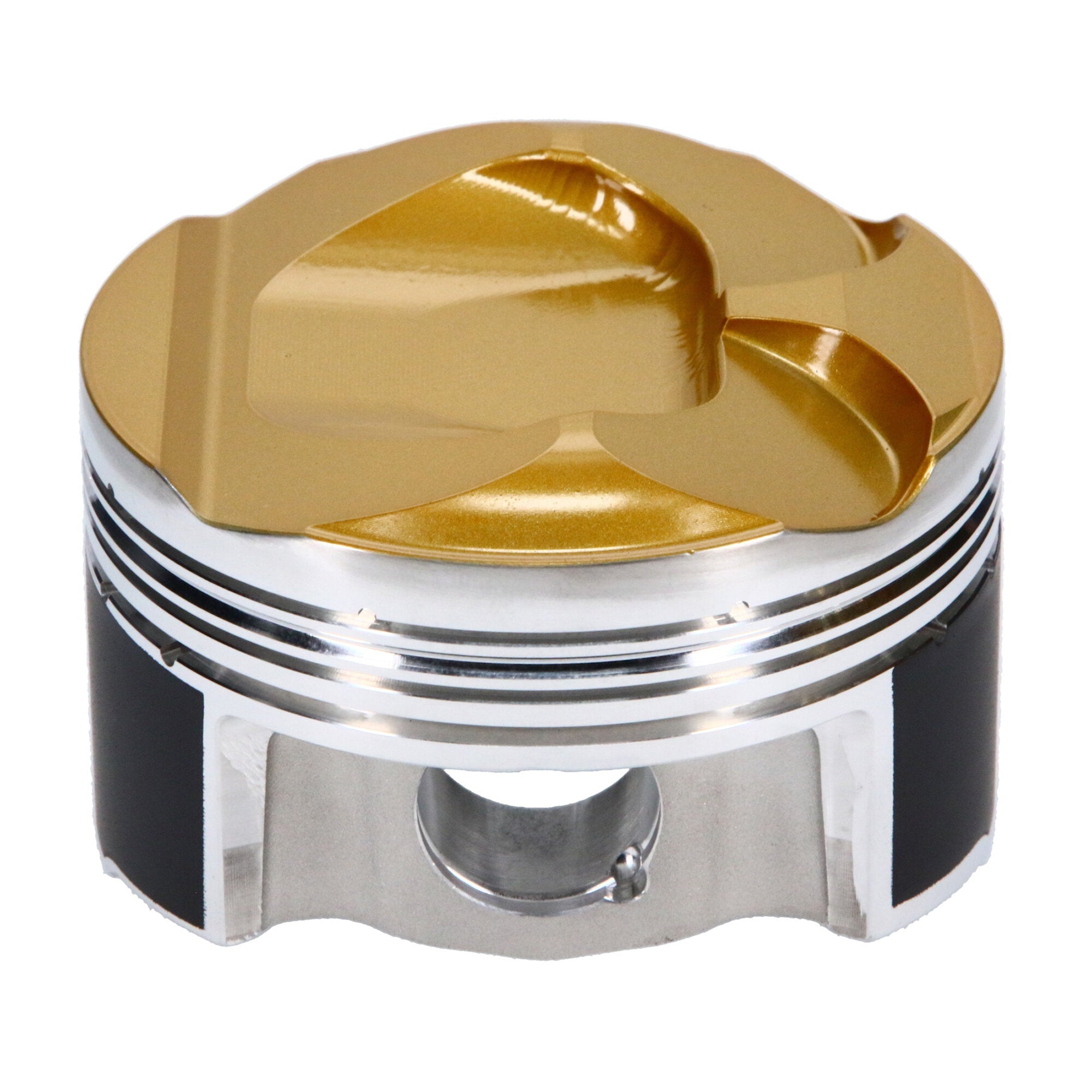

JE Pistons 361279 Piston Set, 2618, Dome, 3.406 Bore, 1.260 CD, 0.866 Pin, Set of 4.
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
Description_ASM | Honda K20C |
Description_DEF | Engine Piston Kit |
Description_DES | Piston Set, 2618, Dome, 3.406 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
Description_EXT | JE Ultra, Honda, K20C Series, 3.406 in. Bore, 10.00:1, Dome, 4 Cyl. Piston Kit |
Description_INV | JE Pistons, Piston Kit |
Description_FAB |
|
Description_MKT | Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
Description_SHO | Piston Kit |
Description_TLE | Honda K20A, 86.50 Bore, Dome, Set of 4 |
Piston Material | 2618 |
Bore Diameter | 86.50 |
Out of Stock Message | Call for Availability |
Category Hierarchy | Auto>JE Ultra Series>Piston Kits>Sport Compact |
Title - Web | JE Ultra Series Honda K Series Piston Kit - 86.50 mm Bore - 1.260 in. CH, -0.86 CC |
Top Compression Ring Thickness | 0.0480 |
Industry | Automotive |
Add-On | JG1201-3405 |
Prop 65 Yes/No | Yes |
Piston Pin Outside Diameter | 0.866 |
Cylinder Head | K20C |
Add-On | 866-2250-23-93C |
Add-On | 866-063-MW |
Prop 65 - Short Label | Prop 65 Warning Label.JPG |
Wrist Pin Length | 2.250 |
Wrist Pin Material | 9310 Nickel Carbon Steel Alloy |

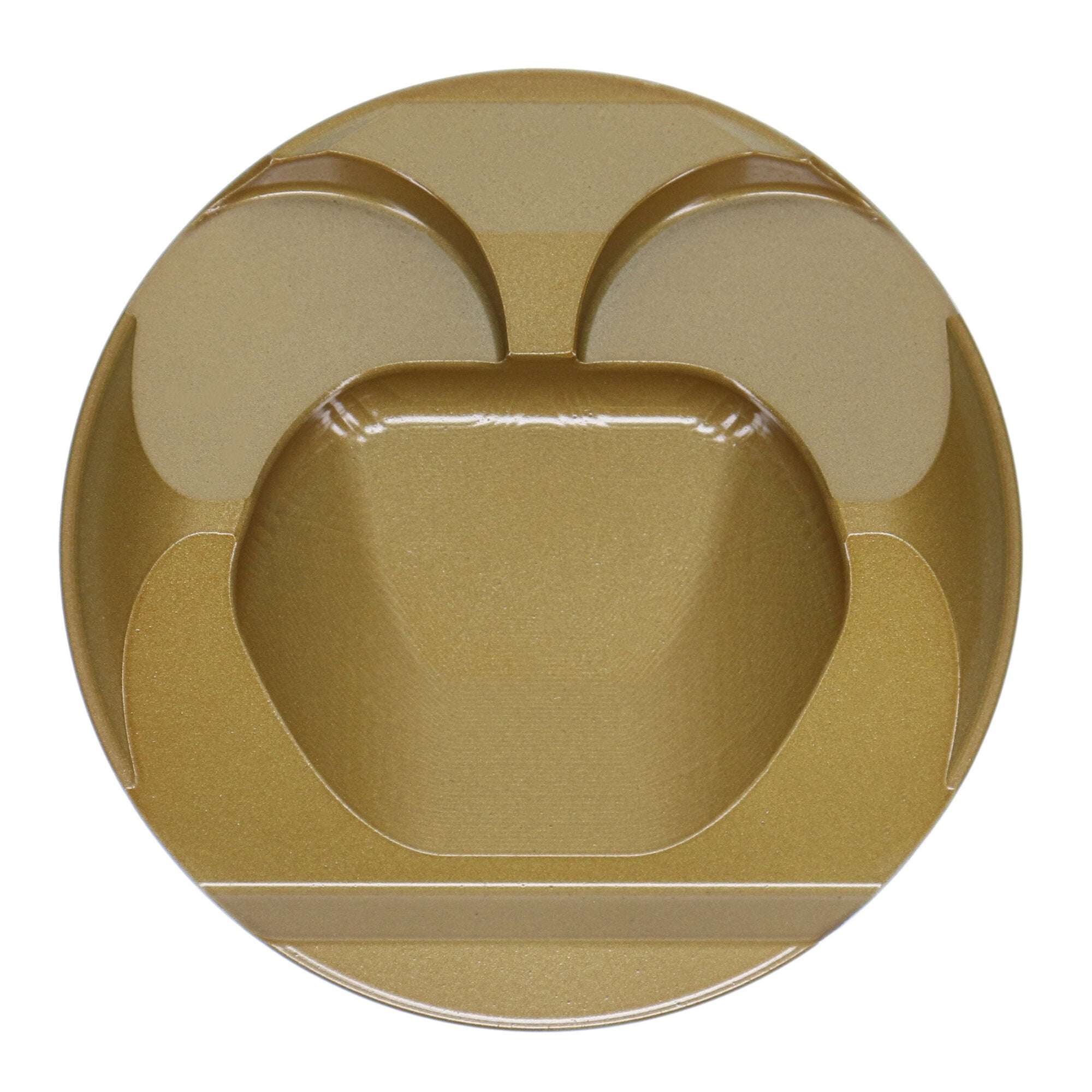

Piston Head Type | Dome |
Piston Pin Length | 2.250 |
Second Compression Ring Thickness | 0.0480 |
Prop 65 (C, R or CR) | CR |
Piston Volume | -0.86 |
Engine | K20C SERIES |
Product Type | Engine Piston Kit |
Engine Detail | K20C Series |
Ring Set Included | Yes |
Make - Web | Honda |
Wrist Pin Outer Diameter | 0.866 |
Piston Pin Material | 9310 |
Piston Pin Wall Thickness | 0.230 |
Compression Height | 1.260 |
Forging Type | FSR |
Oil Ring Thickness | 0.079 |
Product Market | Sport Compact |
Title | JE Ultra Series - Honda, K Series, 86.50 mm Bore, Piston Kit |
Engine Type | ICE |
Make | HONDA |
Ringset Included | Yes |
Piston Series | JE Ultra Series |
Wrist Pin Wall Thickness | 0.230 |
Engine - Web | K Series |
Length | 5.0000 |
Width | 9.0000 |
Height | 9.0000 |
Weight | 6.0000 |
