As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 3.5L Ecoboost Gen II V6 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

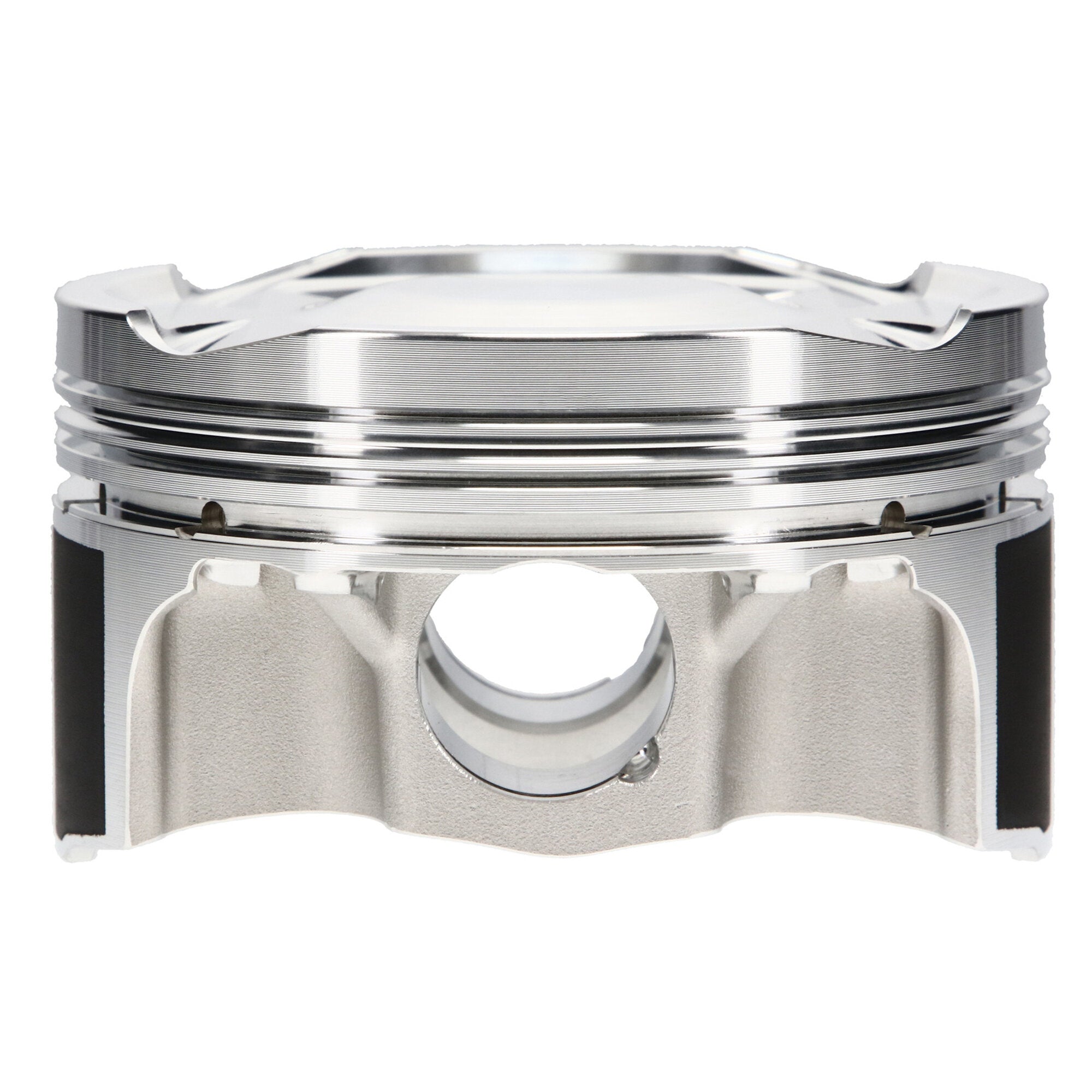

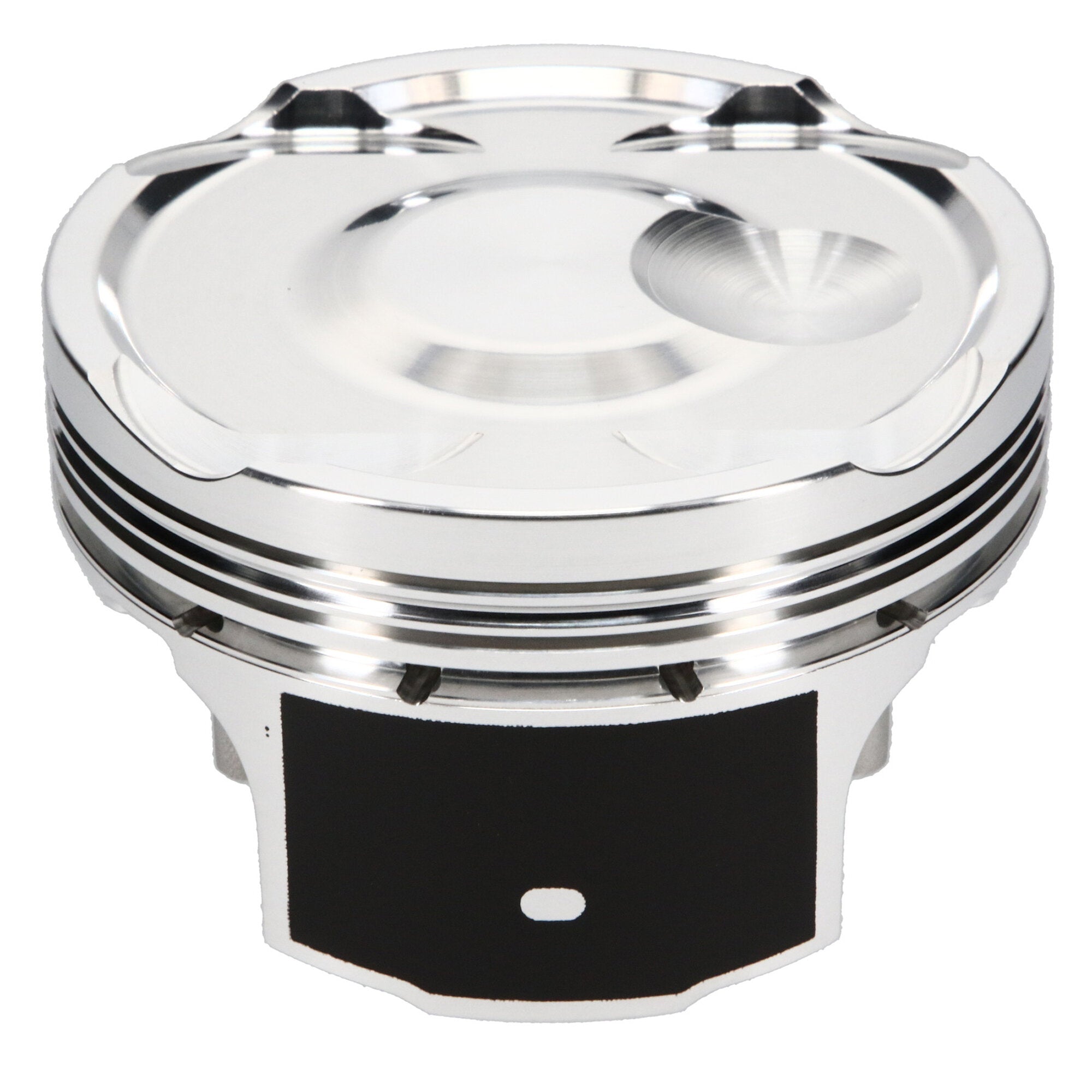

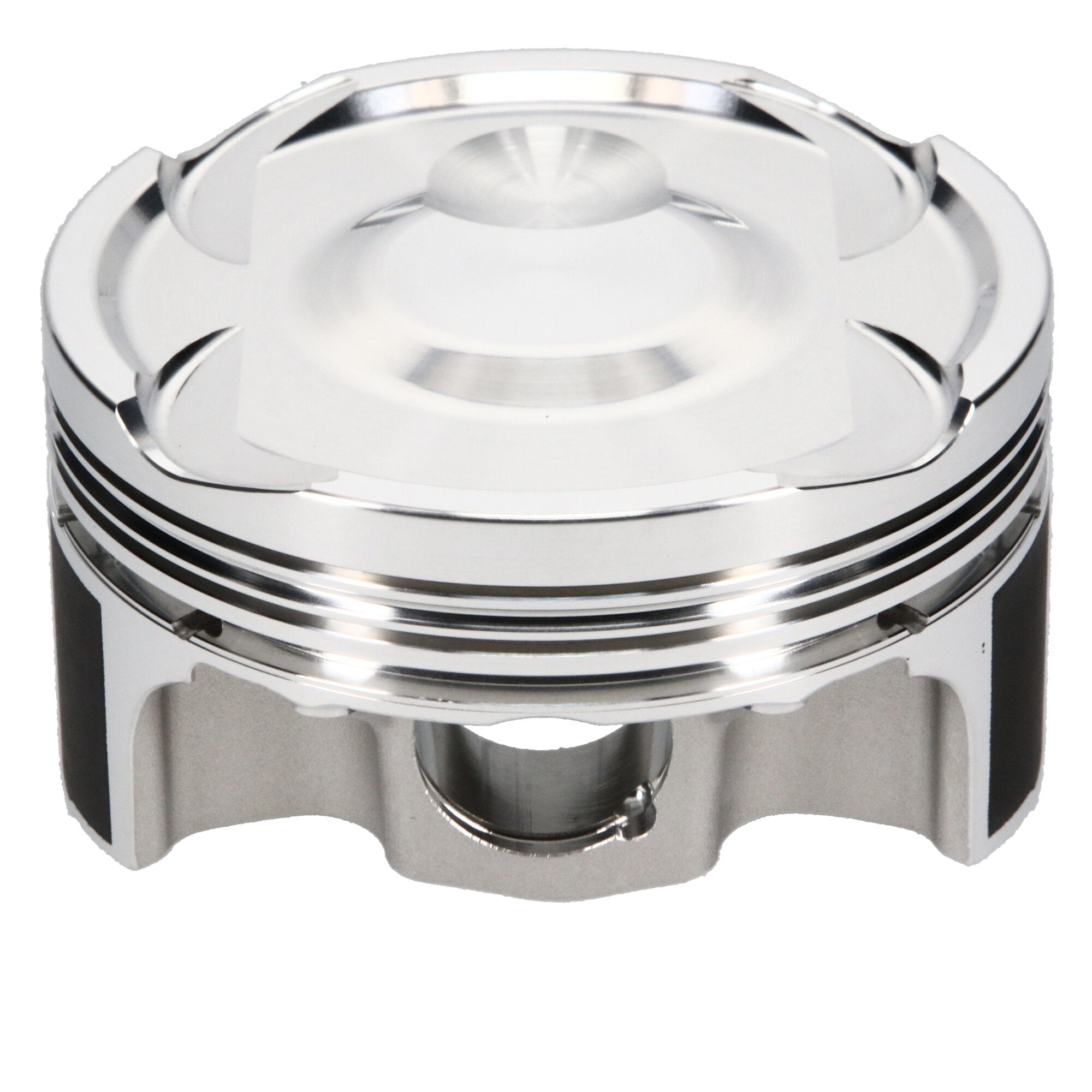

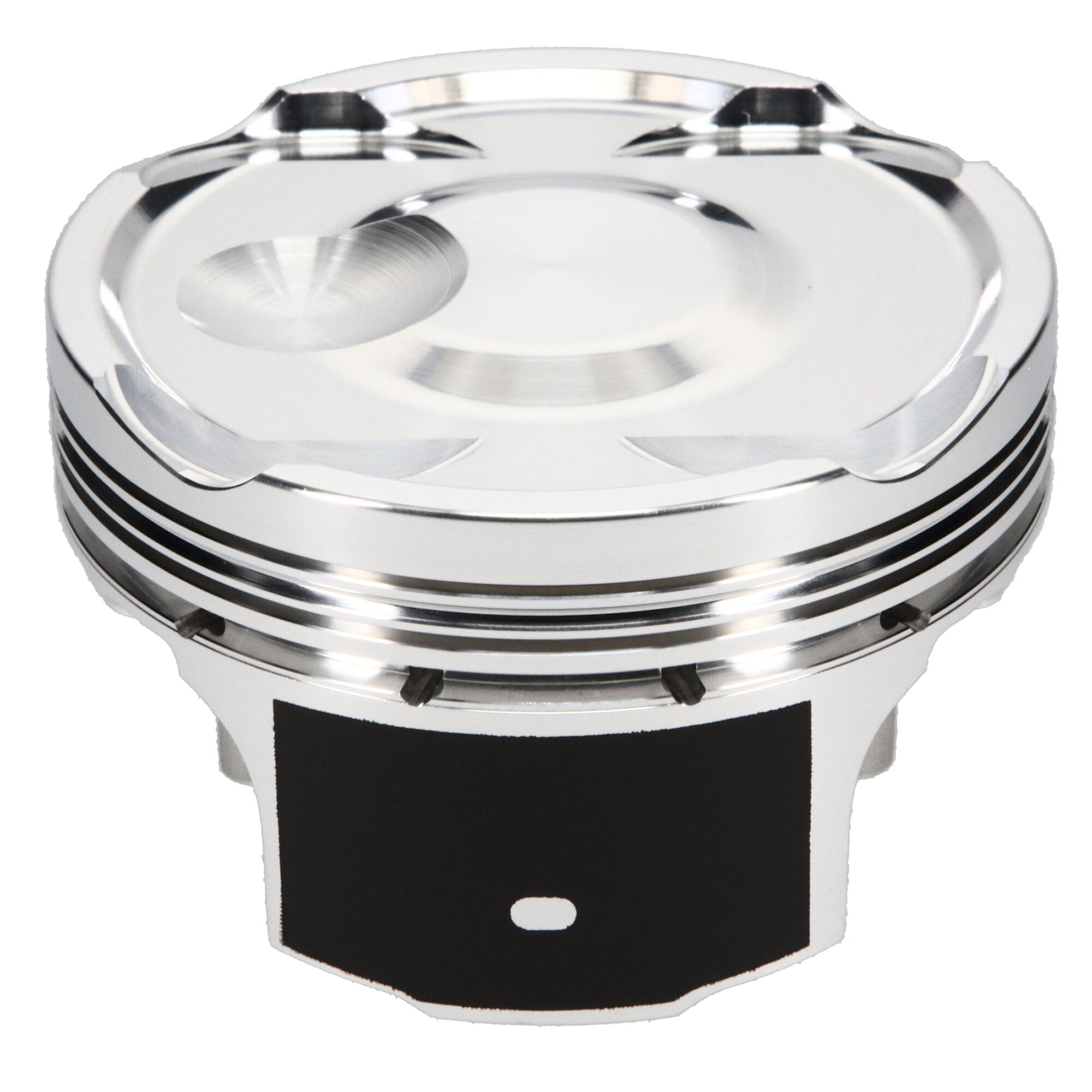

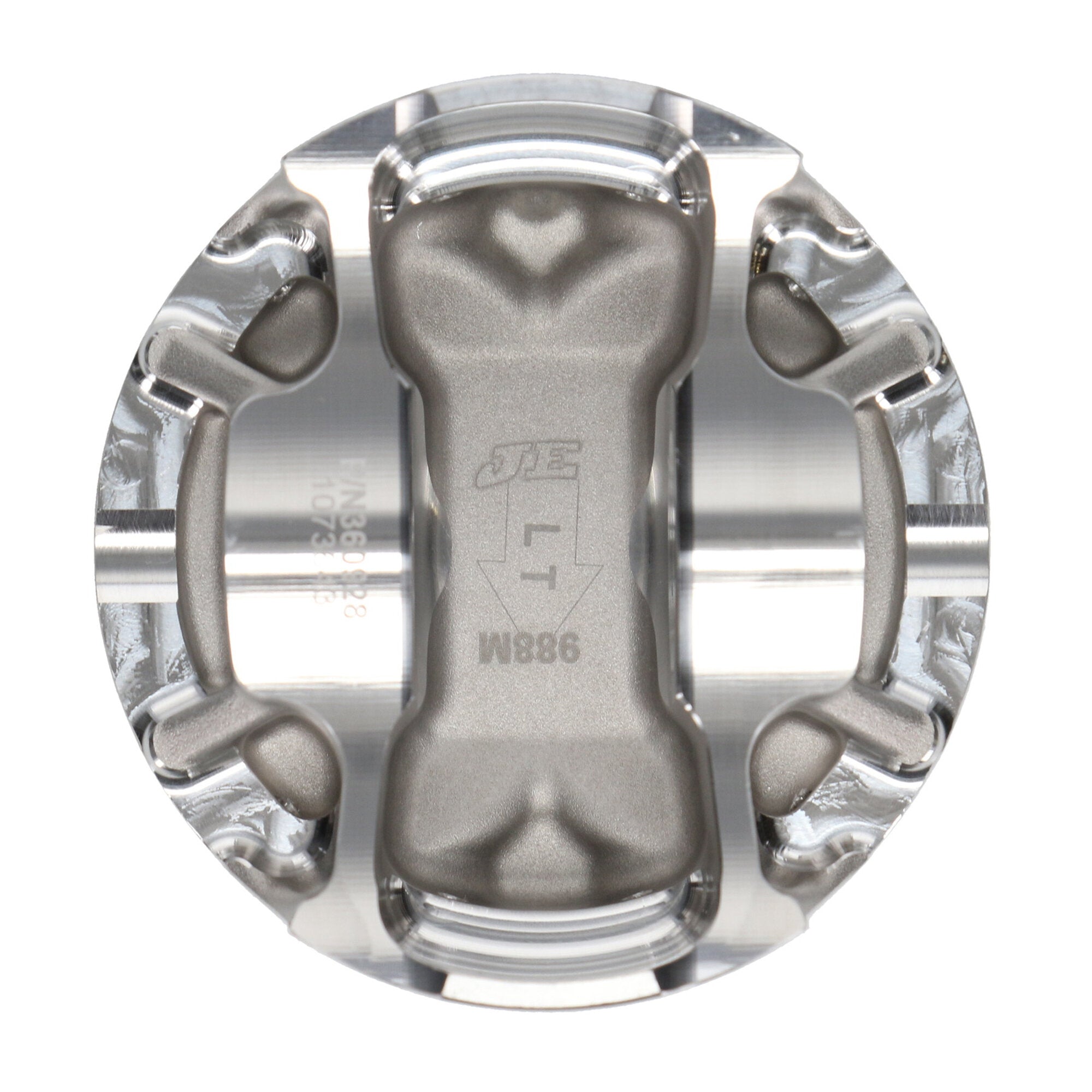

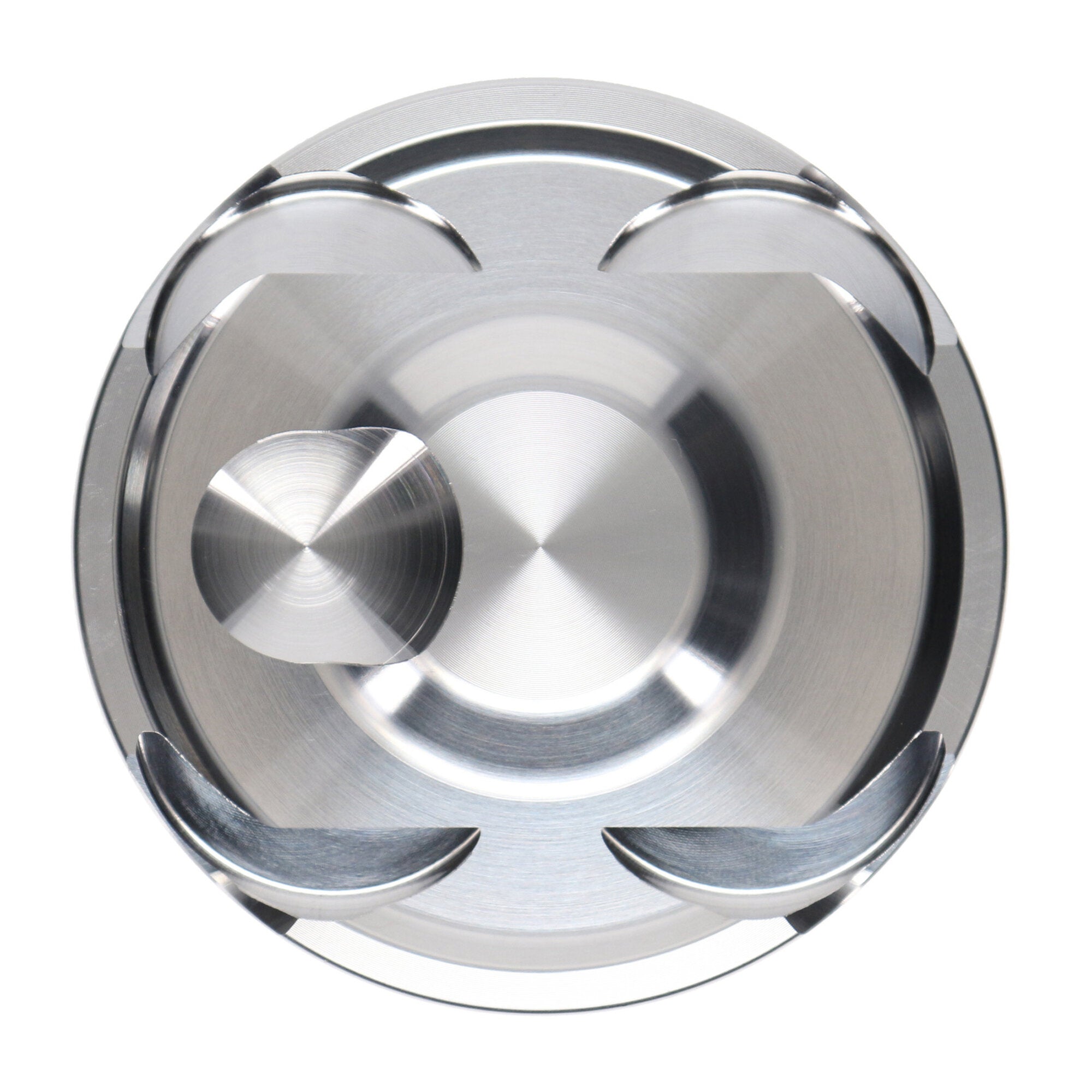

Piston Set, 2618, Inv Dome/Dish, 3.642 Bore, 1.240 CD, 0.905 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, 3.5L EcoBoost Gen 2 V6, 3.642 in. Bore, 10.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 3.5L Eco Boost V6, 92.50 Bore, Dish, Set of 6 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0480 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-9.10 |
| Ring Set Included |
Yes |
| Add-On |
JG1001-3642 |
| Add-On |
905-2250-18-51C |
| Industry |
Automotive |
| Cylinder Head |
ECOBOOST V6 |
| Add-On |
905-073-MW |
| Title - Web |
JE Pistons Ford 3.5L EcoBoost Gen 2 V6 Piston Kit - 92.50 mm Bore - 1.240 in. CH, -9.10 CC |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title |
JE Pistons - Ford, 3.5L EcoBoost Gen 2 V6, 92.50 mm Bore, Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.250 |
| Engine |
3.5L ECOBOOST GEN 2 V6 |
| Ringset Included |
Yes |
| Compression Height |
1.240 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
3.5L EcoBoost Gen 2 V6 |
| Make - Web |
Ford |
| Top Compression Ring Thickness |
0.0400 |
| Forging Type |
FSR |
| Make |
FORD |
| Product Market |
Sport Compact |
| Piston Pin Outside Diameter |
0.905 |
| Piston Pin Material |
5115 |
| Piston Quantity |
6 |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.180 |
| Bore Diameter |
92.50 |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.905 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
8.0000 |
