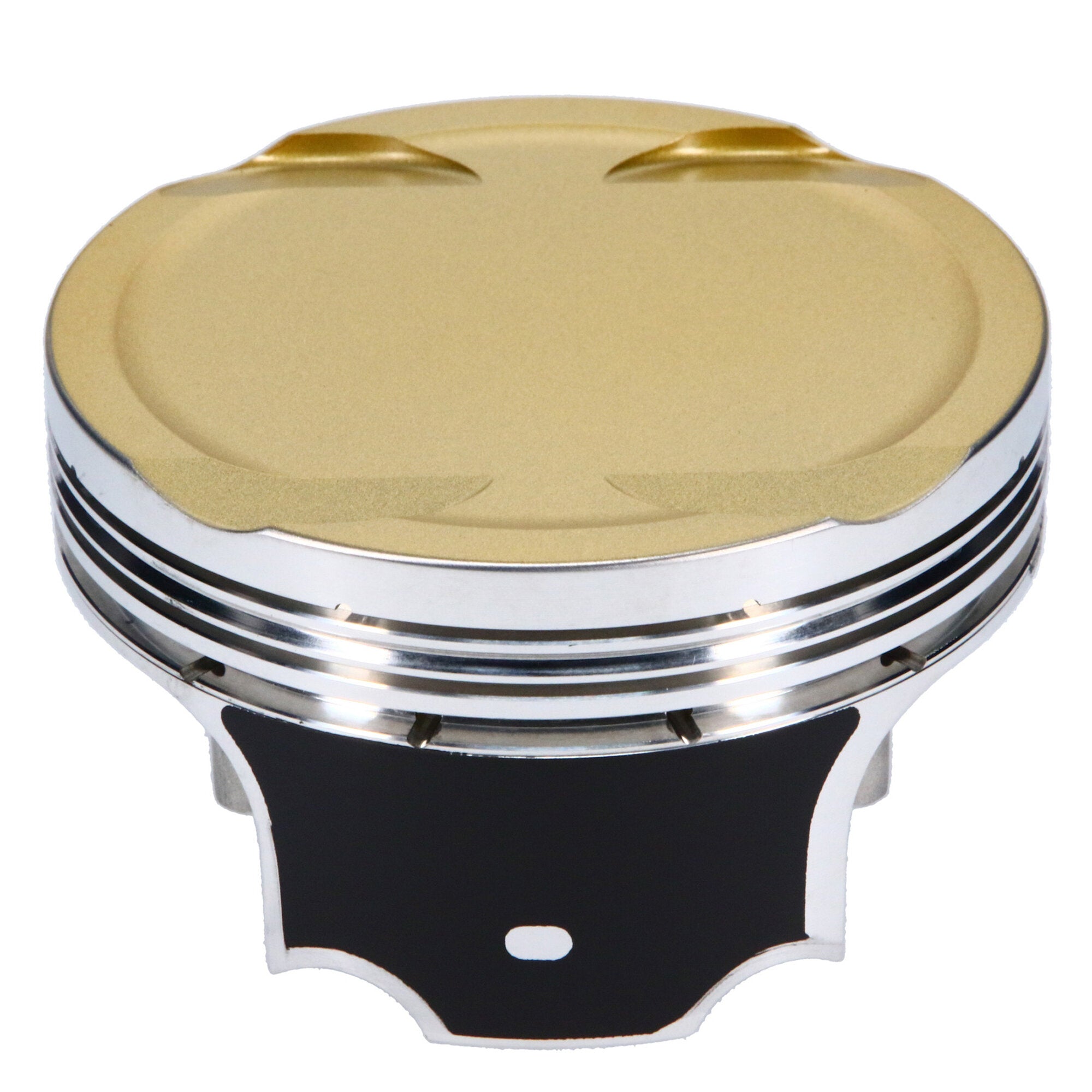

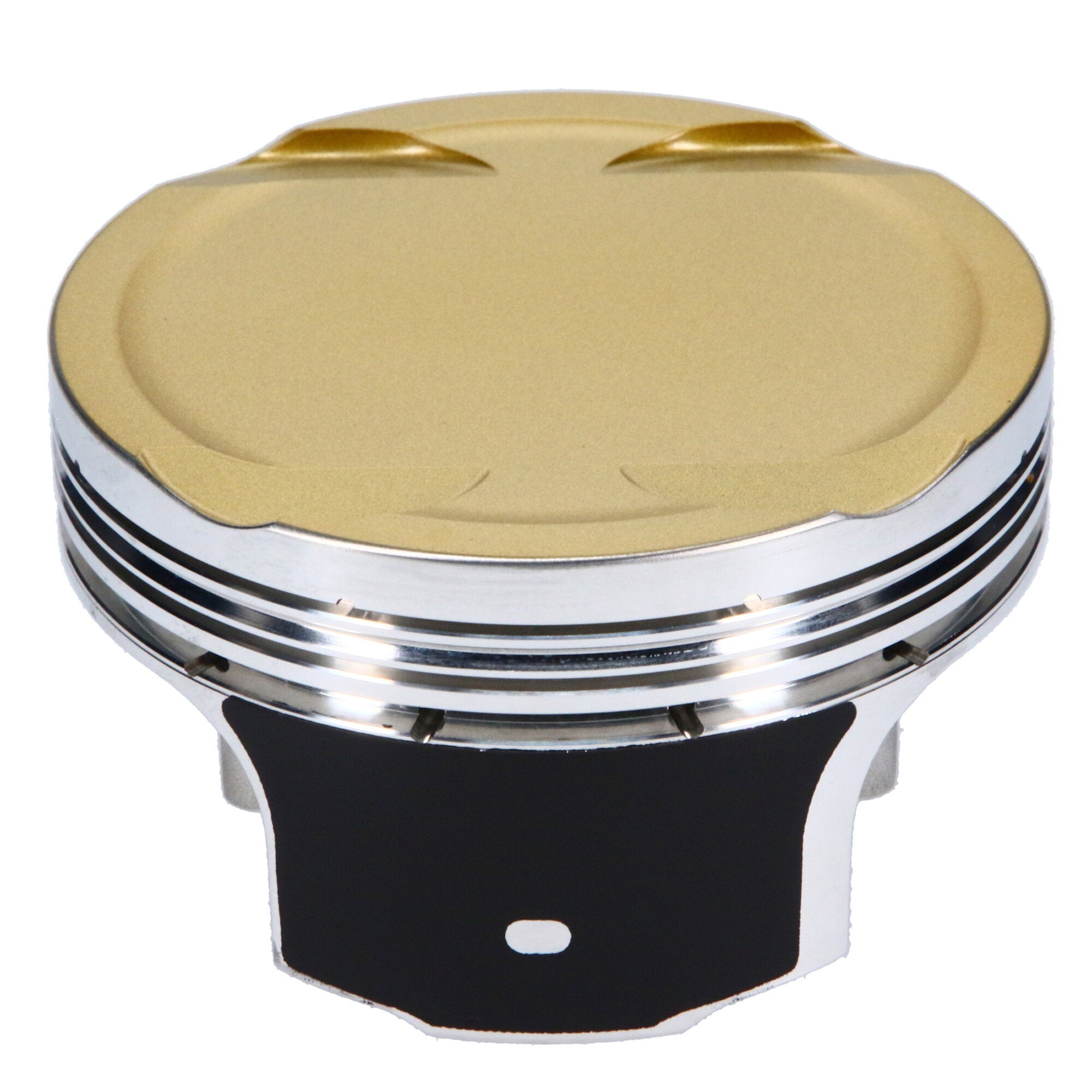

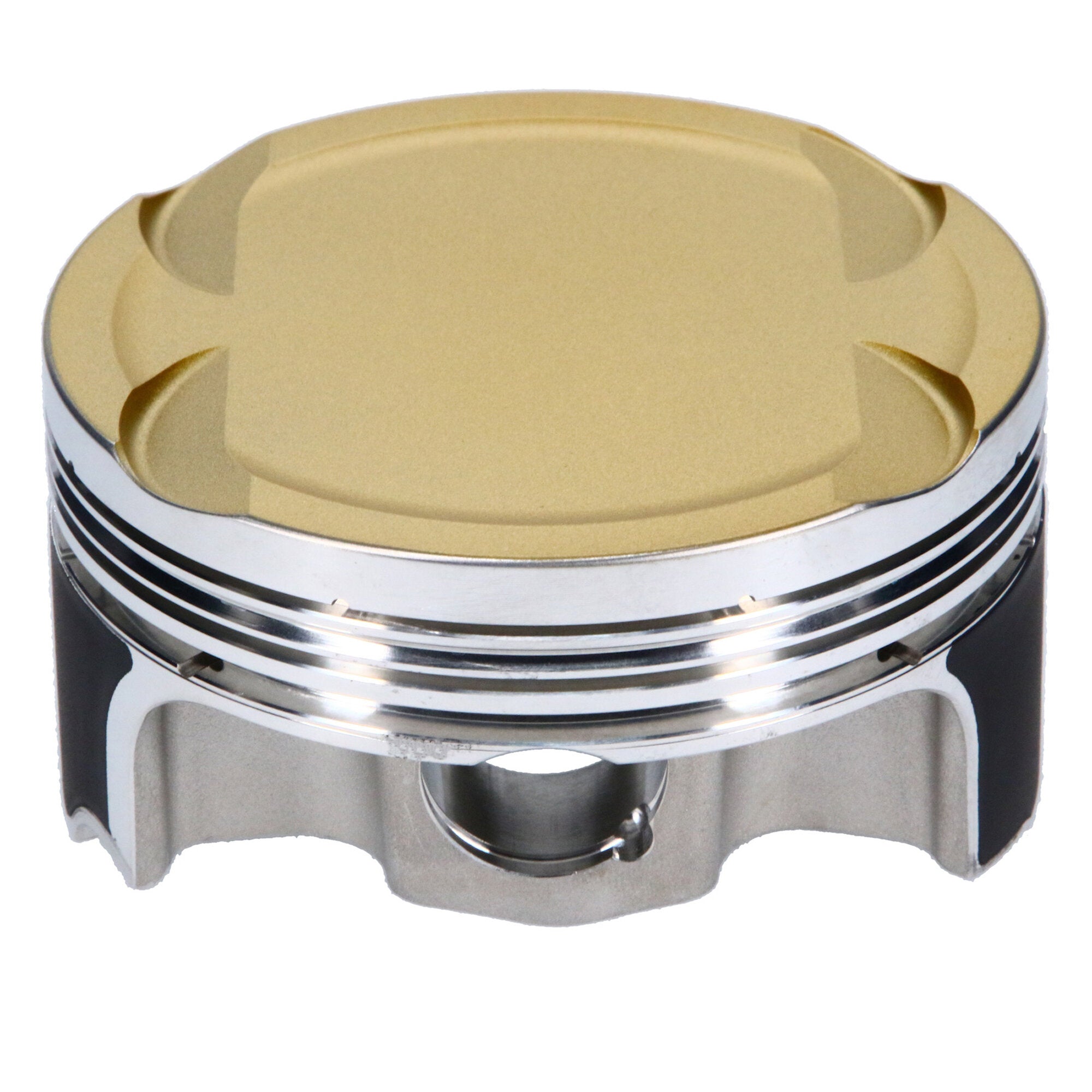

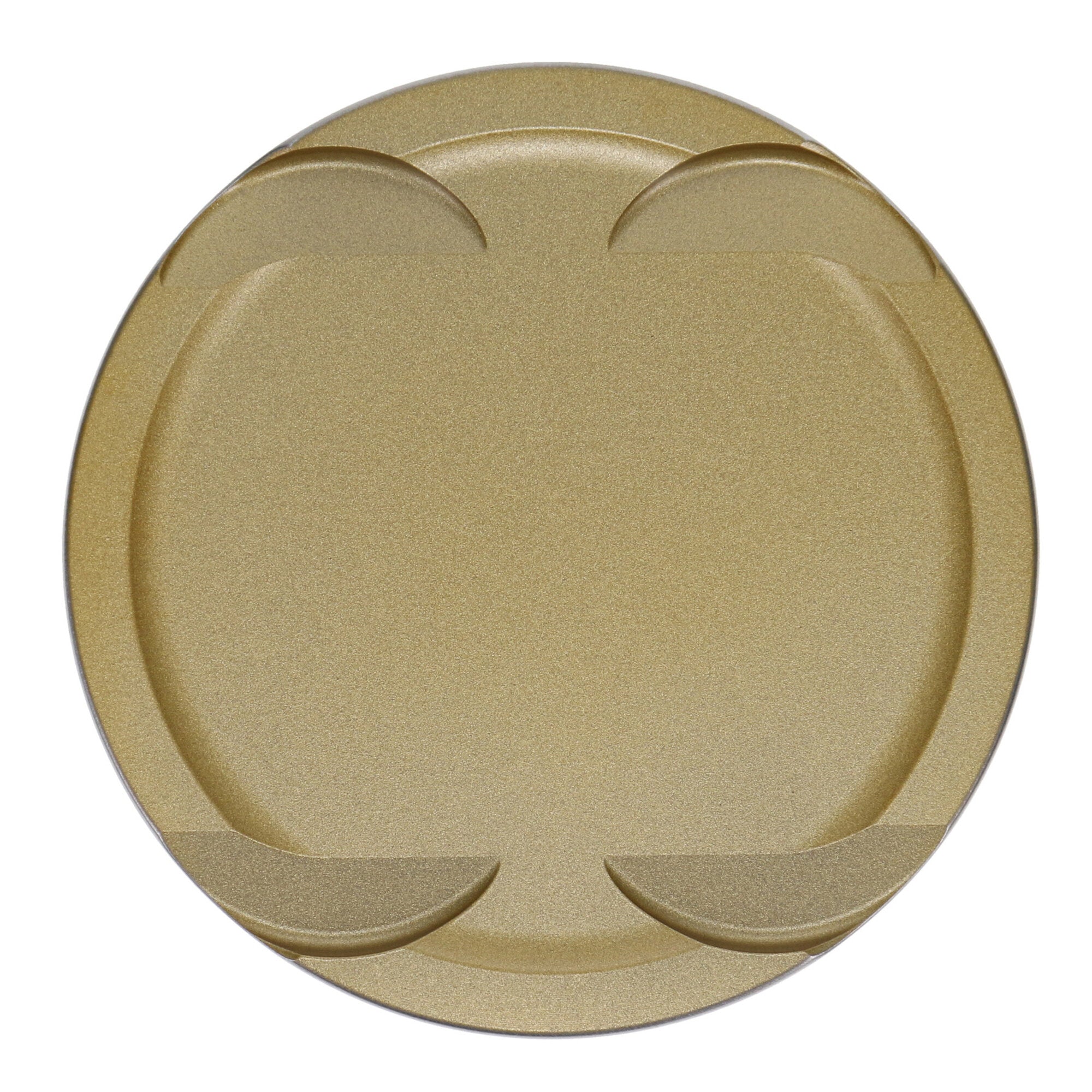

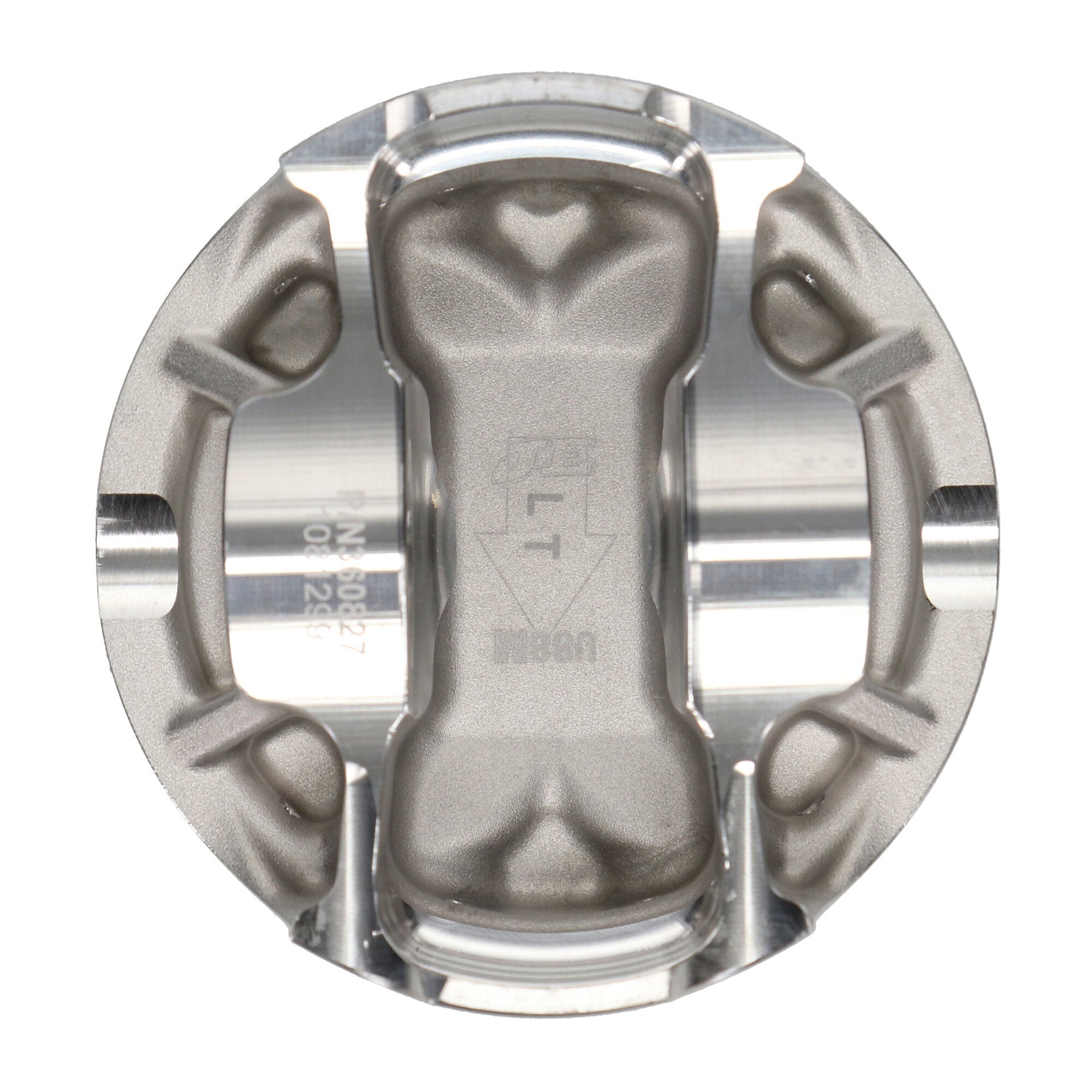

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford 5.0L Coyote |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.661 Bore, 1.168 CD, 0.866 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE Ultra, Ford, Modular Ford, 3.661 in. Bore, 1.168 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_TLE |
Ford 5.0L Coyote, 3.661 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Industry |
Automotive |
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 3 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
1.36 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Piston Material |
2618 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Add-On |
866-2250-23-93C |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Domestic |
| Title - Web |
JE Ultra Series Ford Modular Piston Kit - 3.661 in. Bore - 1.168 in. CH, 1.36 CC |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 Yes/No |
Yes |
| Add-On |
866-063-MW |
| Add-On |
JG1001-3661 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Forging Type |
FSR |
| Engine |
Modular |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Product Market |
Domestic |
| Bore Diameter |
3.661 |
| Piston Series |
JE Ultra Series |
| Top Compression Ring Thickness |
0.0395 |
| Piston Pin Outside Diameter |
0.866 |
| Make |
FORD |
| Engine Type |
ICE |
| Piston Pin Material |
9310 |
| Title |
JE Ultra Series - Ford, Modular, 3.661 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.111 |
| Piston Head Type |
Dome |
| Ringset Included |
Yes |
| Piston Pin Wall Thickness |
0.230 |
| Compression Height |
1.168 |
| Wrist Pin Wall Thickness |
0.230 |
| Wrist Pin Outer Diameter |
0.866 |
| Engine - Web |
Modular |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
12.0000 |
