| Description_ASM |
Ford 5.0L Coyote |
| Description_DES |

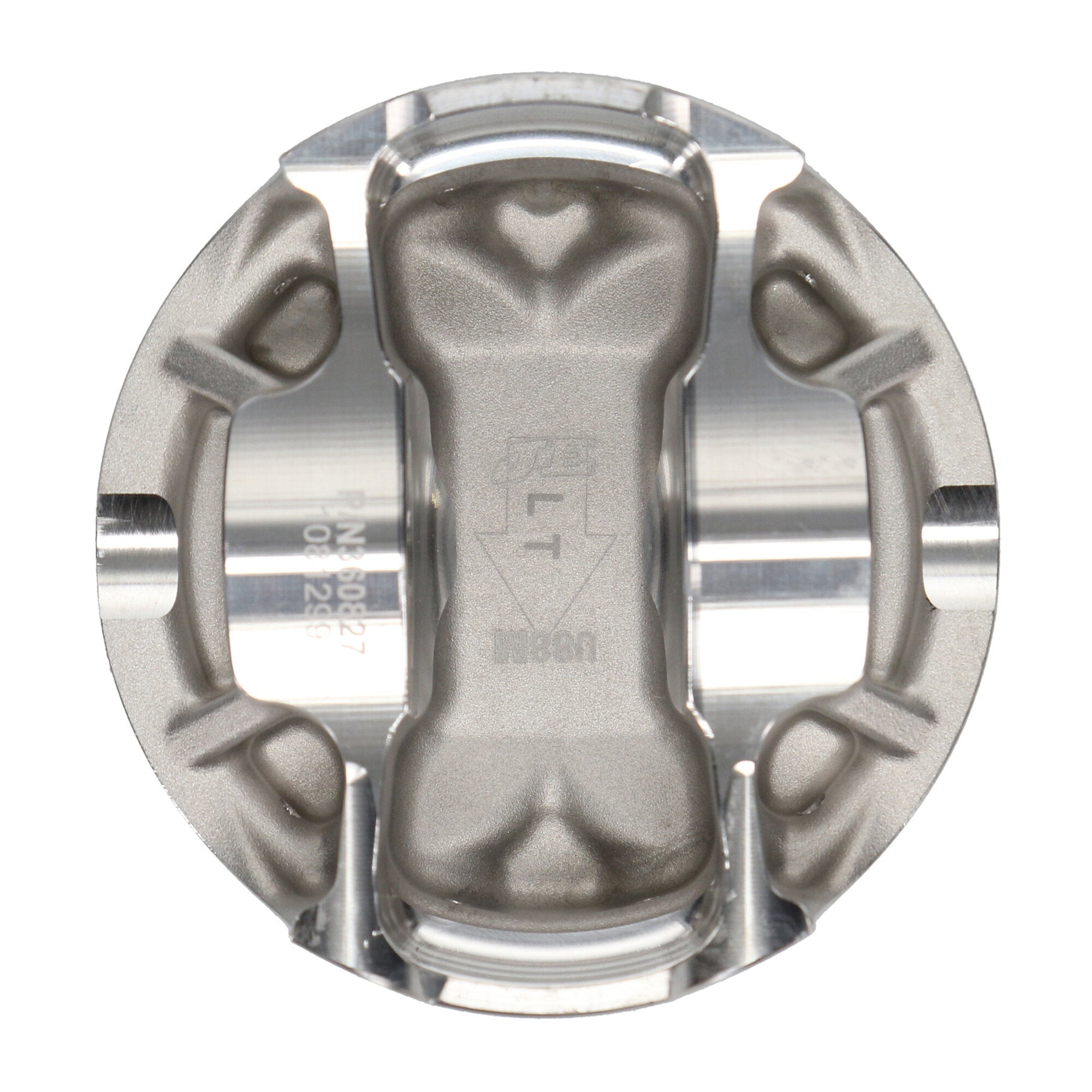

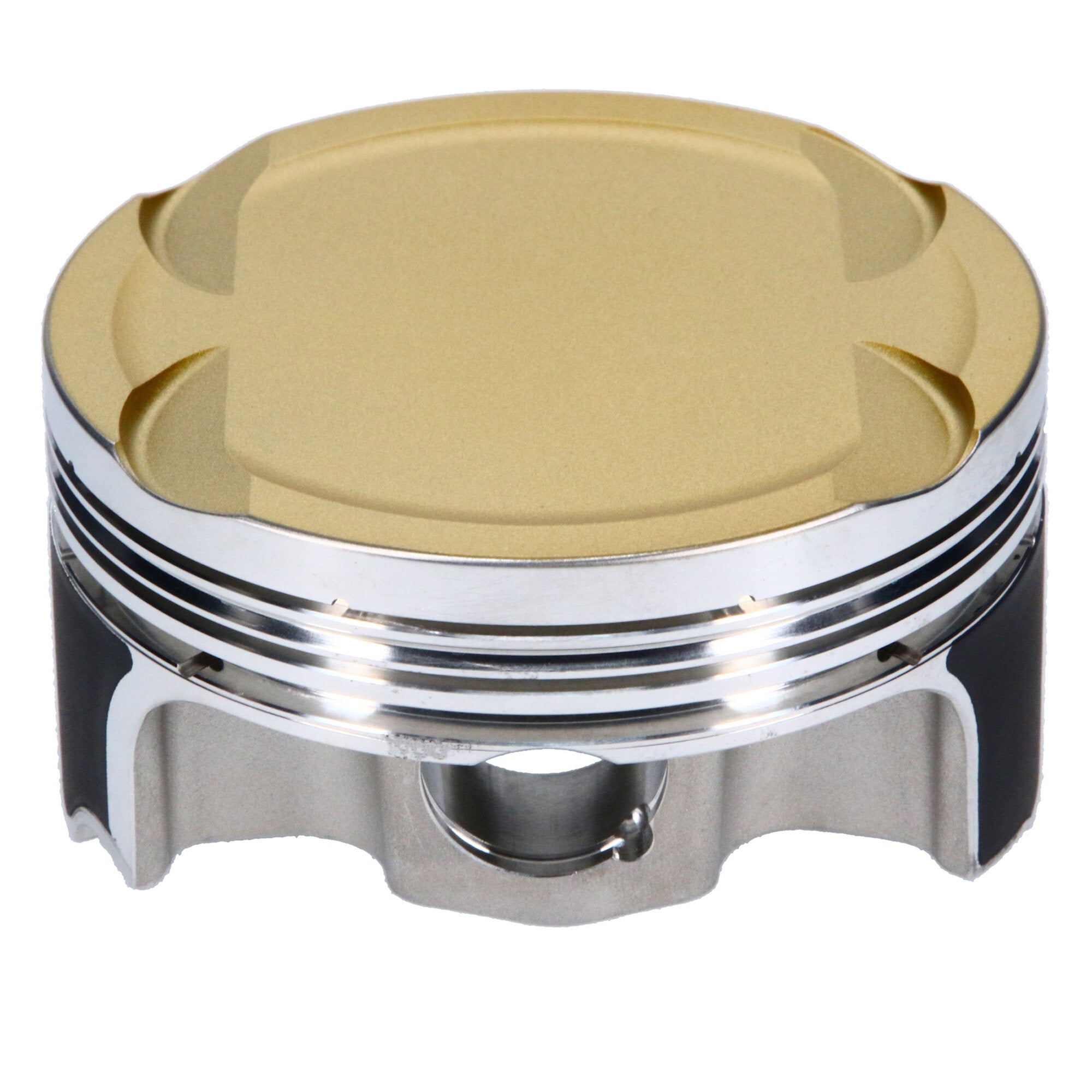

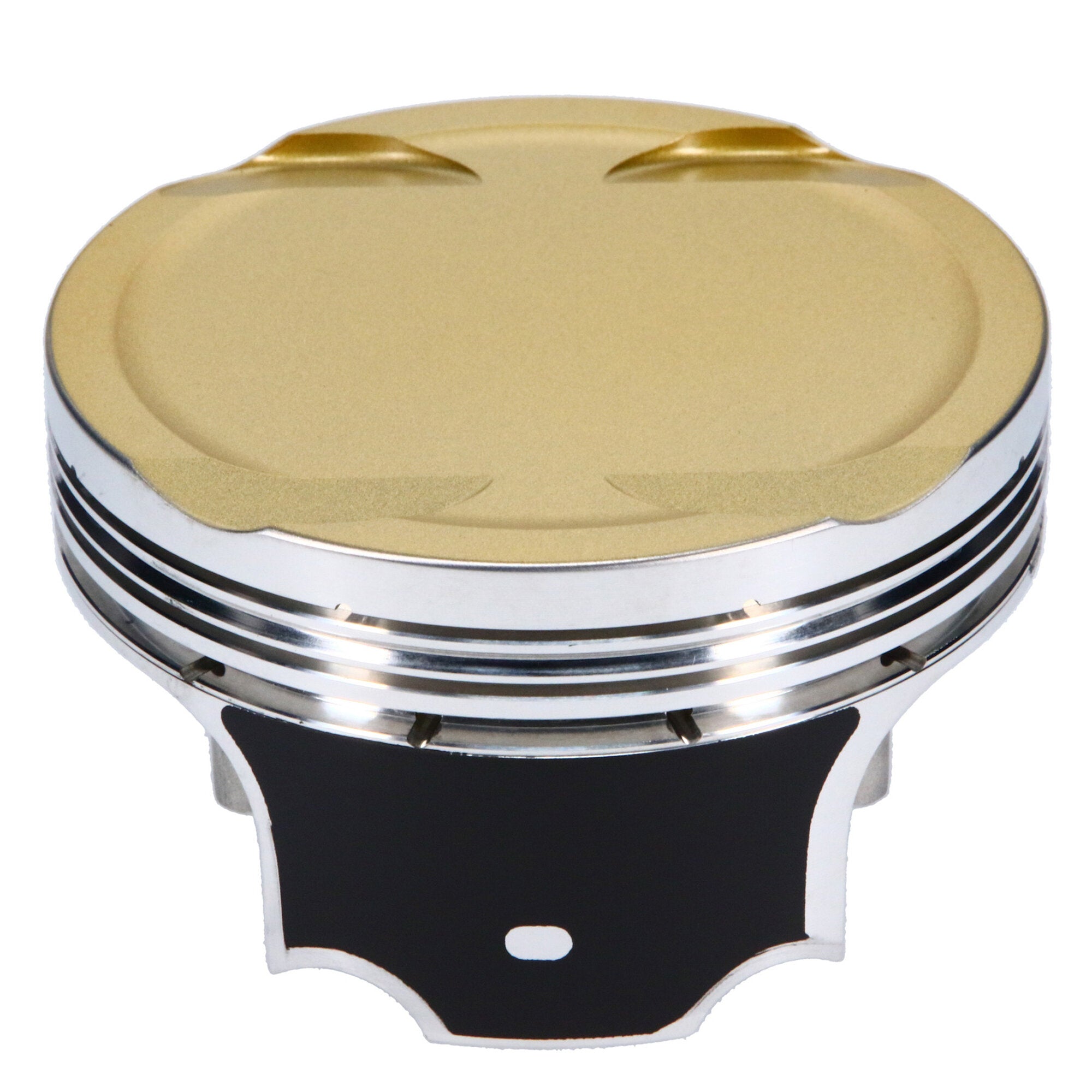

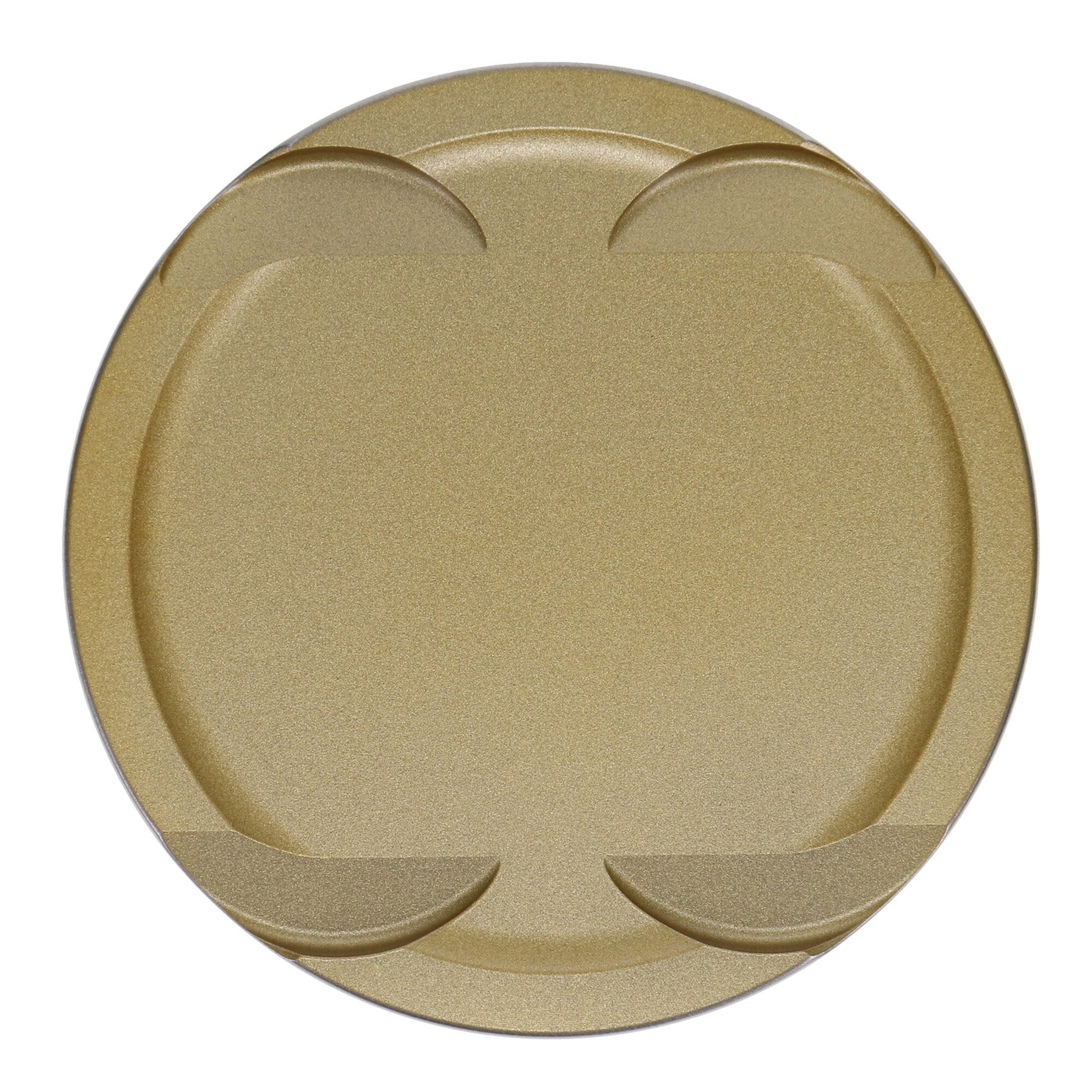

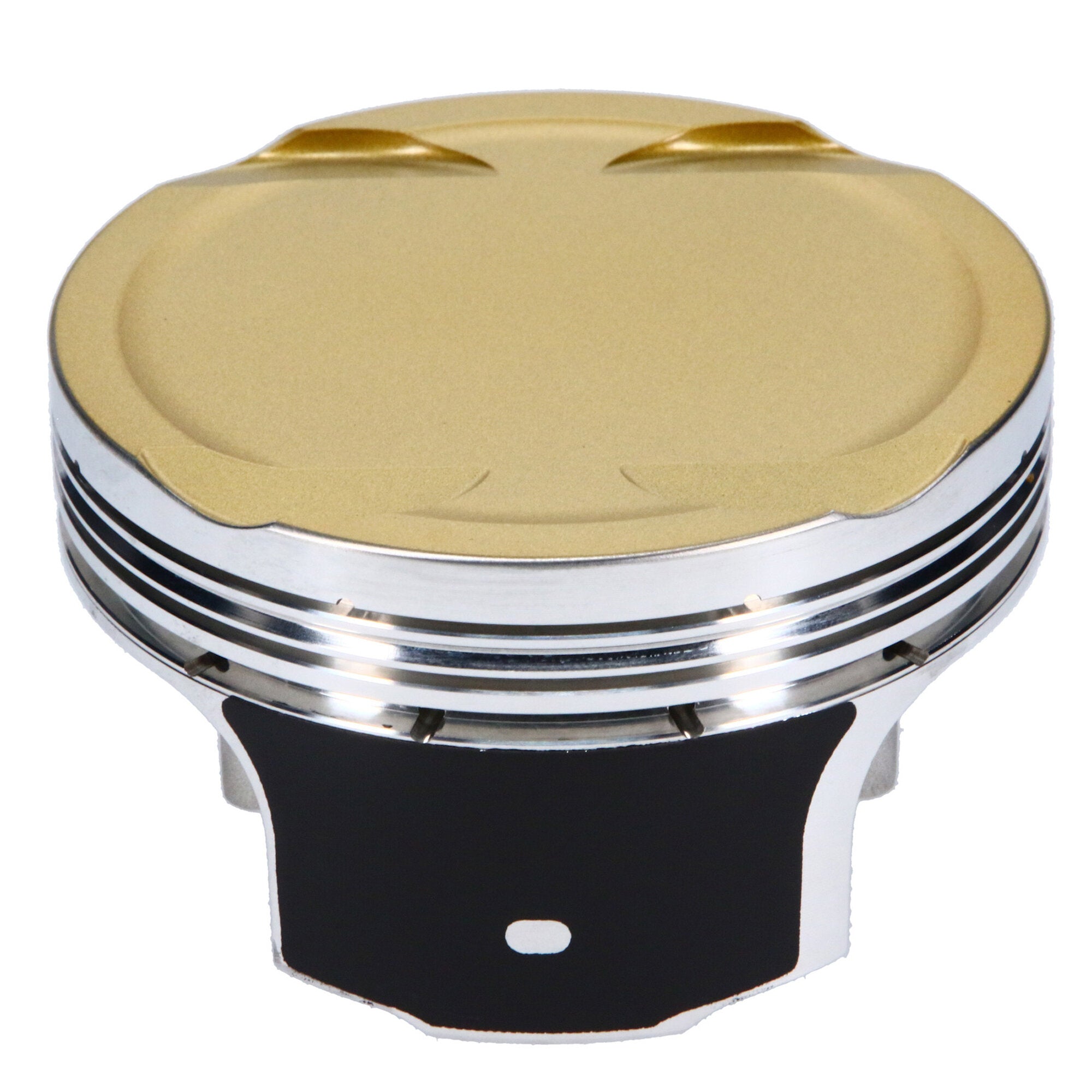

Piston Single, 2618, Inv Dome/Dish, 3.640 Bore, 1.174 CD, 0.866 Pin, Set of 1. |
| Description_DEF |
Engine Piston |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_EXT |
JE Ultra, Ford, Modular Ford, 3.640 in. Bore, 1.174 CD, Inverted Dome/Dish, Right Piston |
| Description_INV |
JE Pistons, Piston |
| Description_SHO |
Piston |
| Description_TLE |
Ford 5.0L Coyote, 3.640 Bore, Dish, Set of 1 |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Piston Material |
2618 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Ford |
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 1/2 |
| Engine |
Modular |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Ultra Series |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Dish |
| Add-On |
866-2250-23-93C |
| Industry |
Automotive |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Ultra Series Ford Modular Piston - 3.640 in. Bore - 1.174 in. CH, -4.80 CC |
| Ringset Included |
No |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1008-3642 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.230 |
| Top Compression Ring Thickness |
0.0395 |
| Category Hierarchy |
Auto>JE Ultra Series>Single Replacement Pistons>Domestic |
| Product Market |
Domestic |
| Make |
FORD |
| Product Type |
Engine Piston |
| Piston Orientation |
Right |
| Title |
JE Ultra Series - Ford, Modular, 3.640 in. Bore, Piston |
| Bore Diameter |
3.640 |
| Piston Pin Material |
9310 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.230 |
| Compression Height |
1.174 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.866 |
| Piston Volume |
-4.80 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
Modular |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
