As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LT1 Gen V |
| Description_DES |

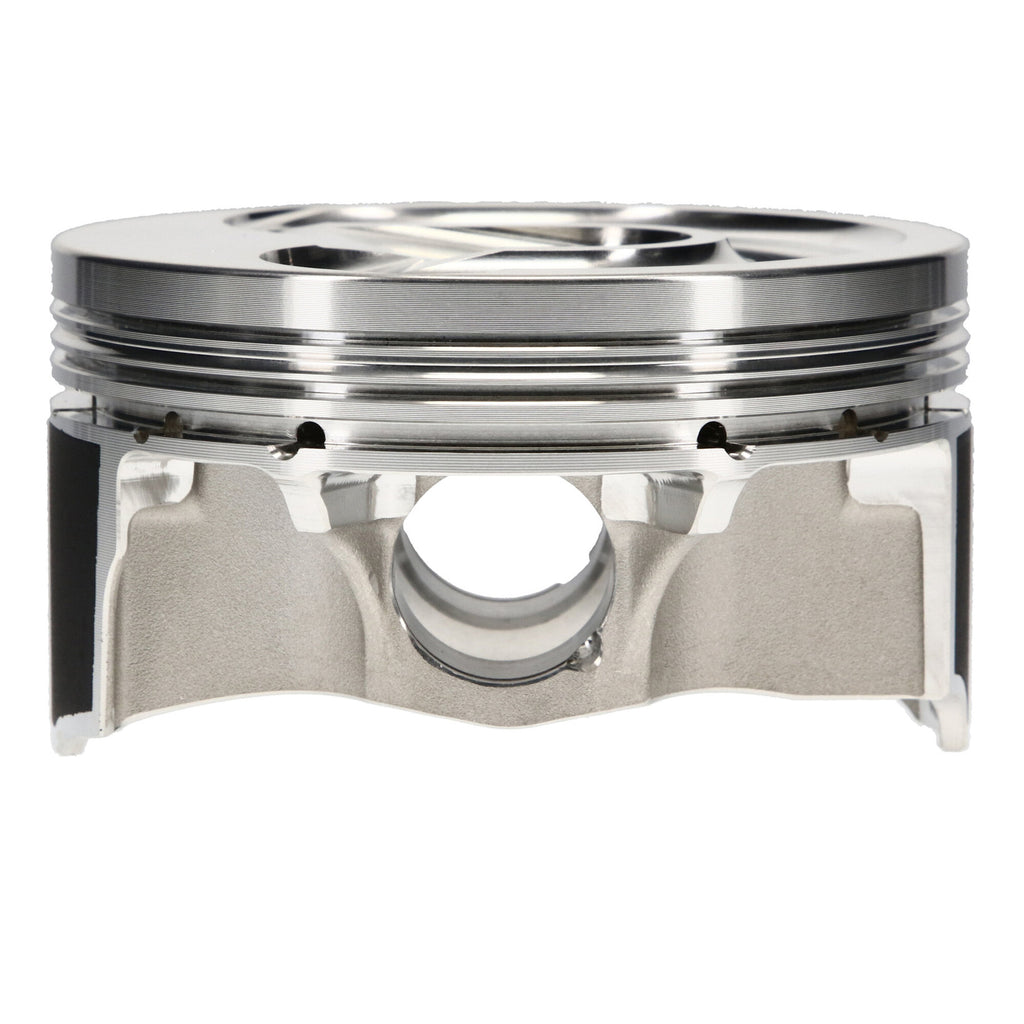

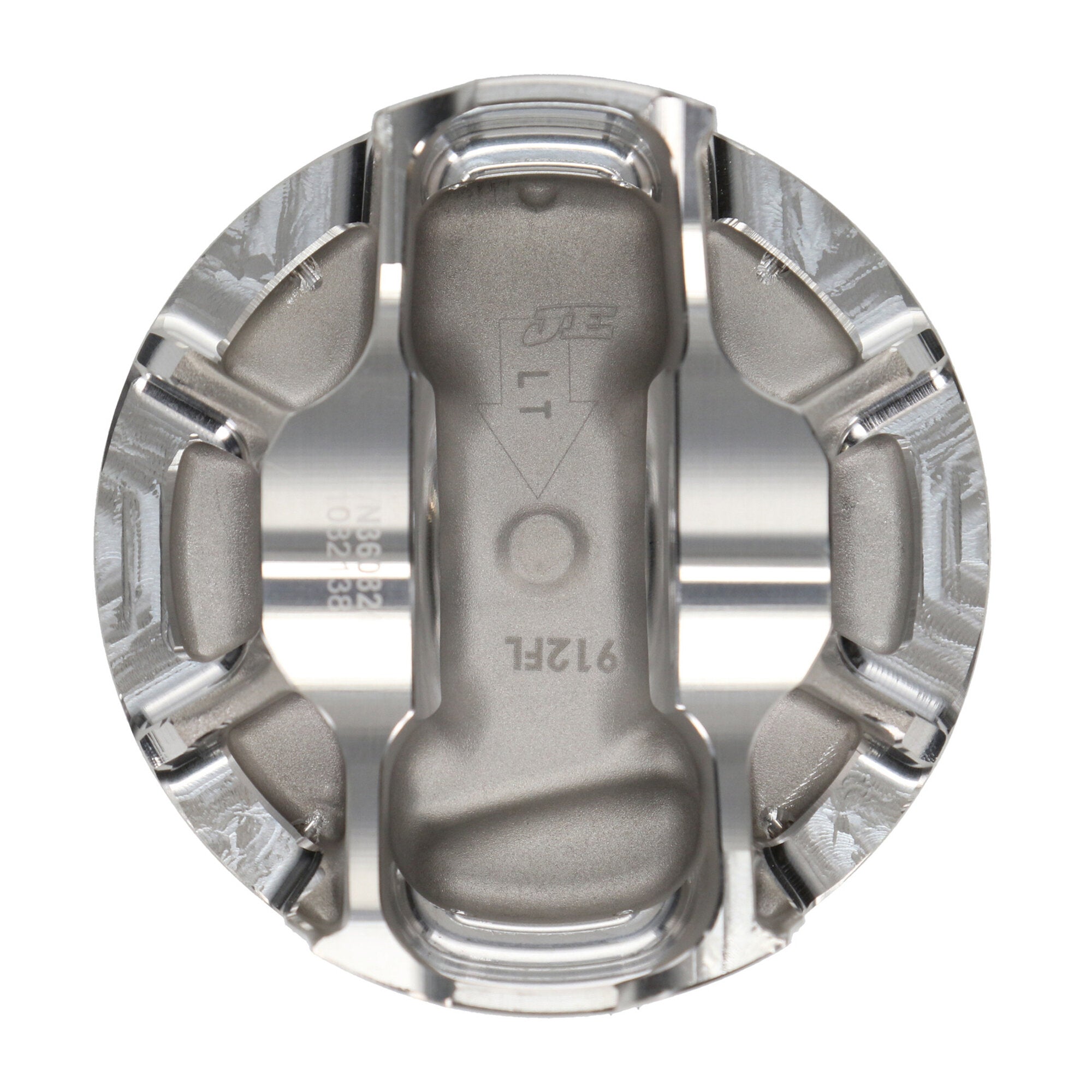

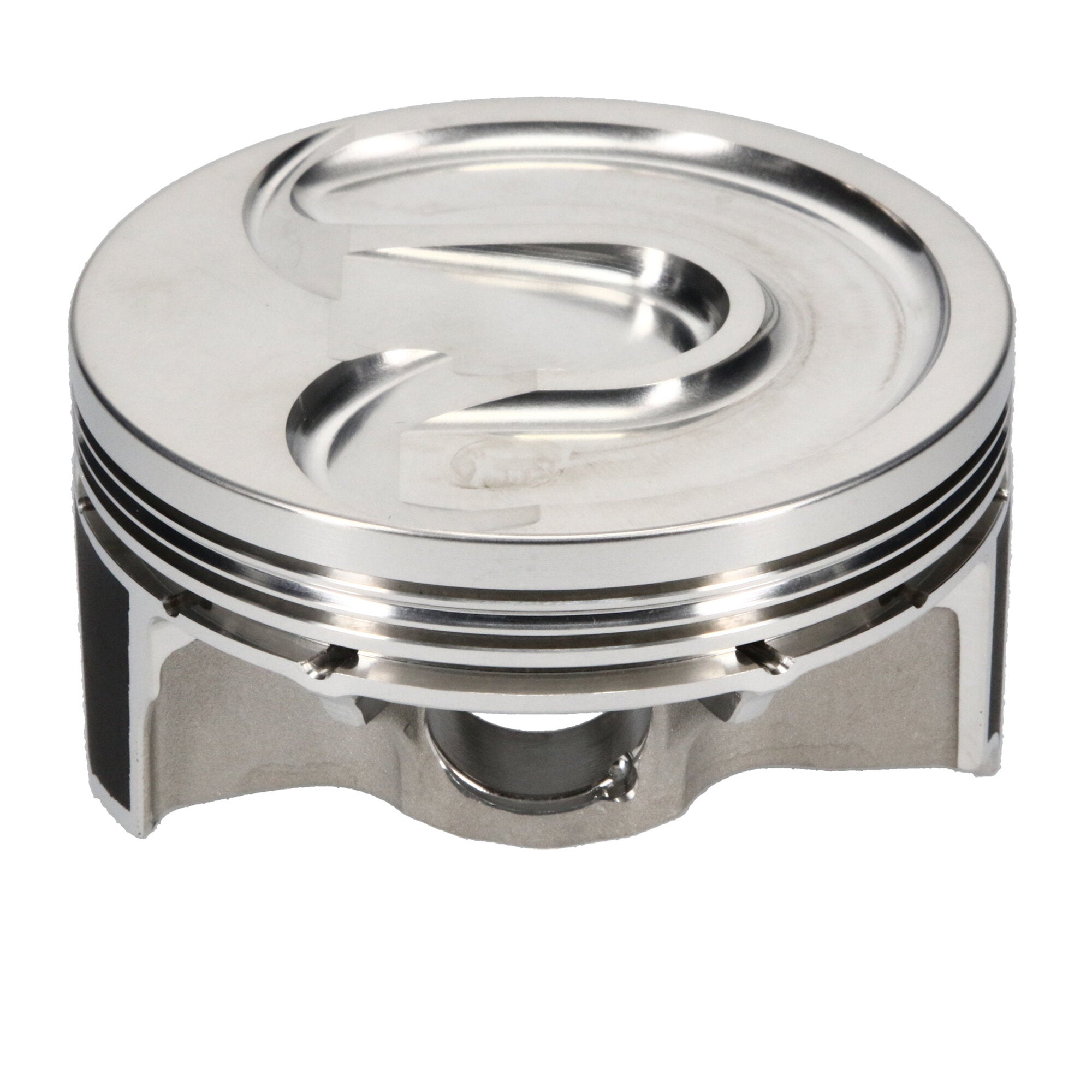

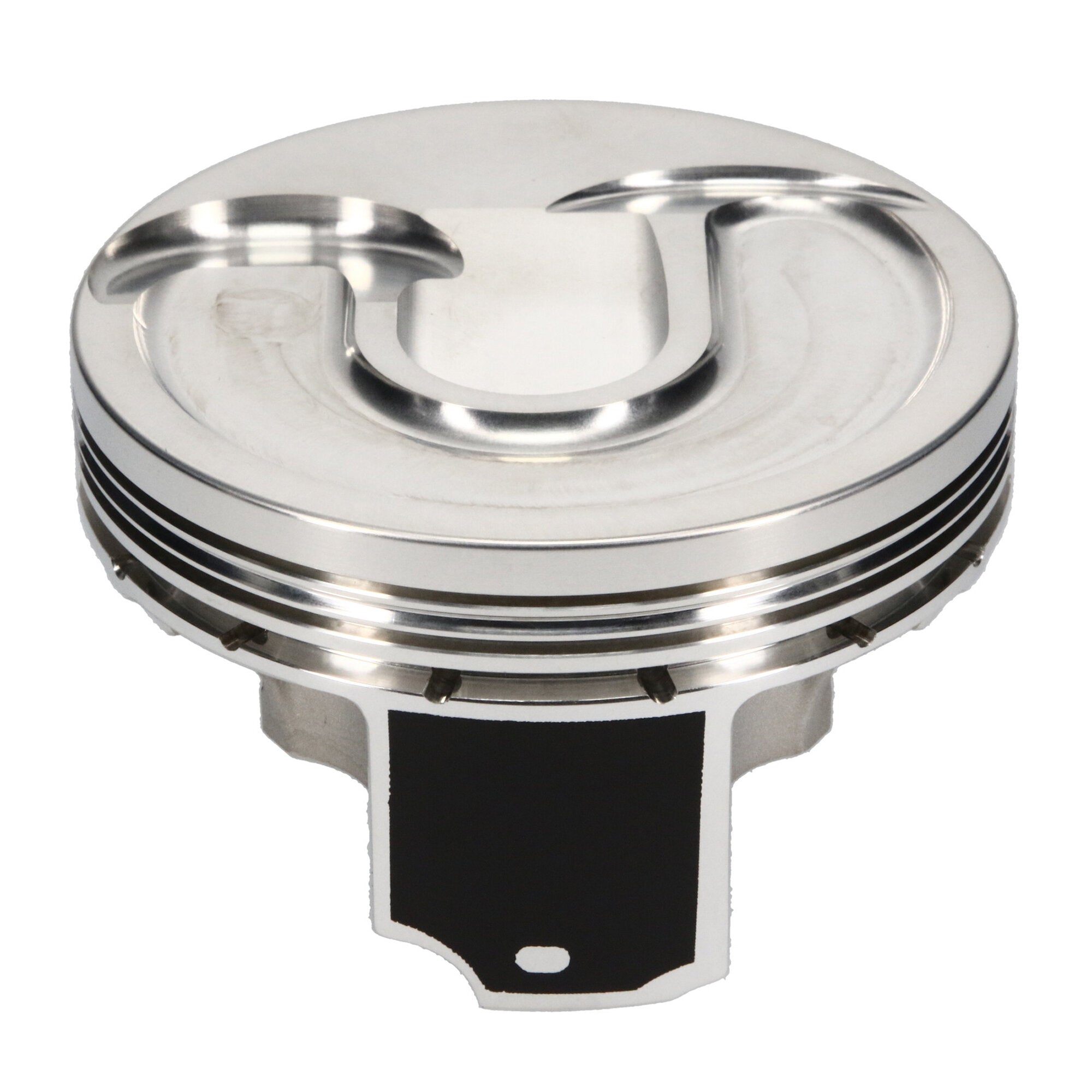

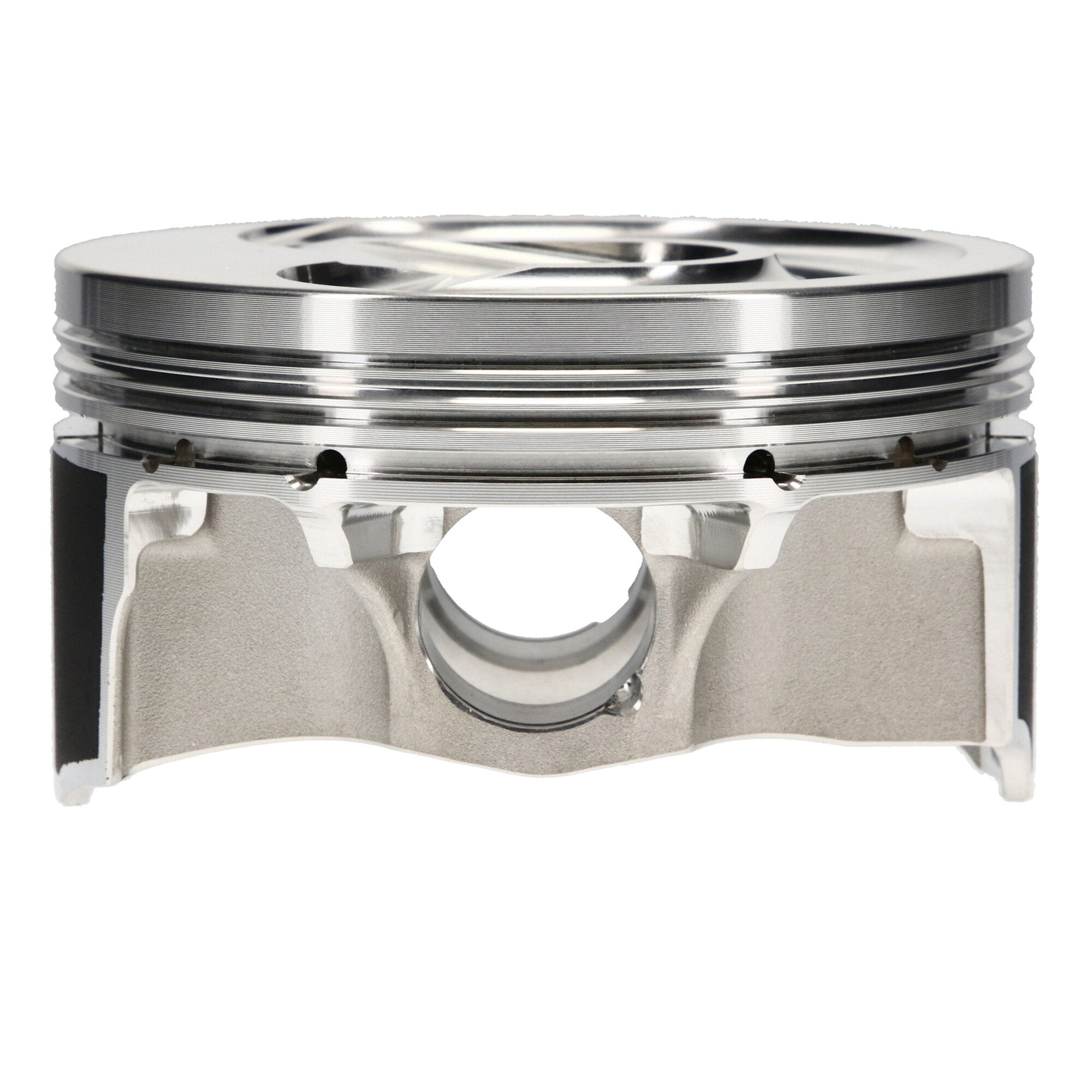

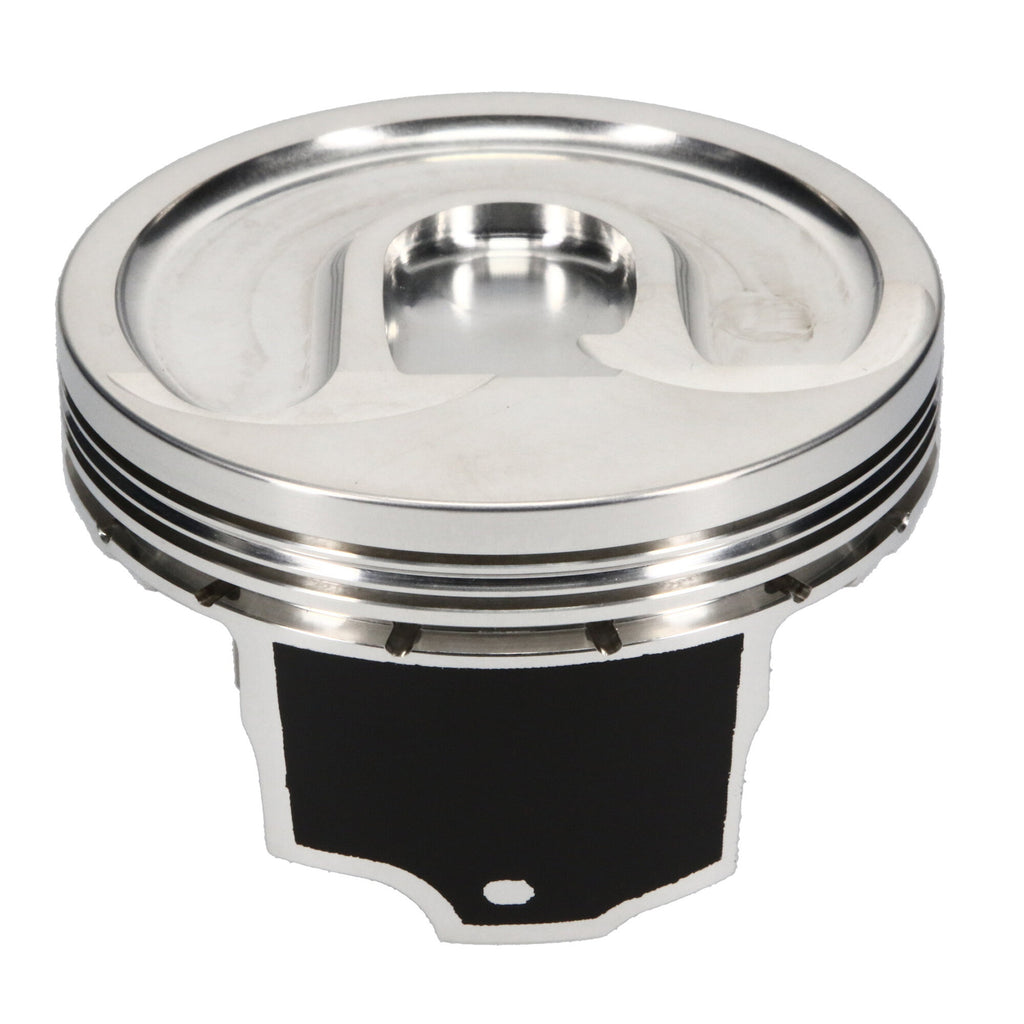

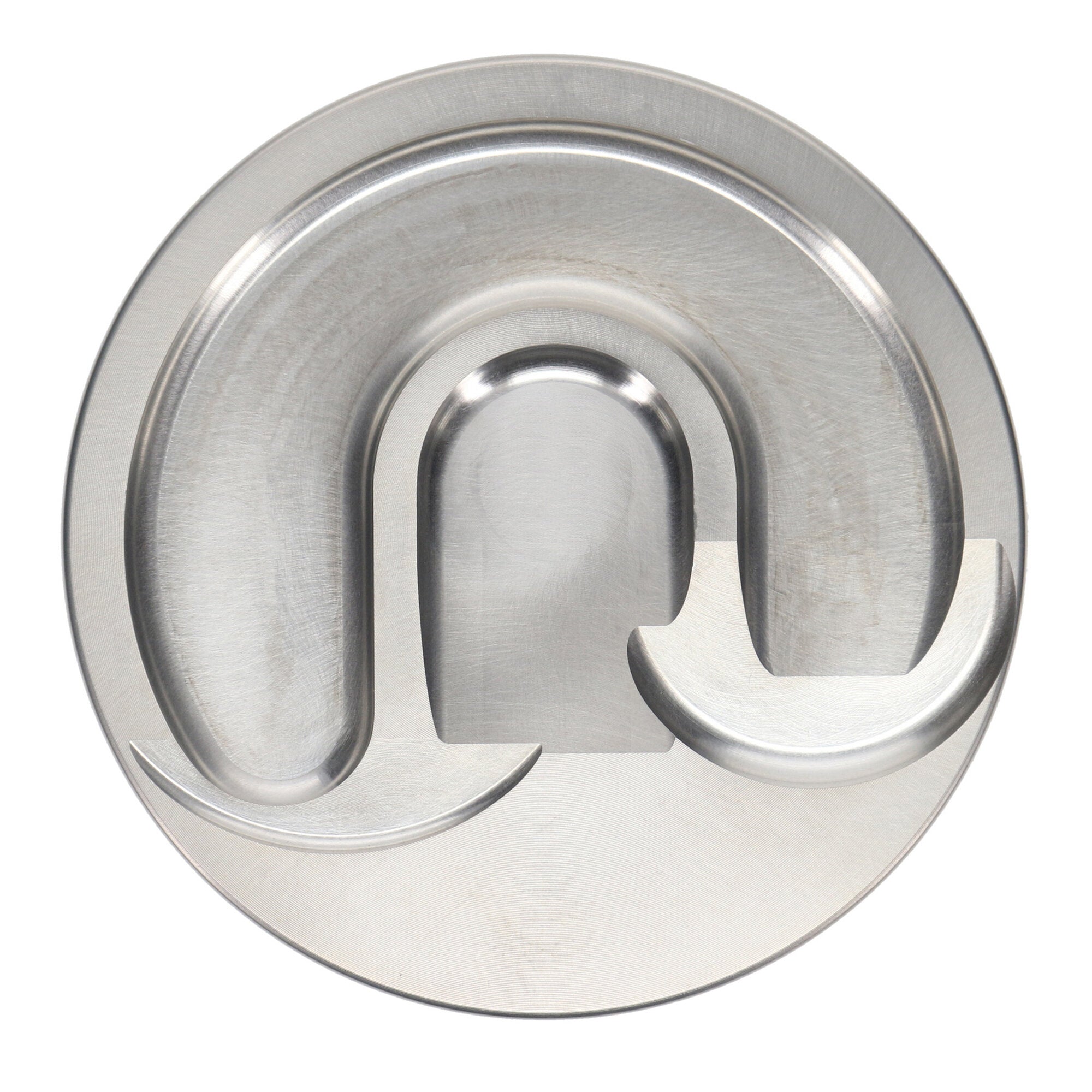

Piston Single, 2618, Inv Dome/Dish, 4.075 Bore, 1.326 CD, 0.943 Pin, Set of 1. |
| Description_DEF |
Engine Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, LT1 Gen V, 4.075 in. Bore, 1.326 CD, Inverted Dome/Dish, Left Piston |
| Description_INV |
JE Pistons, Piston |
| Description_SHO |
Piston |
| Description_TLE |
Chevrolet LT1, 4.075 Bore, Dish, Set of 1 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Compression Height |
1.326 |
| Piston Average Weight |
426 |
| Title |
JE Pistons - Chevrolet, LT1 Gen V, 4.075 in. Bore, Piston |
| Piston Quantity |
1 |
| Piston Pin Outside Diameter |
0.943 |
| Wrist Pin Outer Diameter |
0.943 |
| Piston Pin Wall Thickness |
0.200 |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Wrist Pin Wall Thickness |
0.200 |
| Engine - Web |
LT1 Gen V |
| Cylinder Head |
GEN 5 LT1 |
| Bore Diameter |
4.075 |
| Add-On |
943-2250-20-51C |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Add-On |
945-073-MW |
| Add-On |
JG31F1-4075-5 |
| Top Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Chevrolet LT1 Gen V Piston - 4.075 in. Bore - 1.326 in. CH, -14.30 CC |
| Piston Material |
2618 |
| Industry |
Automotive |
| Engine |
LT1 Gen V |
| Product Type |
Engine Piston |
| Piston Series |
JE Pistons |
| Piston Volume |
-14.30 |
| Piston Orientation |
Left |
| Second Compression Ring Thickness |
0.0600 |
| Piston Head Type |
Dish |
| Prop 65 Yes/No |
Yes |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Oil Ring Thickness |
0.1175 |
| Piston Pin Length |
2.250 |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Ringset Included |
Yes |
| Forging Type |
FSR |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
2.0000 |
