Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LT1 Gen V Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

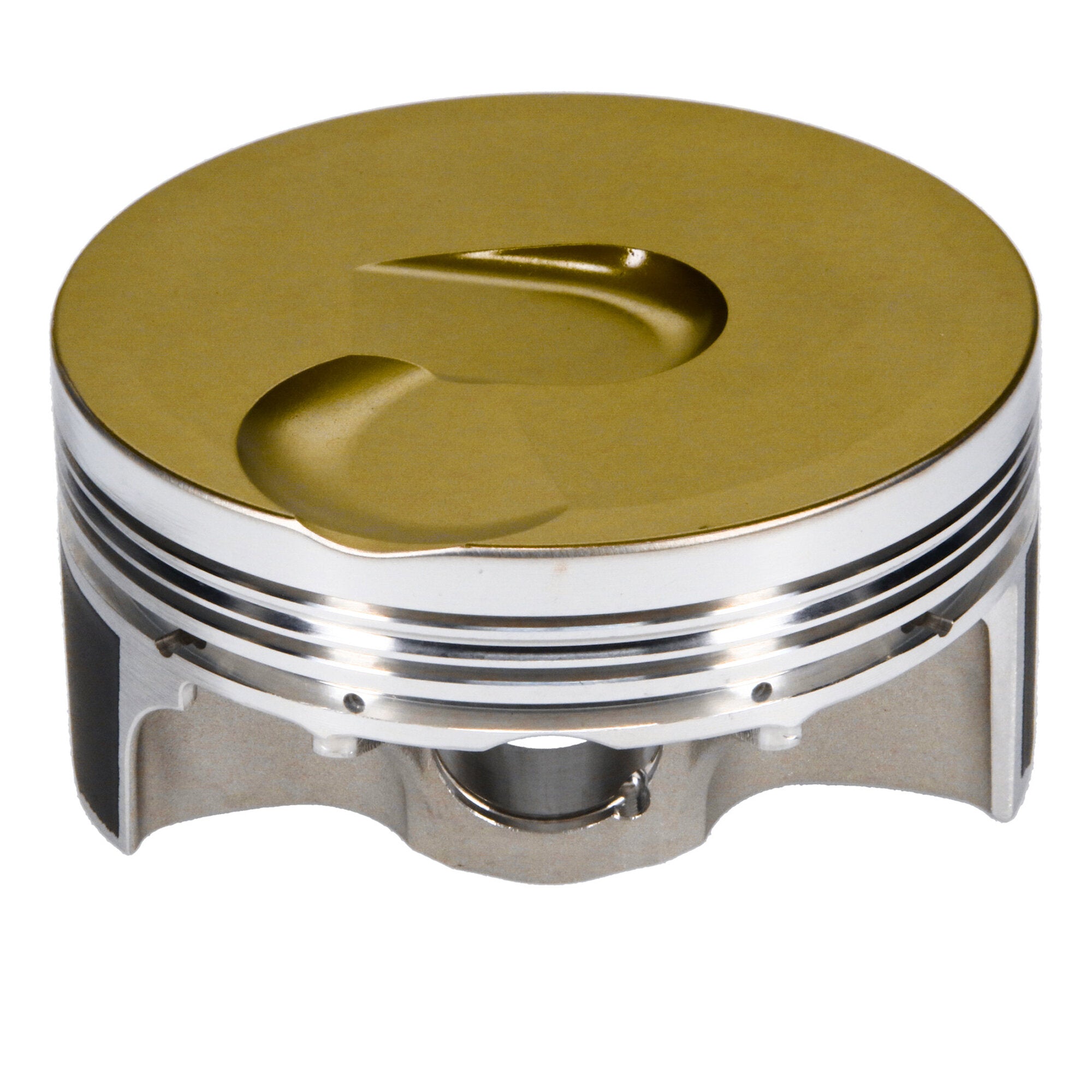

Piston Set, 2618, Inv Dome/Dish, 4.075 Bore, 1.115 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments

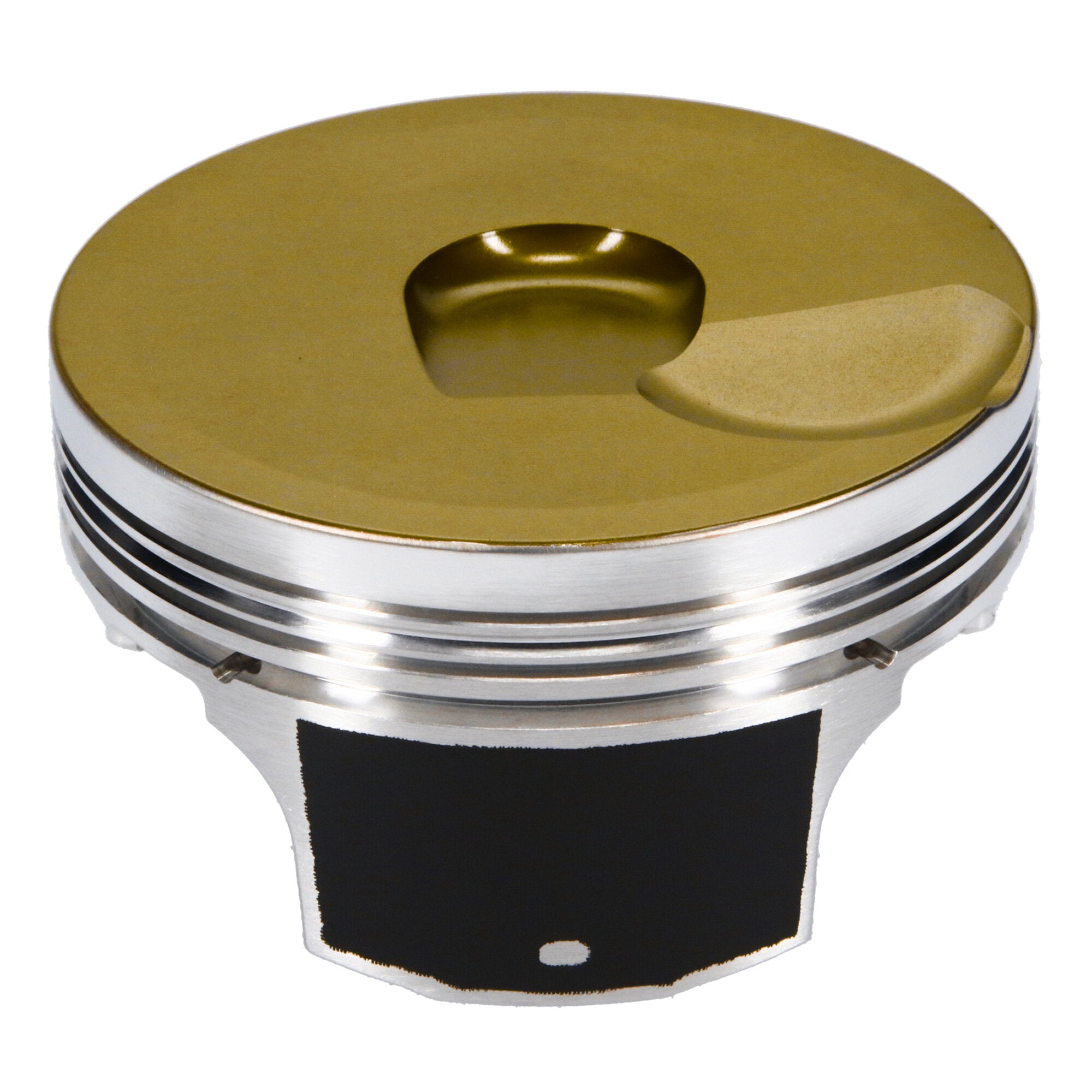

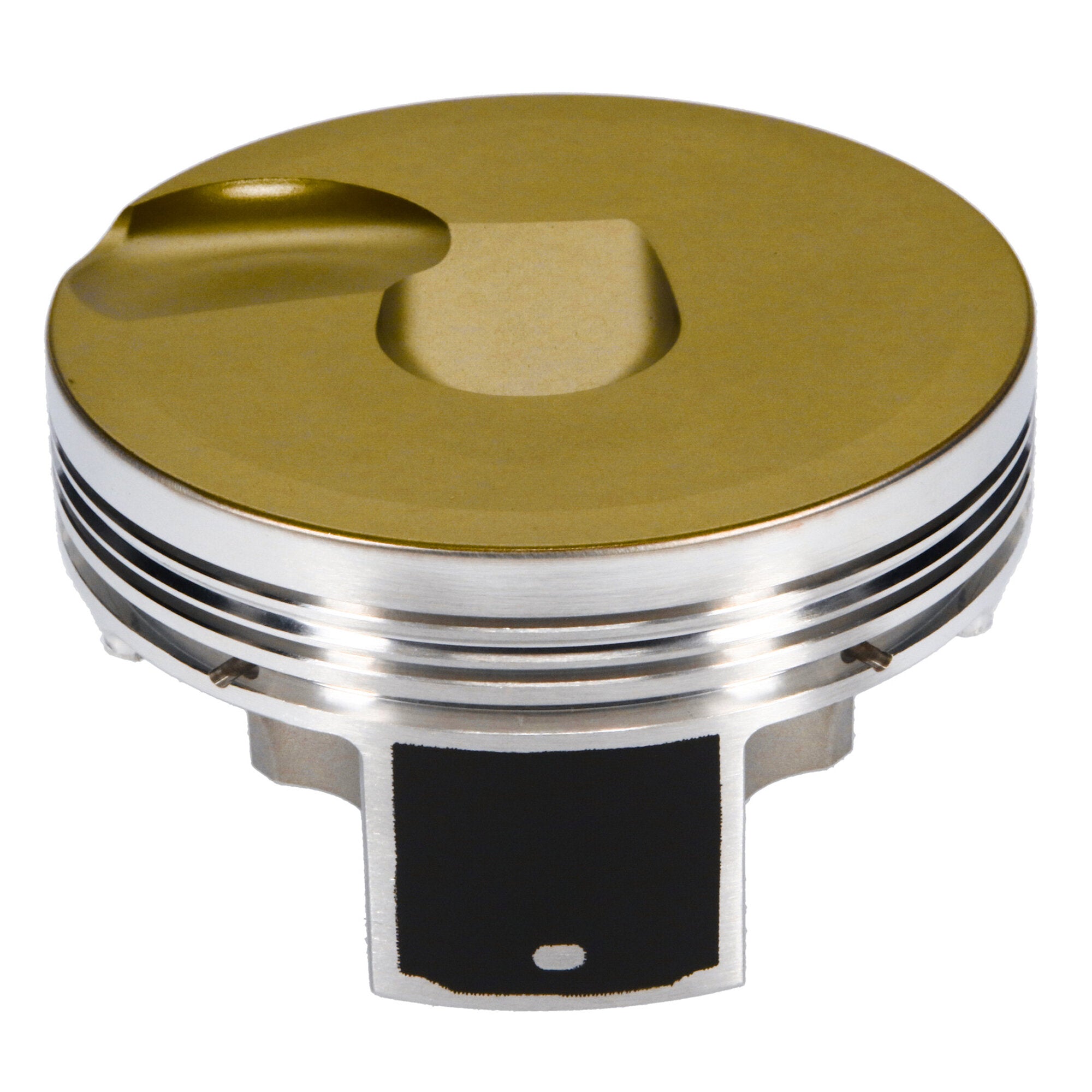

- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

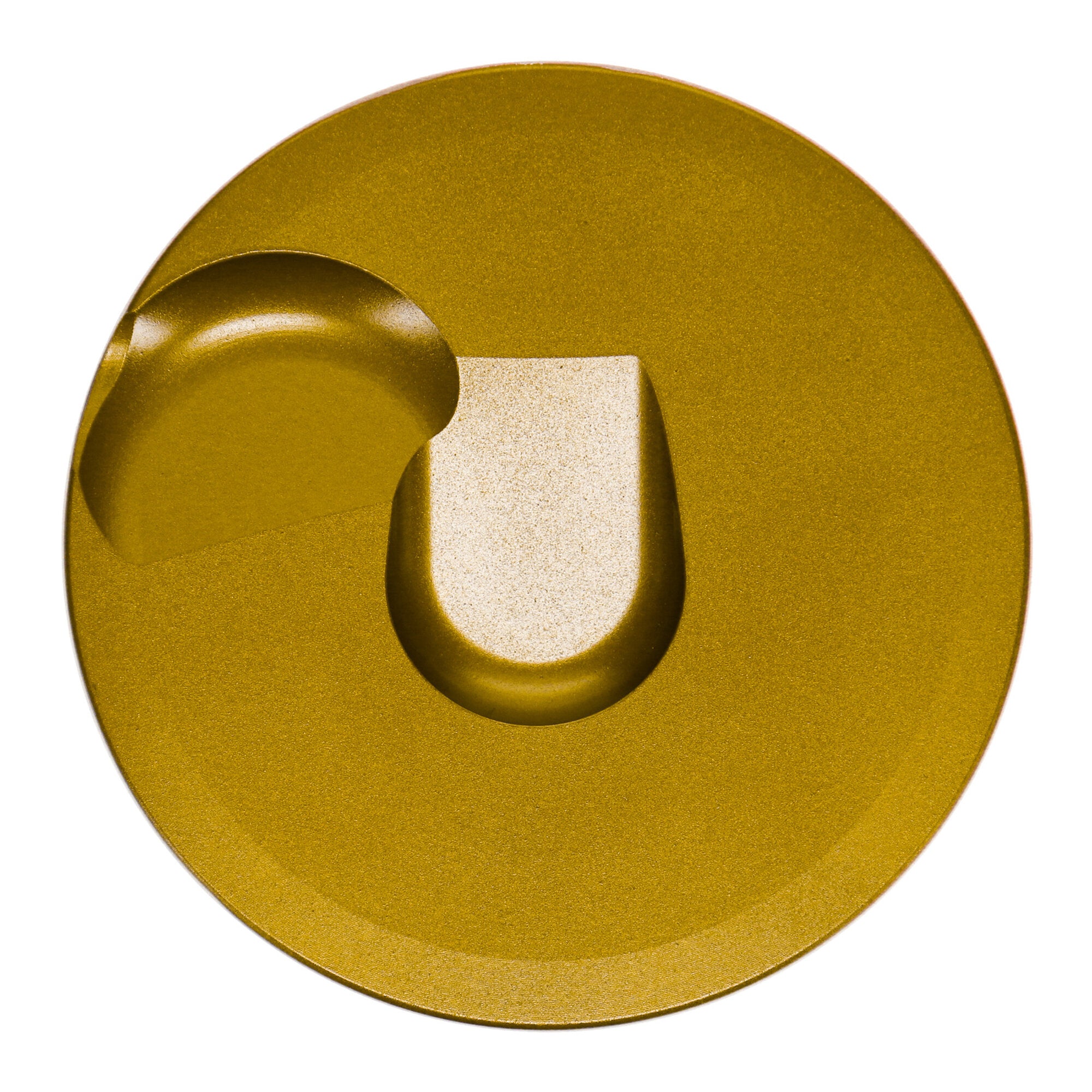

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds

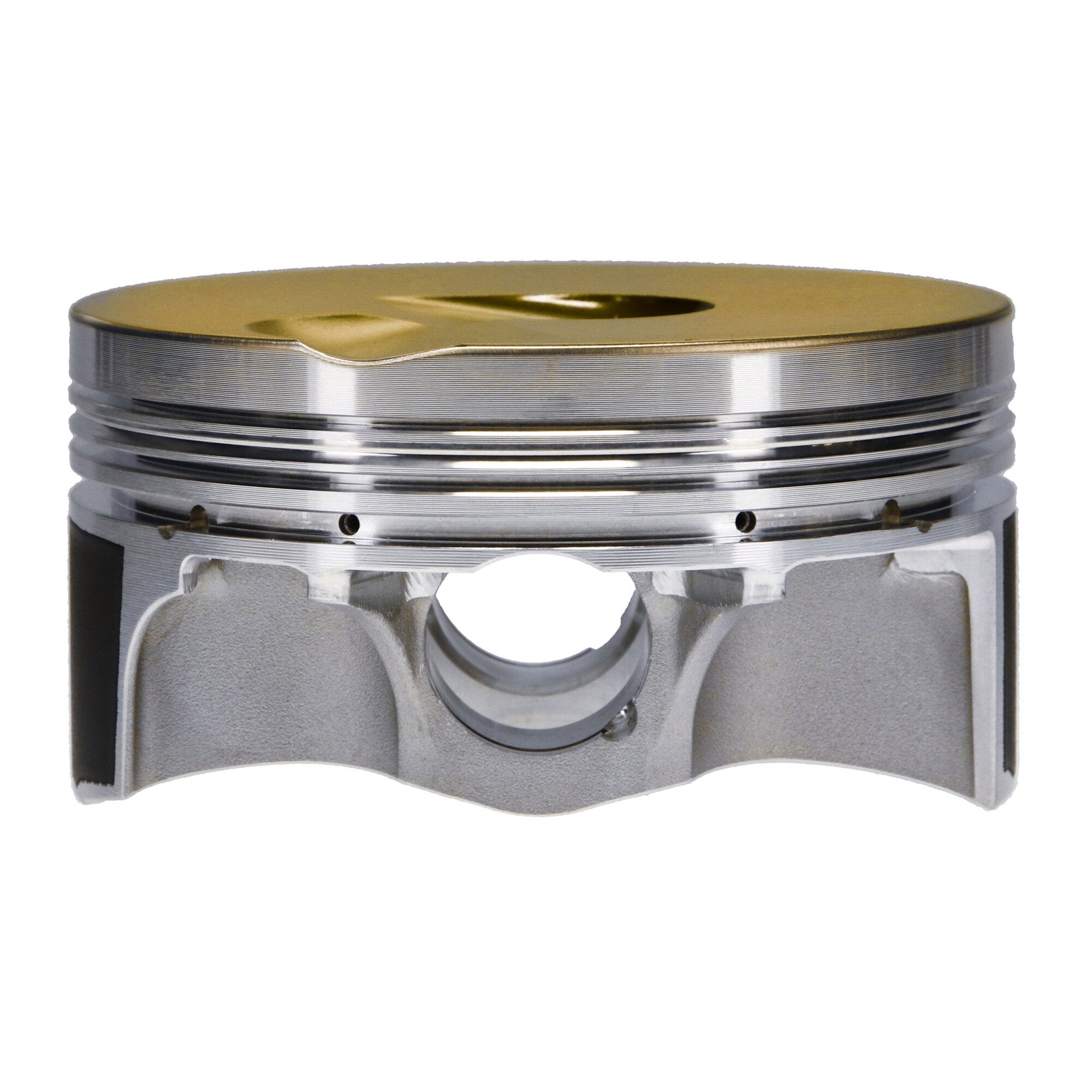

- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations

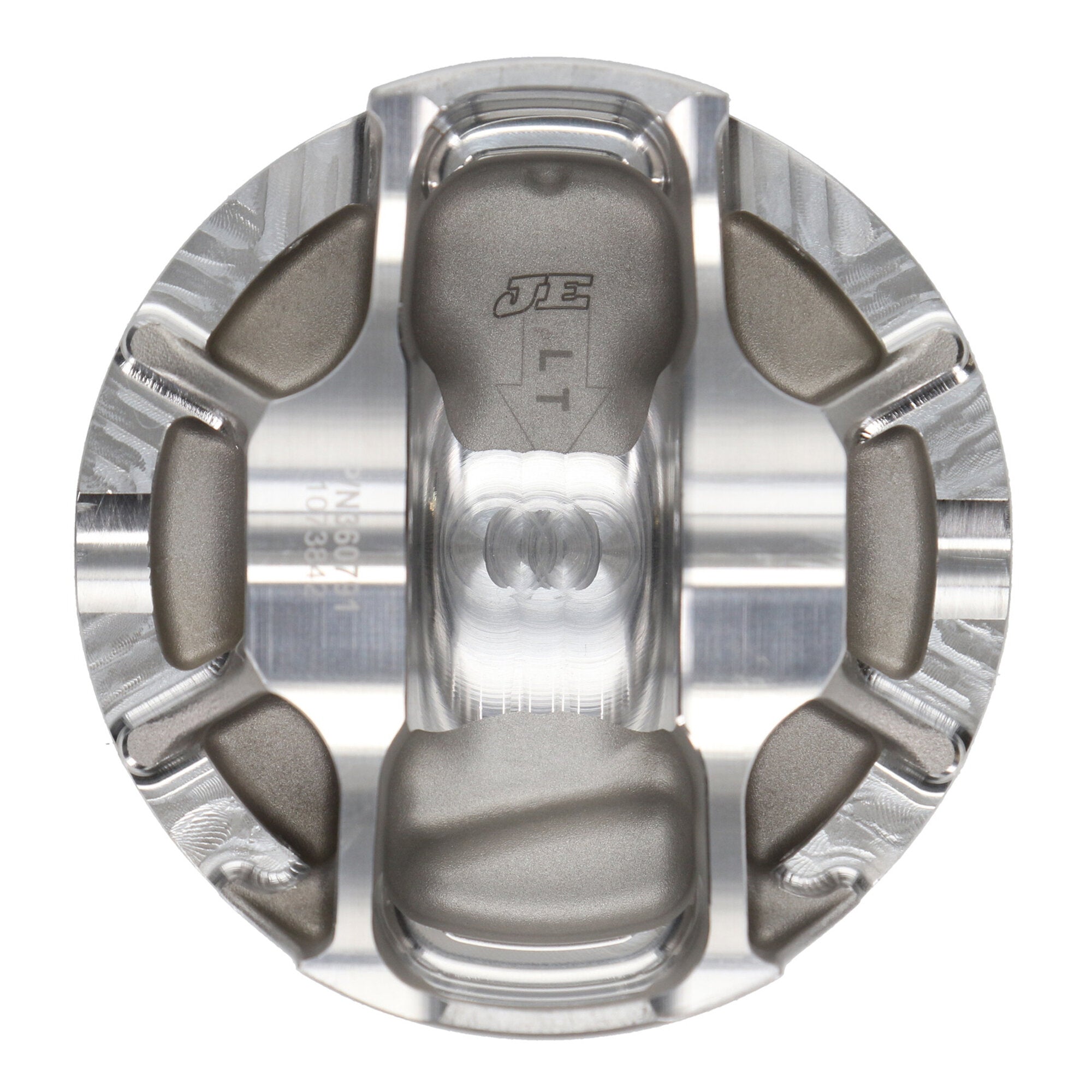

- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_EXT |
JE Ultra, Chevrolet, LT1 Gen V, 4.075 in. Bore, 1.115 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet LT1, 4.075 Bore, Dish, Set of 8 |
| Description_SHO |
Piston Kit |
| Piston Series |
JE Ultra Series |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Head Type |
Dish |
| Piston Pin Wall Thickness |
0.200 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Engine |
LT1 Gen V |
| Ringset Included |
Yes |
| Forging Type |
FSR |
| Piston Pin Material |
9310 |
| Top Compression Ring Thickness |
0.0475 |
| Cylinder Head |
GEN 5 LT1 |
| Oil Ring Thickness |
0.149 |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Ultra Series - Chevrolet, LT1 Gen V, 4.075 in. Bore, Piston Kit |
| Piston Material |
2618 |
| Piston Pin Length |
2.250 |
| Piston Volume |
-24.50 |
| Bore Diameter |
4.075 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.200 |
| Wrist Pin Outer Diameter |
0.927 |
| Product Market |
Domestic |
| Add-On |
927-2250-20-93C |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Add-On |
927-073-MW |
| Compression Height |
1.115 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Ultra Series Chevrolet LT1 Gen V Piston Kit - 4.075 in. Bore - 1.115 in. CH, -24.50 CC |
| Second Compression Ring Thickness |
0.0600 |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Domestic |
| Add-On |
JG31F1-4070-0 |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Make - Web |
Chevrolet |
| Engine - Web |
LT1 Gen V |
| Wrist Pin Length |
2.250 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
