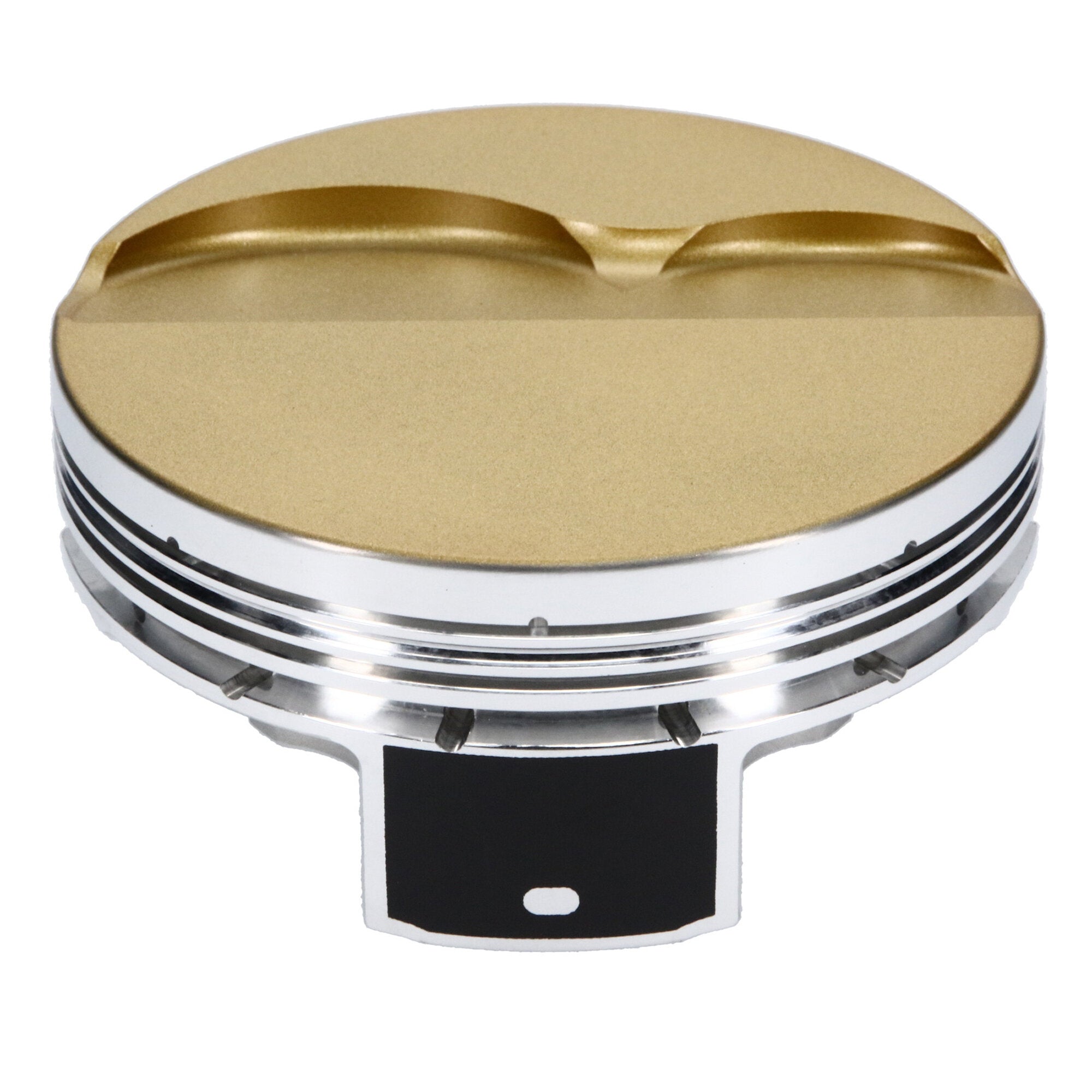

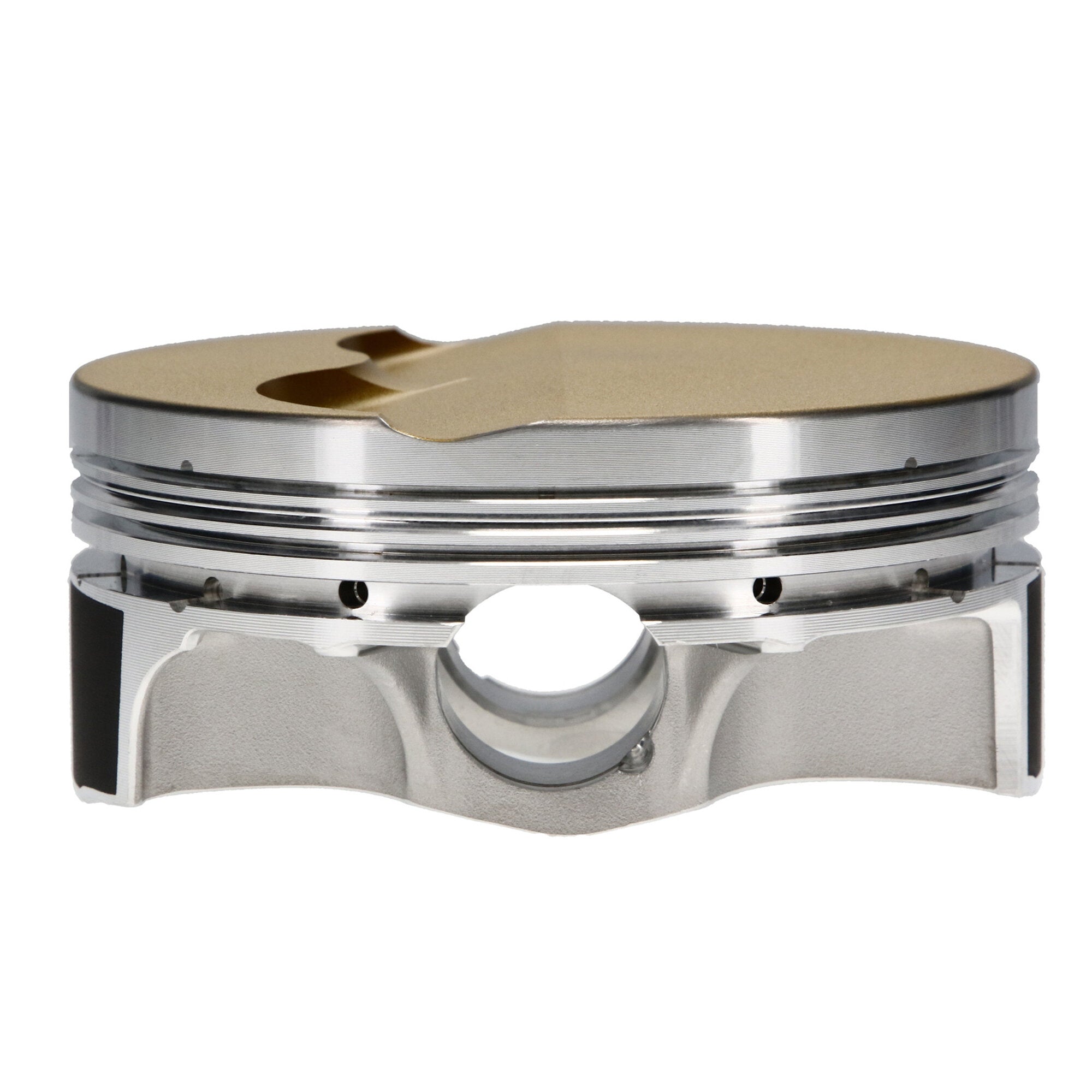

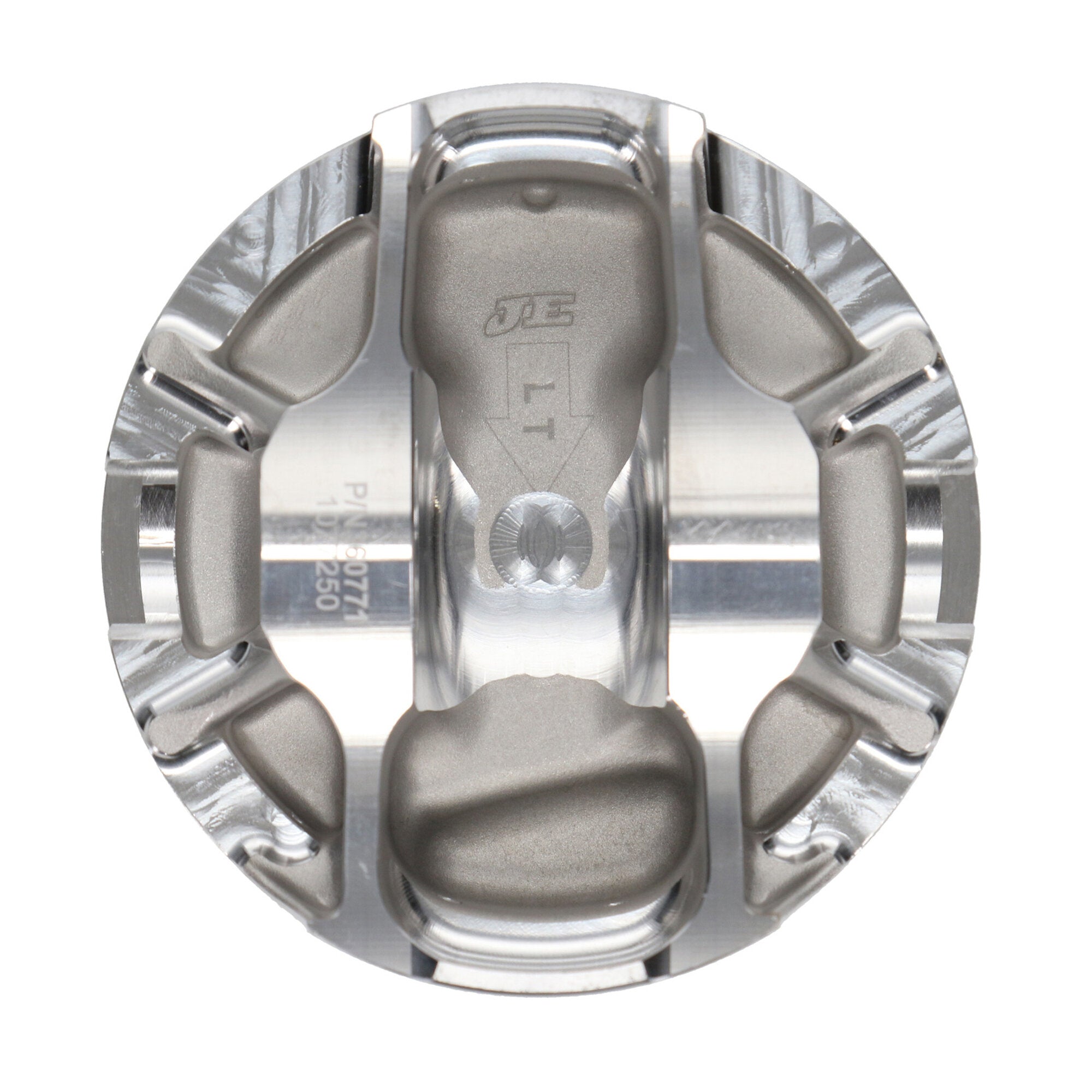

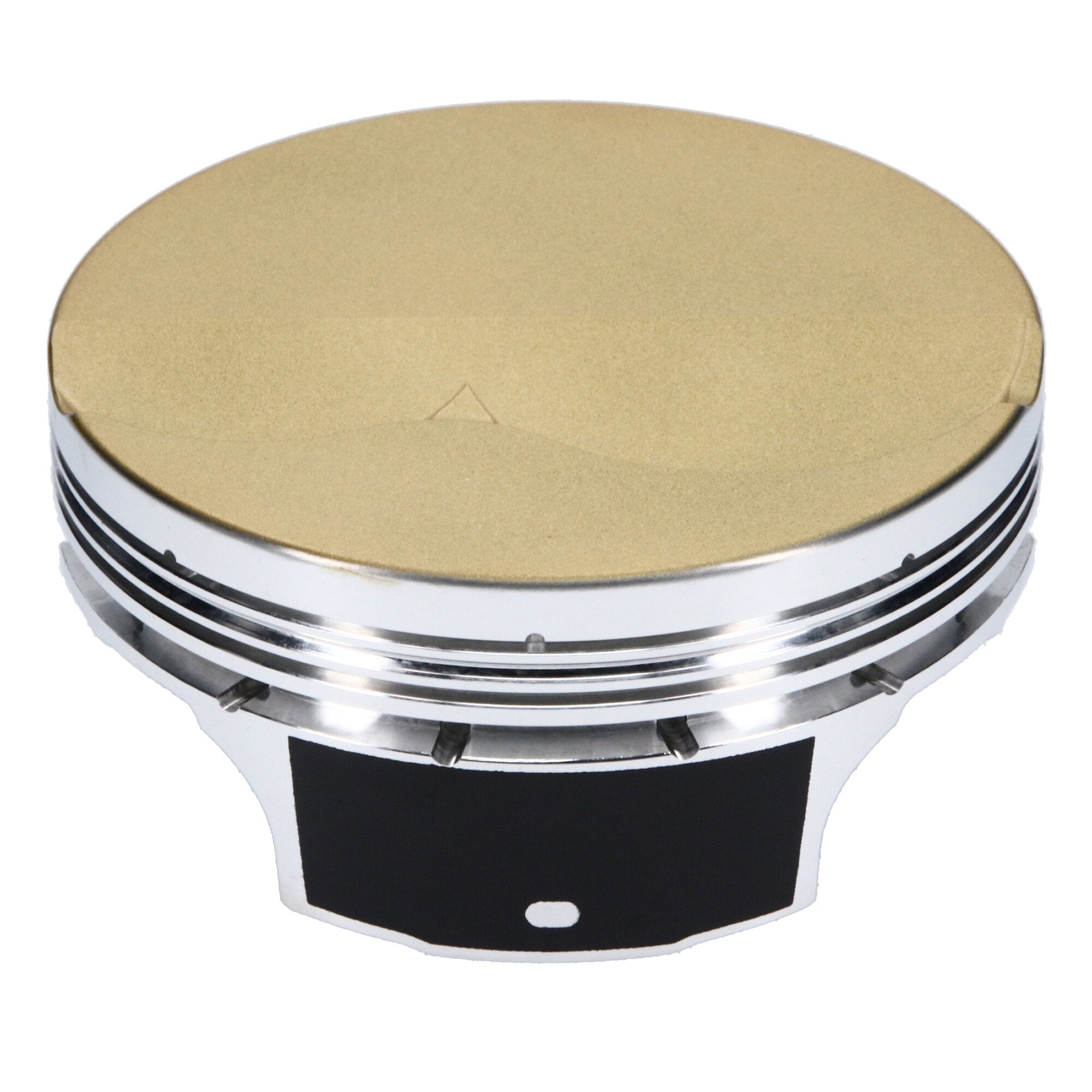

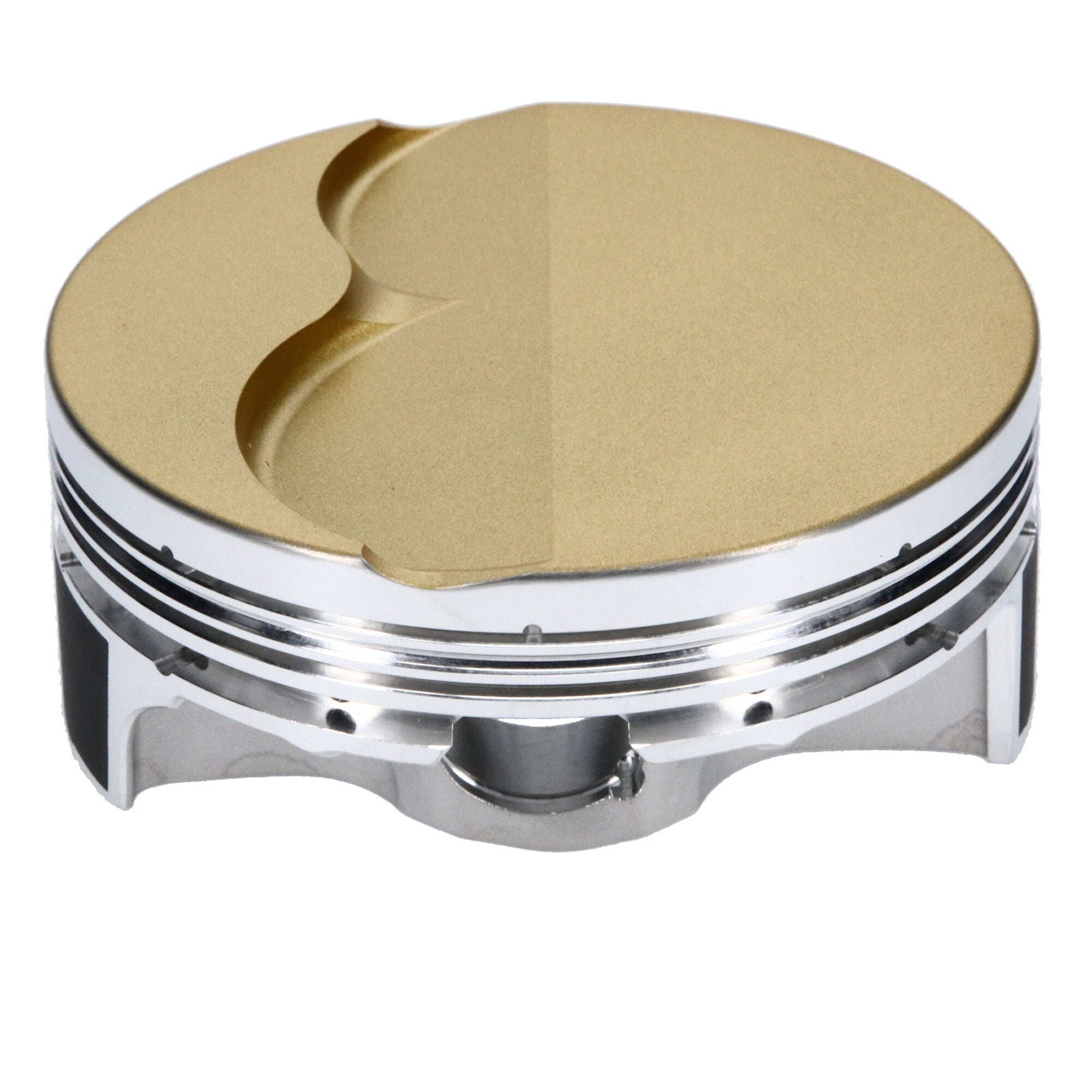

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS Gen III/IV Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Flat Top, 4.070 Bore, 1.115 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

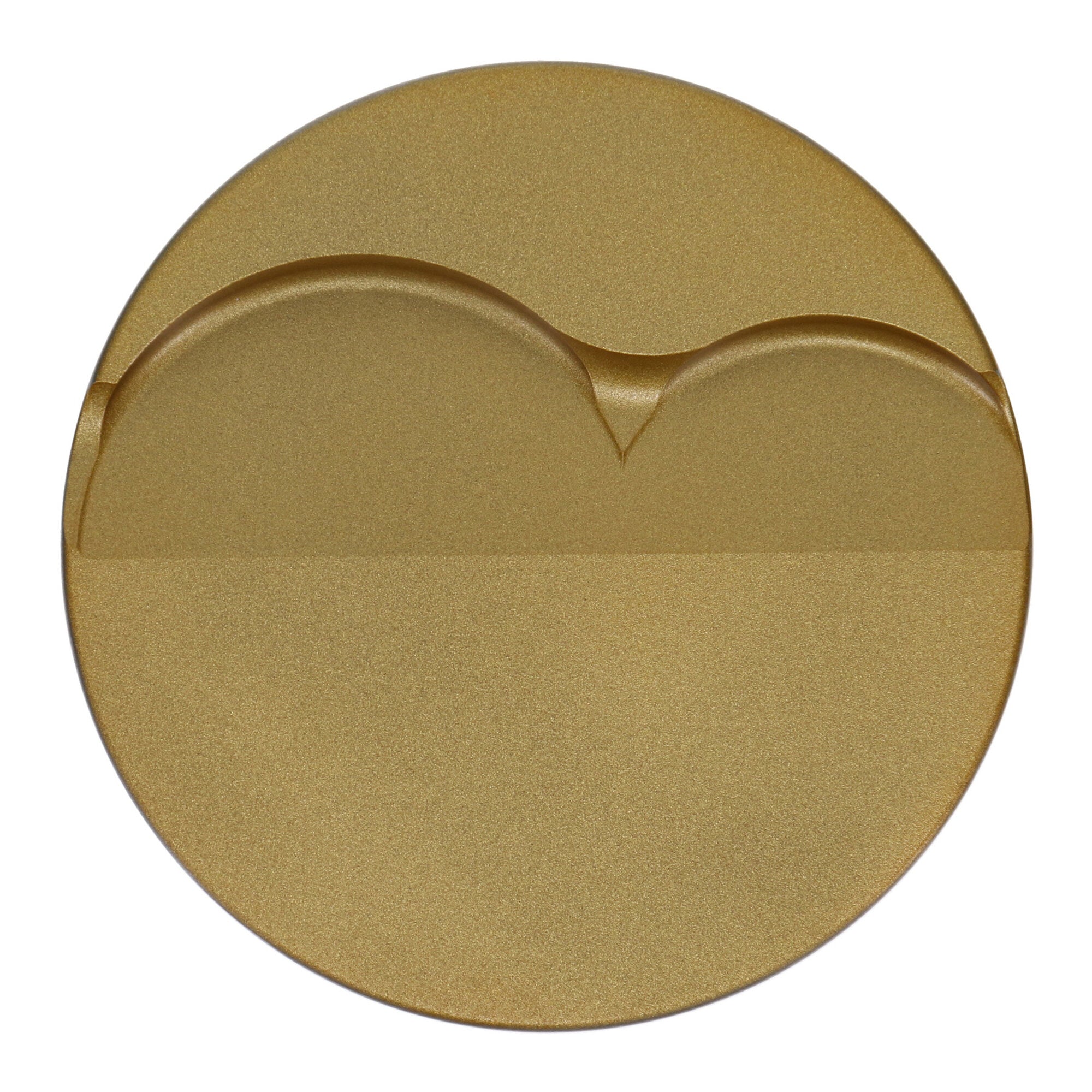

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE Ultra, Chevrolet, LS Gen III/IV, 4.070 in. Bore, 1.115 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet LS, 4.070 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0600 |
| Piston Volume |
-5.00 |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Make - Web |
Chevrolet |
| Ring Set Included |
No |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Domestic |
| Add-On |
JG31F8-4070-0 |
| Add-On |
927-2250-20-93C |
| Product Type |
Engine Piston Kit |
| Add-On |
927-073-MW |
| Bore Diameter |
4.070 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Piston Head Type |
Flat |
| Title |
JE Ultra Series - Chevrolet, LS Gen III/IV, 4.070 in. Bore, Piston Kit |
| Engine |
LS Gen III/IV |
| Compression Height |
1.115 |
| Title - Web |
JE Ultra Series Chevrolet LS Gen III/IV Piston Kit - 4.070 in. Bore - 1.115 in. CH, -5.00 CC |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Top Compression Ring Thickness |
0.0475 |
| Piston Series |
JE Ultra Series |
| Product Market |
Domestic |
| Piston Pin Length |
2.250 |
| Forging Type |
FSR |
| Wrist Pin Wall Thickness |
0.200 |
| Make |
CHEVROLET |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.927 |
| Oil Ring Thickness |
0.149 |
| Piston Pin Material |
9310 |
| Piston Pin Wall Thickness |
0.200 |
| Engine - Web |
LS Gen III/IV |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
