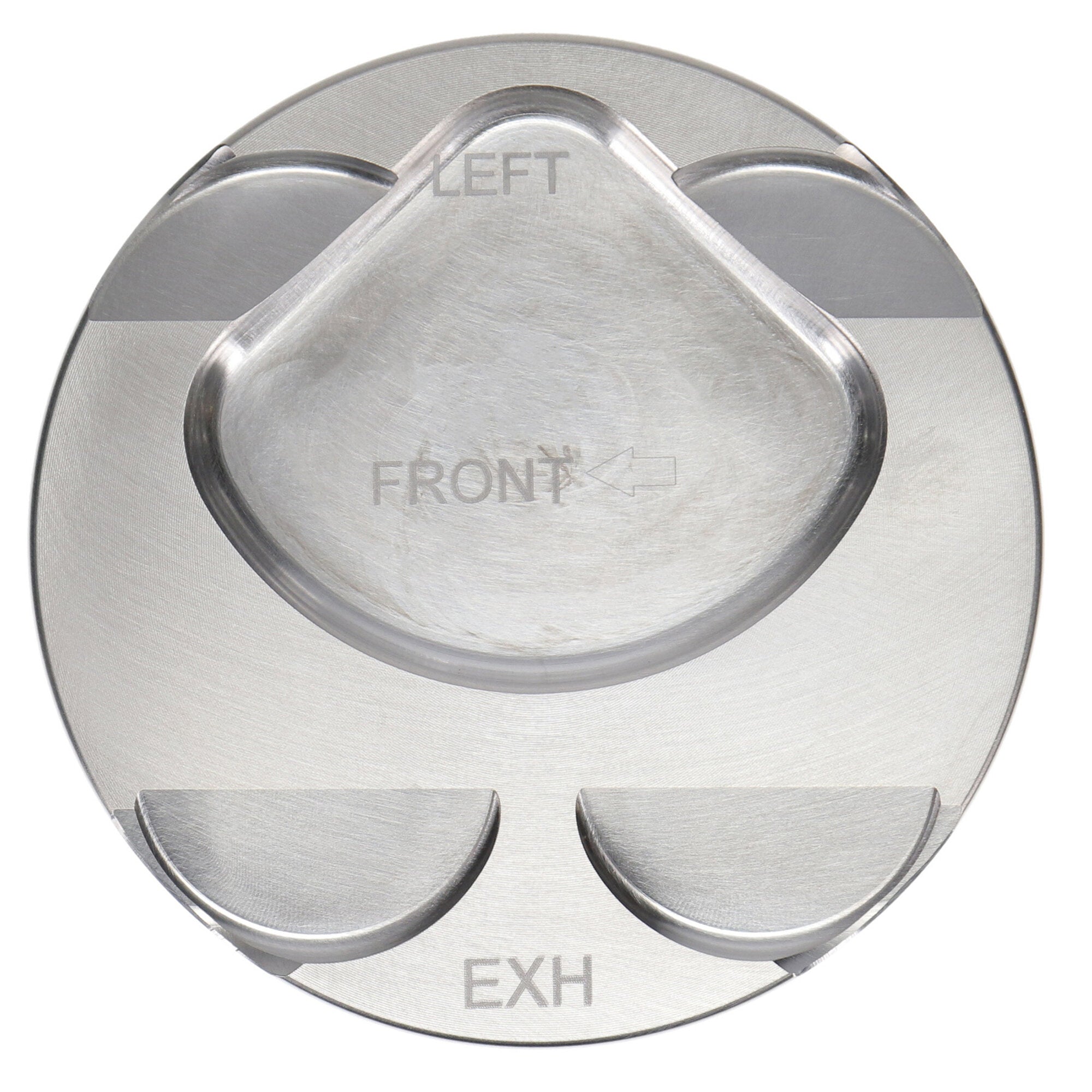

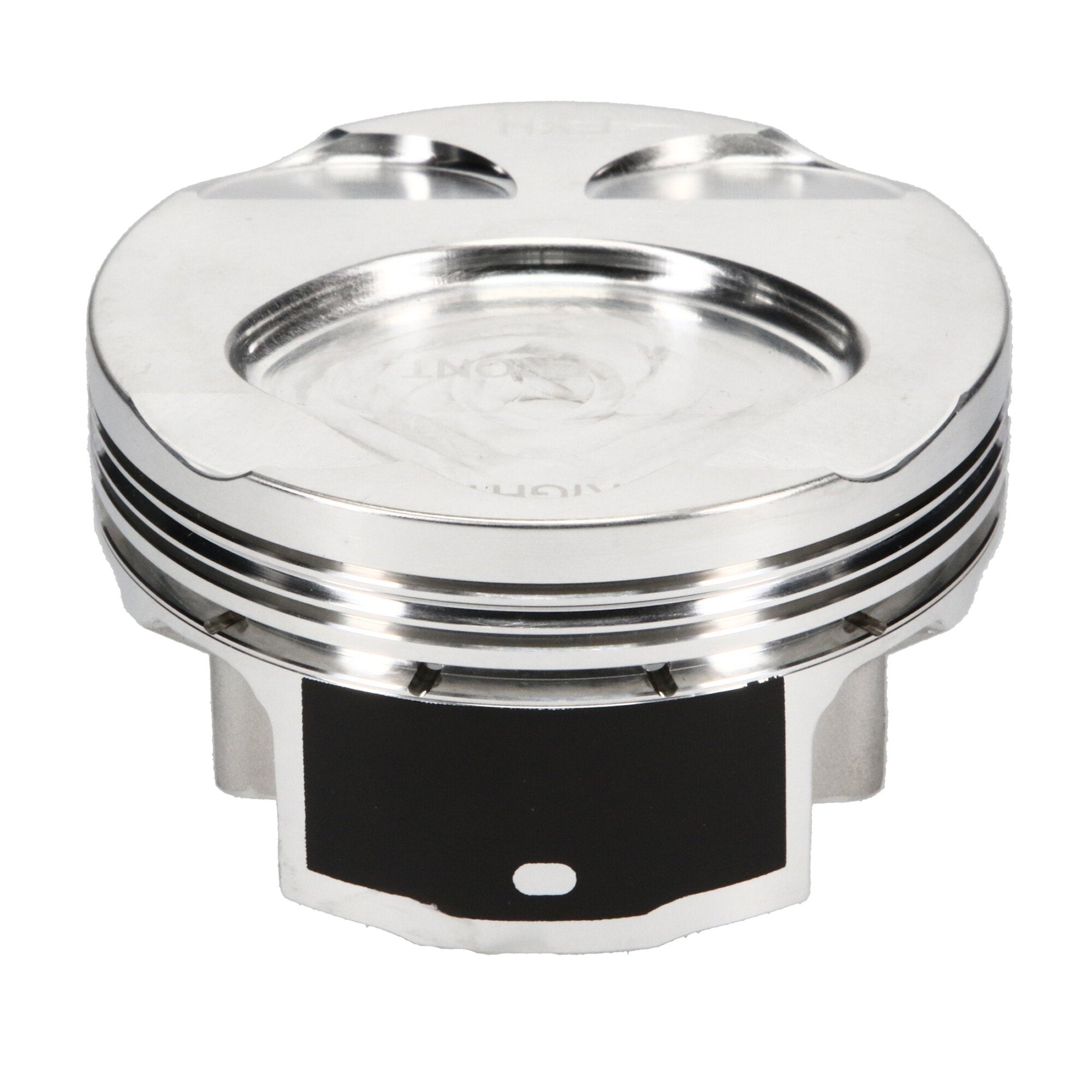

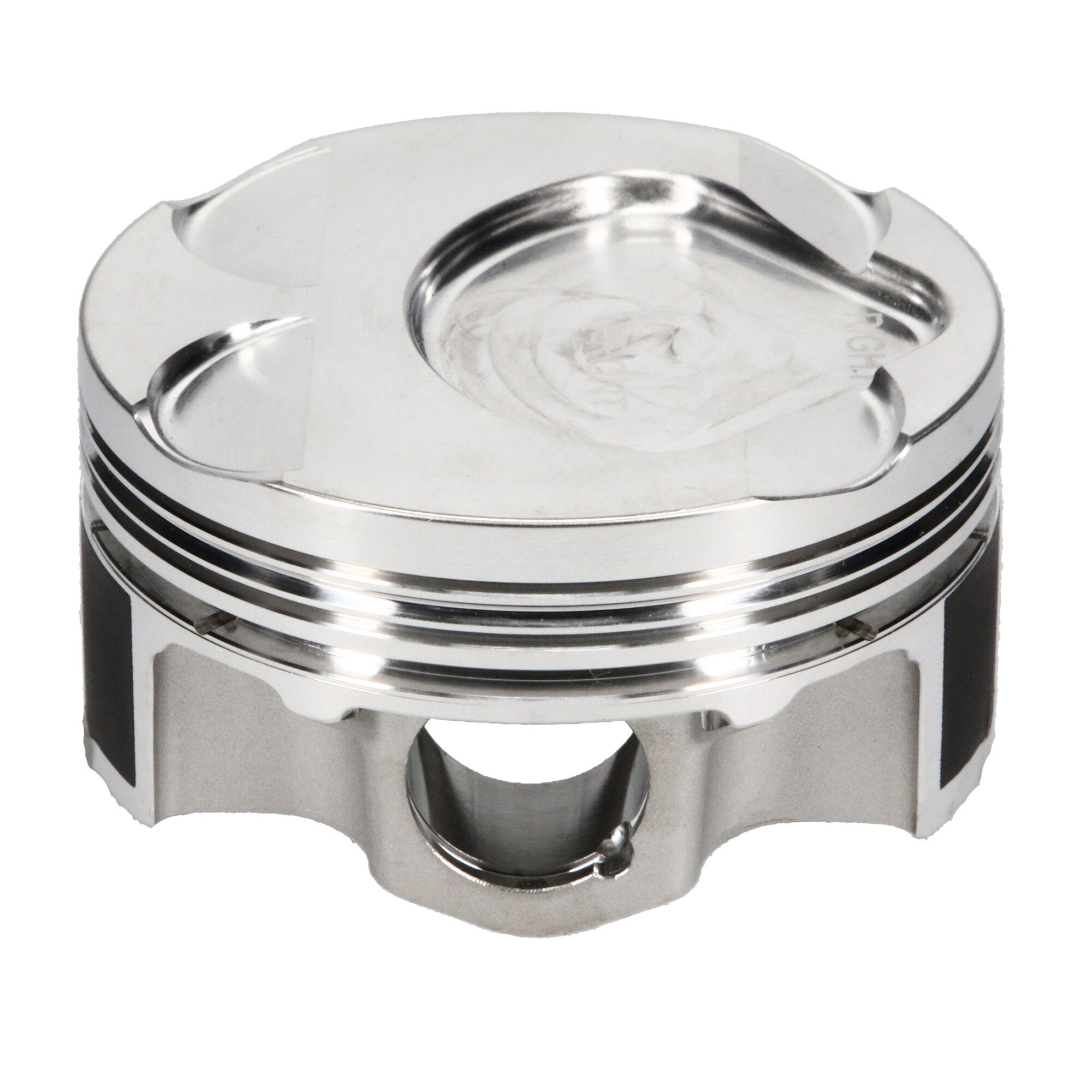

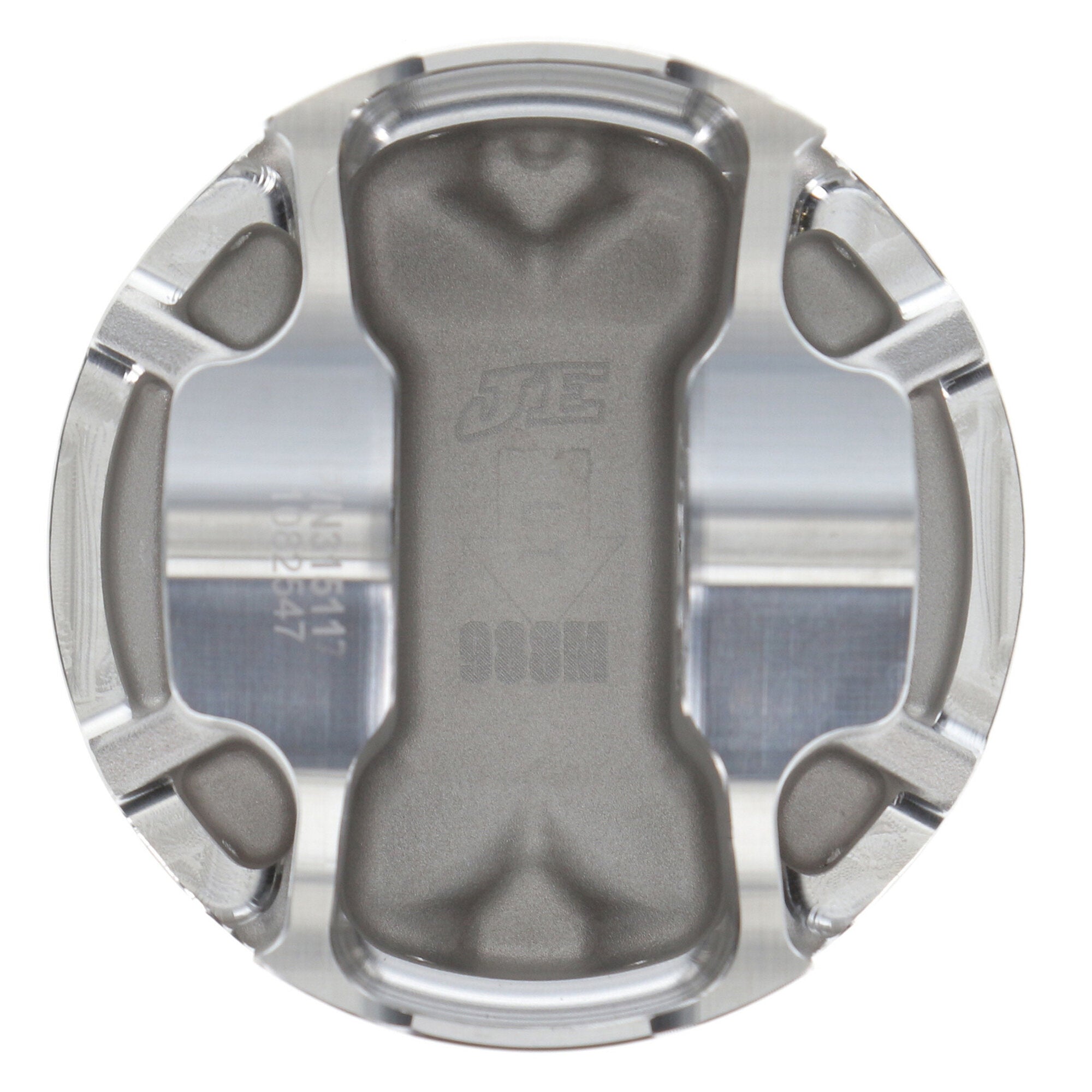

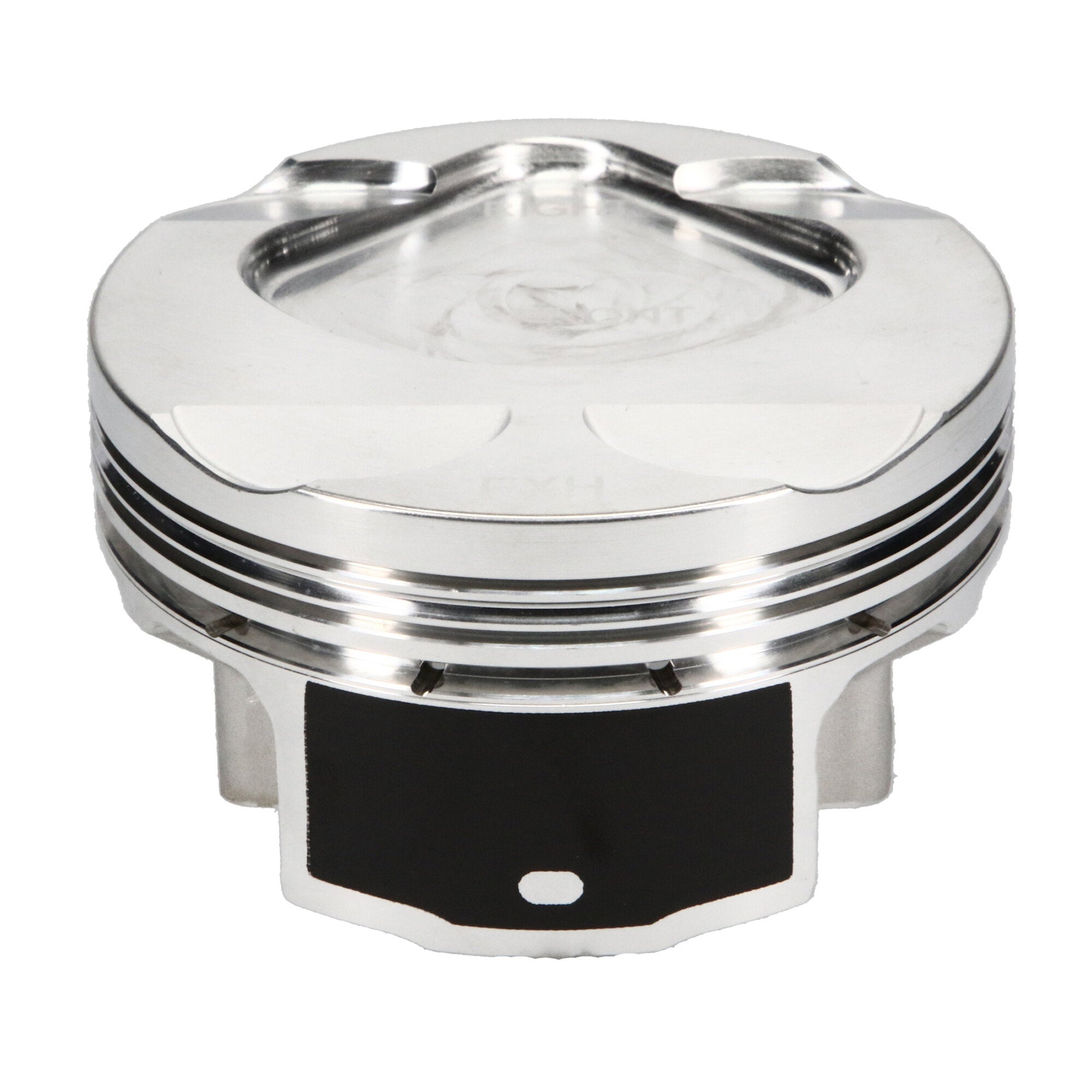

Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-3.386-Bore,-1.290-Cd,-0.866-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

JE Pistons 359152L Piston Single, 2618, Dome, 3.386 Bore, 1.290 CD, 0.866 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_359152L
Engine Piston
$451.87
customers are viewing this product
JE Pistons 324060R Piston Single, 2618, Inv Dome/Dish, 4.000 Bore, 1.115 CD, 0.927 Pin, Set of 1.
JE Pistons 324060R Piston Single, 2618, Inv Dome/Dish, 4.000 Bore, 1.115 CD, 0.927 Pin, Set of 1.
$305.80
JE Pistons 367194S Piston Single, 2618, Flat Top, 4.060 Bore, 1.300 CD, 0.927 Pin, Set of 1.
JE Pistons 367194S Piston Single, 2618, Flat Top, 4.060 Bore, 1.300 CD, 0.927 Pin, Set of 1.
$268.81
JE Pistons 359152L Piston Single, 2618, Dome, 3.386 Bore, 1.290 CD, 0.866 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Subaru FA20 Toyota 4U-GSE
Description_DES Piston Single, 2618, Dome, 3.386 Bore, 1.290 CD, 0.866 Pin, Set of 1.
Description_DEF Engine Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Description_EXT JE, Subaru, FA Series, 3.386 in. Bore, 12.50:1, Dome, Left Piston
Description_INV JE Pistons, Piston
Description_SHO Piston
Description_TLE Subaru FA20/4U-GSE, 86.00 Bore, Dome, Set of 1
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Second Compression Ring Thickness 0.0480
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Out of Stock Message Call for Availability
Piston Series JE Pistons
Prop 65 Yes/No Yes
Title - Web JE Pistons Subaru FA Series Piston - 86.00 mm Bore - 1.290 in. CH, -1.00 CC
Piston Head Type Dome
Engine FA SERIES
Make - Web Subaru
Prop 65 - Short Label Prop 65 Warning Label.JPG
Piston Pin Length 2.250
Ringset Included Yes
Engine Type ICE
Piston Pin Material 5115
Piston Pin Outside Diameter 0.866
Forging Type FSR
Make SUBARU
Engine - Web FA Series
Add-On JG1001-3386
Cylinder Head FA20
Piston Pin Wall Thickness 0.150
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Sport Compact
Piston Average Weight 317
Title JE Pistons - Subaru, FA Series, 86.00 mm Bore, Piston
Oil Ring Thickness 0.111
Product Market Sport Compact
Industry Automotive
Piston Orientation Left
Compression Height 1.290
Top Compression Ring Thickness 0.0400
Prop 65 (C, R or CR) CR
Add-On 866-2250-15-51C
Piston Material 2618
Bore Diameter 86.00
Add-On 866-063-MW
Piston Volume -1.00
Piston Quantity 1
Product Type Engine Piston
Wrist Pin Outer Diameter 0.866
Wrist Pin Length 2.250
Ring Set Included Yes
Wrist Pin Wall Thickness 0.150
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
