As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K20C |
| Description_DEF |
Engine Piston |
| Description_DES |

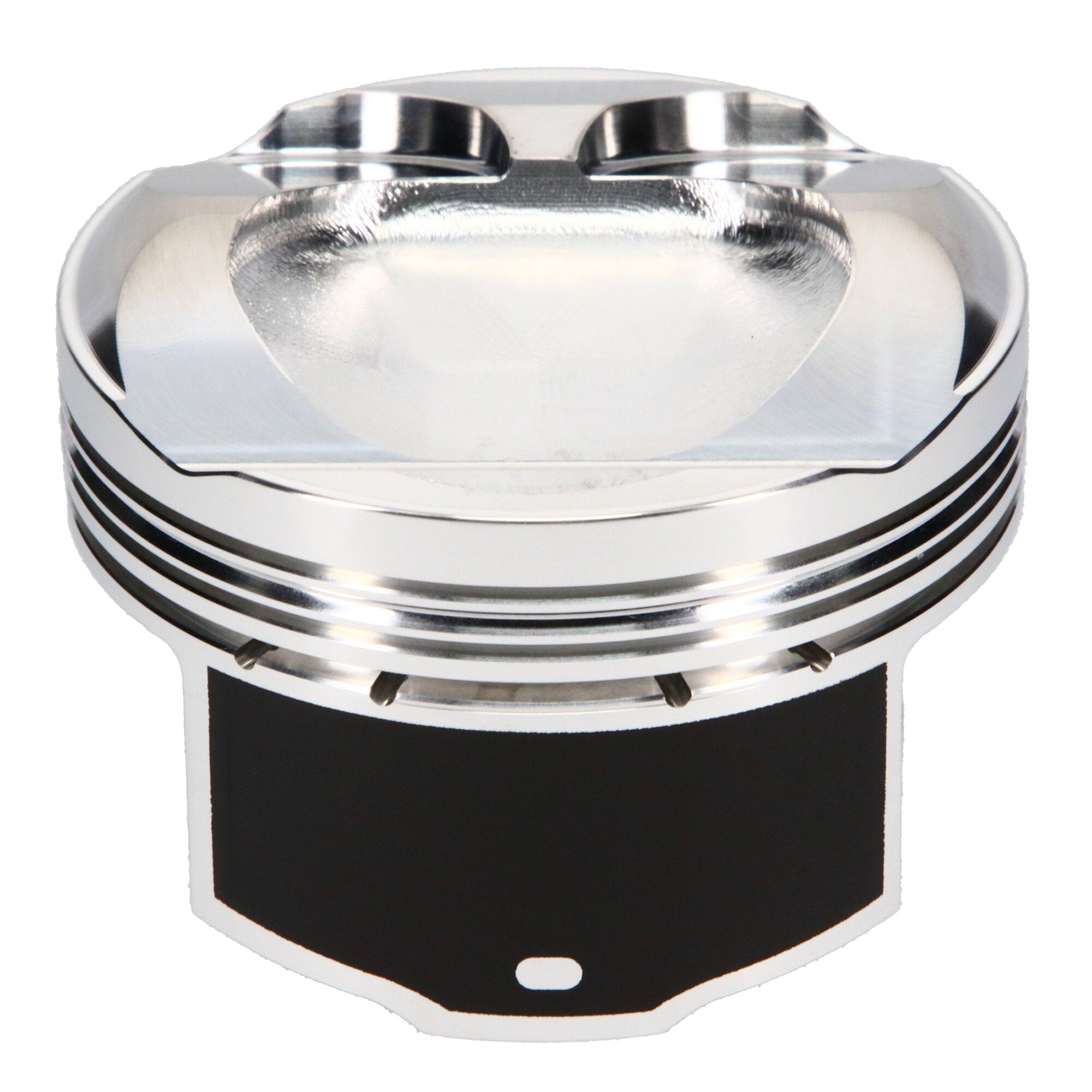

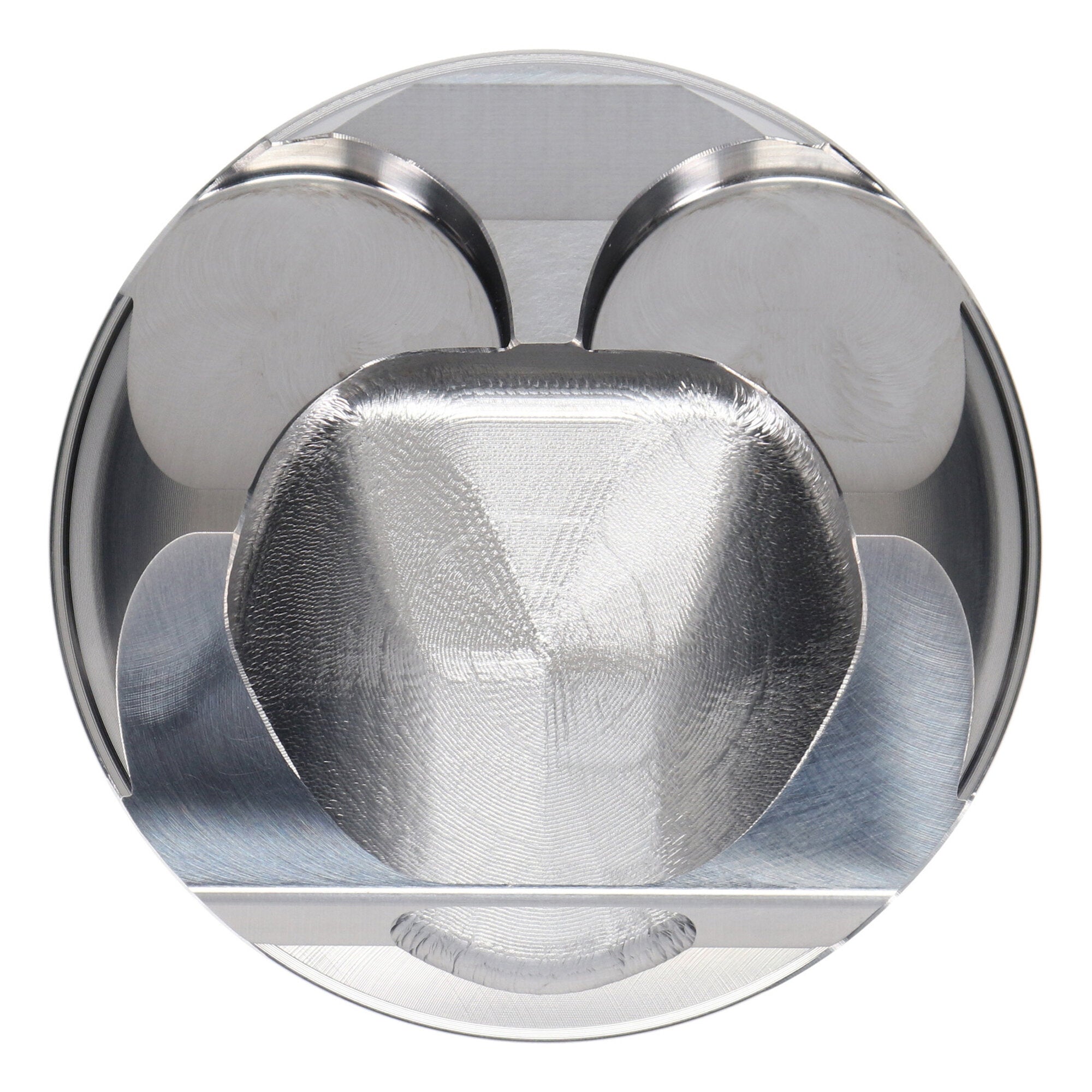

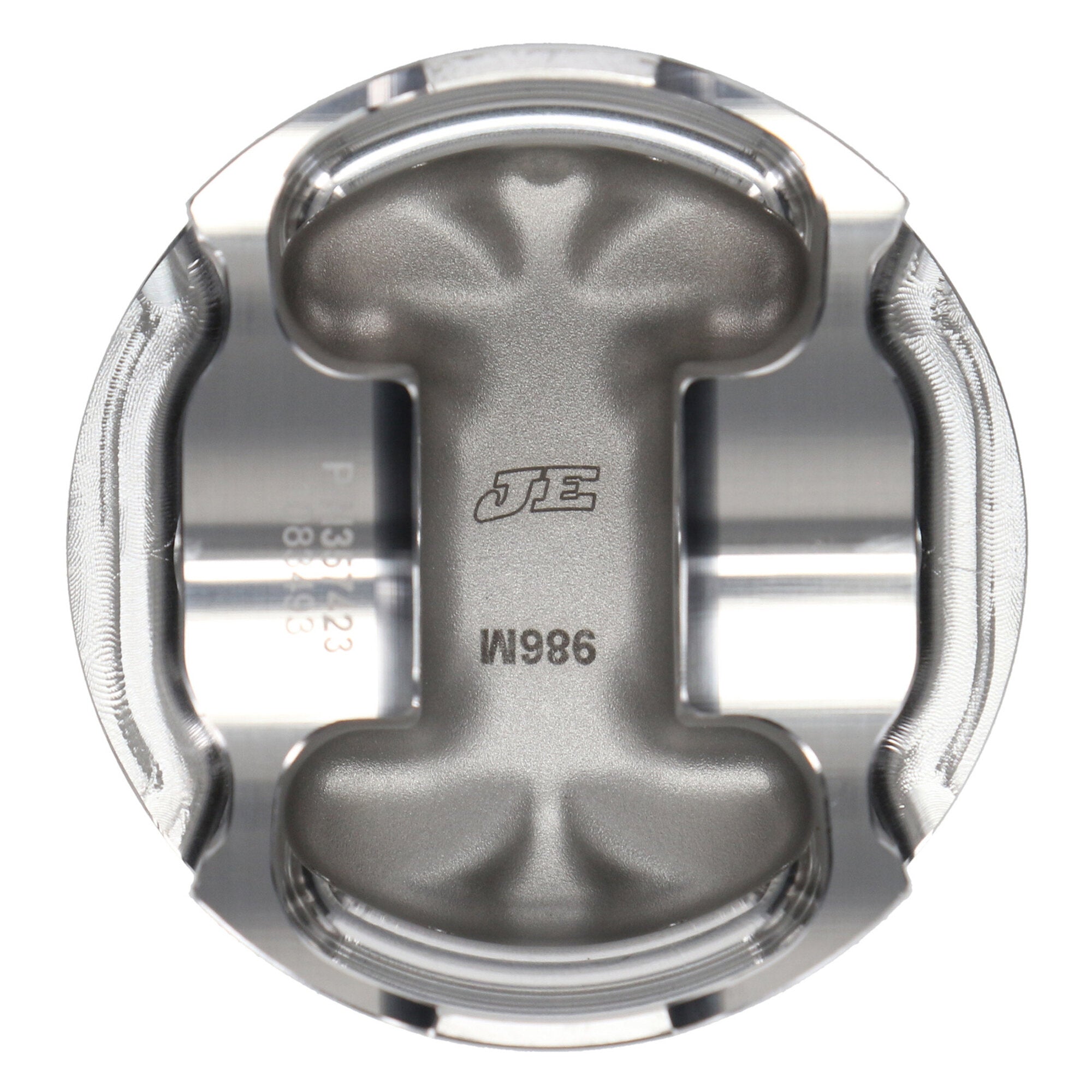

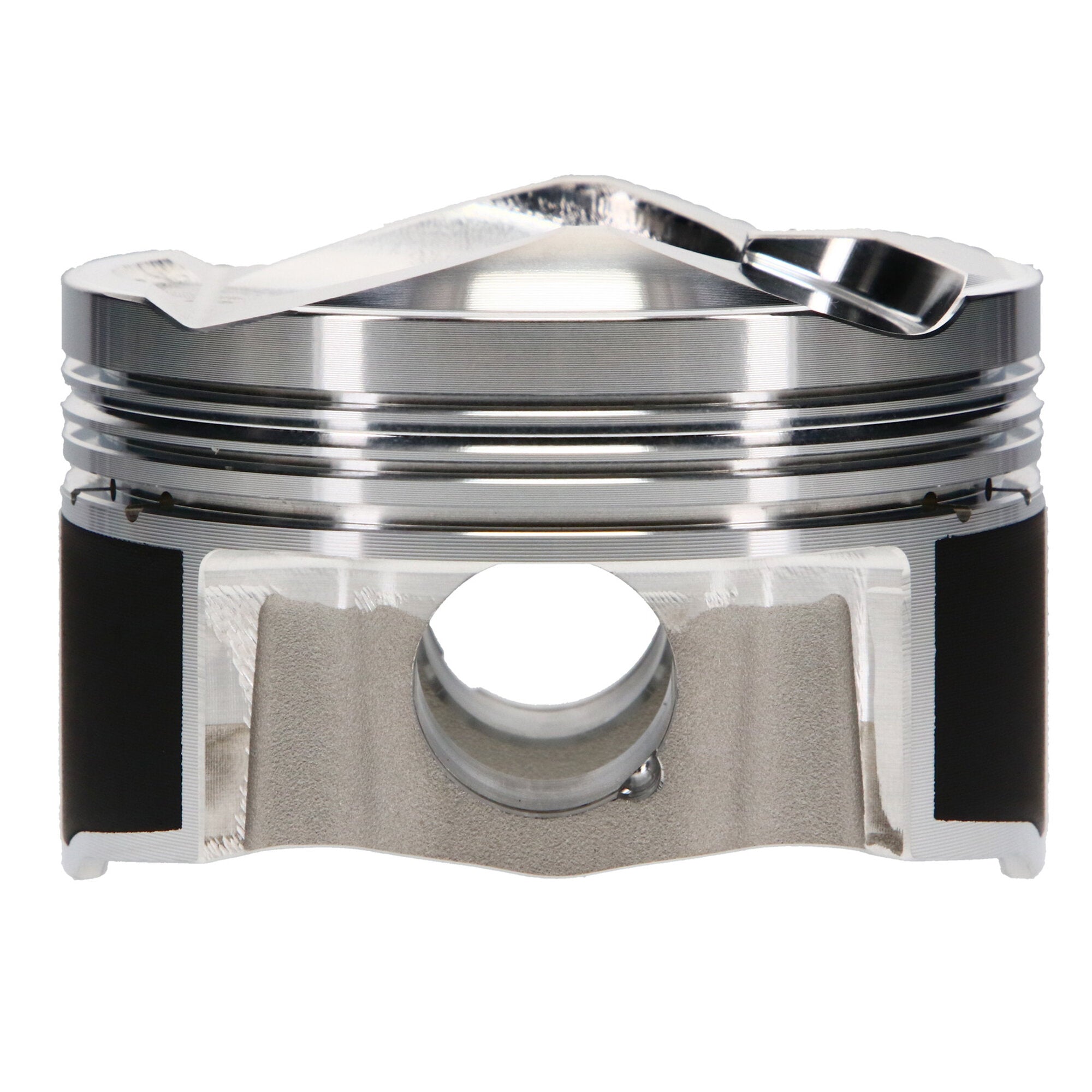

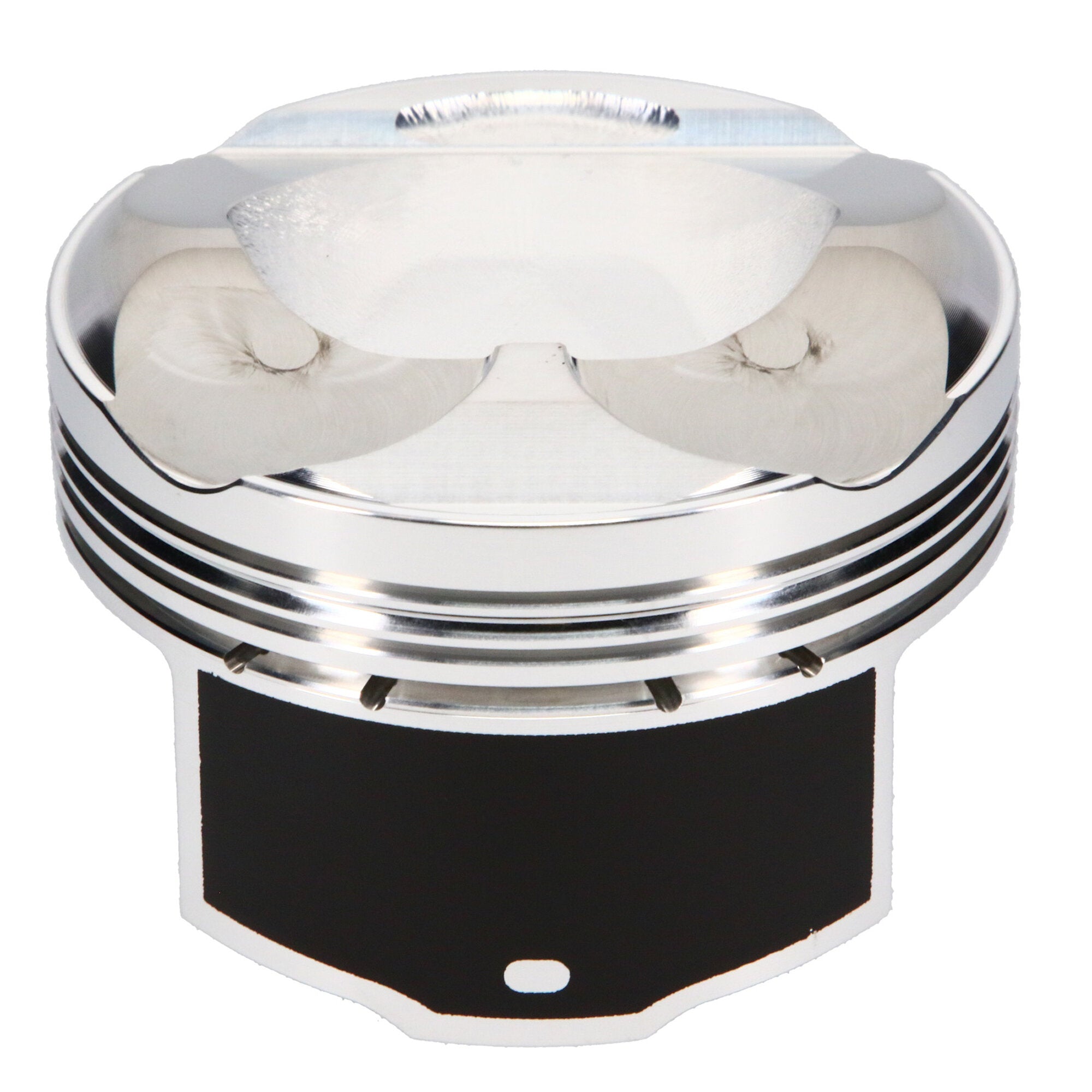

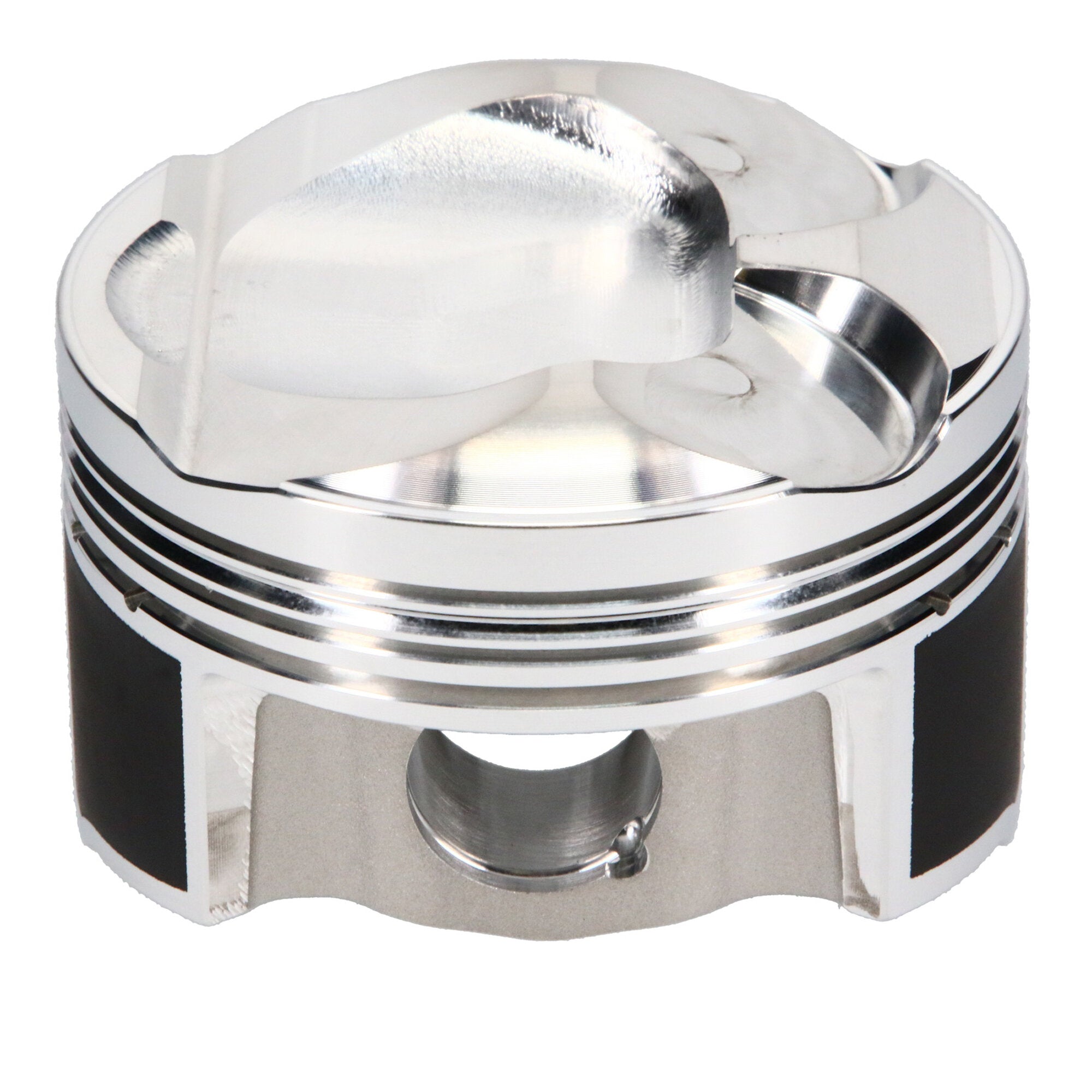

Piston Single, 2618, Dome, 3.406 Bore, 1.260 CD, 0.866 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Honda, K20C Series, 3.406 in. Bore, 10.50:1, Dome, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston |
| Description_TLE |
Honda K20A, 86.50 Bore, Dome, Set of 1 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Volume |
2.04 |
| Piston Material |
2618 |
| Product Type |
Engine Piston |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Honda K Series Piston - 86.50 mm Bore - 1.260 in. CH, 2.04 CC |
| Engine |
K20C SERIES |
| Cylinder Head |
K20C |
| Out of Stock Message |
Call for Availability |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine Detail |
K20C Series |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Wall Thickness |
0.180 |
| Piston Pin Material |
5115 |
| Add-On |
866-2250-18-51C |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
866-063-MW |
| Add-On |
JG1201-3405 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Make - Web |
Honda |
| Piston Head Type |
Dome |
| Bore Diameter |
86.50 |
| Oil Ring Thickness |
0.079 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Ringset Included |
Yes |
| Title |
JE Pistons - Honda, K Series, 86.50 mm Bore, Piston |
| Piston Pin Outside Diameter |
0.866 |
| Compression Height |
1.260 |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Top Compression Ring Thickness |
0.0480 |
| Product Market |
Sport Compact |
| Piston Quantity |
1 |
| Piston Series |
JE Pistons |
| Make |
HONDA |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.180 |
| Engine - Web |
K Series |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
