As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K20C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

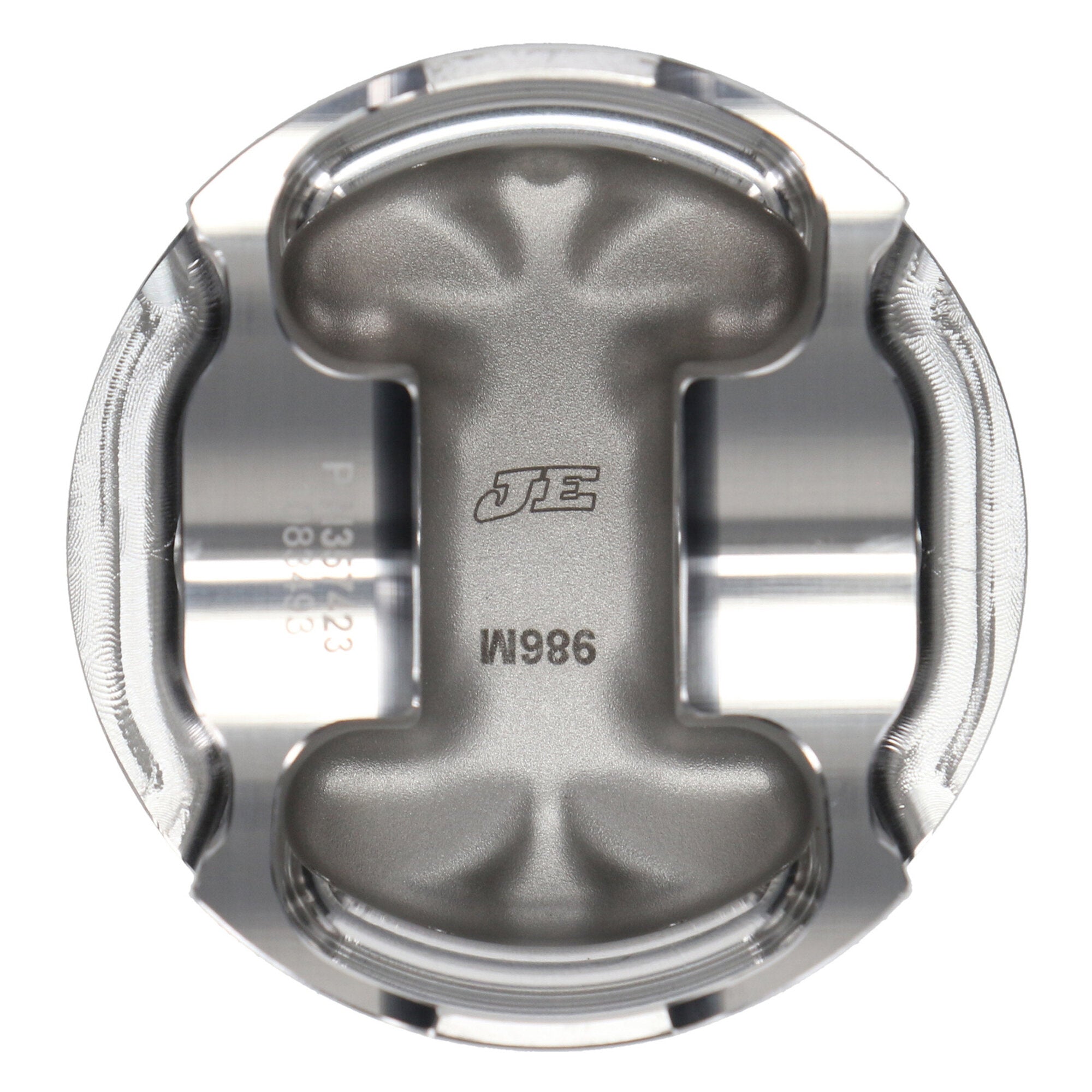

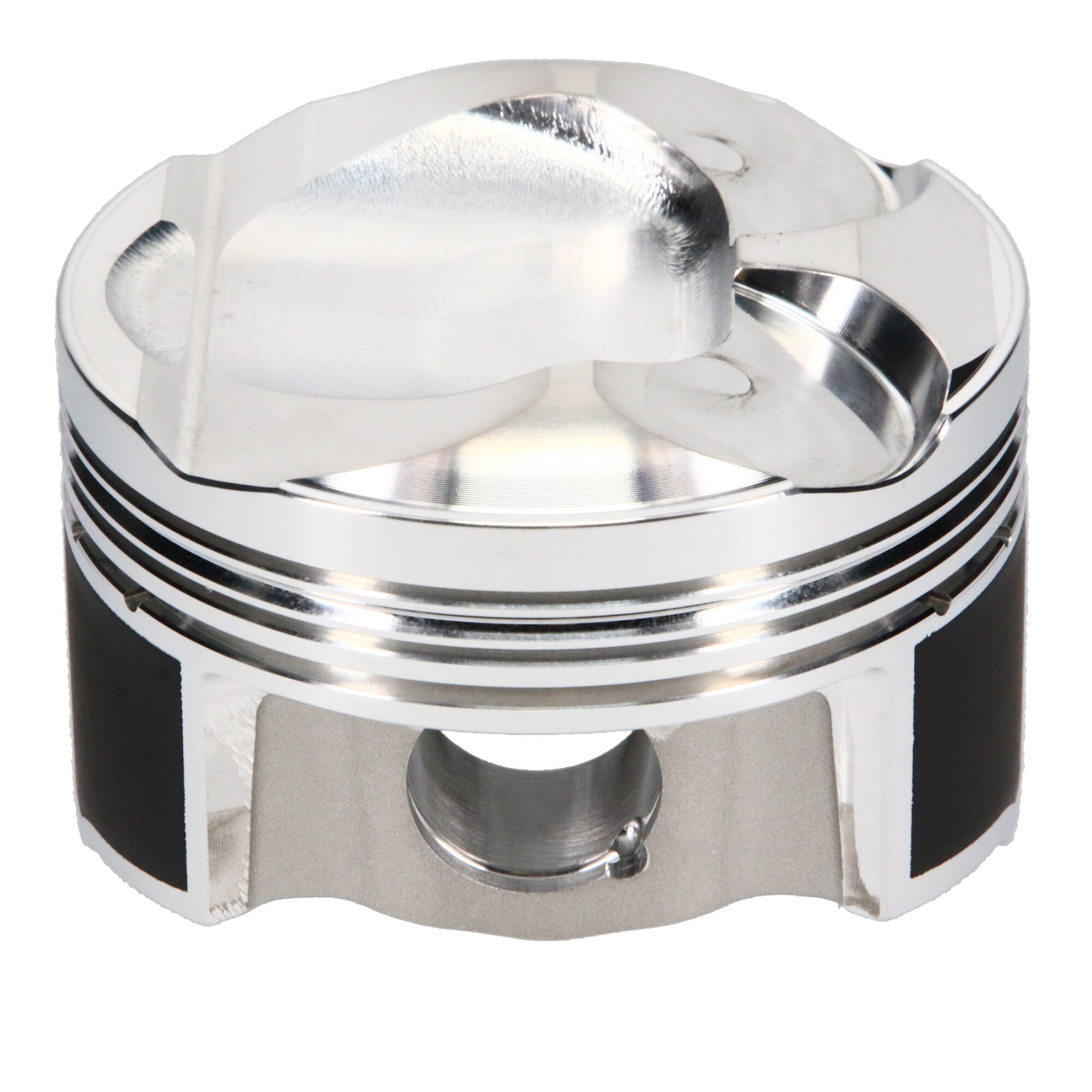

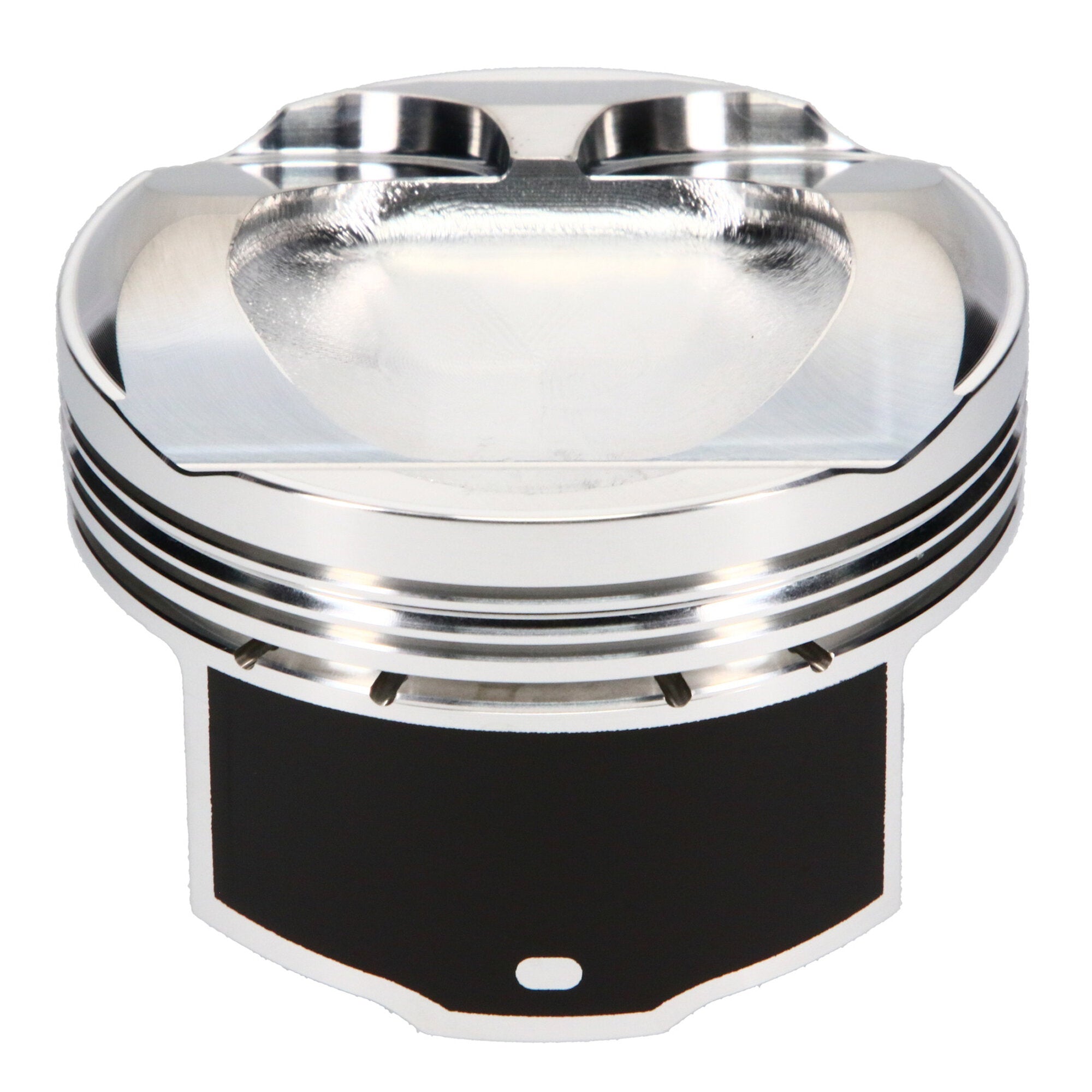

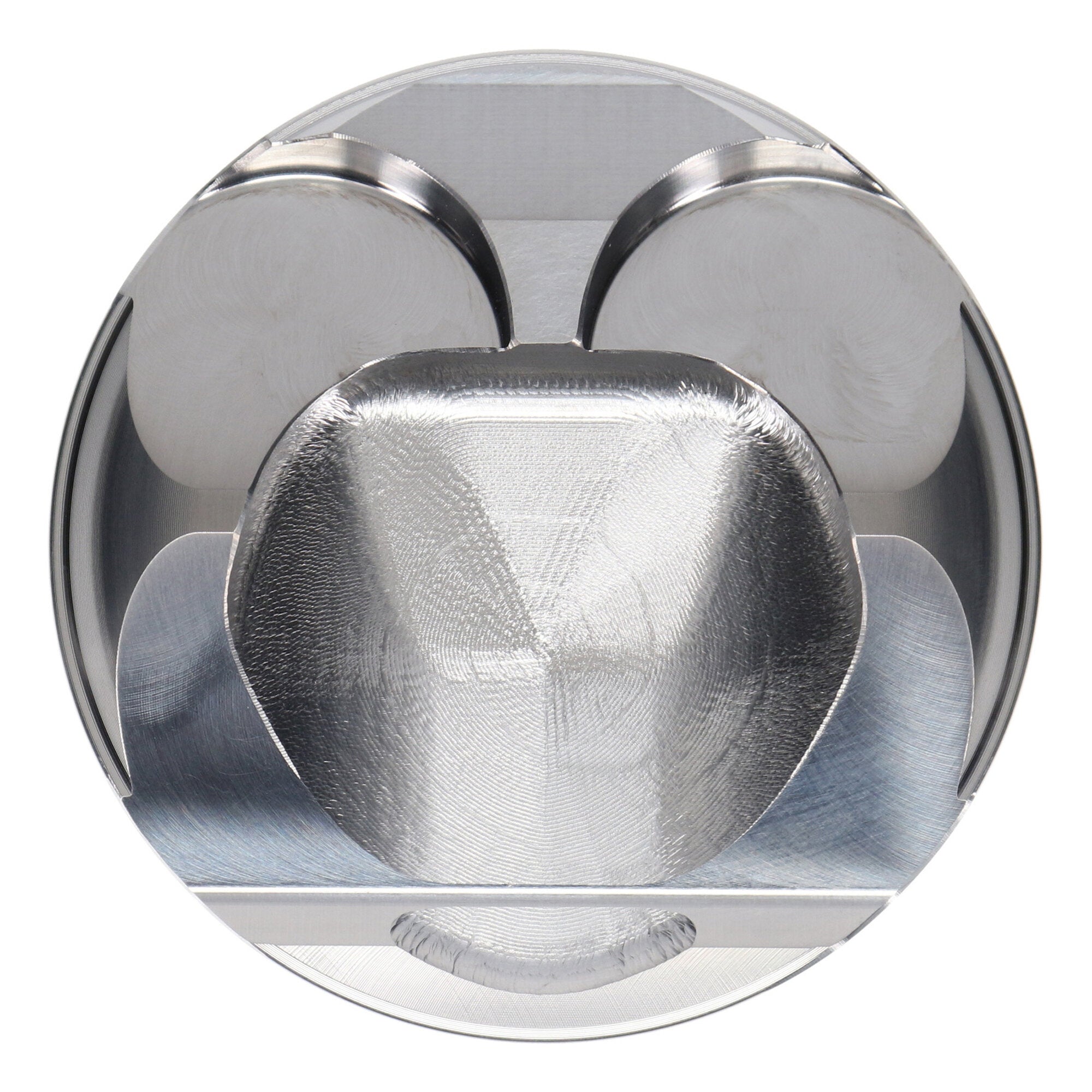

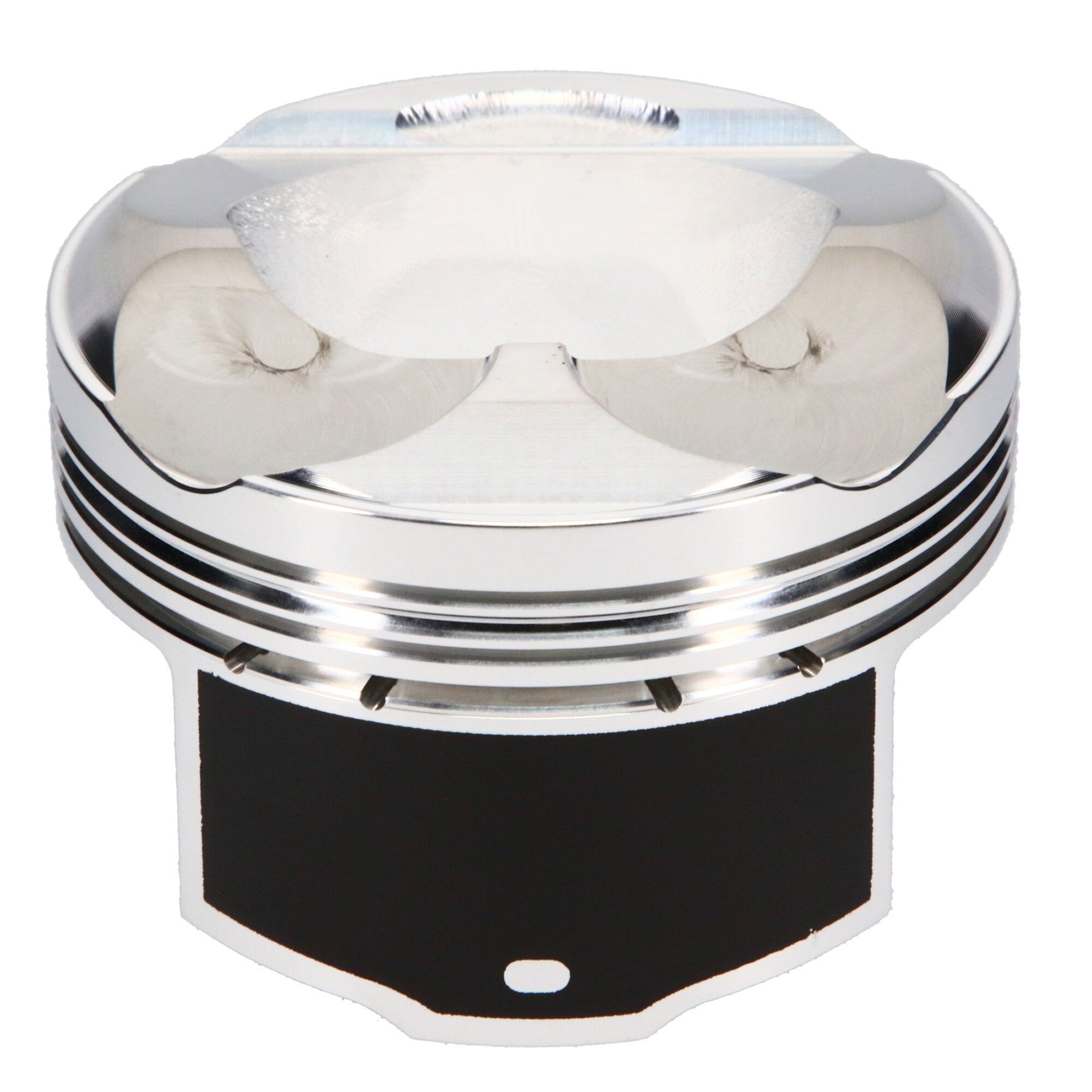

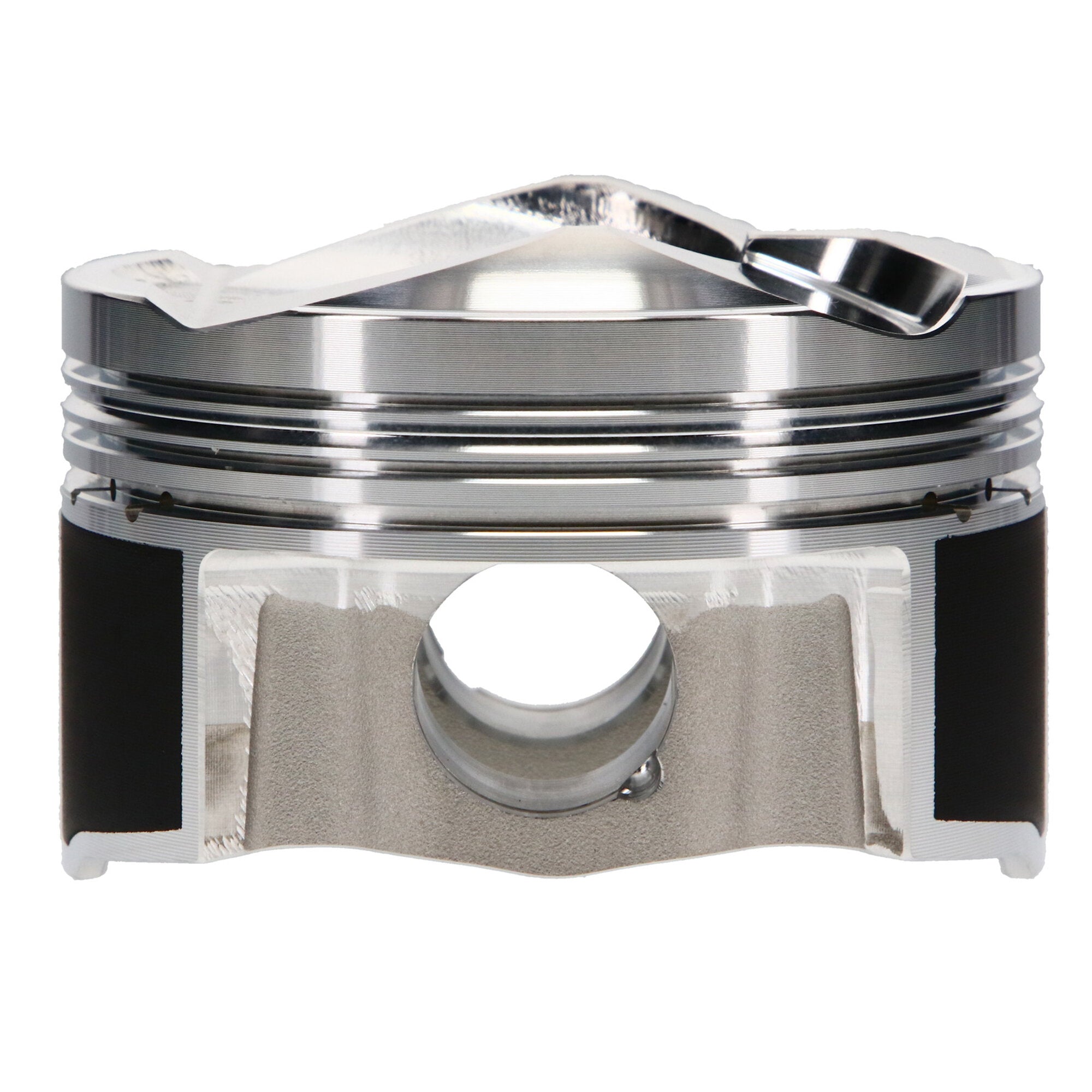

Piston Set, 2618, Dome, 3.406 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Honda, K20C Series, 3.406 in. Bore, 9.80:1, Dome, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda K20A, 86.50 Bore, Dome, Set of 4 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.250 |
| Piston Volume |
-2.18 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Top Compression Ring Thickness |
0.0480 |
| Piston Quantity |
4 |
| Title - Web |
JE Pistons Honda K Series Piston Kit - 86.50 mm Bore - 1.260 in. CH, -2.18 CC |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
86.50 |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Ring Set Included |
Yes |
| Make - Web |
Honda |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Wall Thickness |
0.180 |
| Add-On |
JG1201-3405 |
| Cylinder Head |
K20C |
| Title |
JE Pistons - Honda, K Series, 86.50 mm Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Add-On |
866-2250-18-51C |
| Industry |
Automotive |
| Add-On |
866-063-MW |
| Piston Head Type |
Dome |
| Oil Ring Thickness |
0.079 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine - Web |
K Series |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine |
K20C SERIES |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Make |
HONDA |
| Product Market |
Sport Compact |
| Compression Height |
1.260 |
| Ringset Included |
Yes |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.180 |
| Engine Detail |
K20C Series |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
