As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 1.8T 20V 97-05 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

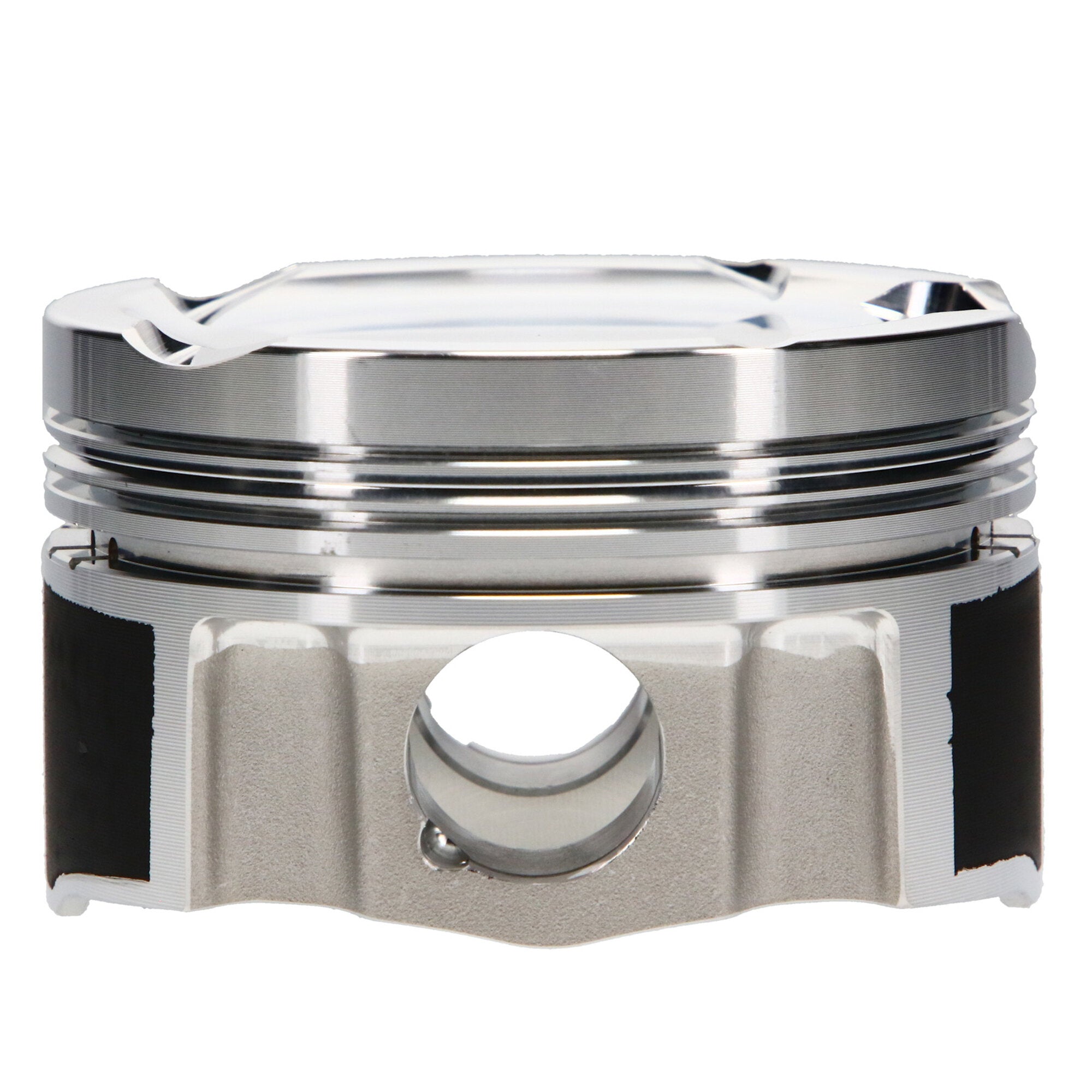

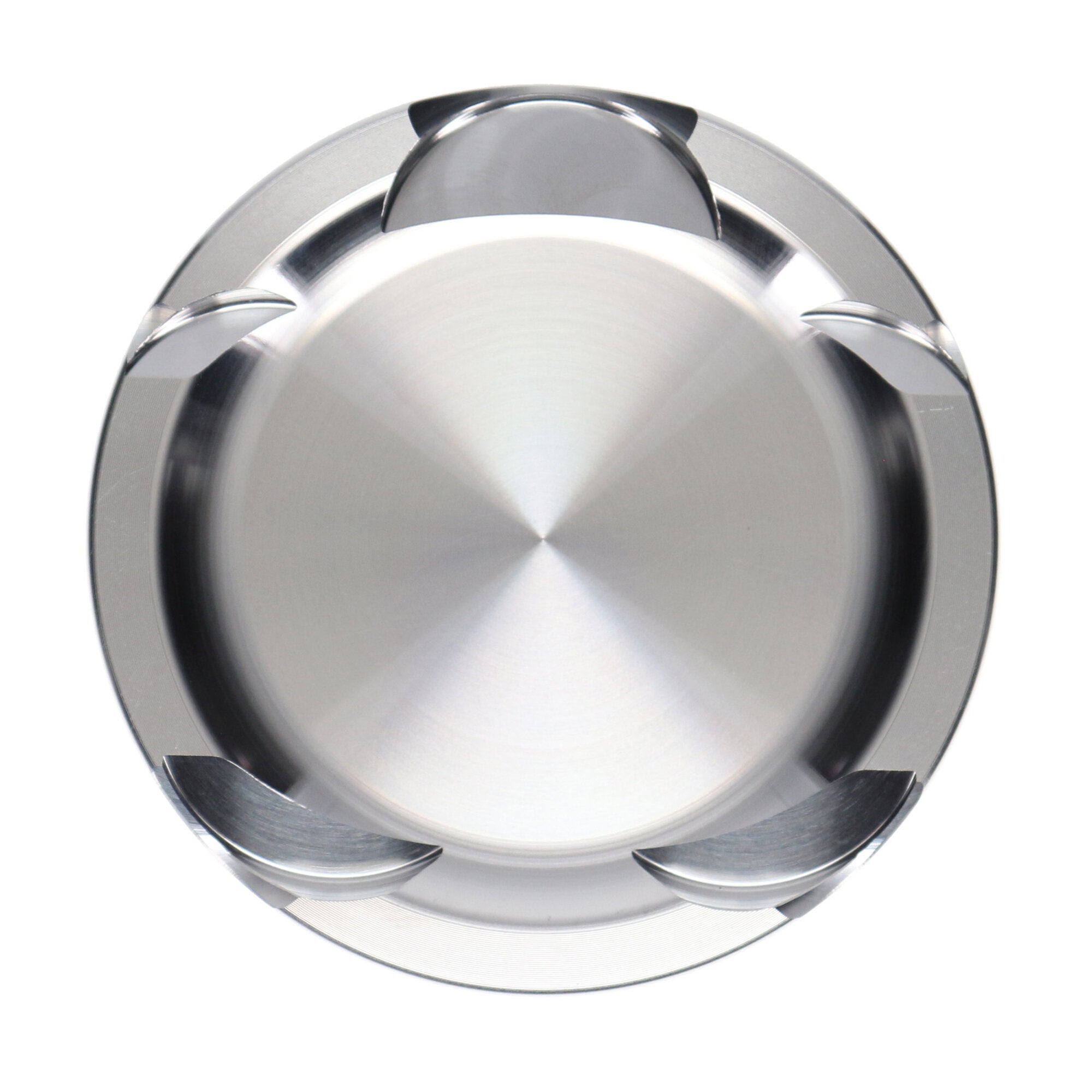

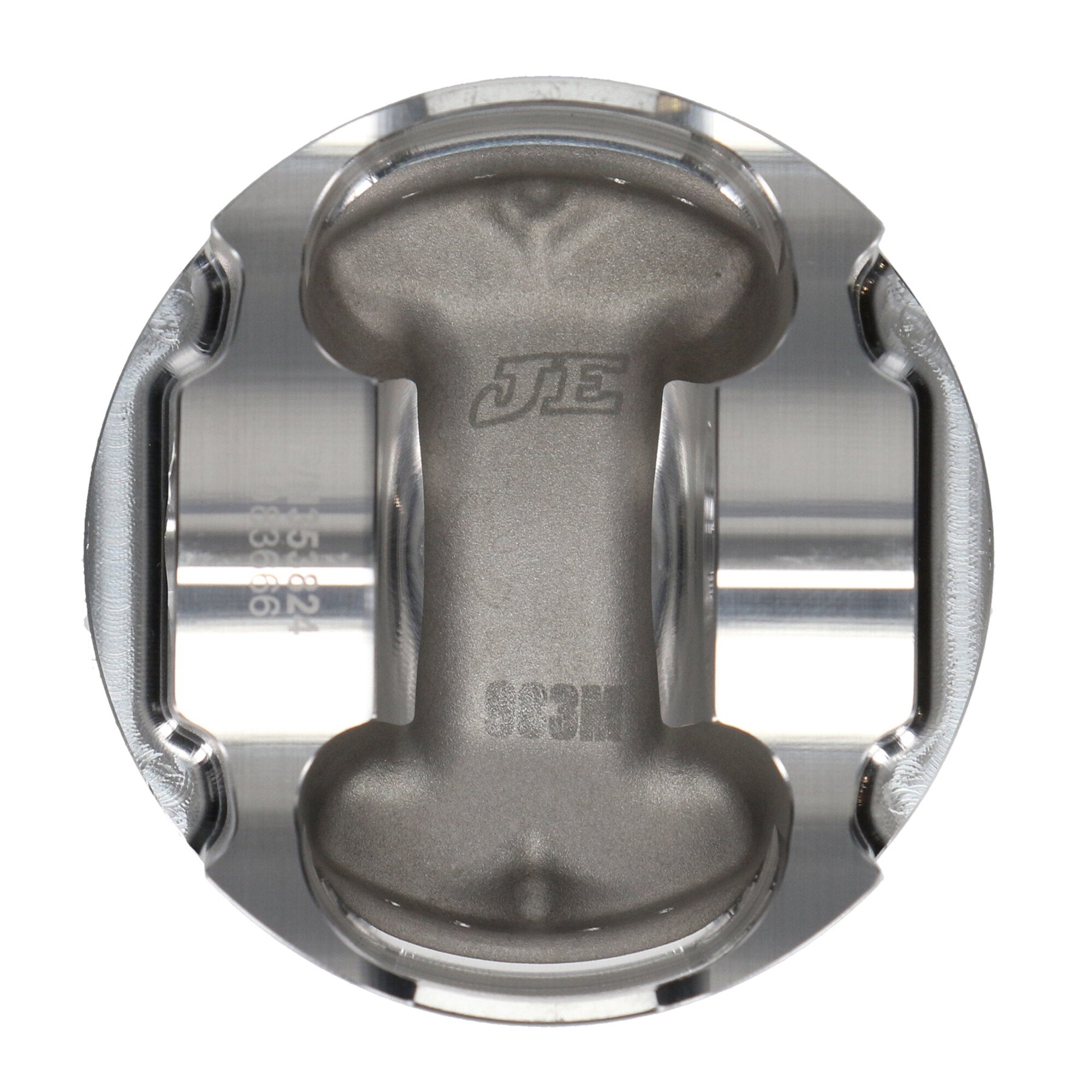

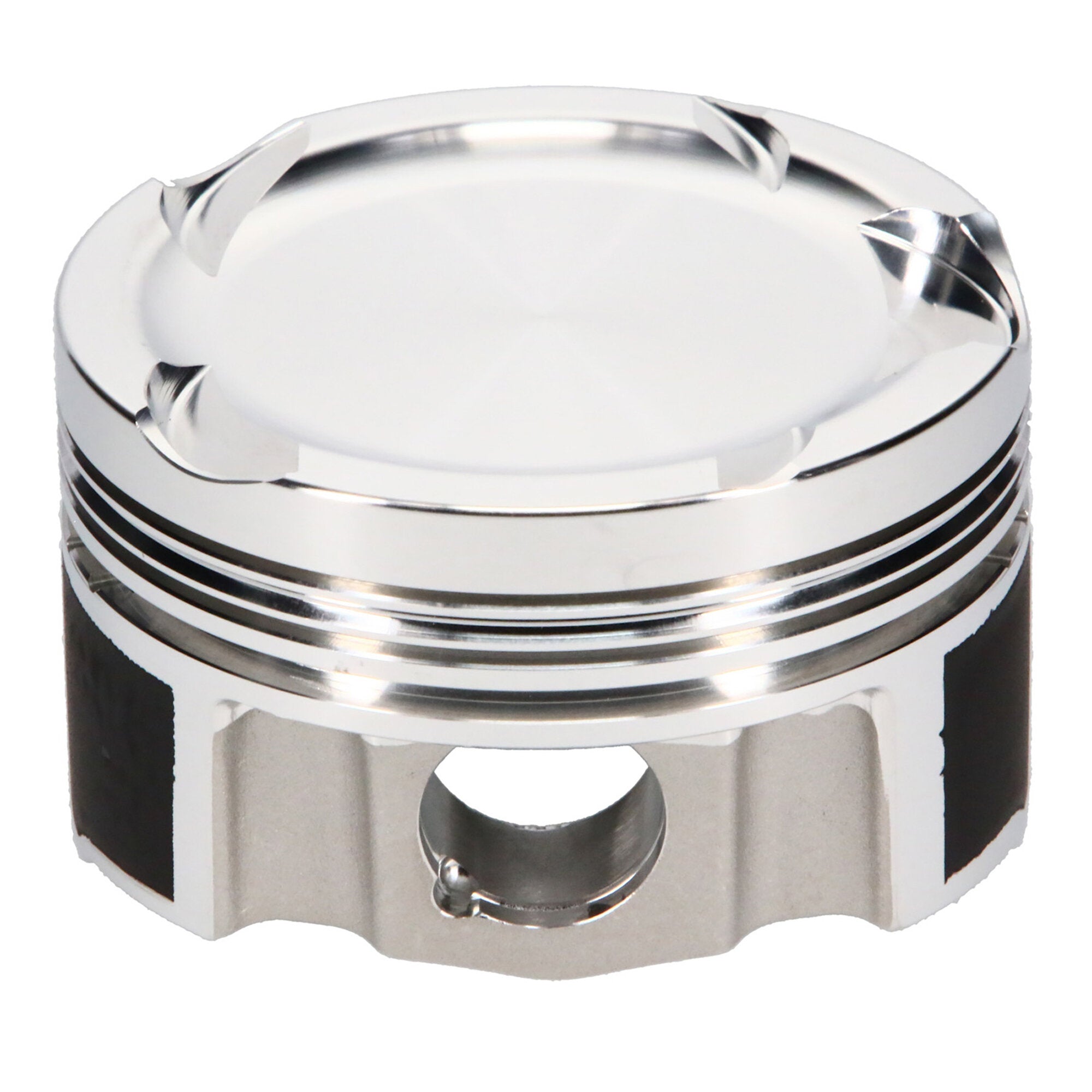

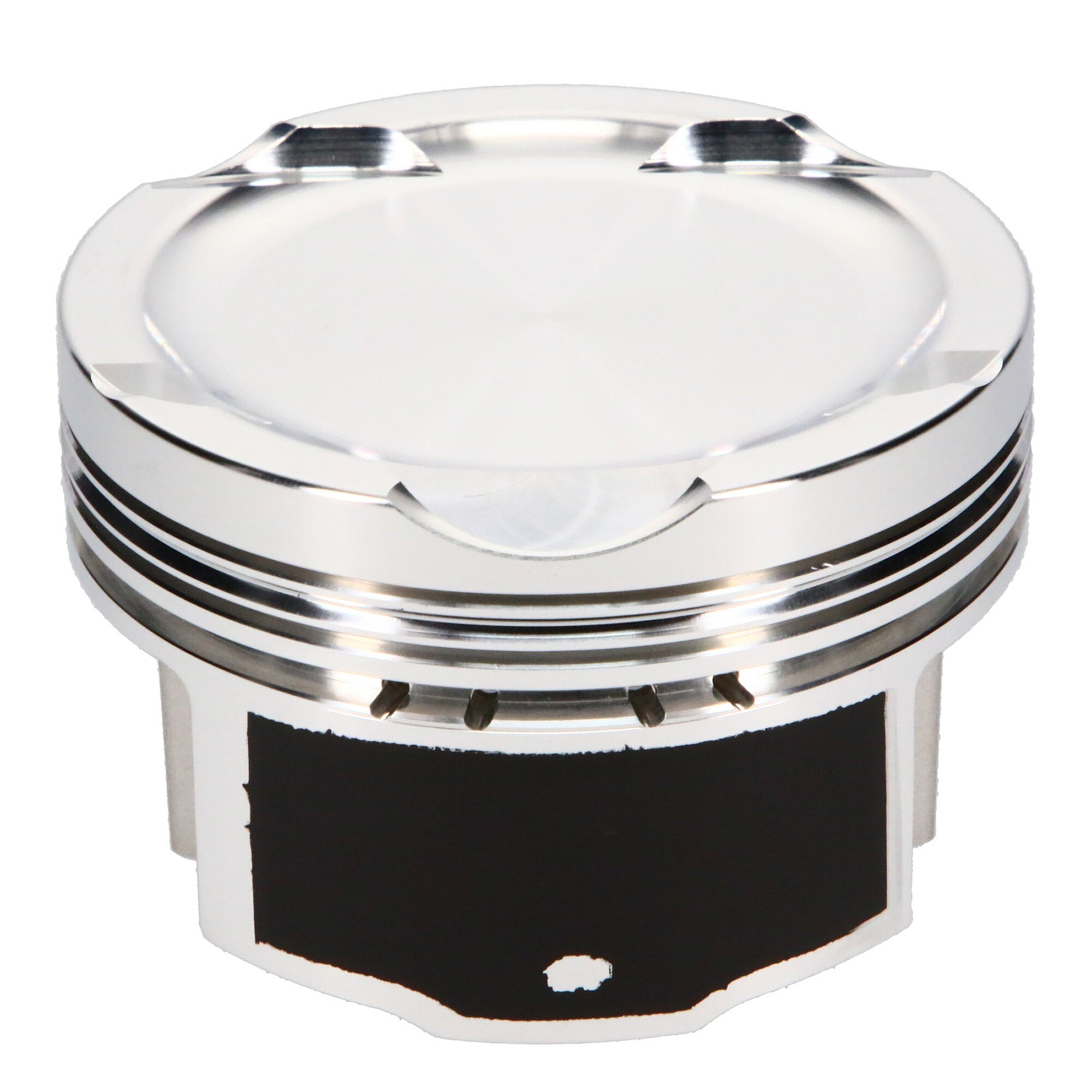

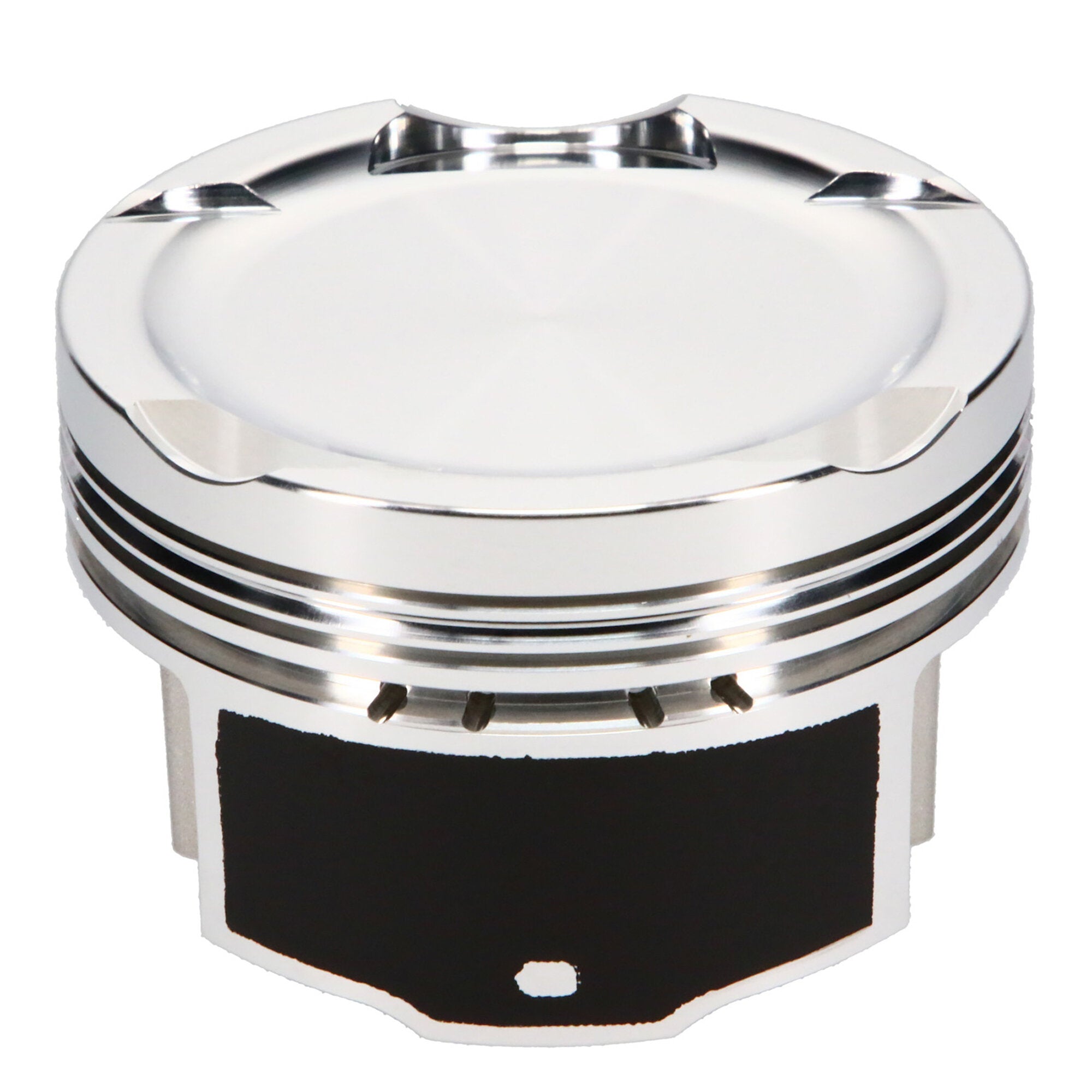

Piston Set, 2618, Inv Dome/Dish, 3.209 Bore, 1.286 CD, 0.787 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, VW, 1.8T 20V - 20mm Pin, 3.209 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 1.8T 20V, 81.50 Bore, Dish, Set of 4 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Outside Diameter |
0.787 |
| Wrist Pin Outer Diameter |
0.787 |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Pin Material |
5115 |
| Product Market |
European |
| Piston Quantity |
4 |
| Make |
VOLKSWAGEN |
| Piston Material |
2618 |
| Piston Pin Wall Thickness |
0.180 |
| Title |
JE Pistons - Volkswagen, 1.8T 20V, 81.50 mm Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Cylinder Head |
1.8T APH |
| Piston Volume |
-10.60 |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.111 |
| Compression Height |
1.286 |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
81.50 |
| Industry |
Automotive |
| Engine - Web |
1.8T 20V |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Engine Type |
ICE |
| Second Compression Ring Thickness |
0.0480 |
| Piston Series |
JE Pistons |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Volkswagen |
| Engine Detail |
1.8T 20V 20 mm Pin |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title - Web |
JE Pistons Volkswagen 1.8T 20V Piston Kit - 81.50 mm Bore - 1.286 in. CH, -10.60 CC |
| Add-On |
JG1001-3209 |
| Engine |
1.8T 20V 20 mm Pin |
| Out of Stock Message |
Call for Availability |
| Add-On |
787-2250-18-51C |
| Ringset Included |
Yes |
| Add-On |
787-050-MW |
| Piston Head Type |
Dish |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
