As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 3.2L 911 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

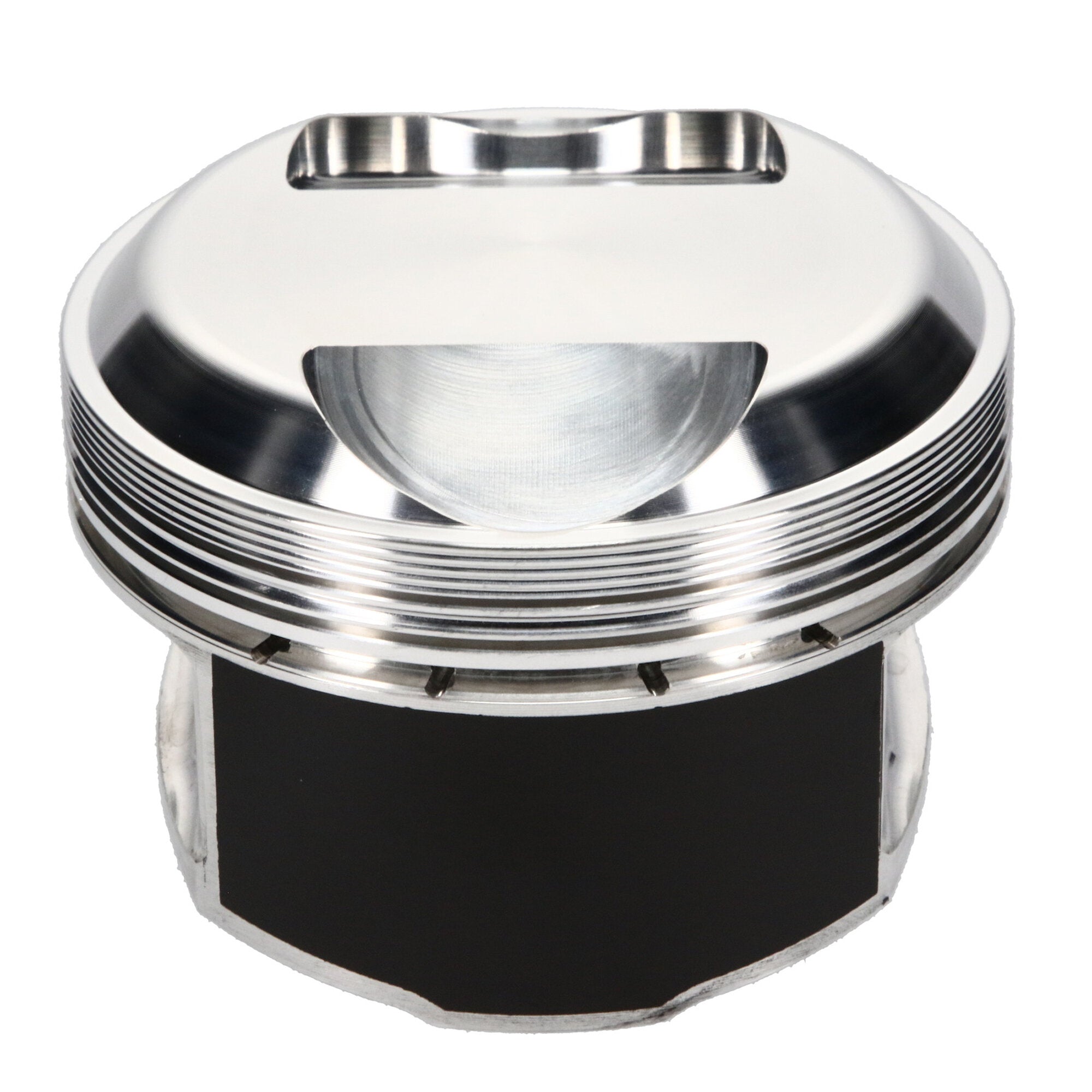

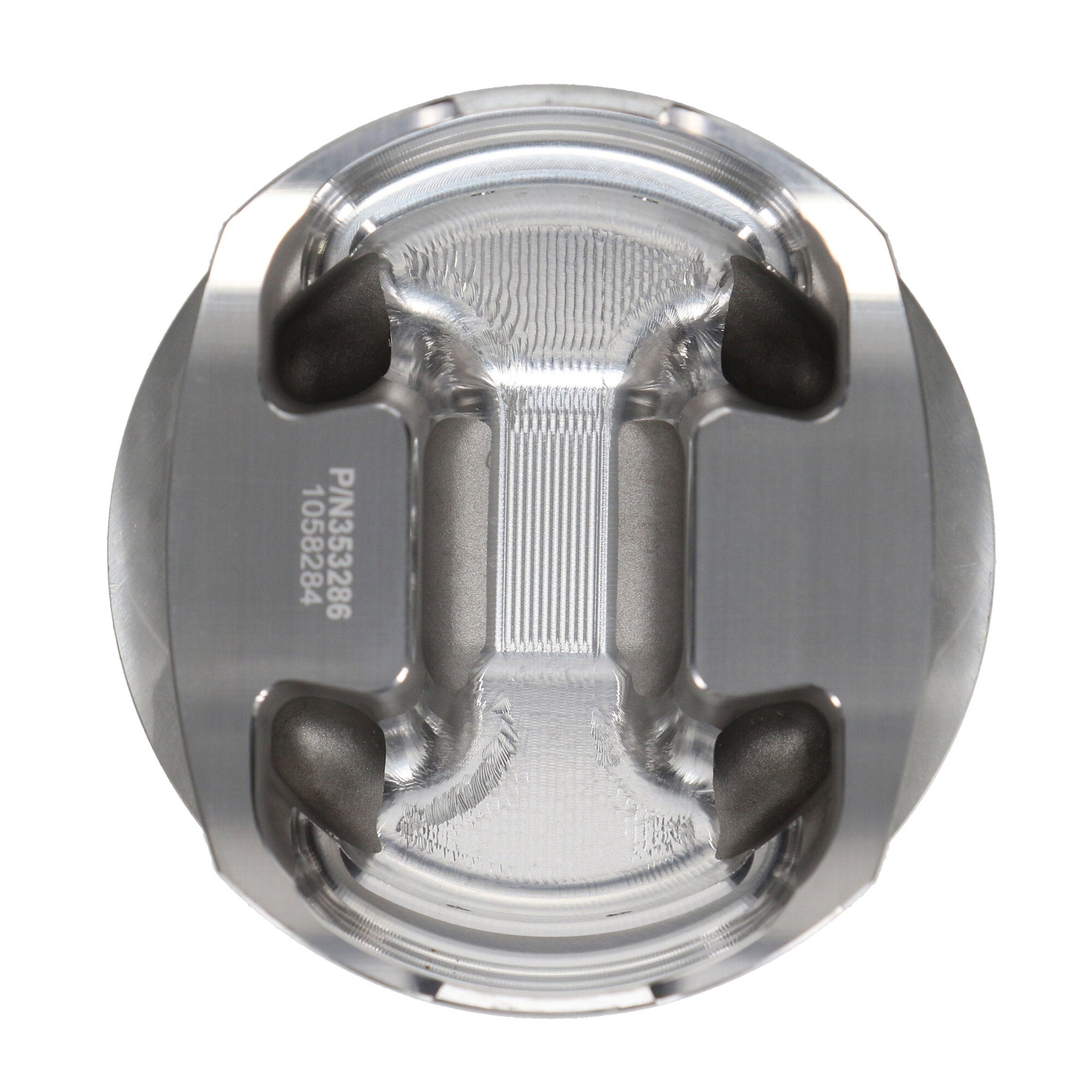

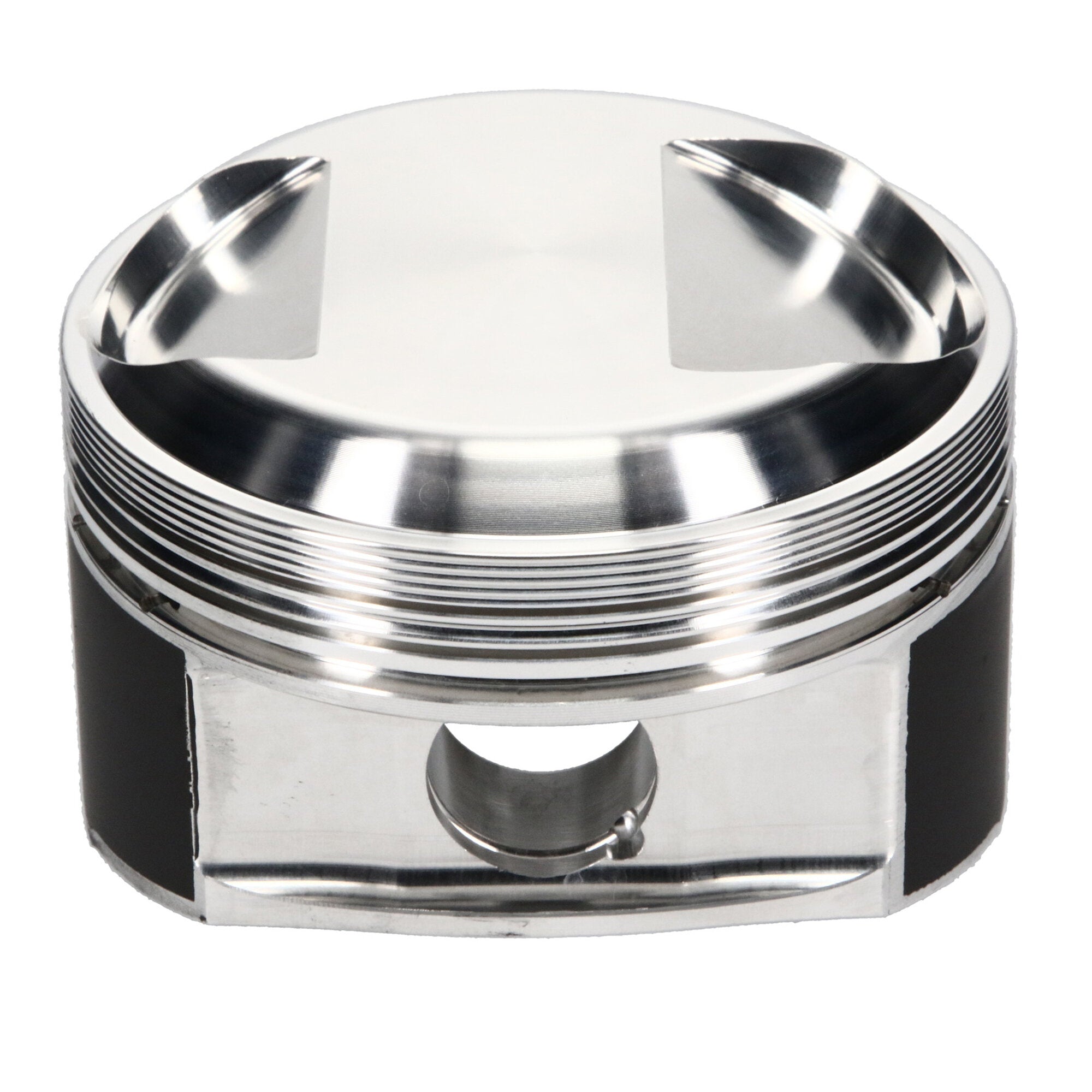

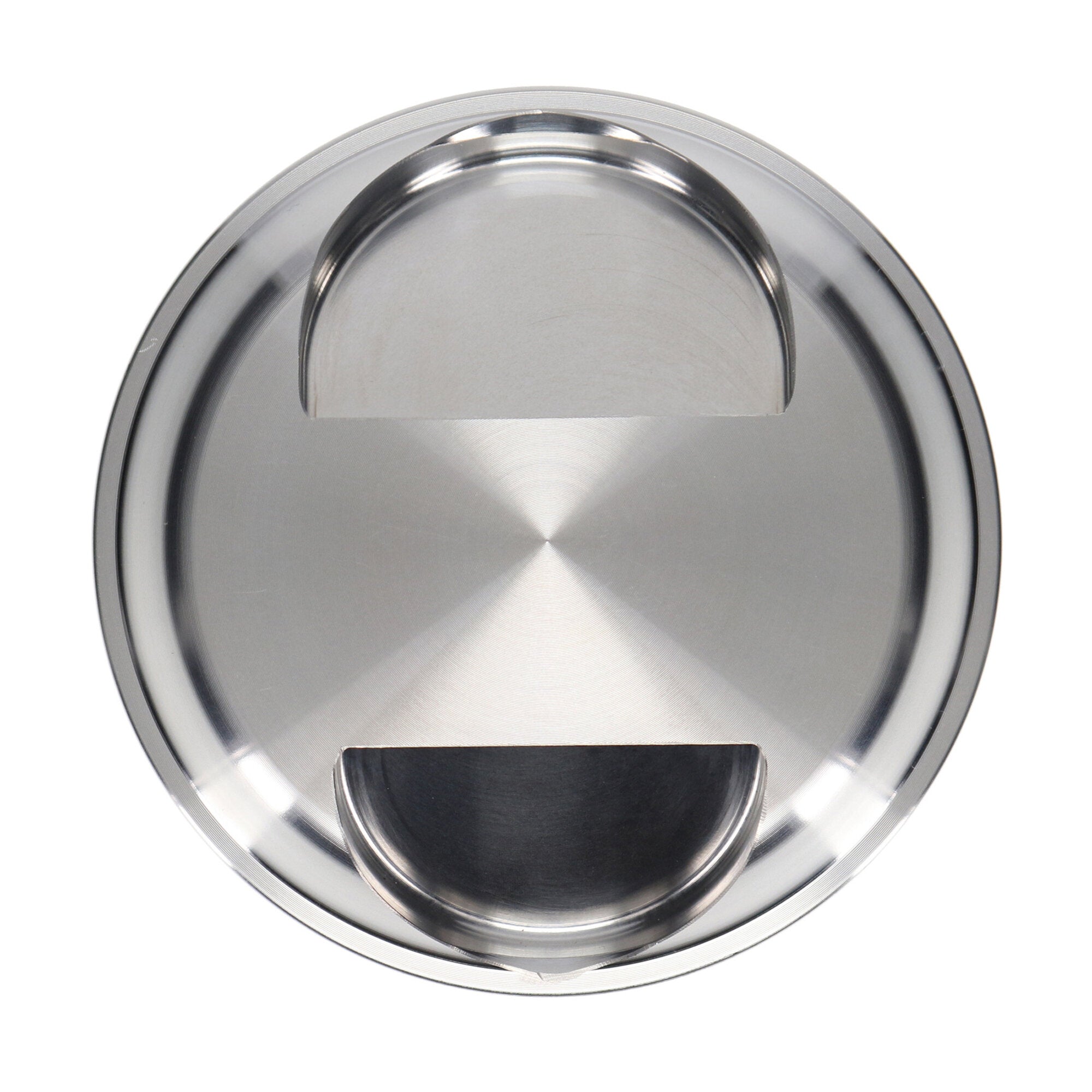

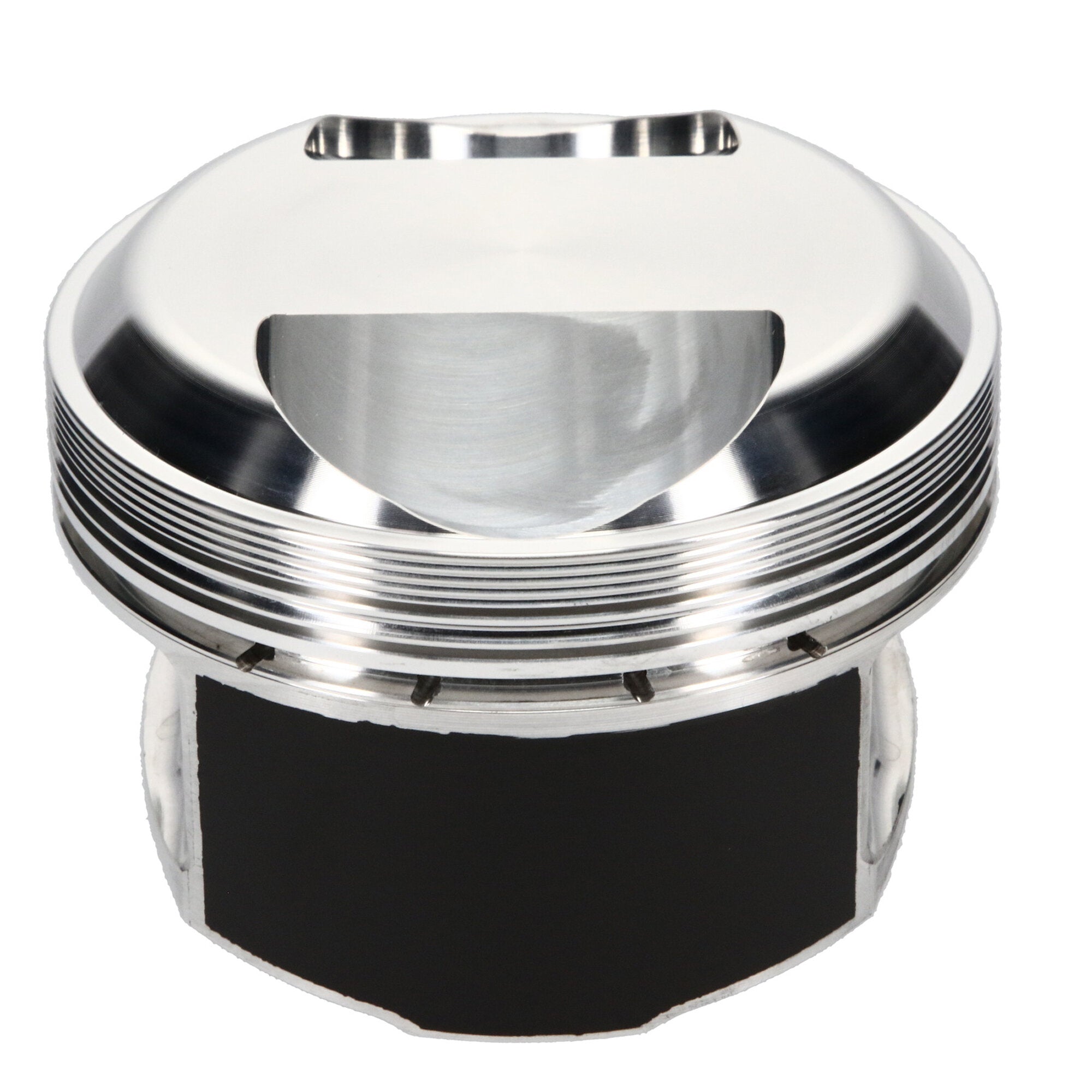

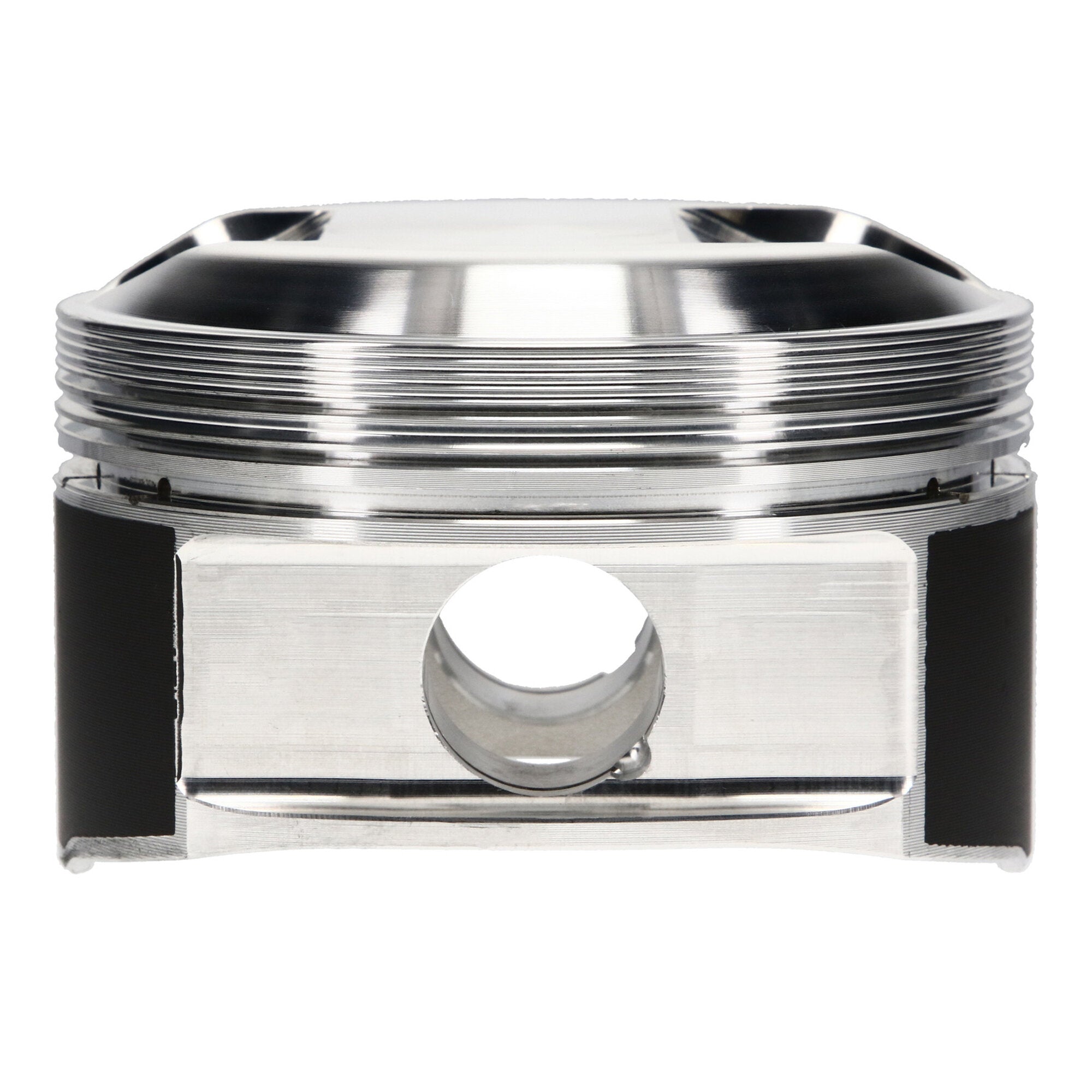

Piston Set, 2618, Dome, 4.016 Bore, 1.290 CD, 0.905 Pin, Set of 6. |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 4.016 in. Bore, 10.50:1, Dome, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Porsche 3.2L, 102.00 Bore, Dome, Set of 6 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
34.30 |
| Piston Quantity |
6 |
| Wrist Pin Length |
2.500 |
| Engine - Web |
3.2L Aircooled |
| Product Market |
European |
| Bore Diameter |
102.00 |
| Compression Height |
1.290 |
| Top Compression Ring Thickness |
0.0480 |
| Industry |
Automotive |
| Piston Pin Wall Thickness |
0.150 |
| Cylinder Head |
3.2 Liter |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Add-On |
905-073-MW |
| Add-On |
JG3101-4020-2 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Add-On |
905-2500-15-TSC |
| Title |
JE Pistons - Porsche, 3.2L Aircooled, 102.00 mm Bore, Piston Kit |
| Piston Material |
2618 |
| Make |
PORSCHE |
| Wrist Pin Outer Diameter |
0.905 |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Second Compression Ring Thickness |
0.0600 |
| Engine |
3.2L Aircooled |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.905 |
| Piston Head Type |
Dome |
| Title - Web |
JE Pistons Porsche 3.2L Aircooled Piston Kit - 102.00 mm Bore - 1.290 in. CH, 34.30 CC |
| Make - Web |
Porsche |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.119 |
| Forging Type |
Round |
| Piston Pin Length |
2.500 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
