As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 3.2L 911 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

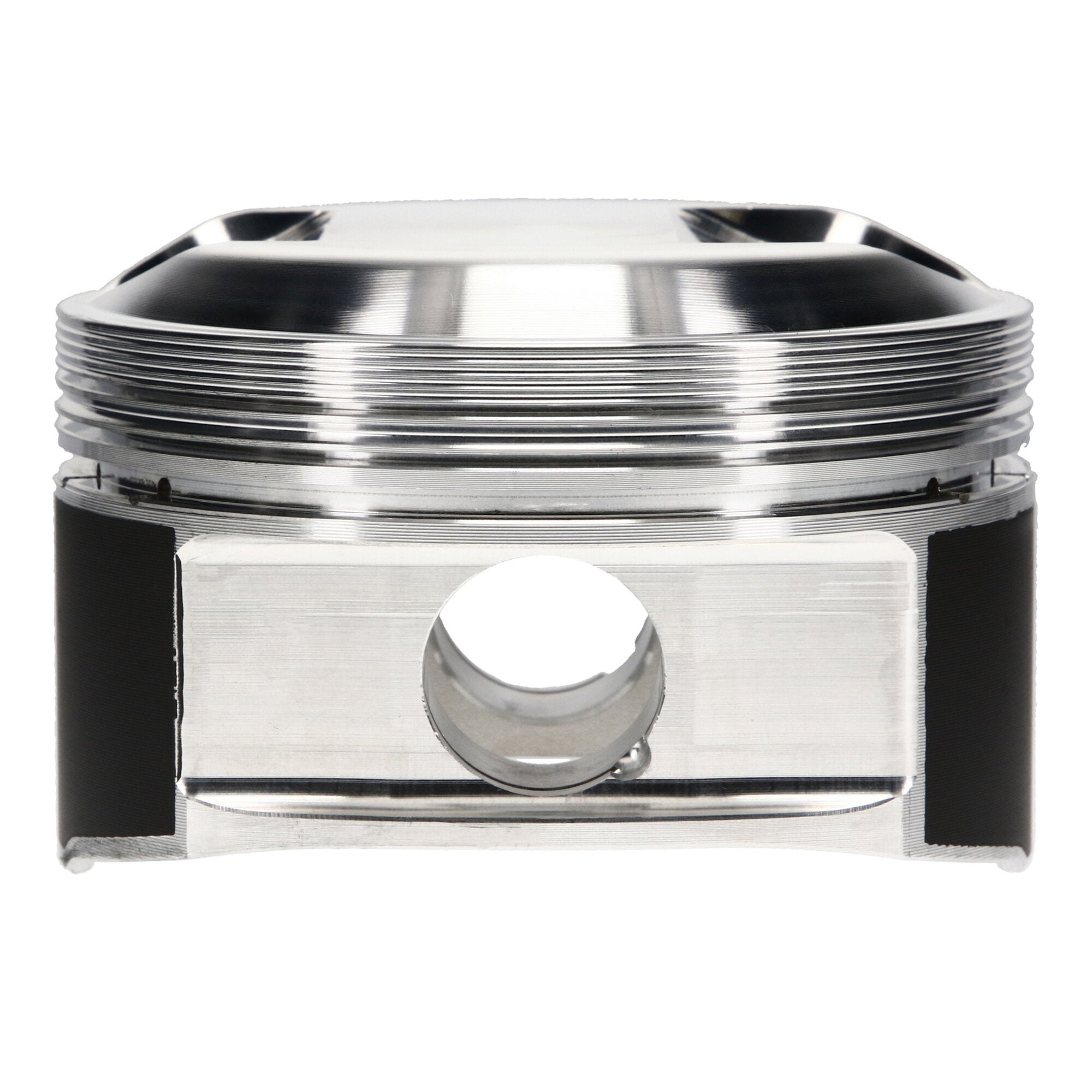

Piston Set, 2618, Dome, 3.858 Bore, 1.290 CD, 0.905 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 3.858 in. Bore, 10.50:1, Dome, 6 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Porsche 3.2L, 98.00 Bore, Dome, Set of 6 |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Product Type |
Engine Piston Kit |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.500 |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.905 |
| Forging Type |
Round |
| Piston Volume |
38.60 |
| Compression Height |
1.290 |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
European |
| Make |
PORSCHE |
| Piston Quantity |
6 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Bore Diameter |
98.00 |
| Piston Head Type |
Dome |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.905 |
| Engine - Web |
3.2L Aircooled |
| Add-On |
905-2500-15-TSC |
| Add-On |
JG1001-3858 |
| Second Compression Ring Thickness |
0.0480 |
| Cylinder Head |
3.2 Liter |
| Prop 65 Yes/No |
Yes |
| Engine |
3.2L Aircooled |
| Ringset Included |
Yes |
| Out of Stock Message |
Call for Availability |
| Title |
JE Pistons - Porsche, 3.2L Aircooled, 98.00 mm Bore, Piston Kit |
| Add-On |
905-073-MW |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.500 |
| Title - Web |
JE Pistons Porsche 3.2L Aircooled Piston Kit - 98.00 mm Bore - 1.290 in. CH, 38.60 CC |
| Piston Material |
2618 |
| Industry |
Automotive |
| Make - Web |
Porsche |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
