As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 2.2L |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

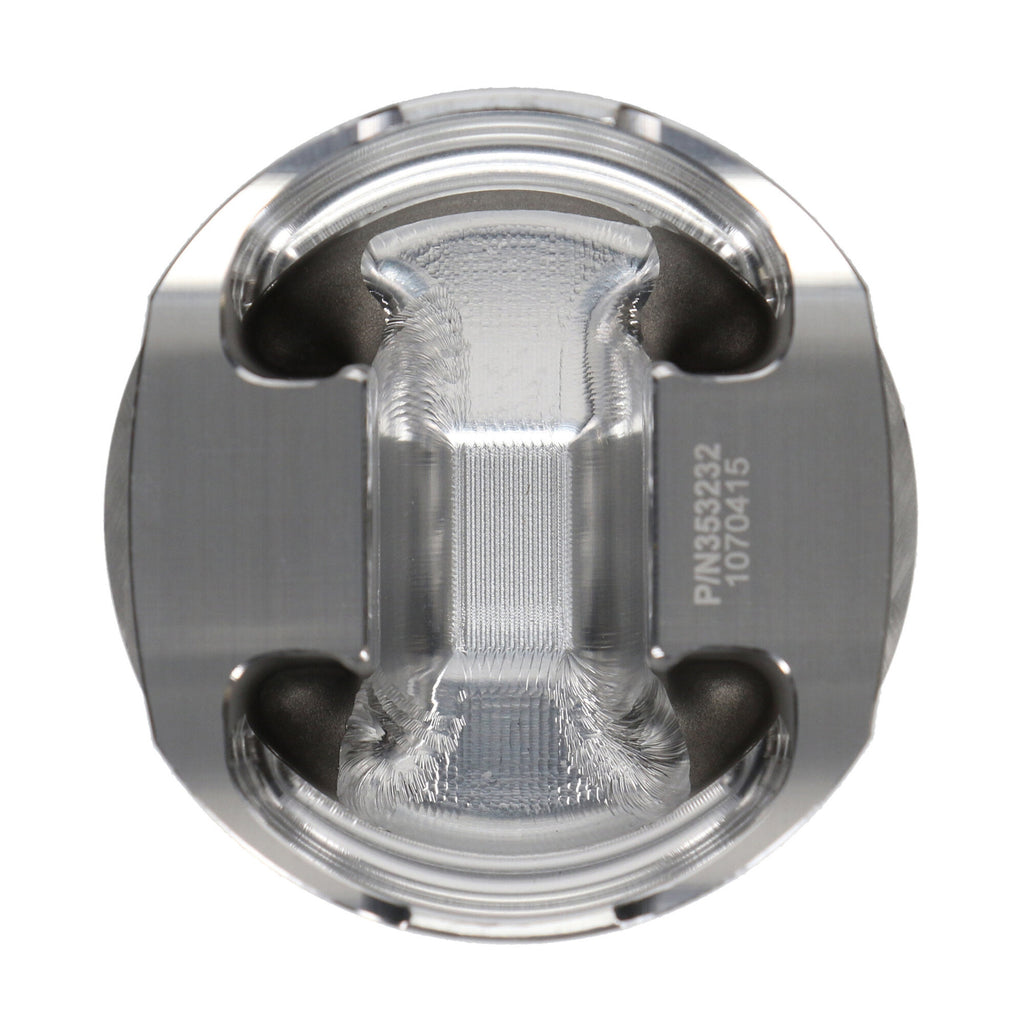

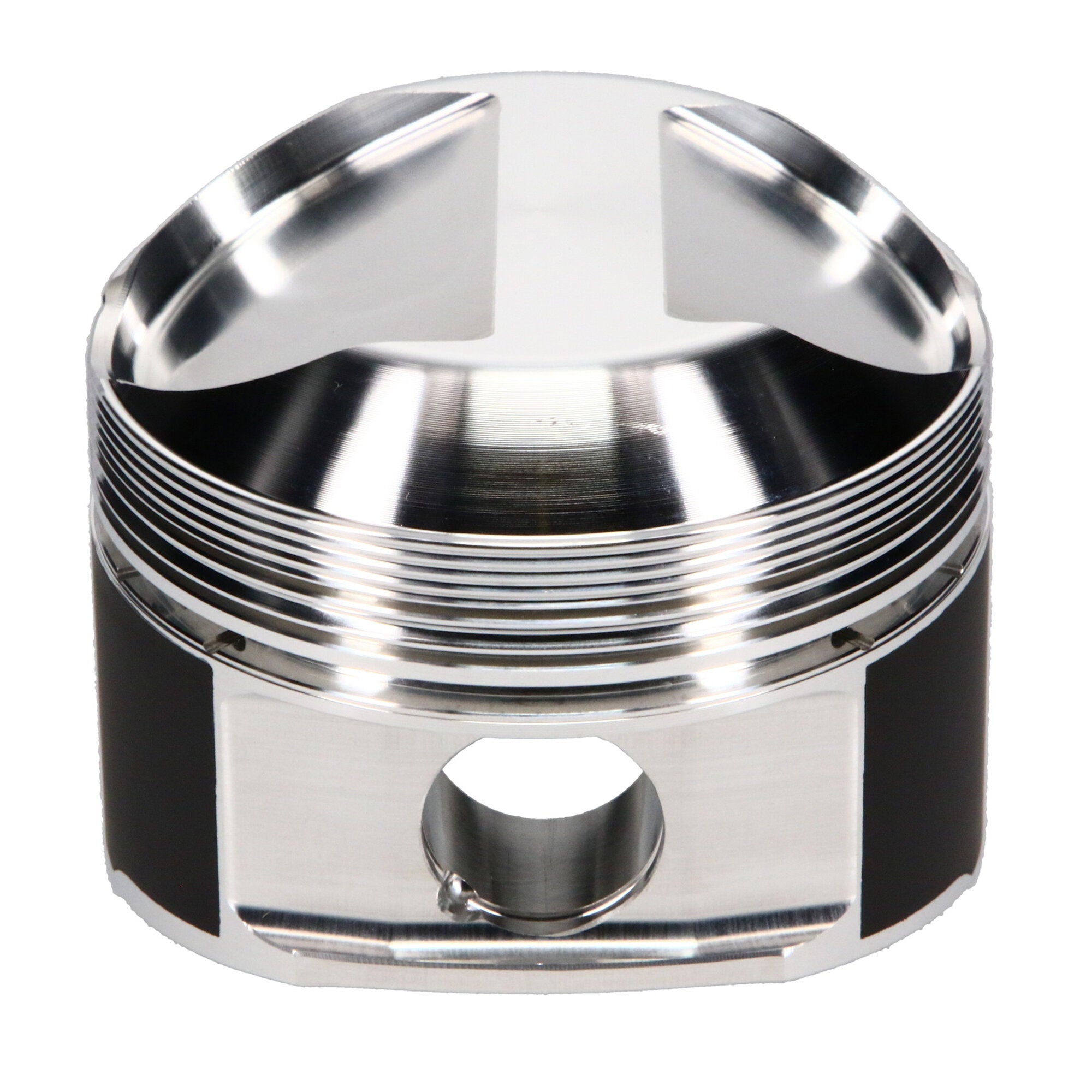

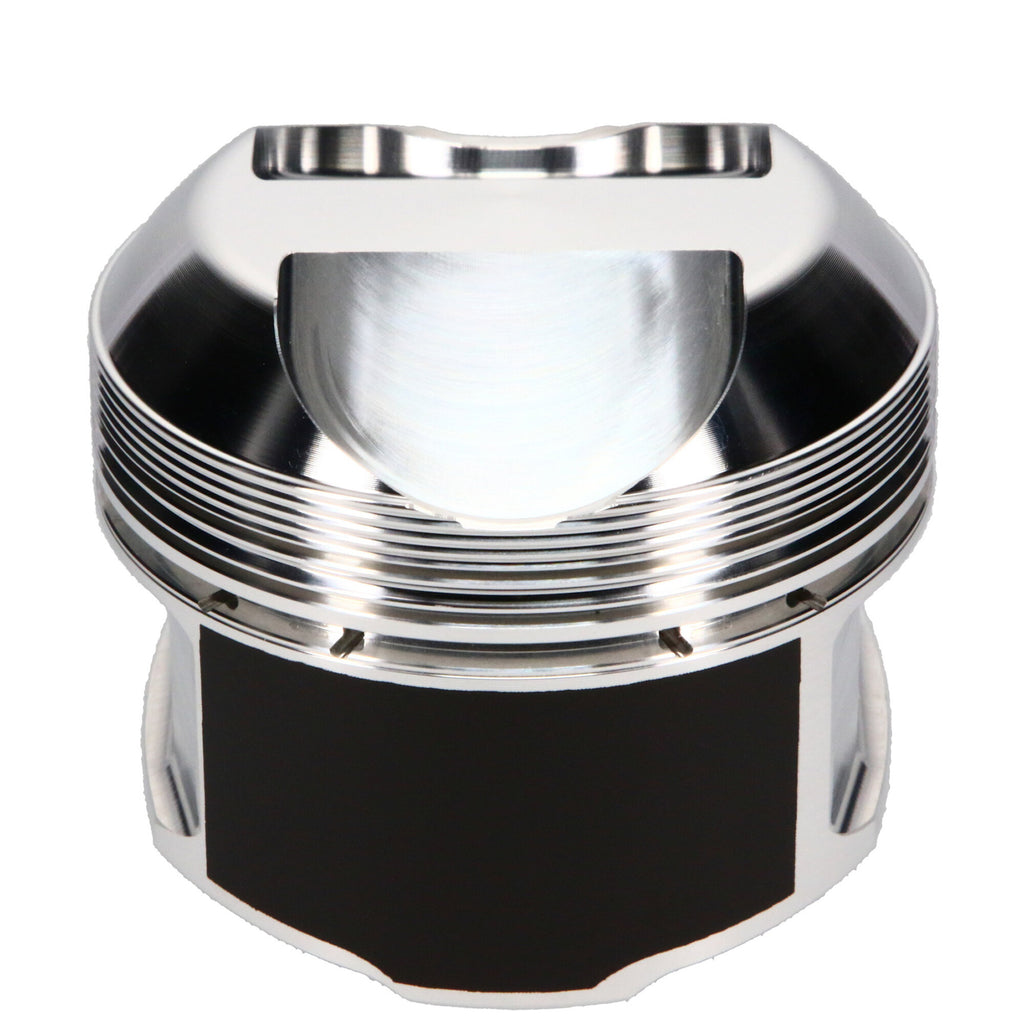

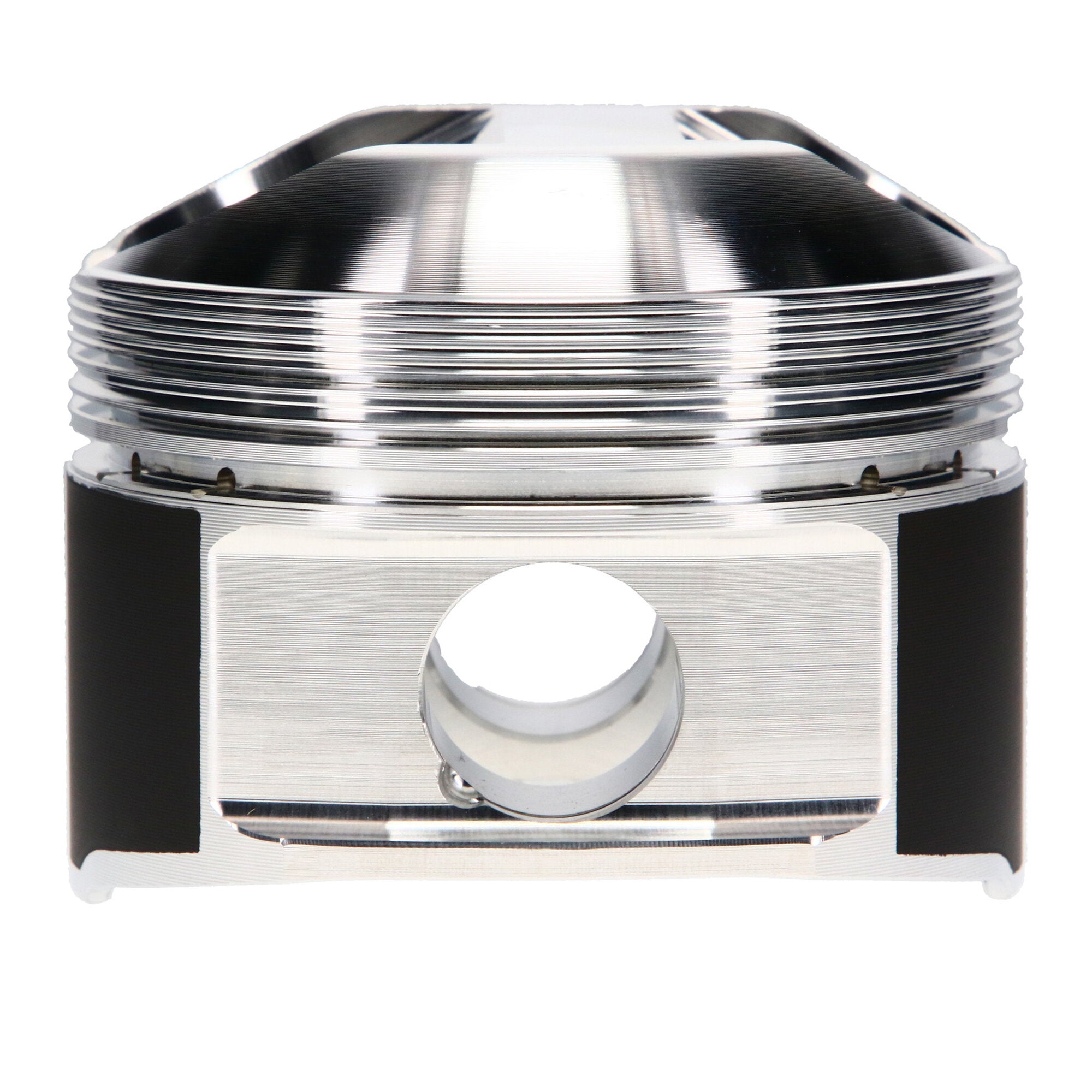

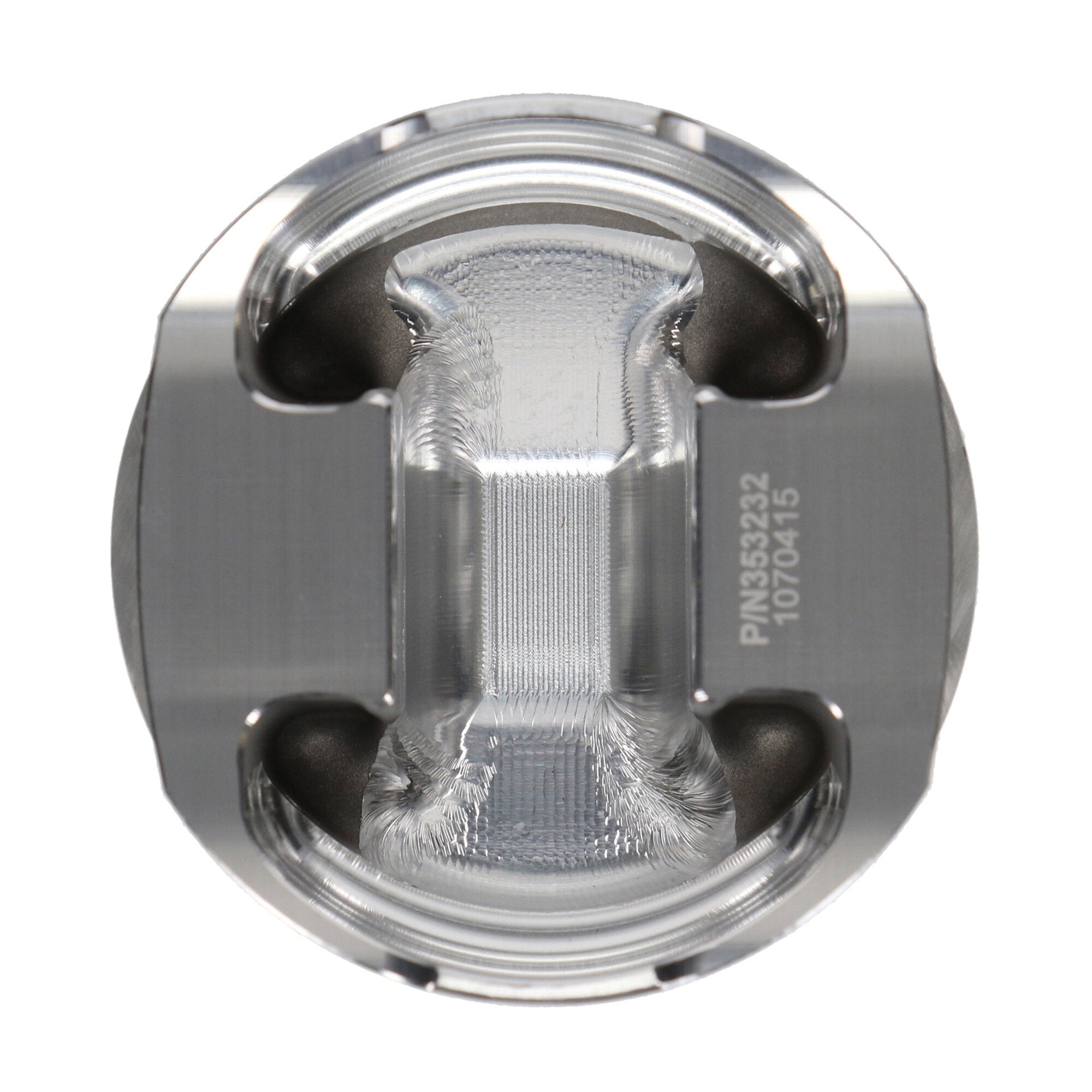

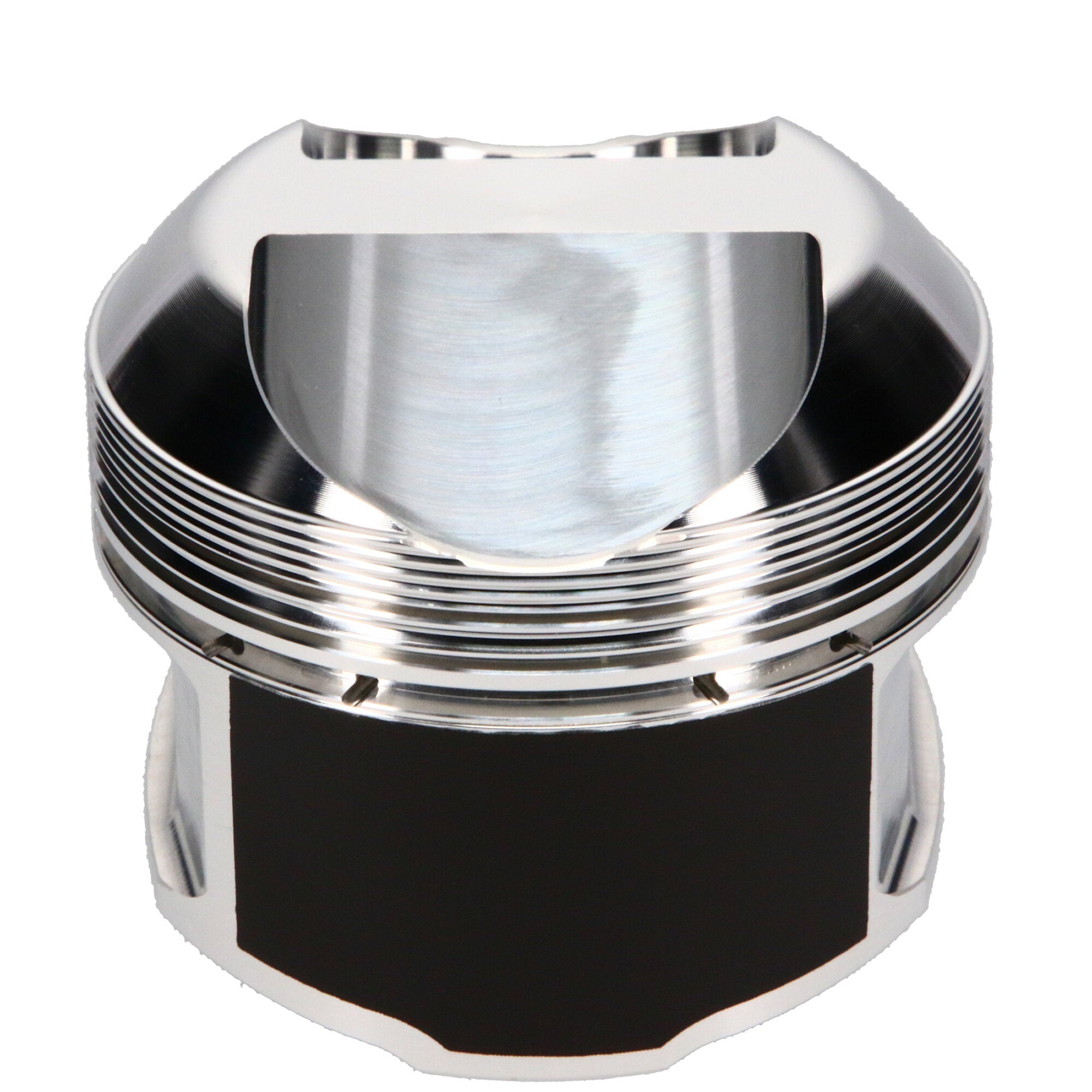

Piston Set, 2618, Dome, 3.346 Bore, 1.335 CD, 0.866 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 3.346 in. Bore, 10.50:1, Dome, 6 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Porsche 2.2L, 85.00 Bore, Dome, Set of 6 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Pin Outside Diameter |
0.866 |
| Piston Quantity |
6 |
| Compression Height |
1.335 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.500 |
| Engine - Web |
2.2L Aircooled |
| Cylinder Head |
2.2 Liter |
| Bore Diameter |
85.00 |
| Product Market |
European |
| Piston Volume |
34.30 |
| Top Compression Ring Thickness |
0.0400 |
| Title |
JE Pistons - Porsche, 2.2L Aircooled, 85.00 mm Bore, Piston Kit |
| Ring Set Included |
Yes |
| Add-On |
866-2500-15-93C |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Add-On |
JG1001-3346 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
Round |
| Engine Type |
ICE |
| Make |
PORSCHE |
| Piston Pin Material |
9310 |
| Engine |
2.2L Aircooled |
| Piston Head Type |
Dome |
| Ringset Included |
Yes |
| Piston Pin Length |
2.500 |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Porsche 2.2L Aircooled Piston Kit - 85.00 mm Bore - 1.335 in. CH, 34.30 CC |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.866 |
| Make - Web |
Porsche |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
