As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

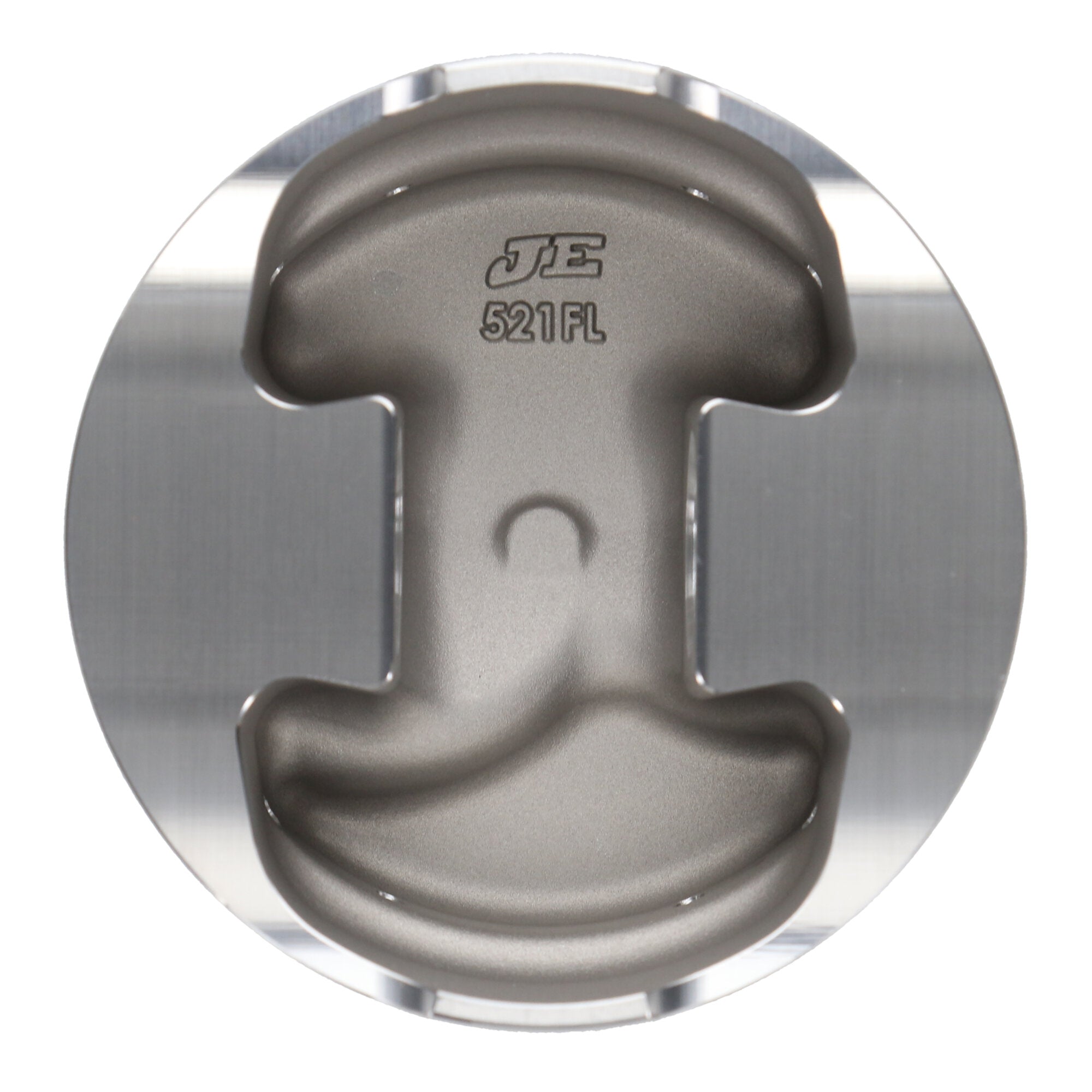

Piston Set, 2618, Flat Top, 4.155 Bore, 1.062 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.155 in. Bore, 1.062 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 400, 4.155 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Oil Ring Thickness |
0.218 |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.062 |
| Engine - Web |
Small Block |
| Ringset Included |
No |
| Forging Type |
Round |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Engine |
Small Block |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Title |
JE Pistons - Chevrolet, Small Block, 4.155 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 (C, R or CR) |
CR |
| Piston Average Weight |
433 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Prop 65 Yes/No |
Yes |
| Bore Diameter |
4.155 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Add-On |
927-042-CS |
| Piston Pin Length |
2.750 |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.155 in. Bore - 1.062 in. CH, -5.00 CC |
| Industry |
Automotive |
| Add-On |
927-2750-15-51S |
| Piston Material |
2618 |
| Add-On |
J10008-4155-5 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Volume |
-5.00 |
| Make - Web |
Chevrolet |
| Wrist Pin Length |
2.750 |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Second Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
