As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

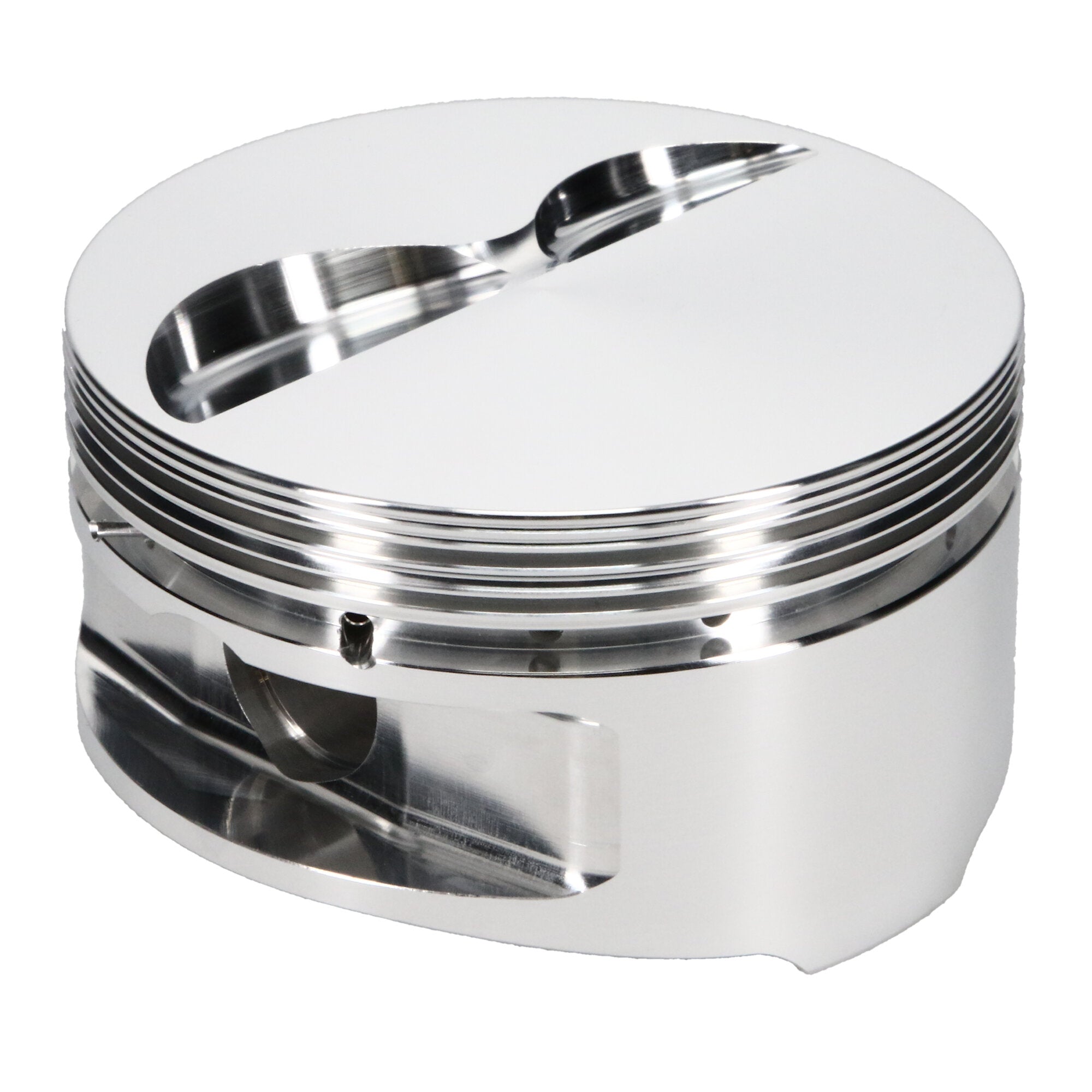

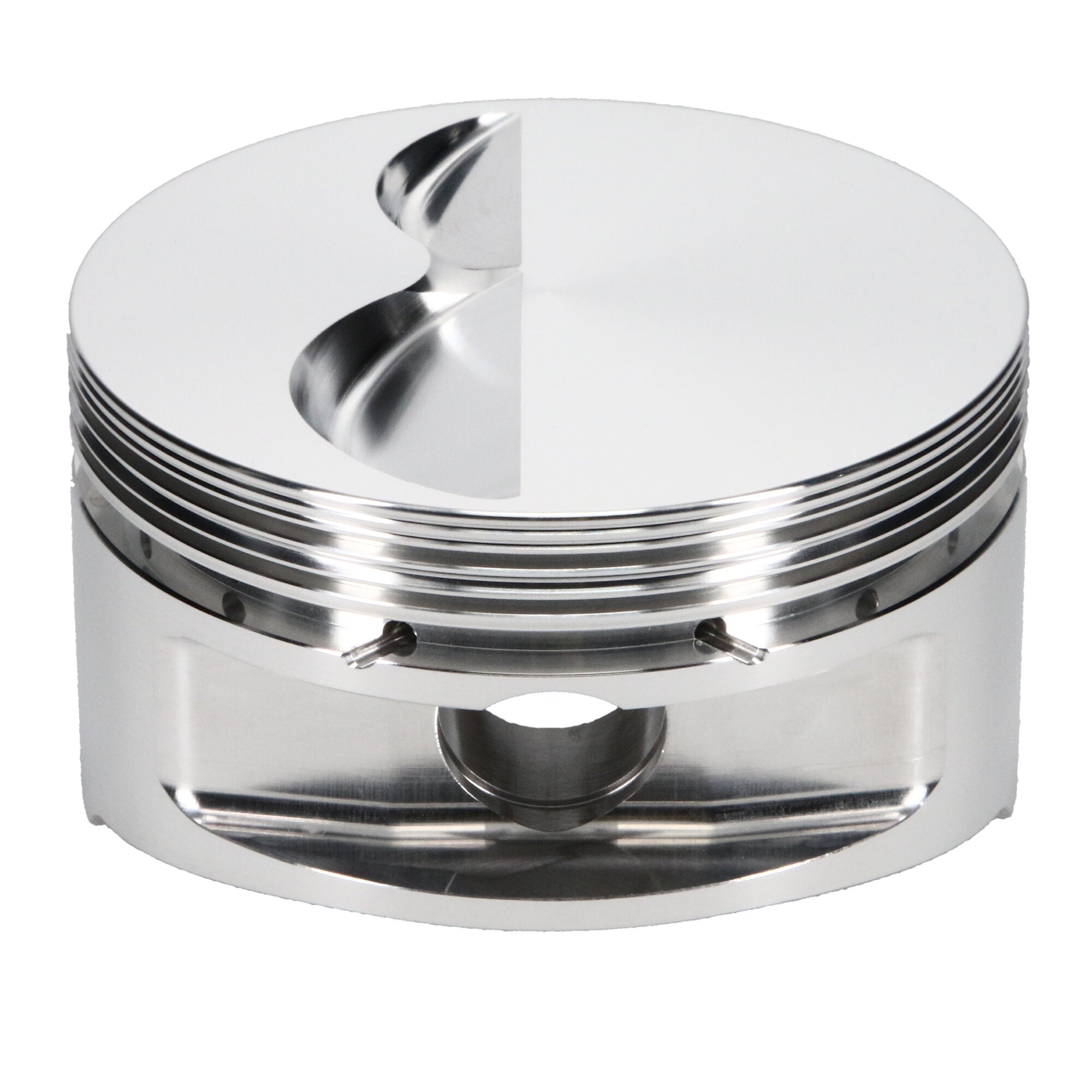

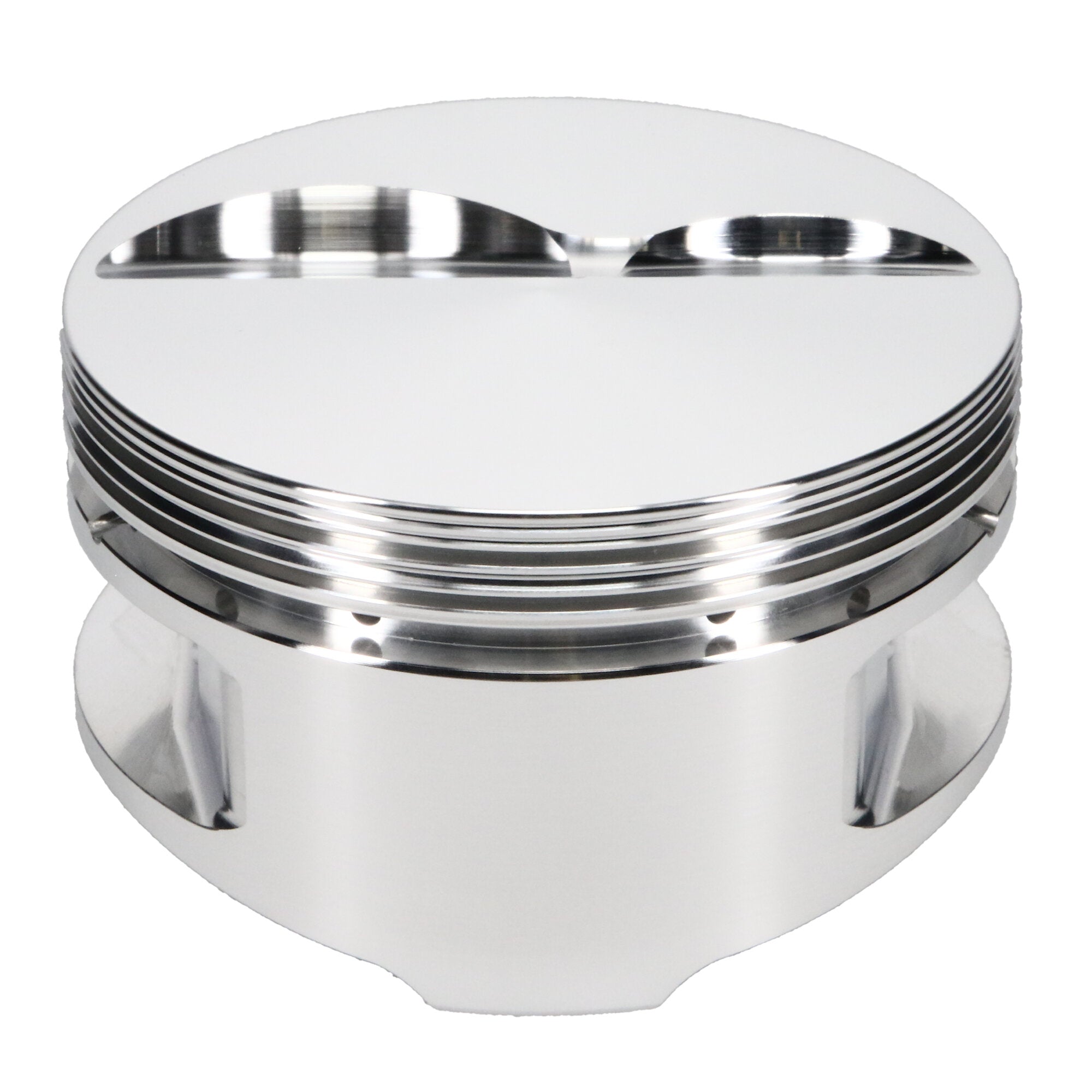

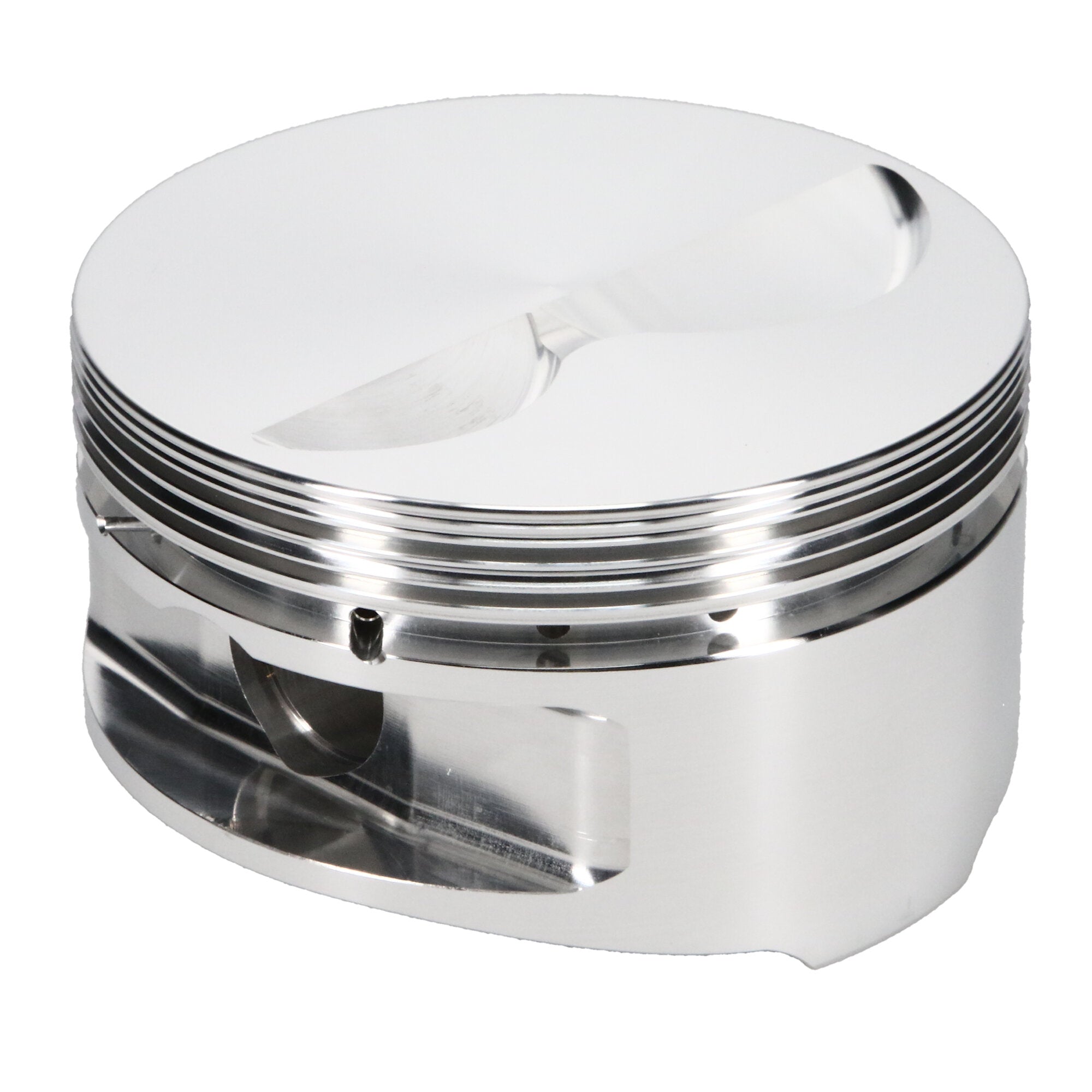

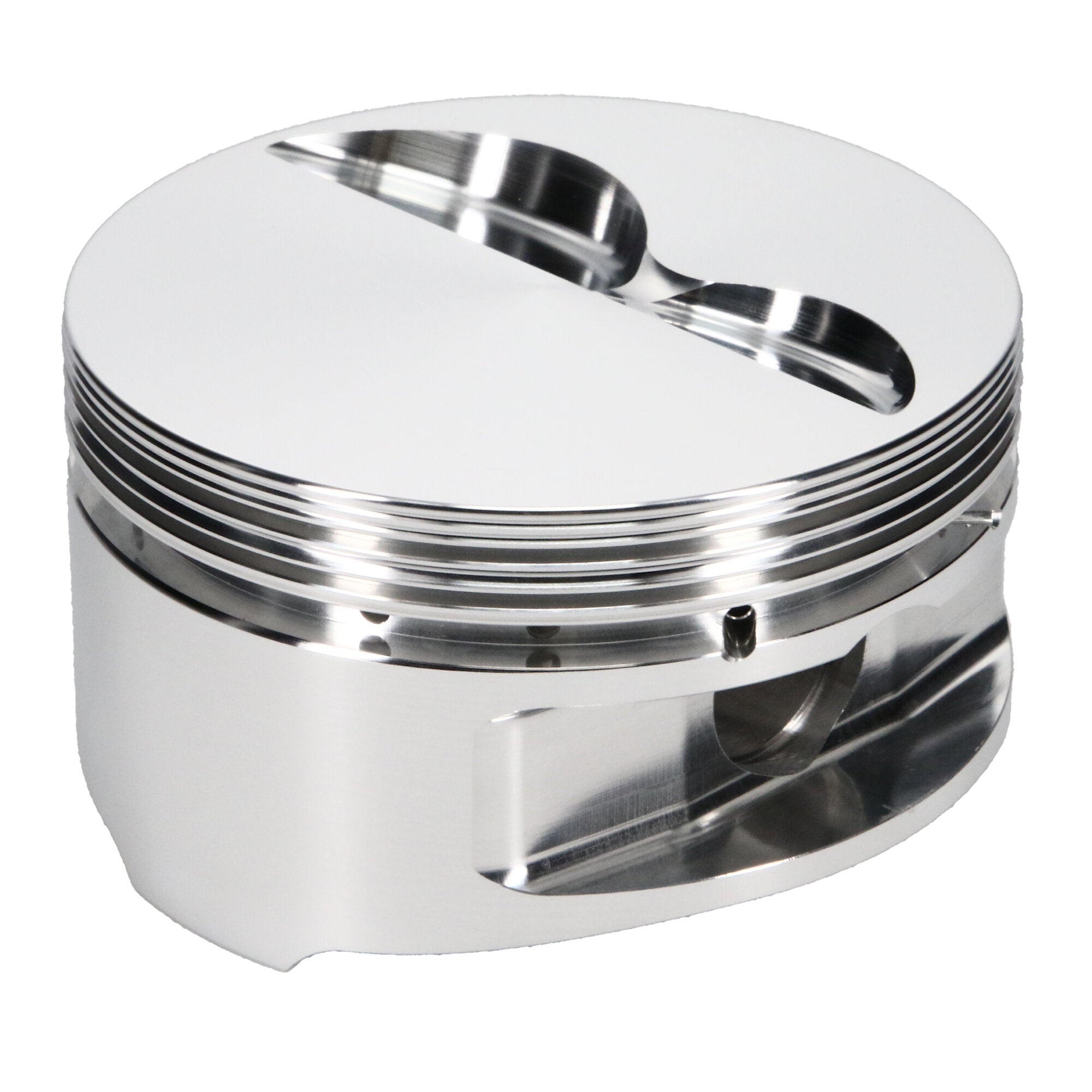

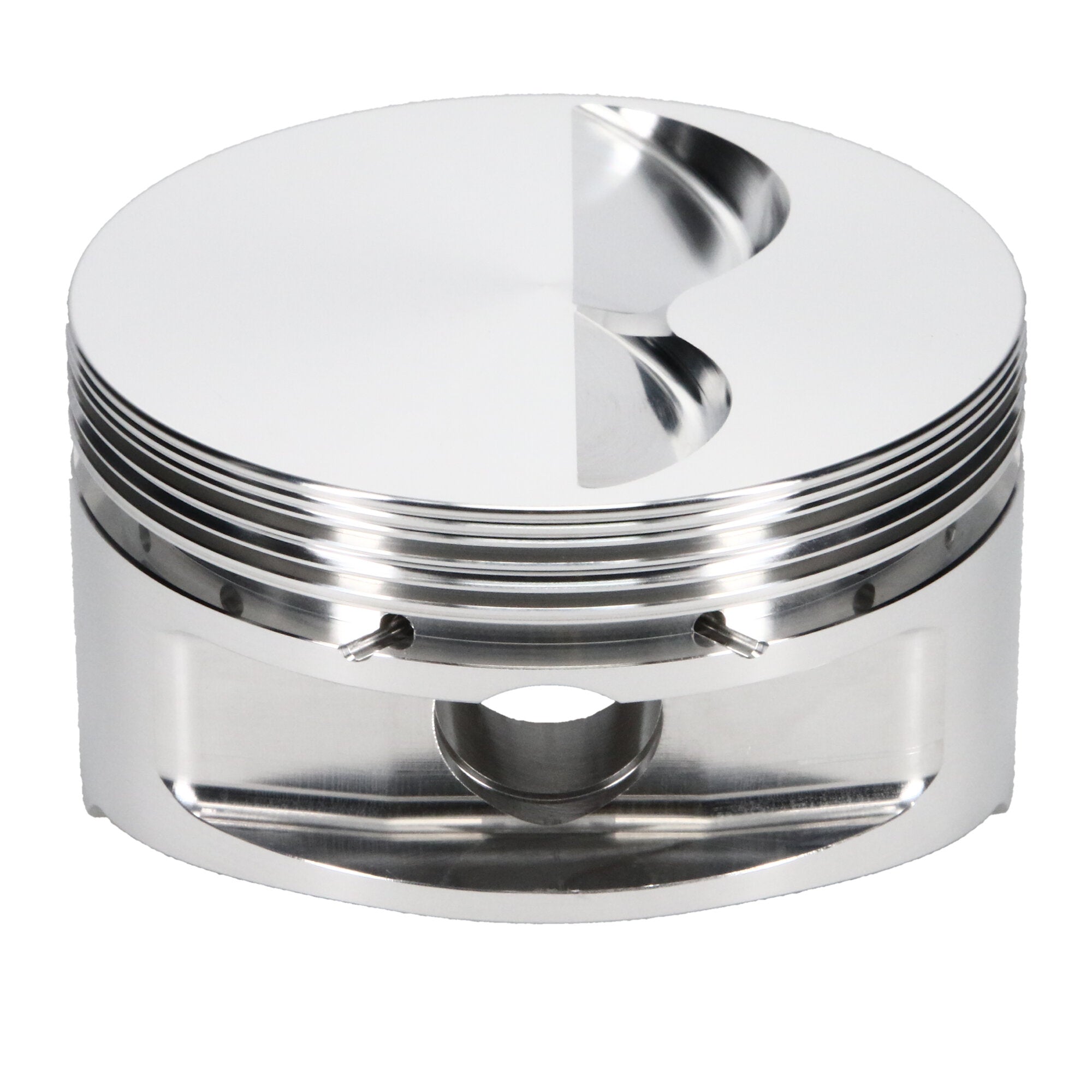

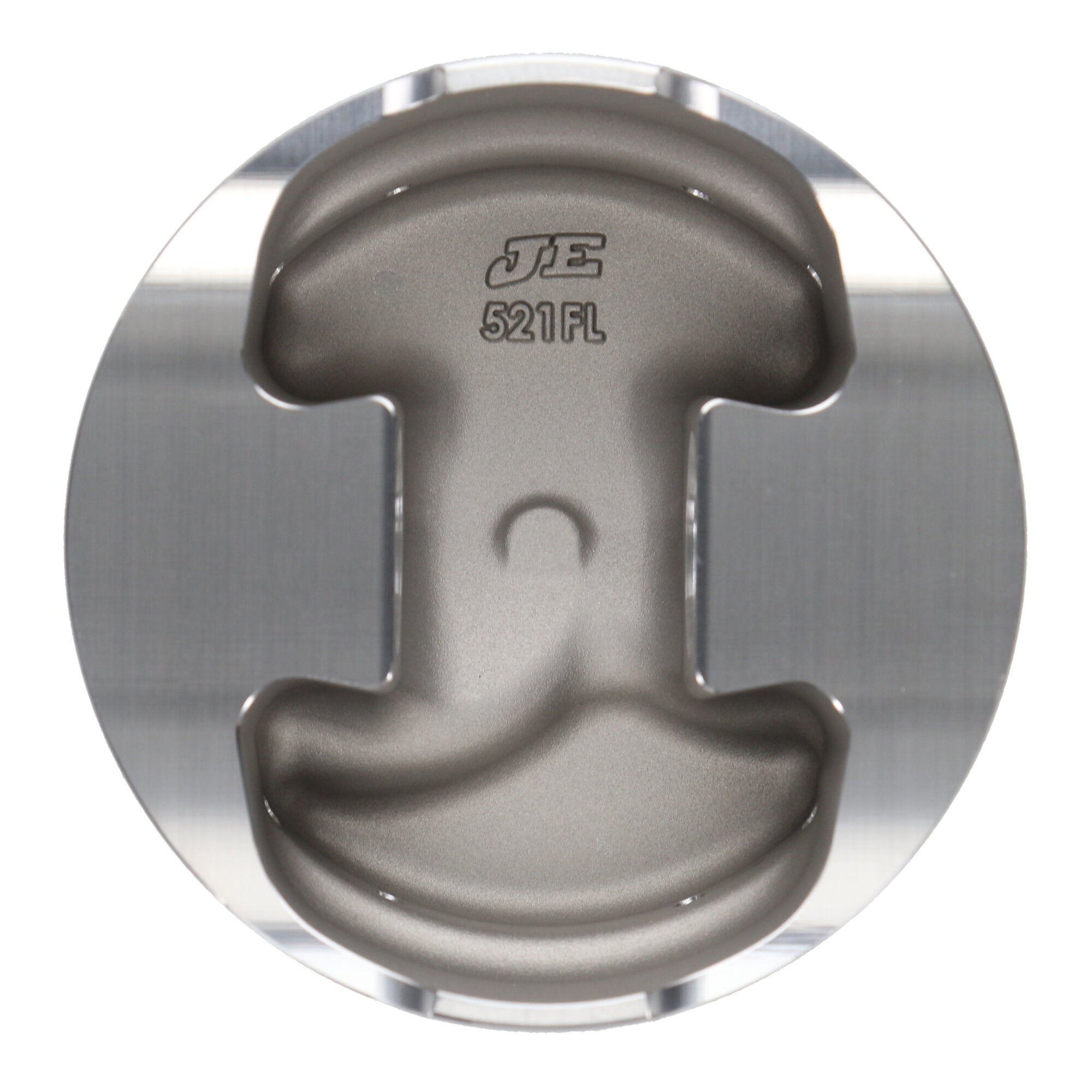

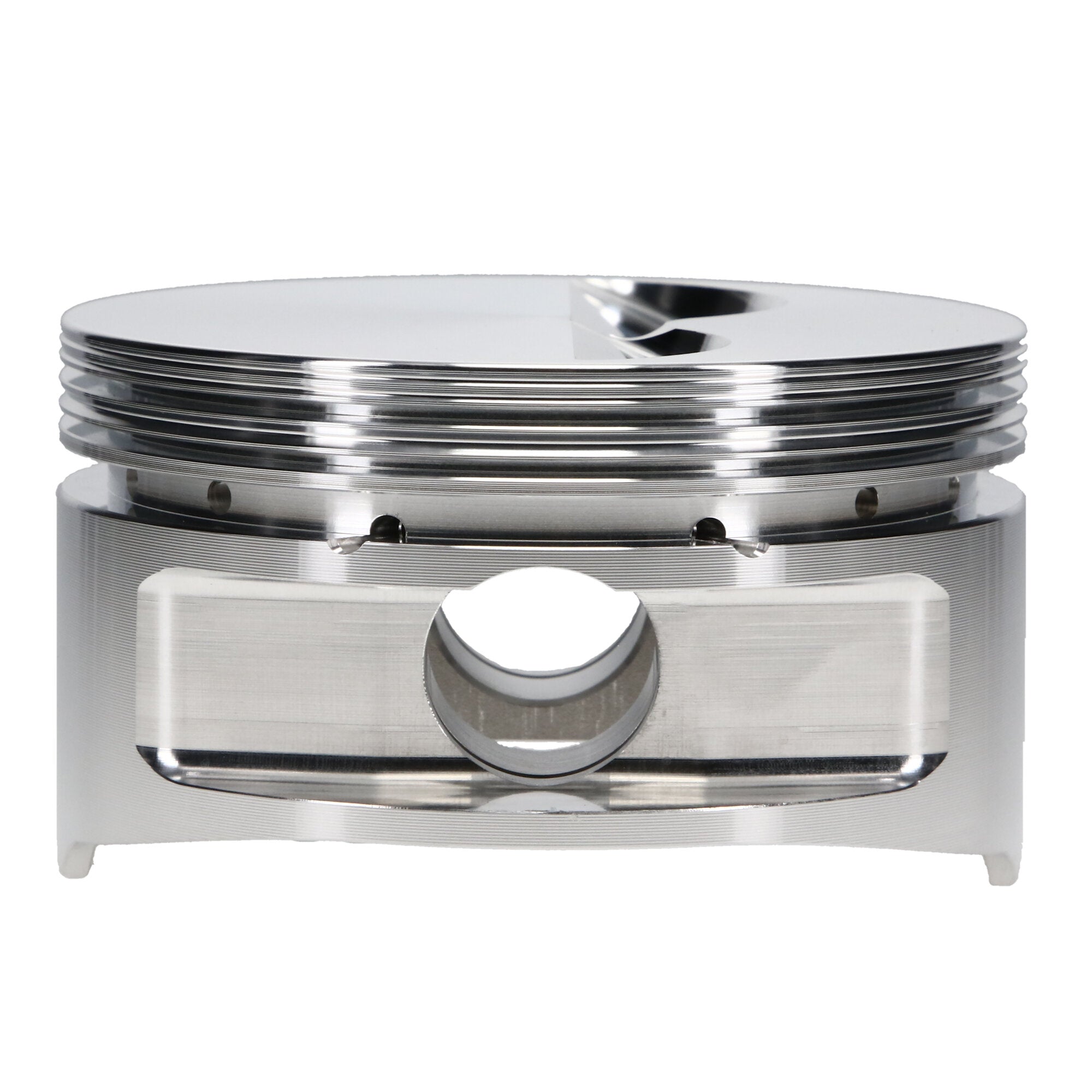

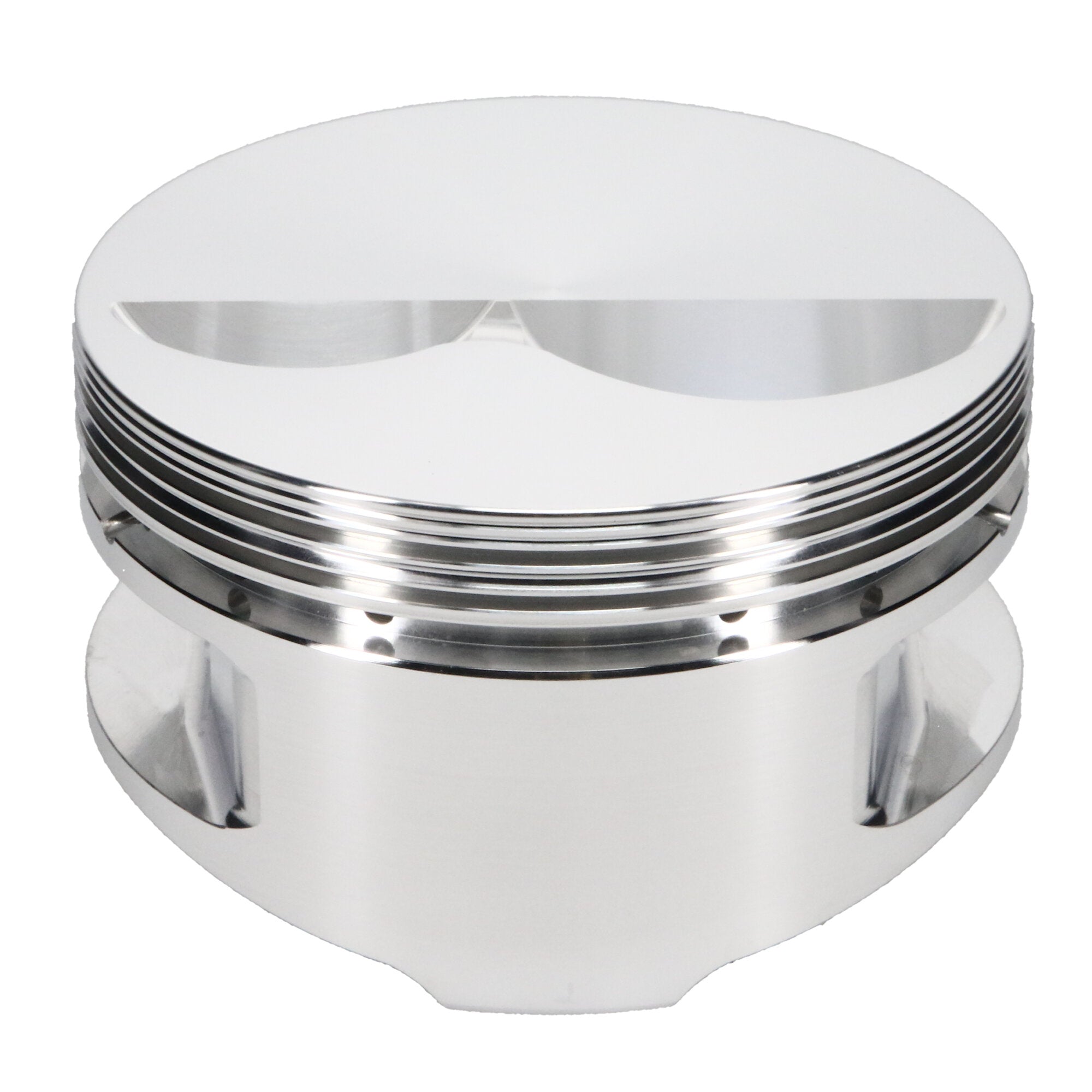

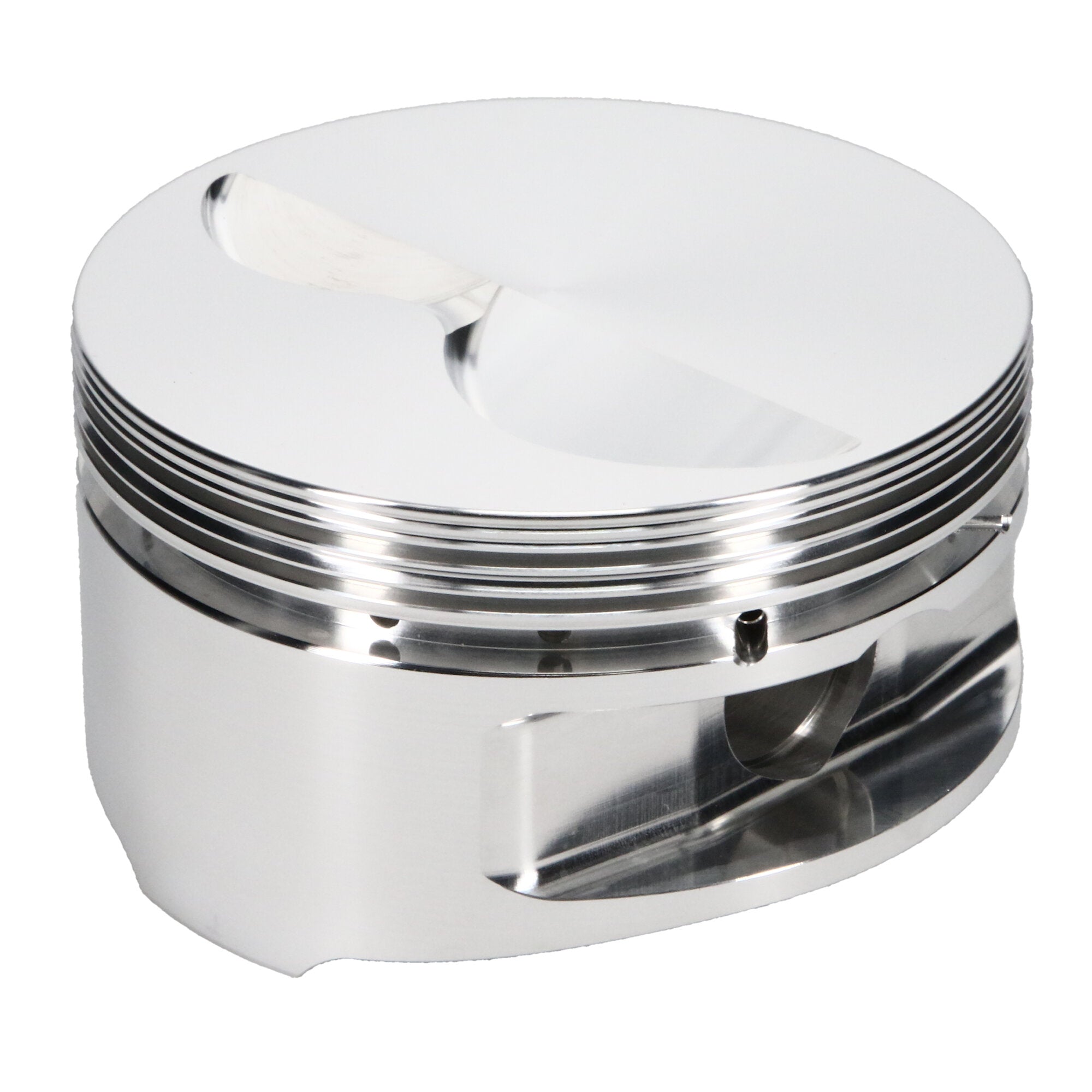

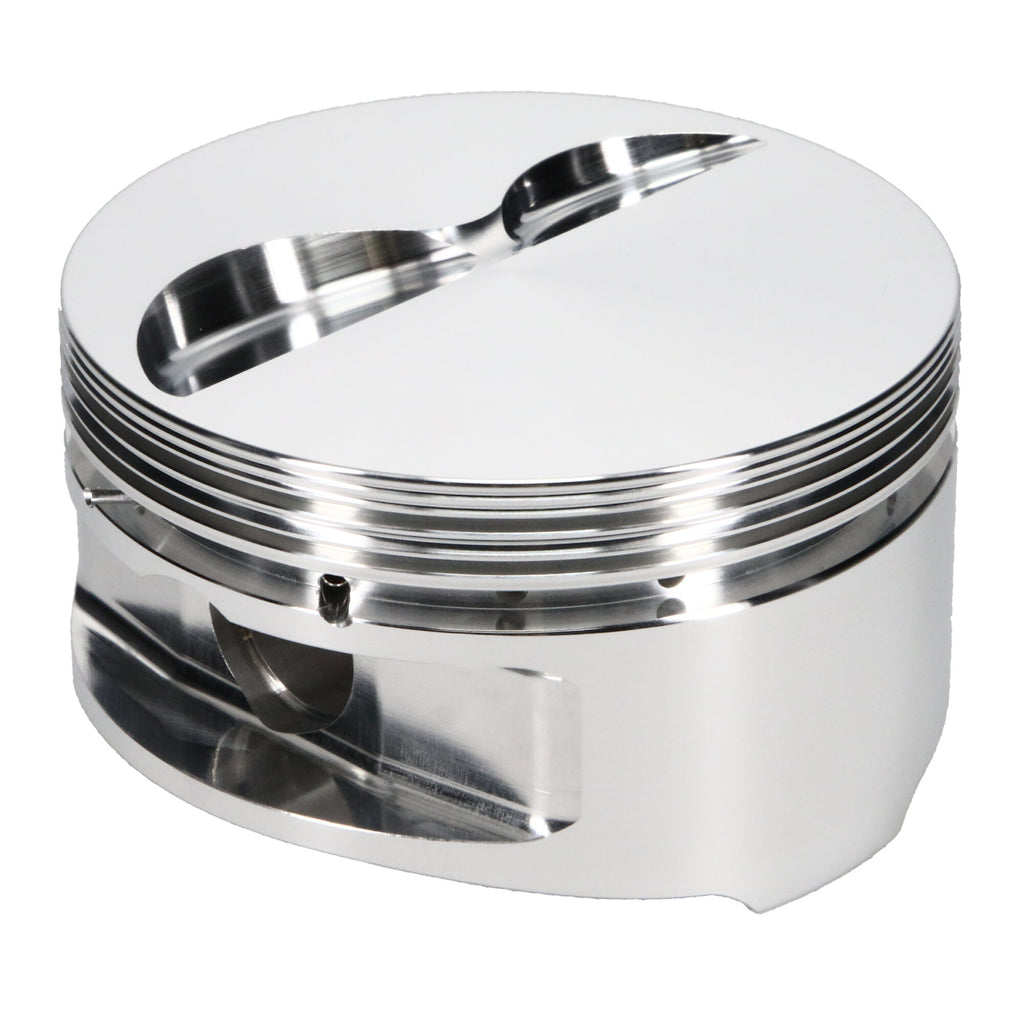

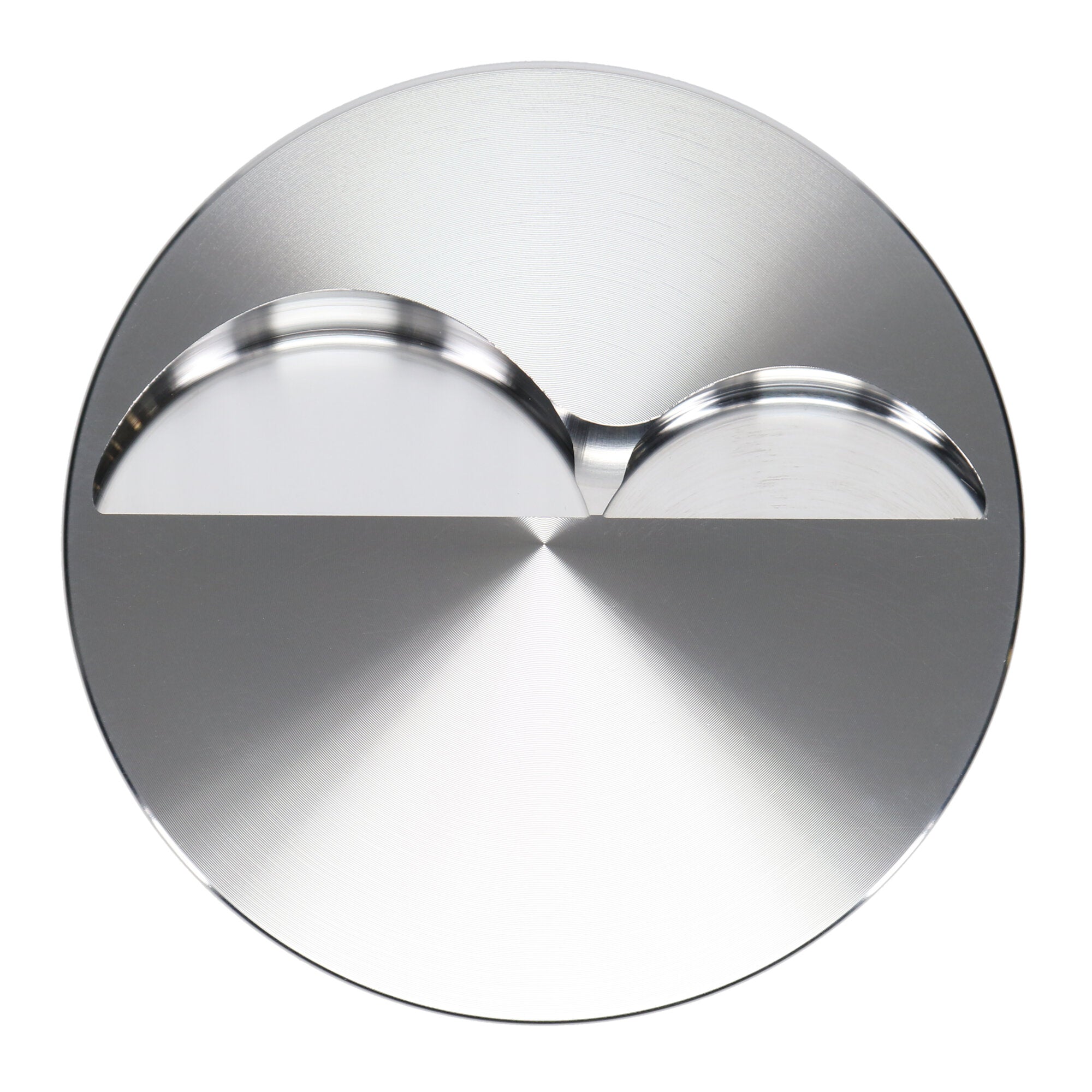

Piston Set, 2618, Flat Top, 4.135 Bore, 1.062 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.062 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Add-On |
927-2750-15-51S |
| Add-On |
J100F8-4135-5 |
| Add-On |
927-042-CS |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.750 |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ringset Included |
No |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.135 in. Bore - 1.062 in. CH, -5.00 CC |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Chevrolet, Small Block, 4.135 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.218 |
| Engine Type |
ICE |
| Forging Type |
Round |
| Compression Height |
1.062 |
| Make |
CHEVROLET |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Make - Web |
Chevrolet |
| Bore Diameter |
4.135 |
| Piston Volume |
-5.00 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
