As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T TSI |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.165 CD, 0.905 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, VW, 2.0T TSI - 2013+ Euro / 2015+ USA - 23mm Pin, 3.268 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 2.0L Turbo, 83.00 Bore, Dish, Set of 4 |
| Engine |
2.0T TSI 2013+ Euro 2015+ USA 23 mm Pin |
| Compression Height |
1.165 |
| Engine Detail |
2.0T TSI 2013+ Euro 2015+ USA 23 mm Pin |
| Wrist Pin Wall Thickness |
0.150 |
| Title |

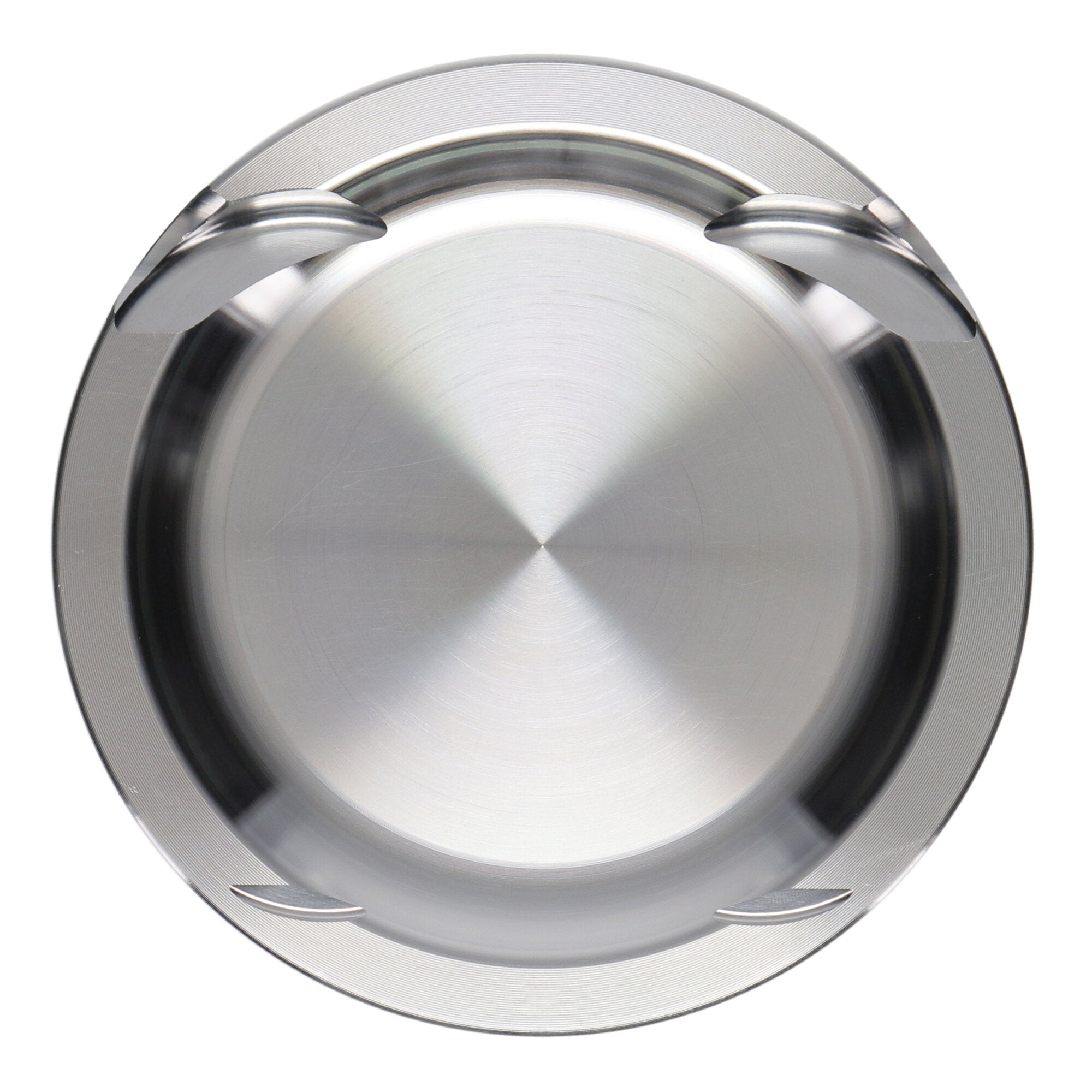

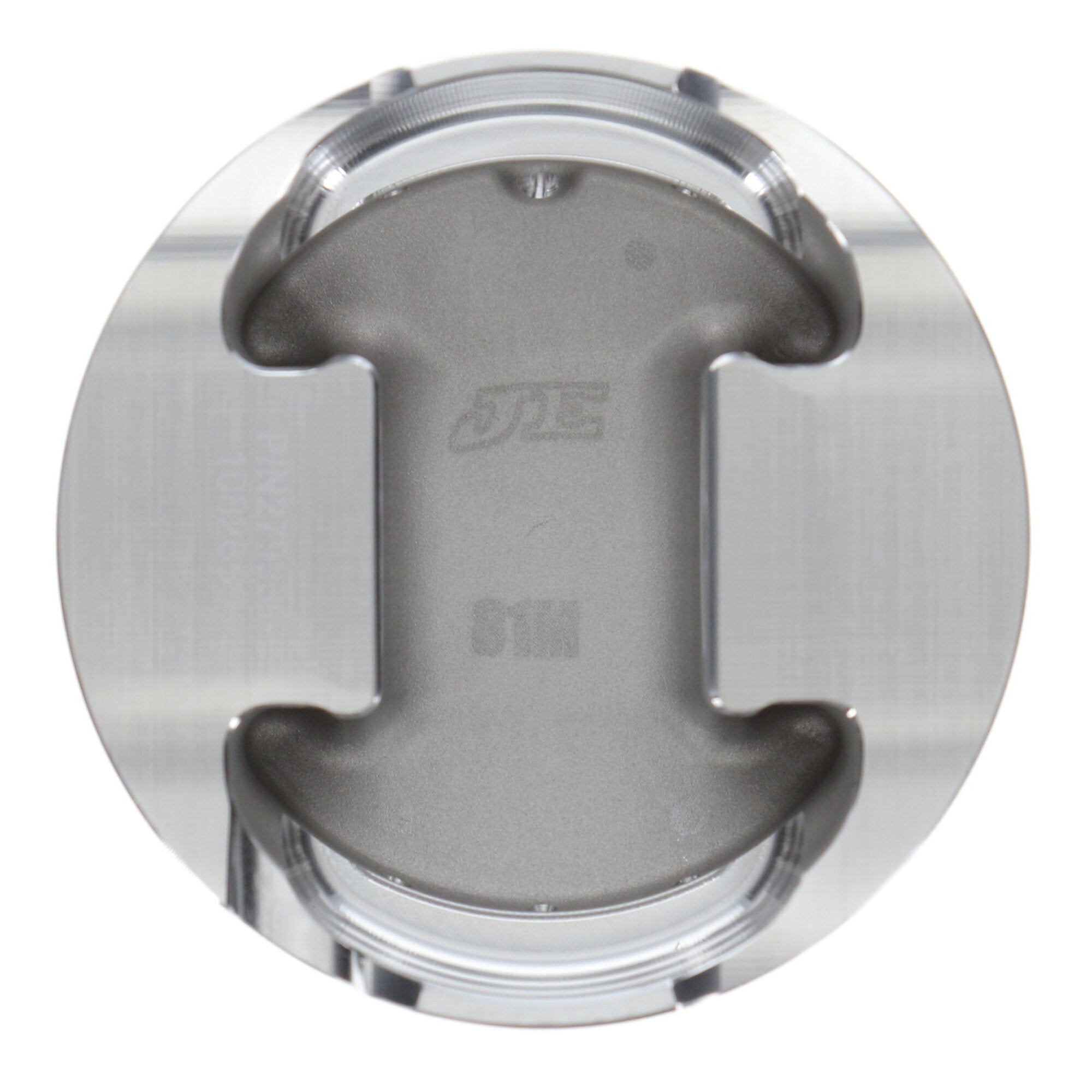

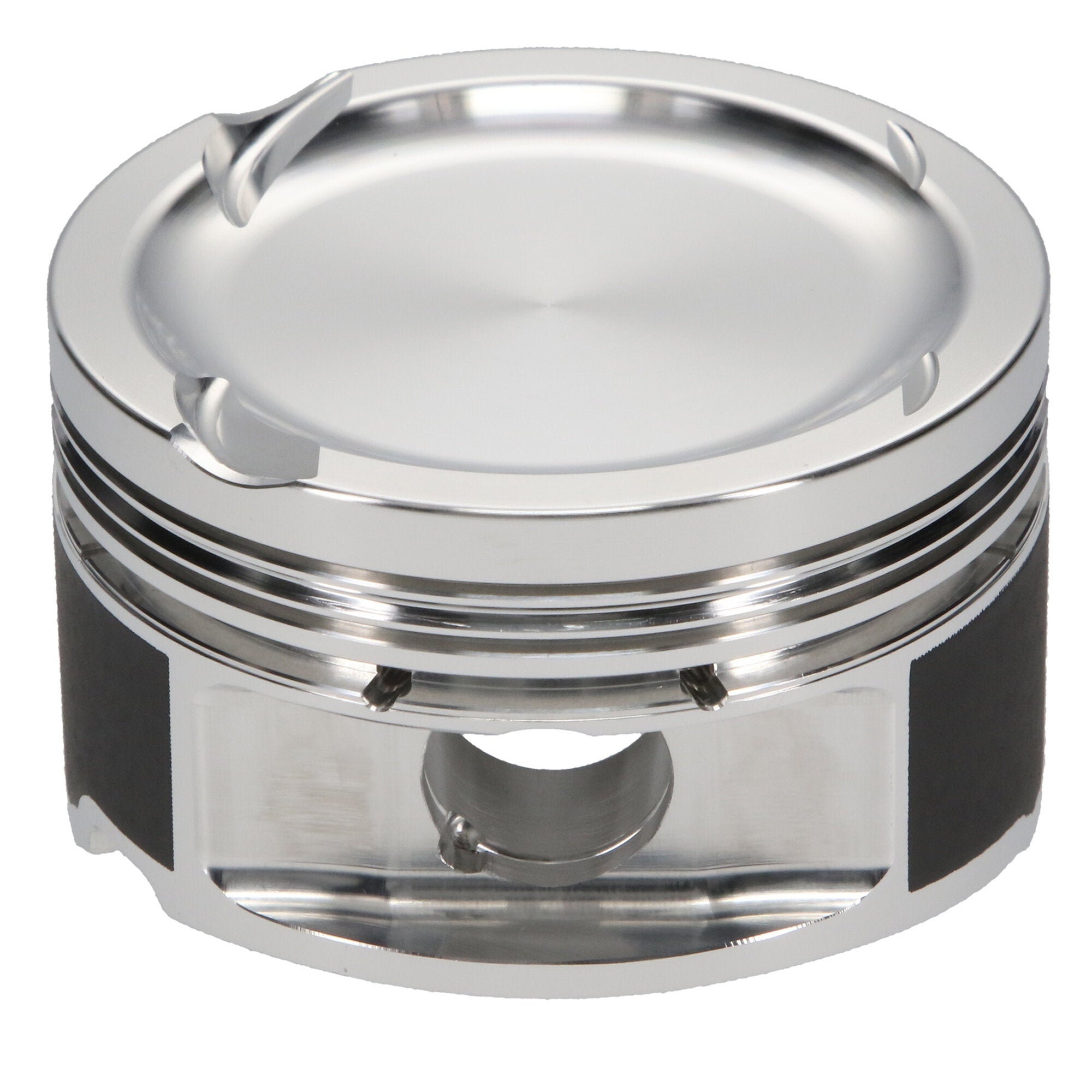

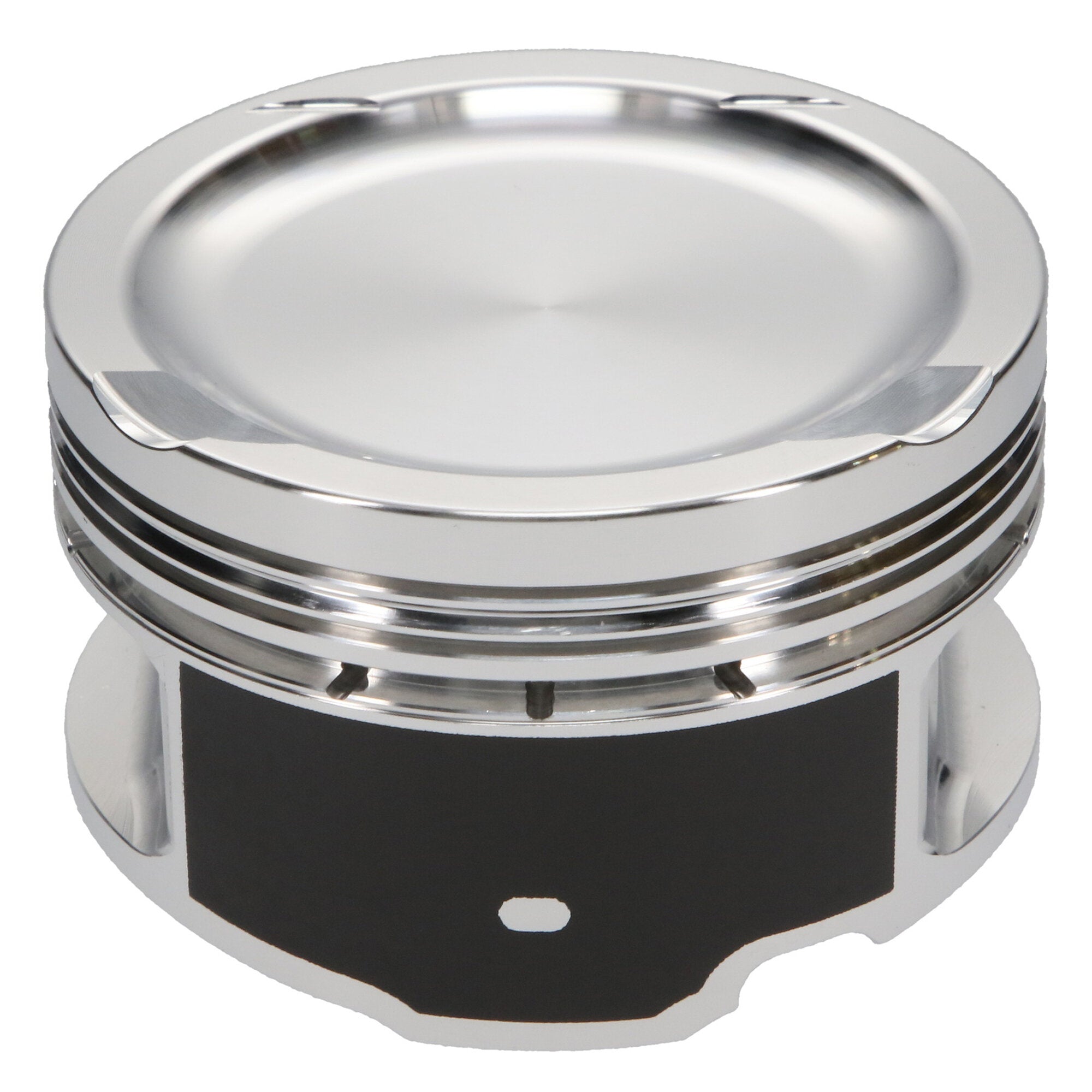

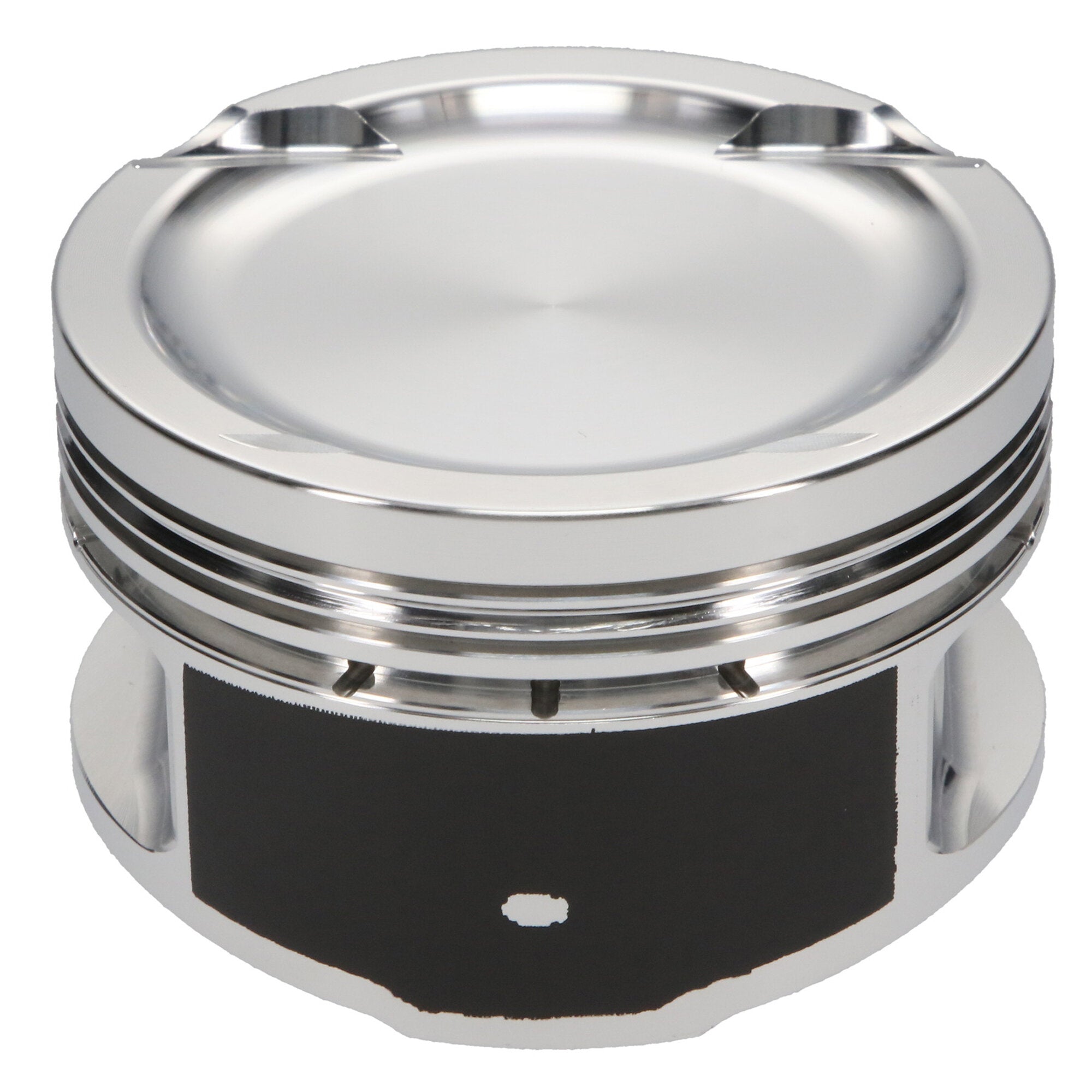

JE Pistons - Volkswagen, 2.0T TSI, 83.00 mm Bore, Piston Kit |
| Forging Type |
FSR |
| Piston Pin Length |
2.250 |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dish |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.905 |
| Engine - Web |
2.0T TSI |
| Piston Material |
2618 |
| Product Market |
European |
| Add-On |
905-2250-15-51C |
| Second Compression Ring Thickness |
0.0480 |
| Make |
VOLKSWAGEN |
| Piston Quantity |
4 |
| Piston Volume |
-7.80 |
| Bore Diameter |
83.00 |
| Piston Pin Outside Diameter |
0.905 |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Add-On |
JG1001-3268 |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
905-073-MW |
| Cylinder Head |
2.0 TSI |
| Make - Web |
Volkswagen |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title - Web |
JE Pistons Volkswagen 2.0T TSI Piston Kit - 83.00 mm Bore - 1.165 in. CH, -7.80 CC |
| Out of Stock Message |
Call for Availability |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
