As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LT1 |
| Description_DEF |
Engine Piston |
| Description_DES |

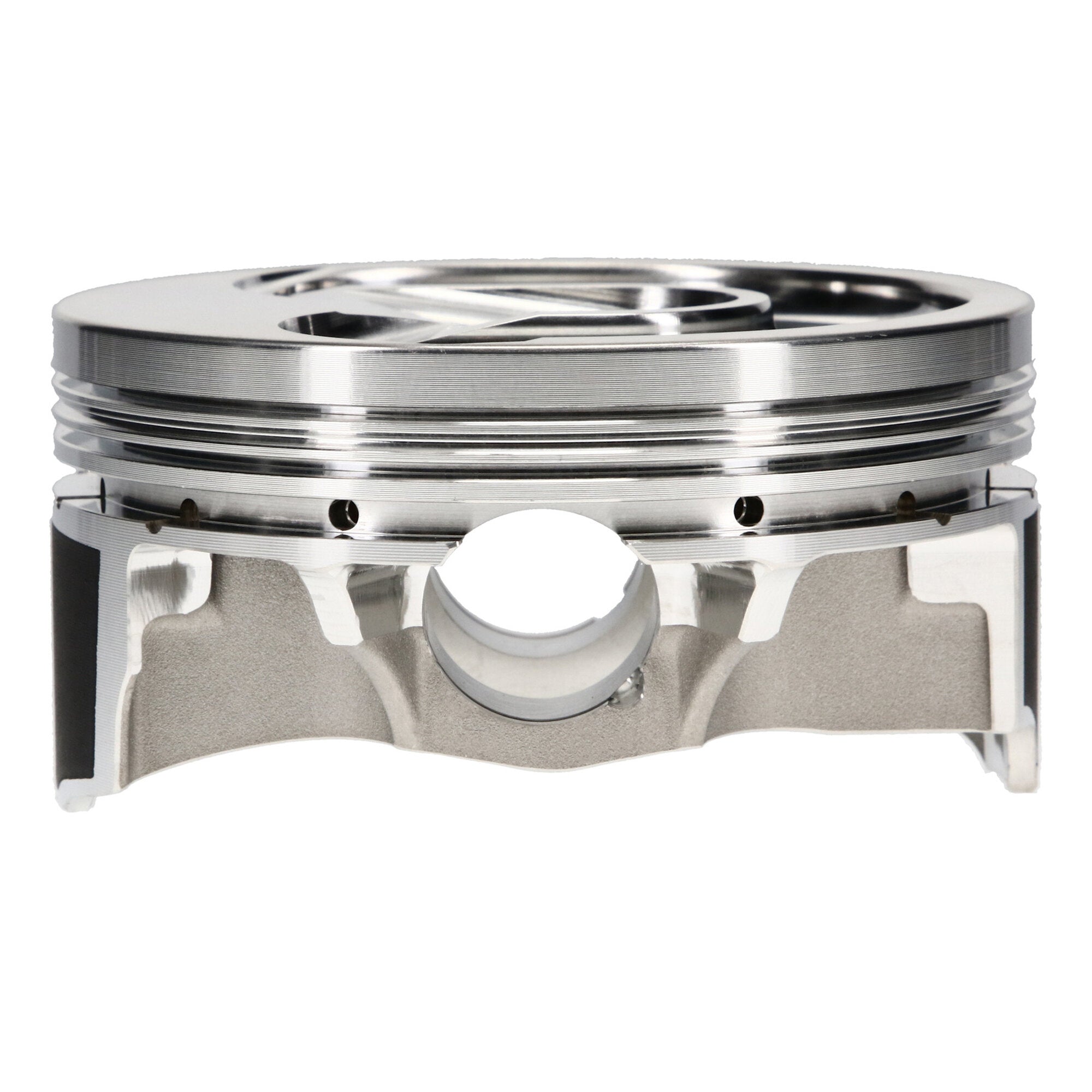

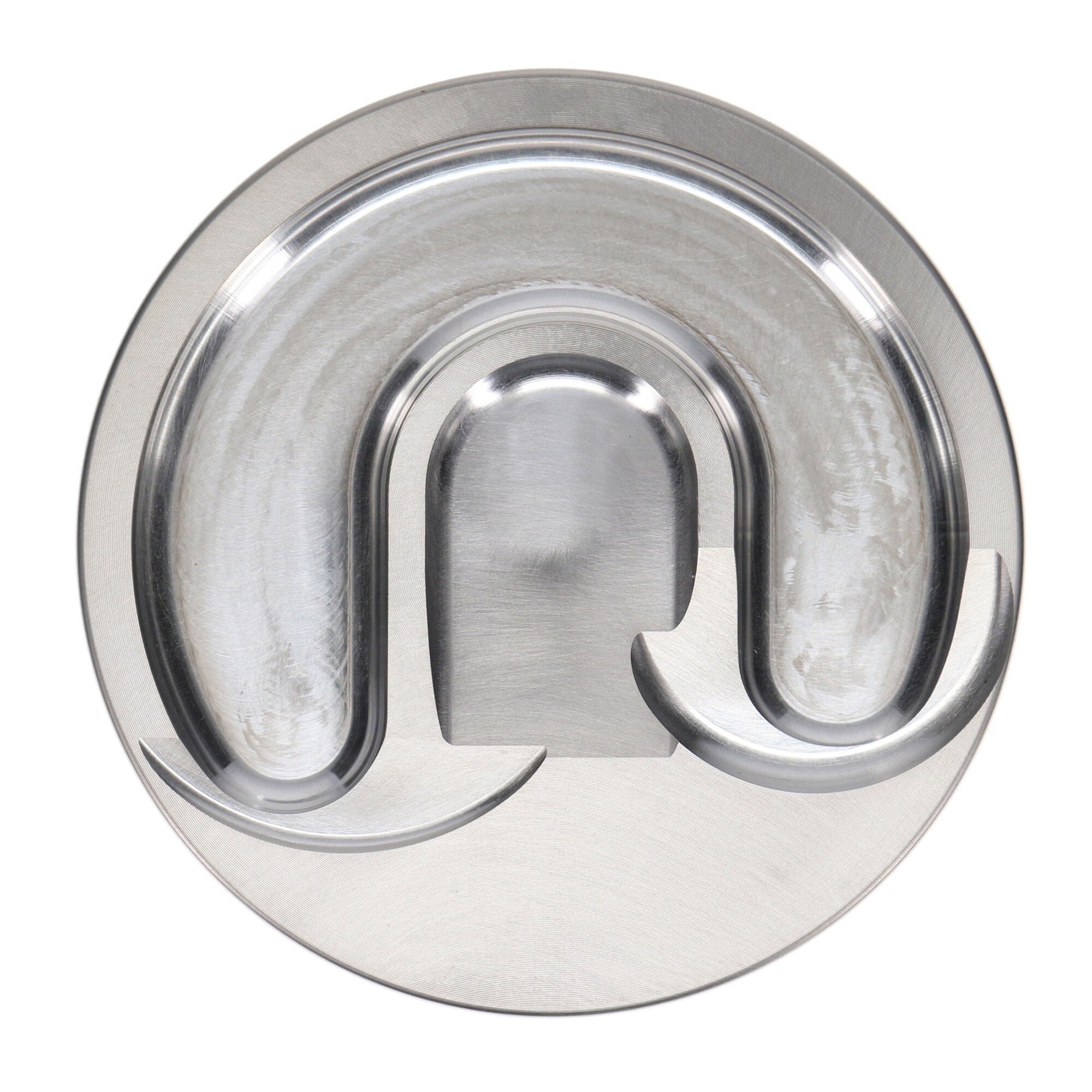

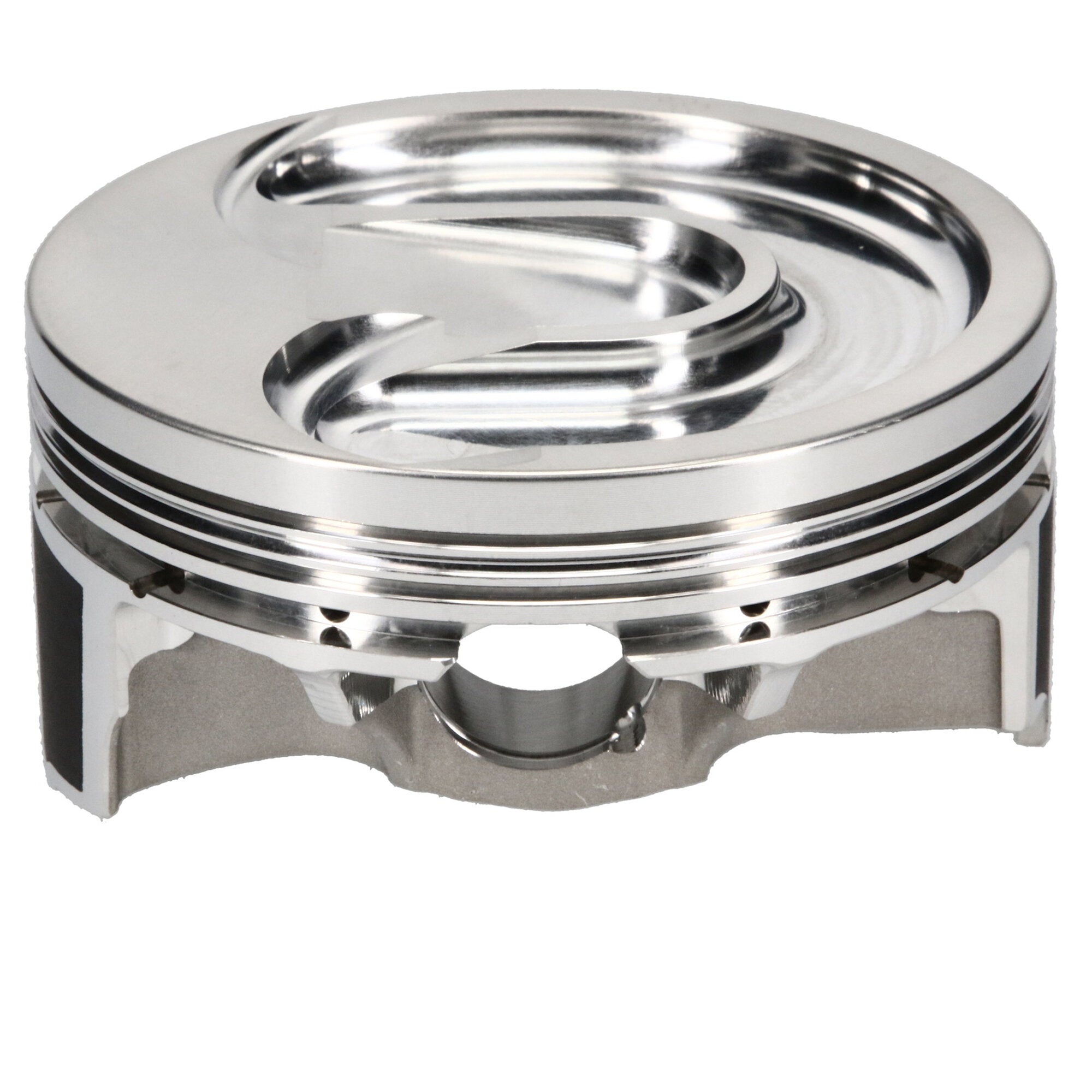

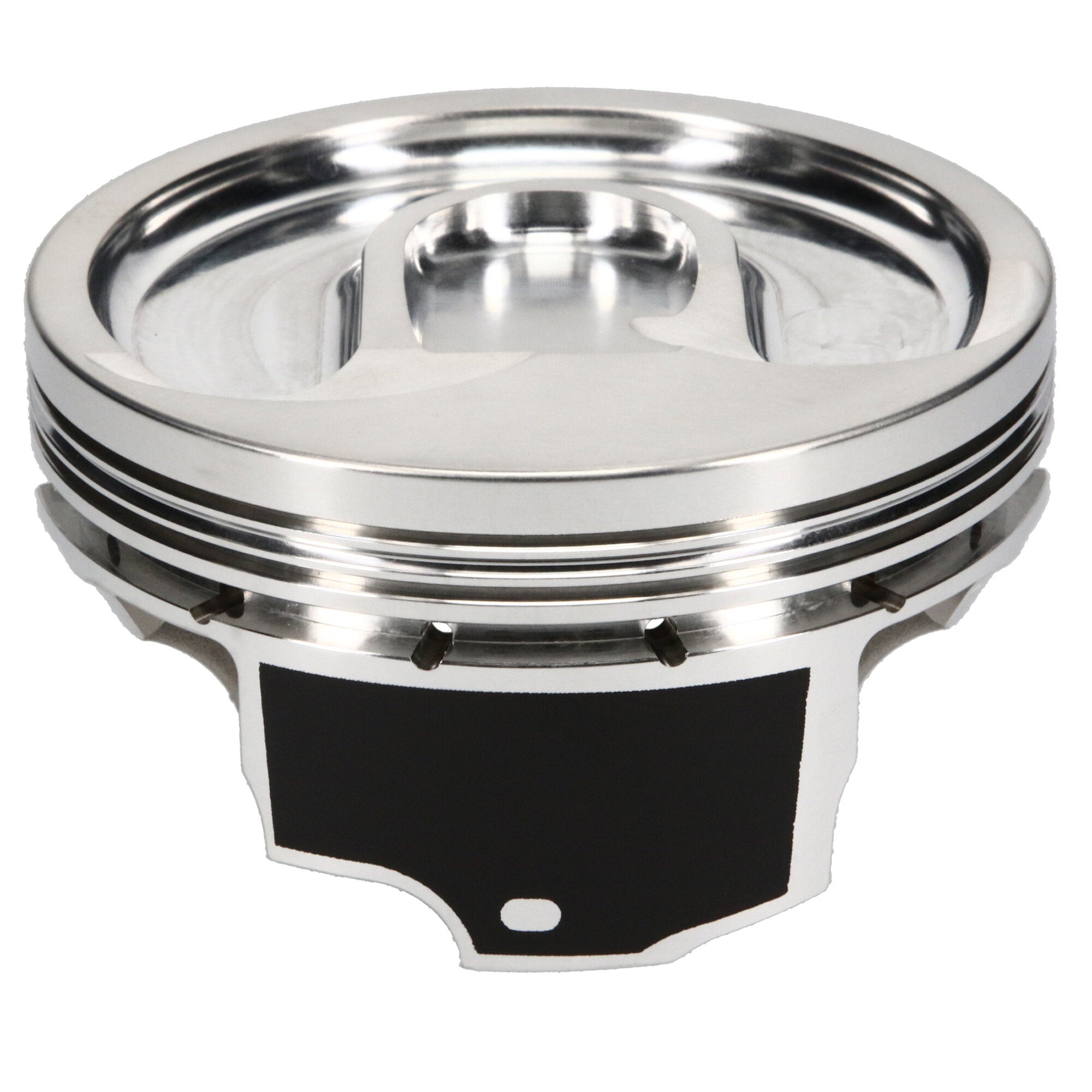

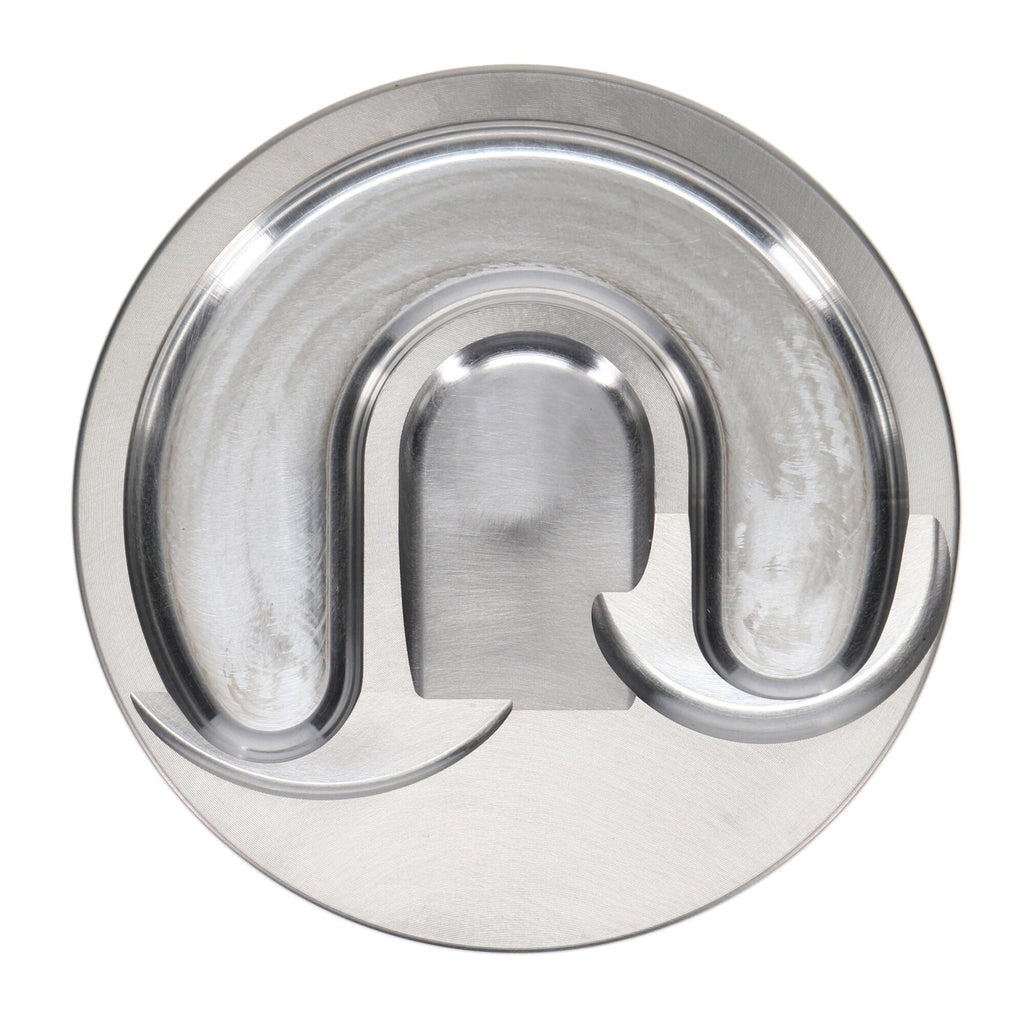

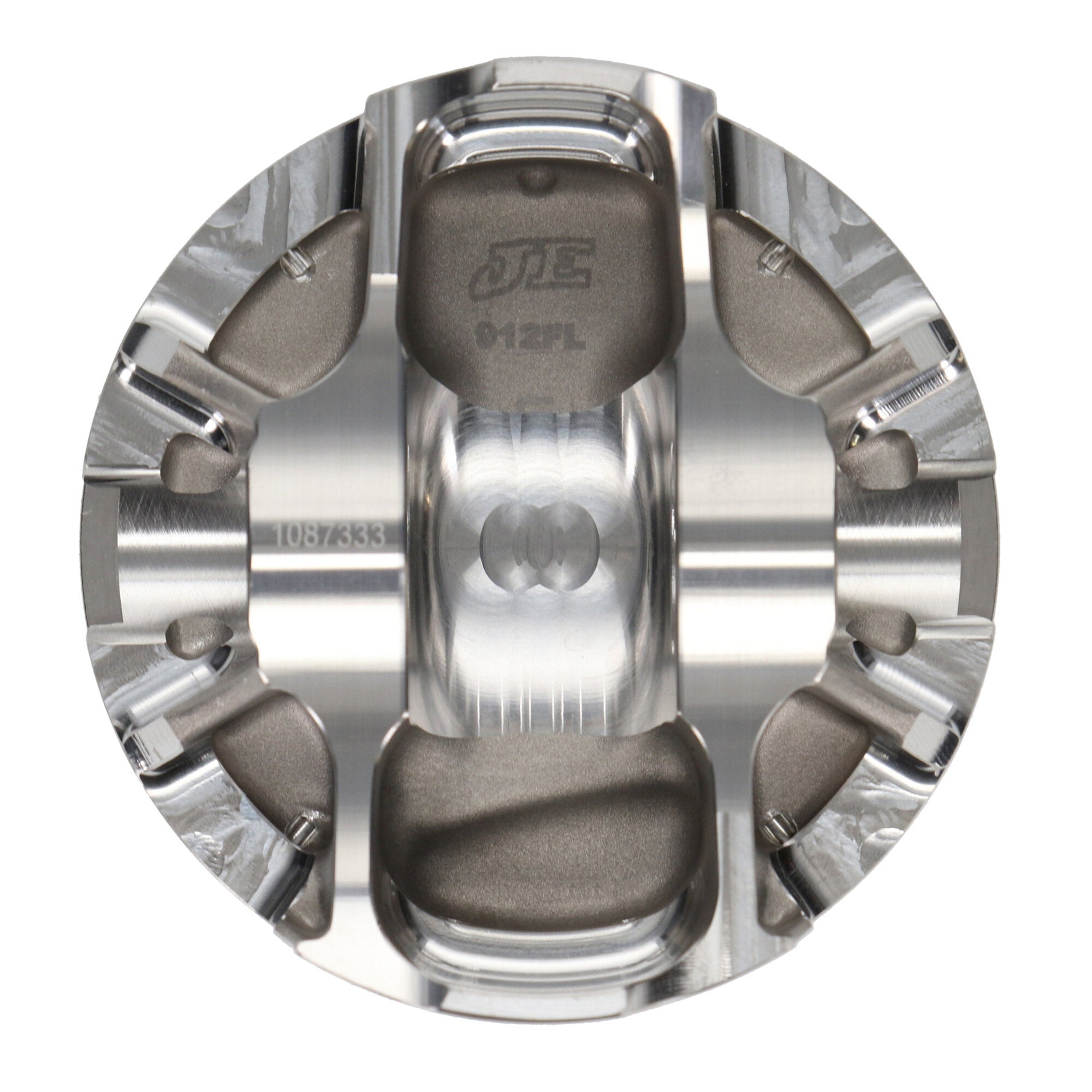

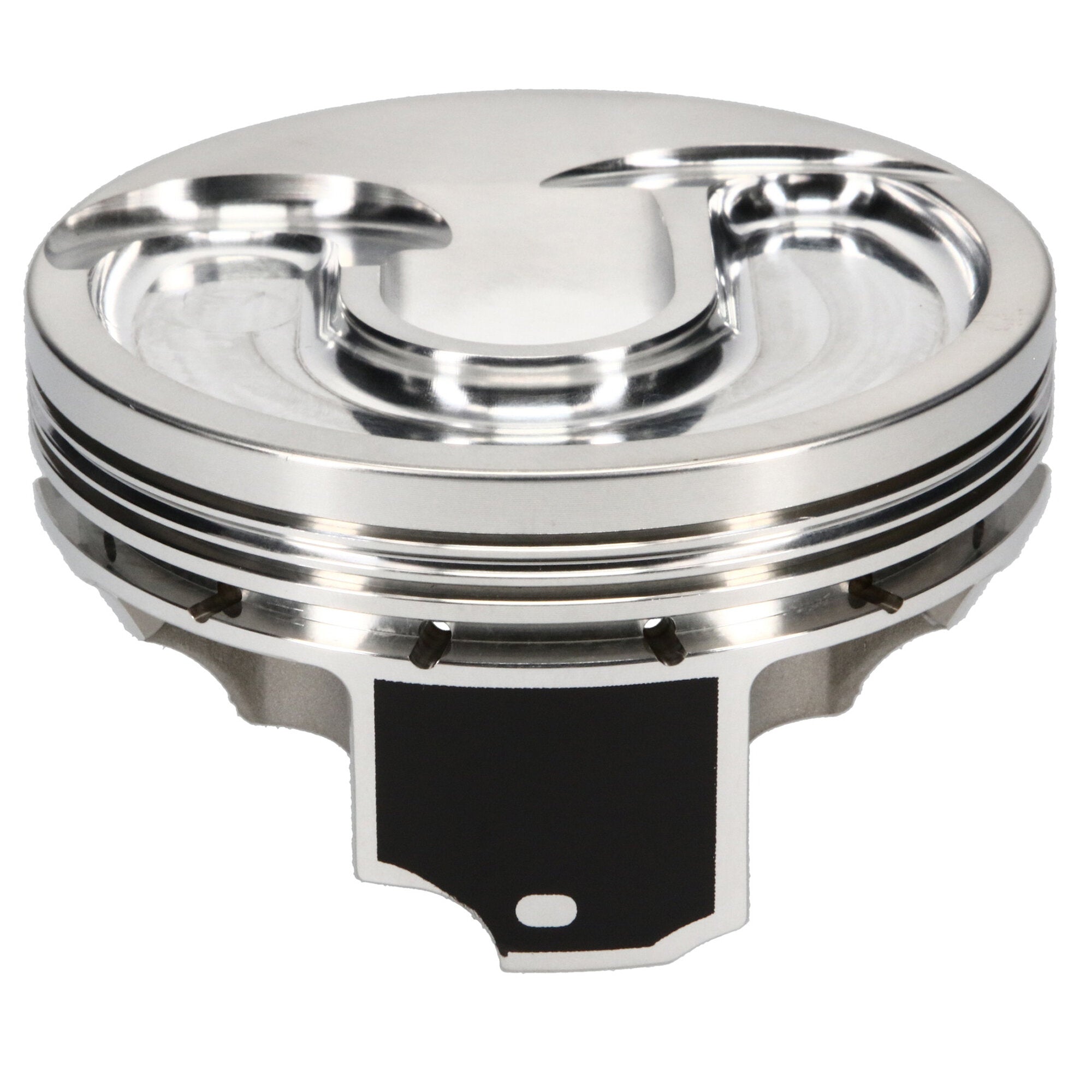

Piston Single, 2618, Inv Dome/Dish, 4.070 Bore, 1.115 CD, 0.927 Pin, Set of 1. |
| Description_EXT |
JE, Chevrolet, LT1 Gen V, 4.070 in. Bore, 1.115 CD, Inverted Dome/Dish, Right Piston |
| Description_INV |
JE Pistons, Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet LT1, 4.070 Bore, Dish, Set of 1 |
| Description_SHO |
Piston |
| Bore Diameter |
4.070 |
| Piston Quantity |
1 |
| Piston Volume |
-24.10 |
| Product Type |
Engine Piston |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
GEN 5 LT1 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0600 |
| Piston Material |
2618 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Add-On |
927-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Add-On |
JG31F1-4070-0 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Chevrolet LT1 Gen V Piston - 4.070 in. Bore - 1.115 in. CH, -24.10 CC |
| Piston Pin Length |
2.250 |
| Add-On |
927-073-MW |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Product Market |
Domestic |
| Forging Type |
FSR |
| Title |
JE Pistons - Chevrolet, LT1 Gen V, 4.070 in. Bore, Piston |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0480 |
| Oil Ring Thickness |
0.149 |
| Piston Head Type |
Dish |
| Ringset Included |
No |
| Compression Height |
1.115 |
| Engine |
LT1 Gen V |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
LT1 Gen V |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Orientation |
Right |
| Make |
CHEVROLET |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
