As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Big Block 460 M-6049-SCJ |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

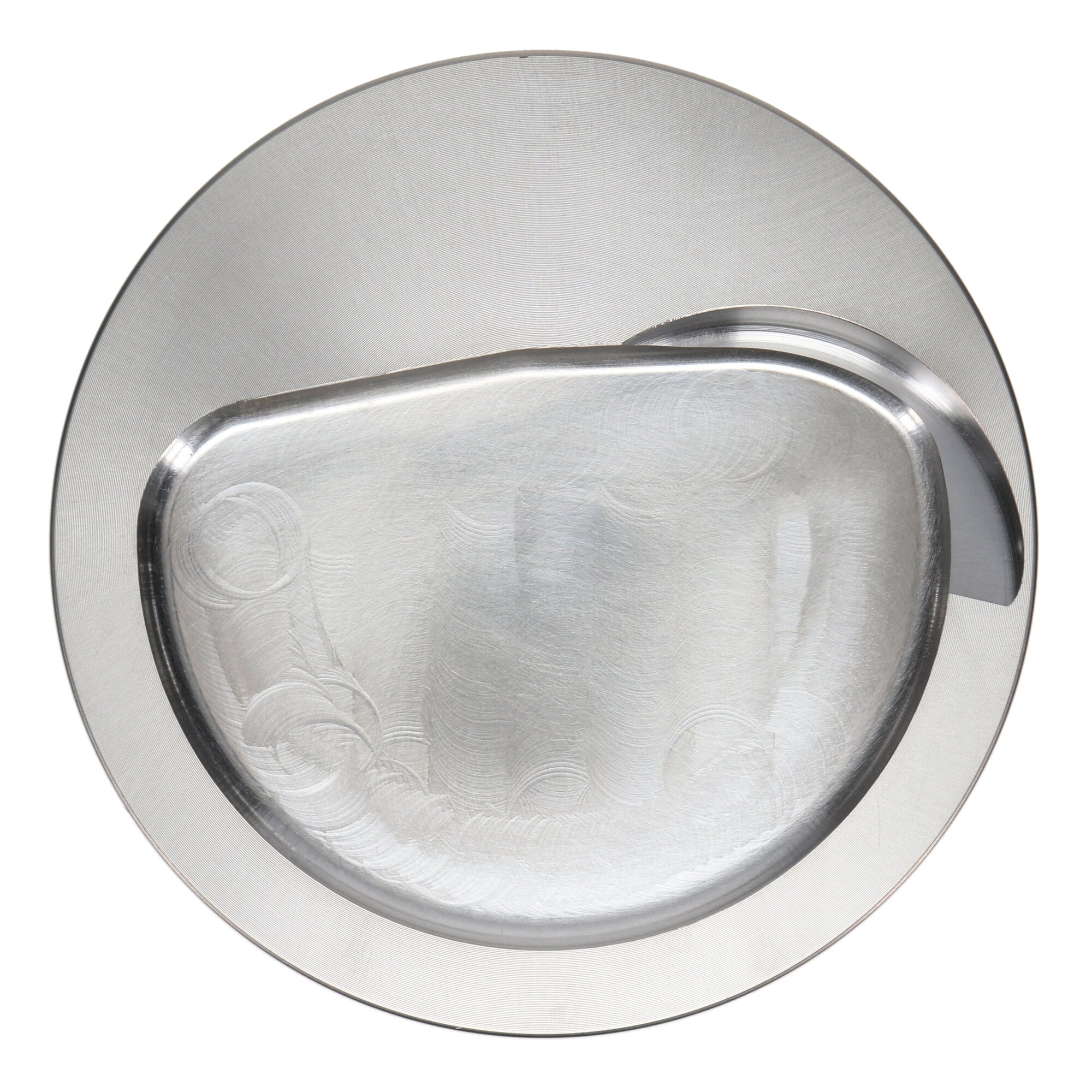

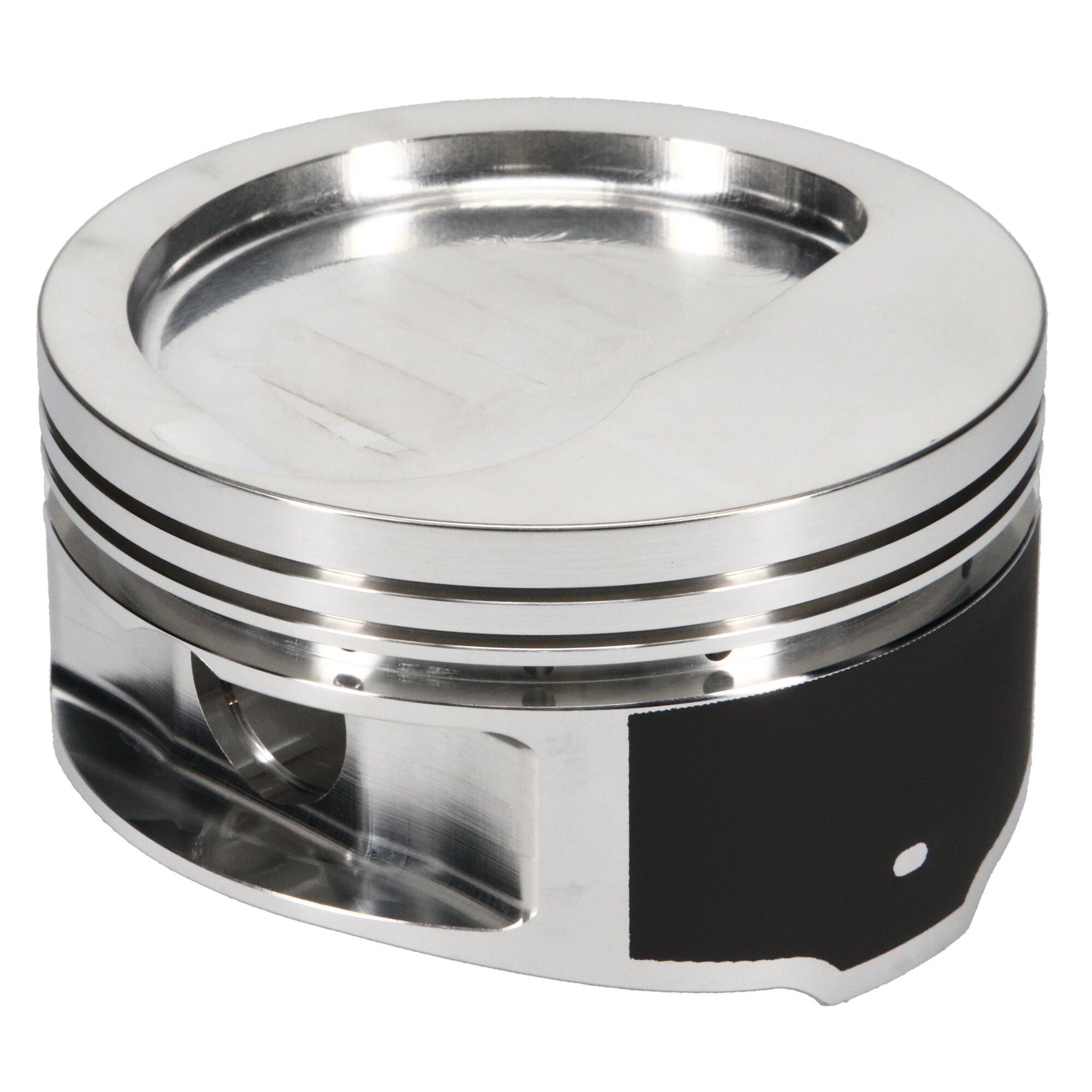

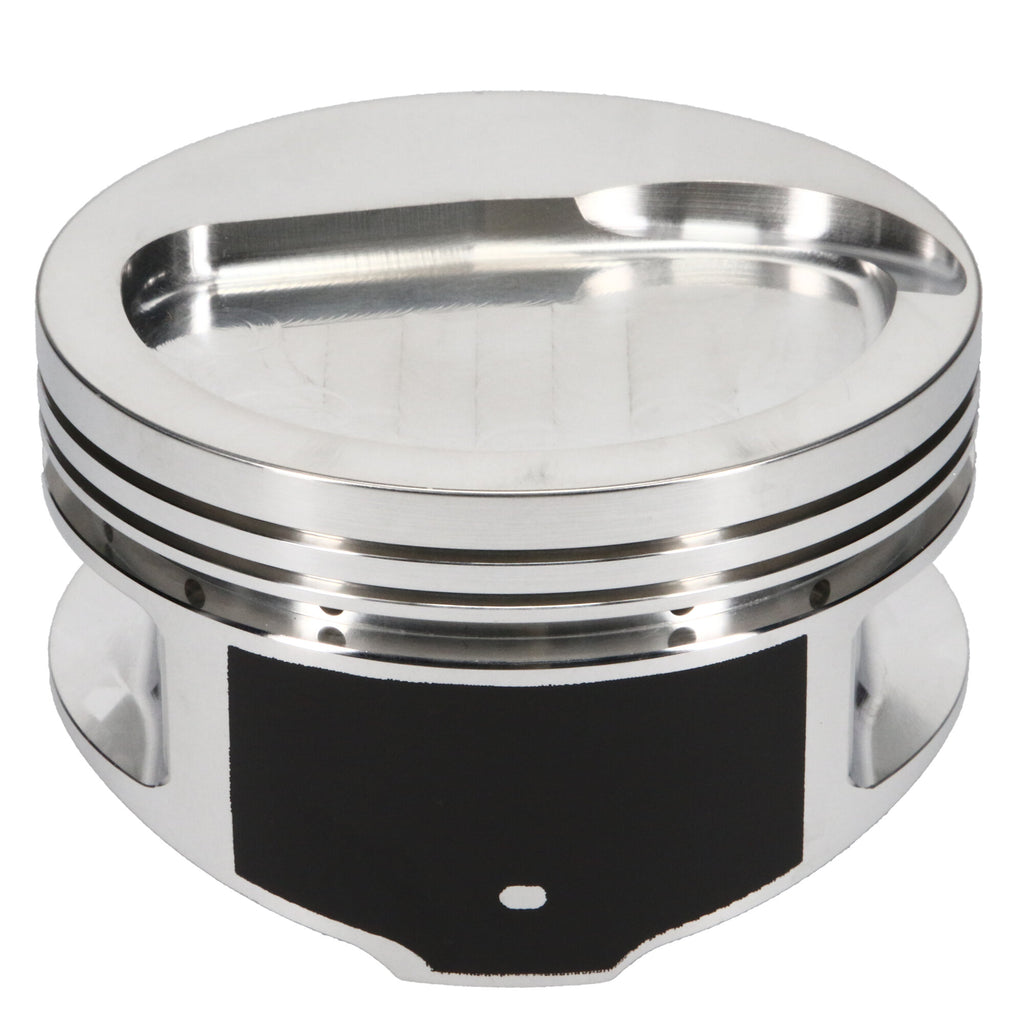

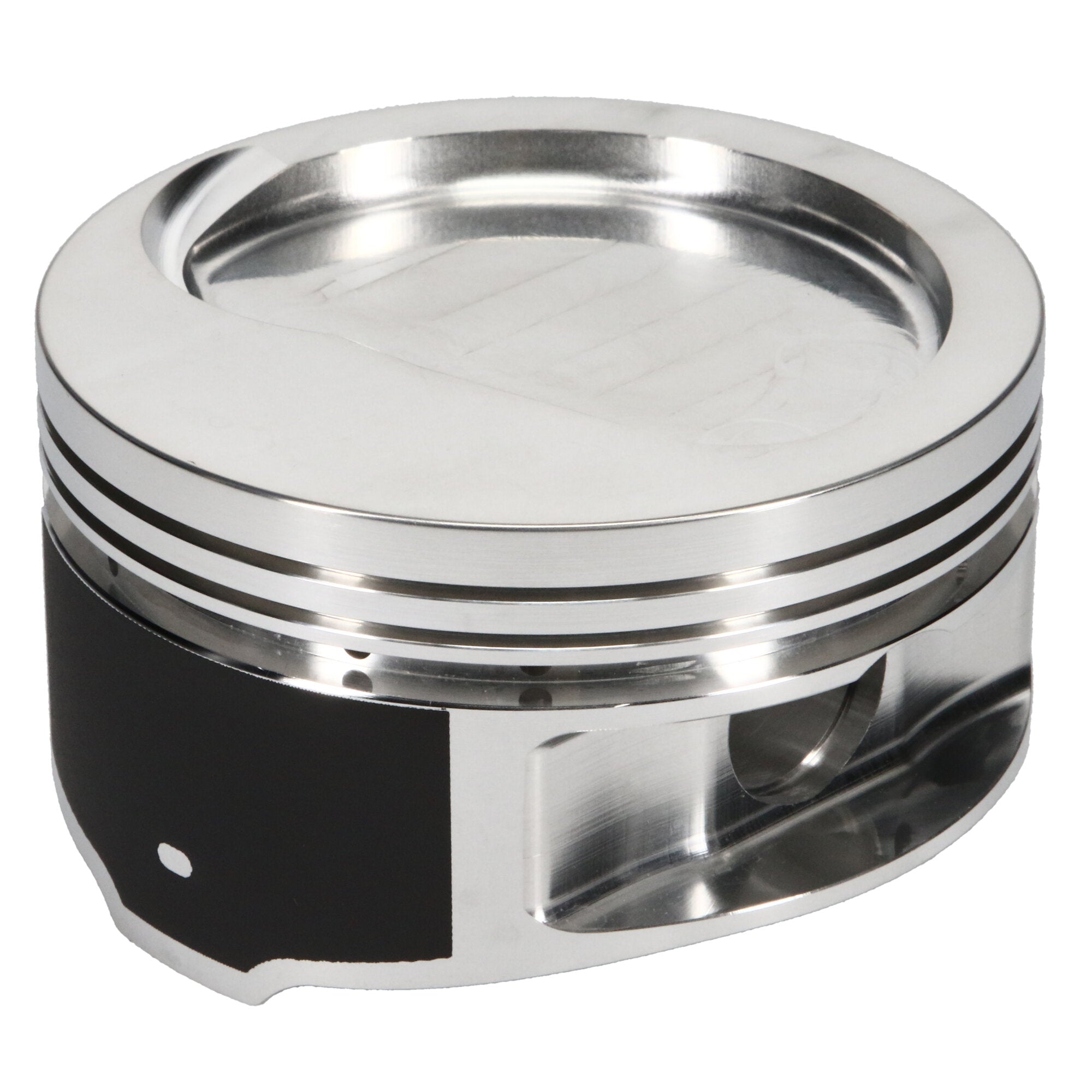

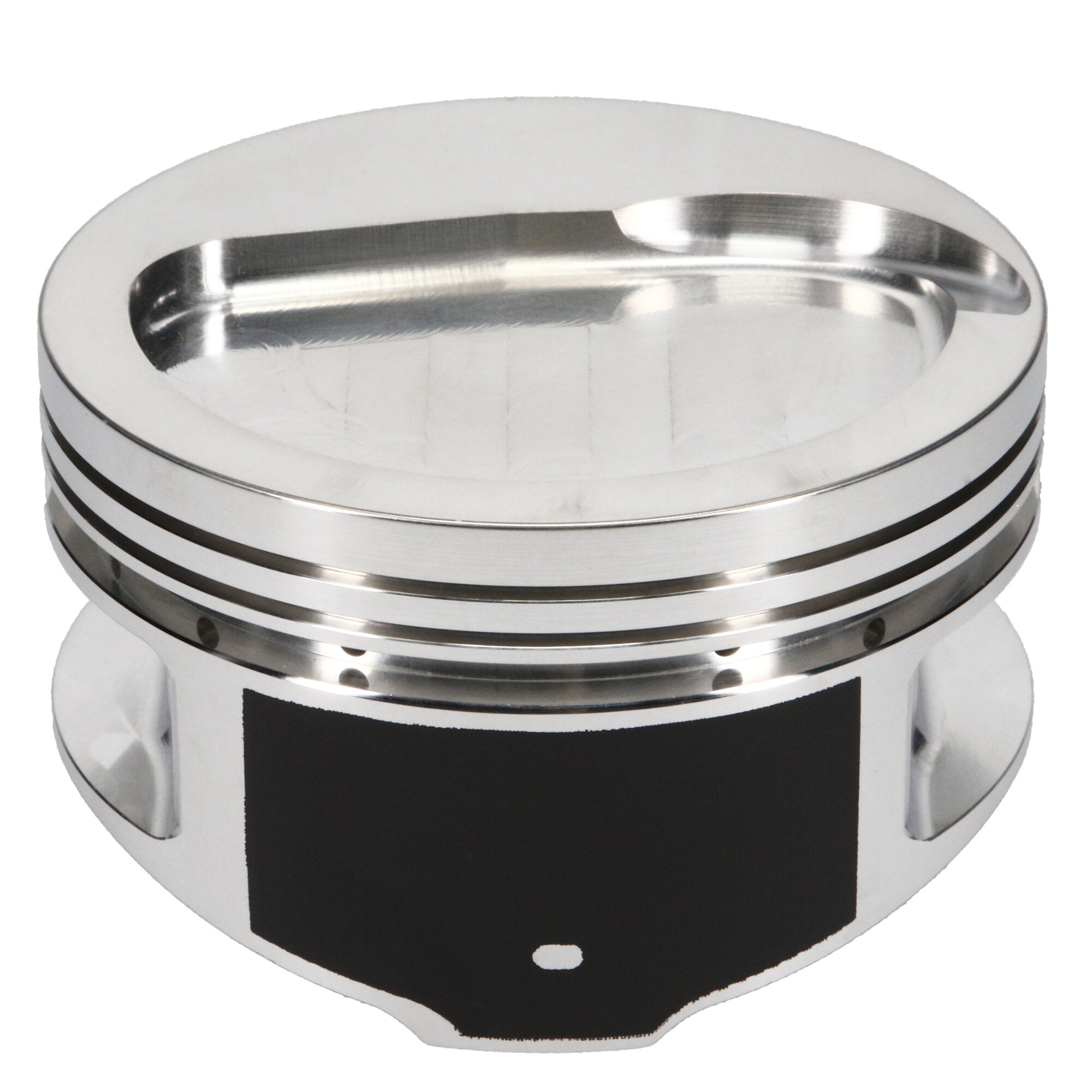

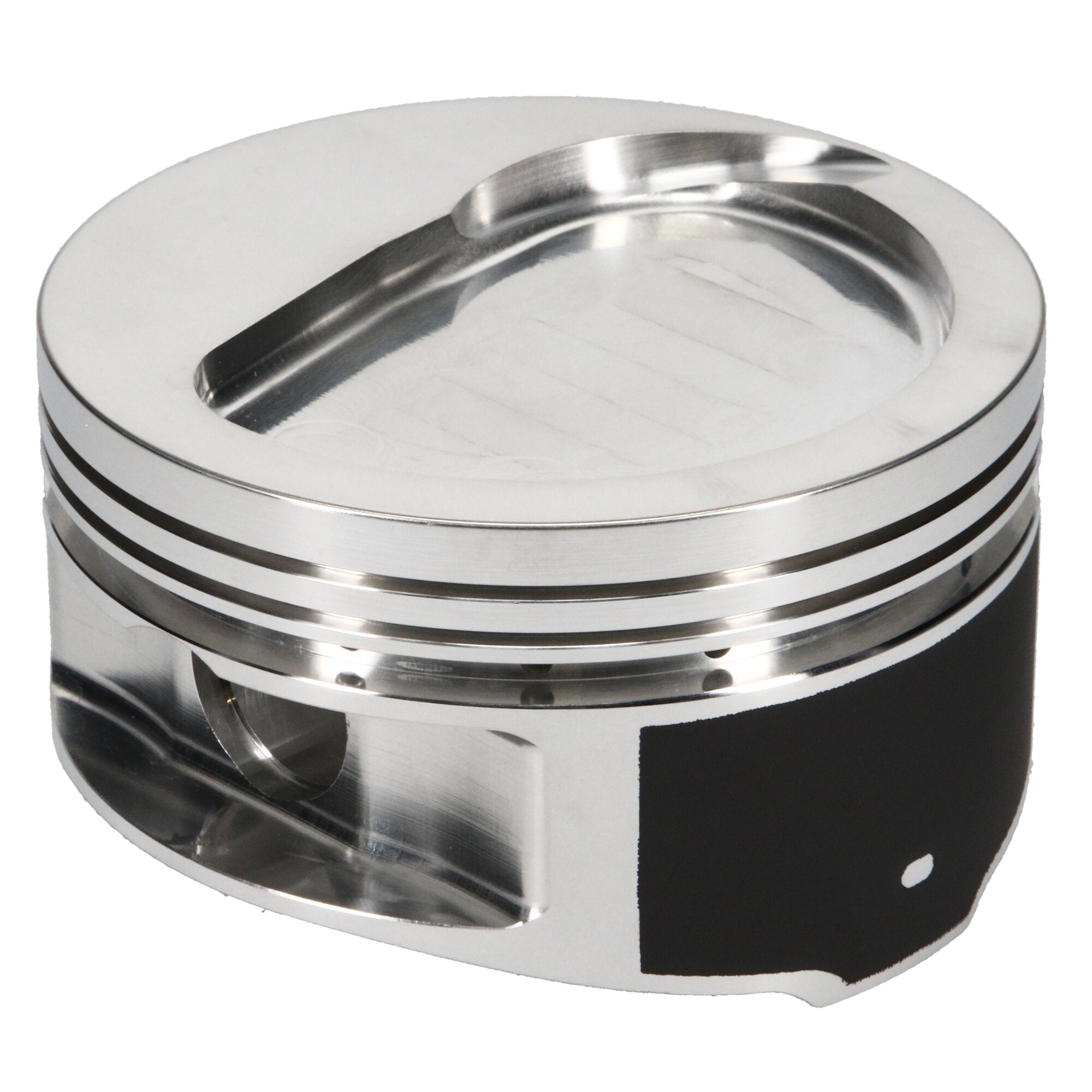

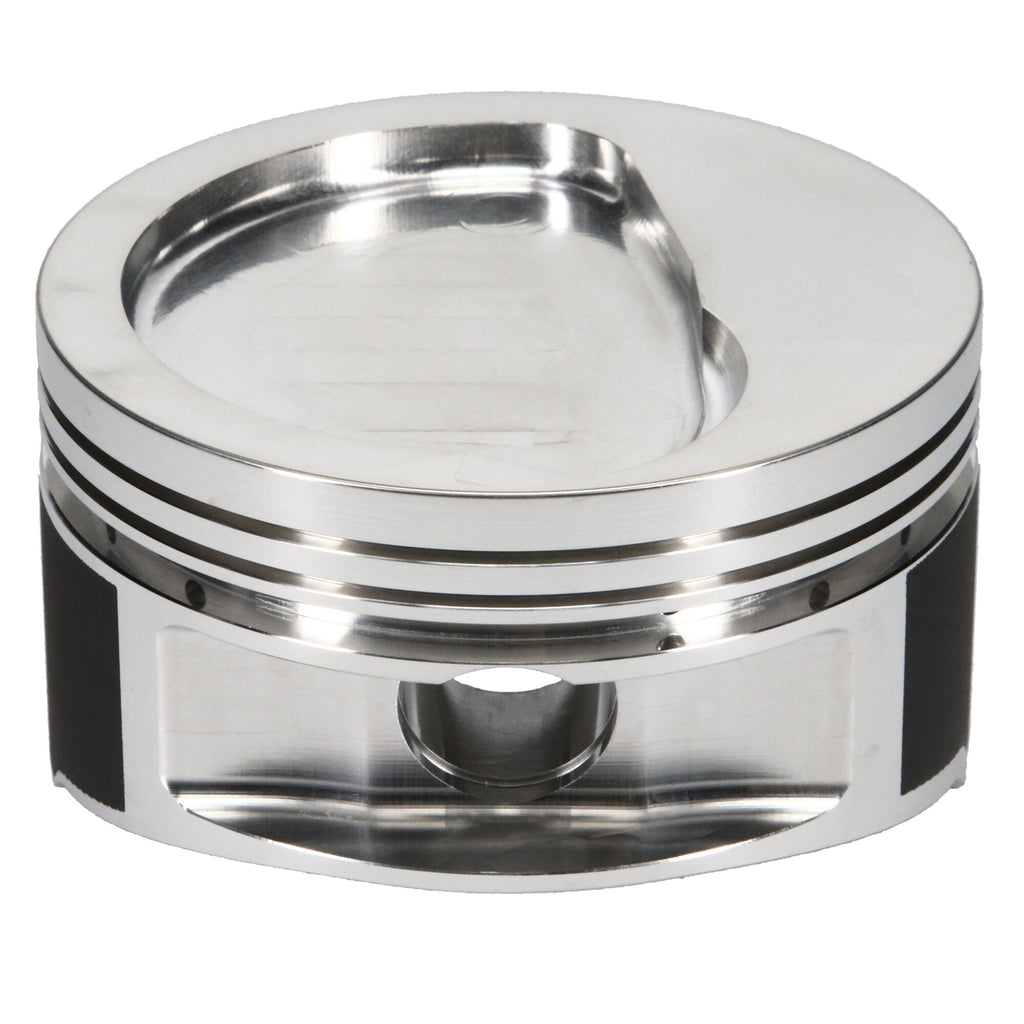

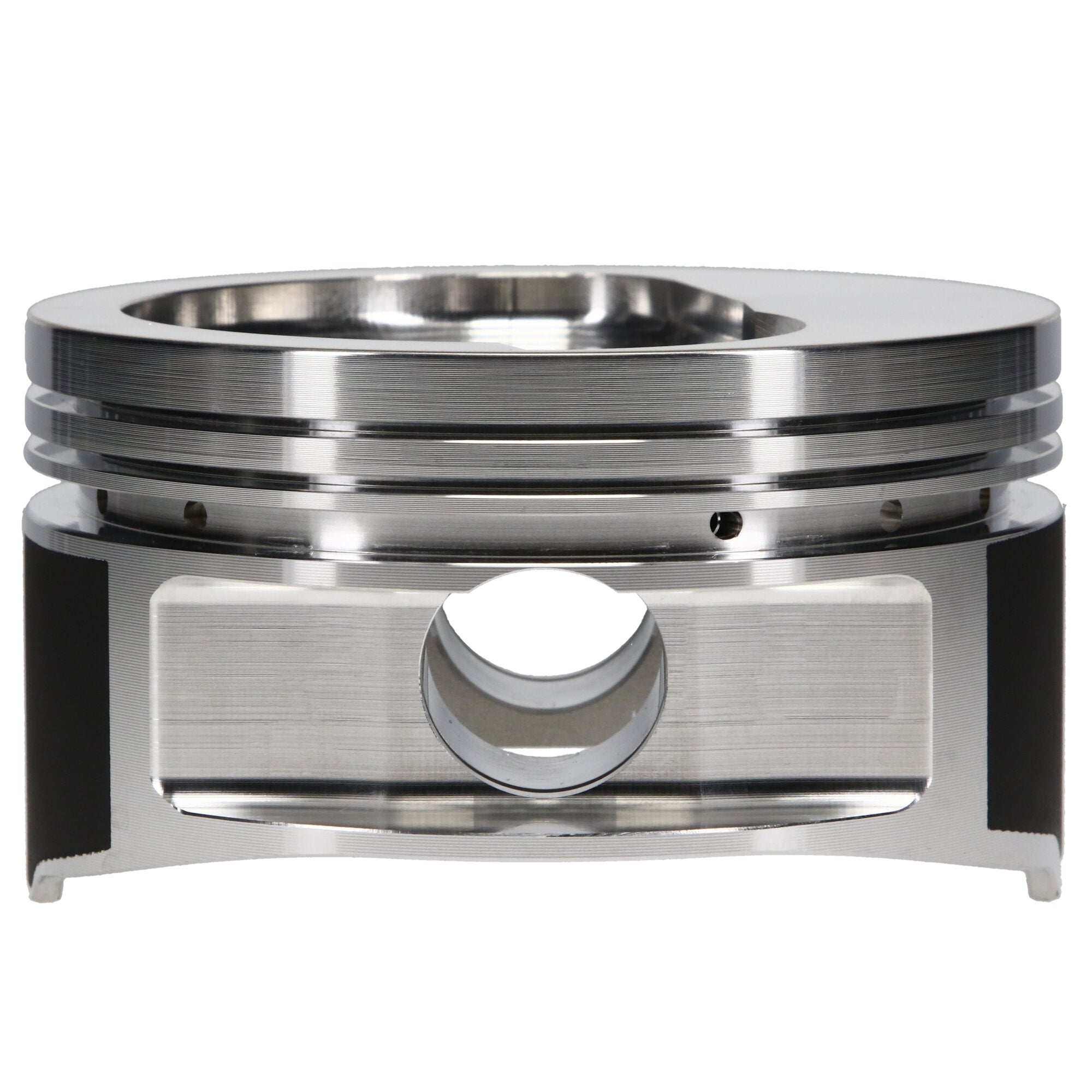

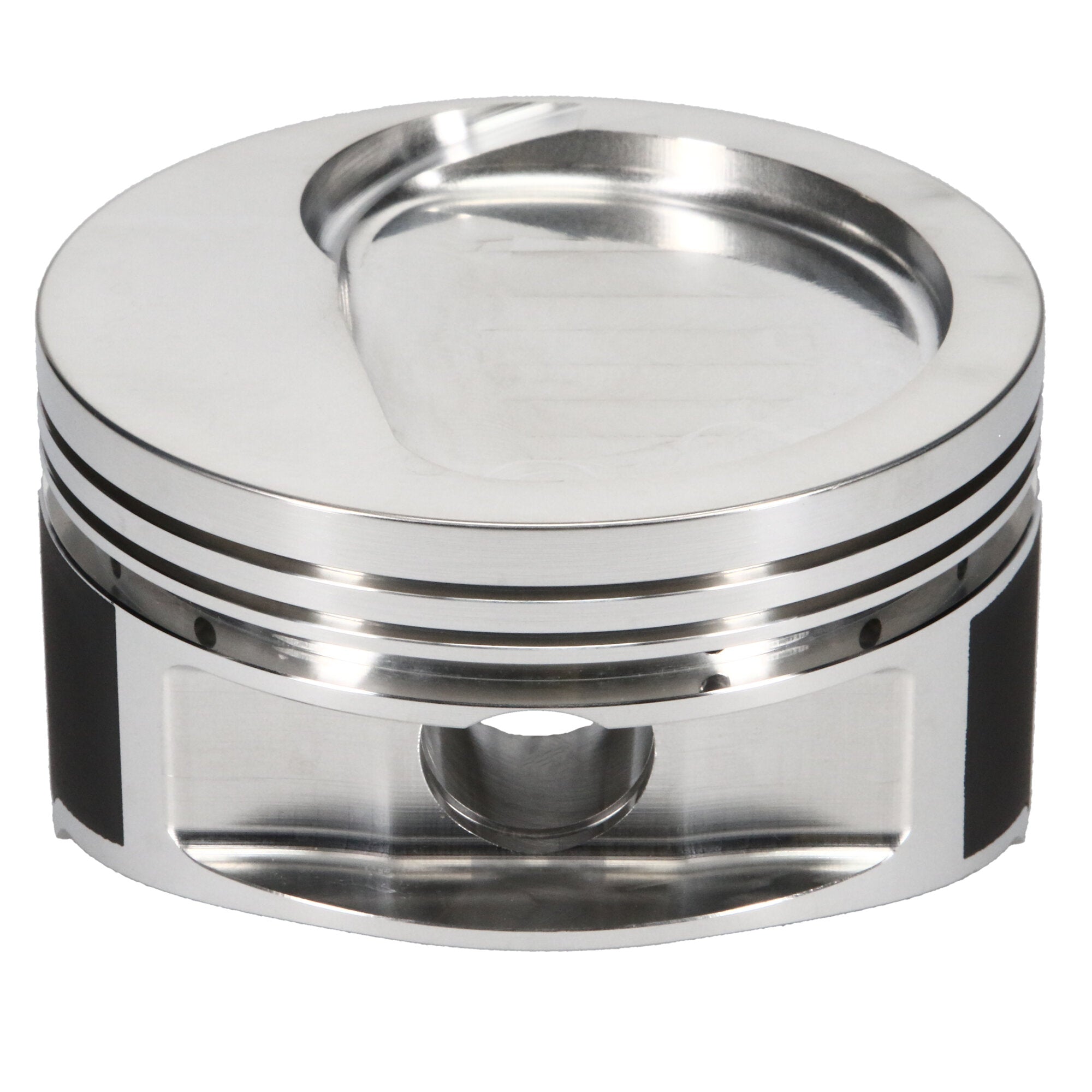

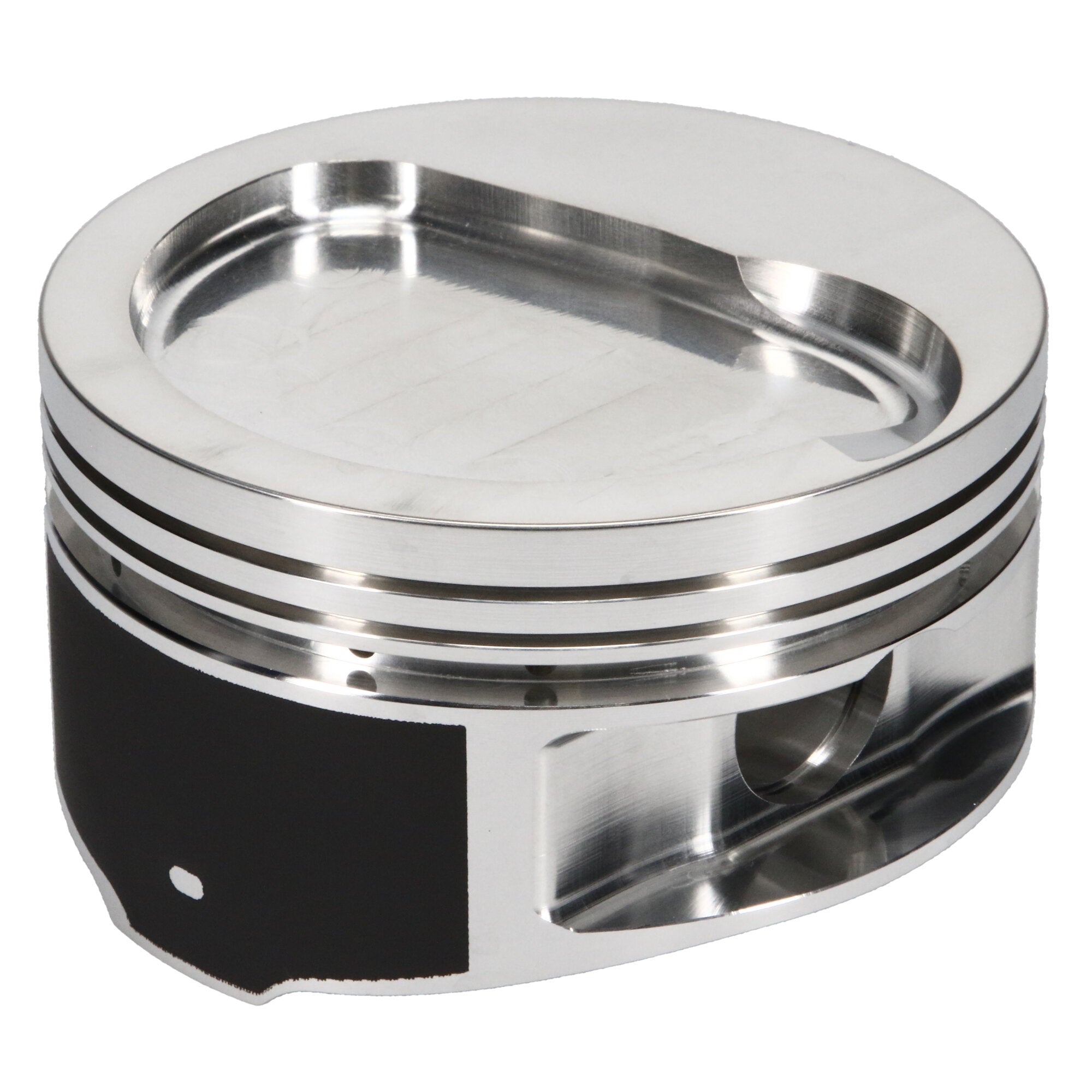

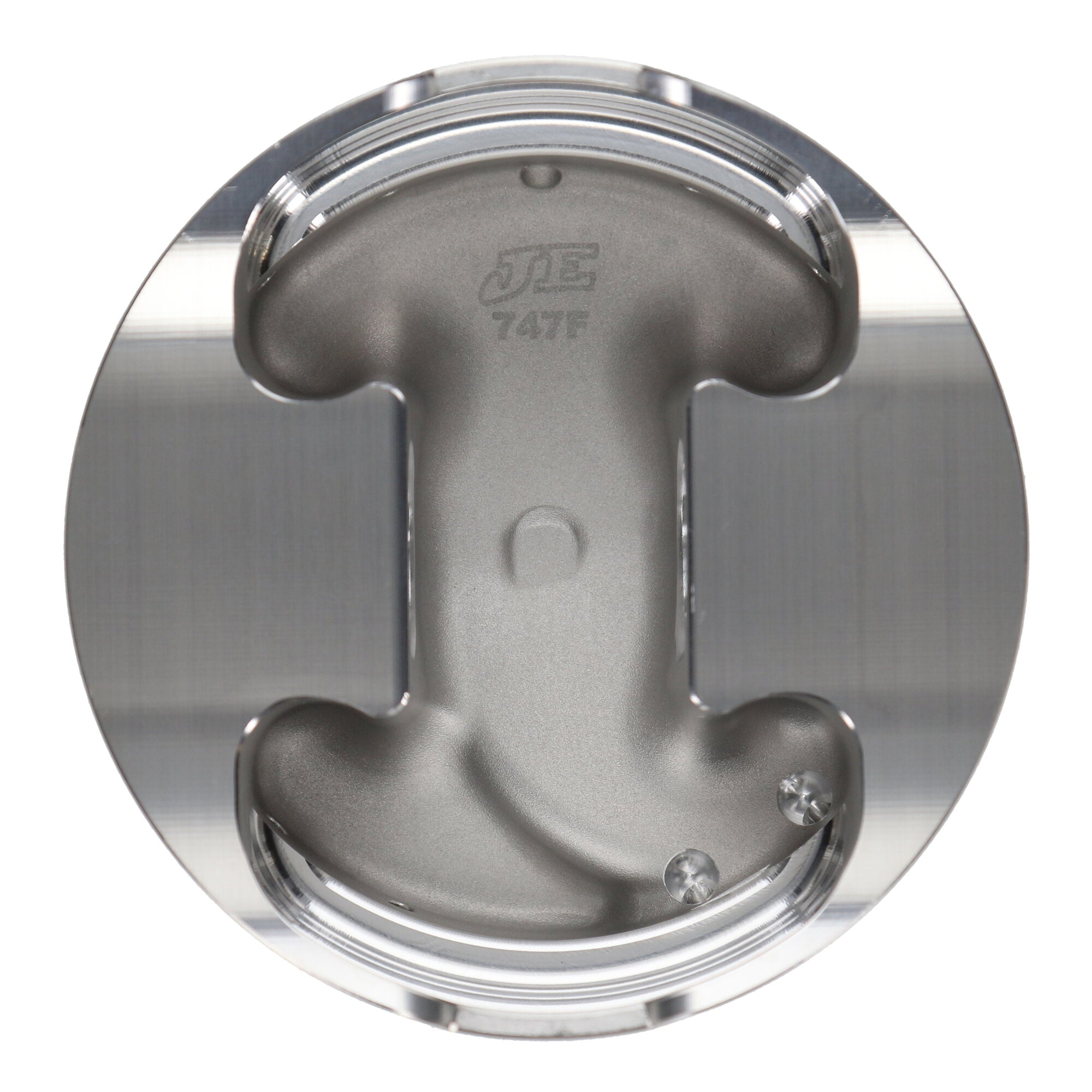

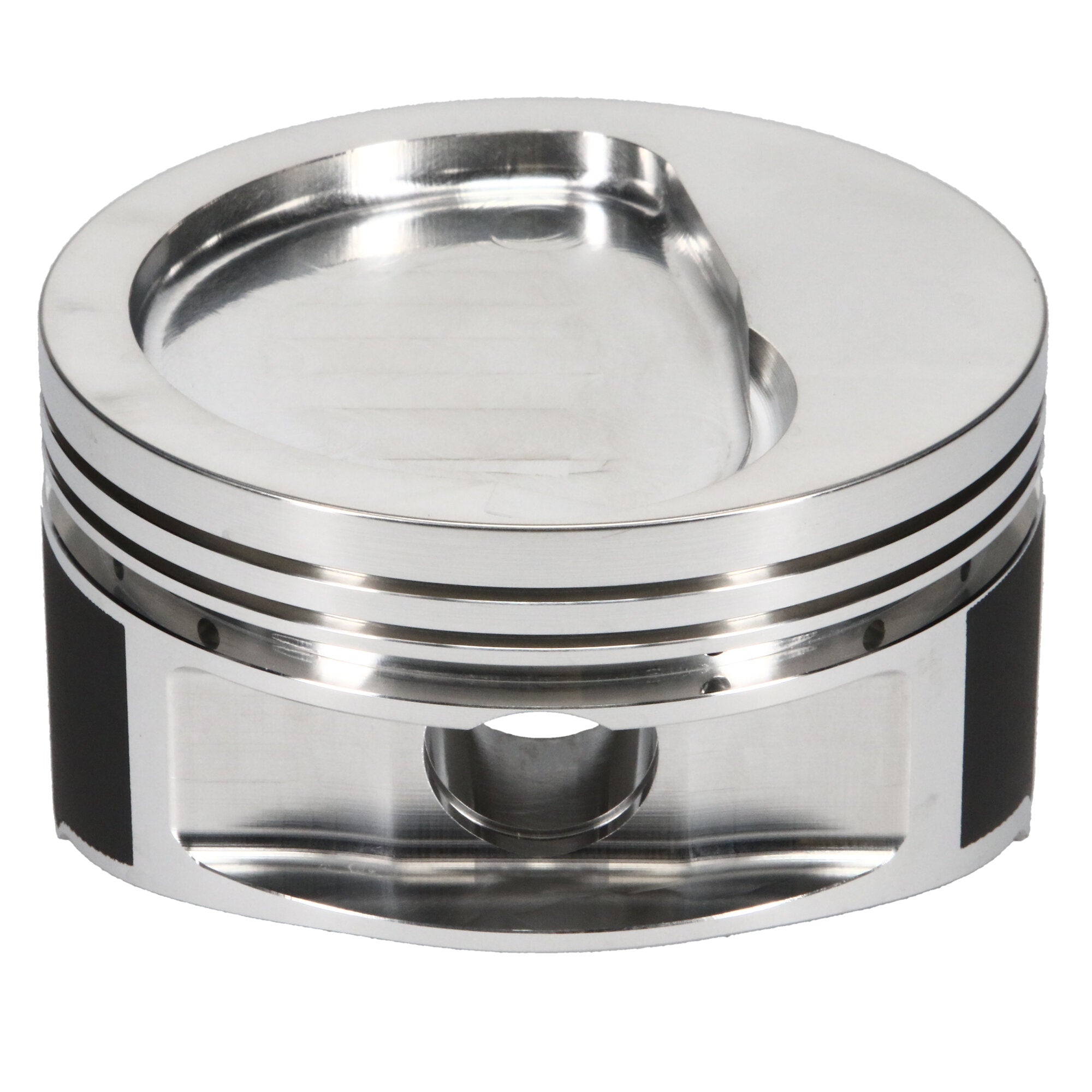

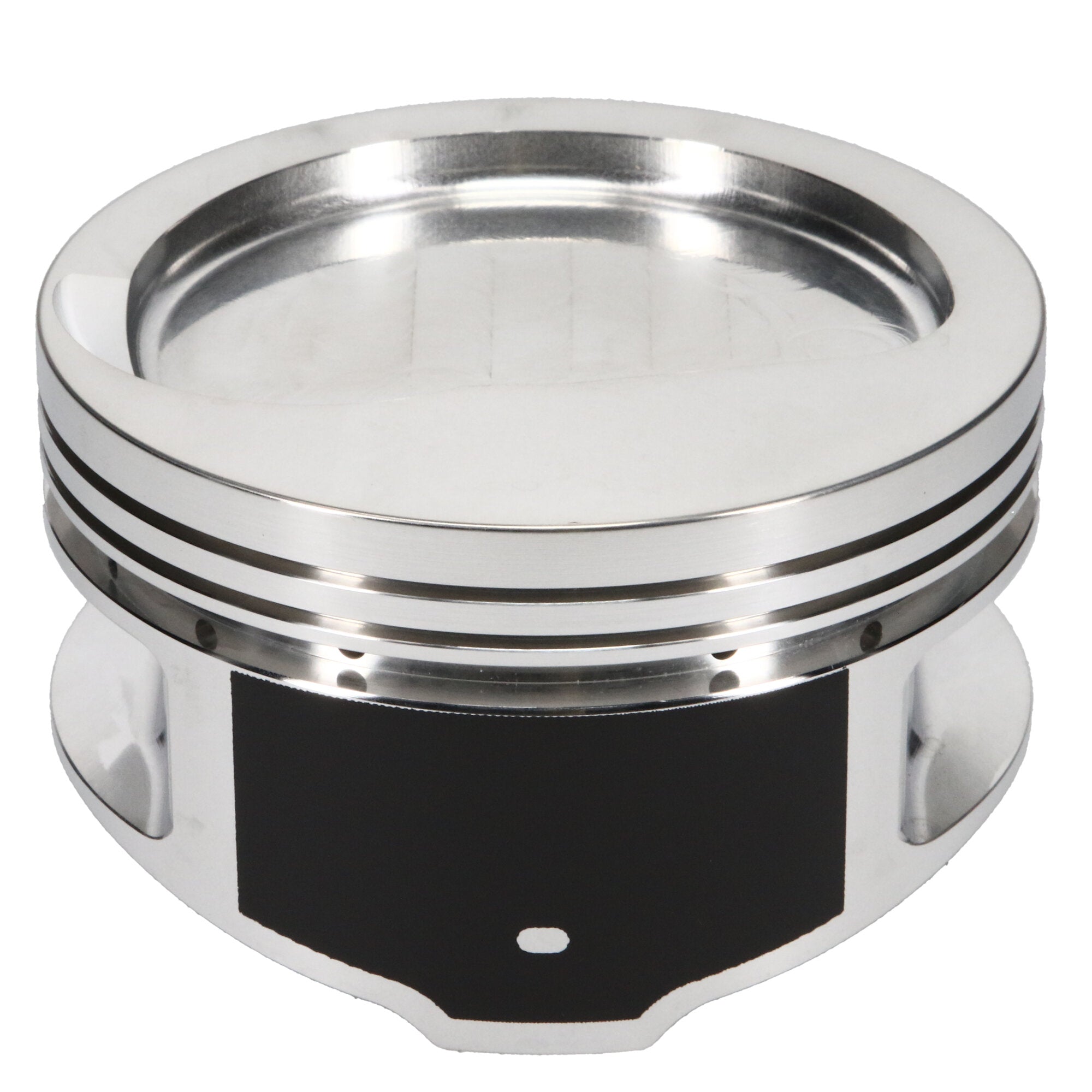

Piston Set, 2618, Inv Dome/Dish, 4.470 Bore, 1.350 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Big Block Ford, 4.470 in. Bore, 1.350 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 460, 4.470 Bore, Dish, Set of 8 |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.180 |
| Piston Volume |
-39.00 |
| Engine Type |
ICE |
| Compression Height |
1.350 |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Title |
JE Pistons - Ford, Big Block, 4.470 in. Bore, Piston Kit |
| Piston Head Type |
Dish |
| Top Compression Ring Thickness |
0.0640 |
| Make |
FORD |
| Oil Ring Thickness |
0.188 |
| Engine |
Big Block |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.180 |
| Out of Stock Message |
Call for Availability |
| Add-On |
J100S8-4470-5 |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
990-2930-18-51S |
| Piston Pin Outside Diameter |
0.990 |
| Cylinder Head |
429 SUPER COBRA JET |
| Piston Average Weight |
599 |
| Add-On |
990-042-CS |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title - Web |
JE Pistons Ford Big Block Piston Kit - 4.470 in. Bore - 1.350 in. CH, -39.00 CC |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.470 |
| Piston Quantity |
8 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
