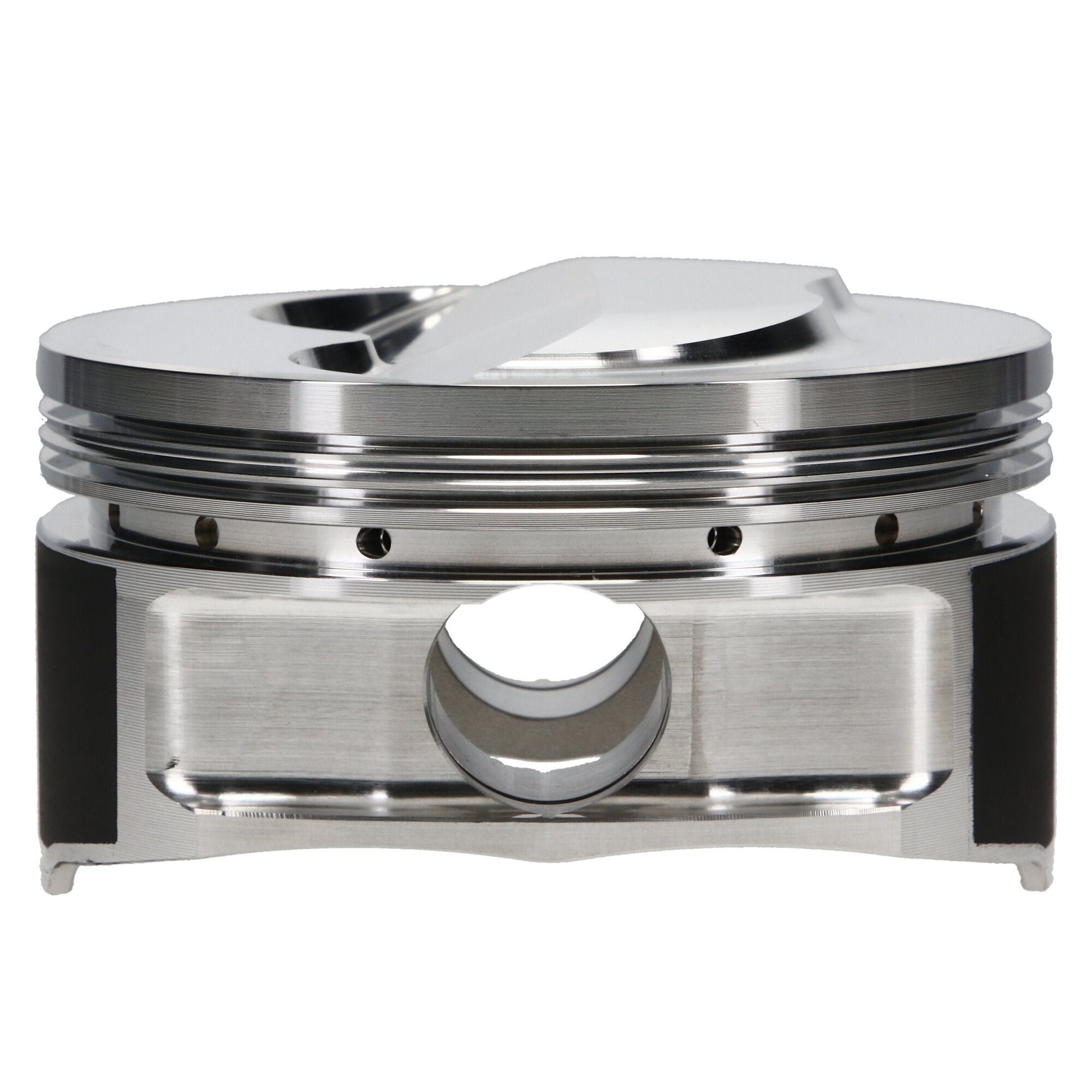

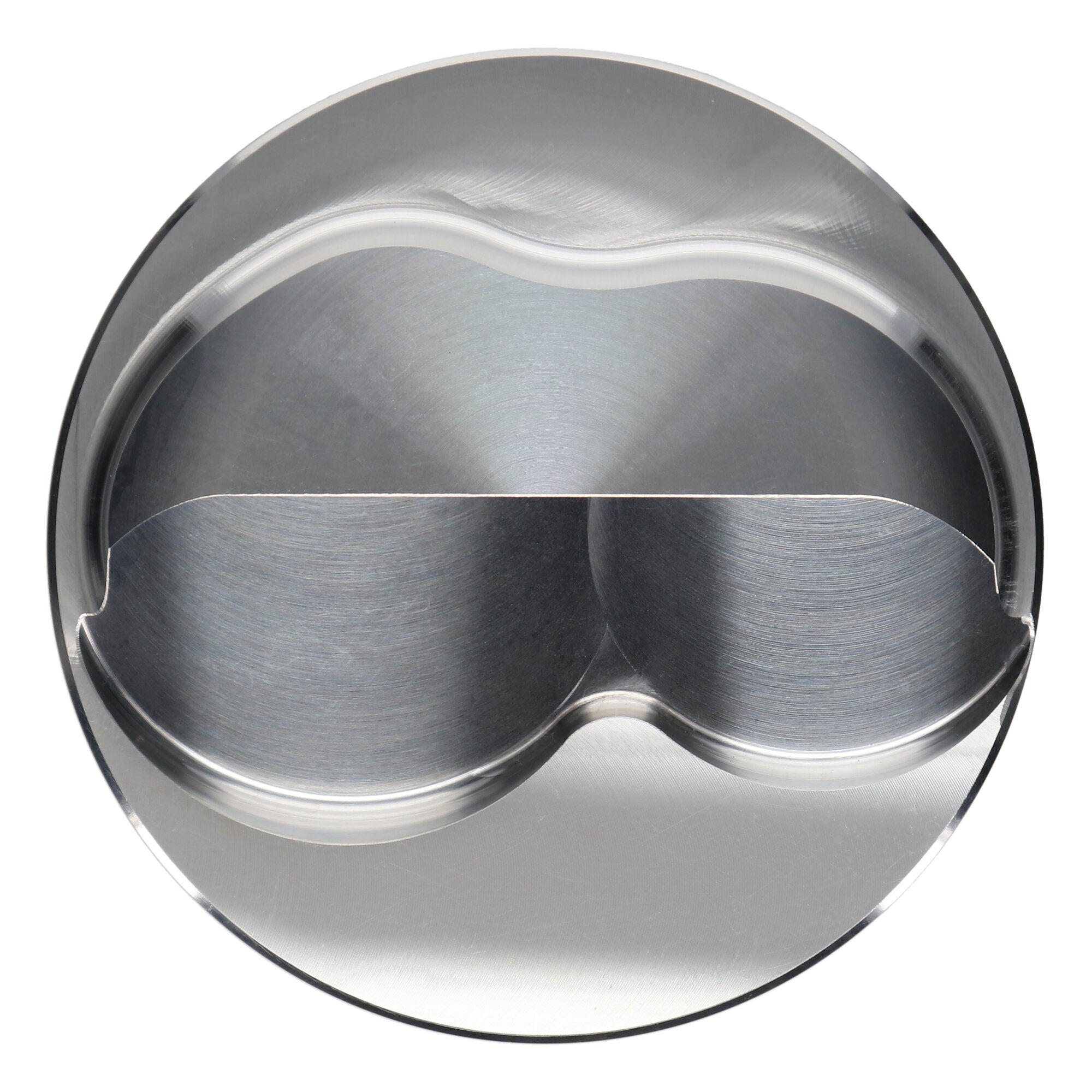

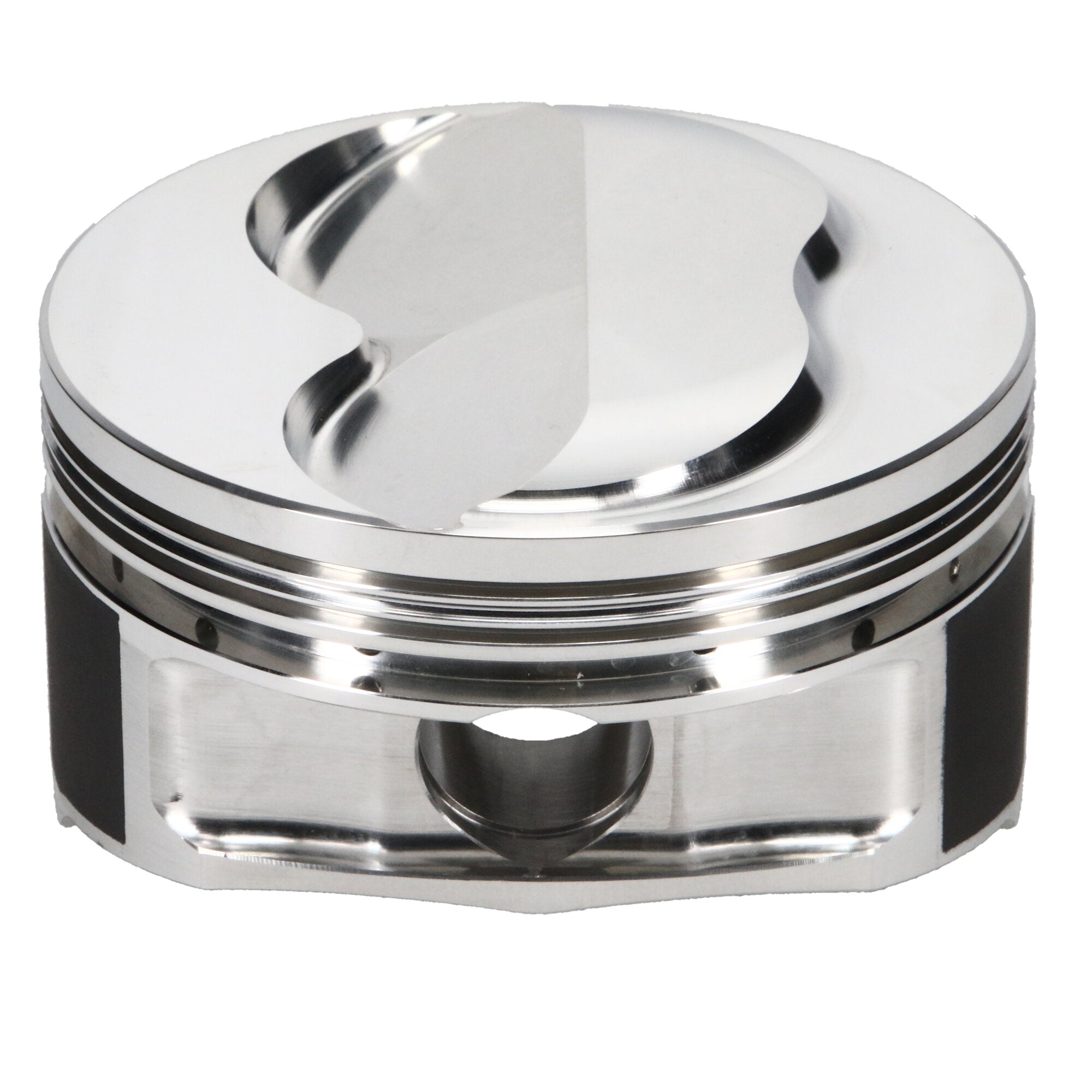

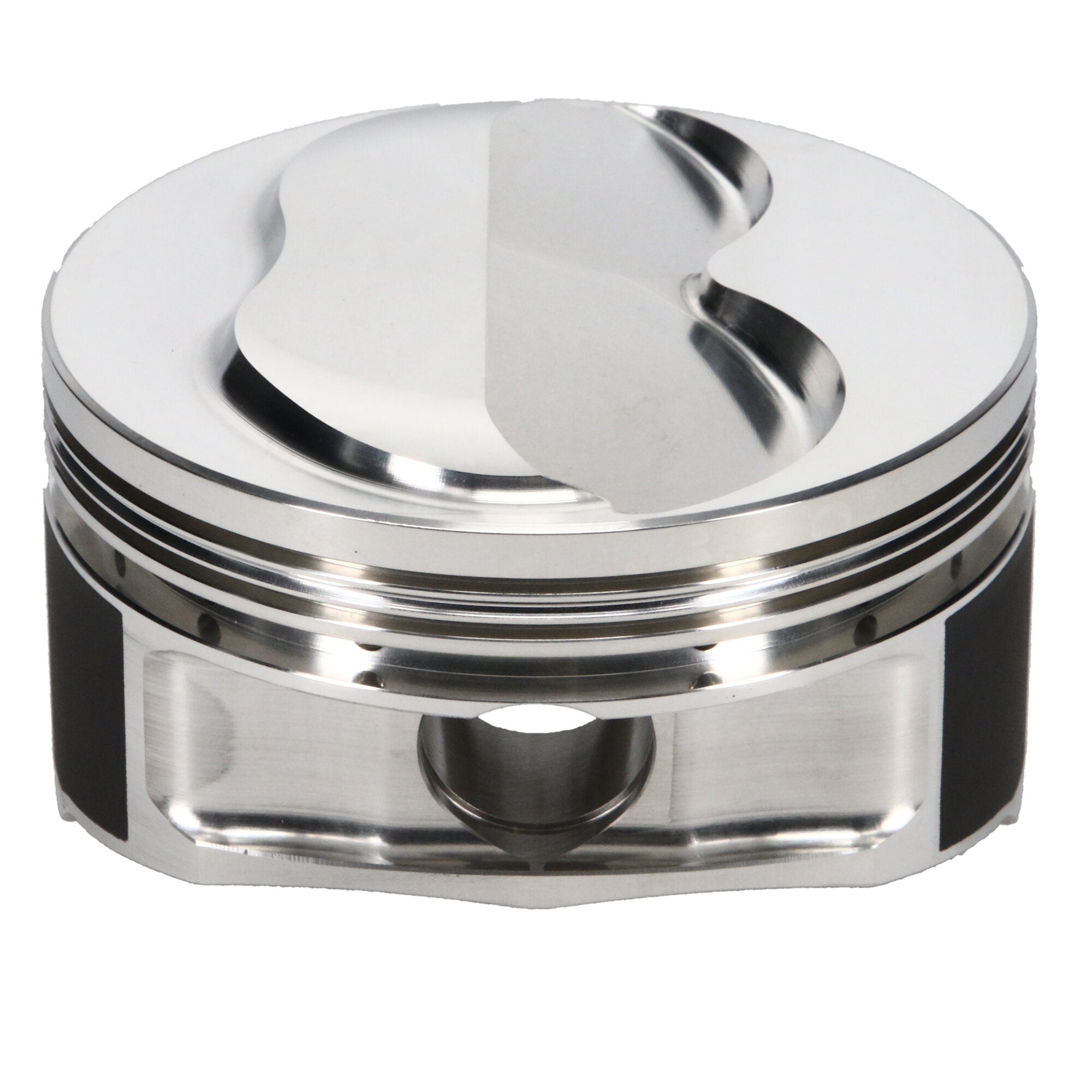

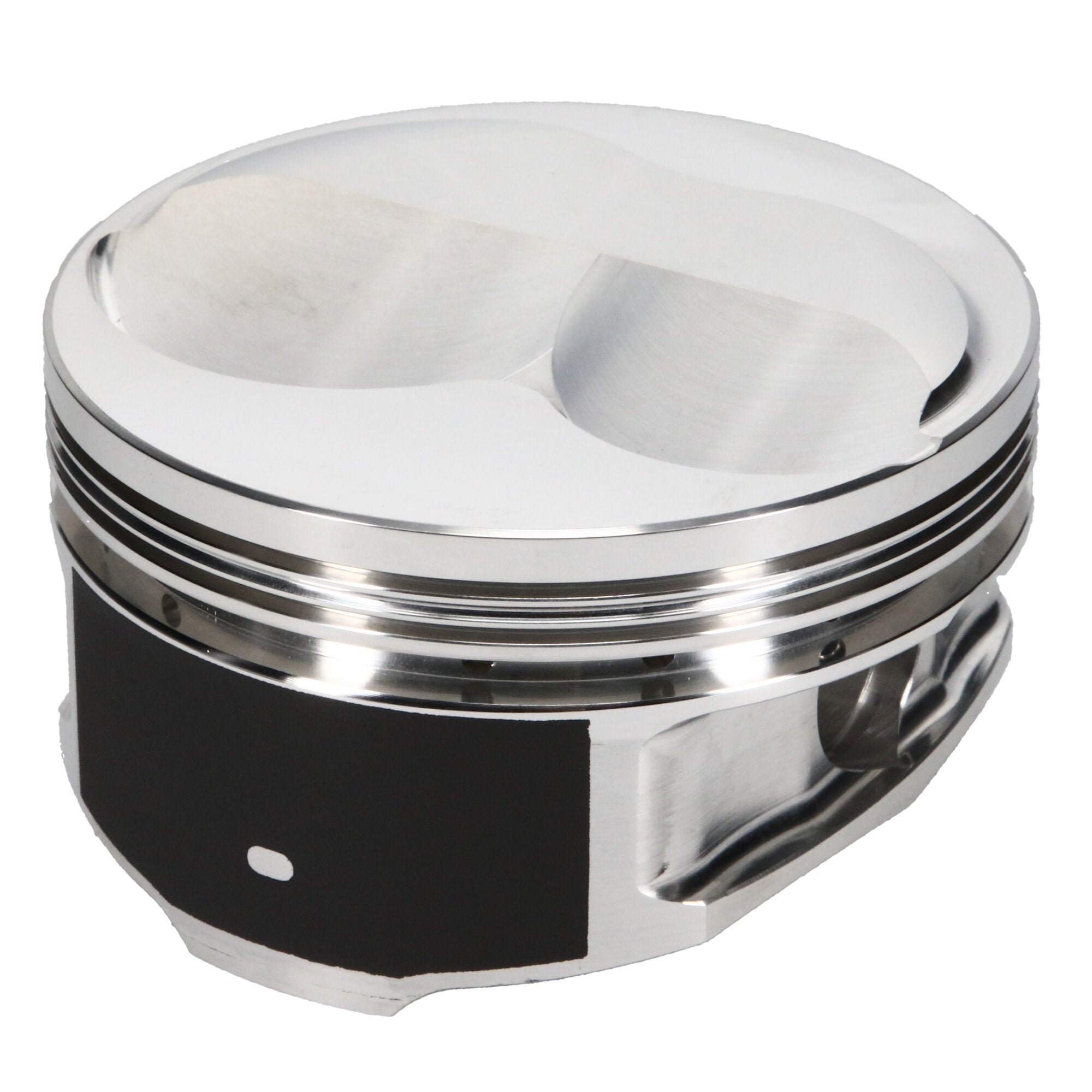

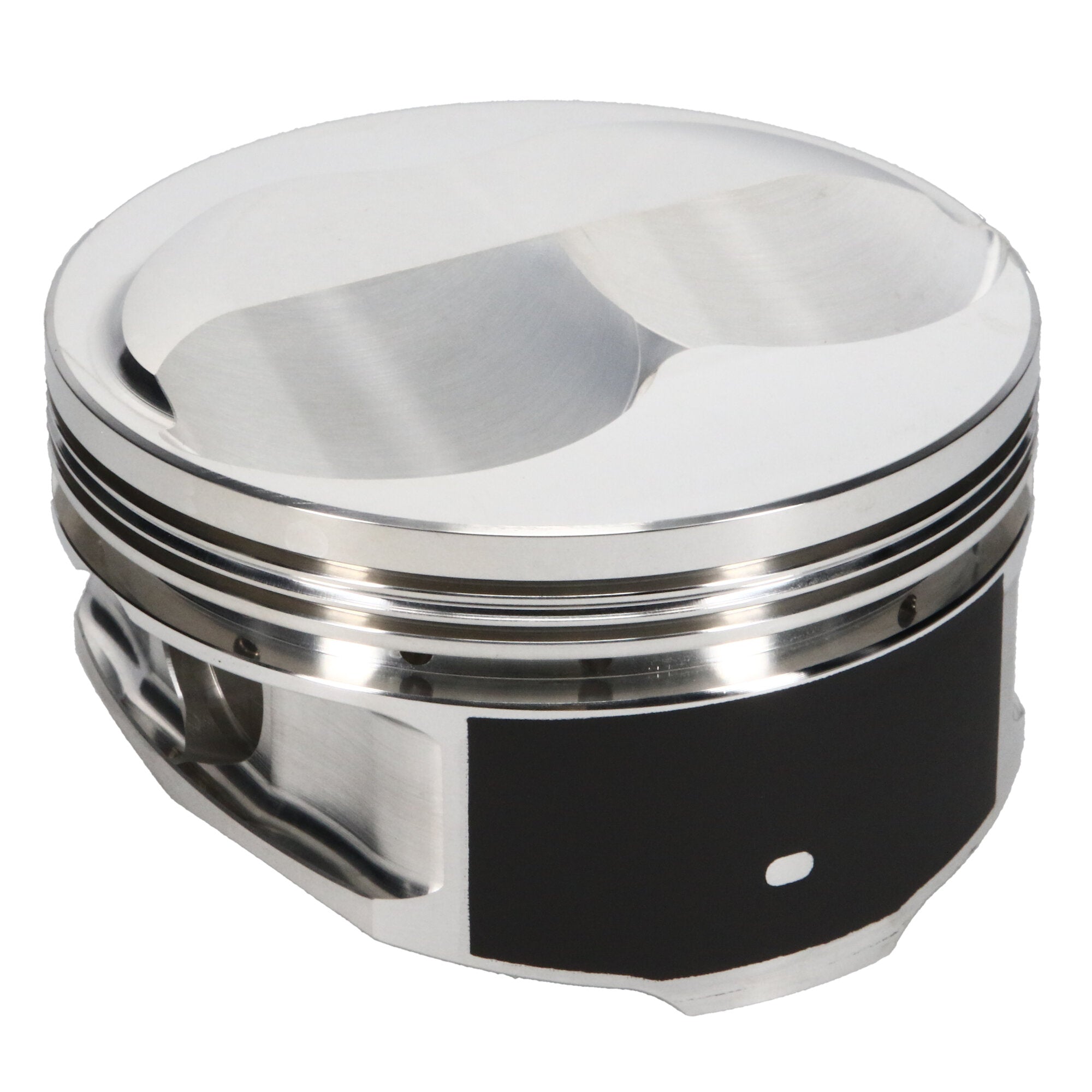

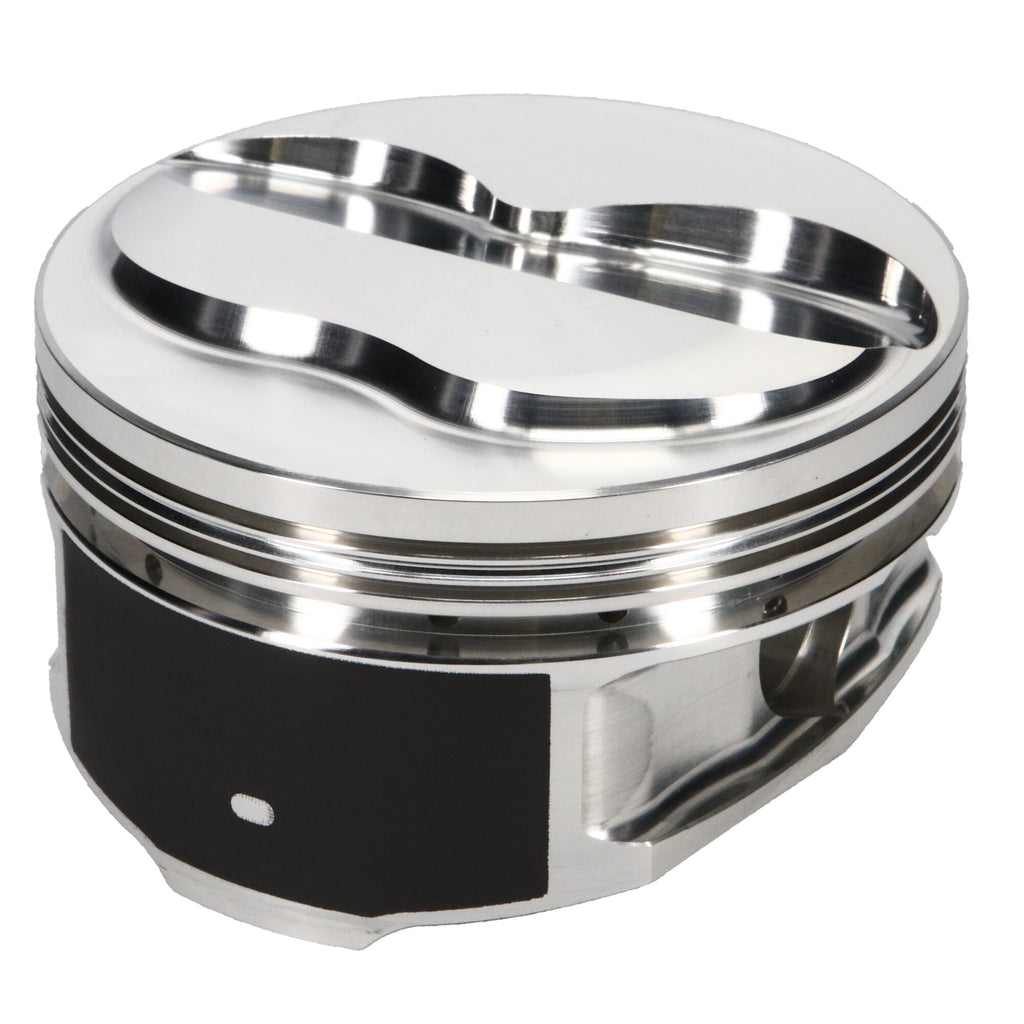

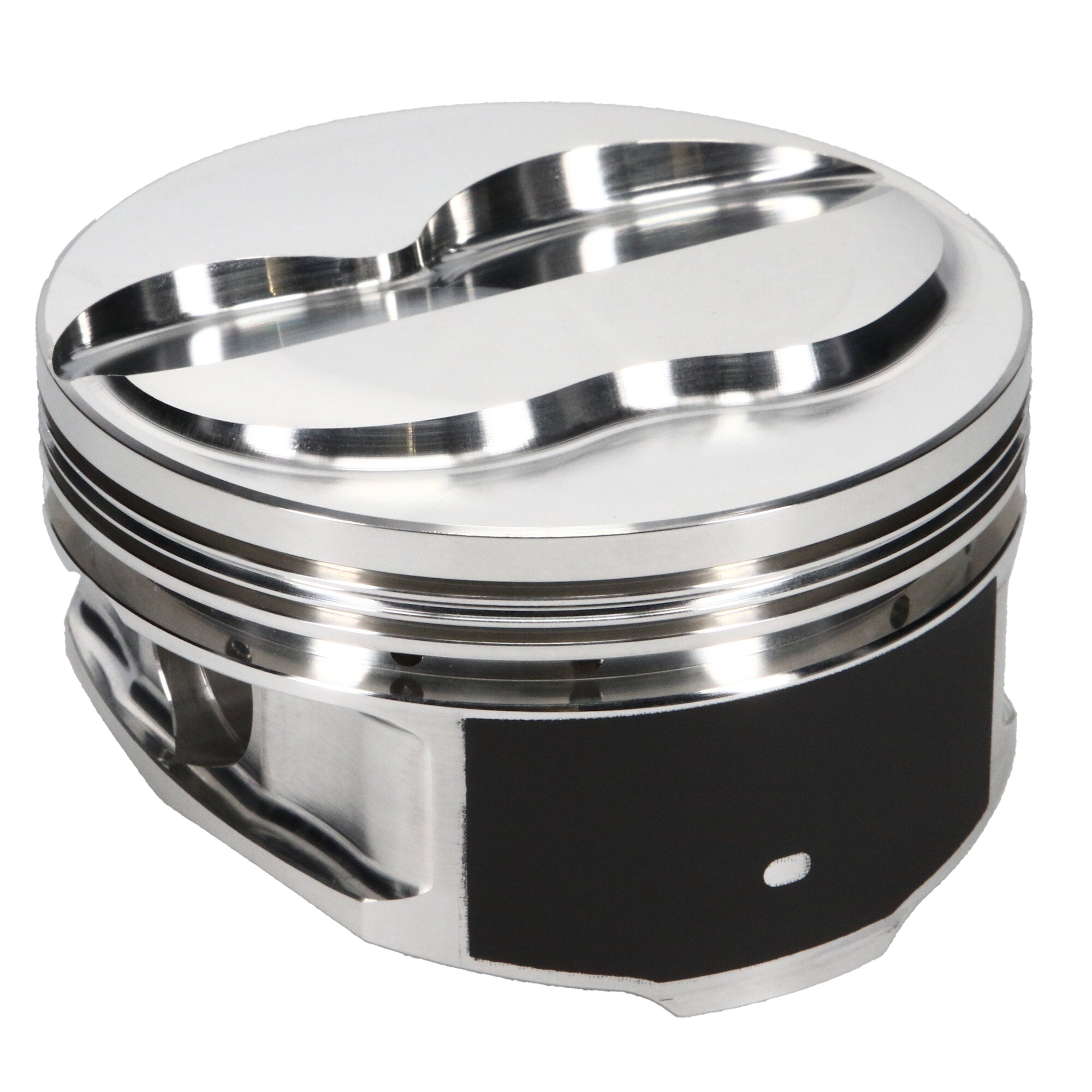

Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.155-Bore,-1.100-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

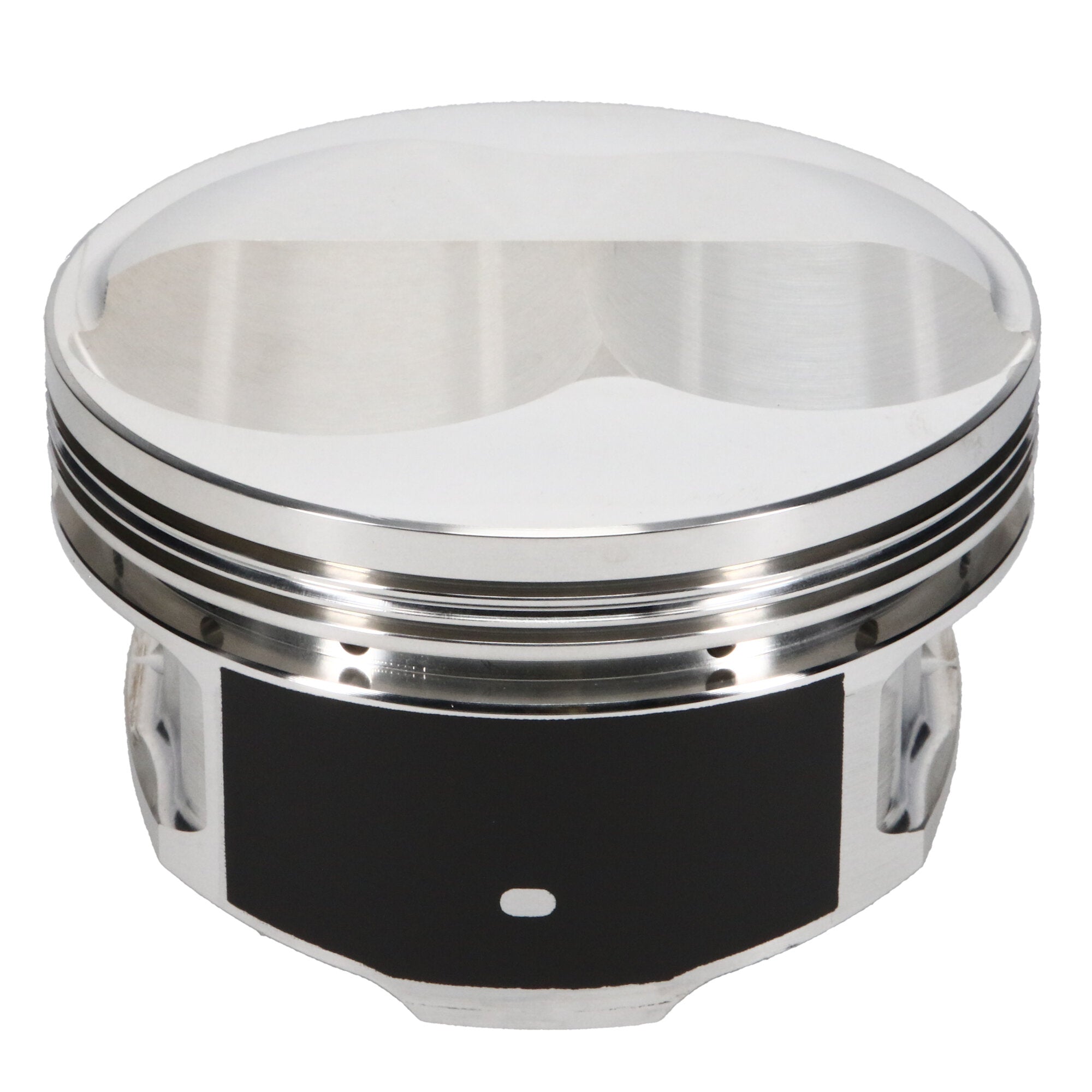

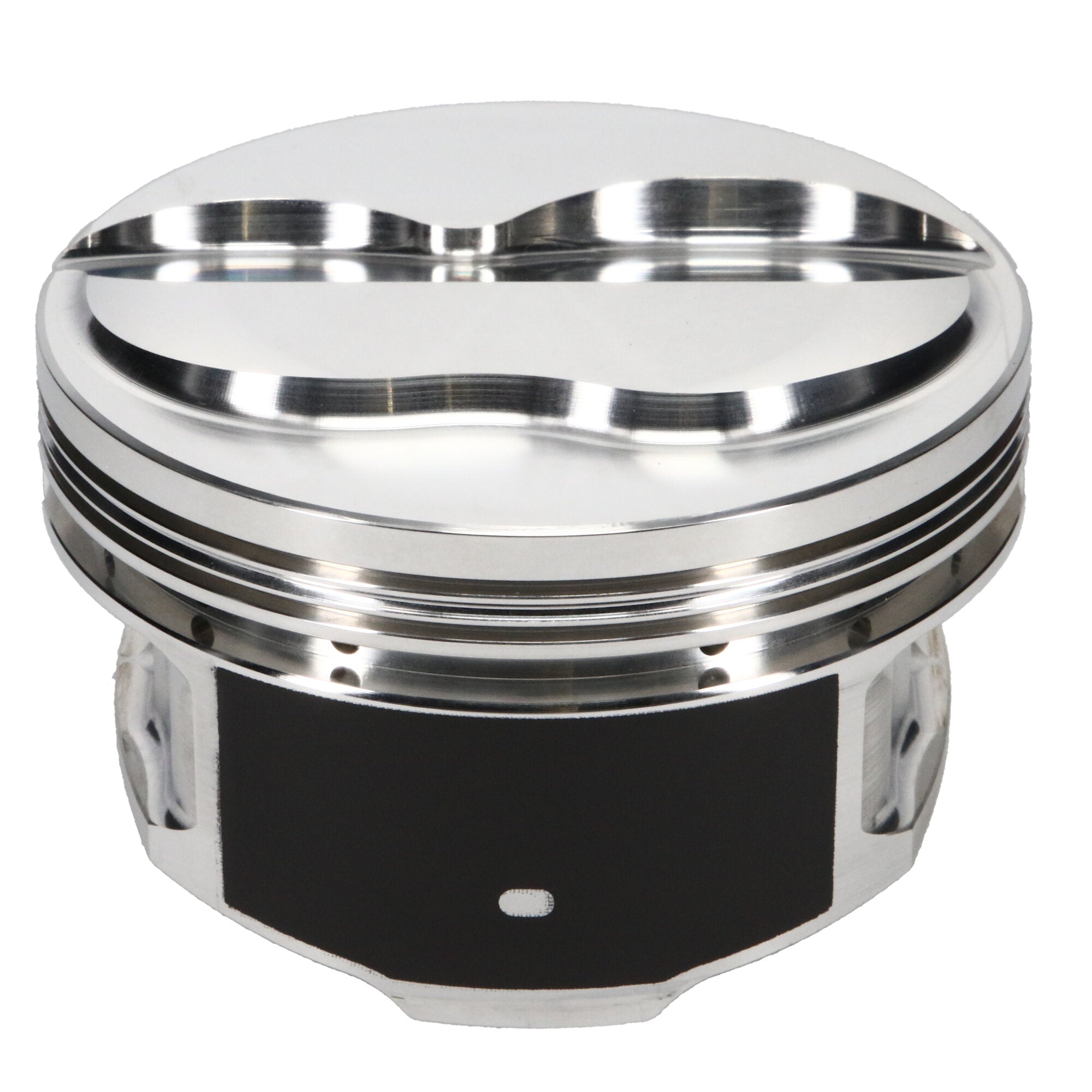

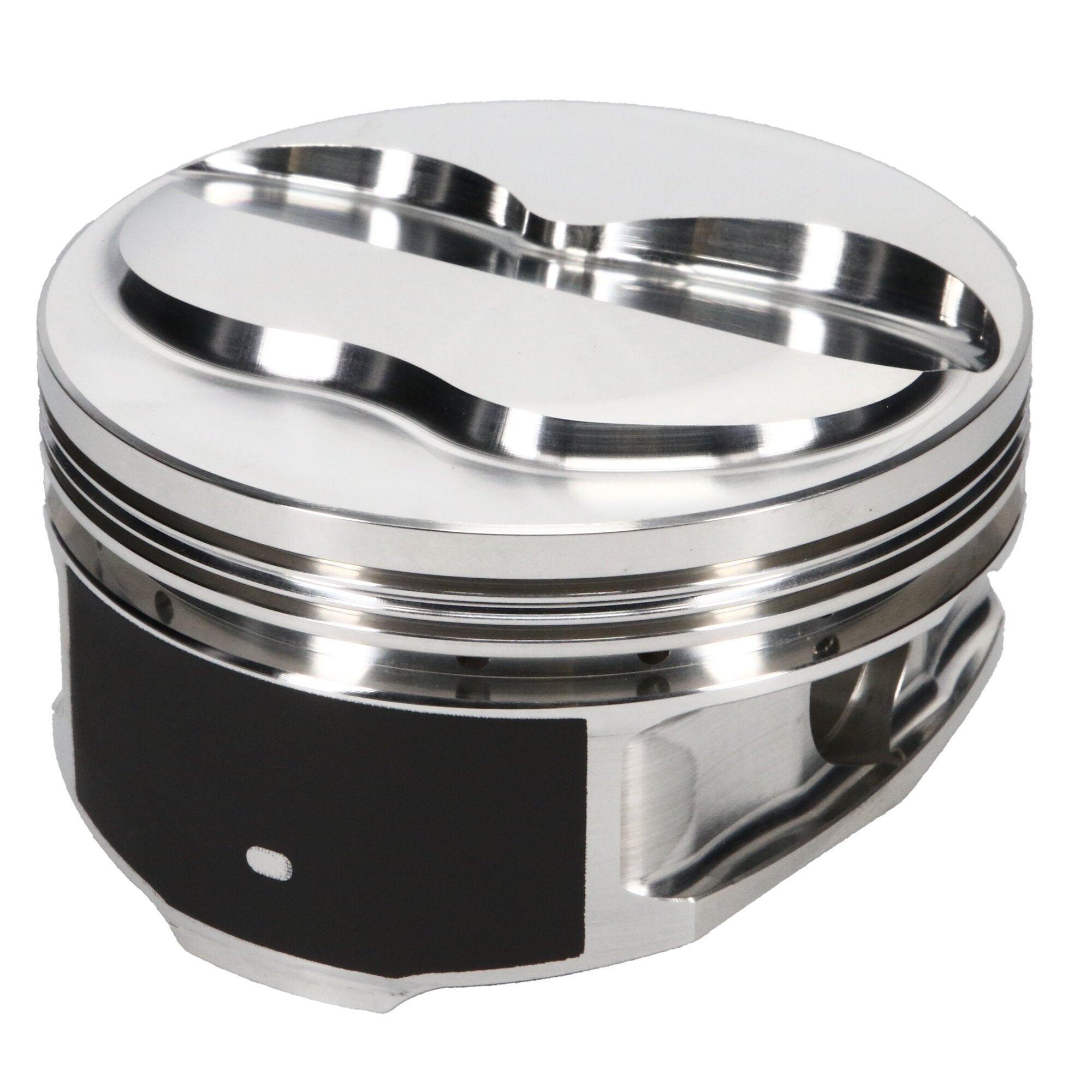

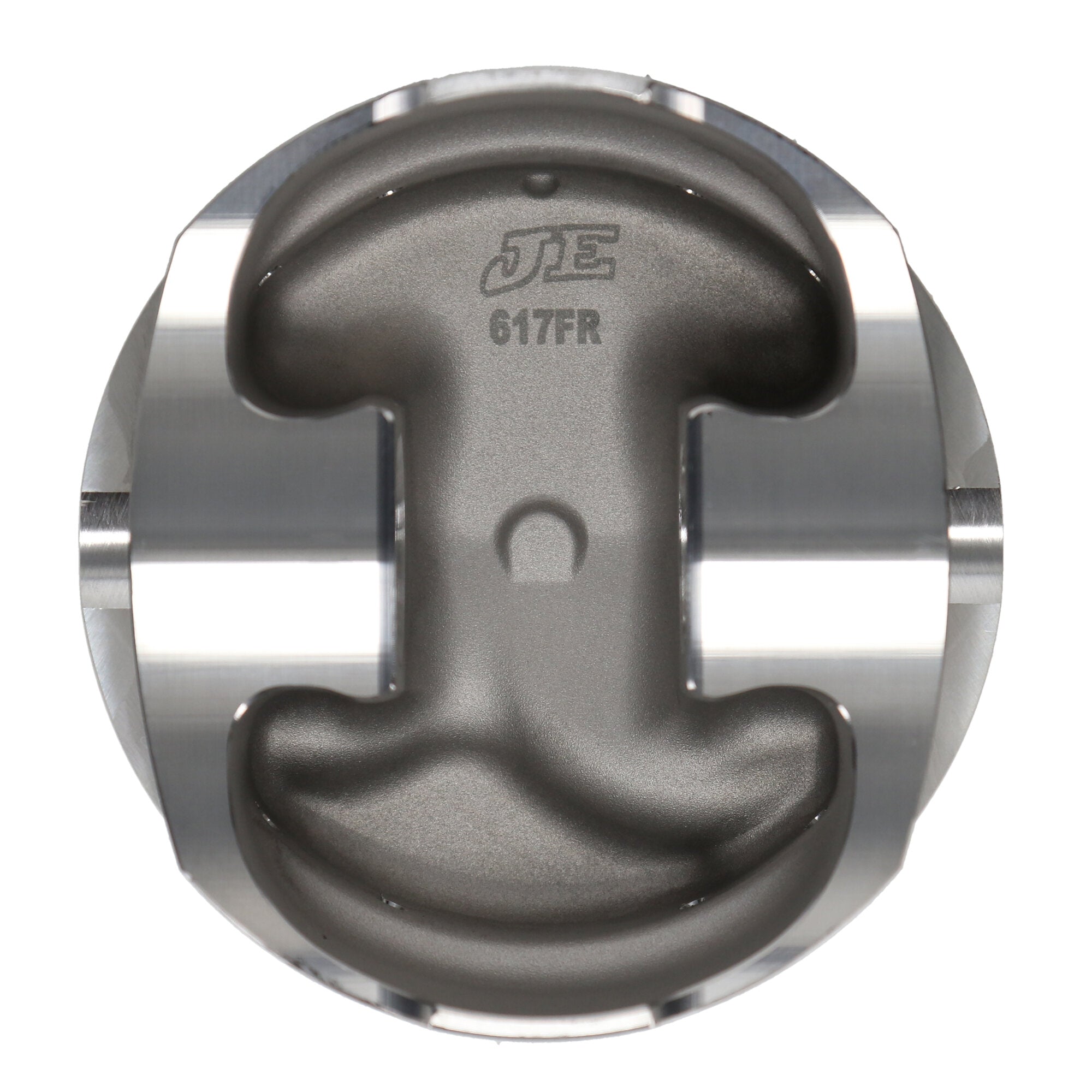

JE Pistons 338256S Piston Single, 2618, Dome, 4.155 Bore, 1.100 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_338256S
Engine Piston
$321.46
customers are viewing this product
JE Pistons 338687R Piston Single, 2618, Dome, 4.075 Bore, 1.115 CD, 0.927 Pin, Set of 1.
JE Pistons 338687R Piston Single, 2618, Dome, 4.075 Bore, 1.115 CD, 0.927 Pin, Set of 1.
$295.51
JE Pistons 338214R Piston Single, 2618, Flat Top, 4.145 Bore, 1.000 CD, 0.927 Pin, Set of 1.
JE Pistons 338214R Piston Single, 2618, Flat Top, 4.145 Bore, 1.000 CD, 0.927 Pin, Set of 1.
$310.26
JE Pistons 338256S Piston Single, 2618, Dome, 4.155 Bore, 1.100 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Ford Small Block 302/351
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Dome, 4.155 Bore, 1.100 CD, 0.927 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_INV JE Pistons, Piston
Description_EXT JE, Ford, Small Block Ford, 4.155 in. Bore, 1.100 CD, Dome, Single Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Ford 302/351, 4.155 Bore, Dome, Set of 1
Description_SHO Piston
Make - Web Ford
Second Compression Ring Thickness 0.0640
Piston Material 2618
Piston Quantity 1
Product Type Engine Piston
Ring Set Included No
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Length 2.750
Prop 65 Yes/No Yes
Title - Web JE Pistons Ford Small Block Piston - 4.155 in. Bore - 1.100 in. CH, 6.50 CC
Piston Volume 6.50
Out of Stock Message Call for Availability
Forging Type Round
Prop 65 (C, R or CR) CR
Title JE Pistons - Ford, Small Block, 4.155 in. Bore, Piston
Piston Pin Material 5115
Product Market Domestic
Add-On 927-2750-15-51S
Engine Type ICE
Add-On 927-042-CS
Piston Head Type Dome
Industry Automotive
Piston Average Weight 448
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Compression Height 1.100
Cylinder Head SMALL BLOCK FORD 20 DEG
Piston Series JE Pistons
Add-On J100F8-4155-5
Piston Pin Length 2.750
Bore Diameter 4.155
Ringset Included No
Top Compression Ring Thickness 0.0640
Engine Small Block
Wrist Pin Wall Thickness 0.150
Piston Pin Outside Diameter 0.927
Make FORD
Piston Pin Wall Thickness 0.150
Oil Ring Thickness 0.218
Engine - Web Small Block
Wrist Pin Outer Diameter 0.927
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
