As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302/351 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

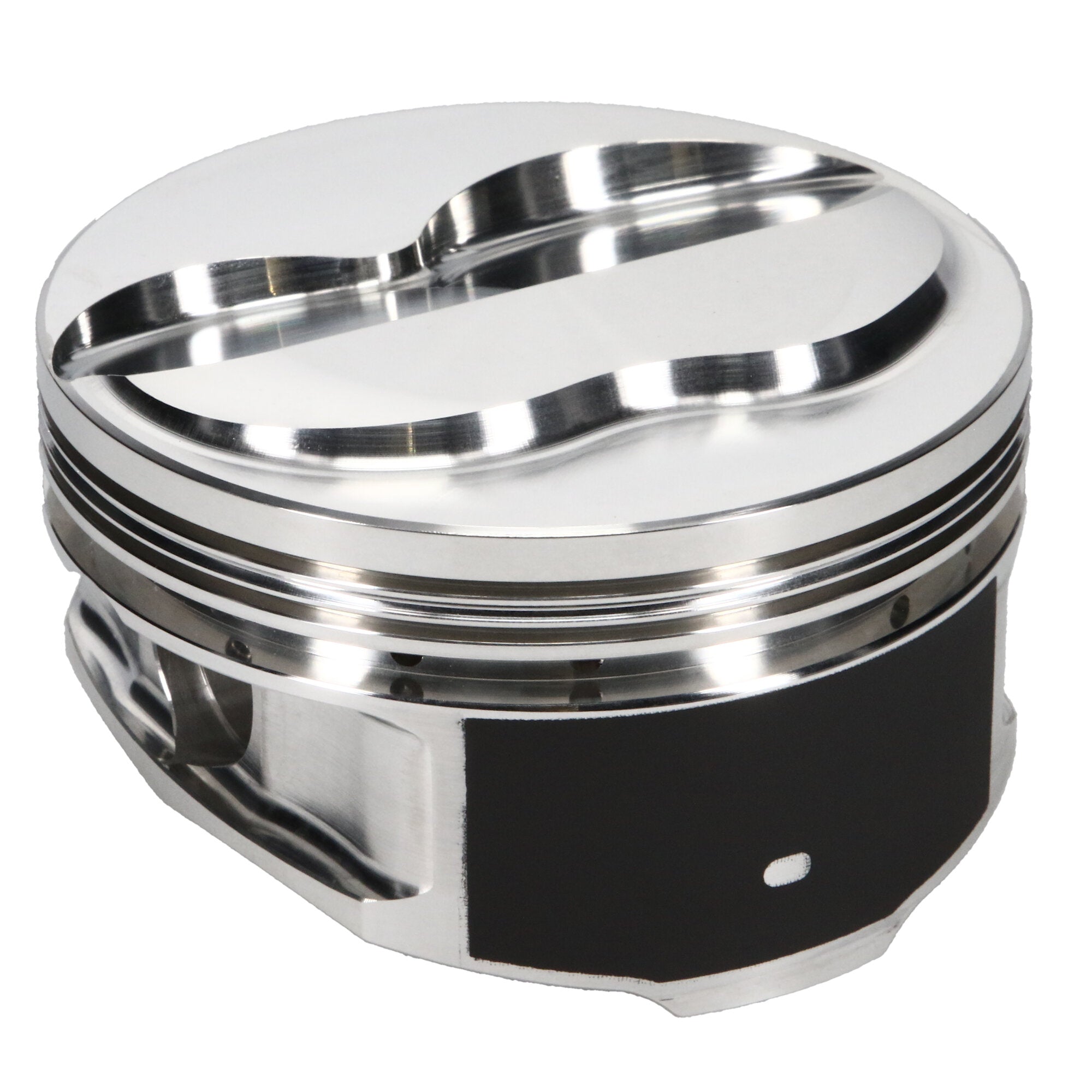

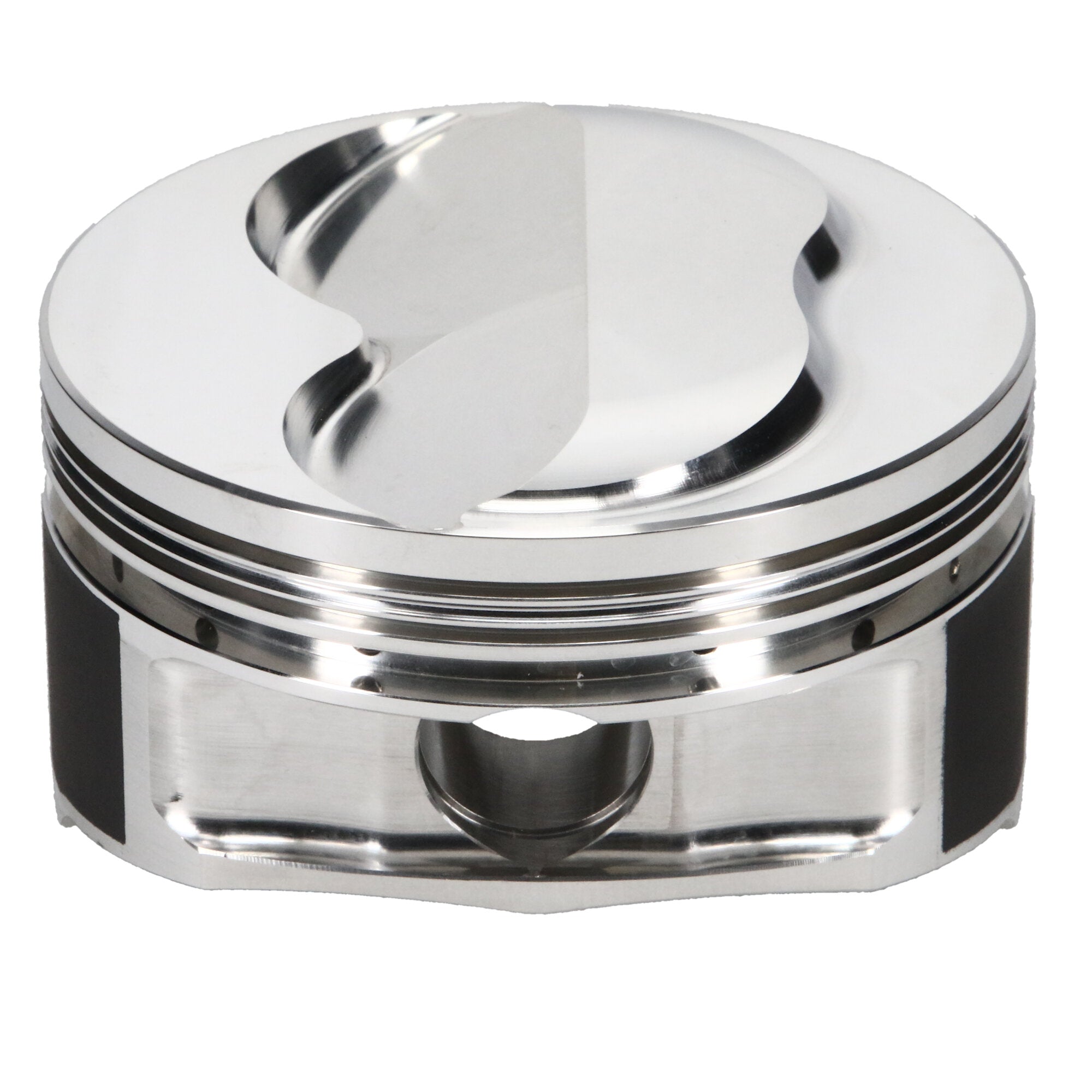

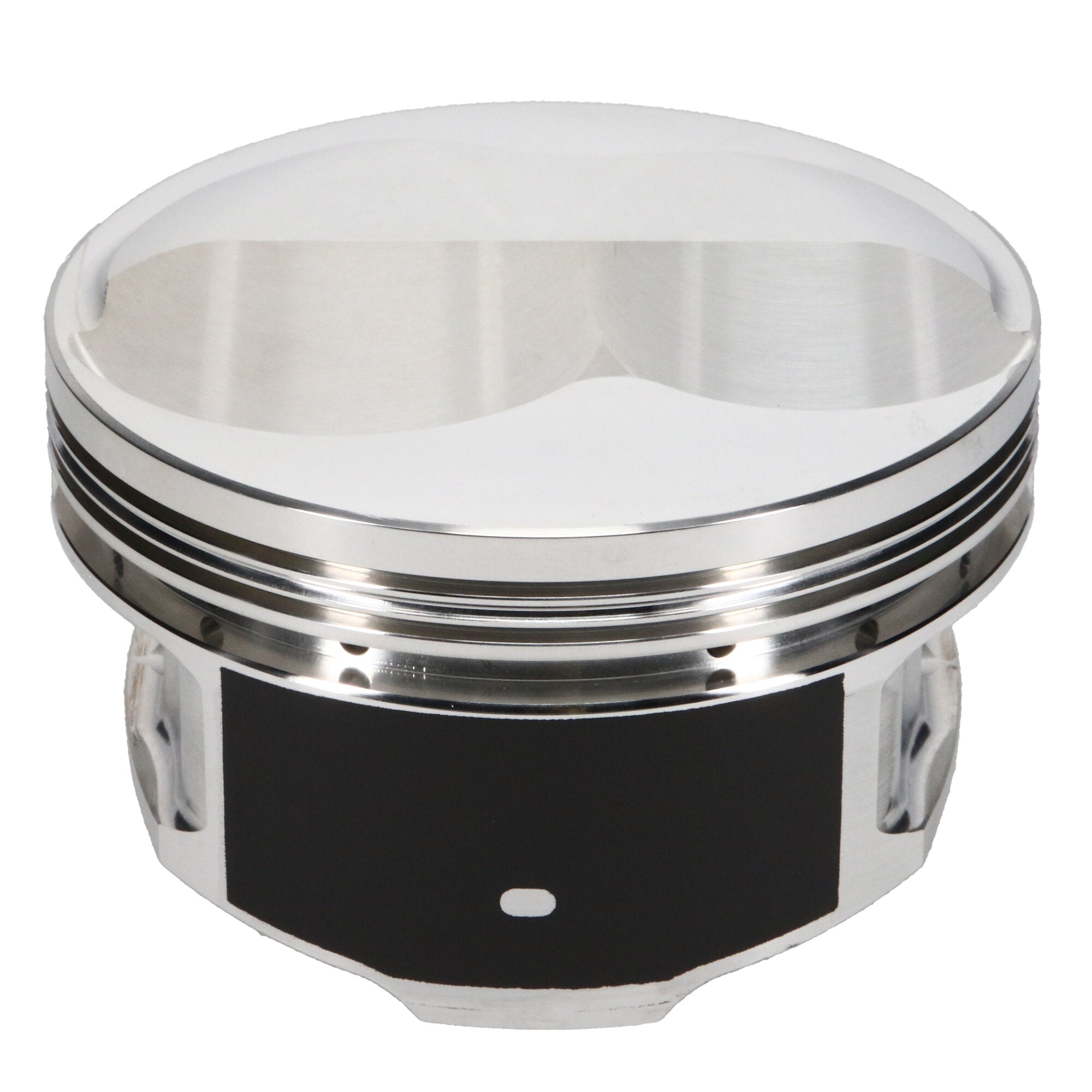

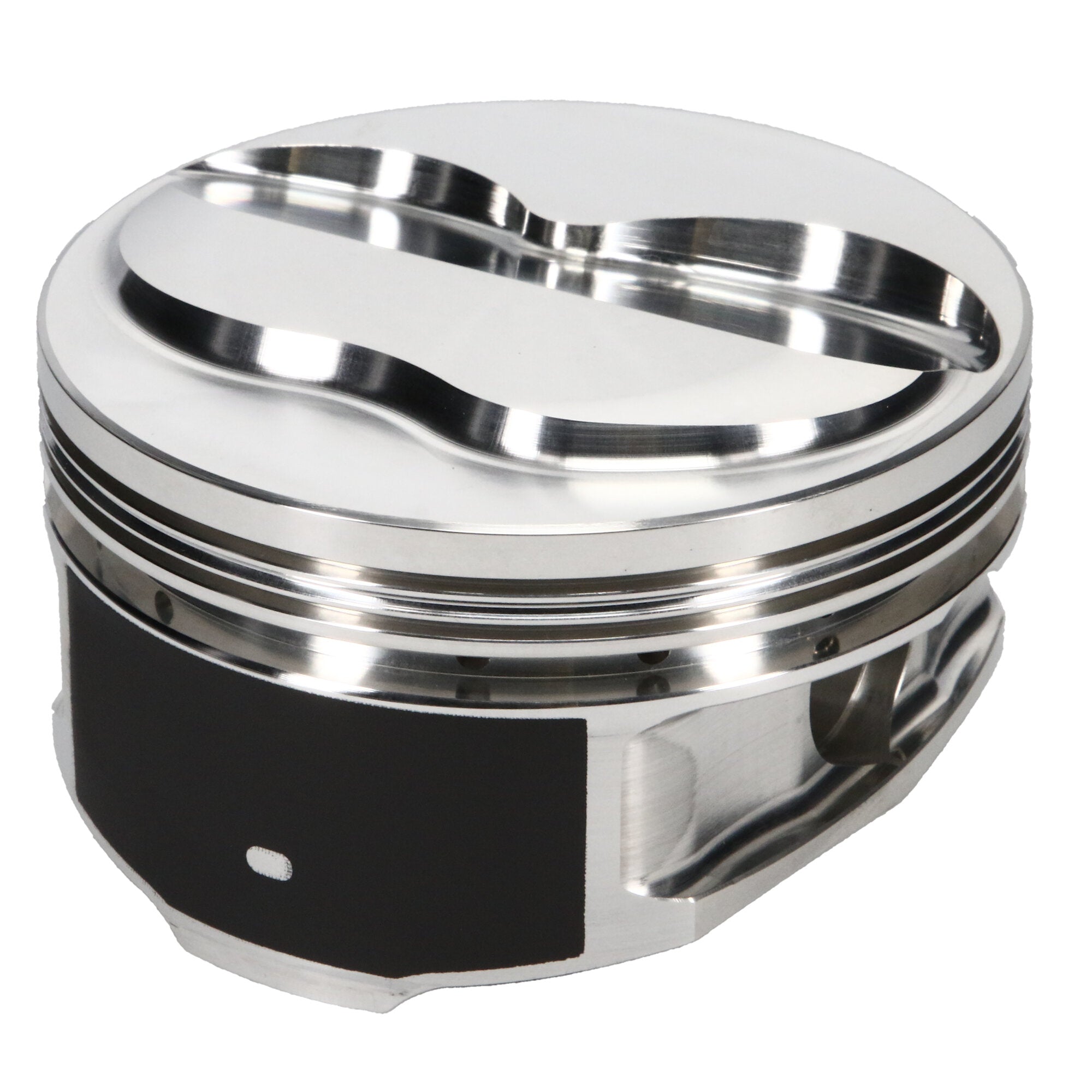

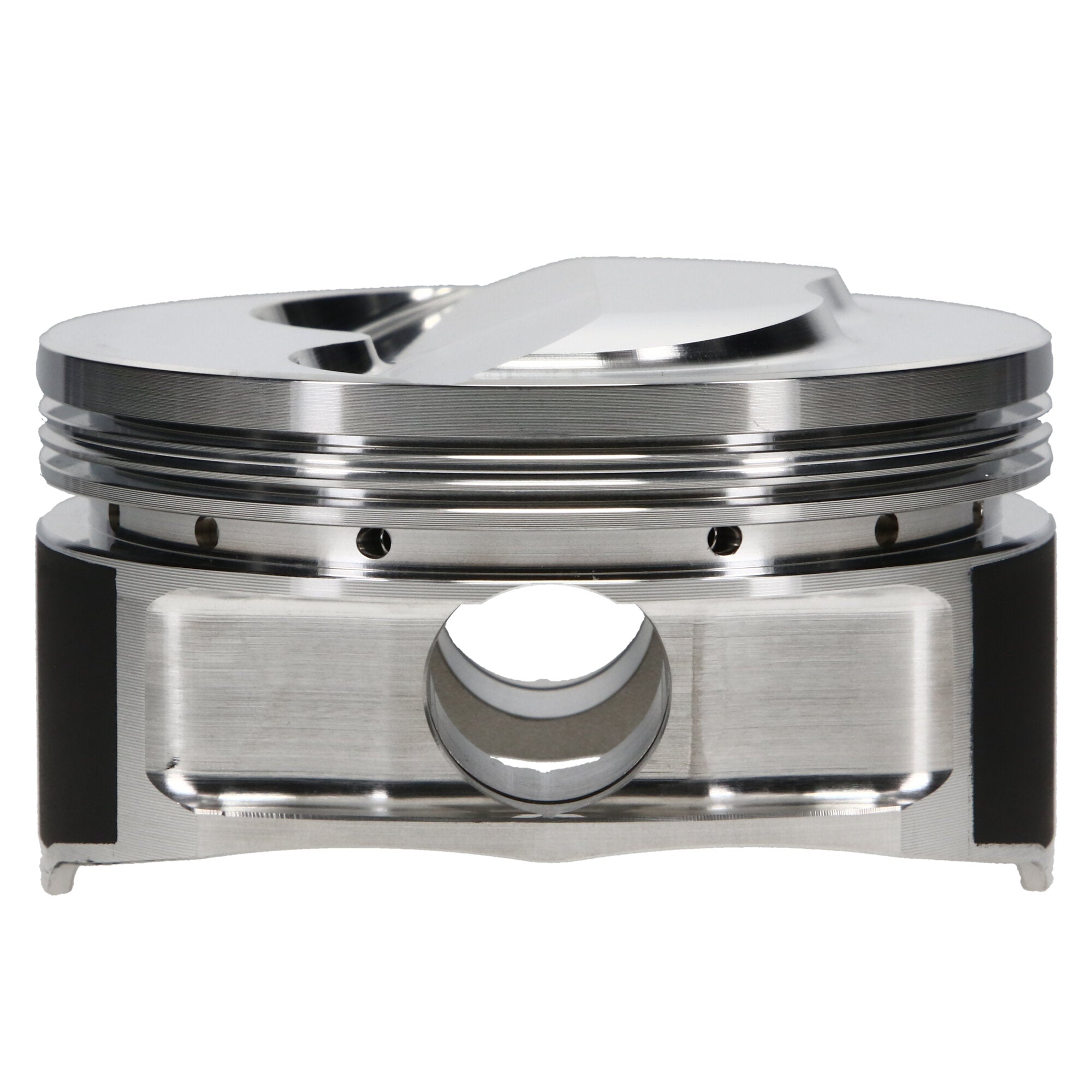

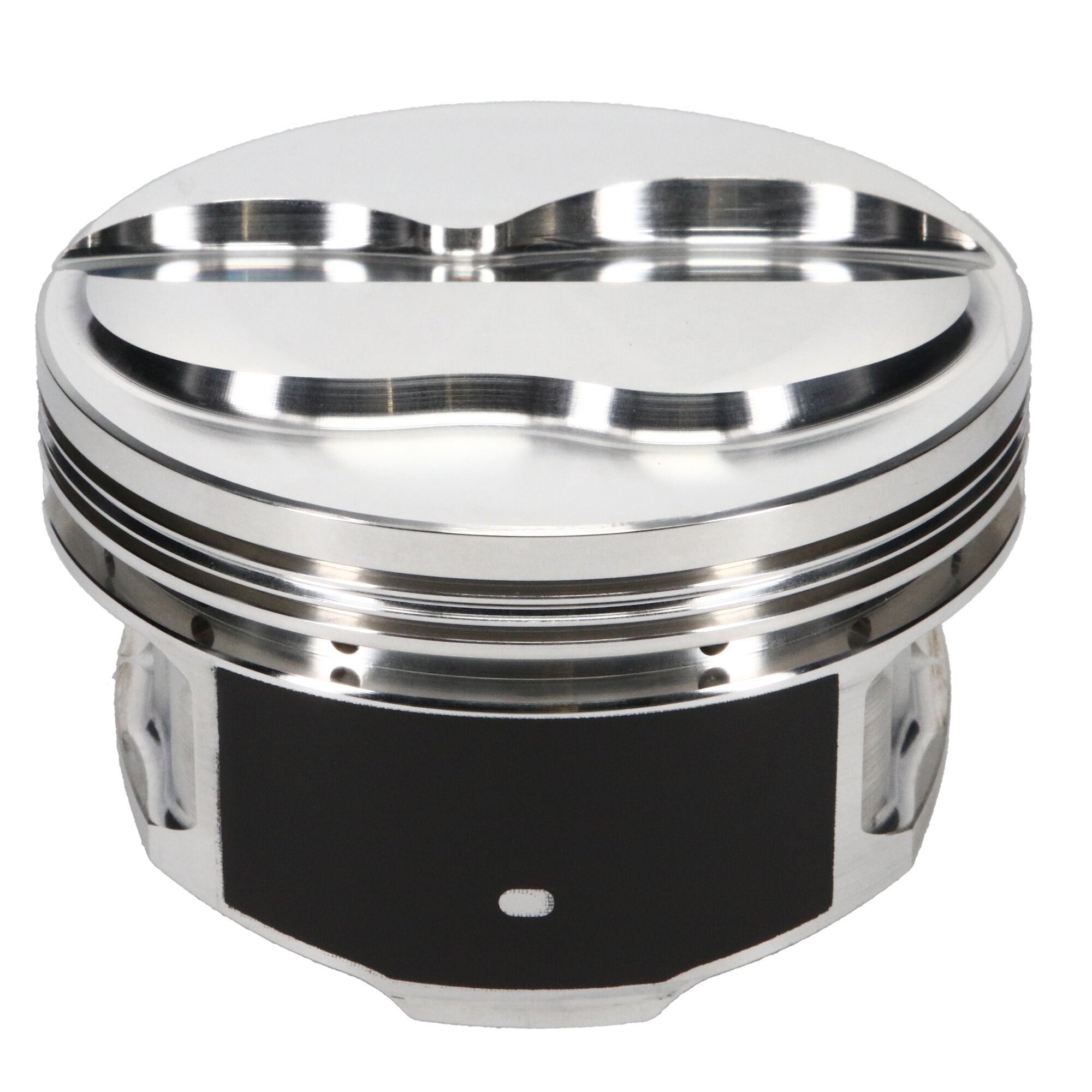

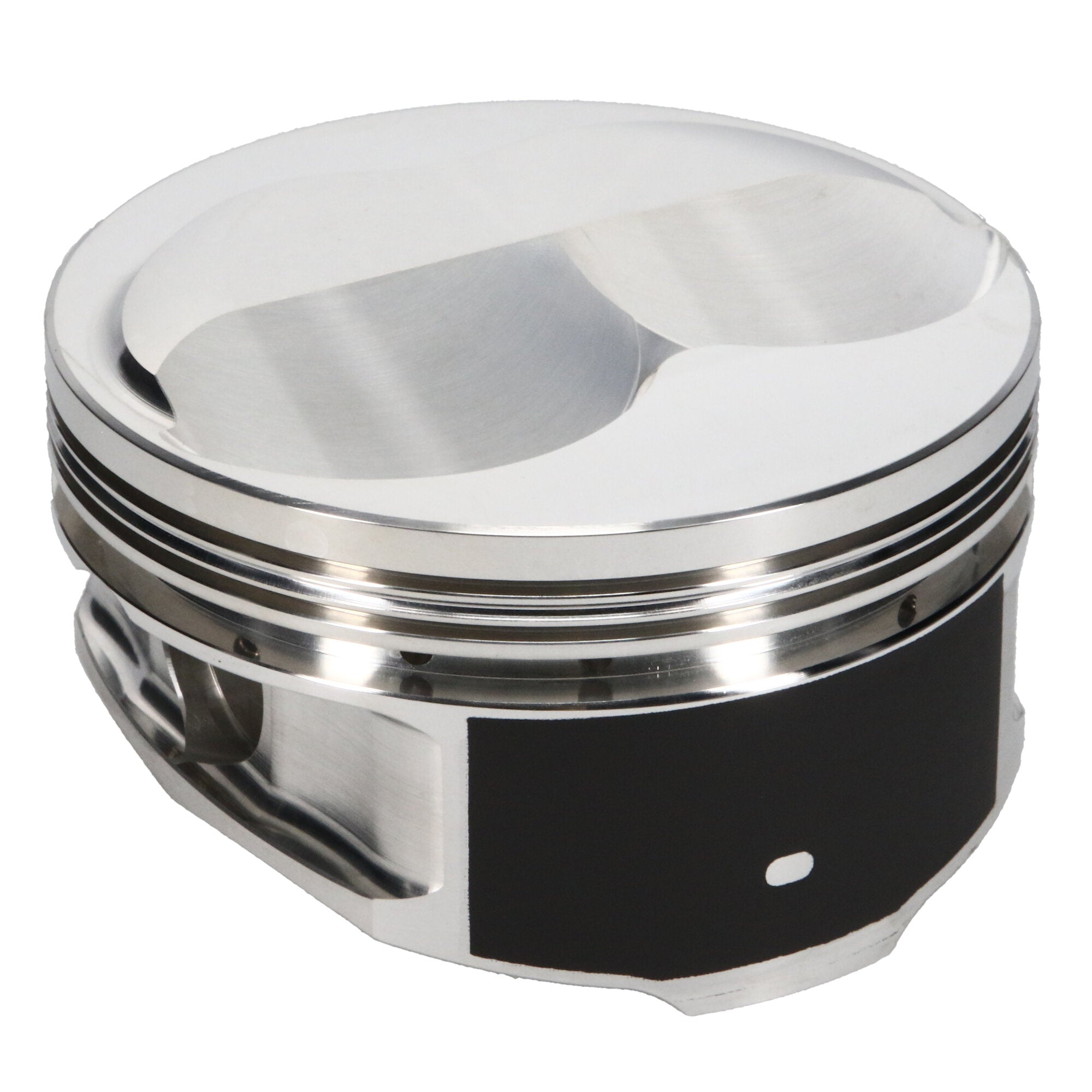

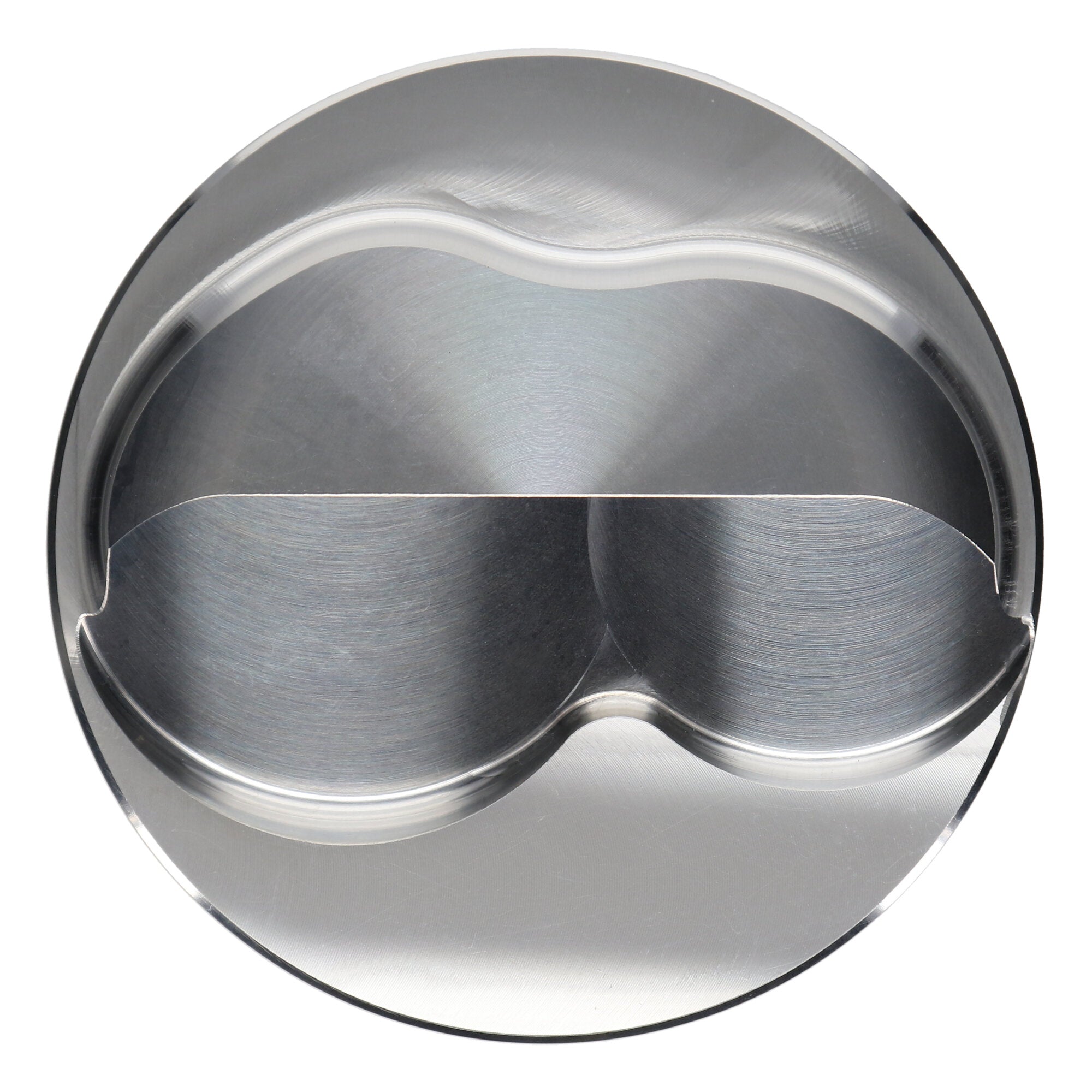

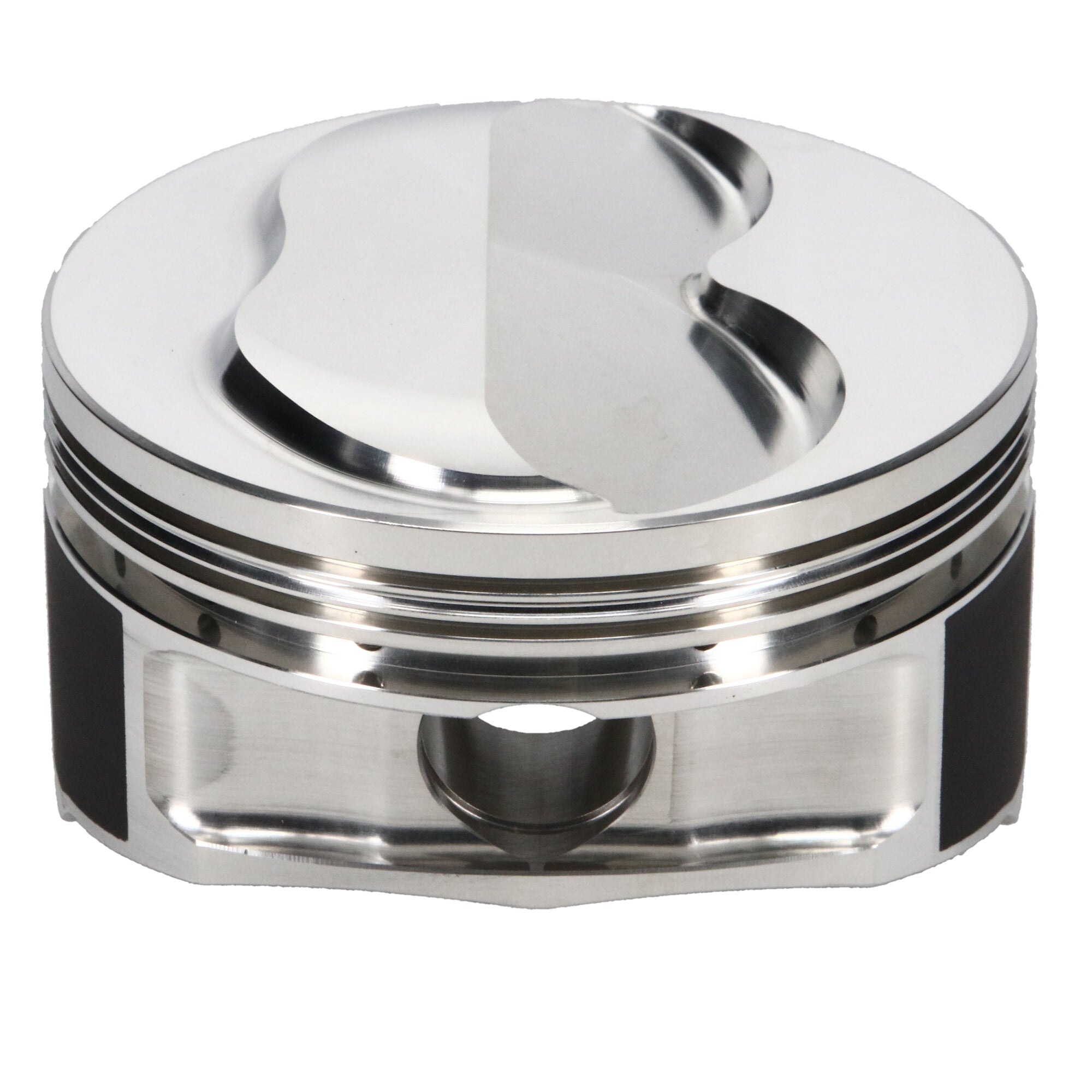

Piston Set, 2618, Dome, 4.155 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.155 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Ford 302/351, 4.155 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Ring Set Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.927 |
| Make - Web |
Ford |
| Wrist Pin Length |
2.750 |
| Piston Quantity |
8 |
| Piston Volume |
6.50 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
J100F8-4155-5 |
| Top Compression Ring Thickness |
0.0640 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Industry |
Automotive |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.155 in. Bore - 1.100 in. CH, 6.50 CC |
| Bore Diameter |
4.155 |
| Add-On |
927-042-CS |
| Piston Average Weight |
448 |
| Out of Stock Message |
Call for Availability |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Prop 65 Yes/No |
Yes |
| Add-On |
927-2750-15-51S |
| Ringset Included |
No |
| Compression Height |
1.100 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.218 |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Ford, Small Block, 4.155 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Piston Pin Length |
2.750 |
| Make |
FORD |
| Forging Type |
Round |
| Engine |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
