As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302/351 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

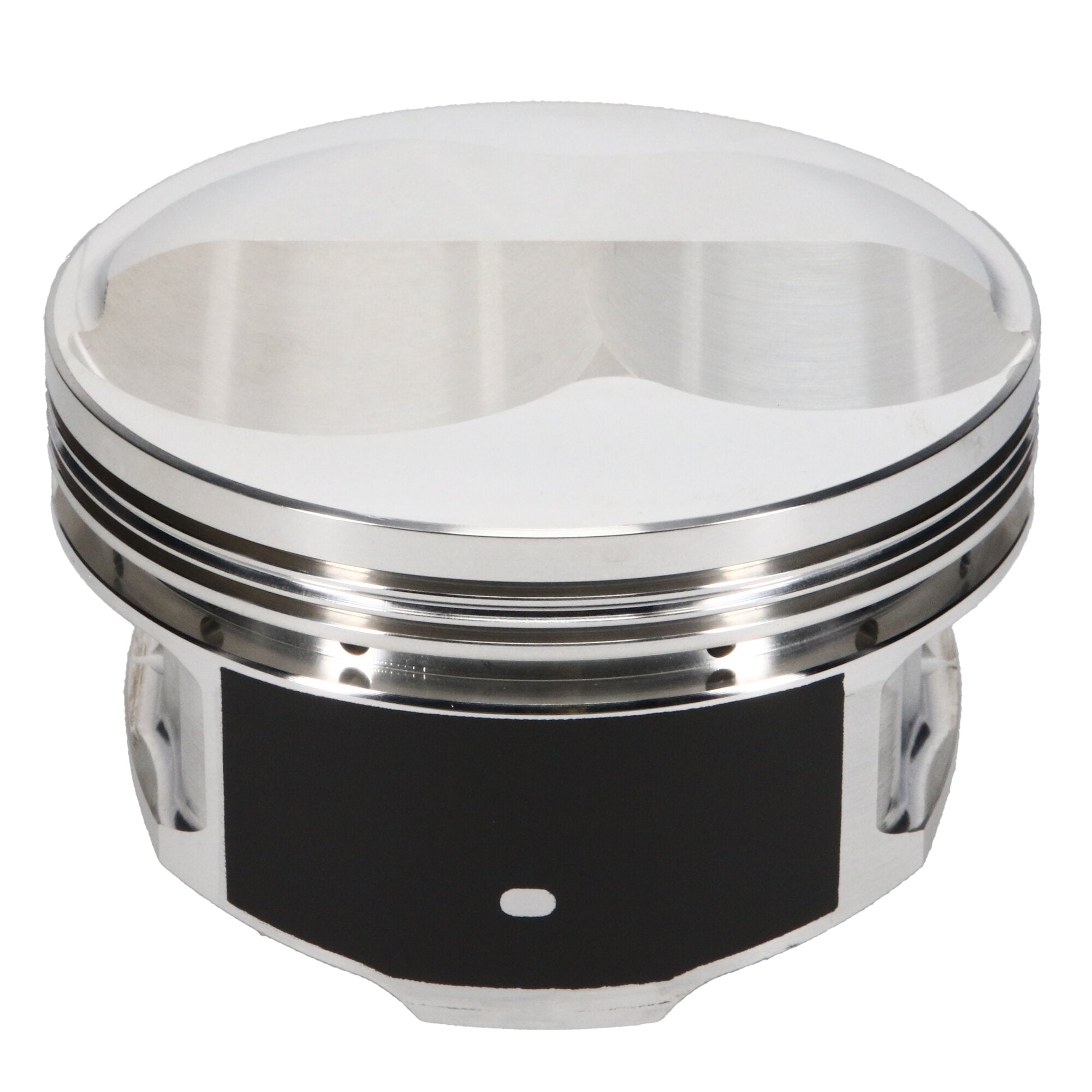

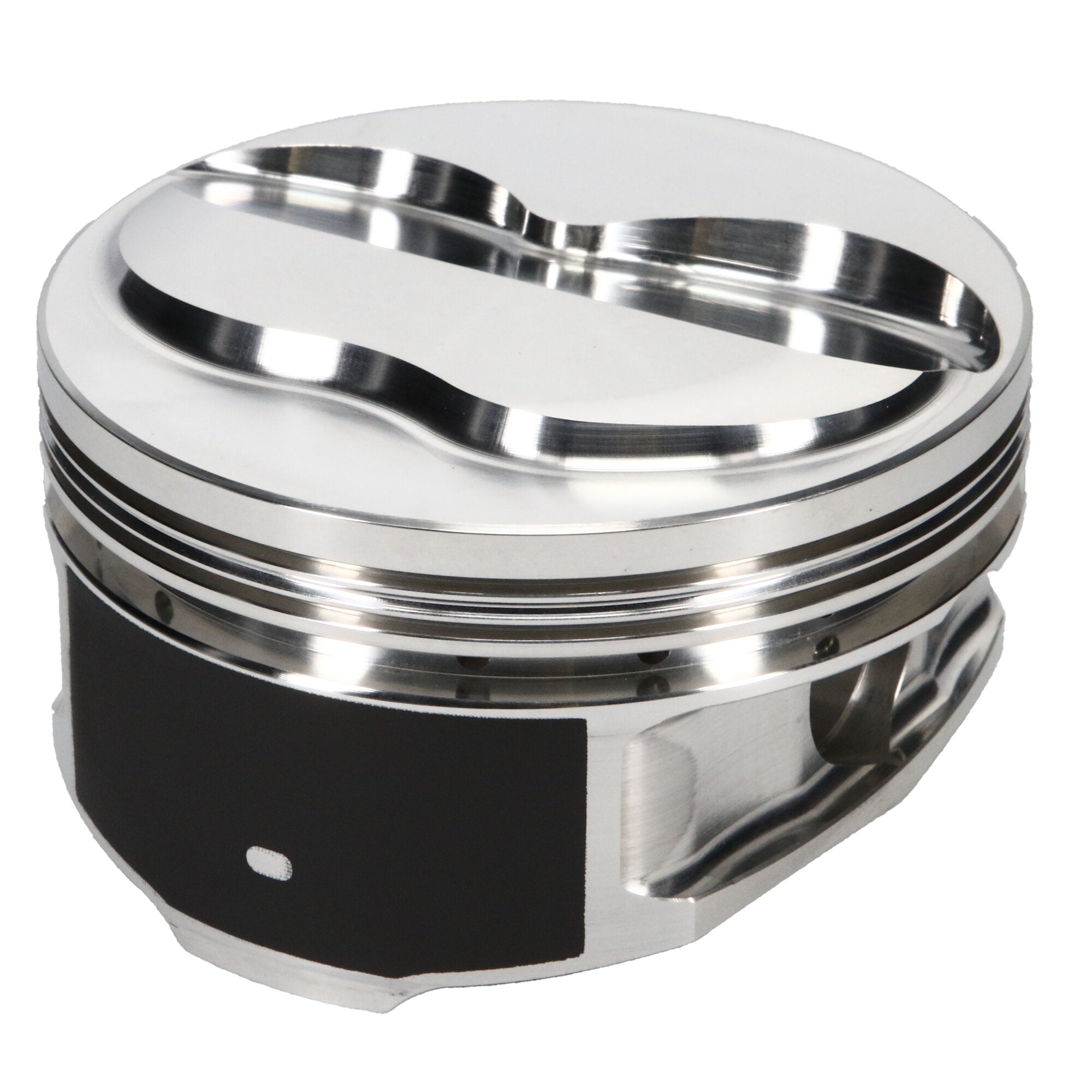

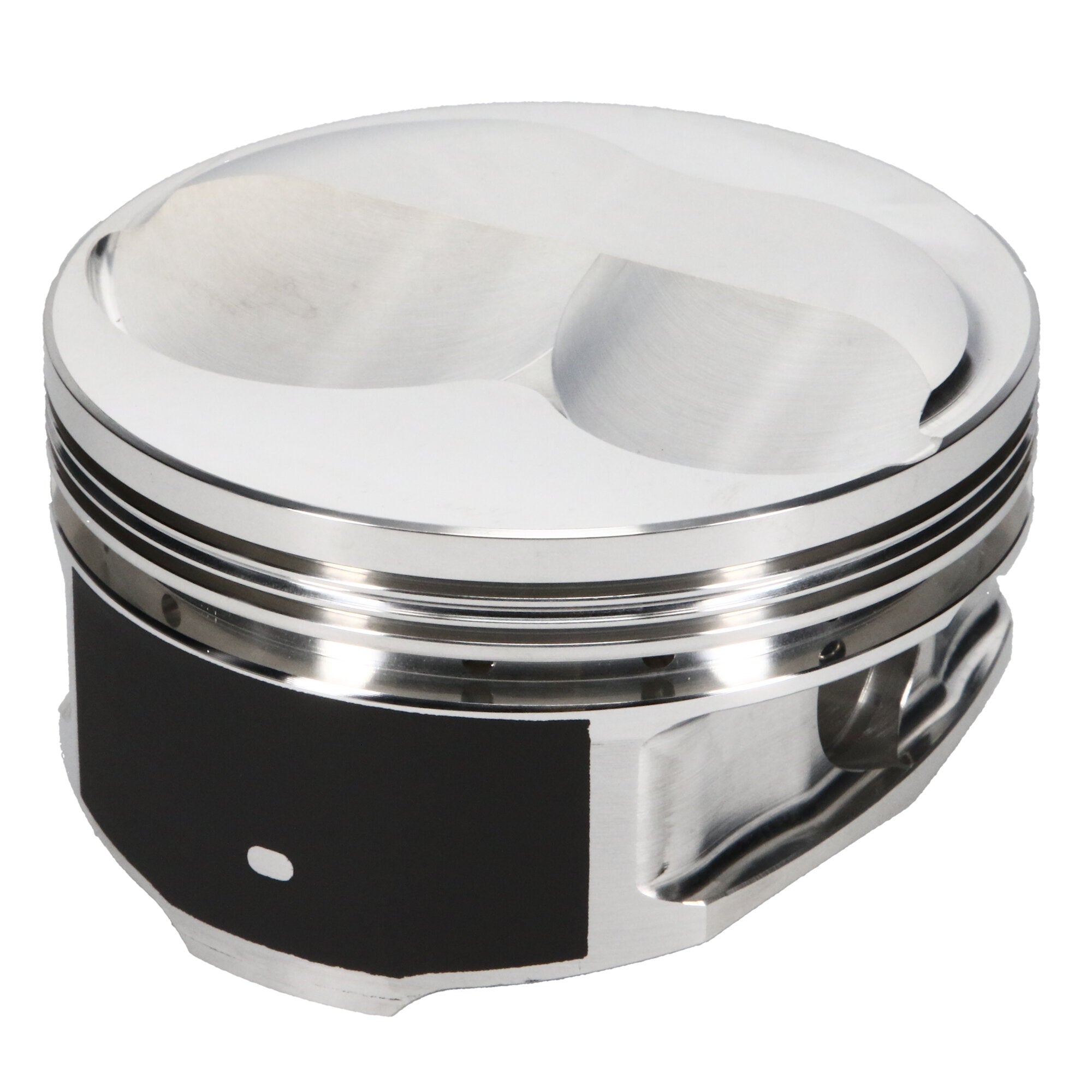

Piston Set, 2618, Dome, 4.145 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.145 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Ford 302/351, 4.145 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Title |
JE Pistons - Ford, Small Block, 4.145 in. Bore, Piston Kit |
| Forging Type |
Round |
| Piston Quantity |
8 |
| Piston Volume |
6.50 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Compression Height |
1.100 |
| Piston Average Weight |
444 |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.218 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.750 |
| Engine - Web |
Small Block |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Top Compression Ring Thickness |
0.0640 |
| Make |
FORD |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.145 |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.927 |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Engine |
Small Block |
| Add-On |
927-2750-15-51S |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Add-On |
927-042-CS |
| Second Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Dome |
| Ringset Included |
No |
| Add-On |
J100F8-4145-5 |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.145 in. Bore - 1.100 in. CH, 6.50 CC |
| Piston Pin Length |
2.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
