As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 351 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

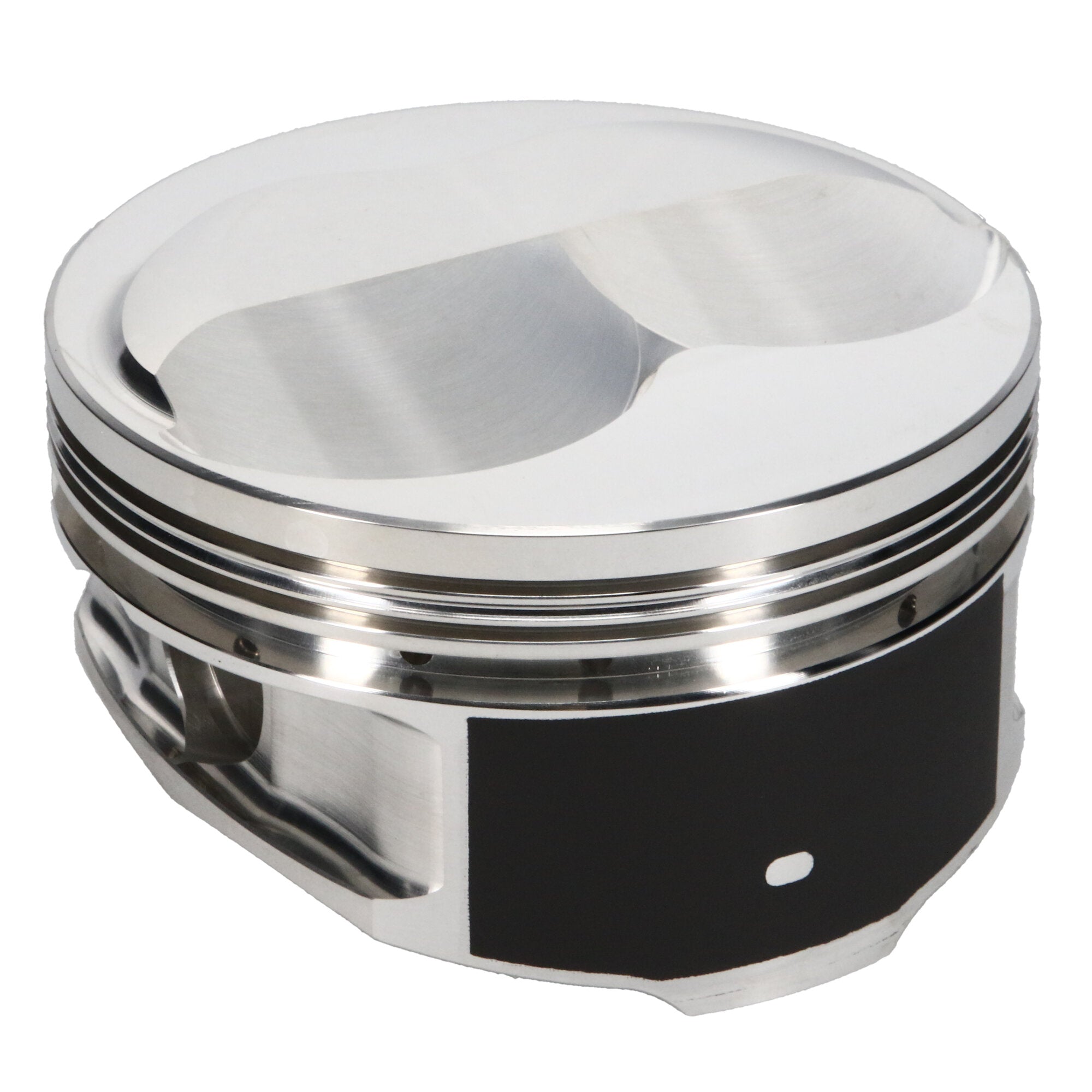

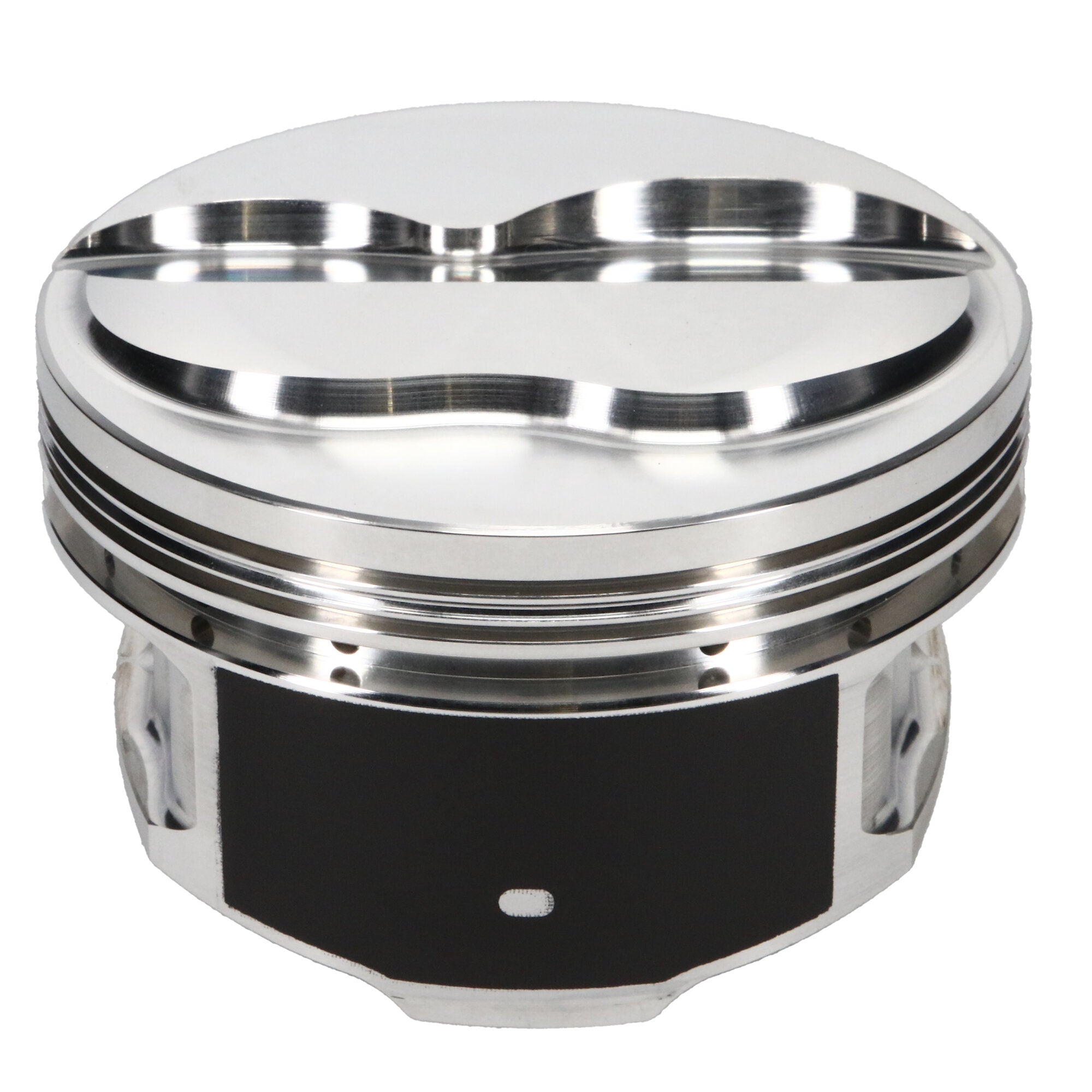

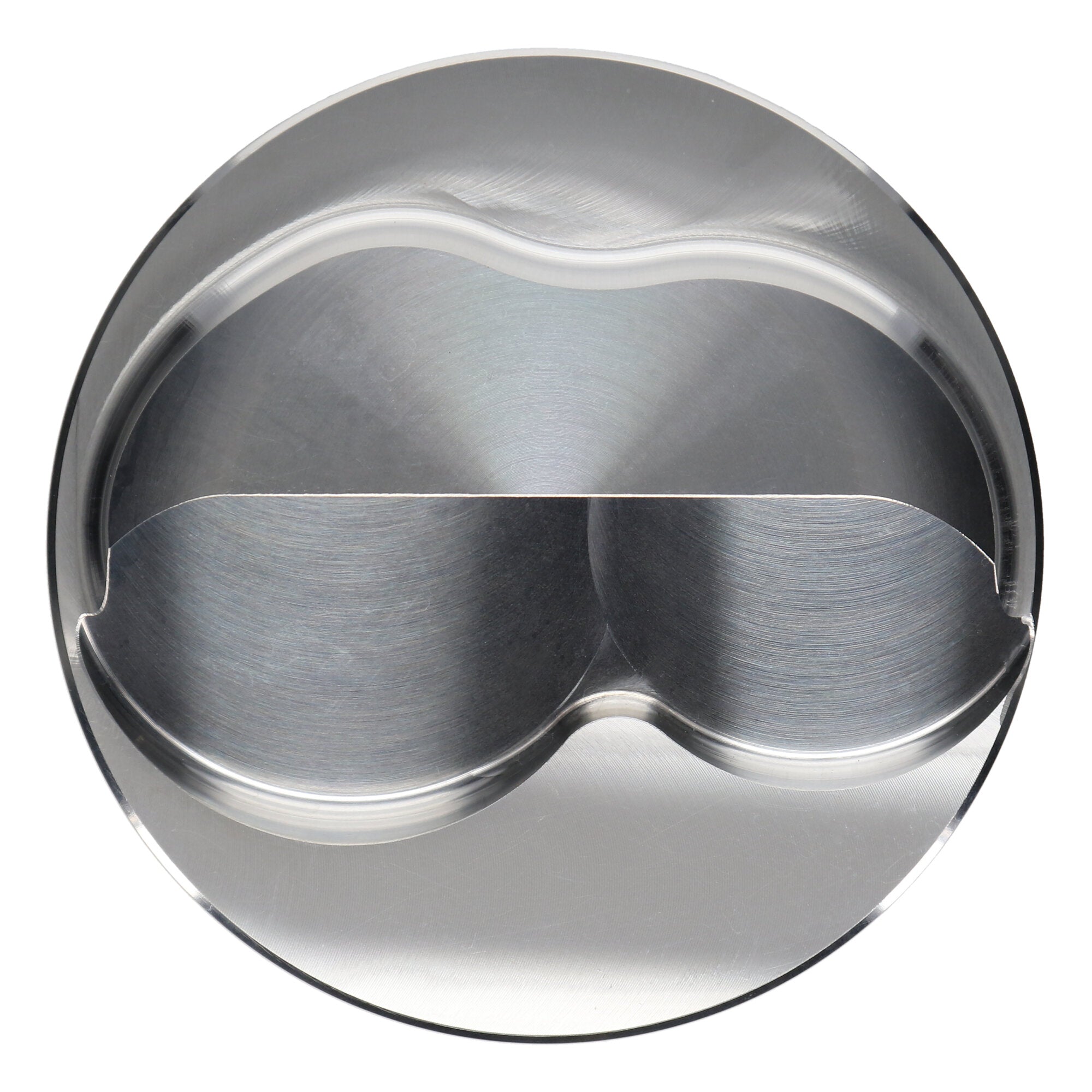

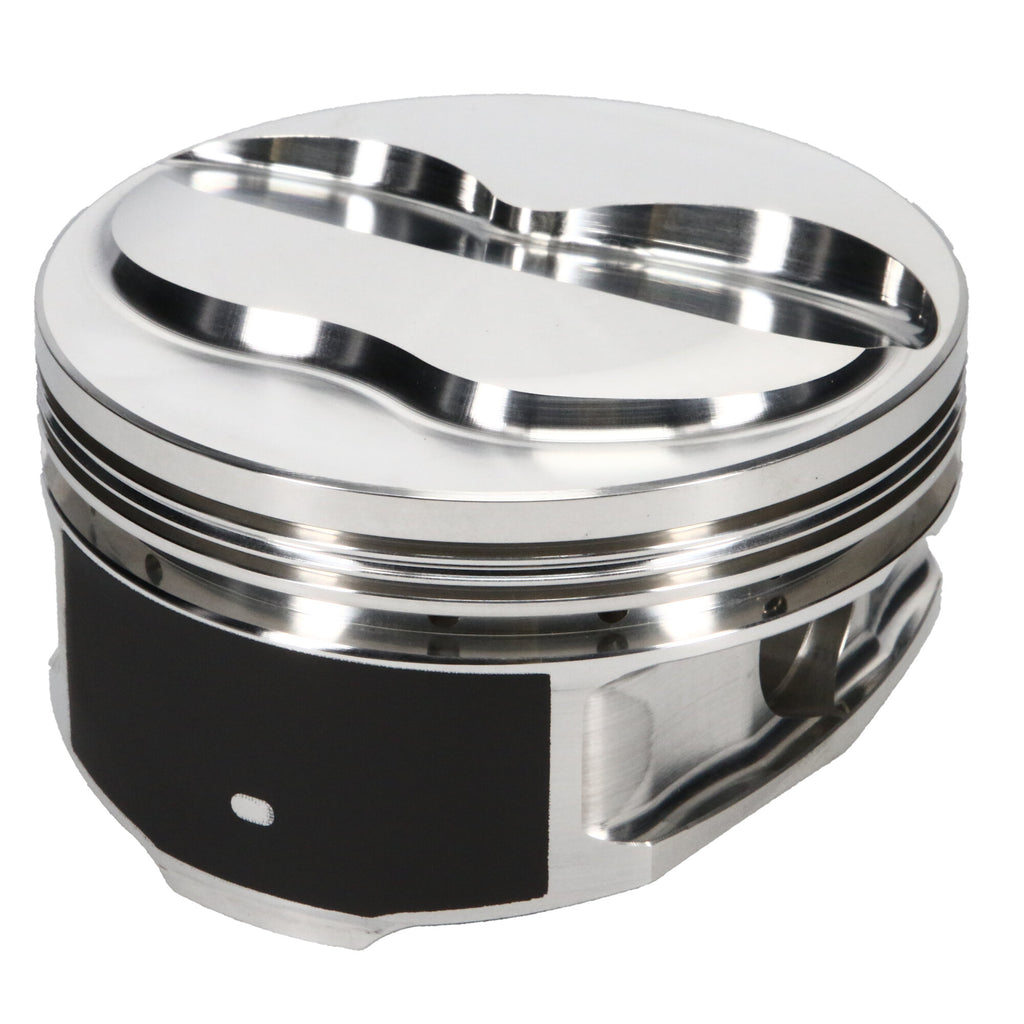

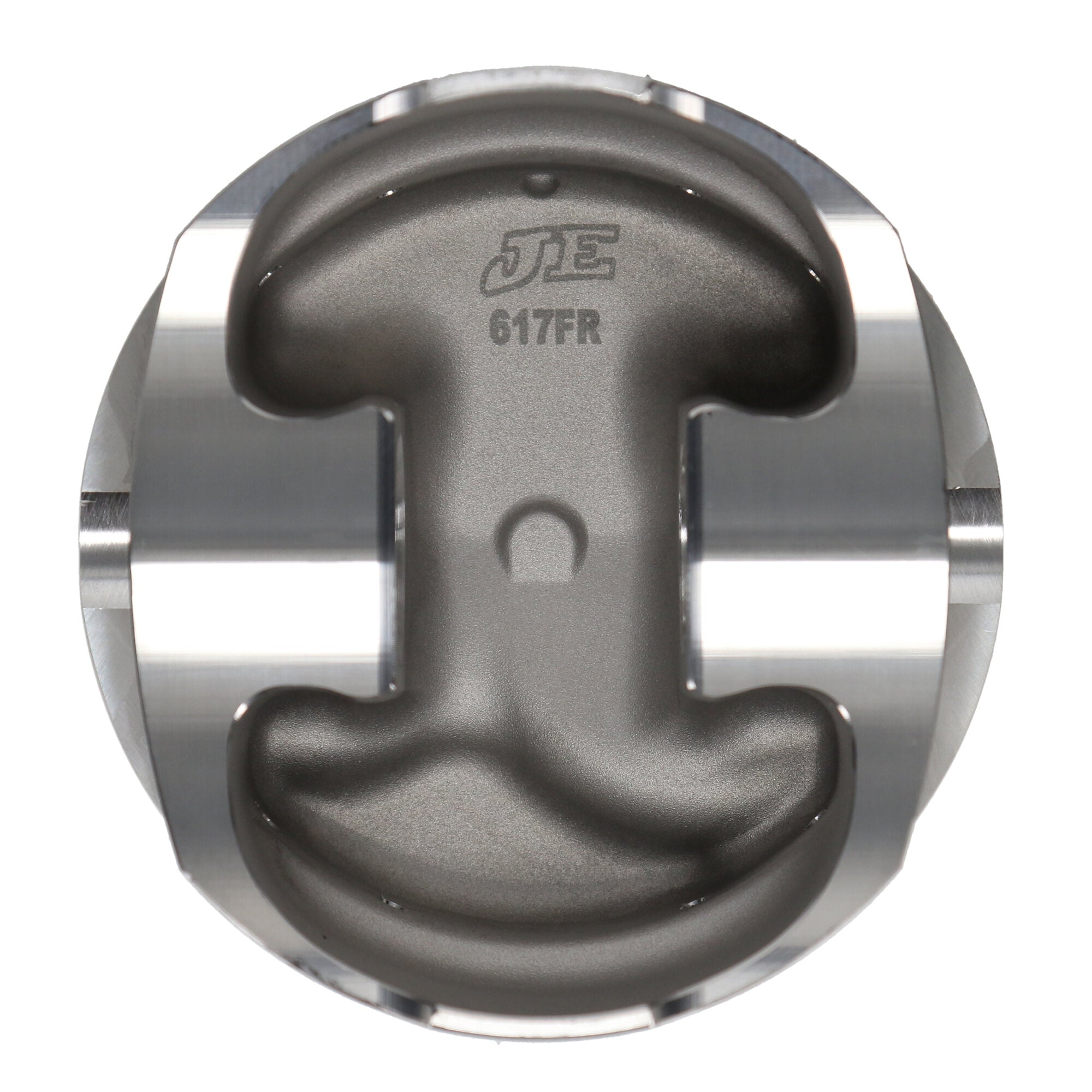

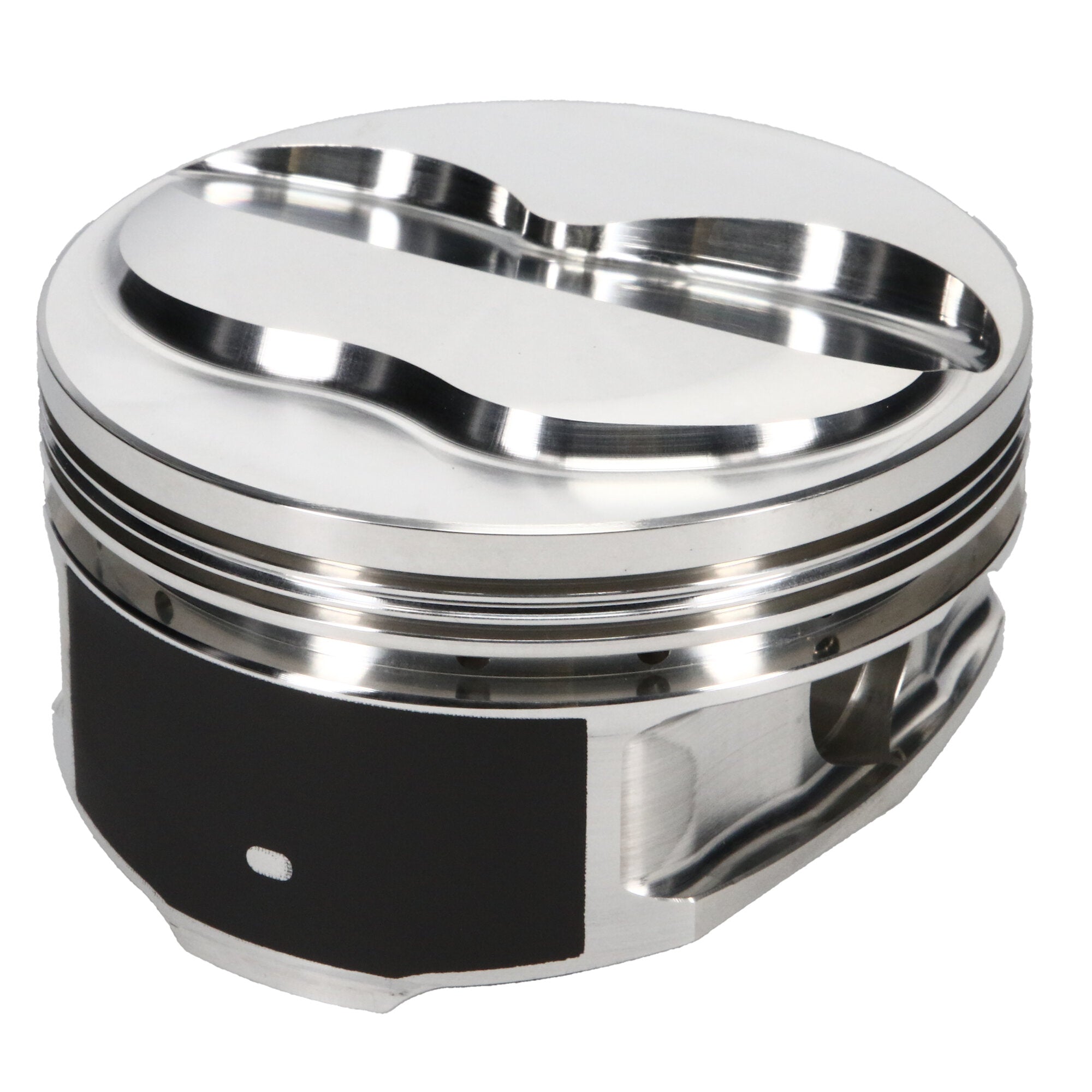

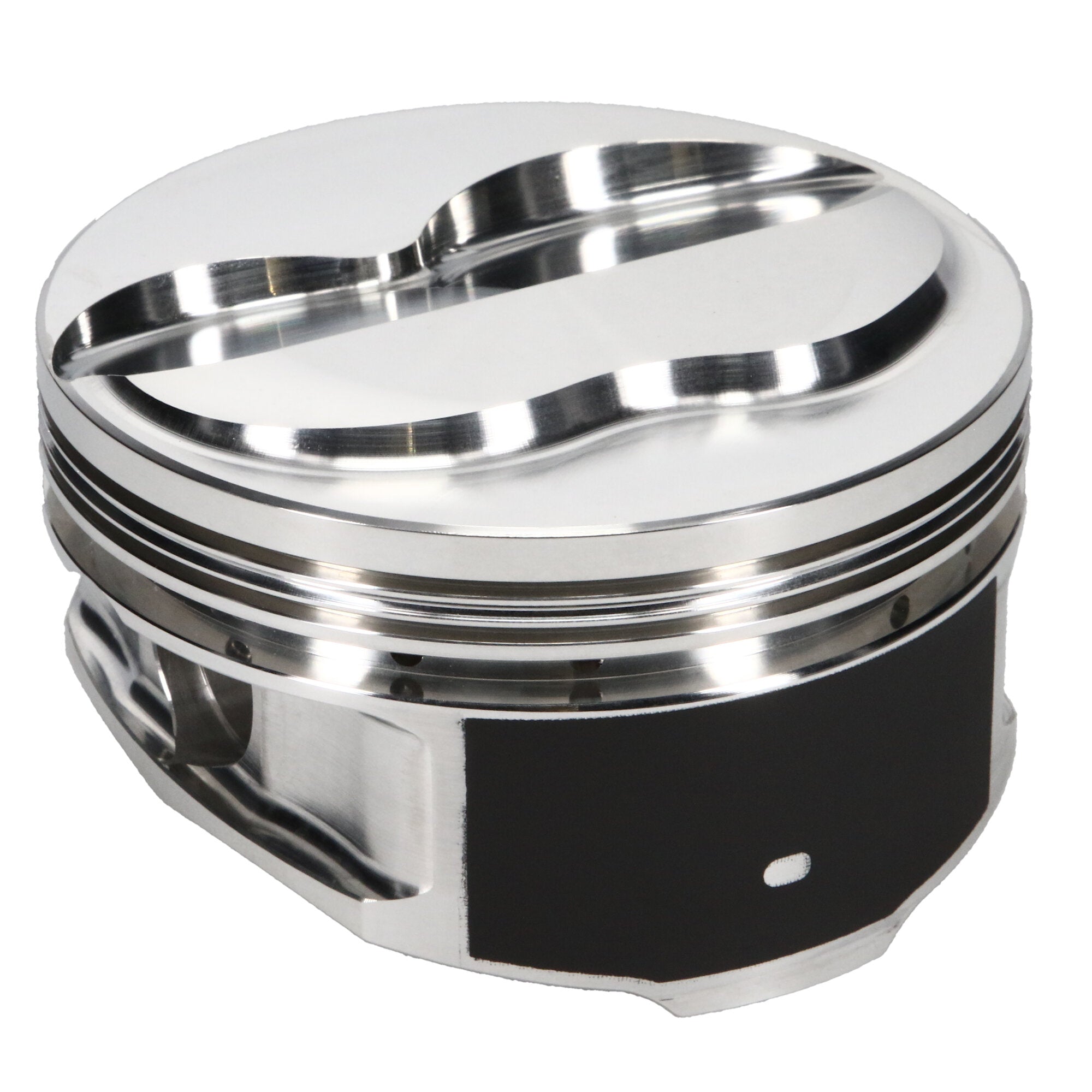

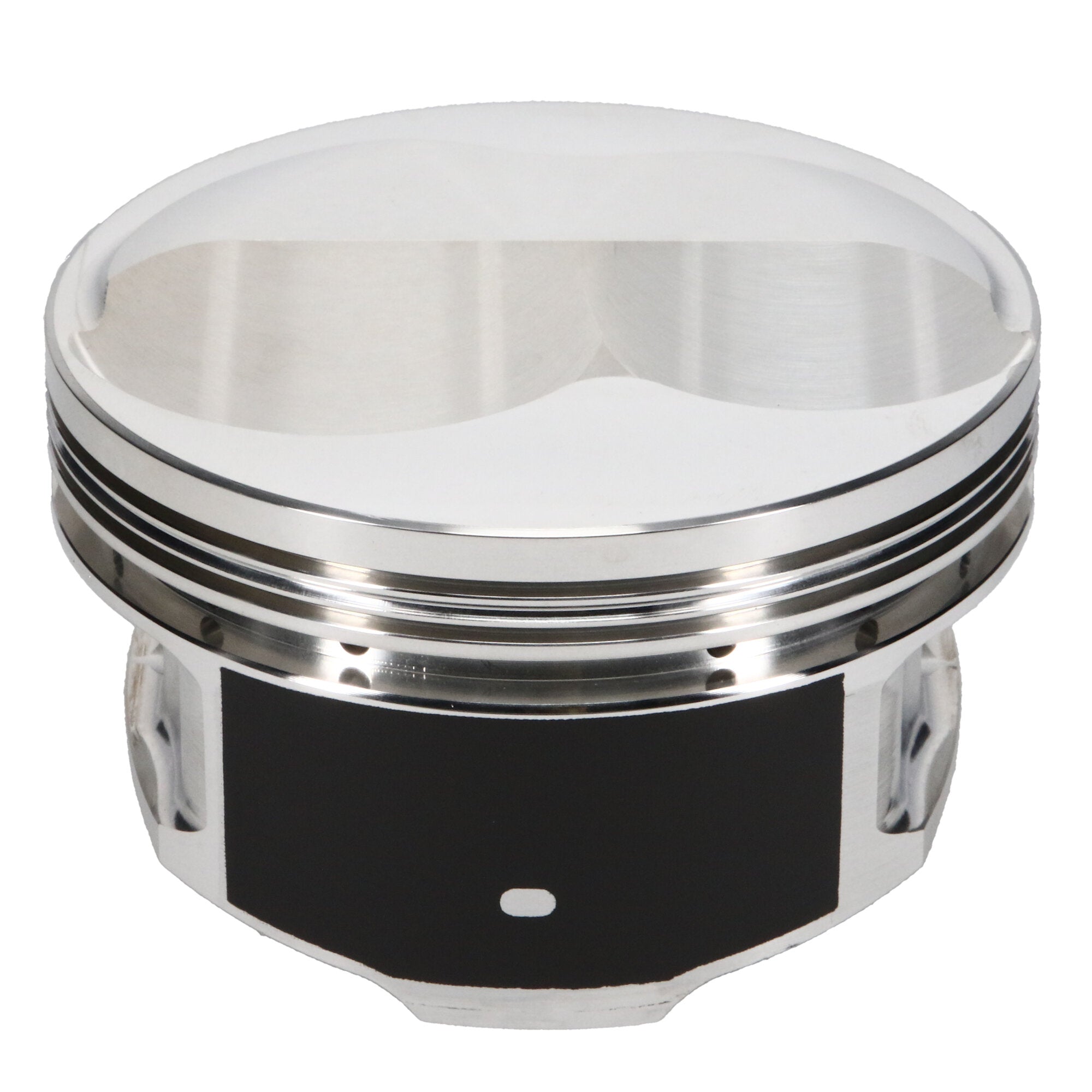

Piston Set, 2618, Dome, 4.155 Bore, 1.230 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.155 in. Bore, 1.280 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 351, 4.155 Bore, Dome, Set of 8 |
| Ringset Included |
No |
| Make - Web |
Ford |
| Industry |
Automotive |
| Add-On |
J100F8-4155-5 |
| Add-On |
927-042-CS |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-2750-15-51S |
| Piston Pin Length |
2.750 |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.155 in. Bore - 1.230 in. CH, 6.50 CC |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Small Block |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.188 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Material |
2618 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
6.50 |
| Bore Diameter |
4.155 |
| Piston Average Weight |
461 |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Compression Height |
1.230 |
| Title |
JE Pistons - Ford, Small Block, 4.155 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Make |
FORD |
| Piston Quantity |
8 |
| Forging Type |
Round |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
