As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 351W Windsor Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

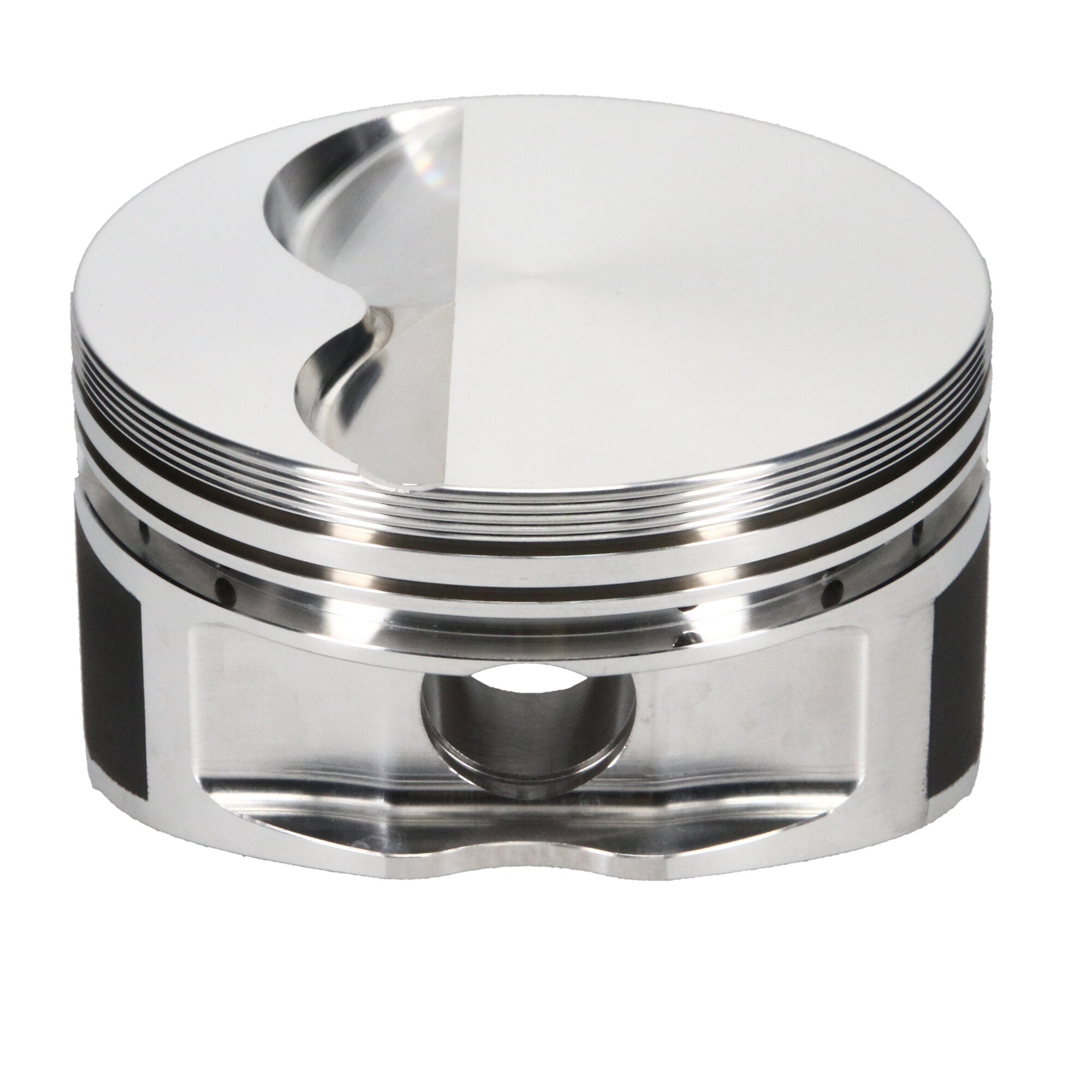

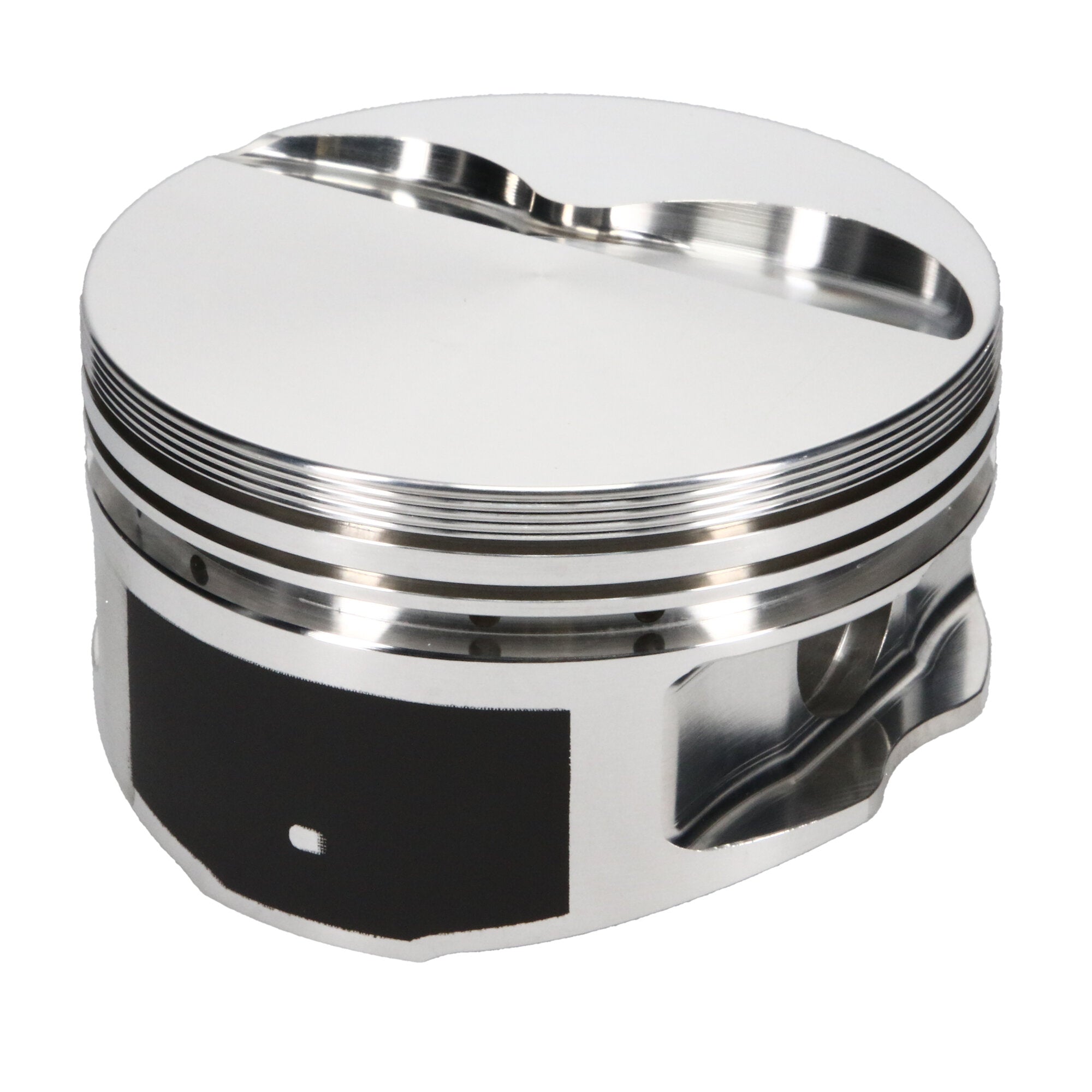

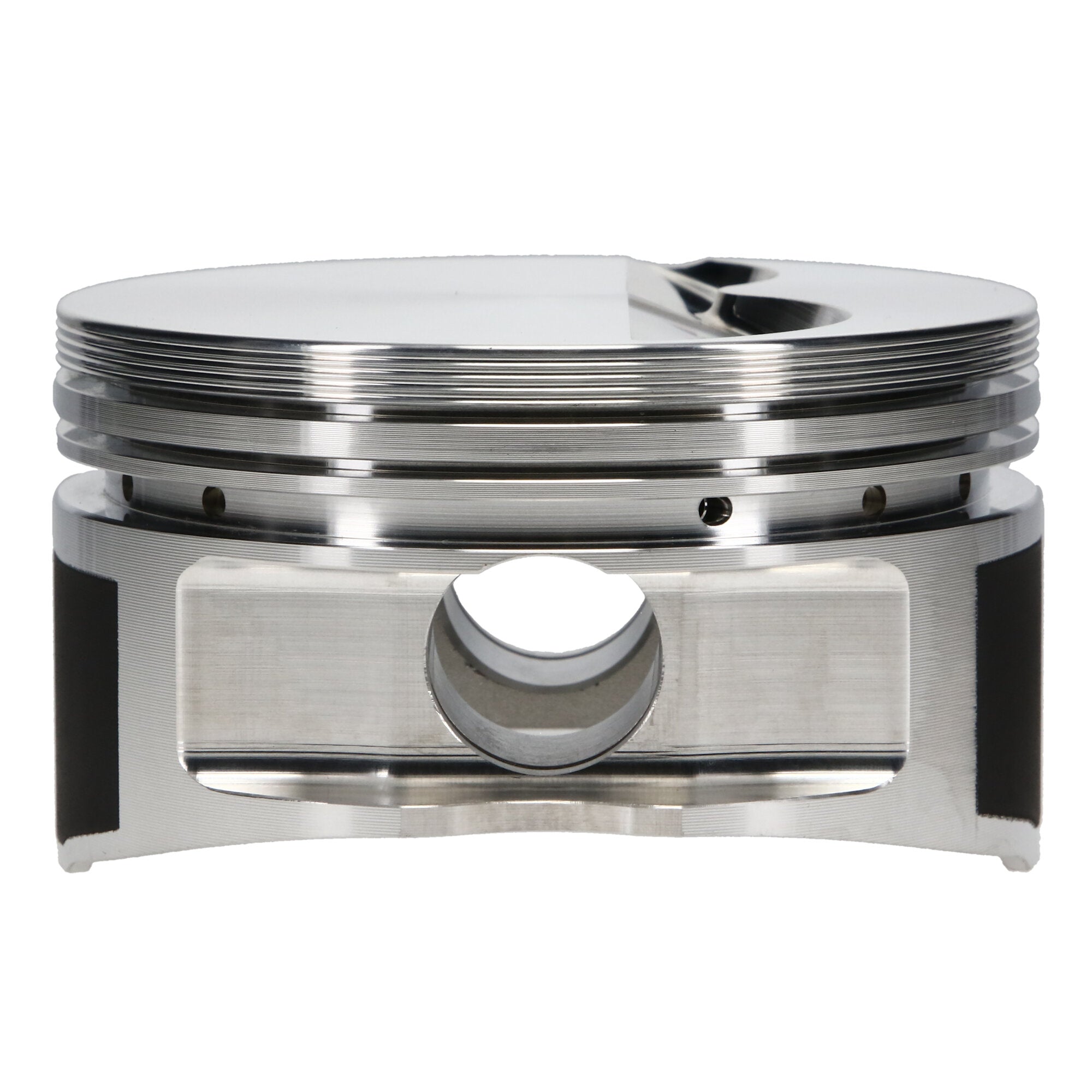

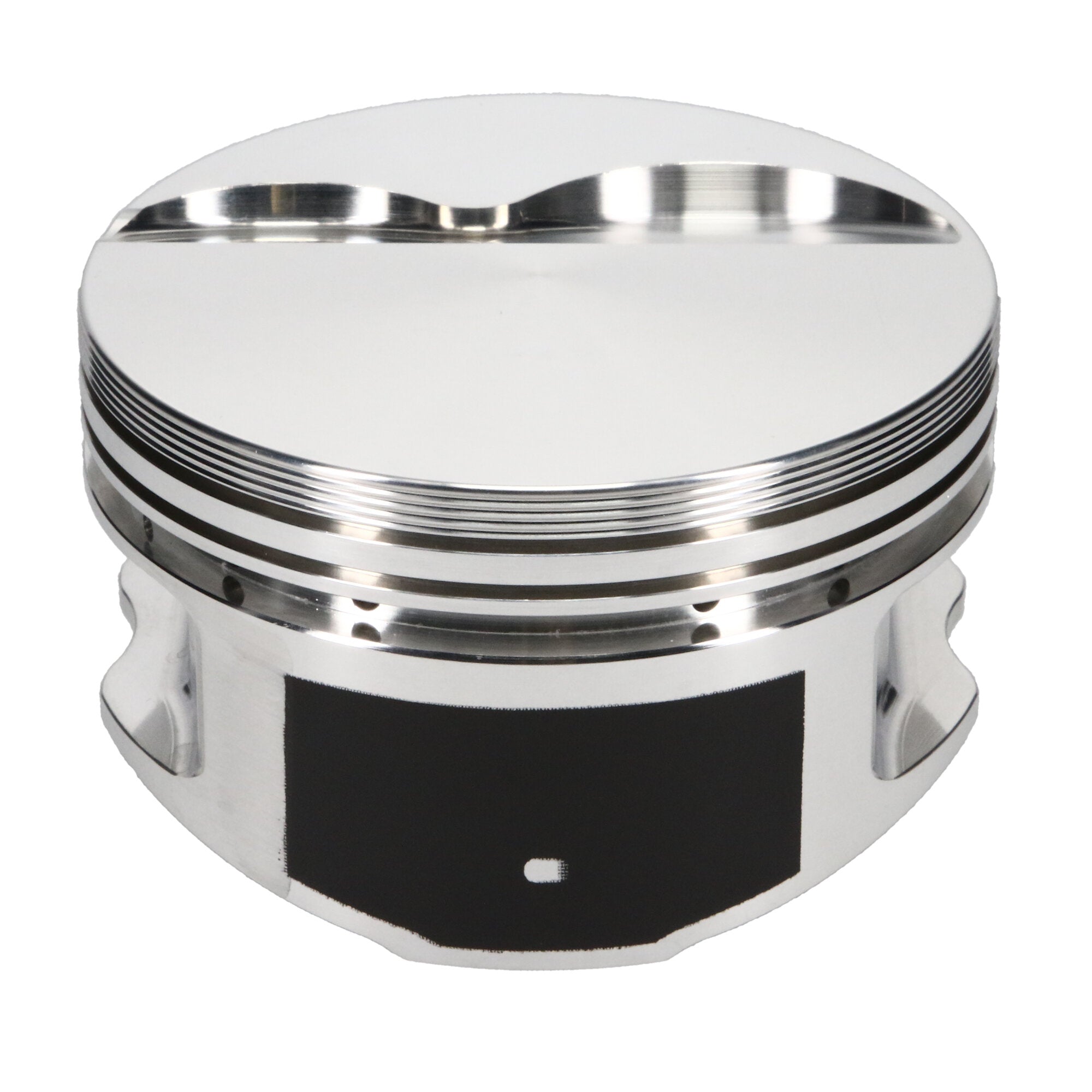

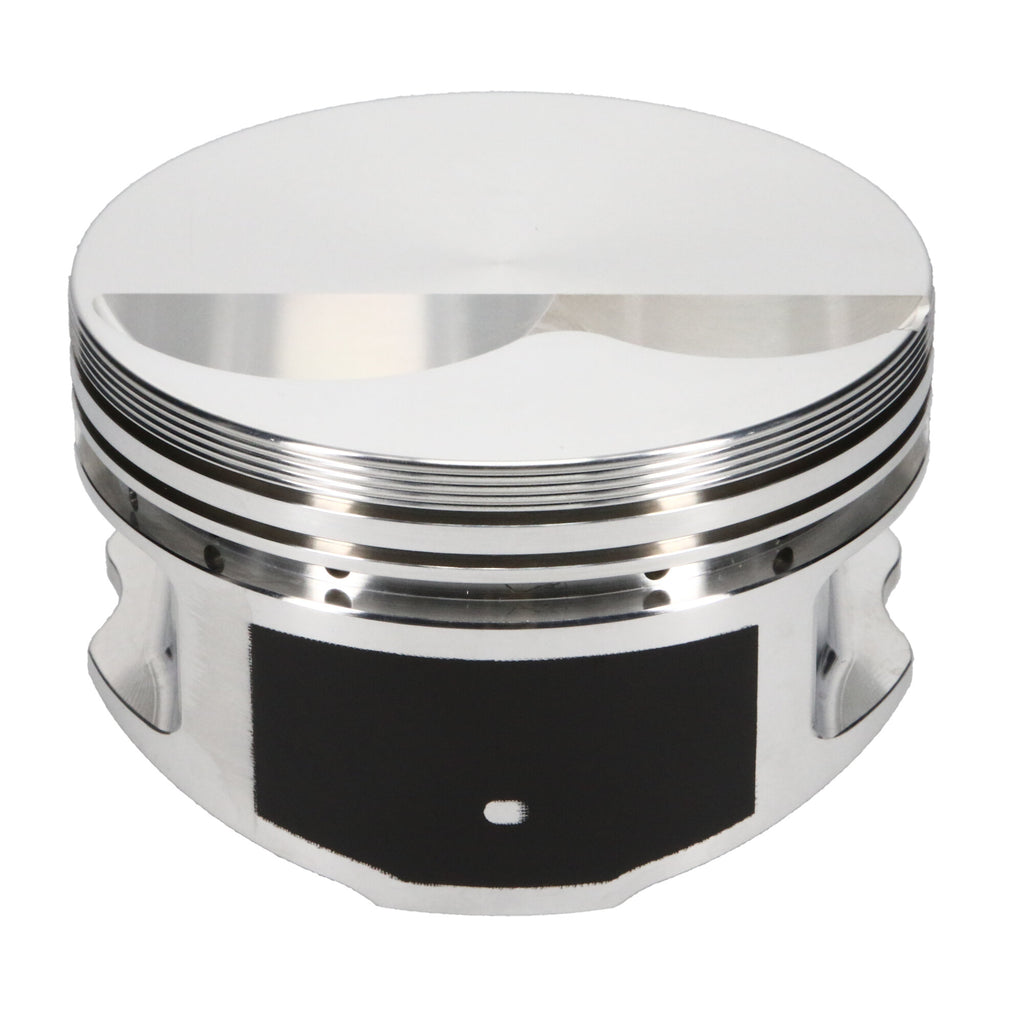

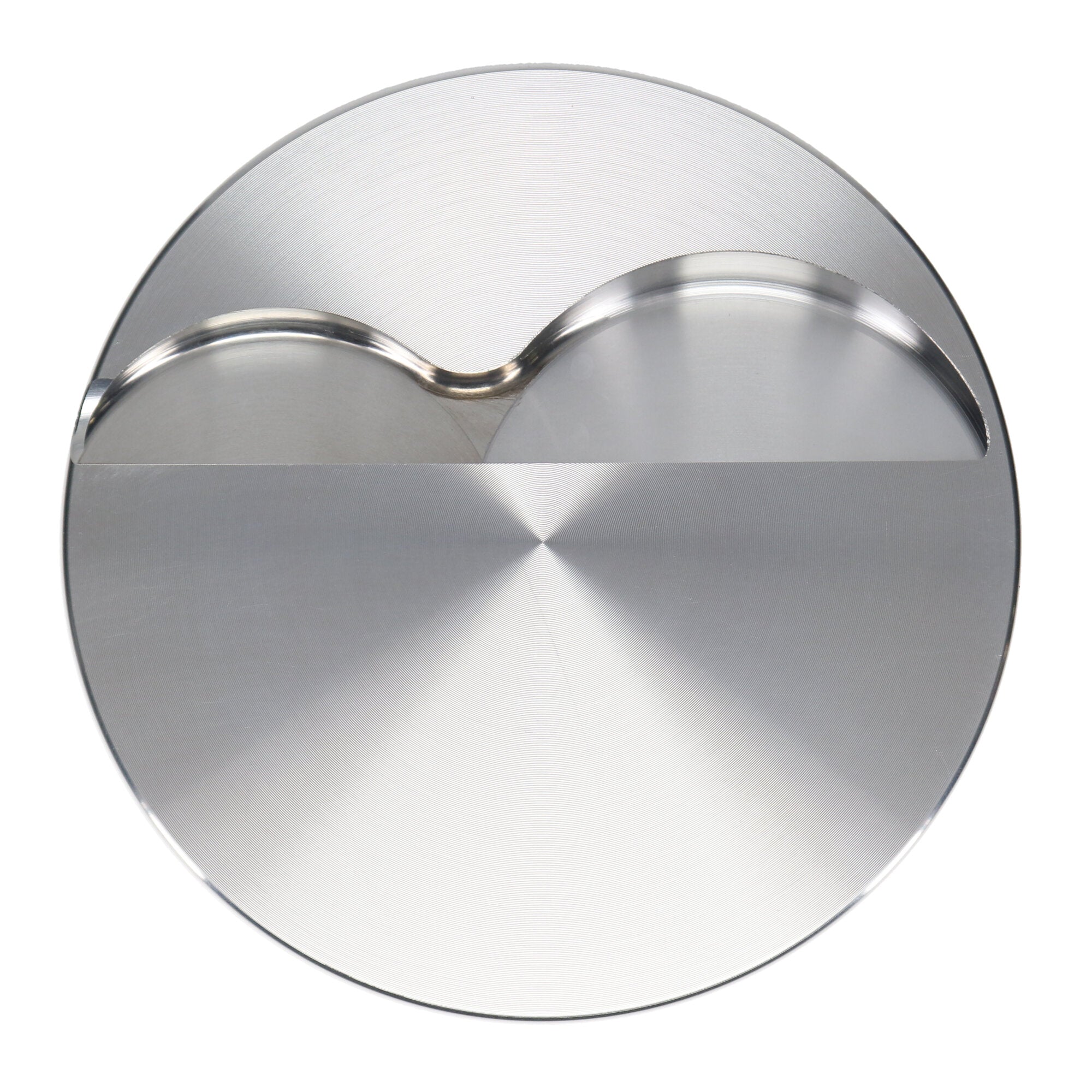

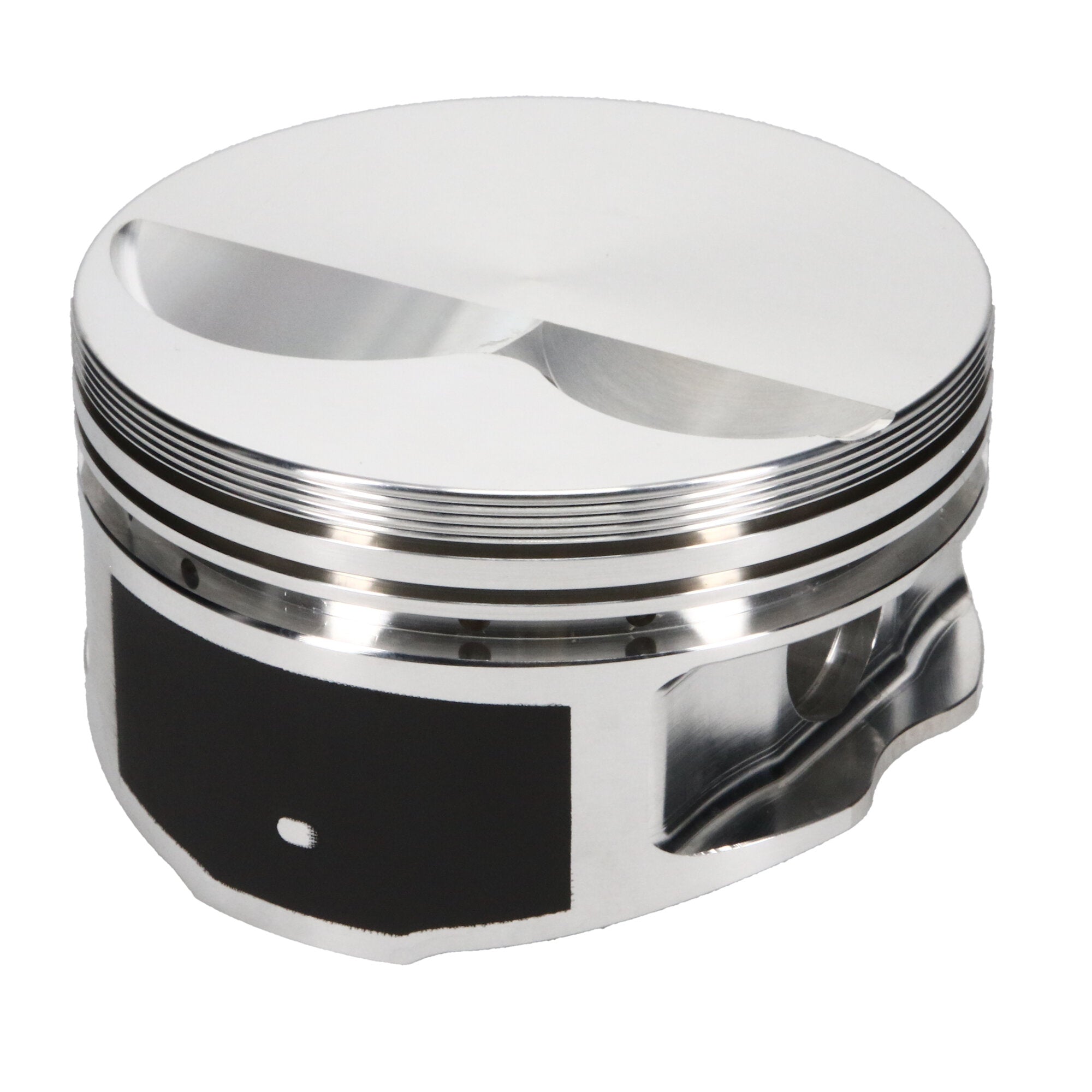

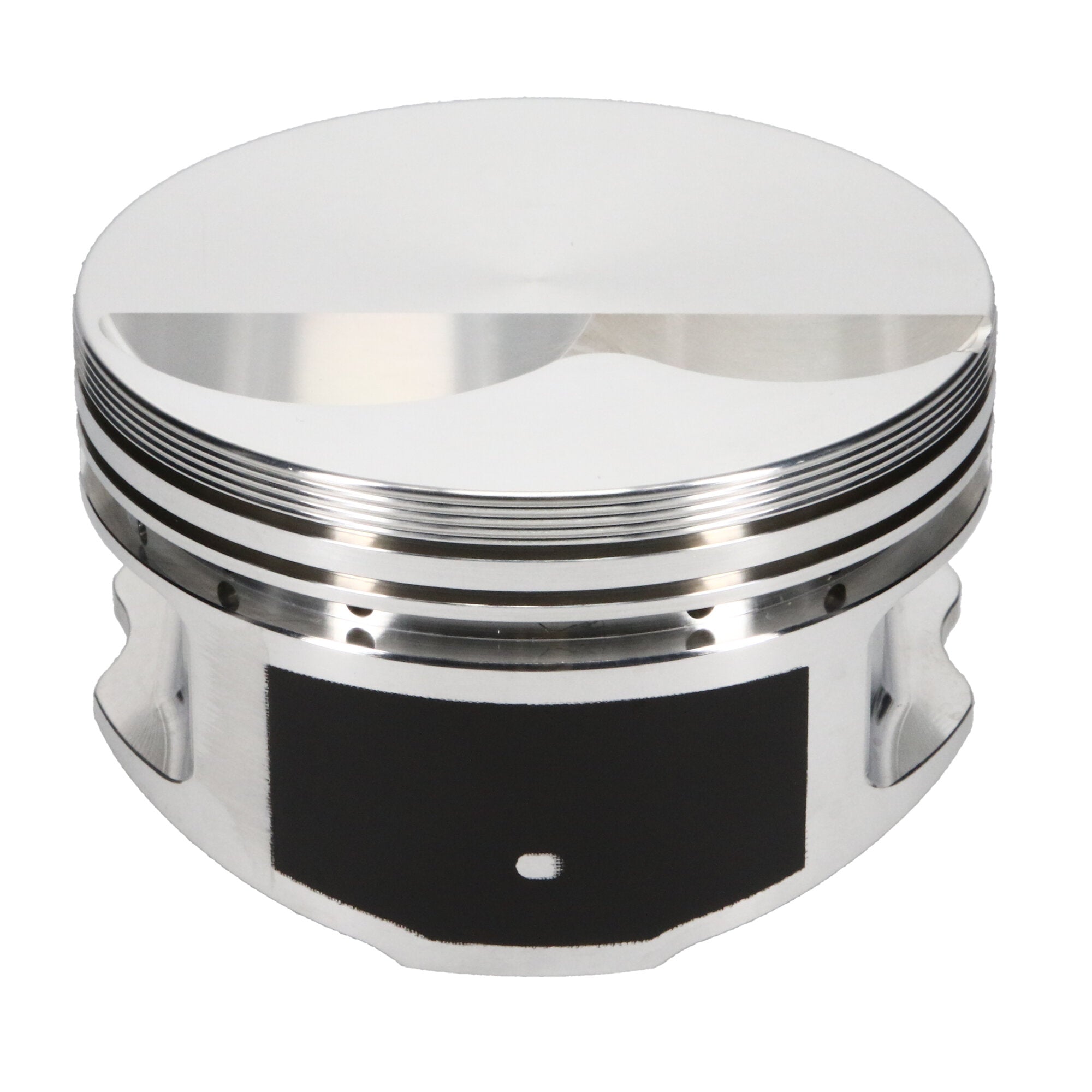

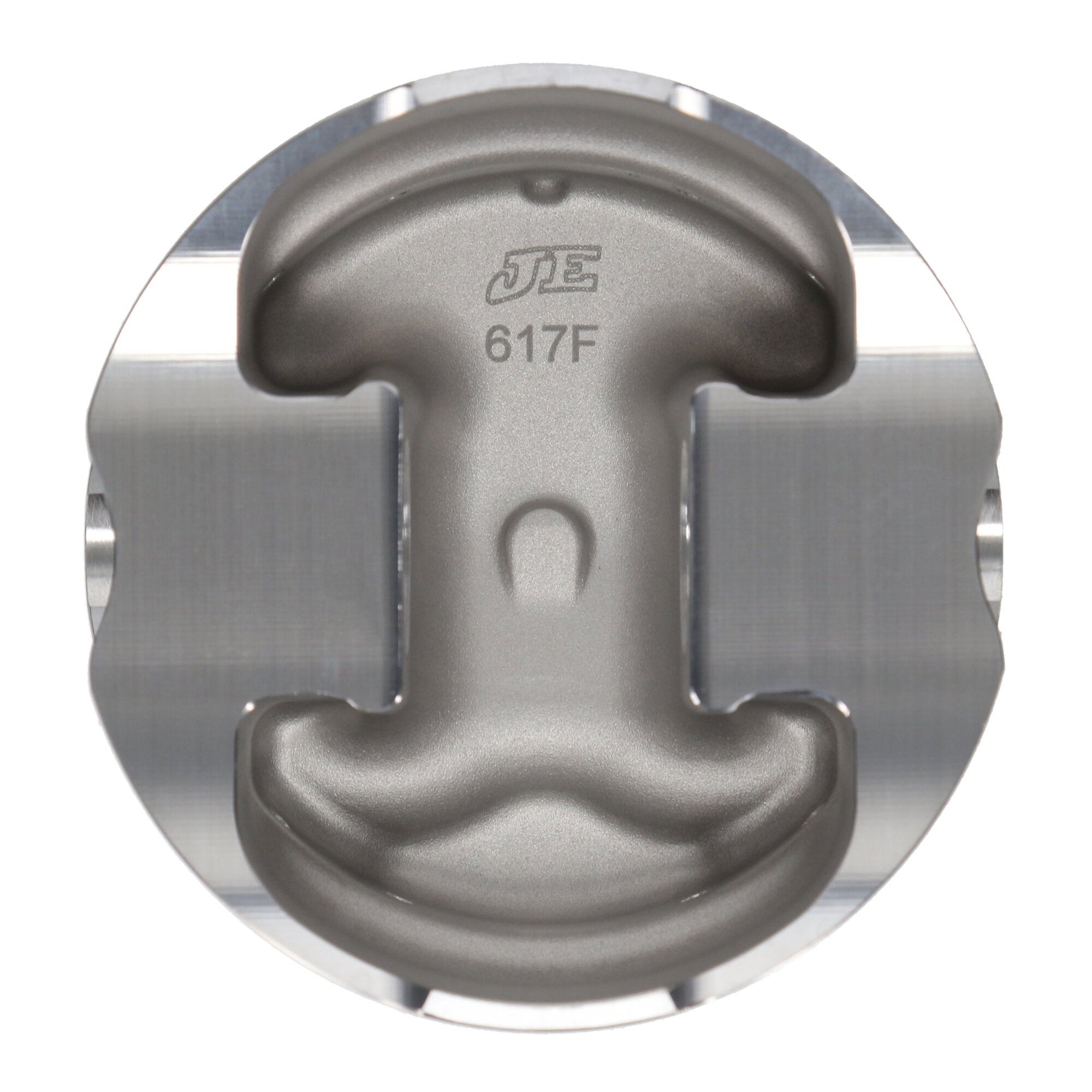

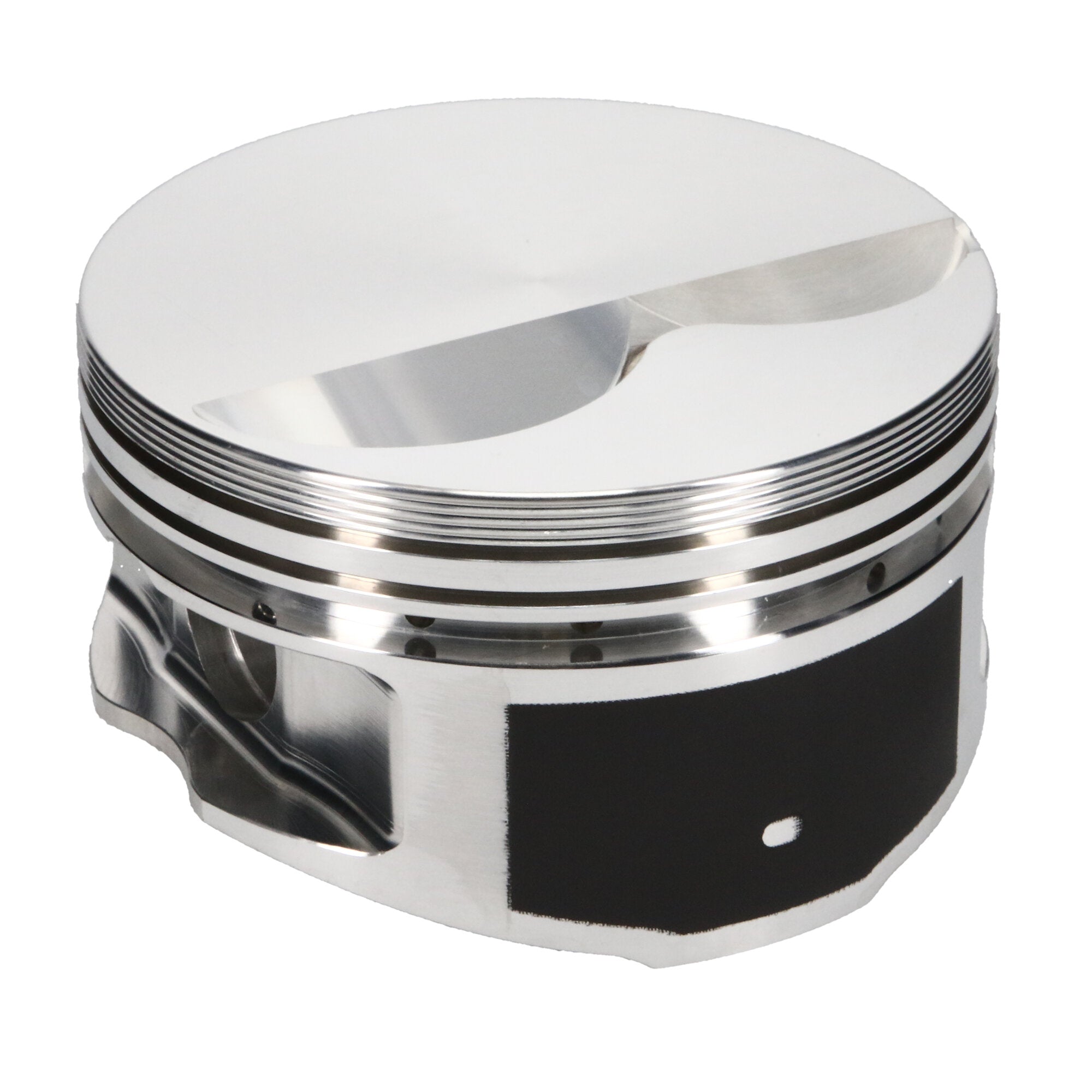

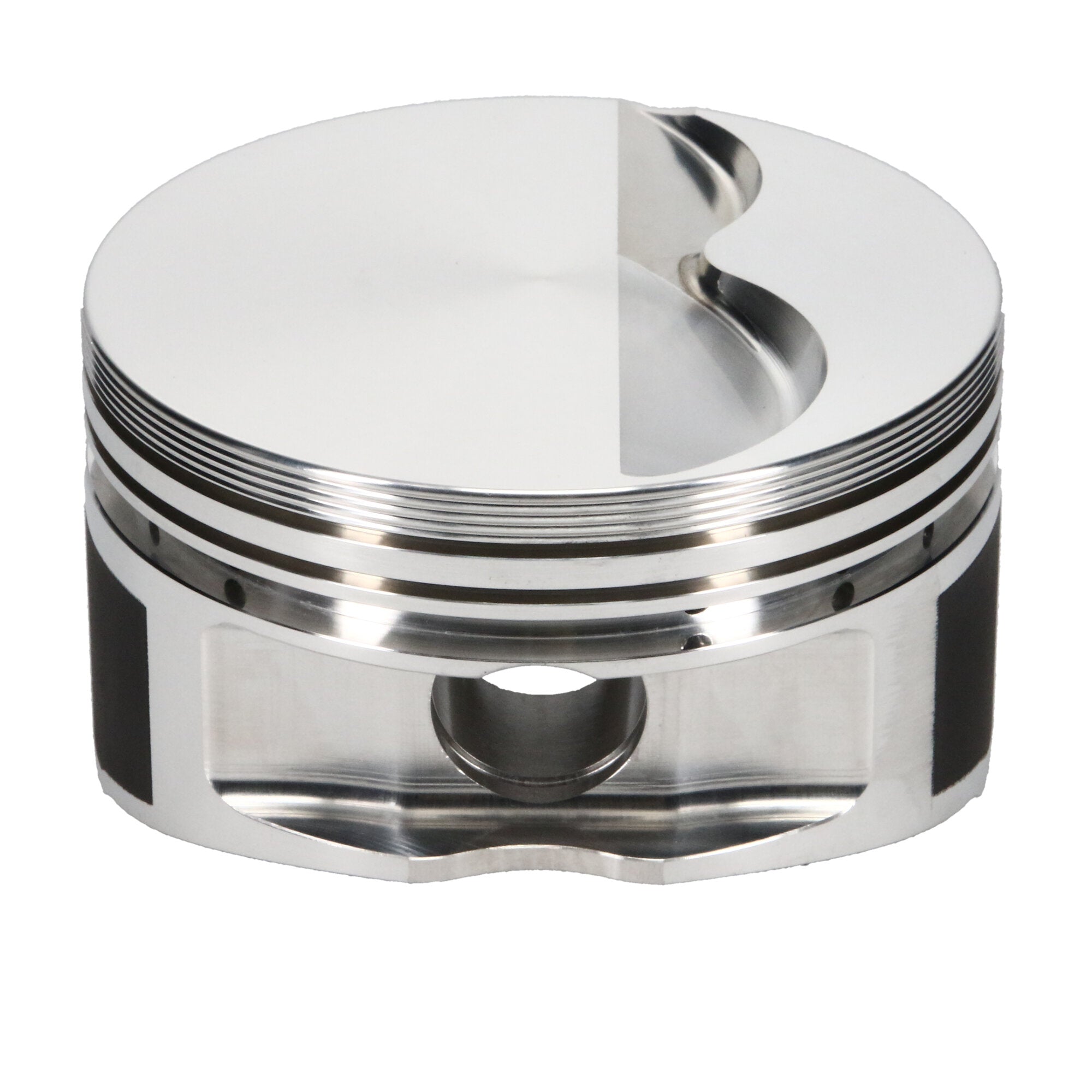

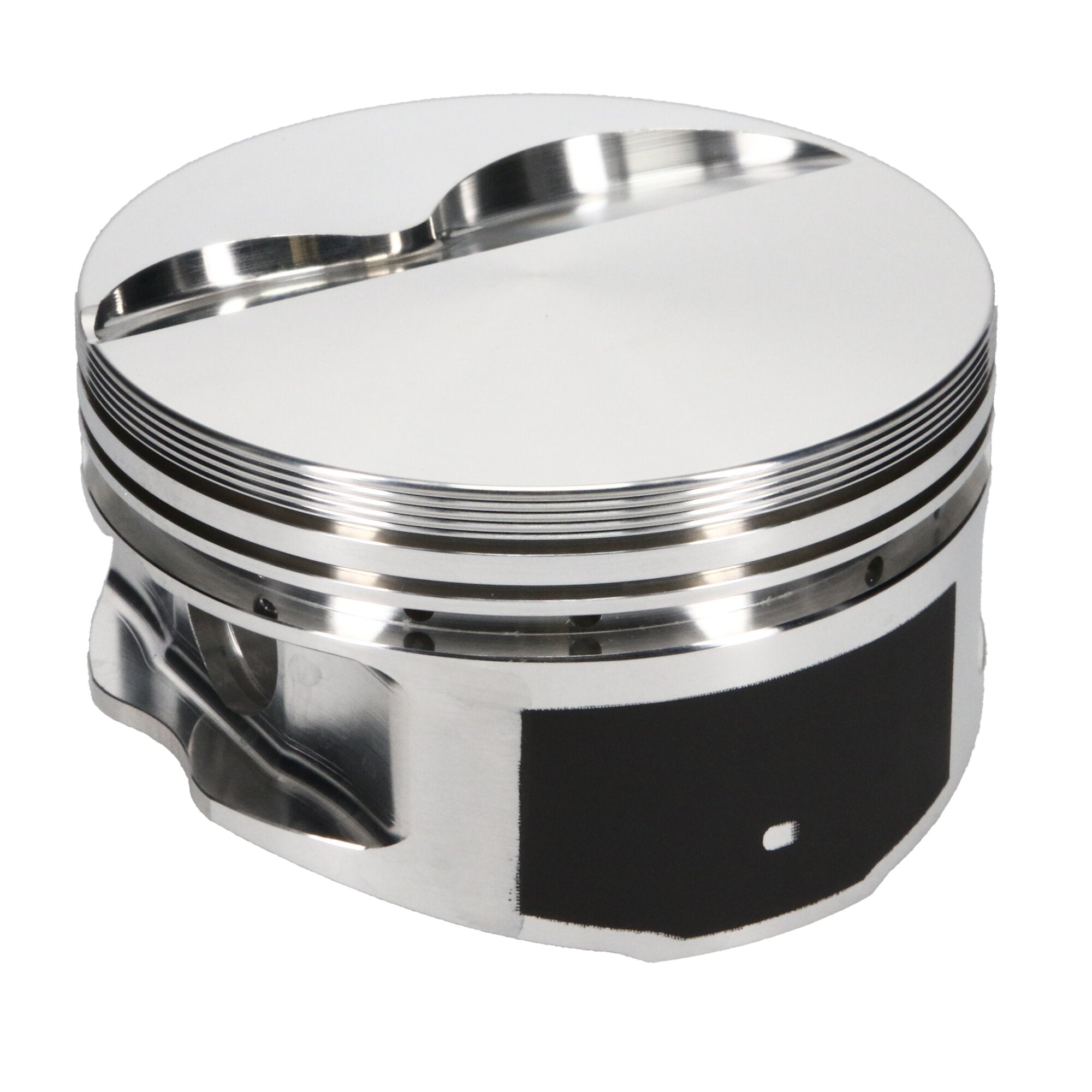

Piston Set, 2618, Flat Top, 4.155 Bore, 1.280 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.155 in. Bore, 1.280 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 351 Windsor, 4.155 Bore, Flat, Set of 8 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Piston Average Weight |
506 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.155 in. Bore - 1.280 in. CH, -5.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-042-CS |
| Piston Material |
2618 |
| Add-On |
J100F8-4155-5 |
| Add-On |
927-2750-15-51S |
| Piston Pin Length |
2.750 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Piston Quantity |
8 |
| Out of Stock Message |
Call for Availability |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Forging Type |
Round |
| Industry |
Automotive |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat |
| Engine |
Small Block |
| Product Market |
Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-5.00 |
| Bore Diameter |
4.155 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.750 |
| Title |
JE Pistons - Ford, Small Block, 4.155 in. Bore, Piston Kit |
| Make |
FORD |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.280 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
