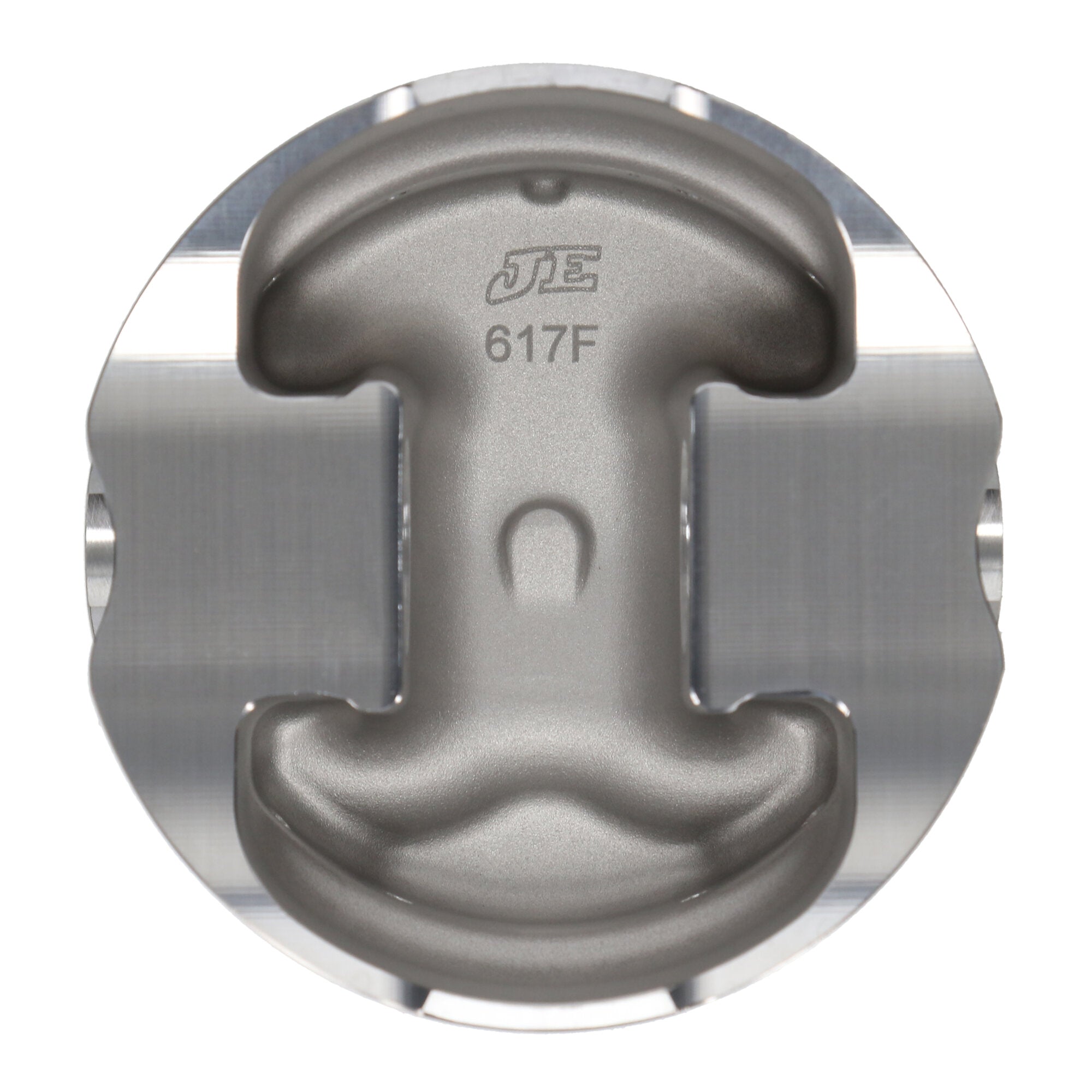

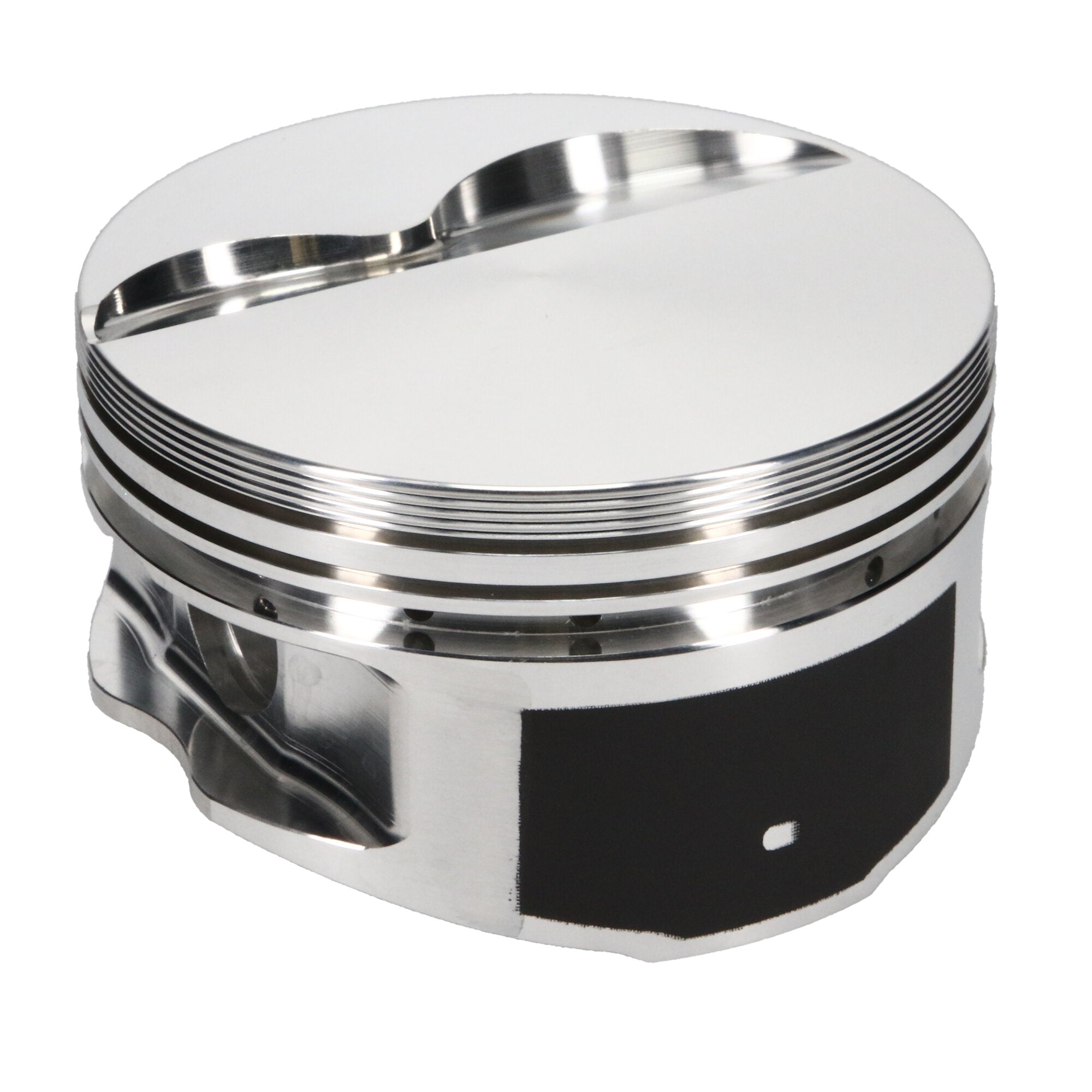

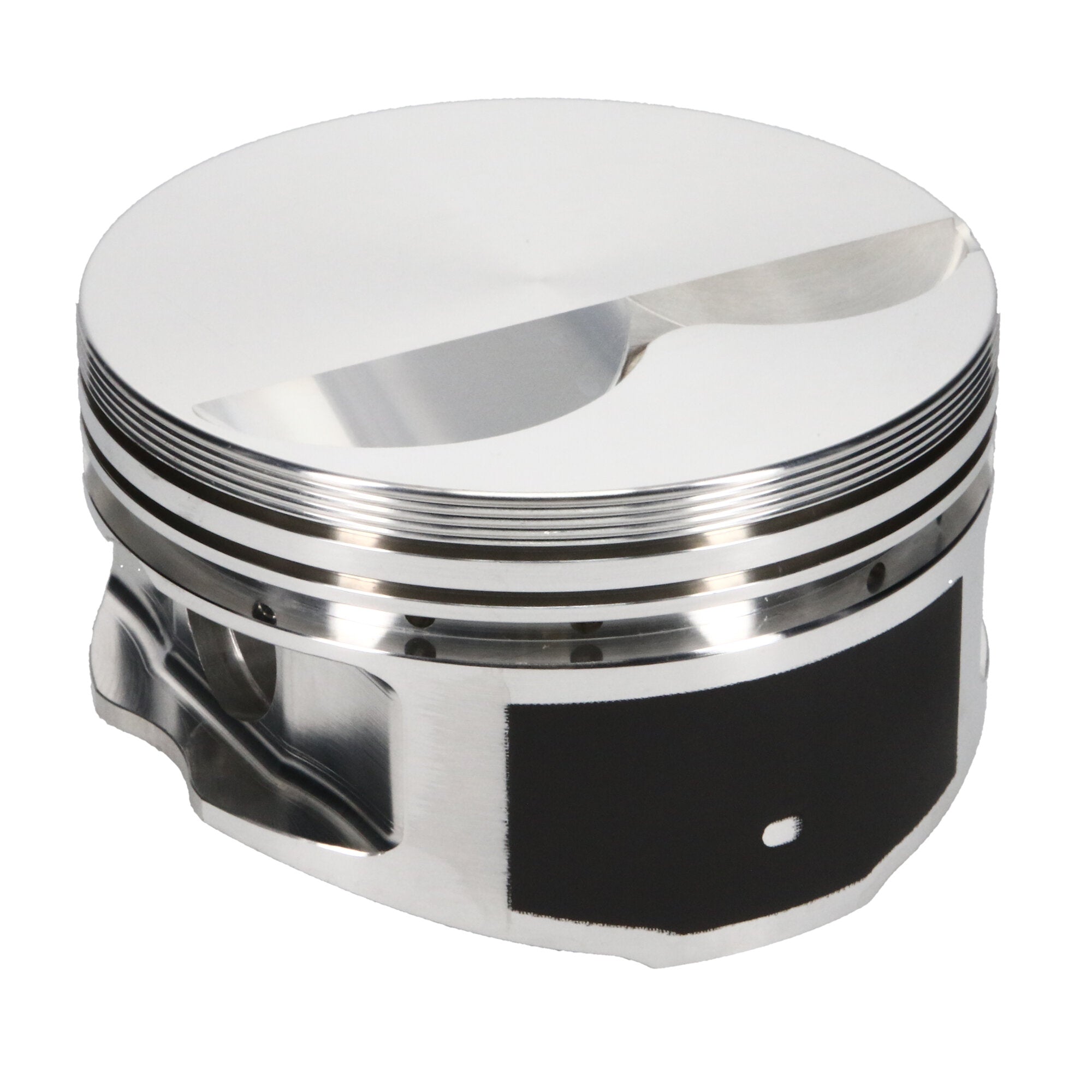

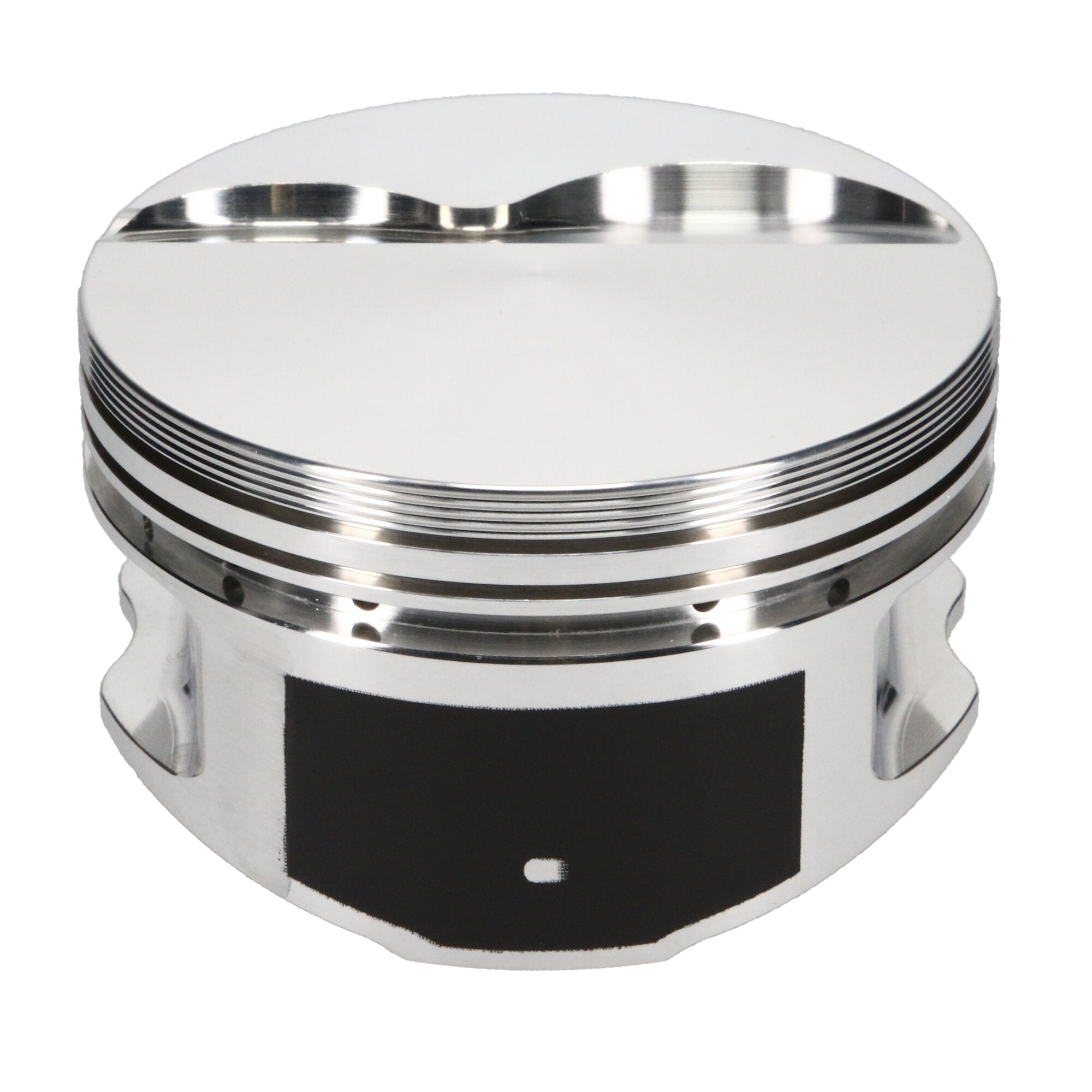

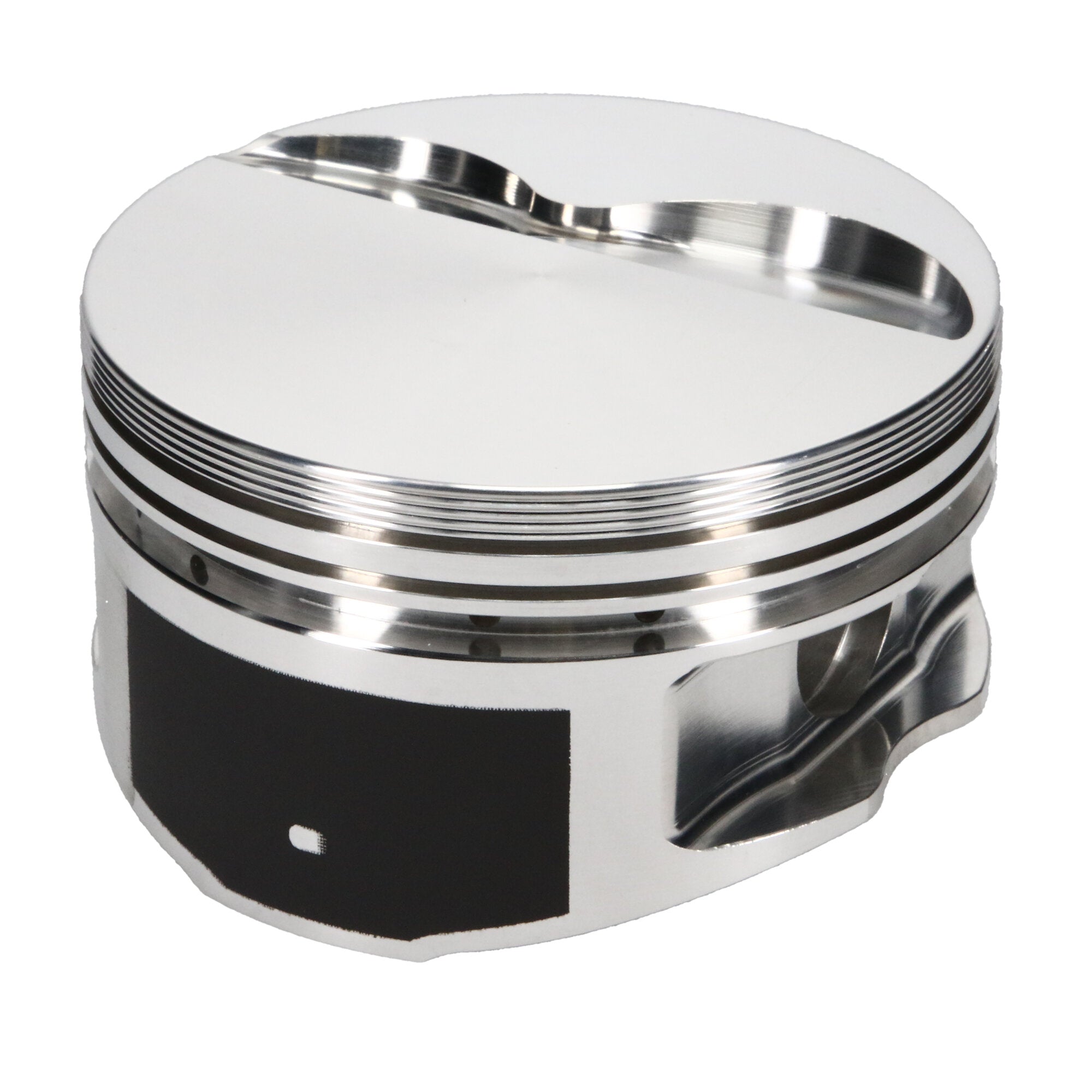

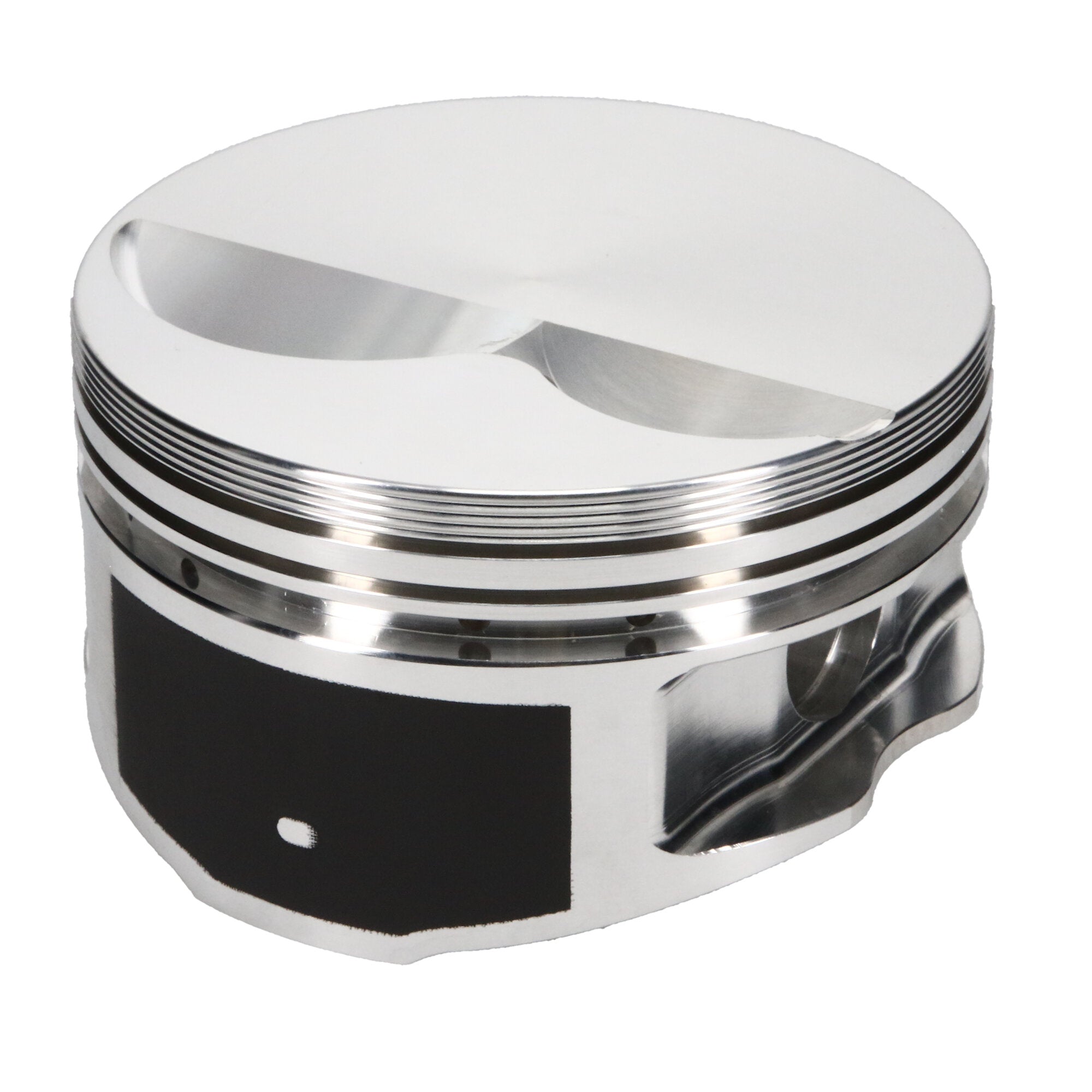

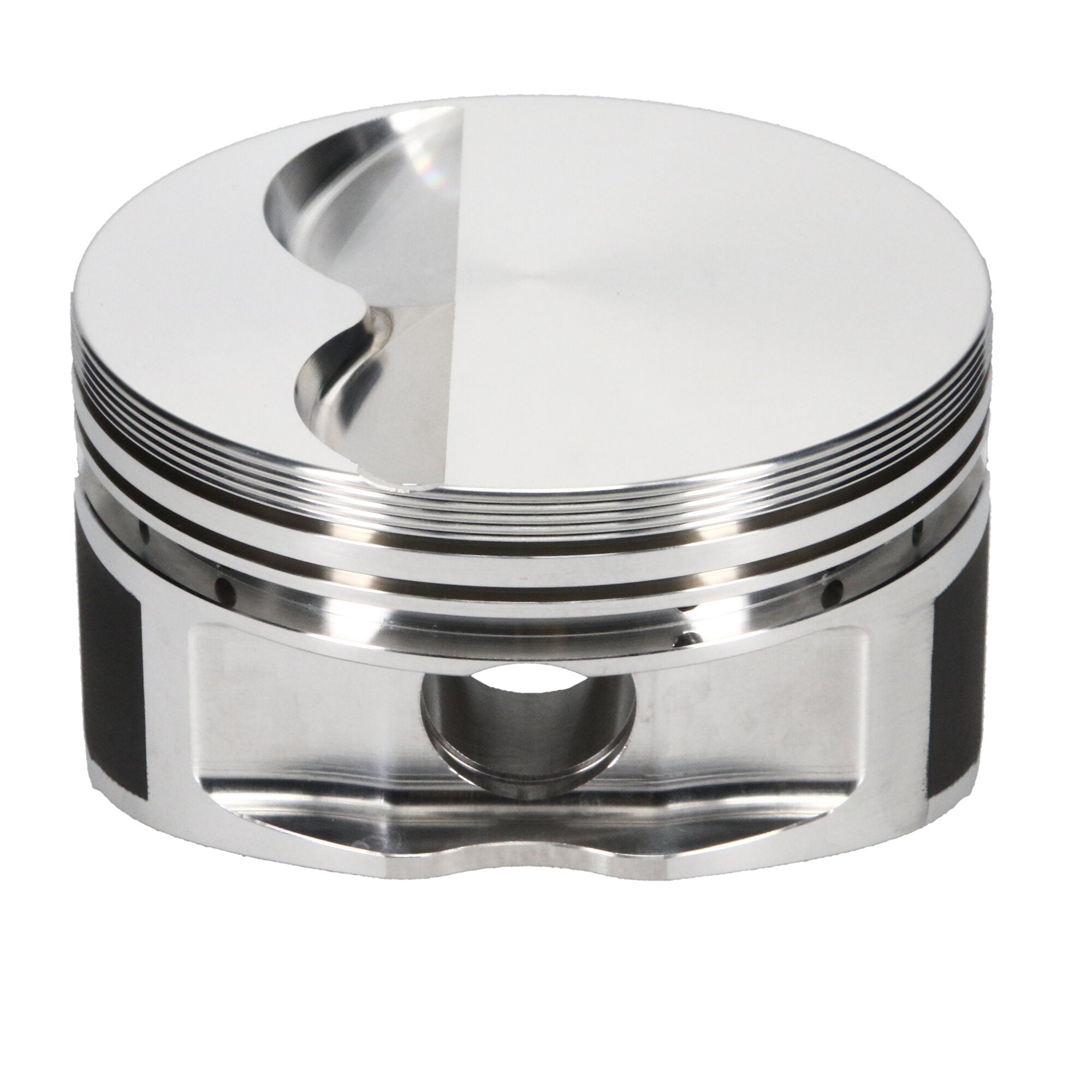

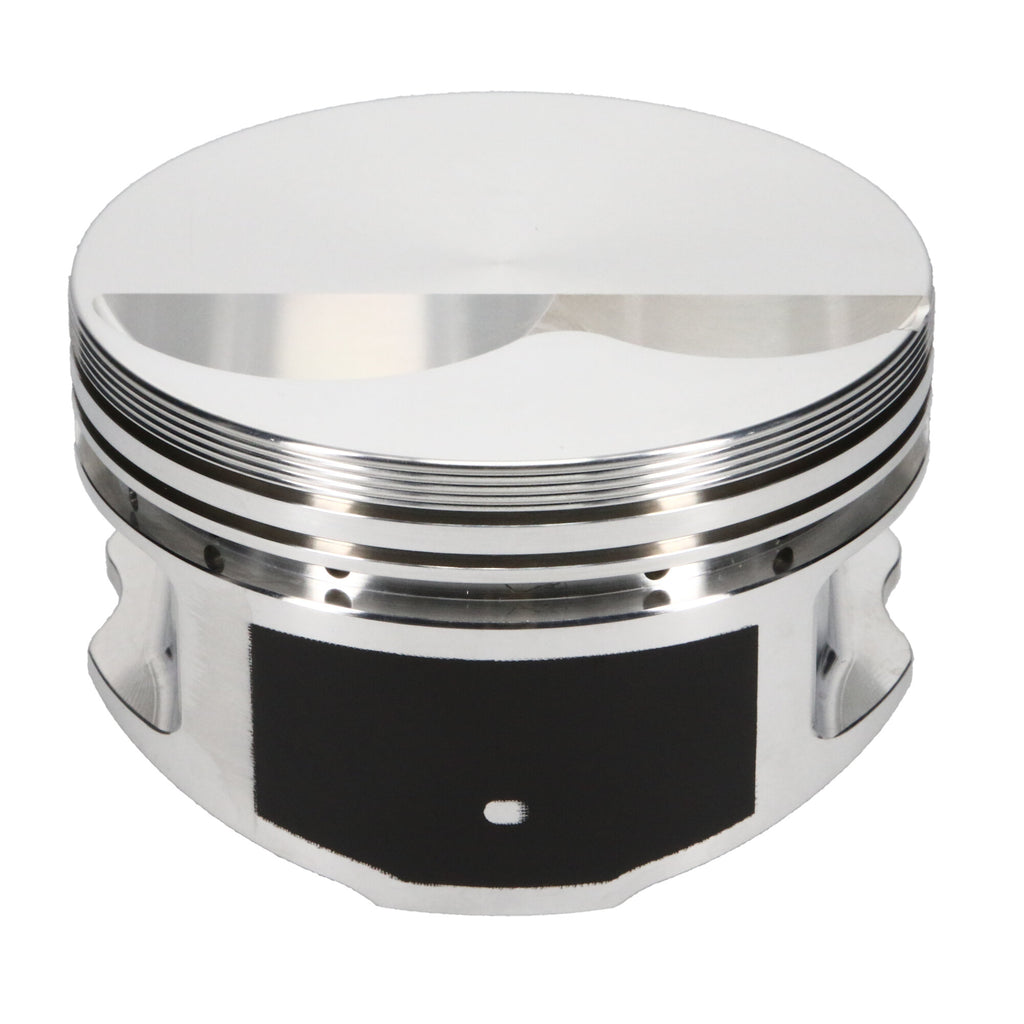

  • JE Pistons 338243S Piston Single, 2618, Flat Top, 4.145 Bore, 1.280 CD, 0.927 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.145-Bore,-1.280-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

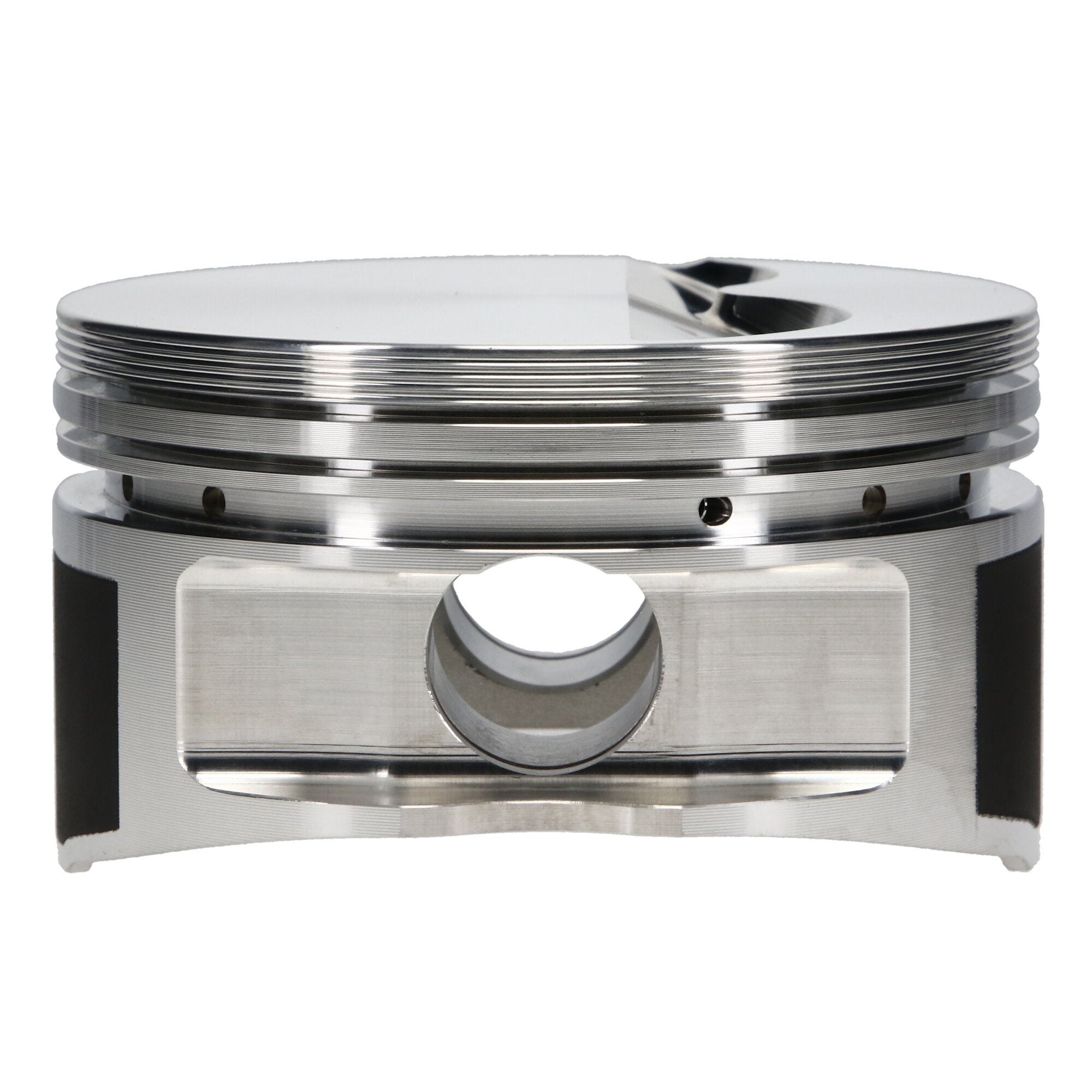

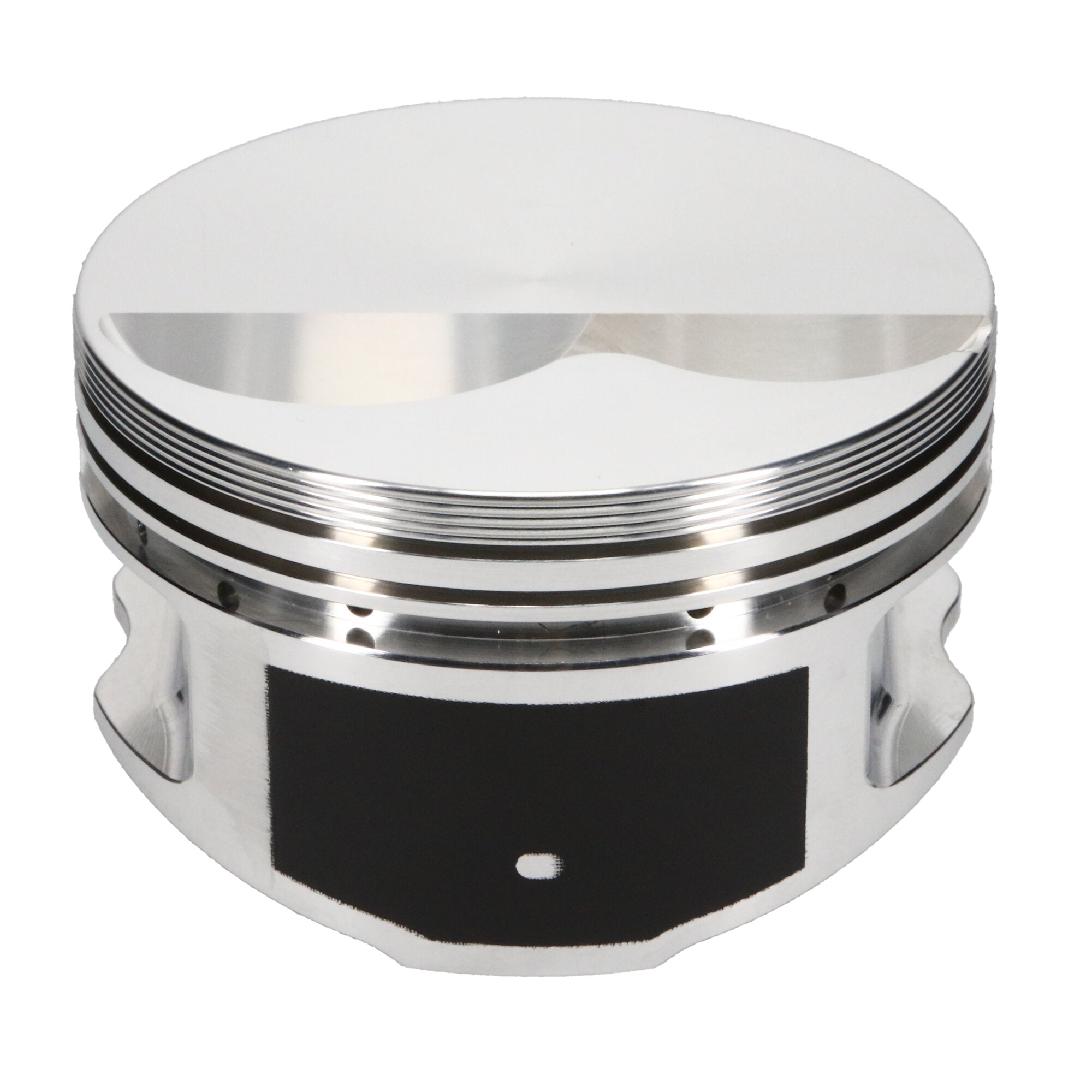

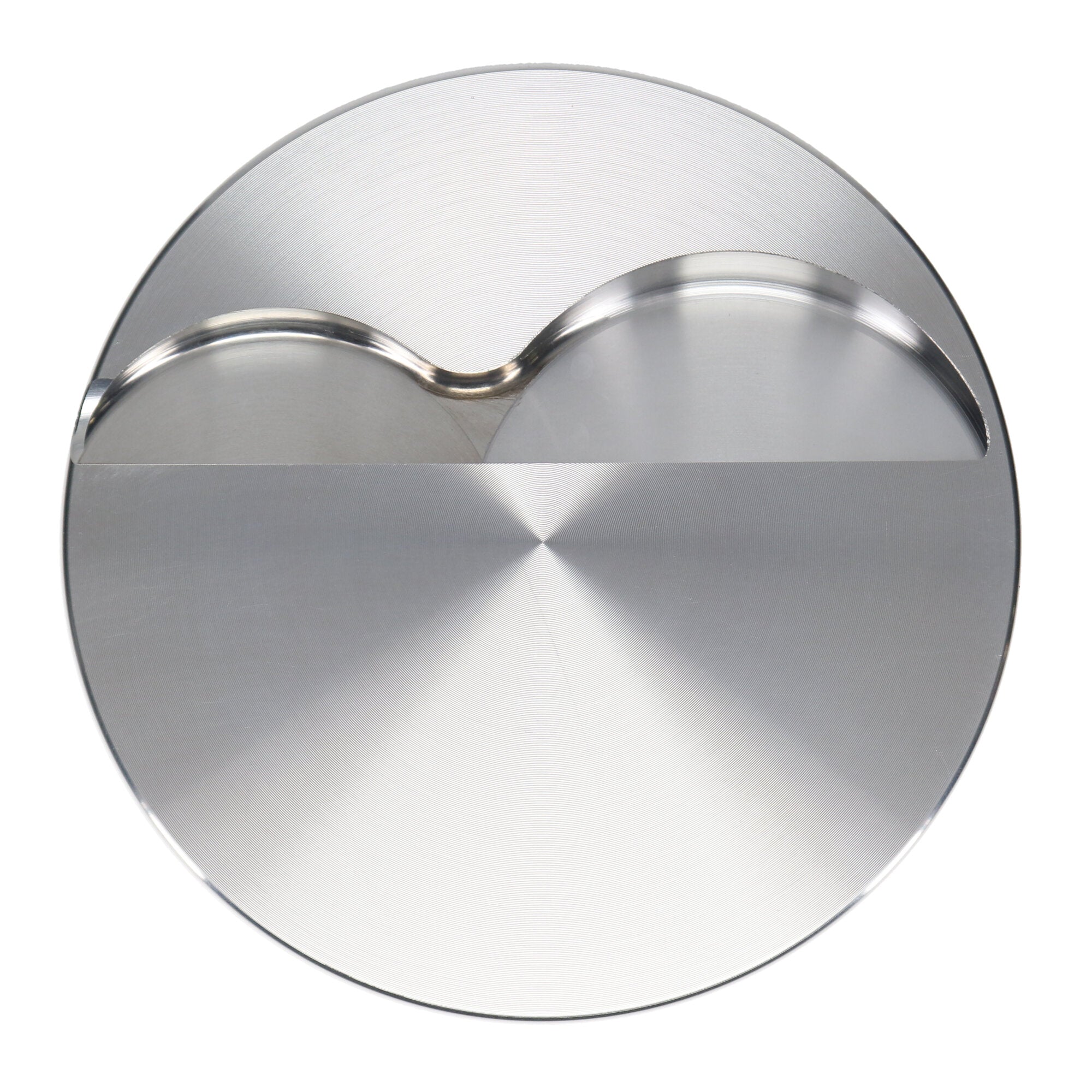

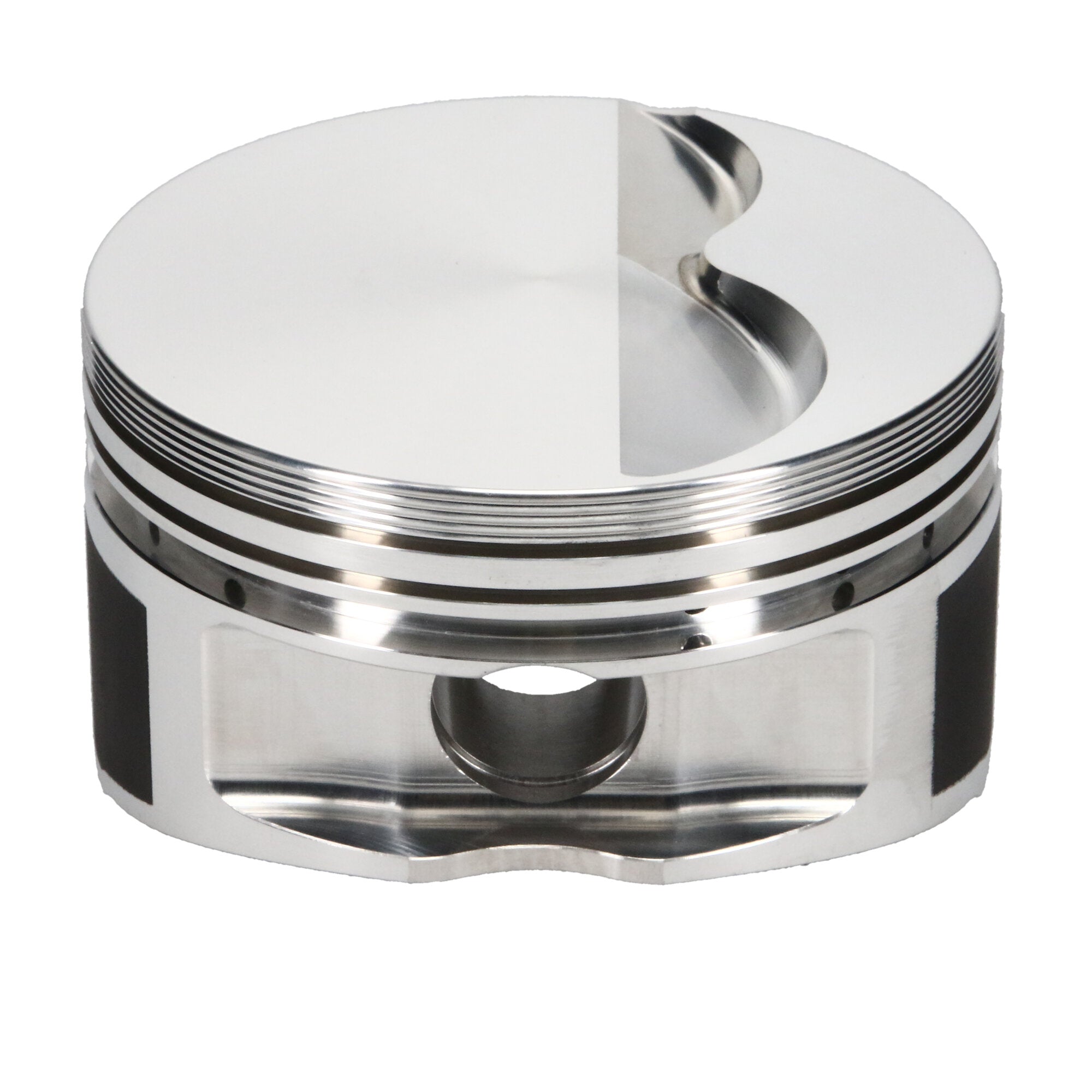

JE Pistons 338243S Piston Single, 2618, Flat Top, 4.145 Bore, 1.280 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_338243S
Engine Piston
$321.46
customers are viewing this product
JE Pistons 338088S Piston Single, 2618, Dome, 3.228 Bore, 1.181 CD, 0.827 Pin, Set of 1.
JE Pistons 338088S Piston Single, 2618, Dome, 3.228 Bore, 1.181 CD, 0.827 Pin, Set of 1.
$451.87
JE Pistons 338687R Piston Single, 2618, Dome, 4.075 Bore, 1.115 CD, 0.927 Pin, Set of 1.
JE Pistons 338687R Piston Single, 2618, Dome, 4.075 Bore, 1.115 CD, 0.927 Pin, Set of 1.
$295.51
JE Pistons 338243S Piston Single, 2618, Flat Top, 4.145 Bore, 1.280 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Ford Small Block 351W Windsor Stroker
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.145 Bore, 1.280 CD, 0.927 Pin, Set of 1.
Description_INV JE Pistons, Piston
Description_EXT JE, Ford, Small Block Ford, 4.145 in. Bore, 1.280 CD, Flat Top, Single Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Ford 351 Windsor, 4.145 Bore, Flat, Set of 1
Description_SHO Piston
Prop 65 (C, R or CR) CR
Wrist Pin Outer Diameter 0.927
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Piston Pin Wall Thickness 0.150
Piston Quantity 1
Piston Pin Material 5115
Engine - Web Small Block
Add-On J100F8-4145-5
Piston Pin Outside Diameter 0.927
Cylinder Head SMALL BLOCK FORD 20 DEG
Industry Automotive
Add-On 927-2750-15-51S
Make FORD
Compression Height 1.280
Add-On 927-042-CS
Ring Set Included No
Bore Diameter 4.145
Top Compression Ring Thickness 0.0640
Piston Pin Length 2.750
Piston Volume -5.00
Engine Small Block
Product Type Engine Piston
Title JE Pistons - Ford, Small Block, 4.145 in. Bore, Piston
Piston Material 2618
Engine Type ICE
Piston Average Weight 501
Product Market Domestic
Forging Type Round
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Length 2.750
Wrist Pin Wall Thickness 0.150
Out of Stock Message Call for Availability
Piston Head Type Flat
Second Compression Ring Thickness 0.0640
Piston Series JE Pistons
Title - Web JE Pistons Ford Small Block Piston - 4.145 in. Bore - 1.280 in. CH, -5.00 CC
Ringset Included No
Prop 65 Yes/No Yes
Oil Ring Thickness 0.188
Make - Web Ford
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
