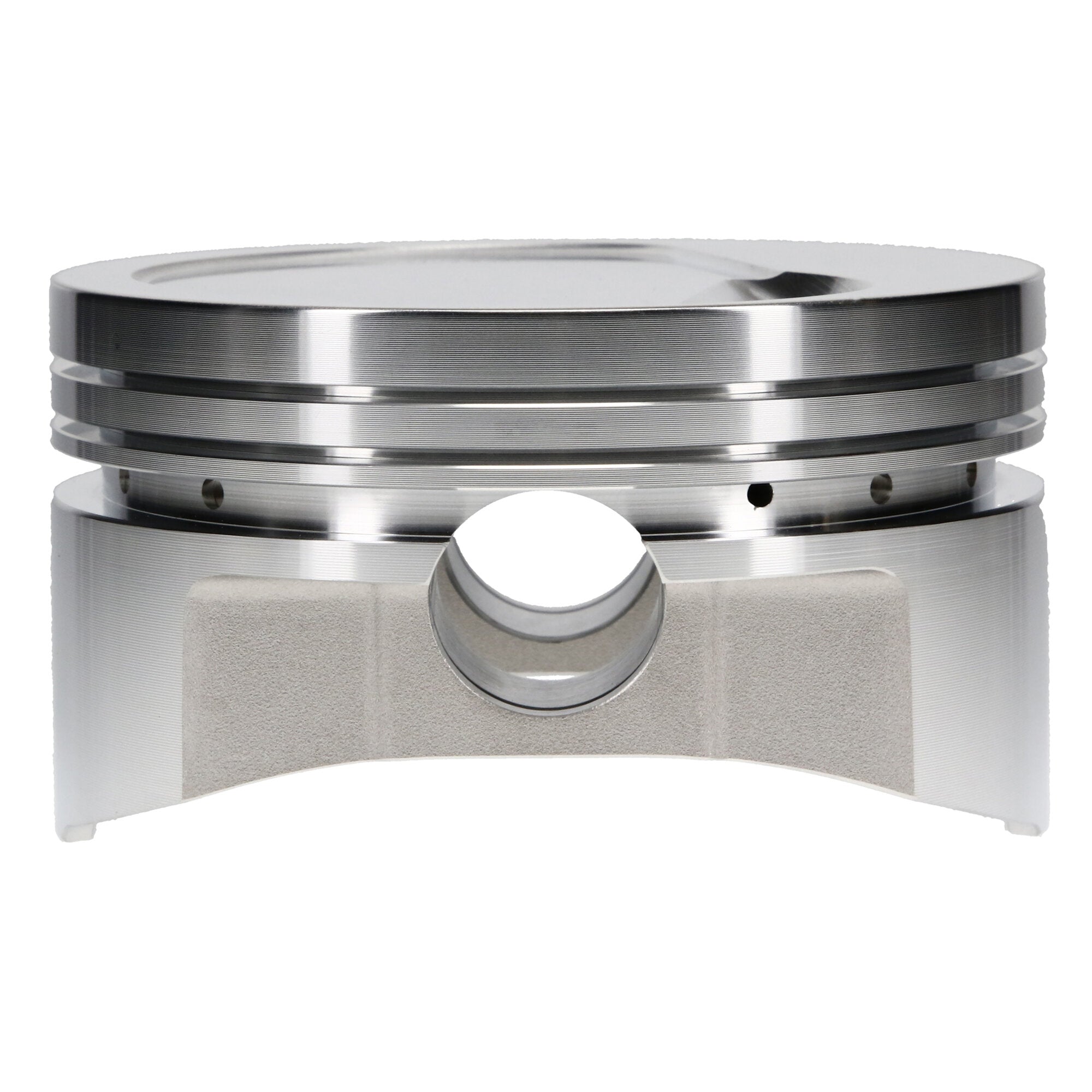

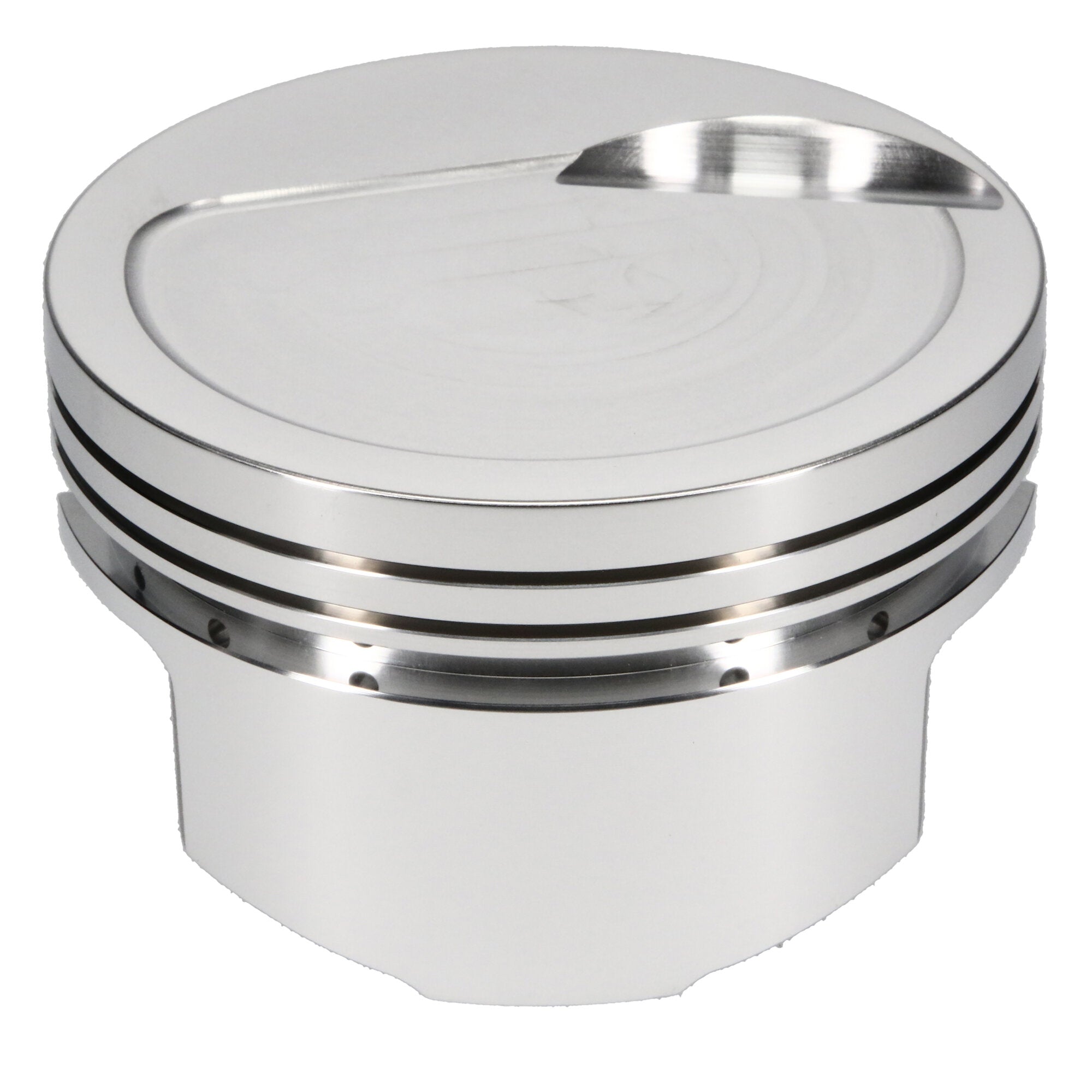

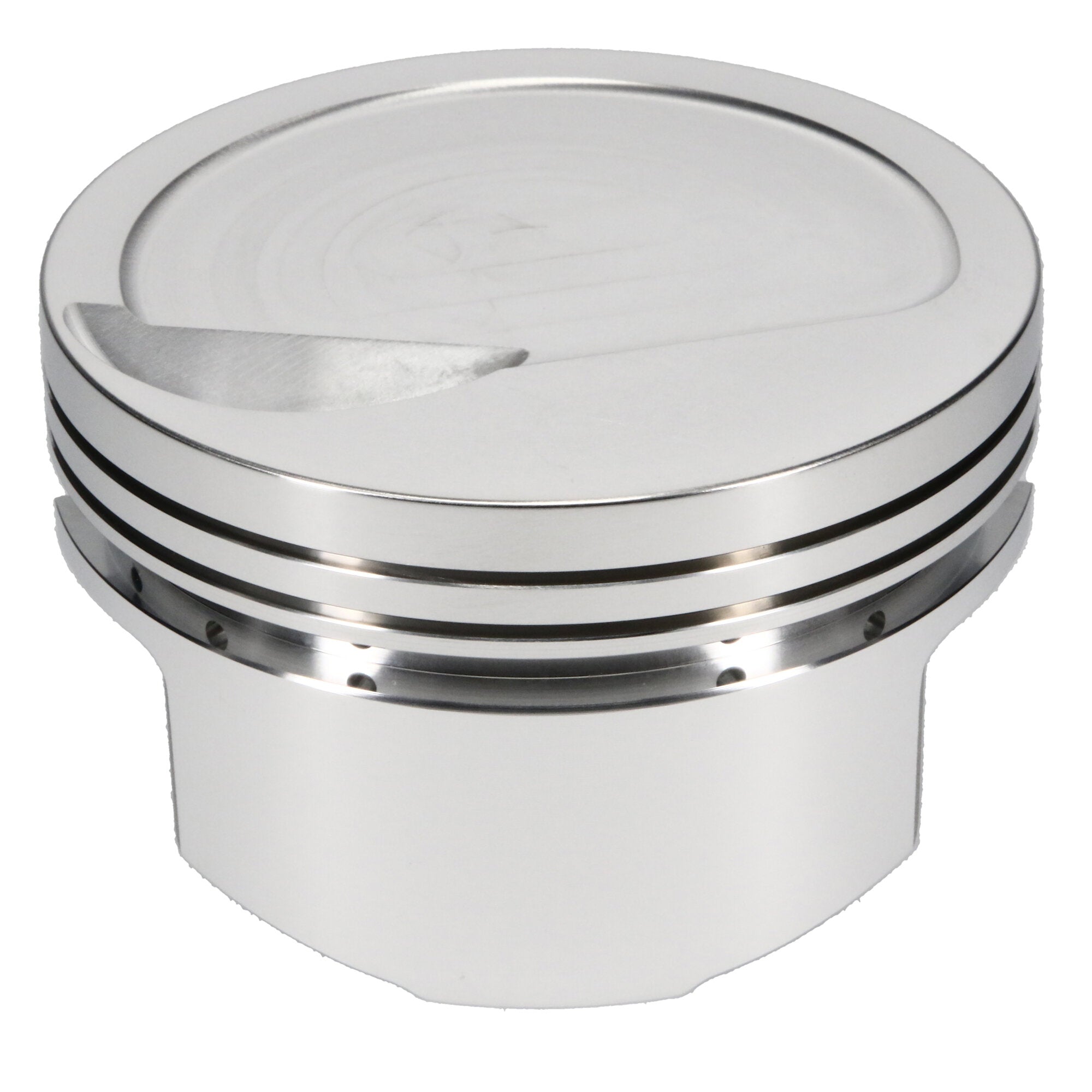

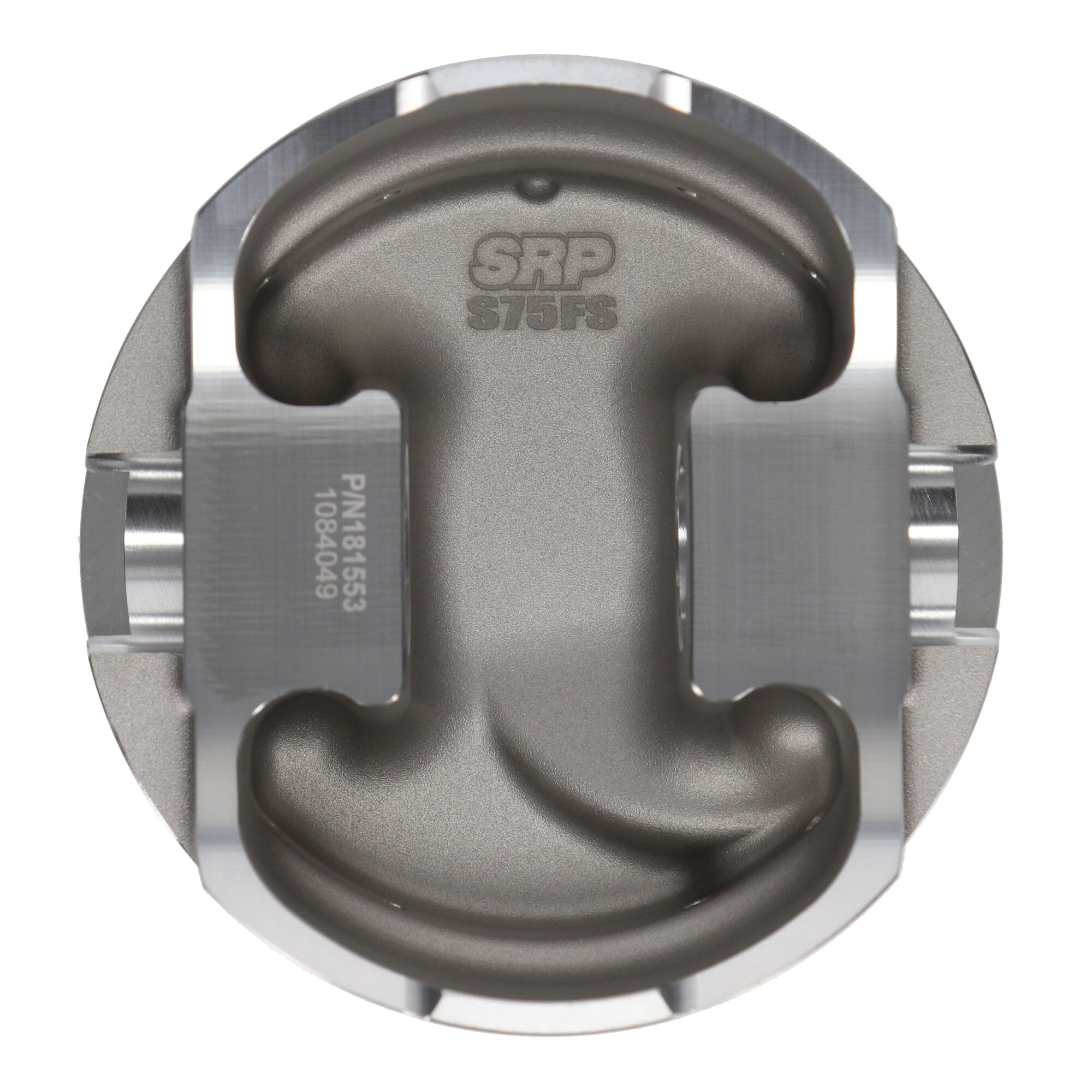

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.320 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.320 in. Bore, 1.270 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 454, 4.320 Bore, Dish, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Big Block |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.320 in. Bore - 1.270 in. CH, -9.00 CC |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
OPEN CHAMBER |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Add-On |
S100S8-4320-5 |
| Add-On |
990-2930-15-51S |
| Piston Head Type |

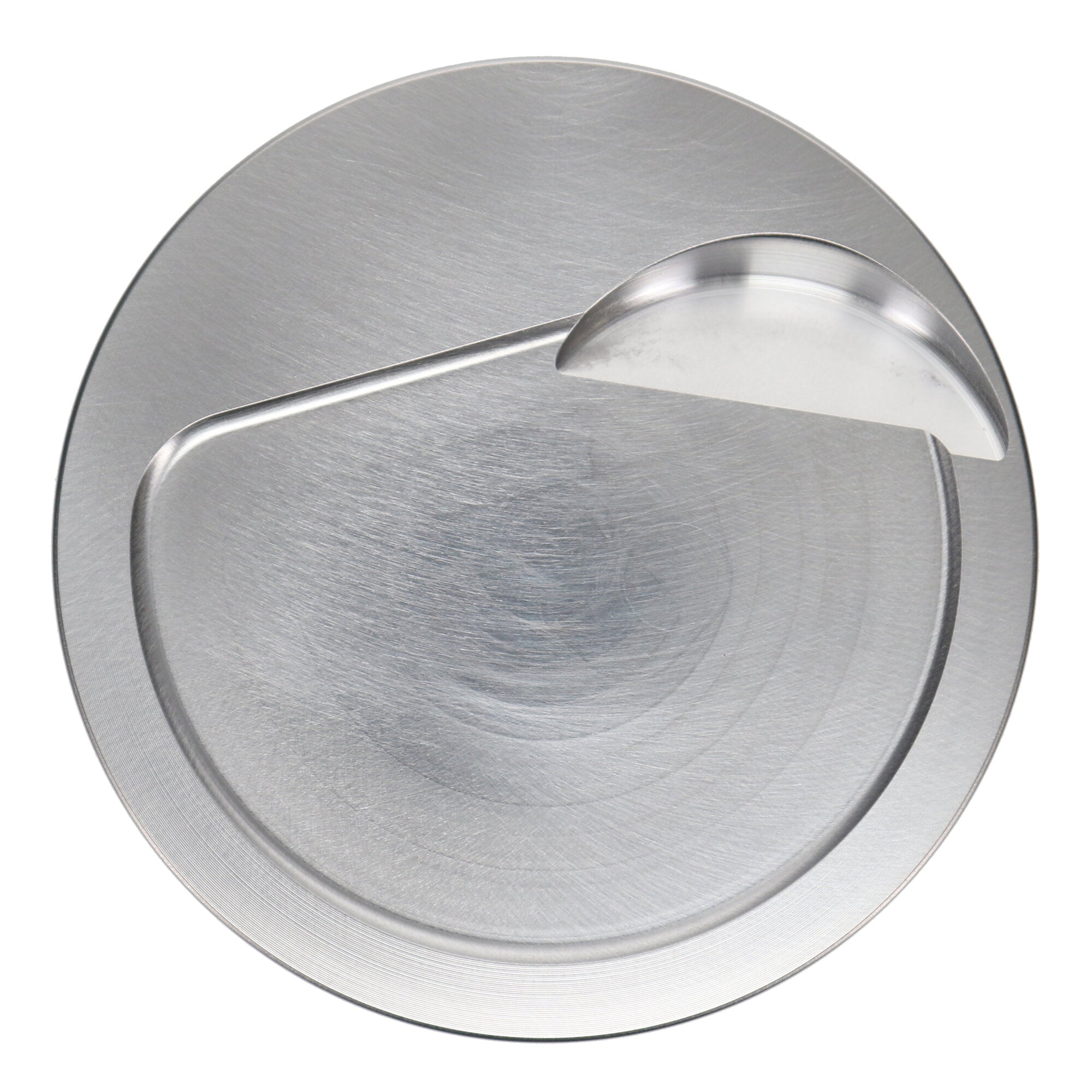

Dish |
| Piston Pin Length |
2.930 |
| Add-On |
990-042-CS |
| Industry |
Automotive |
| Piston Material |
4032 |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0640 |
| Bore Diameter |
4.320 |
| Piston Average Weight |
540 |
| Compression Height |
1.270 |
| Oil Ring Thickness |
0.218 |
| Piston Volume |
-9.00 |
| Piston Pin Material |
5115 |
| Piston Series |
SRP |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Forging Type |
FSR |
| Product Type |
Engine Piston Kit |
| Make |
CHEVROLET |
| Piston Pin Outside Diameter |
0.990 |
| Piston Pin Wall Thickness |
0.150 |
| Title |
SRP - Chevrolet, Big Block, 4.320 in. Bore, Piston Kit |
| Engine - Web |
Big Block |
| Wrist Pin Outer Diameter |
0.990 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.930 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
