Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

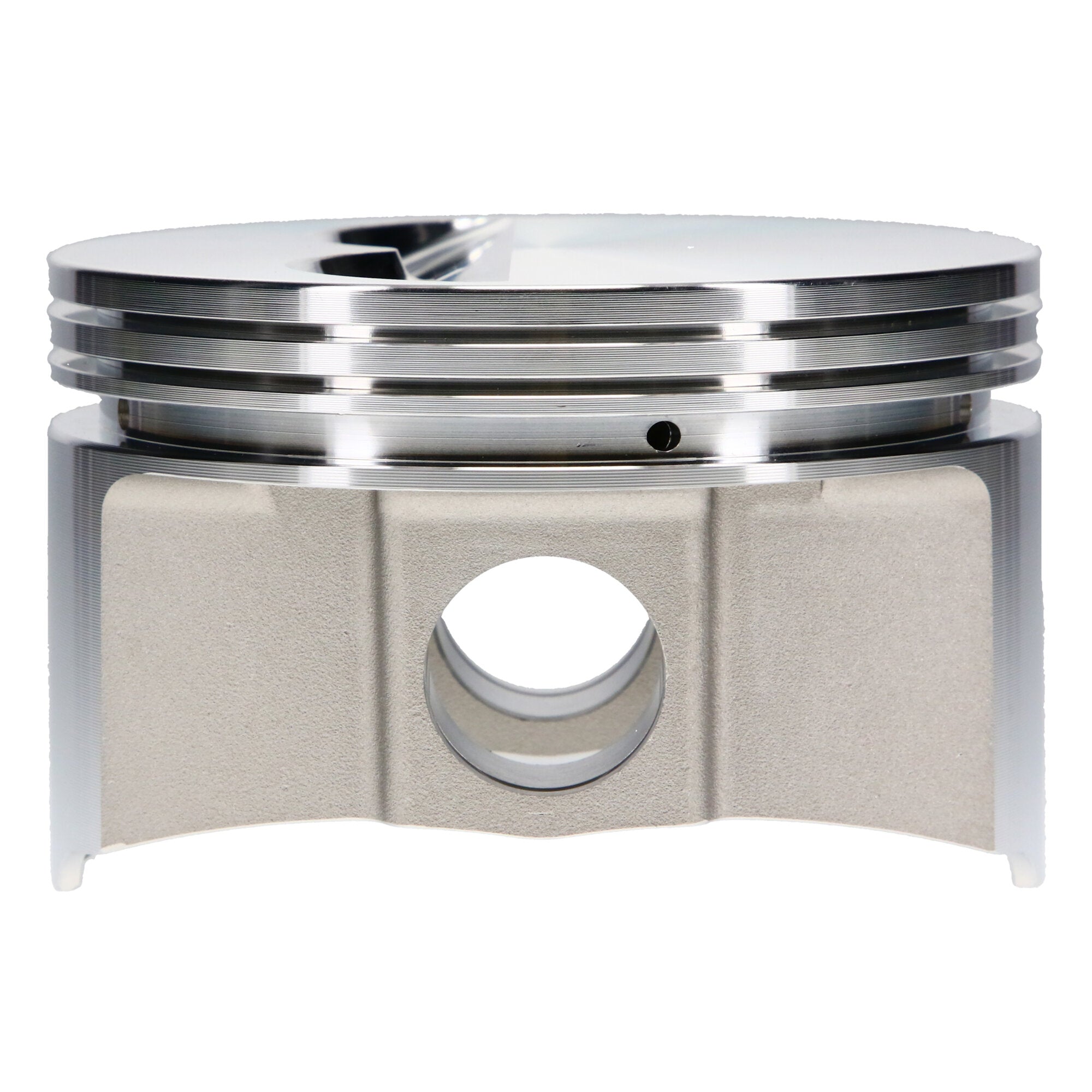

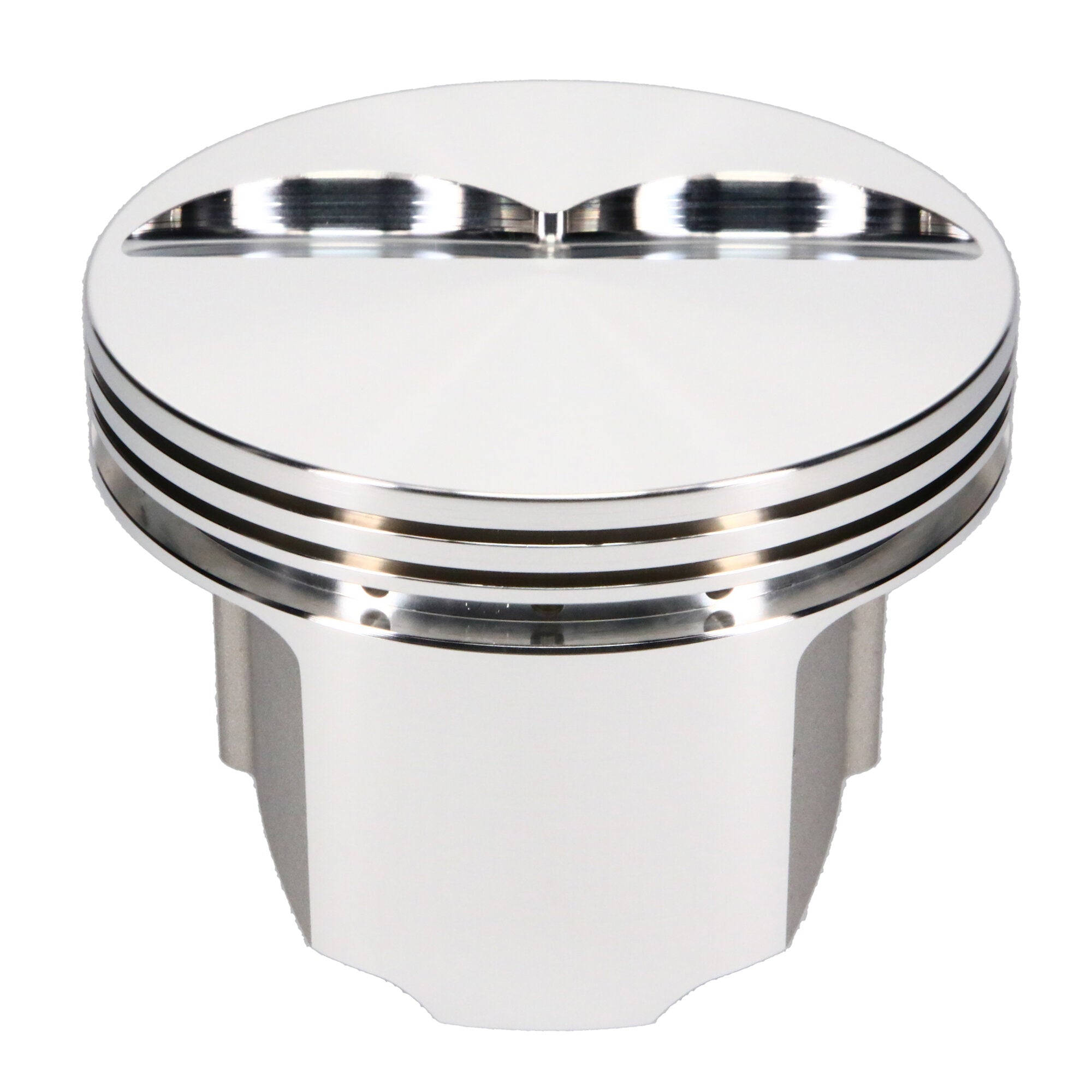

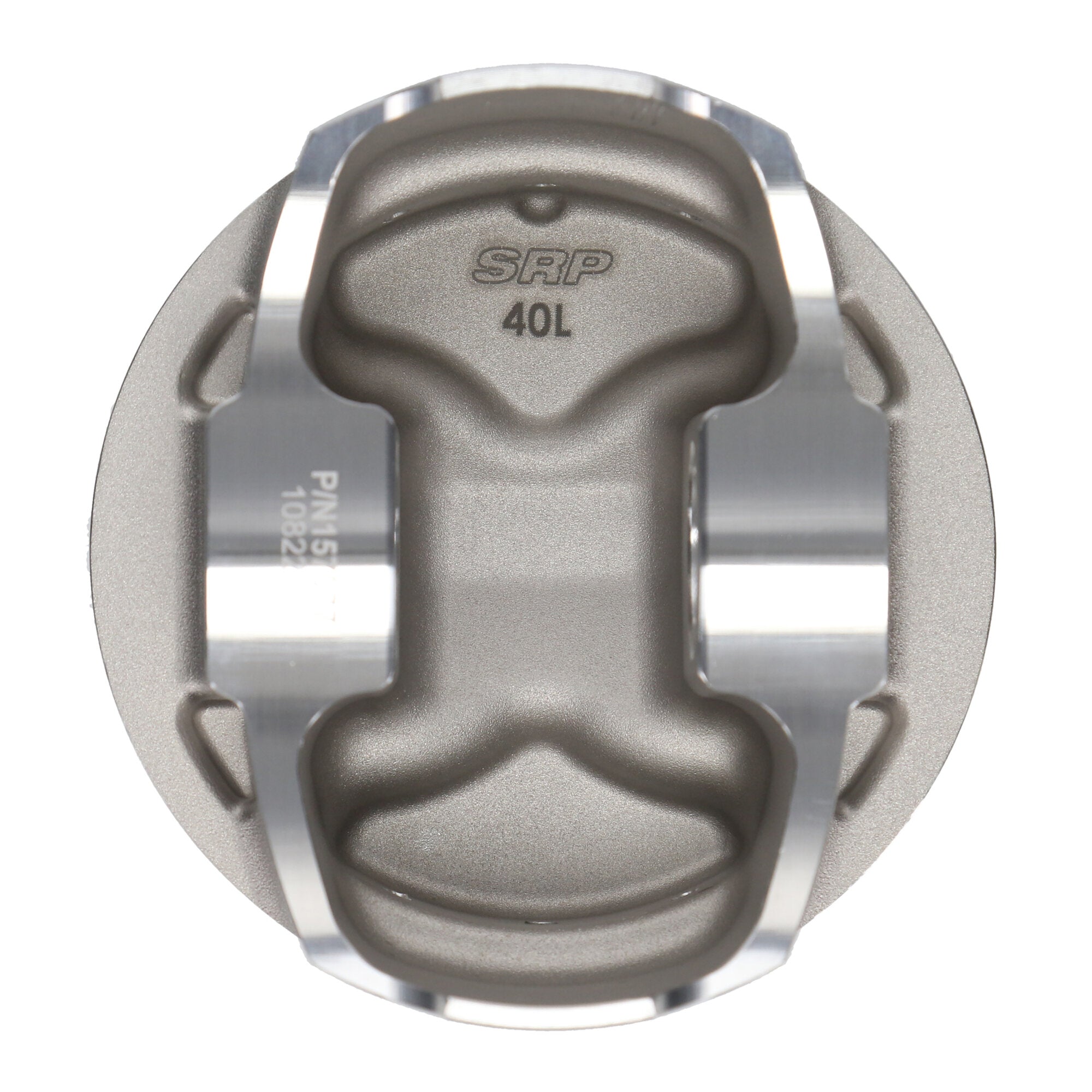

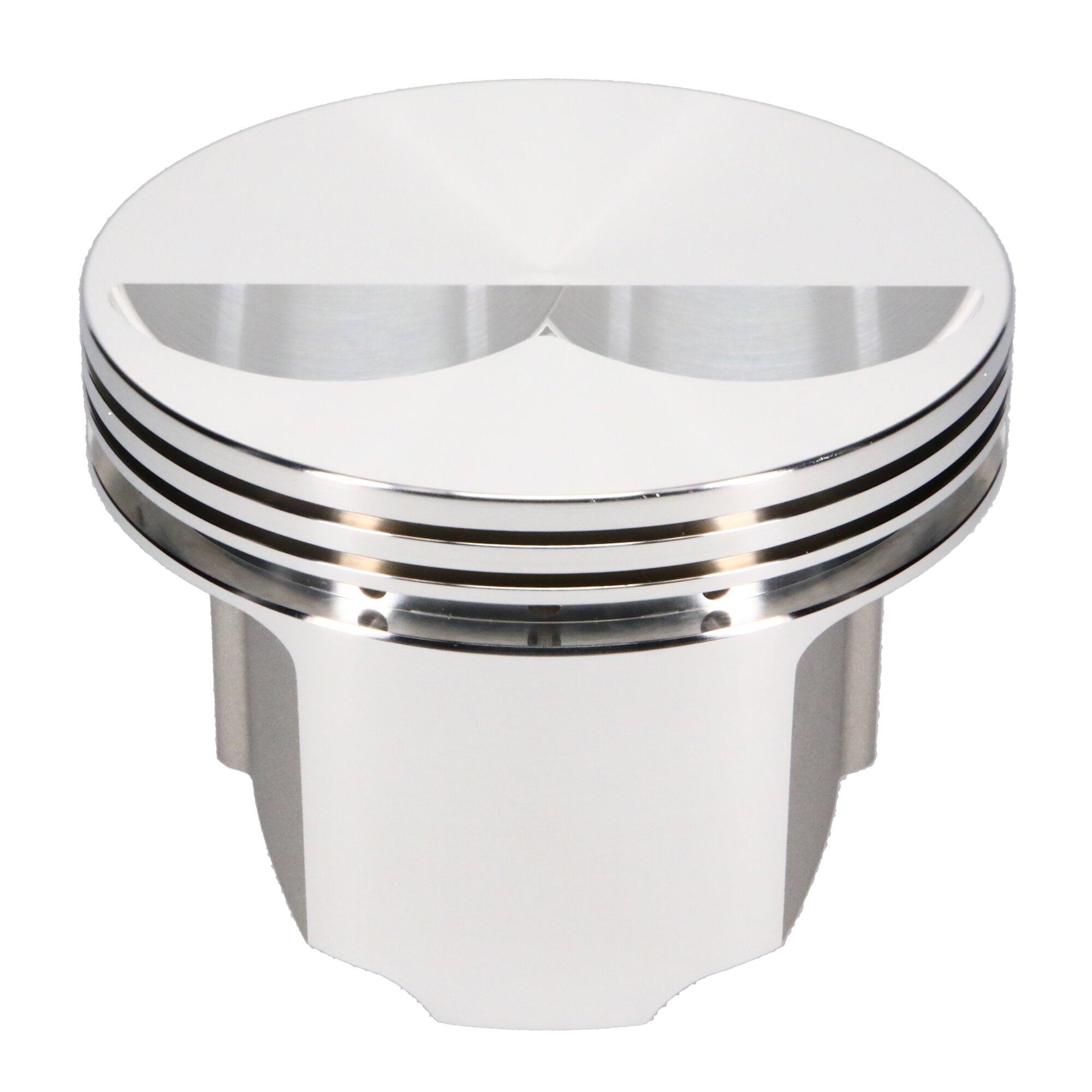

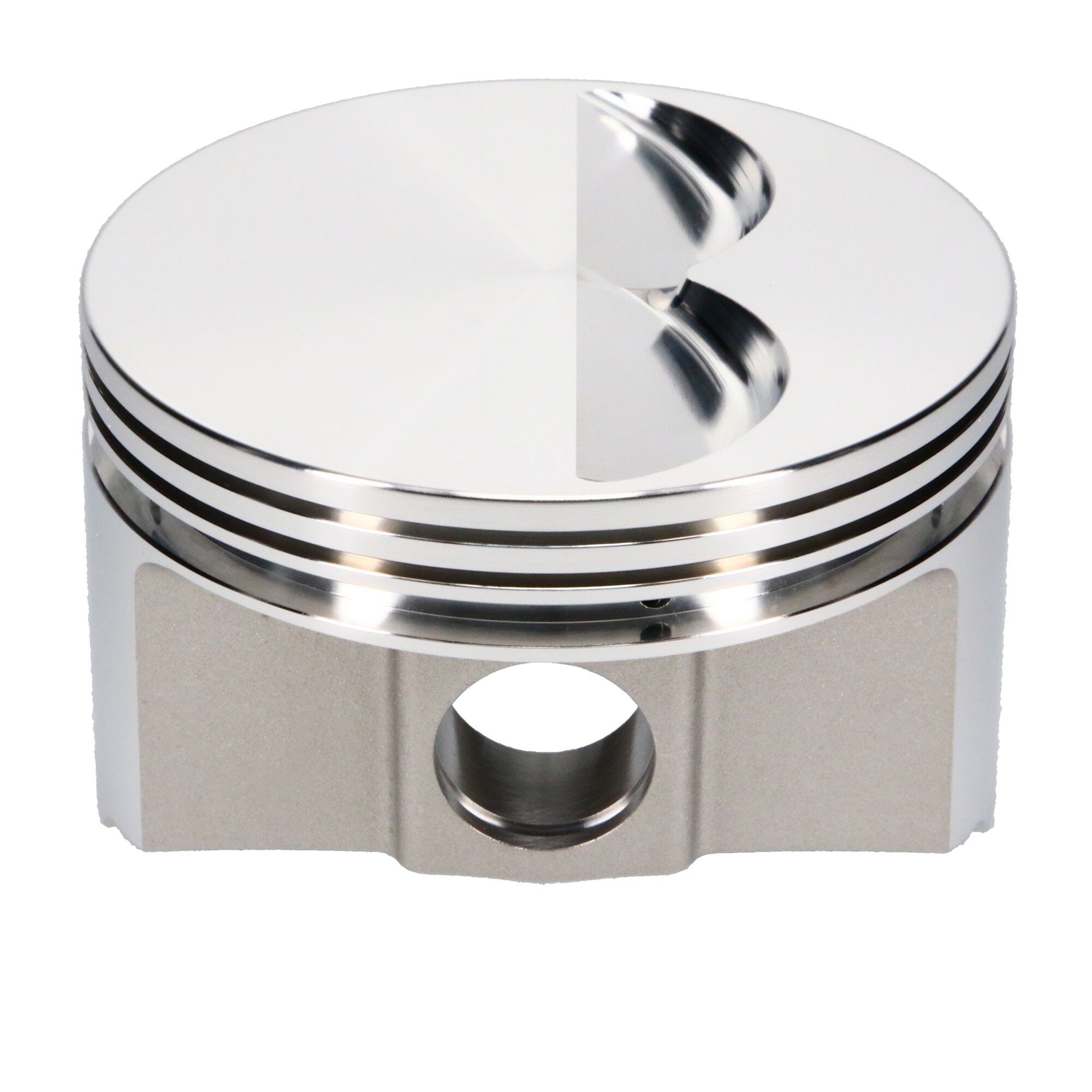

Piston Set, 4032, Flat Top, 4.010 Bore, 1.550 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.010 in. Bore, 1.550 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 350, 4.010 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Wrist Pin Outer Diameter |
0.927 |
| Forging Type |
FSR |
| Bore Diameter |
4.010 |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.188 |
| Make |
CHEVROLET |
| Piston Series |
SRP |
| Title |
SRP - Chevrolet, Small Block, 4.010 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Engine Type |
ICE |
| Piston Head Type |

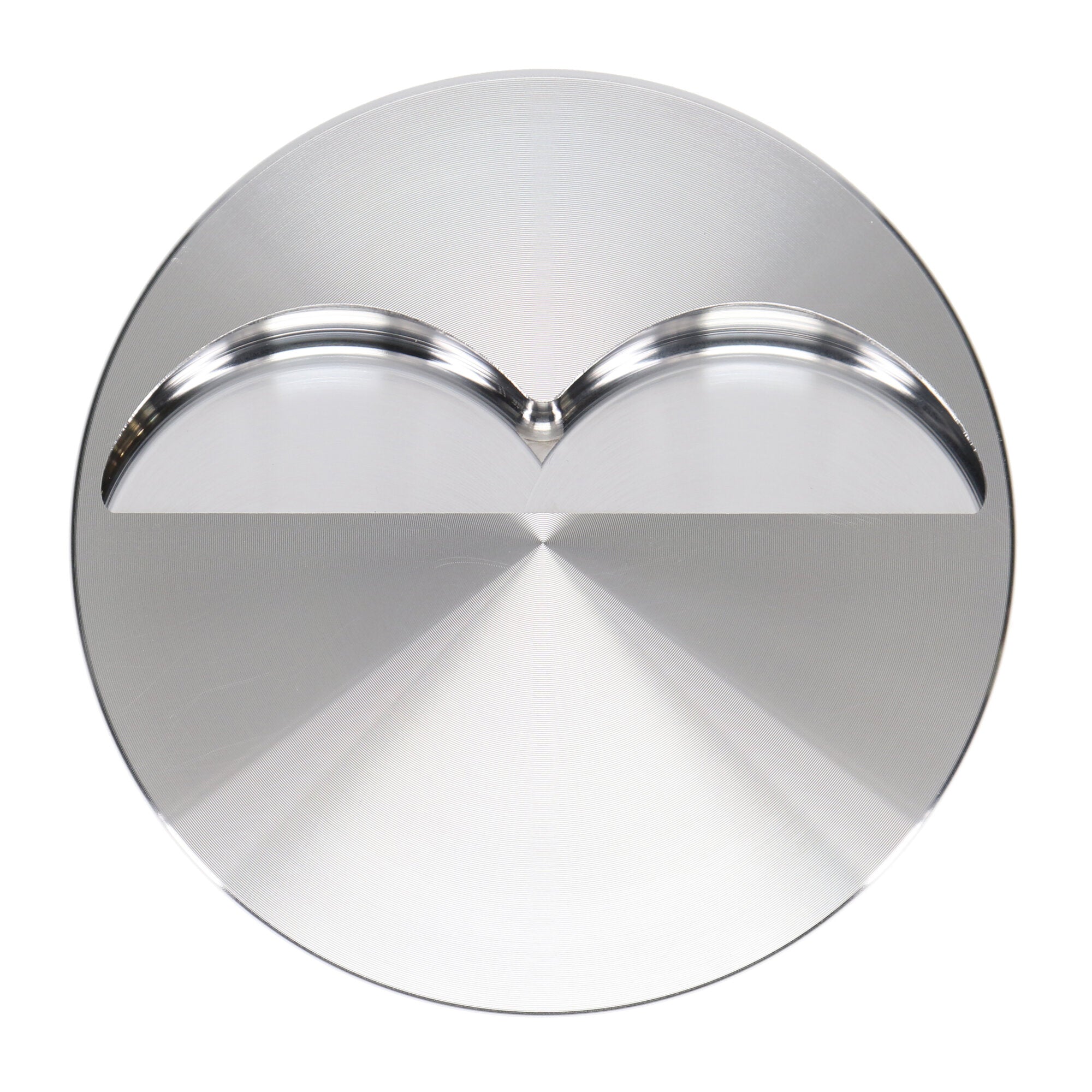

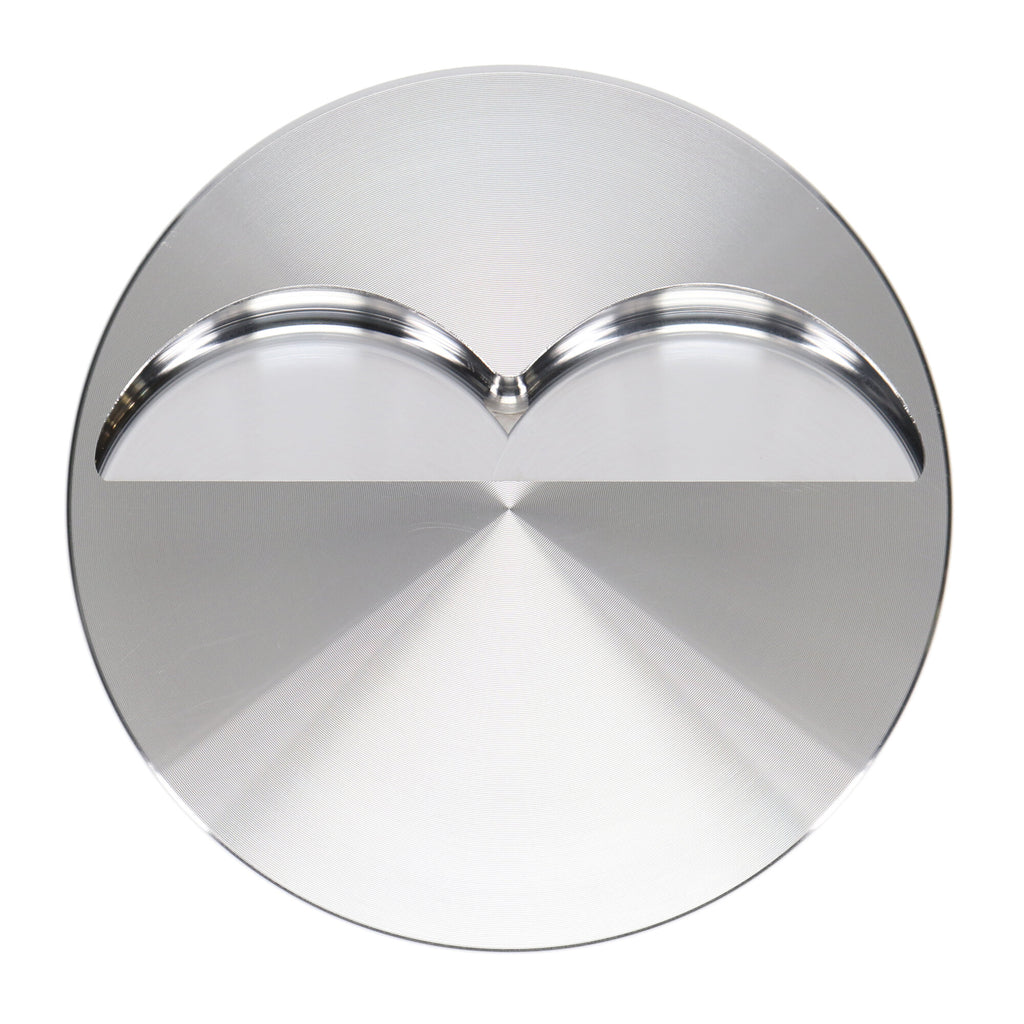

Flat |
| Compression Height |
1.550 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-2500-15-51S |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
J100F8-4010-0 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-4.00 |
| Add-On |
927-042-CS |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Top Compression Ring Thickness |
0.0640 |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.010 in. Bore - 1.550 in. CH, -4.00 CC |
| Piston Material |
4032 |
| Piston Pin Material |
5115 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.500 |
| Engine |
Small Block |
| Piston Pin Length |
2.500 |
| Ringset Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
